EICMA 2016 : Limited Edition 2017 Ducati 1299 Superleggera packs some serious fire power

|

Ducati’s Project 1408, the lightweight 1299 Superleggera, was already leaked ahead of its EICMA debut and the motorcycle almost made us review our bank balance and property value. While the complete details of the motorcycle weren’t available back then, the Italian marque has released all the information along with detailed technical specifications, official images and a video of the motorcycle in action post the 2016 EICMA unveil in Milan.

2017-DUCATI-1299-SUPERLEGGERA-4

What is the the 1299 Superleggera?

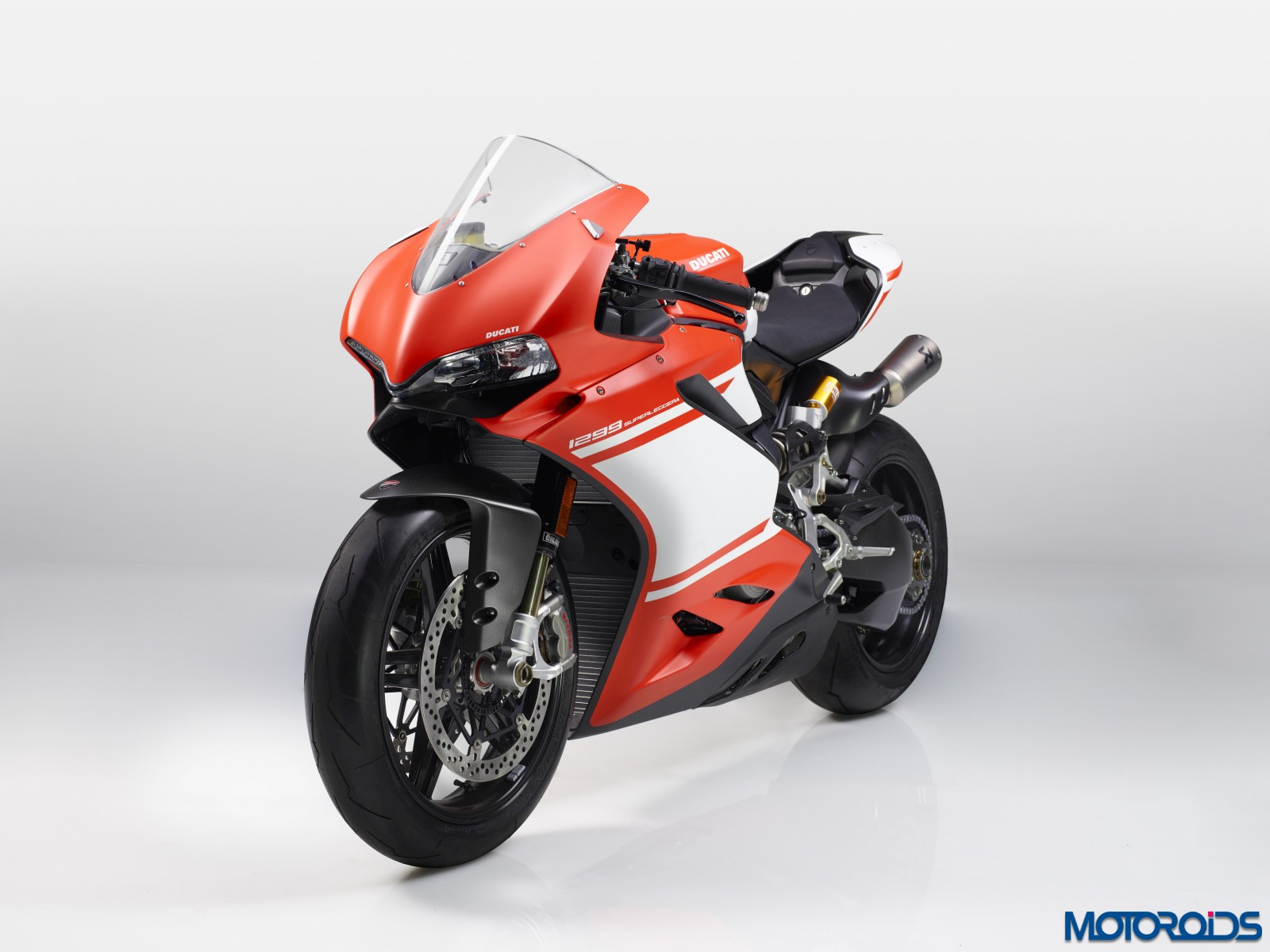

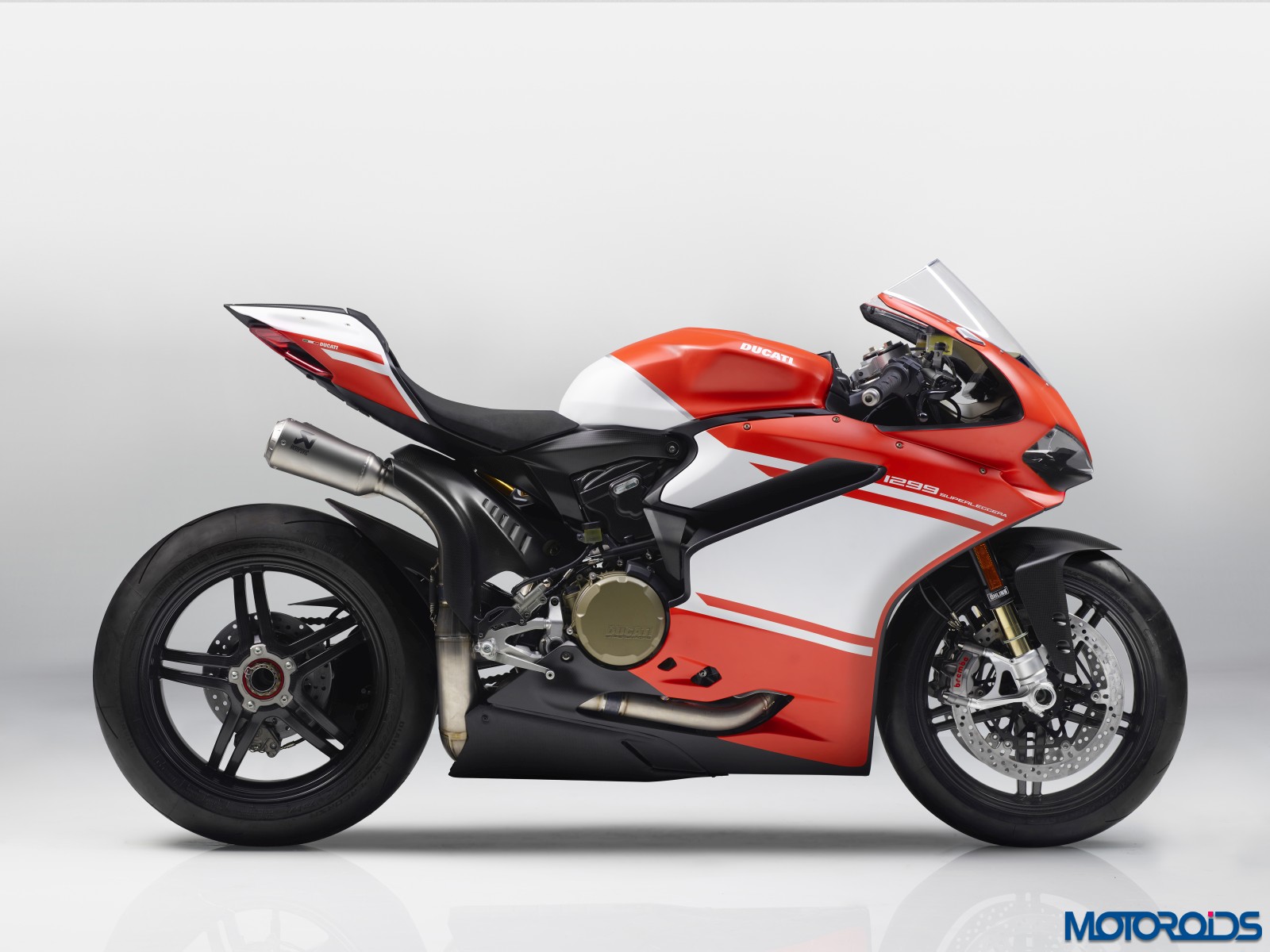

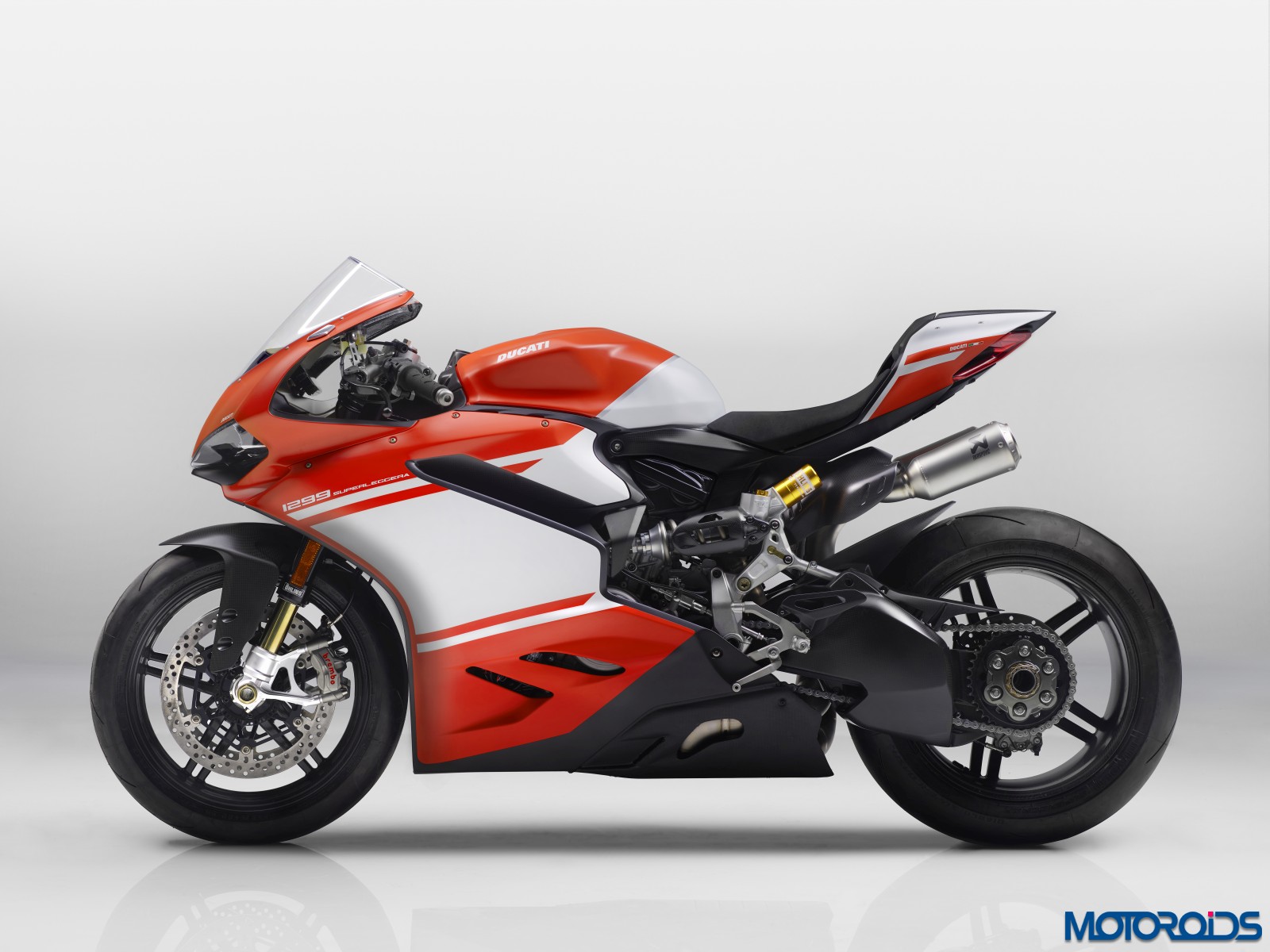

The Superleggera, which literally translates to Super Light, is the first ever factory bike to be equipped with a carbon fibre frame, swingarm, subframe and wheels. The 1299 Superleggera is a gem of engineering, technology and performance. It’s super lightweight, it’s frighteningly powerful and stunningly beautiful. The fairing – also made of carbon fibre – is another key element which gives the motorcycle such light weight, tipping the scale at 156 kg (dry) and 167 kg (kerb).

2017-DUCATI-1299-SUPERLEGGERA-1

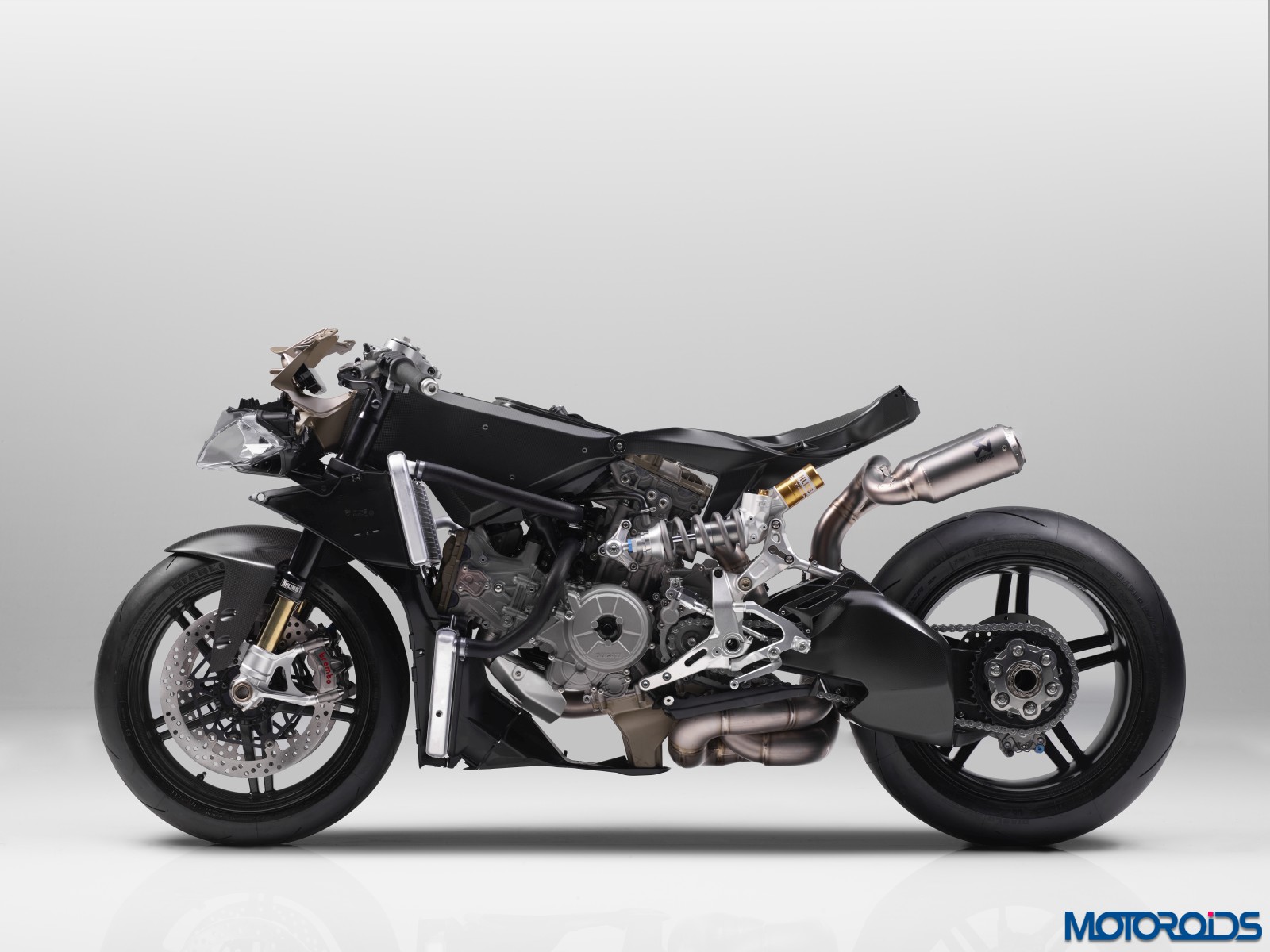

That’s it with the light weight part. Here’s what rests underneath that carbon fibre skin. The 1299 Superleggera gets the highest-performing version of the Superquadro. Thanks to its 215 hp, the desmodromic engine on the 1299 Superleggera is the most powerful factory twin-cylinder ever built. lightweight body and that serious fire power gives the motorcycle a Herculean power-to-weight ratio.

2017-ducati-1299-superleggera-6

Making sure you stay fit as a fiddle for the next ride is the new electronics package which uses a 6-axis Inertial Measurement Unit (6D IMU) to manage the incomparable array of electronic controls. This system has allowed the engineers at Ducati to improve the Ducati Traction Control EVO (DTC EVO) presented on the 1299 Panigale S Anniversario thanks to the introduction of Ducati Slide Control (DSC), which ensures even higher out-of-the-corner performance. The 1299 Superleggera is also the first ever Ducati Superbike to be equipped with Ducati Power Launch (DPL) and also features the Engine Brake Control (EBC) seen on previous versions.

2017-DUCATI-1299-SUPERLEGGERA-2

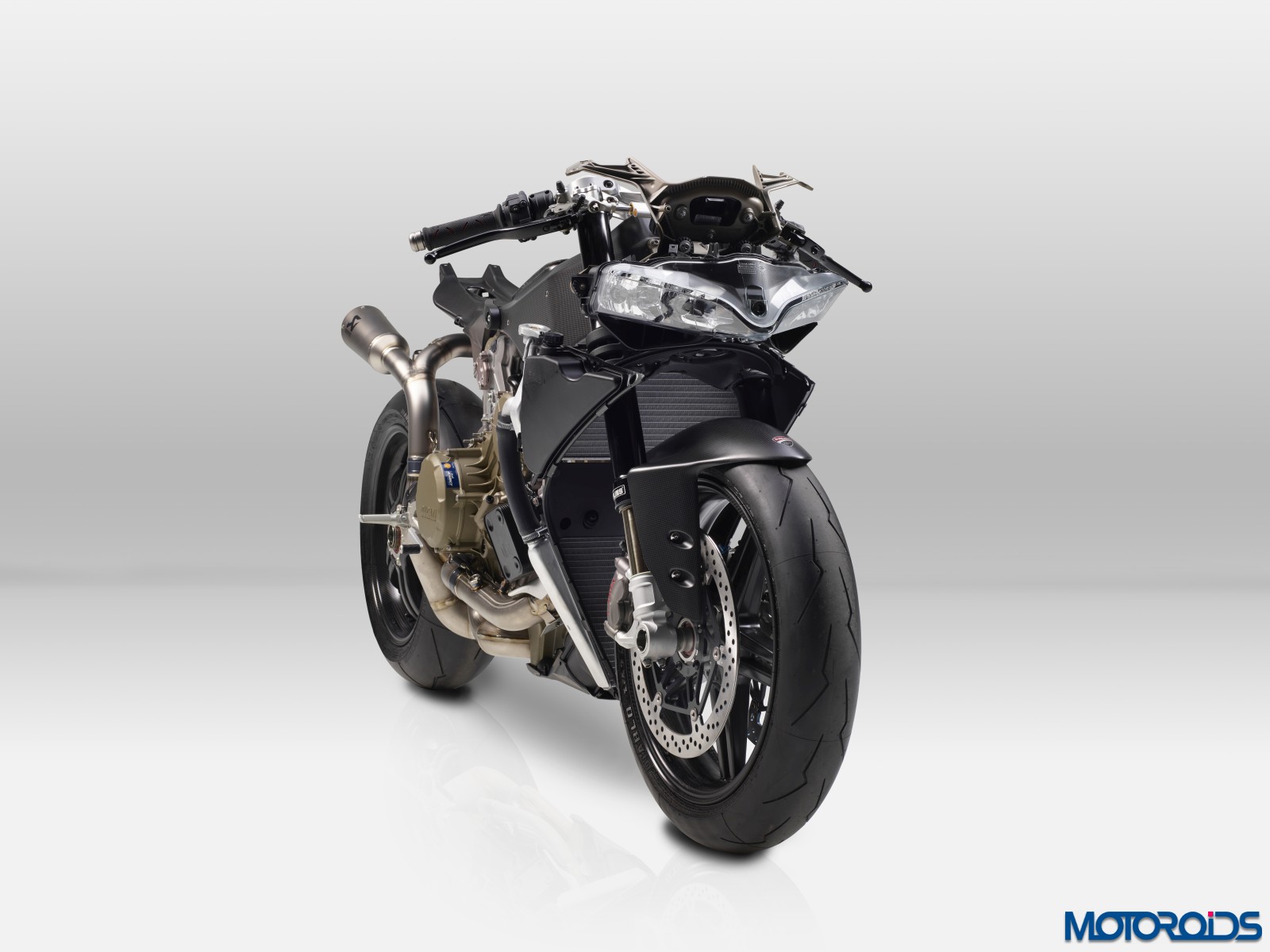

The explosive performance is also kept under under control with a newly calibrated Bosch Cornering ABS system that ensures matchless braking in complete safety. The production of the 1299 Superleggera will be limited to only 500 units. Together with the motorcycle, purchasers get a track kit which includes a complete Akrapovič titanium racing exhaust, a racing screen, plate holder removal kit, kickstand removal kit, machined-from-solid mirror replacement plugs, front and rear paddock stands and a bike cover.

2017-ducati-1299-superleggera-8

Checkout this engineering marvel shred some rubber around the track in the video below:

Meet the Ducati 1299 Superleggera at a glance:

Frame

  • Carbon fibre monocoque
  • Carbon fibre single-sided swingarm
  • Carbon fibre wheels with aluminium hubs
  • Carbon fibre rear subframe
  • Aluminium tank
  • Carbon fibre fairing
  • Multi-adjustable Öhlins FL936 upside down 43 mm fork
  • Multi-adjustable Öhlins TTX36 shock absorber with titanium spring
  • Brembo MCS 19.21 radial front pump
  • Brembo TT29OP1 brake pads with increased friction coefficient
  • ID number on top yoke: 1/500

Engine

  • Superquadro engine with 215 hp at 11,000 rpm and 14.9 kgm at 9,000 rpm
  • 2-segment pistons with a diameter of 116 mm to boost the compression ratio and aluminium cylinder liners to reduce weight
  • Lighter crankshaft with tungsten balancing pads
  • Titanium con rods
  • Sand-cast crankcase
  • Increased-diameter titanium intake and exhaust valves
  • Cylinder head with specially developed intake and exhaust ducts
  • Camshafts with increased lift
  • Complete all-titanium Akrapovič exhaust with high-mount dual silencer*

Electronics

  • 6D Inertial Measurement Unit (IMU) by Bosch
  • Ducati Traction Control EVO (DTC EVO)
  • Ducati Slide Control (DSC)
  • Ducati Wheelie Control EVO (DWC EVO)
  • Engine Brake Control (EBC)
  • Bosch Cornering ABS
  • Ducati Power Launch (DPL)
  • Ducati Quick Shift (DQS) up/down
  • Dedicated switchgear controls to adjust DTC, DSC, DWC and EBC during on-track use ad DPL activation
  • Ducati Data Analyser + (DDA+)
  • Lithium-ion battery

Race Kit

  • Complete titanium Akrapovič racing exhaust with high dual silencer*
  • Bike cover
  • Front and rear paddock stand
  • Plate holder removal kit
  • Racing screen
  • Kickstand removal kit
  • Machined-from solid mirror replacement plugs

*Country specific

Check out the complete specifications of the the new, limited edition Ducati 1299 Superleggera.

Engine
EngineSuperquadro: L-twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled
Displacement1,285 cc
Bore X Stroke116 x 60.8 mm
Compression Ratio13.0:1
Power158.1 kW (215 hp) @ 11,000 rpm
Torque146.5 Nm (108.0 lb-ft) @ 9,000 rpm
Fuel InjectionMitsubishi electronic fuel injection system. Twin injectors per cylinder. Full Ride-by-Wire elliptical throttle bodies with aerodynamic valve and optimized trumpets
Exhaust2-1-2 system, primary tubes in titanium. Twin titanium mufflers. 2 lambda probes and 2 catalytic converters
Transmission
Gearbox6 speed with Ducati Quick Shift (DQS) up/down
Primary DriveStraight cut gears; Ratio 1.77:1
Ratio1=37/15

2=30/16

3=27/18

4=25/20

5=24/22

6=23/24

Final DriveChain; Front sprocket 15; Rear sprocket 39
ClutchHydraulically controlled slipper/self-servo wet multiplate clutch
Chassis
FrameMonocoque in carbon fiber
Front SuspensionFully adjustable 43mm USD Öhlins FL 936 fork with TiN treatment, billet fork bottoms and lightweight stress-optimized outer tubes, lightweight springs
Front Wheel10-spoke carbon fiber 3.50″ x 17″
Front TyrePirelli Diablo Supercorsa SP 120/70 ZR17
Rear SuspensionFully adjustable single Öhlins TTX36 shock with titanium spring, adjustable linkage between progressive/flat. Carbon fiber single-sided swingarm
Rear Wheel10 spokes carbon fiber 6.00” x 17”
Rear TyrePirelli Diablo Supercorsa SP 200/55 ZR17
Wheel Travel (Front/Rear)120 mm (4.7 in) – 130 mm (5.1 in)
Front Brake2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Evo M50 4-piston callipers with Cornering ABS, Brembo MCS 19-21 adjustable-ratio front brake master cylinder, remote lever adjuster
Rear Brake245 mm disc, 2-piston calliper with Cornering ABS
InstrumentationColour TFT display
Dimensions and Weights
Dry Weight156 kg (343.9 lb) *
Kerb Weight167 kg (368.2 lb) *
Seat Height830 mm (32.48 in)
Wheelbase1.456 mm (57.32 in)
Rake24°
Front Wheel Trail98 mm (3.86 in)
Fuel Tank Capacity17 l – 4.5 gallon (US)
Number of SeatsSingle seat
Equipment
Standard EquipmentRiding Modes, Power Modes, ABS cornering, DTC, DWC, DSC, DPL, DQS u/d, EBC, DDA+ w/GPS module, Fully RbW. Rapid setting DTC, DWC, DSC, EBC
Additional equipmentTrack Kit: Titanium racing exhaust, racing windshield, machined mirror block-off plates, license plate mount removal plug, side-stand removal kit, front and rear paddock stands, paddock bike cover
Warranty
Warranty (months)24 months unlimited mileage
Maintenance (km/months)12,000 km (7,500 mi) / 12 months
Valve clearance adjustment (km)24,000 km (15,000 mi) – street use
Emissions
StandardEuro 4*
