CONCLUSION

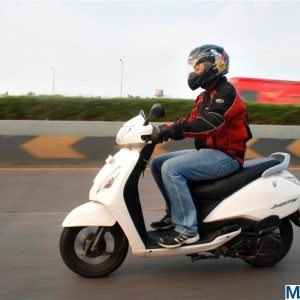

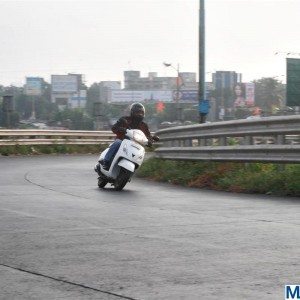

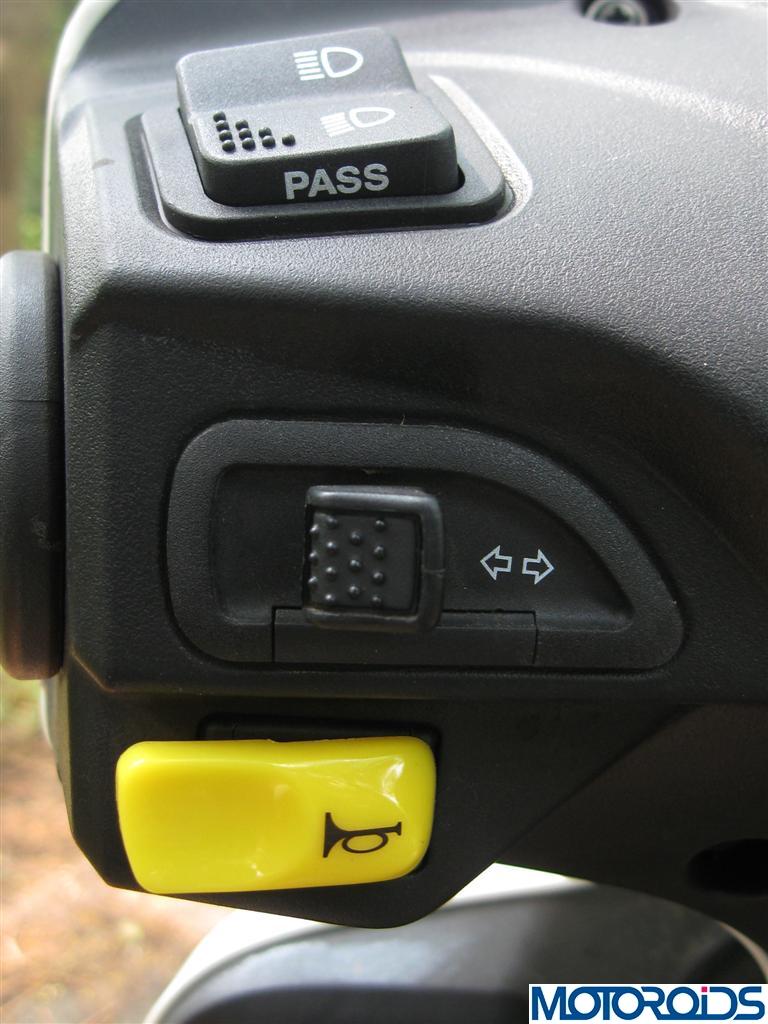

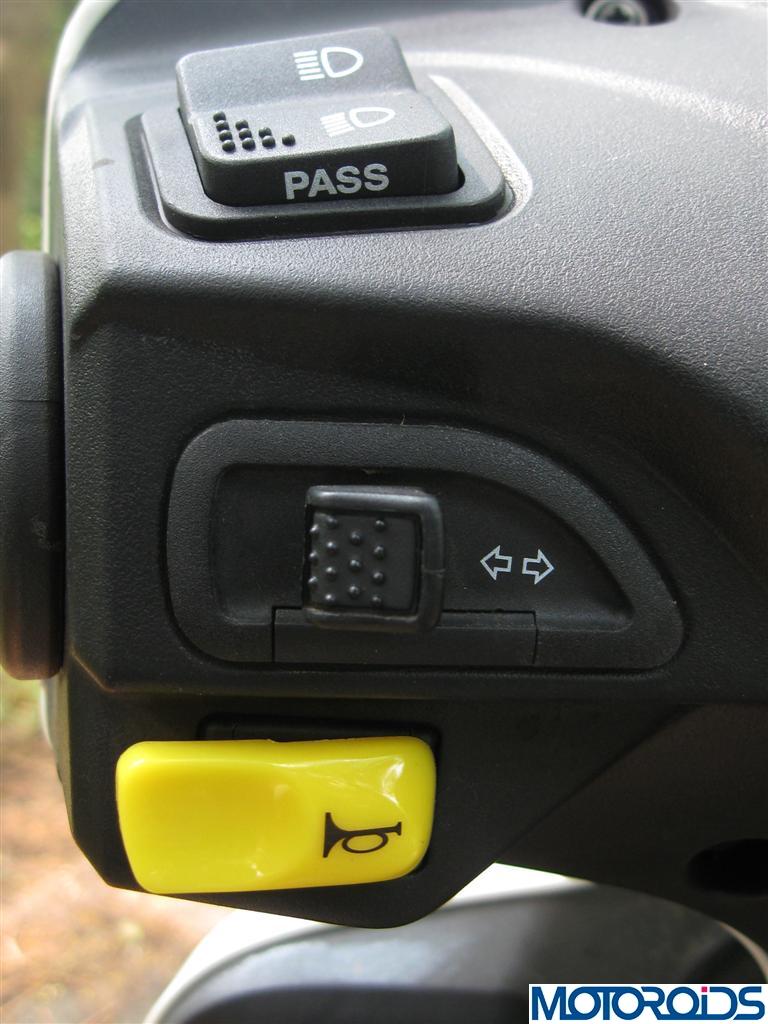

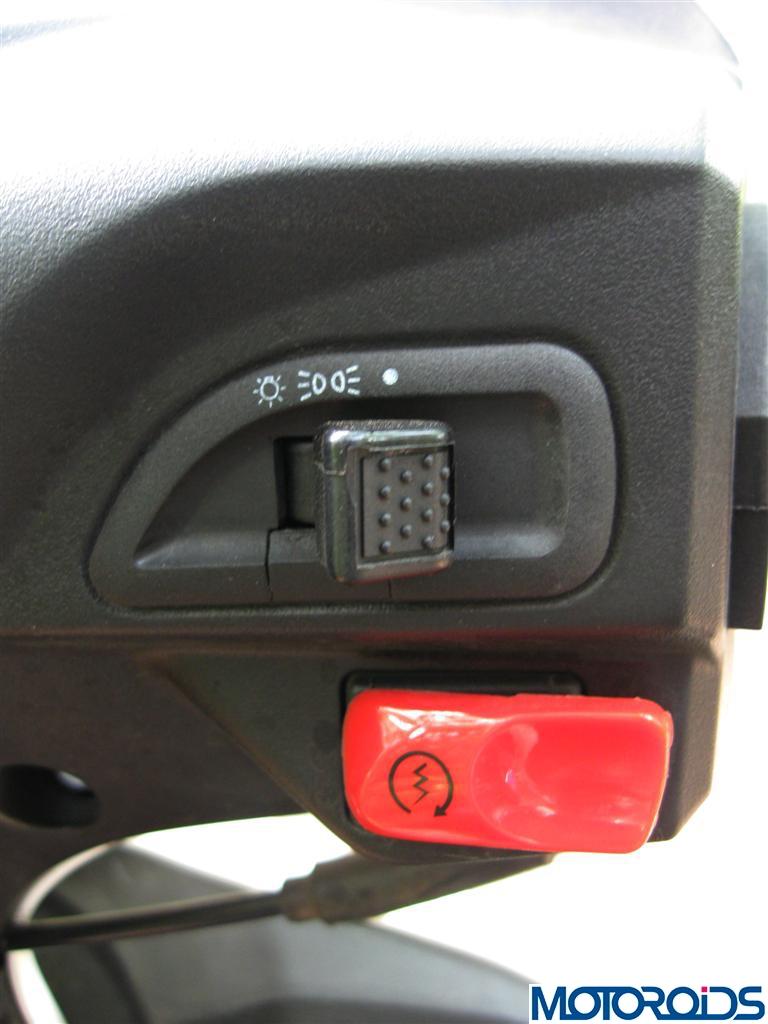

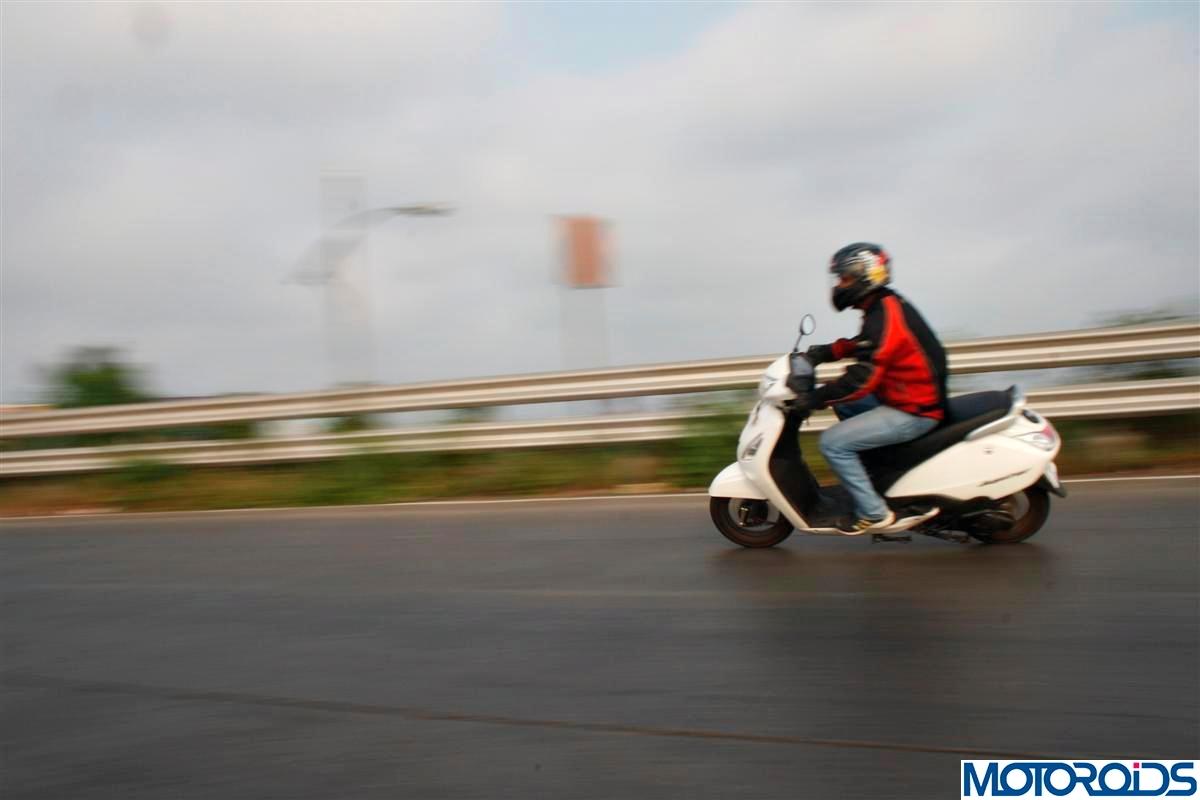

Overall the Jupiter managed to impress us with its excellent build quality and clever set of features. The engine feels strong considering it showed no signs of panting even when put to prolonged high speed runs- both riding solo and two up, while at the same time returning healthy mileage figures. The suspension feels great for everyday riding and our pillion was all praises until we negotiated the crater ridden obscenity of one Aarey Milk Colony in Mumbai. Summing it up, in the Jupiter, TVS has created a product which measures up with its international competition in every department. In plastic and switchgear quality, it even outclasses them.

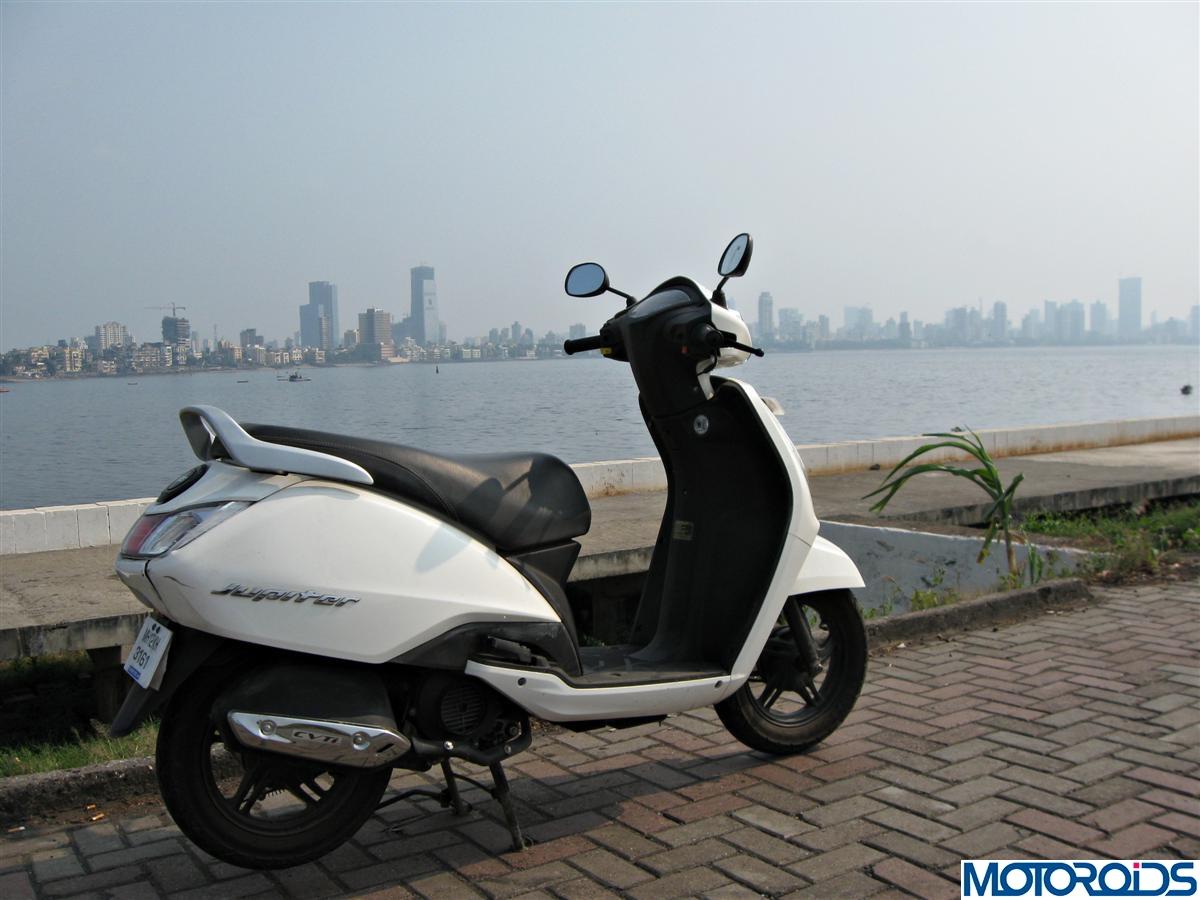

The TVS Jupiter, then, is a must look-at option if you’re willing to a buy a big scoot for yourself. A truly competent product from a truly competent company.
SPECIFICATIONS
| ENGINE | |
| Type | 4 Stroke,Single cylinder,Air Cooled,OHC |
| Displacement | 109.7cc |
| Maximum Power | 5.88 KW @ 7500 rpm |
| Maximum Torque | 8Nm @ 5500 rpm |
| Starting | Electric & Kick Start |

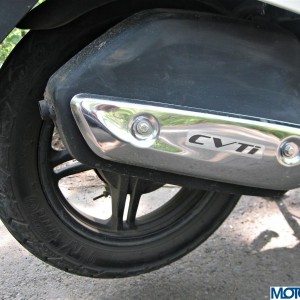

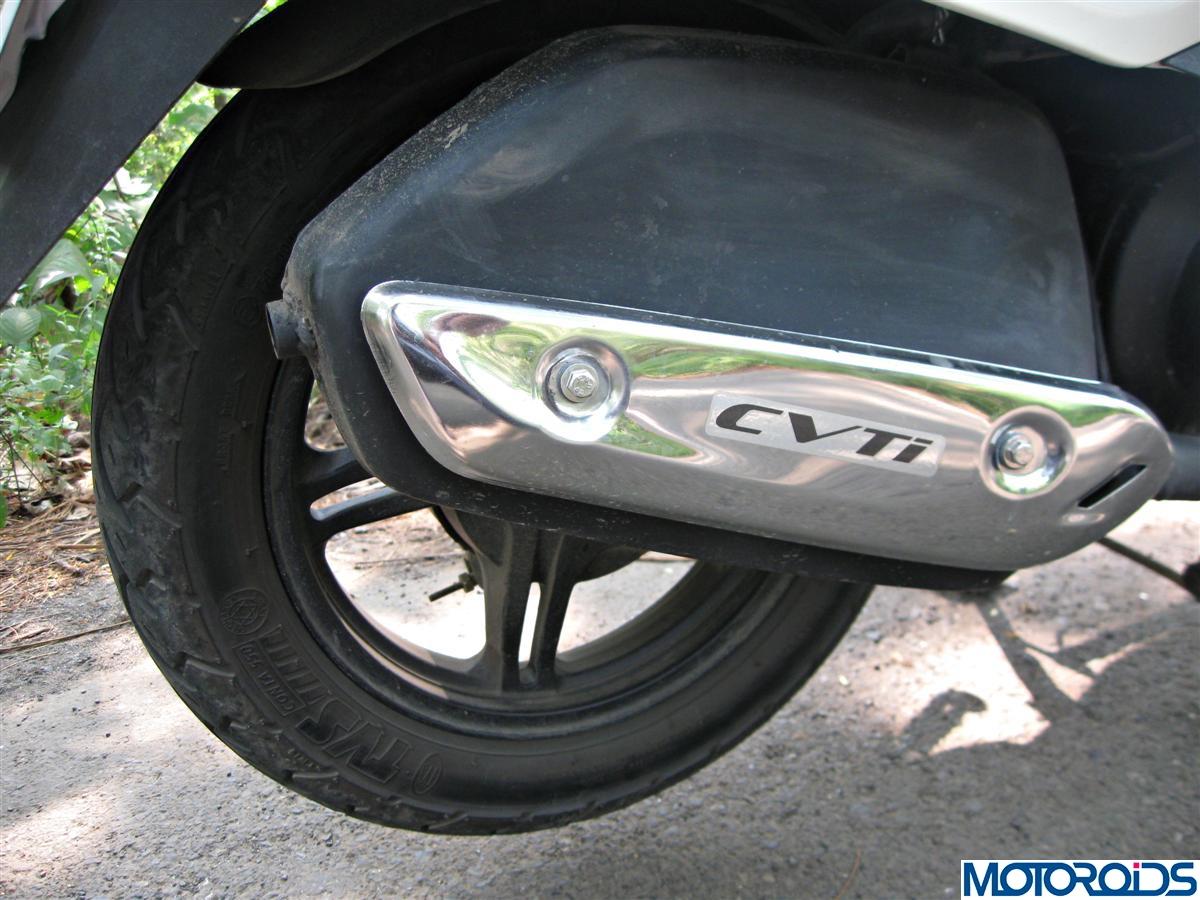

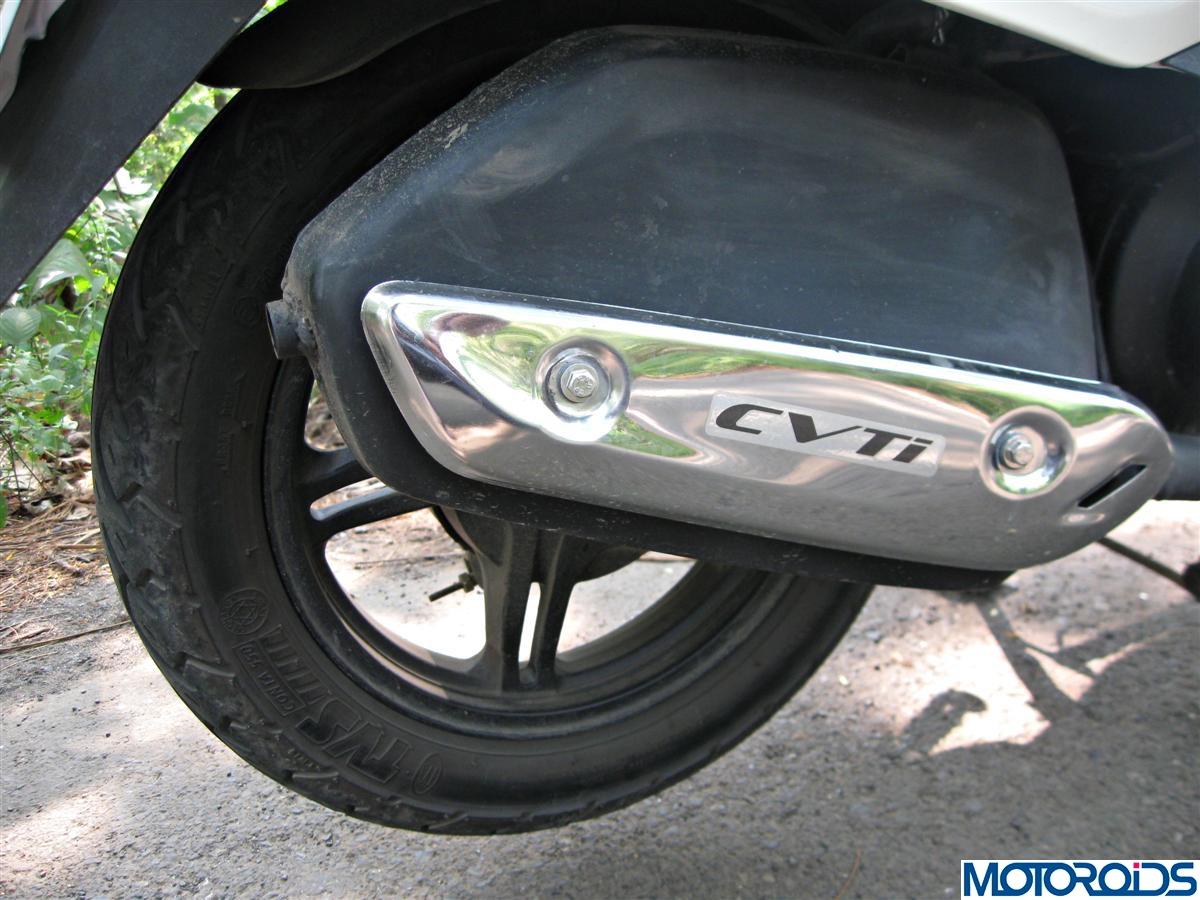

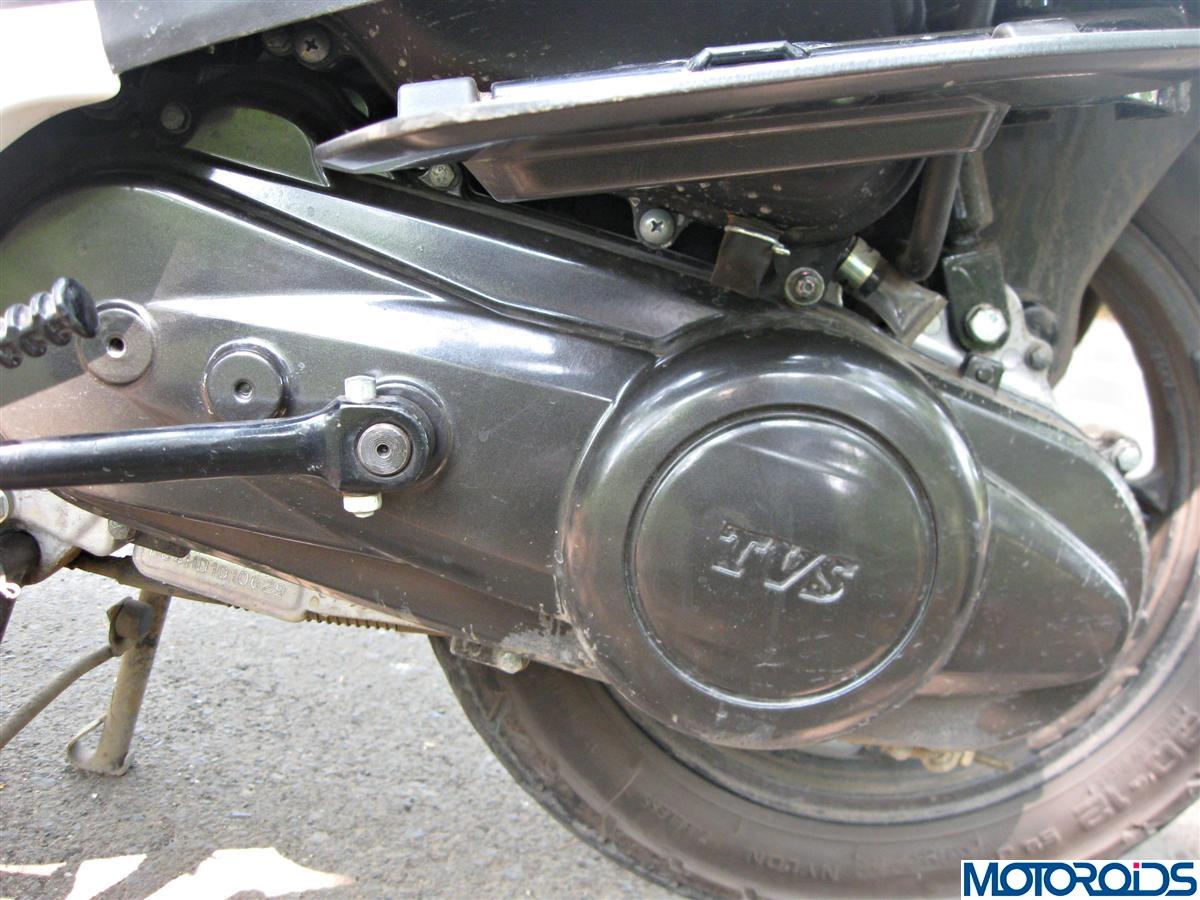

| Transmission | Primary CVT & Secondary Gear Box |
| Ignition | Digital IDI with Ignition Map Technology |
| CHASSIS | |
| Frame | High Rigidity Underbone Type |
| Dimensions(l x b x h) | 1834 x 650 x 1115 mm |
| Wheelbase | 1275mm |

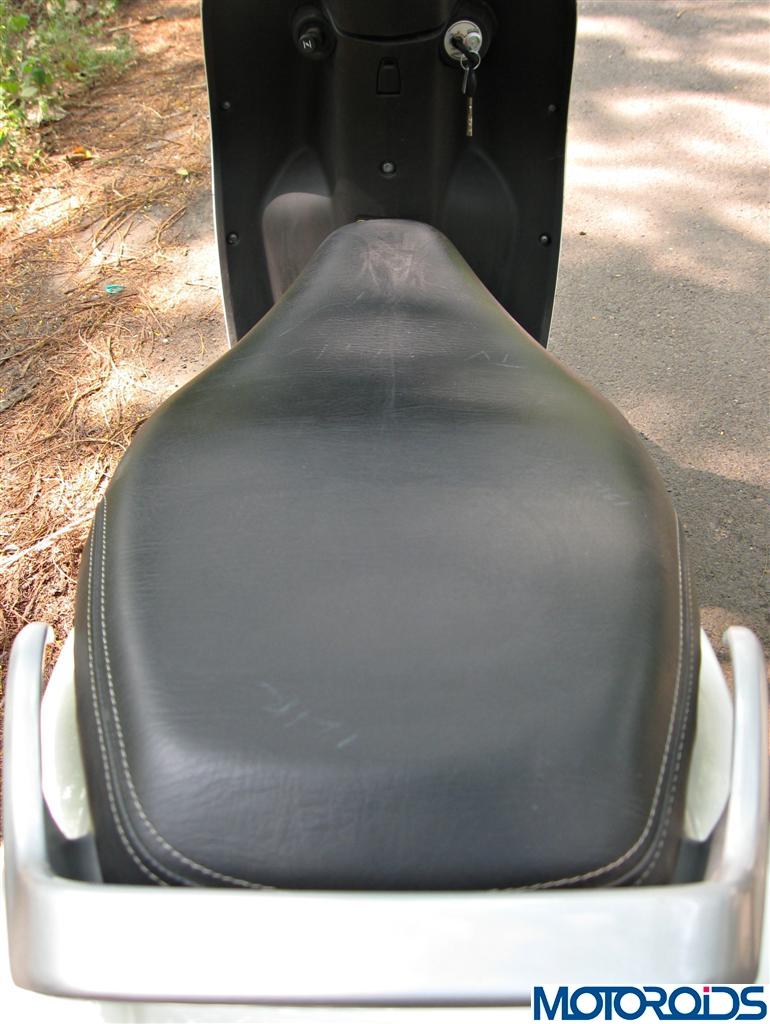

| Saddle Height | 765mm |
| Ground Clearance | 150mm |
| SUSPENSION | |

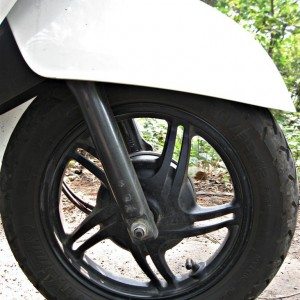

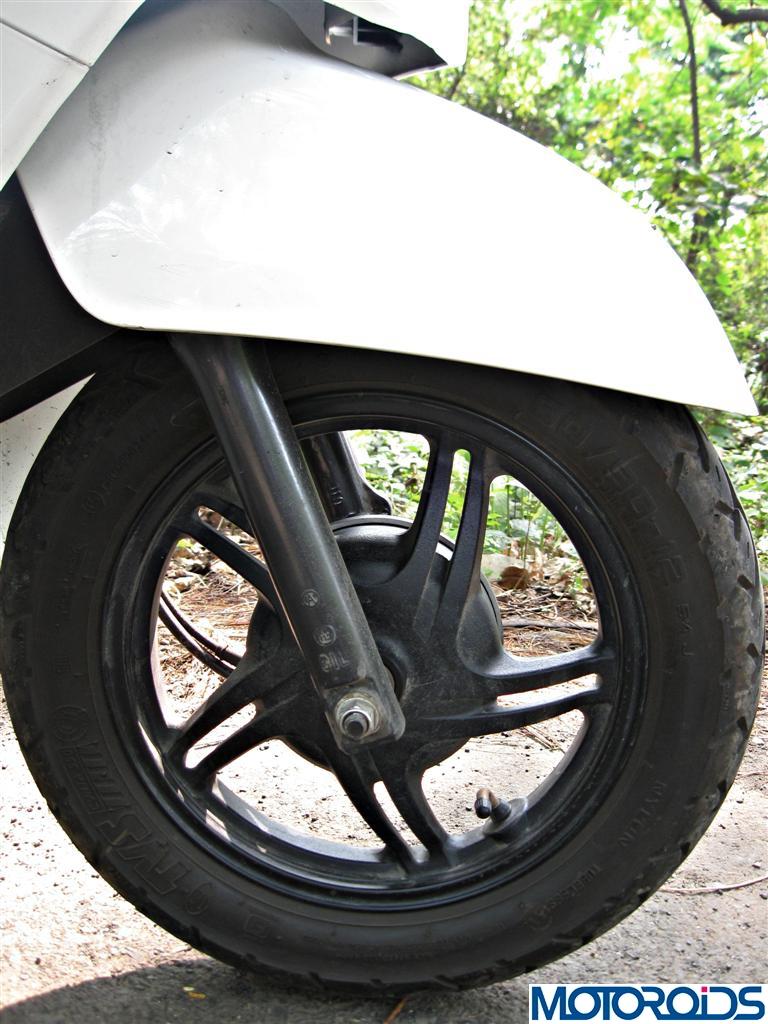

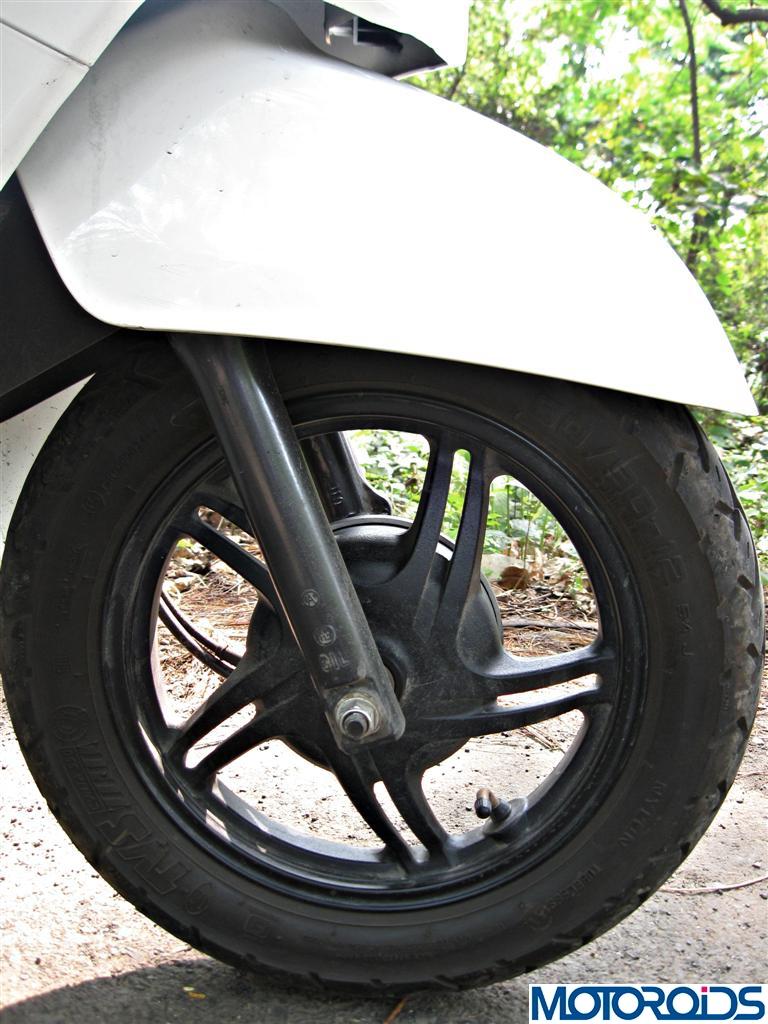

| Front | Advance Telescopic Suspension |
| Rear | Hydraulic & Gas Filled Suspension |
| TYRES | |

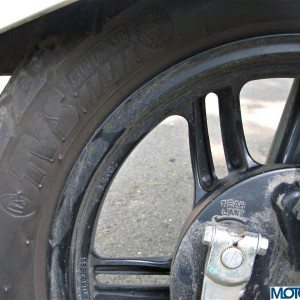

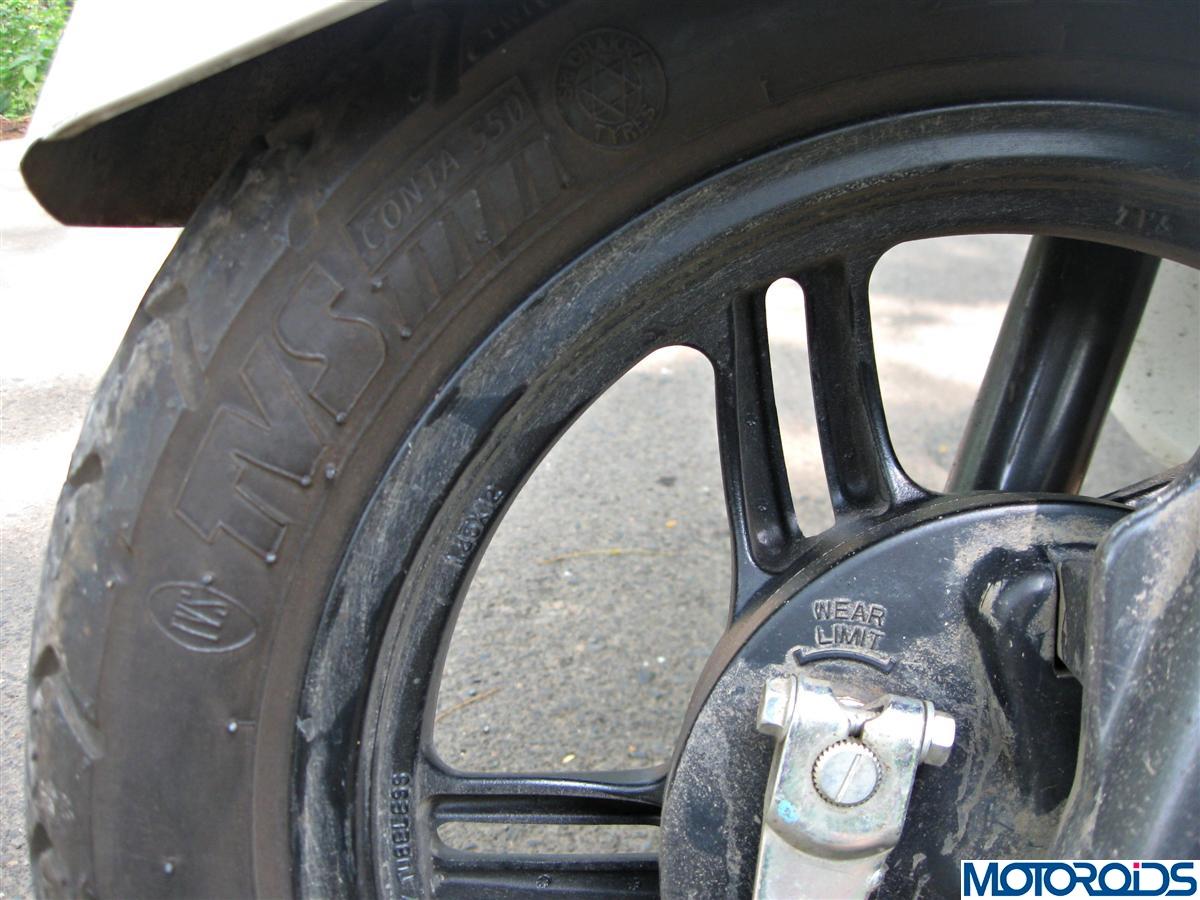

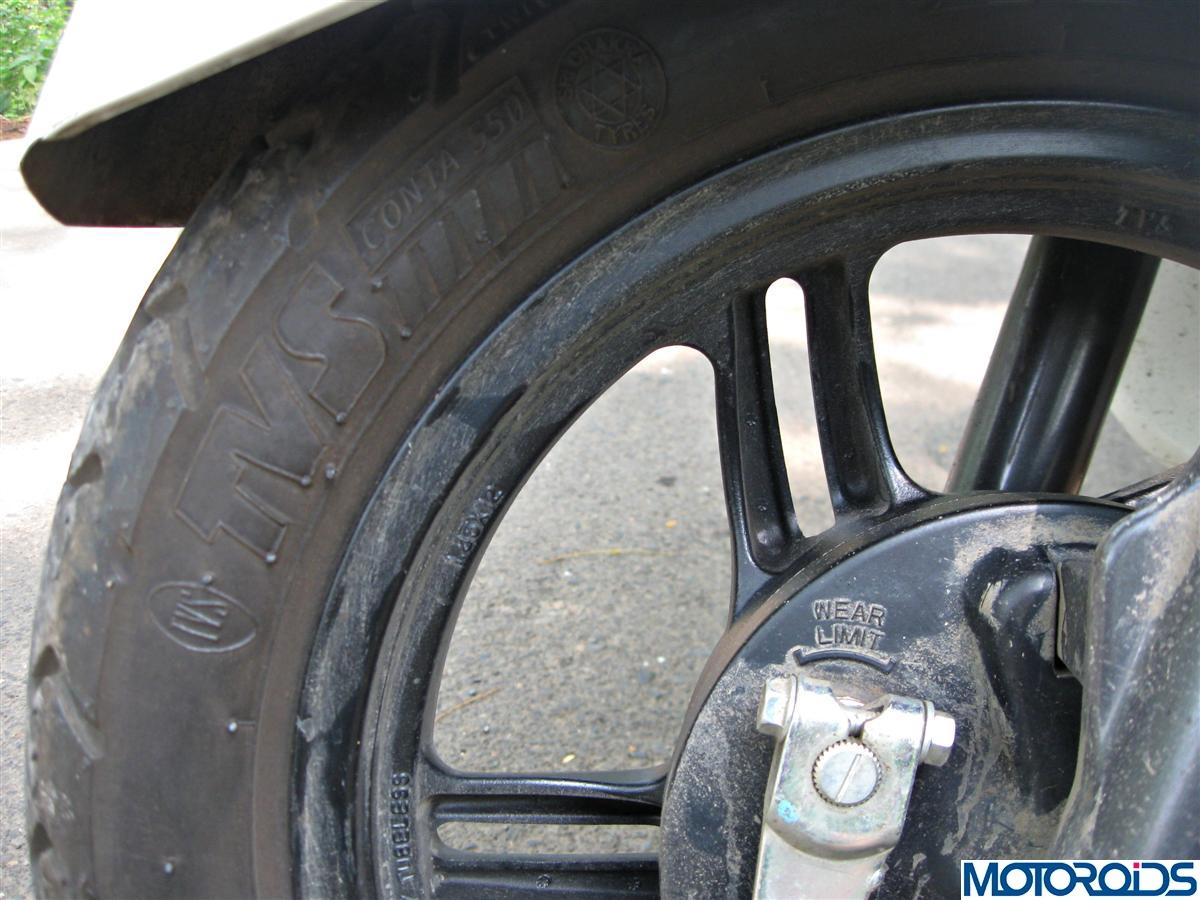

| Tyre Size(Front) | 90/90-12,Tubeless |
| Tyre Size (Rear) | 90/90-12,Tubeless |
| BRAKES | |

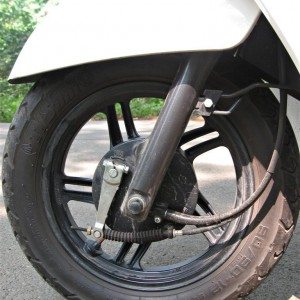

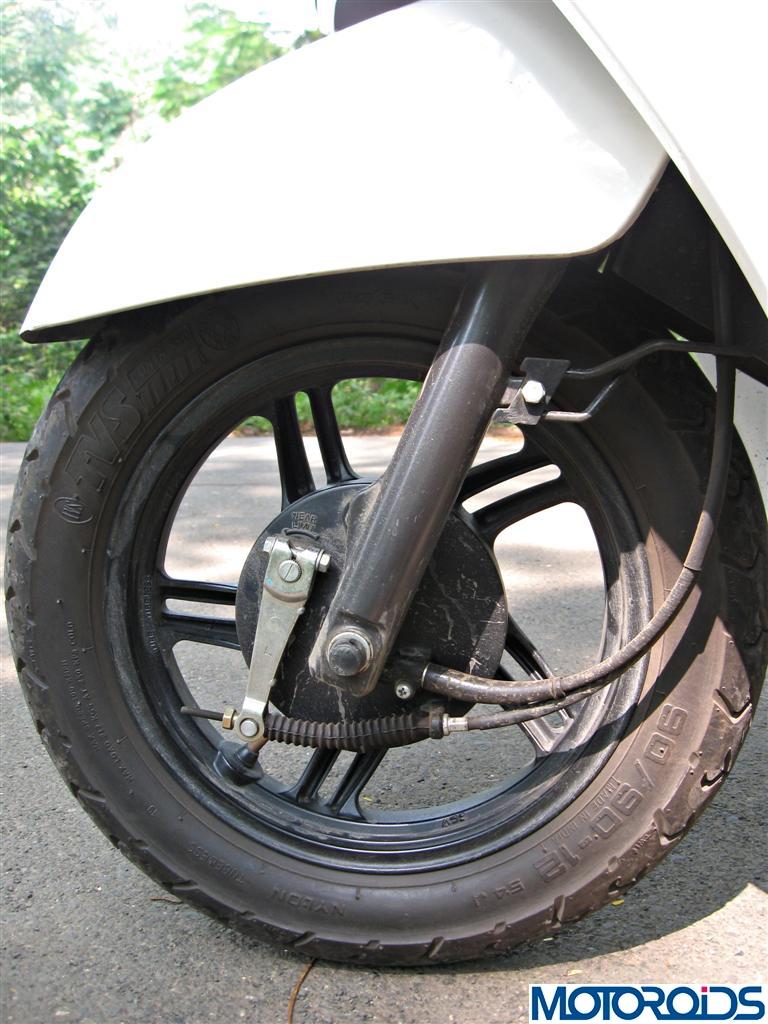

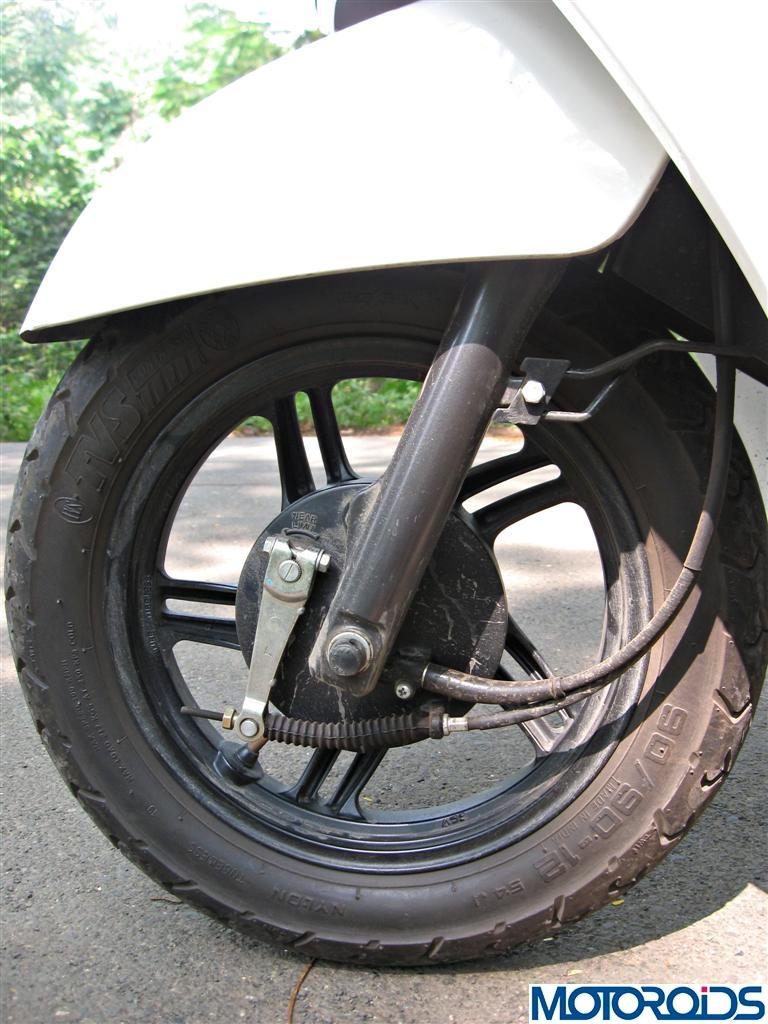

| Front | 130 mm Drum Brake |
| Rear | 130 mm Drum Brake |
| ELECTRICALS | |
| Battery | 12V, 5 Ah Flooded |

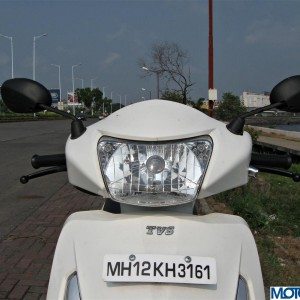

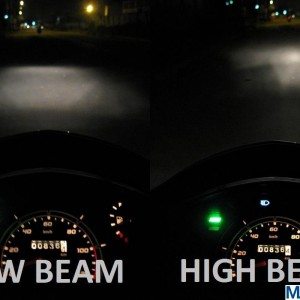

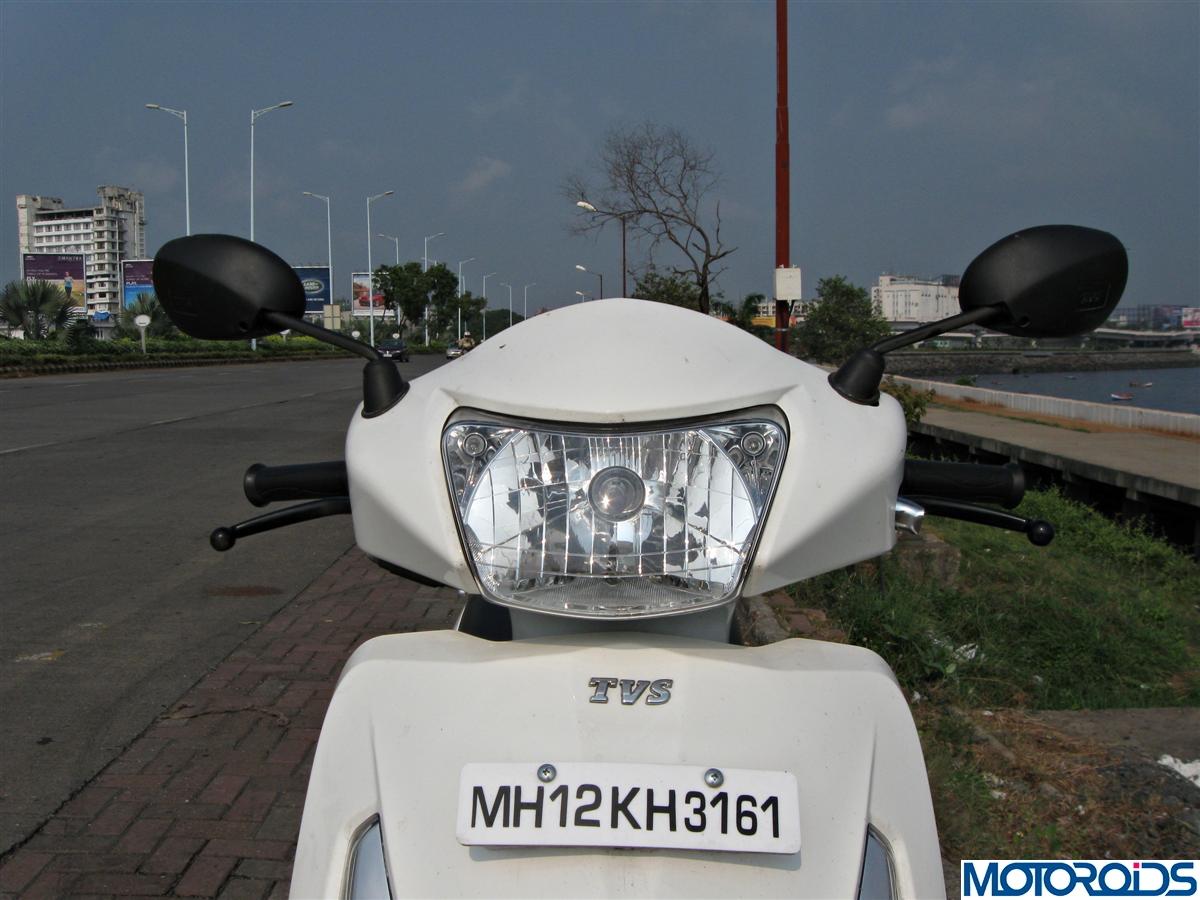

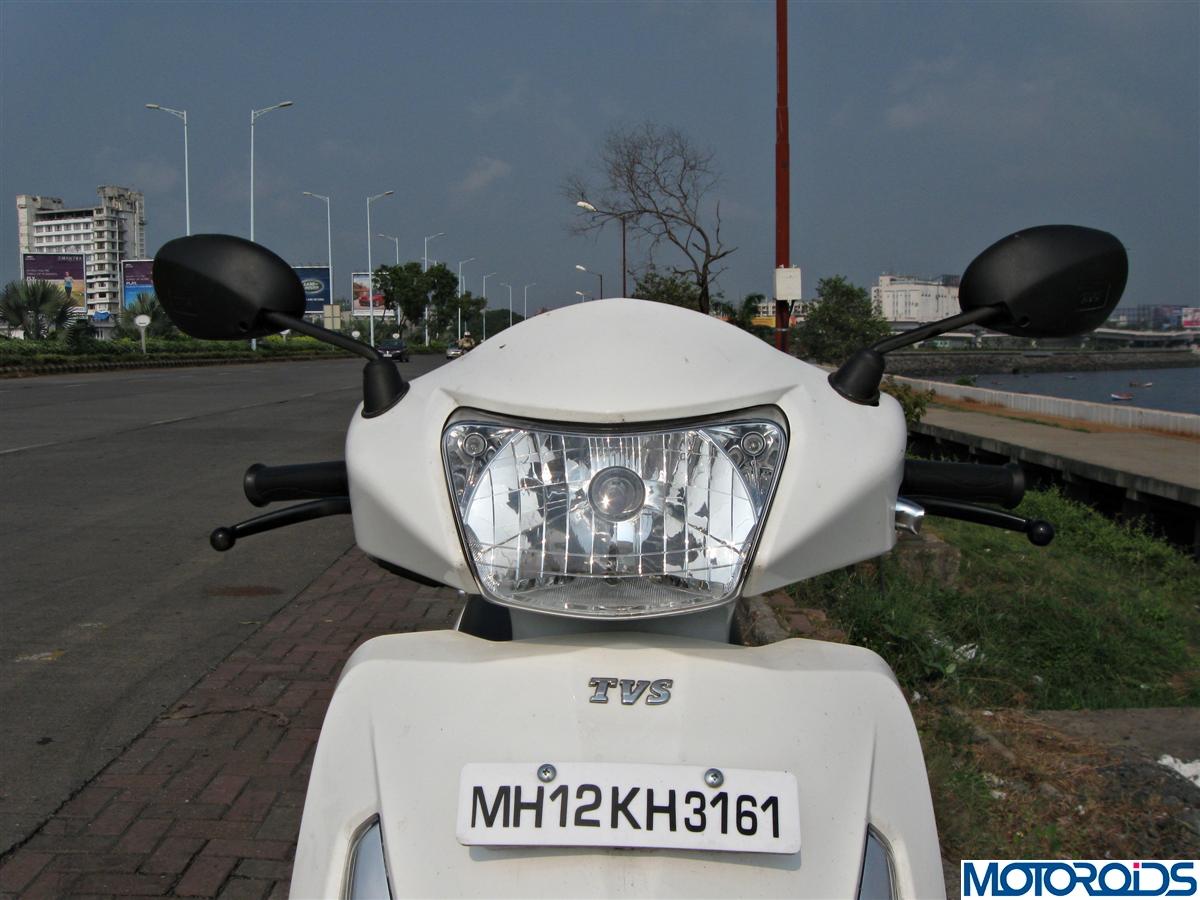

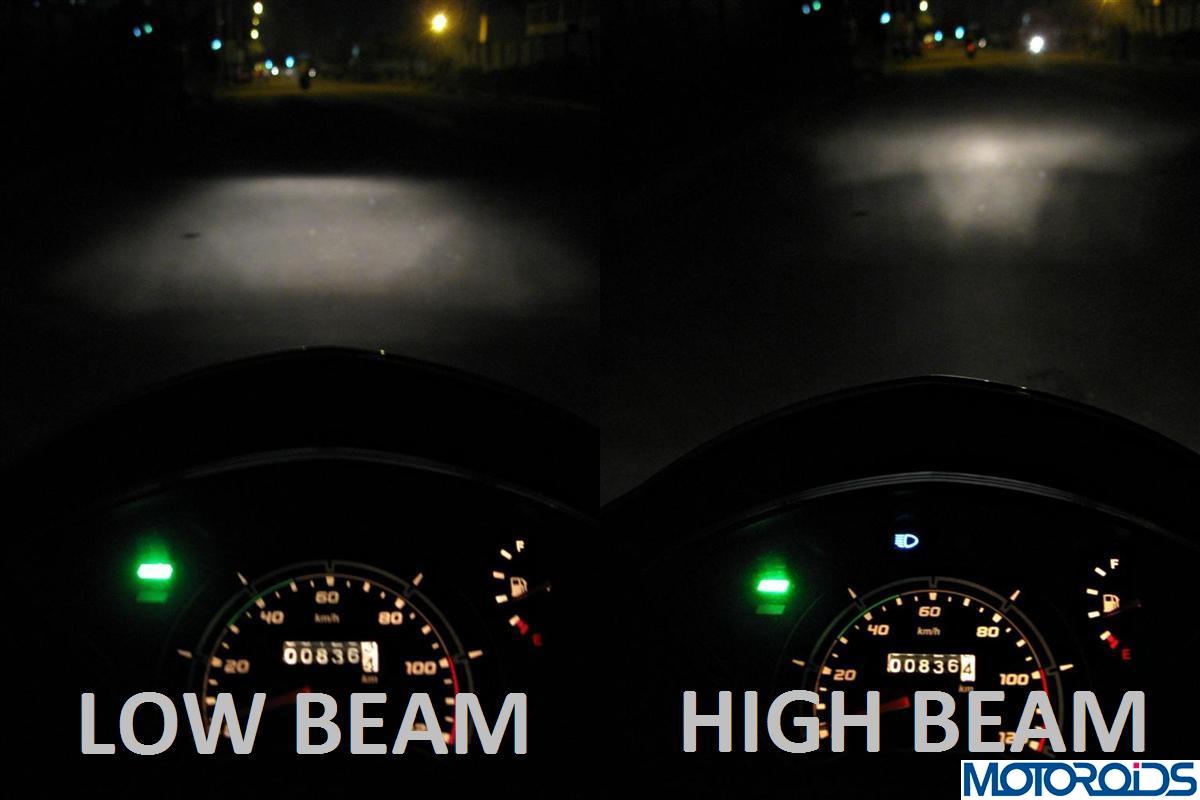

| Head Lamp | 12V, 35/35W Halogen(Multi-reflector Type) |

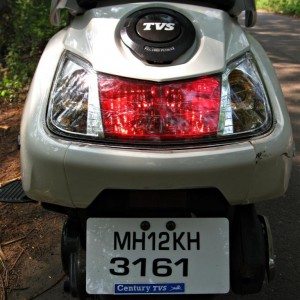

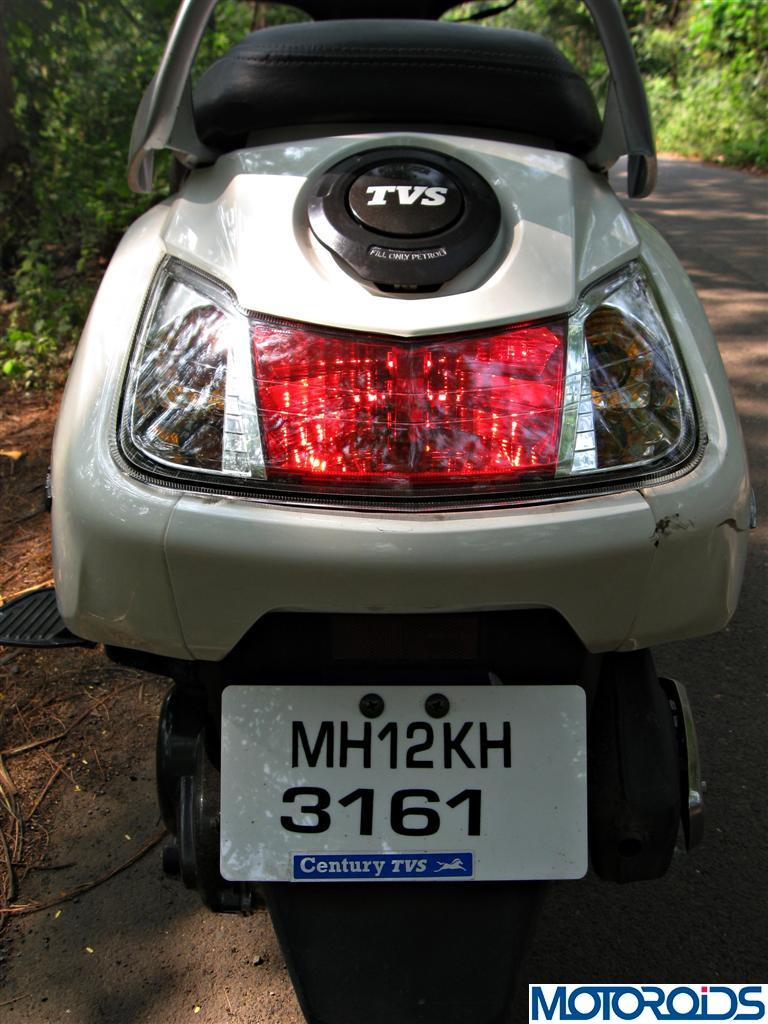

| Brake Lamp / Tail Lamp | 12V, 2W/1.5W LED |
| Turn Signal Lamp | 12V – 10W(Amber Bulb)x 4 Nos. |
| Air filter | Viscous Paper Filter |

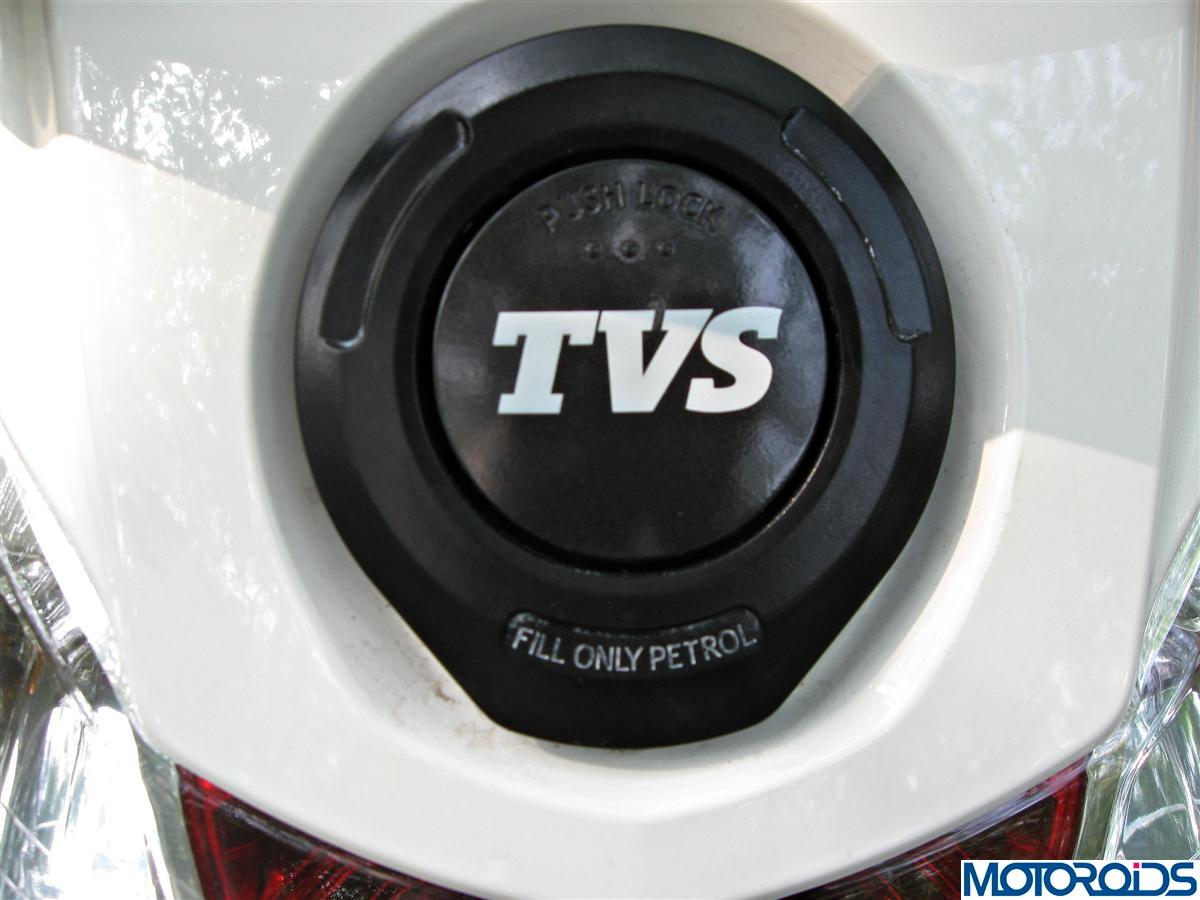

| Fuel Tank Capacity | 5.0 Litres |

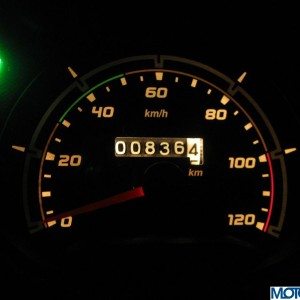

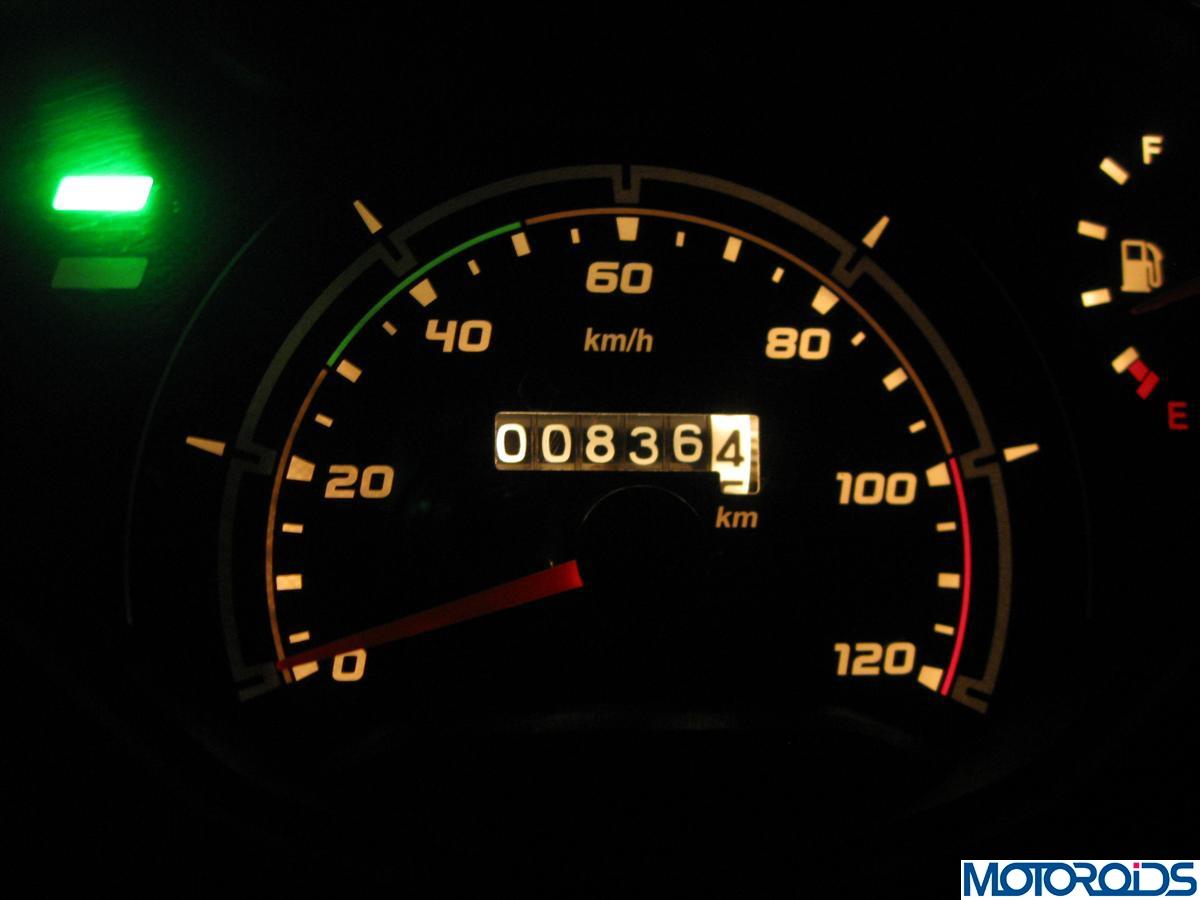

| Top Speed | 84 kph (speedo indicated) |
| PRICE (ex-showroom) | |
| Mumbai | INR 46534/- |
| Delhi | INR 44204/- |
| Bangalore | INR 48712/- |
| Kolkata | INR 49479/- |
| Chennai | INR 50277/- |
