MY16 Ducati Hypermotard 939 unveiled at EICMA 2015 – Images, tech specs, video and complete details

|

2016 DUCATI HYPERSTRADA 939 (7)

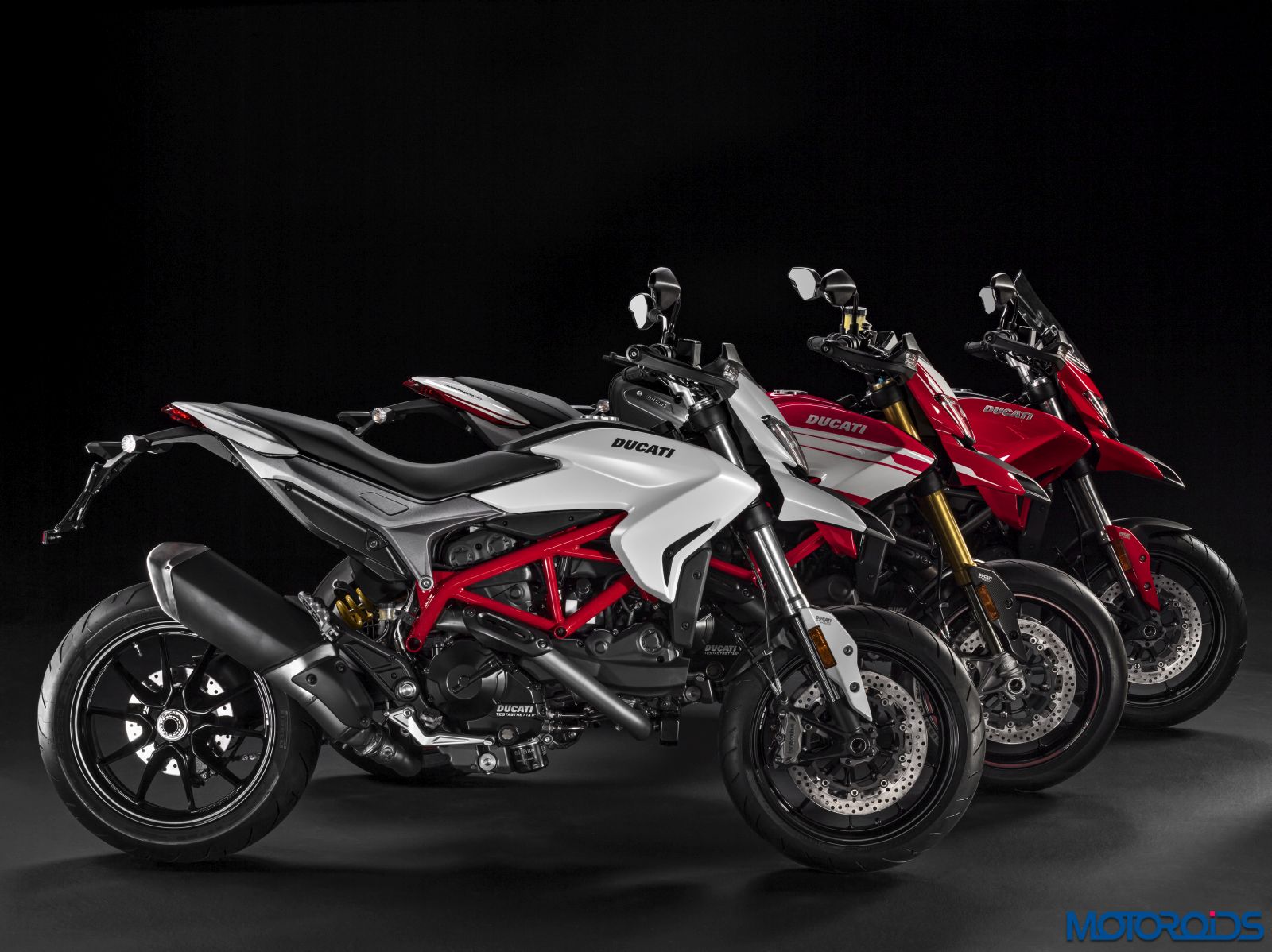

Ducati’s Supermoto series of motorcycles, the Hypermotard range has been renewed for 2016 with the arrival of the new EURO 4 certified 937cc Ducati Testastretta 11° engine. This twin-cylinder is used for the whole range, from the sporty Hypermotard 939 to the extreme Hypermotard 939 SP as well as the Hyperstrada 939 tourer.

The Hypermotard range’s twin-cylinder Ducati Testastretta 11° oil-cooled engine comes with an increased displacement which has been achieved by increasing the bore value from 88 mm to 94 mm. The stroke on the other hand remains unchanged at 67.2 mm. The crankshaft has been substituted by a new unit with a 42 mm diameter crank pin. The new Testastretta 11° also benefits from new pistons, cylinders and cylinder heads with an exclusive core to allow water through.

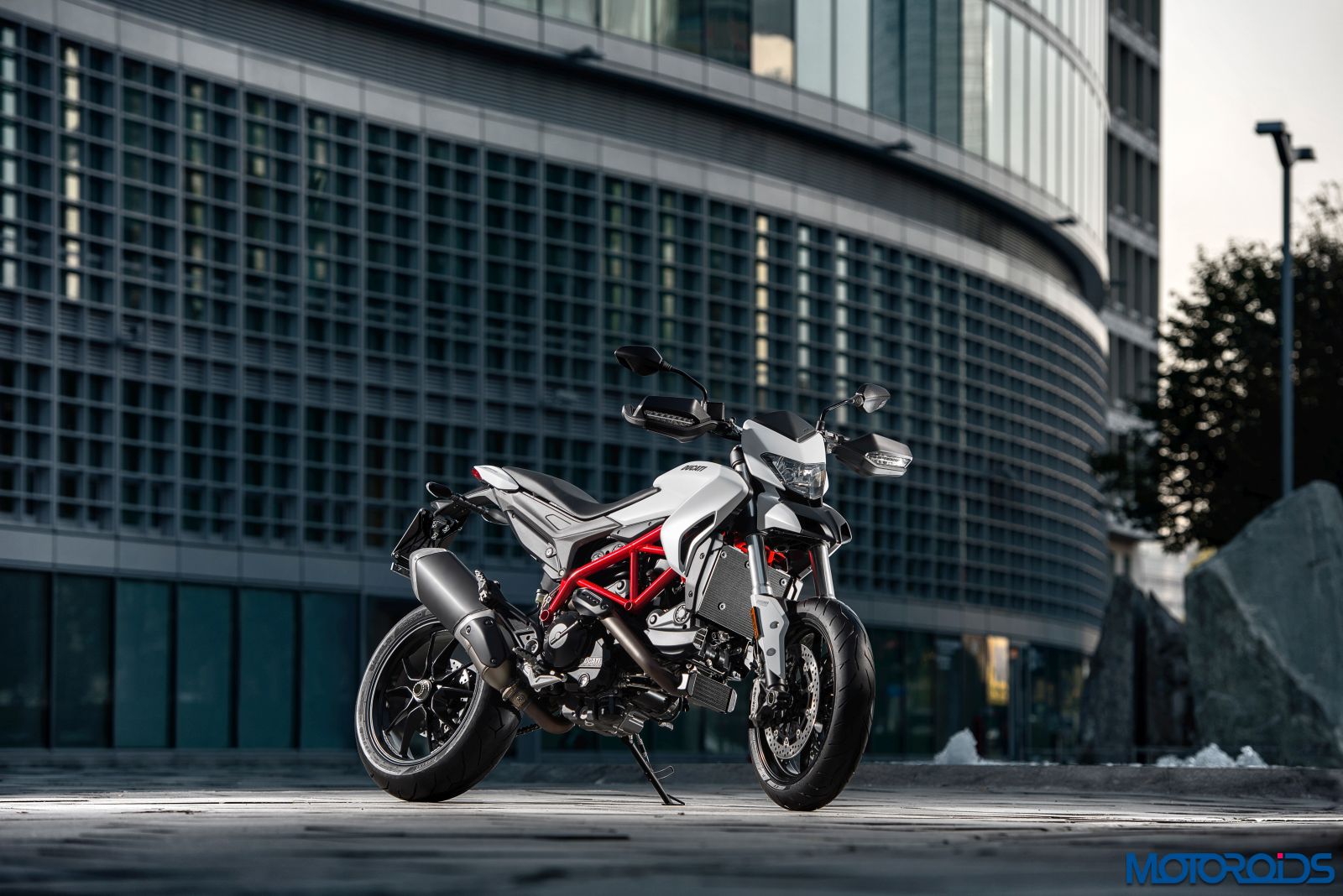

2016 DUCATI HYPERMOTARD 939 (4)

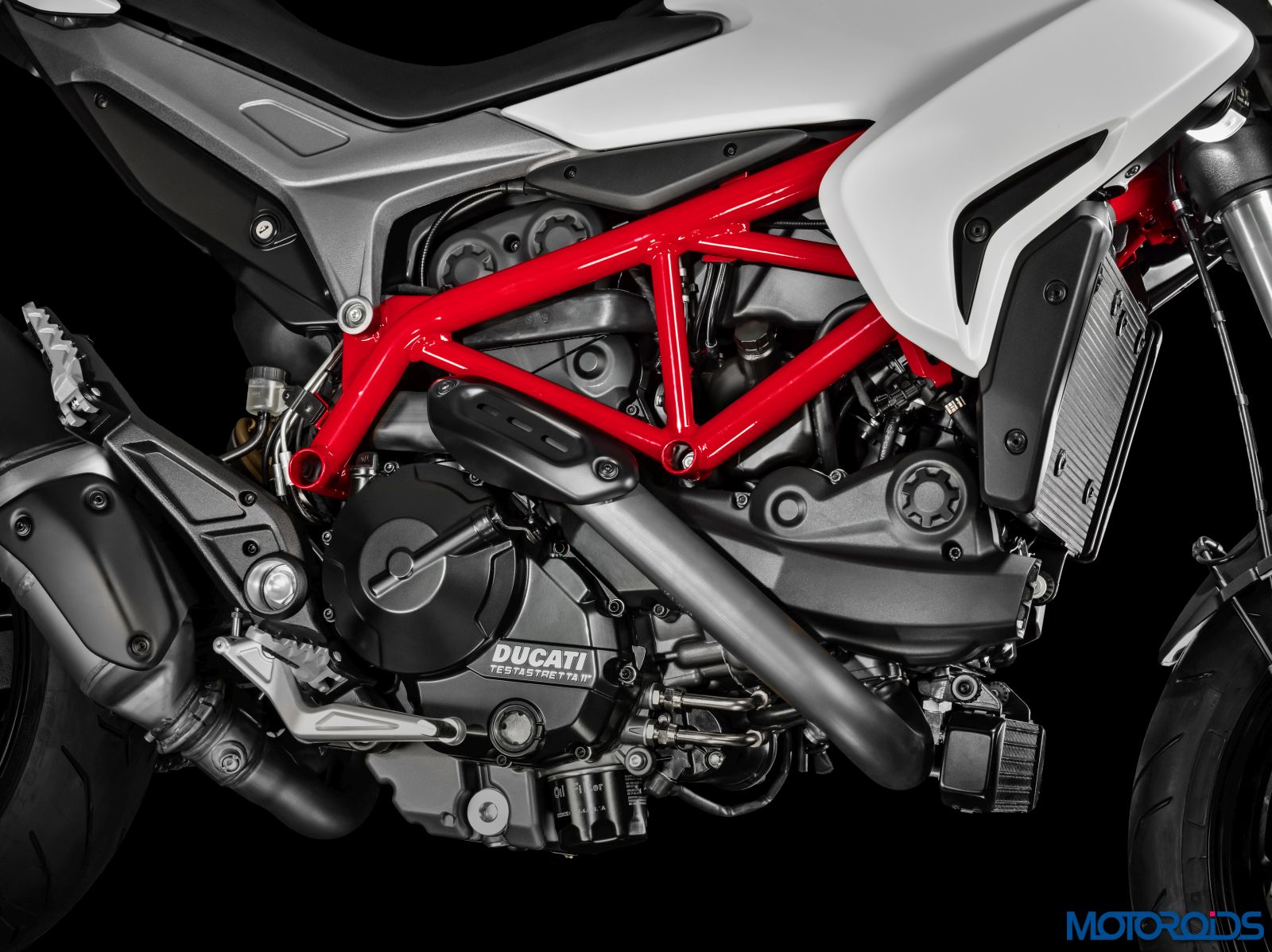

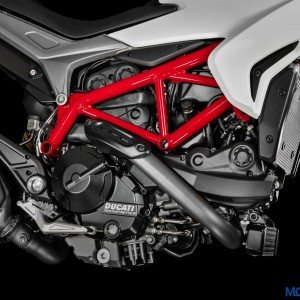

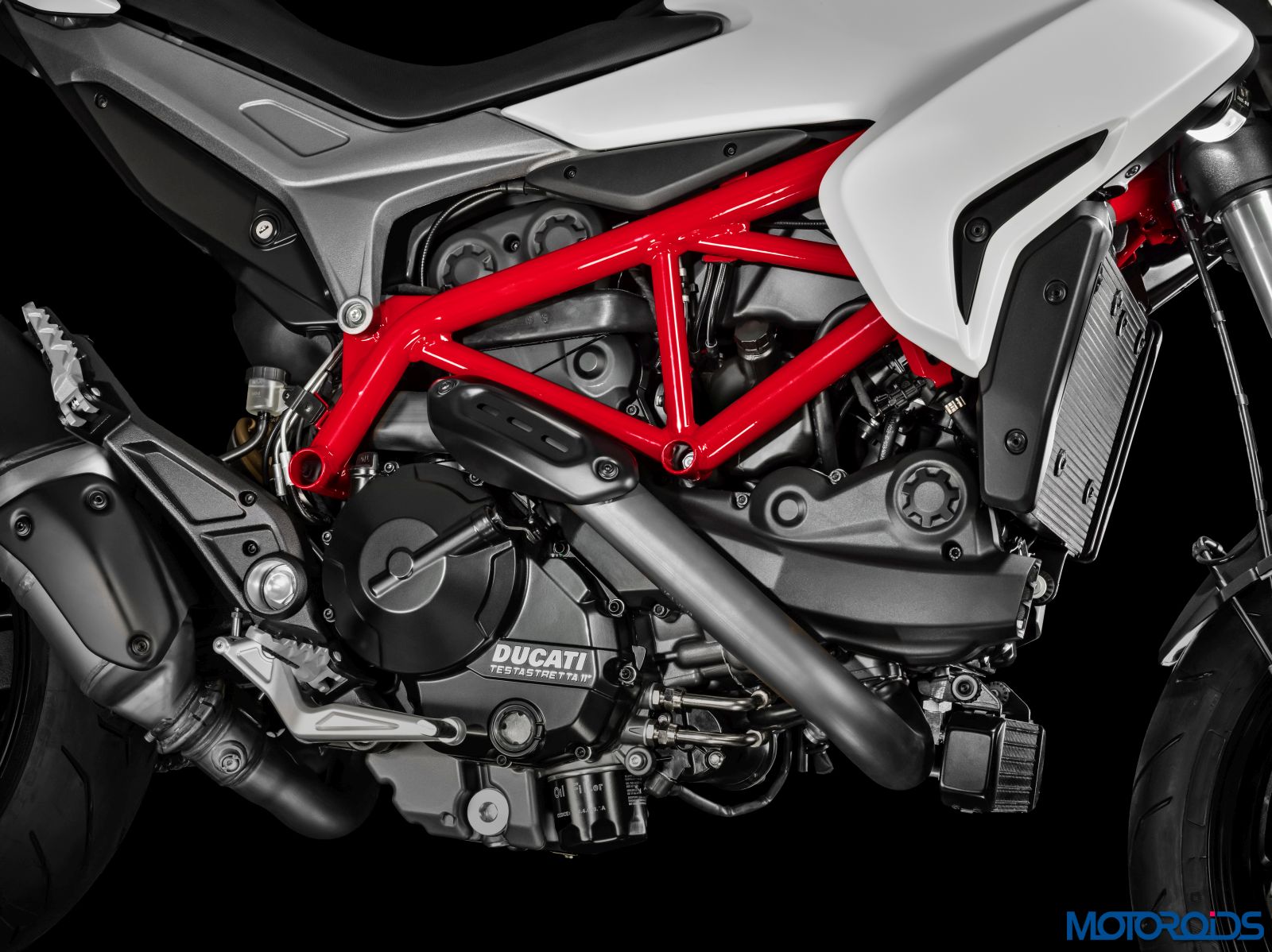

The engine, as aforementioned, is EURO 4 certified 937cc Ducati Testastretta 11° motor which puts out 113 hp of maximum power at 9,000 rpm and 97.9 Nm (10% more compared to outgoing model) of maximum torque at 7,500 rpm. The compression ratio has also been increased to 13.1:1, while the 52 mm diameter throttle bodies, controlled by an advanced full Ride-by-Wire system remain unchanged. The engine is also equipped with an oil-bath APTC clutch with slipper function that can be engaged with reduced effort on the lever. Aimed to improve the ownership experience, the 937 cm3 Ducati Testastretta 11° on the new Hypermotard range has maintenance intervals of 30,000 km (18,000 miles).

With a progressive self-servo system and increased friction ratio, the transmittable torque is claimed to be increased in equal conditions with a consequent reduction of pressure on the clutch spring and, at the final stage, of the lever load.

2016 DUCATI HYPERMOTARD 939 (8)

The Hypermotard range is built upon a 34 mm diameter tubular steel Trellis frame with 25.5° of rake and trail and offset of 104 mm and 30 mm respectively. The frame marries to a die-cast sub-frame and incorporates a techno-polymer mid-section as part of the assembly. The Hypermotard is claimed to have a highly manoeuvrable 70° of lock-to-lock steering movement, and a wheelbase of 1500 mm which is designed to enhance the Hypermotard’s stability at speed. The 16 litre fuel tank on the Hypermotard maintains its thin waistline and compact silhouette.

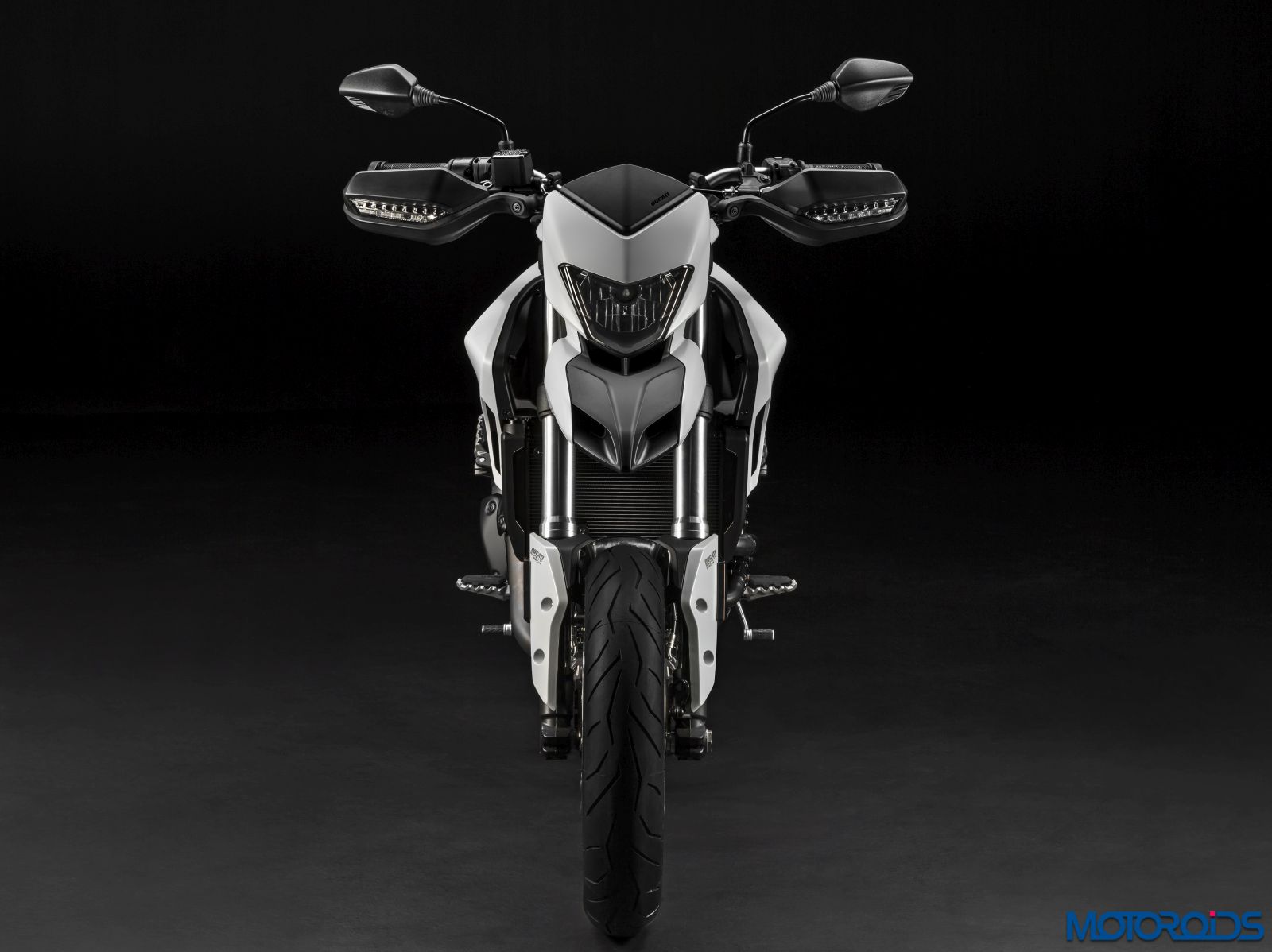

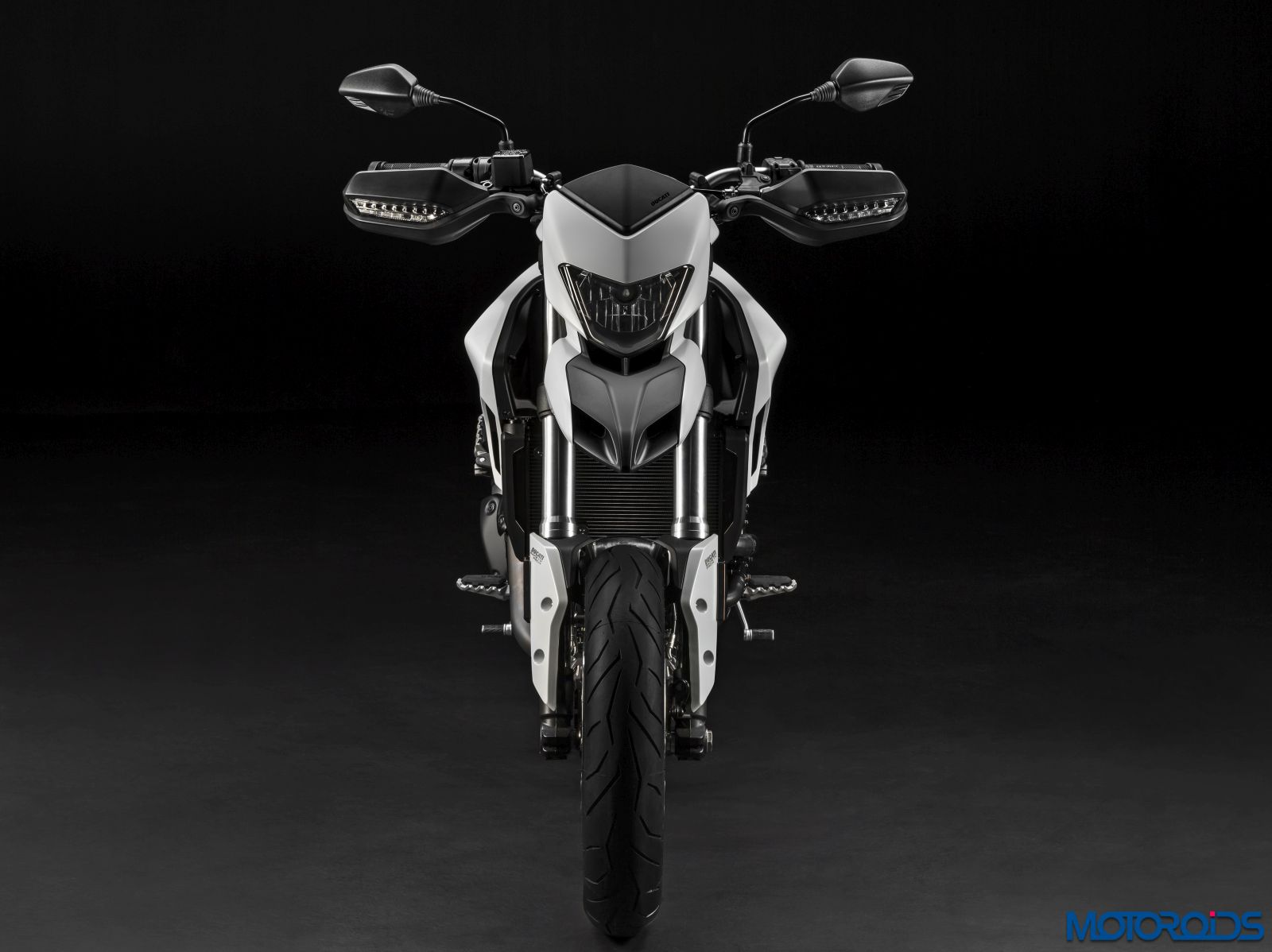

The design carries forward the genes of the Hypermotard family. For 2016, the headlamp uses a very compact and lightweight assembly, which employs a single parabola for high and low beam functions using a blue vision bulb and LED positioning light. A specially designed strip of LEDs, enhanced by a high diffusion lens shaped into the sleek lines of the tailpiece, acts for both rear light and brake lights. The new LED front blinkers are integrated into the handguards, keeping the lines of the Hypermotard as clean as possible. All Hypermotard models are equipped with a hazard light function, which is activated by holding the left-turn signal button on for four seconds.

2016 DUCATI HYPERMOTARD 939 SP (3)

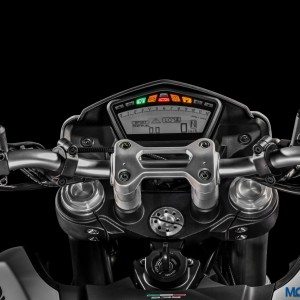

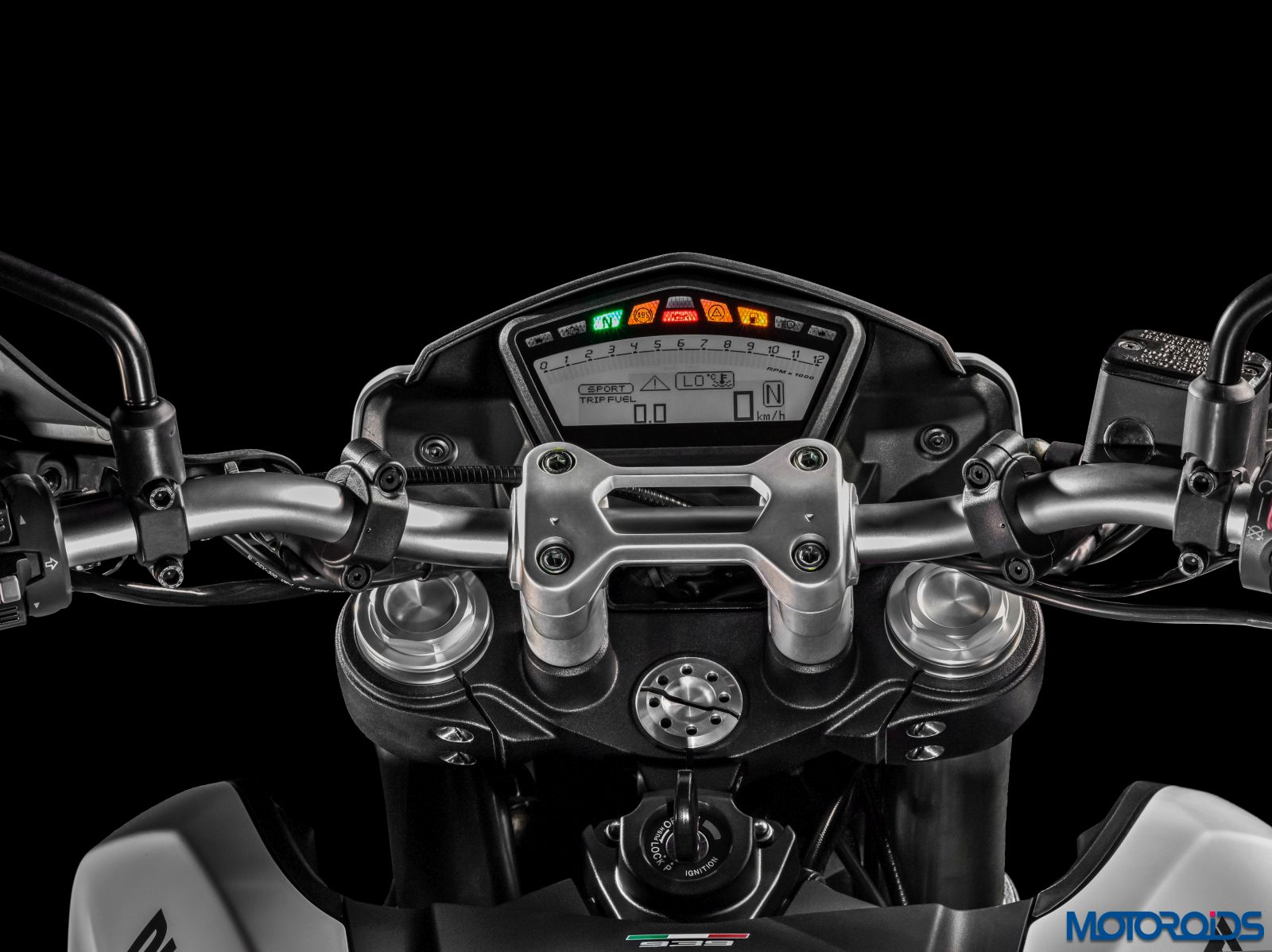

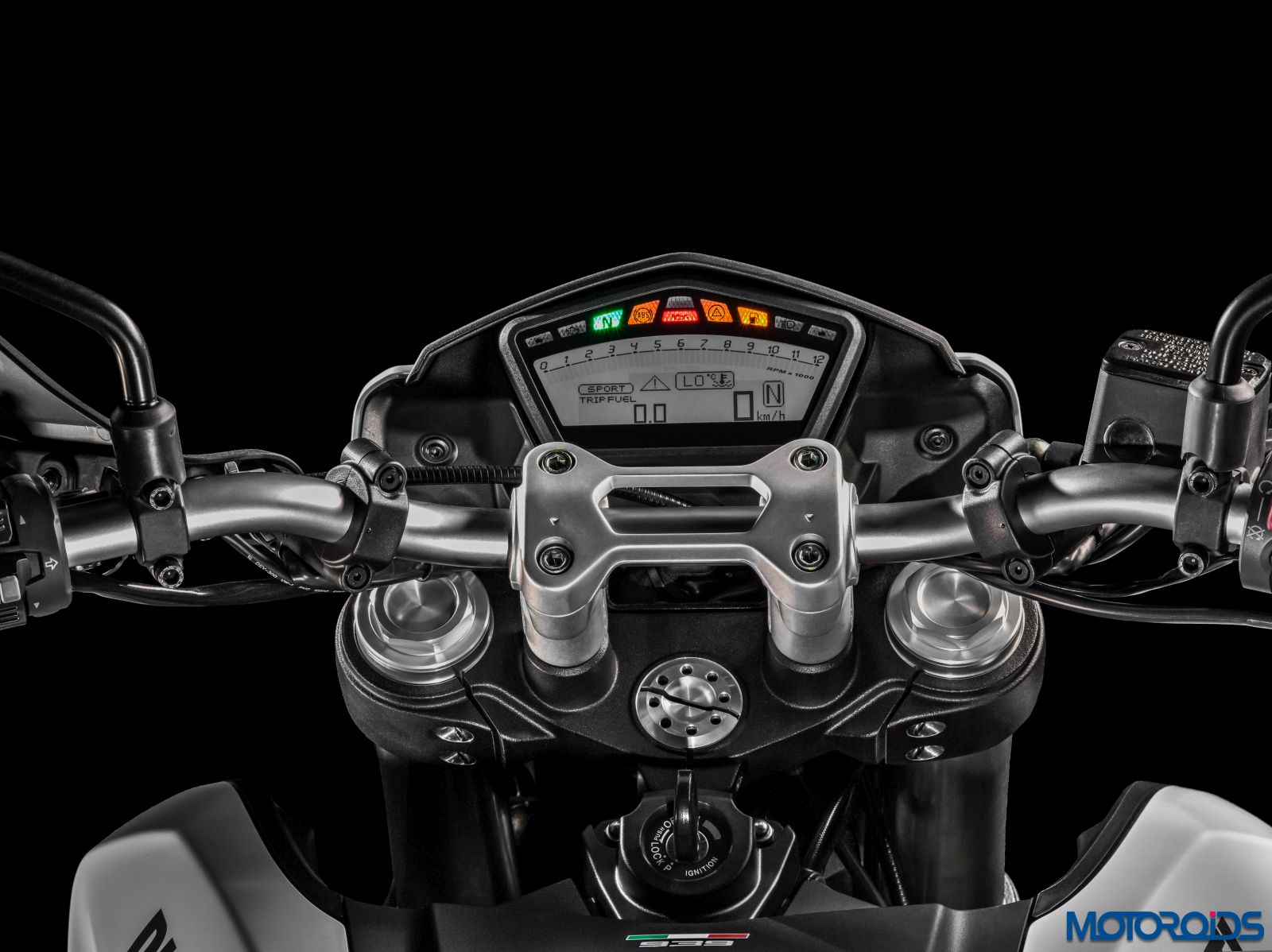

The Hypermotard’s instrumentation console has an LCD screen with a display that constantly shows the selected Riding Mode, including the associated ABS and DTC level programmed, with all three Riding Modes easily changed, while stationary or in motion, by simply scrolling through displayed modes using the indicator cancel button.

When stationary, buttons can be used to enter a setting menu from where adjustments to the various functions can be made including personalised ABS (1-3+OFF), DTC (1-8+OFF) and power delivery via Ride-by-Wire (Low-Medium-High). All settings are saveable in the instrumentation’s memory and can easily be returned to factory settings with a simple default function. The system can also memorise and list the last 30 recorded lap times by using the high-beam flash button as a stopwatch. The instrumentation also includes a gear indicator and it’s system-ready to accept the heated grips Ducati accessory, which then produces its own control menu, selectable by scrolling through with the engine starter button.

2016 DUCATI HYPERSTRADA 939 (2)

All Hypermotards are equipped with the Bosch ABS 9.0MP controlled Brembo braking system. The whole range is also equipped with the Ducati Safety Pack which includes a 3-level ABS, 8 levels of Ducati Traction Control and 3 Riding Modes. Each Riding Mode has different electronic settings in order to provide the Hypermotard with three different personalities.

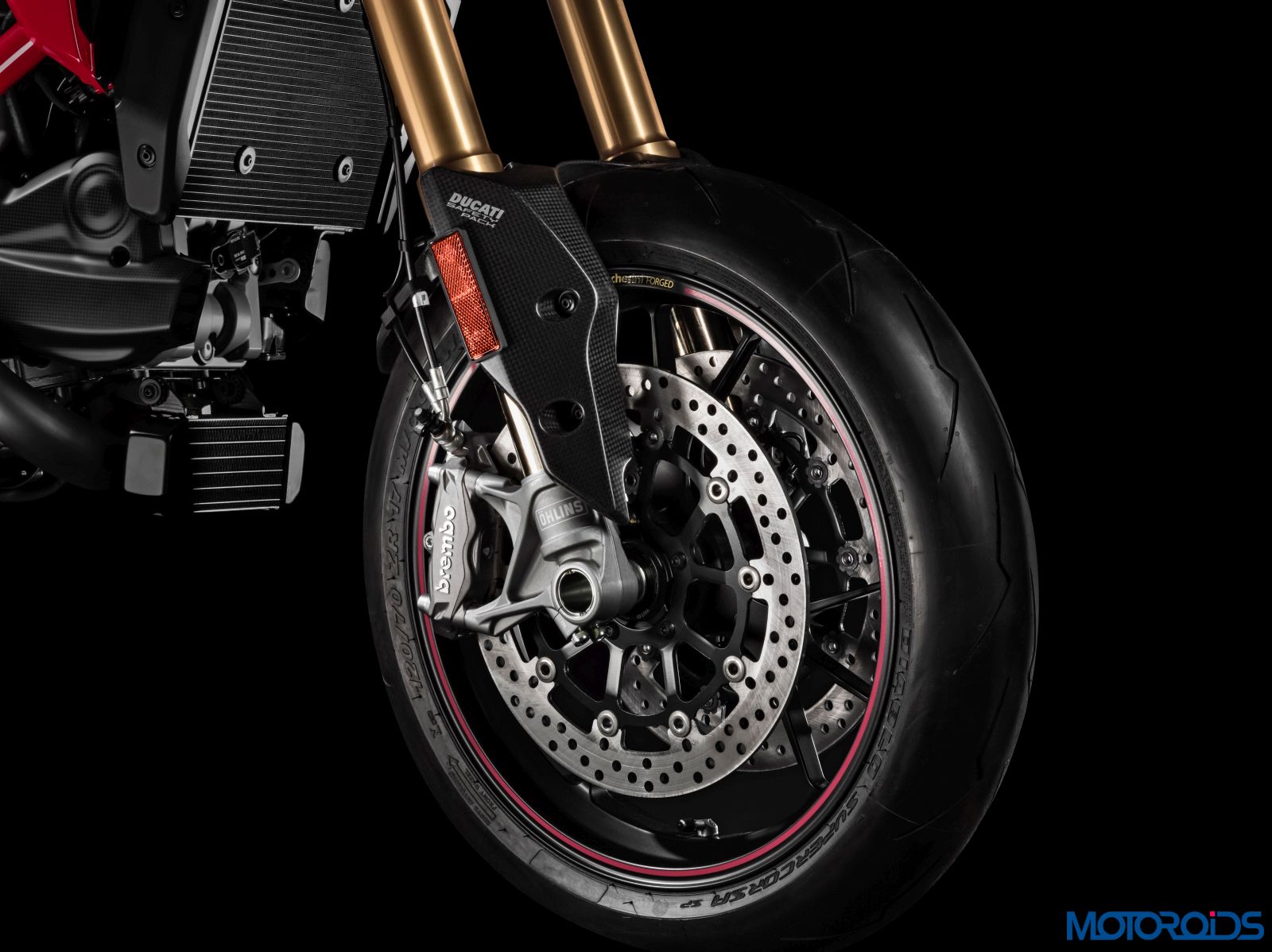

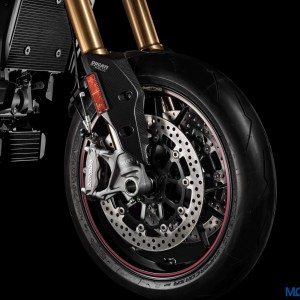

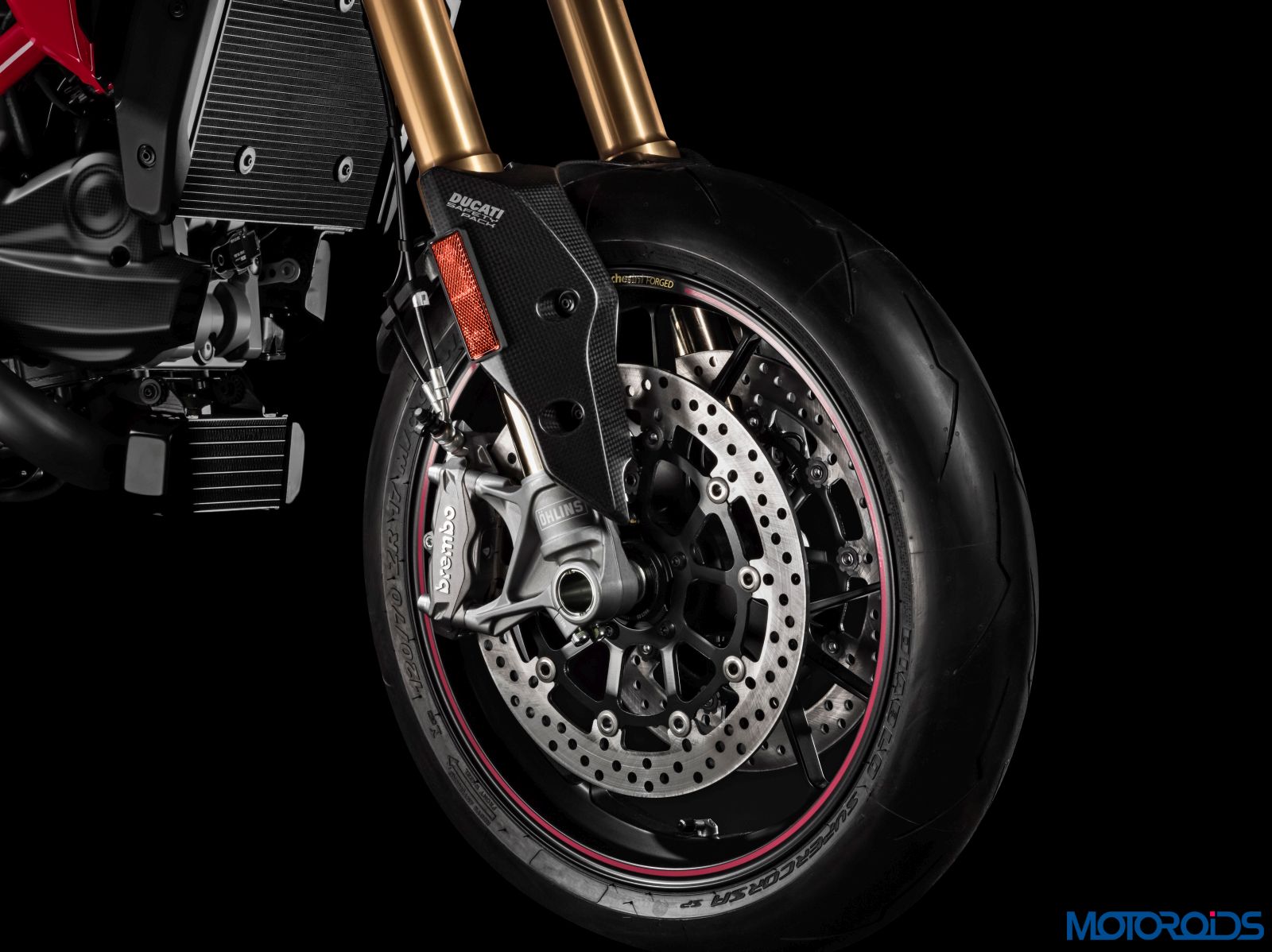

The front brakes use twin radially-mounted Brembo, four piston, Monobloc M4-32 callipers actuated by a master cylinder with a 4-point adjustable lever on the Hypermotard 939 and Hyperstrada 939 and 5-point on the high performance radial master cylinder of the SP. The fronts grip 320 mm discs, while a single 245 mm disc on the rear is gripped by a single Brembo calliper.

2016 DUCATI HYPERMOTARD 939 SP (7)

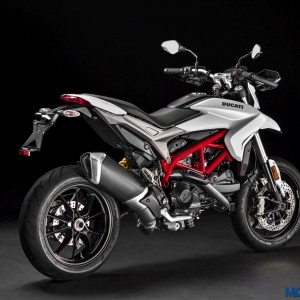

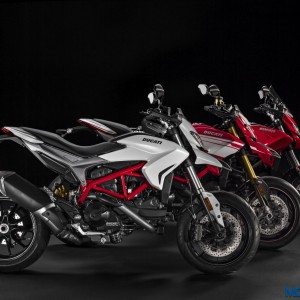

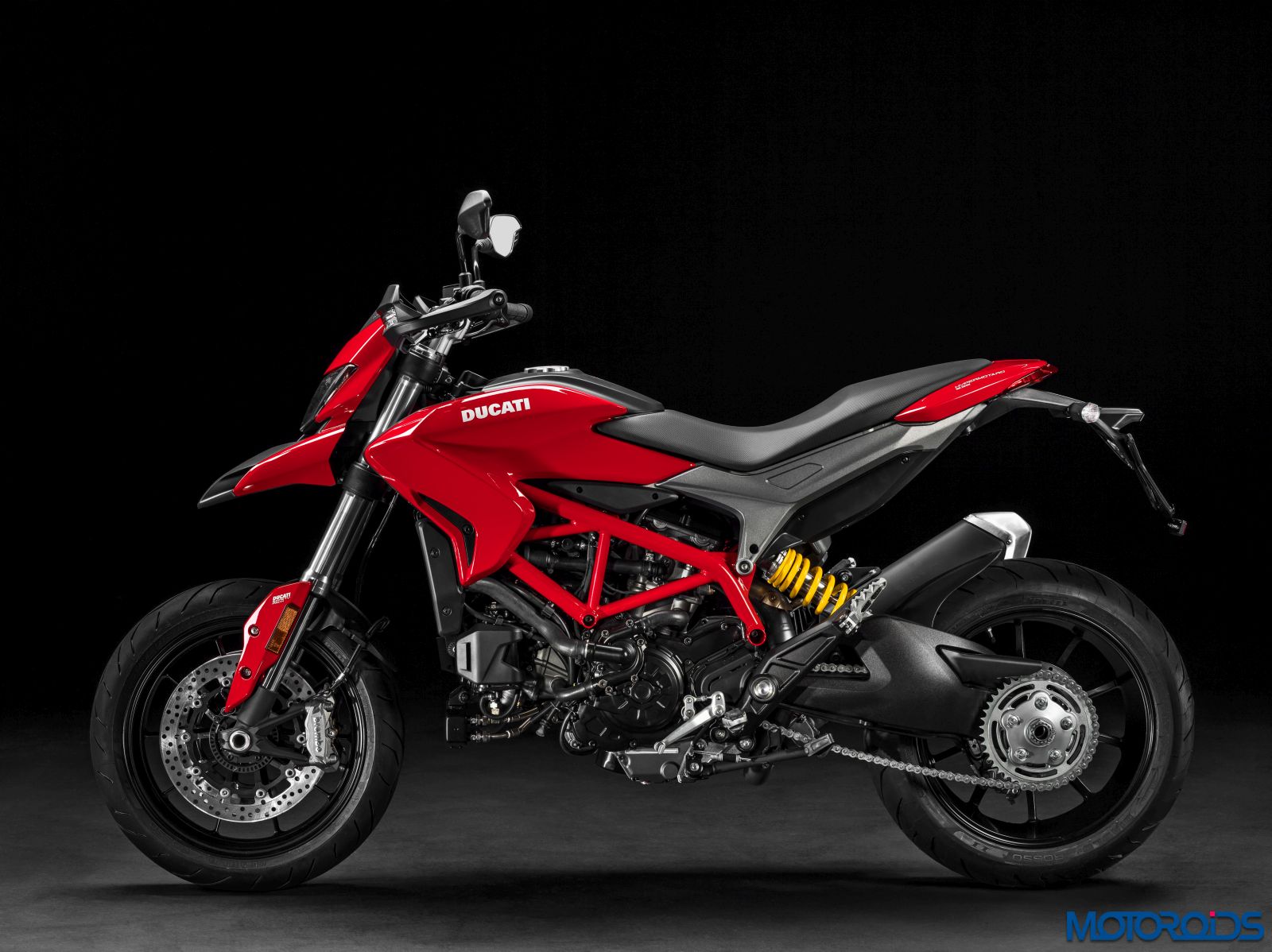

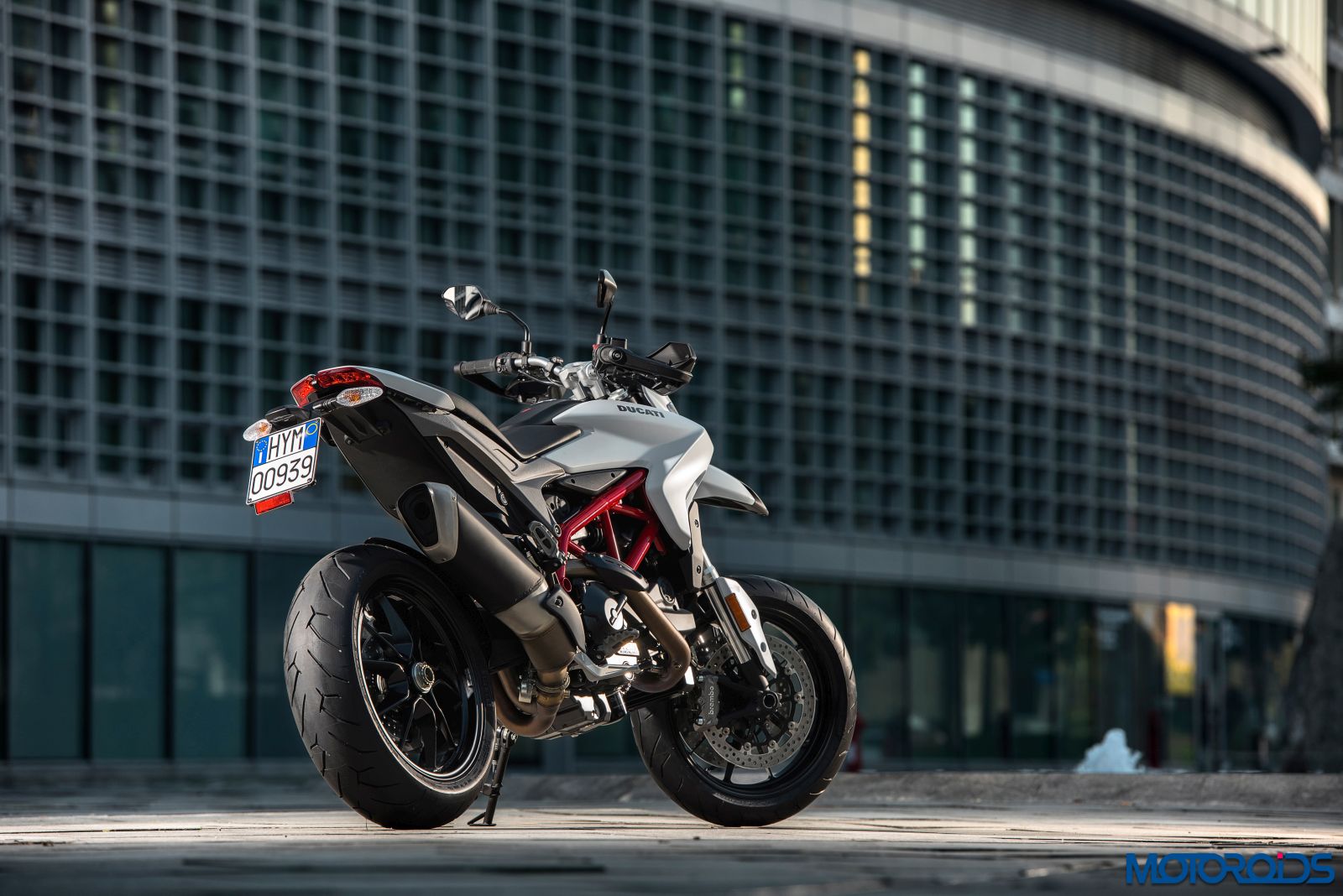

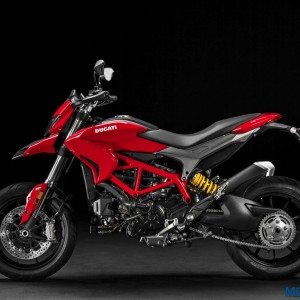

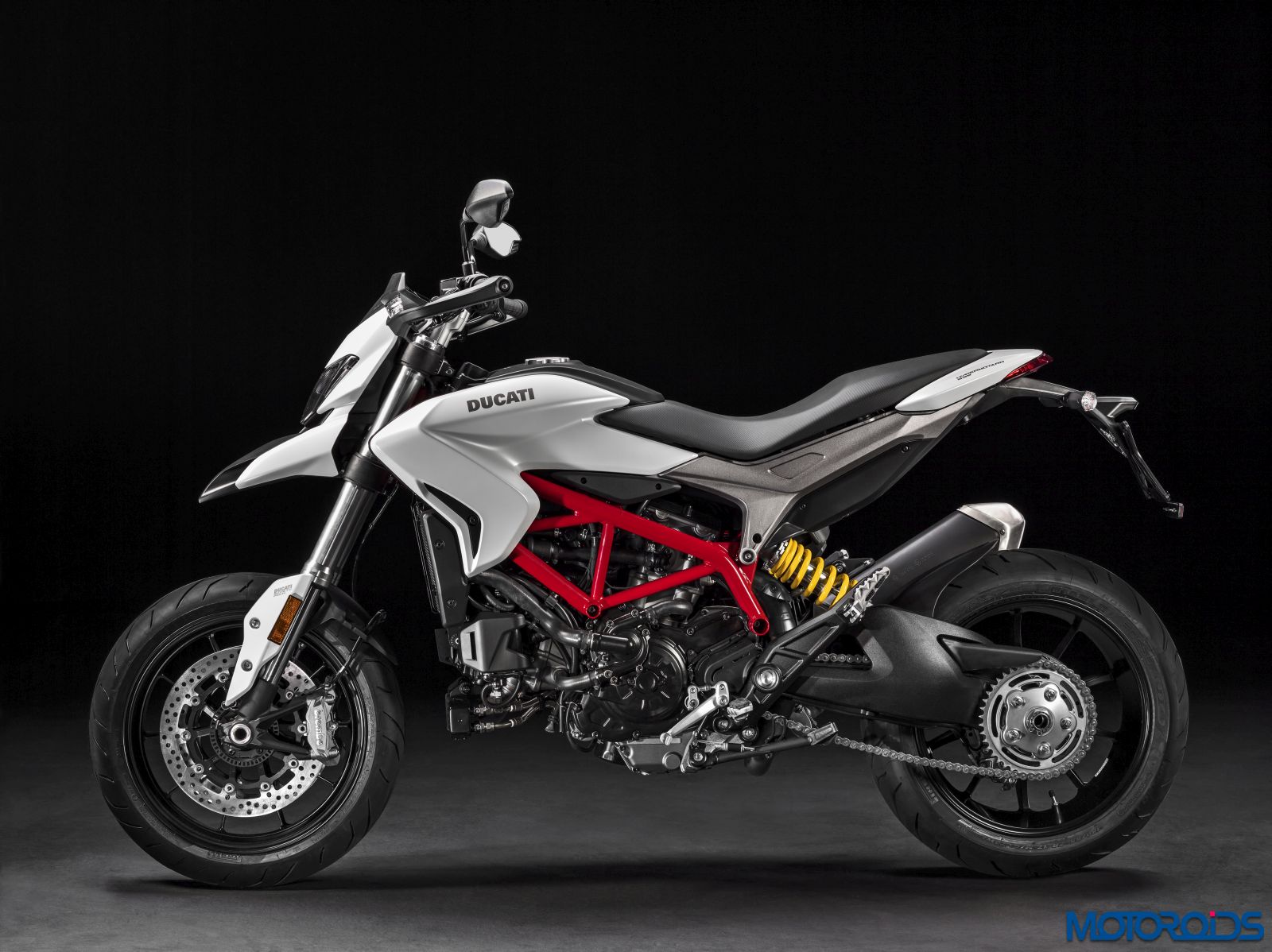

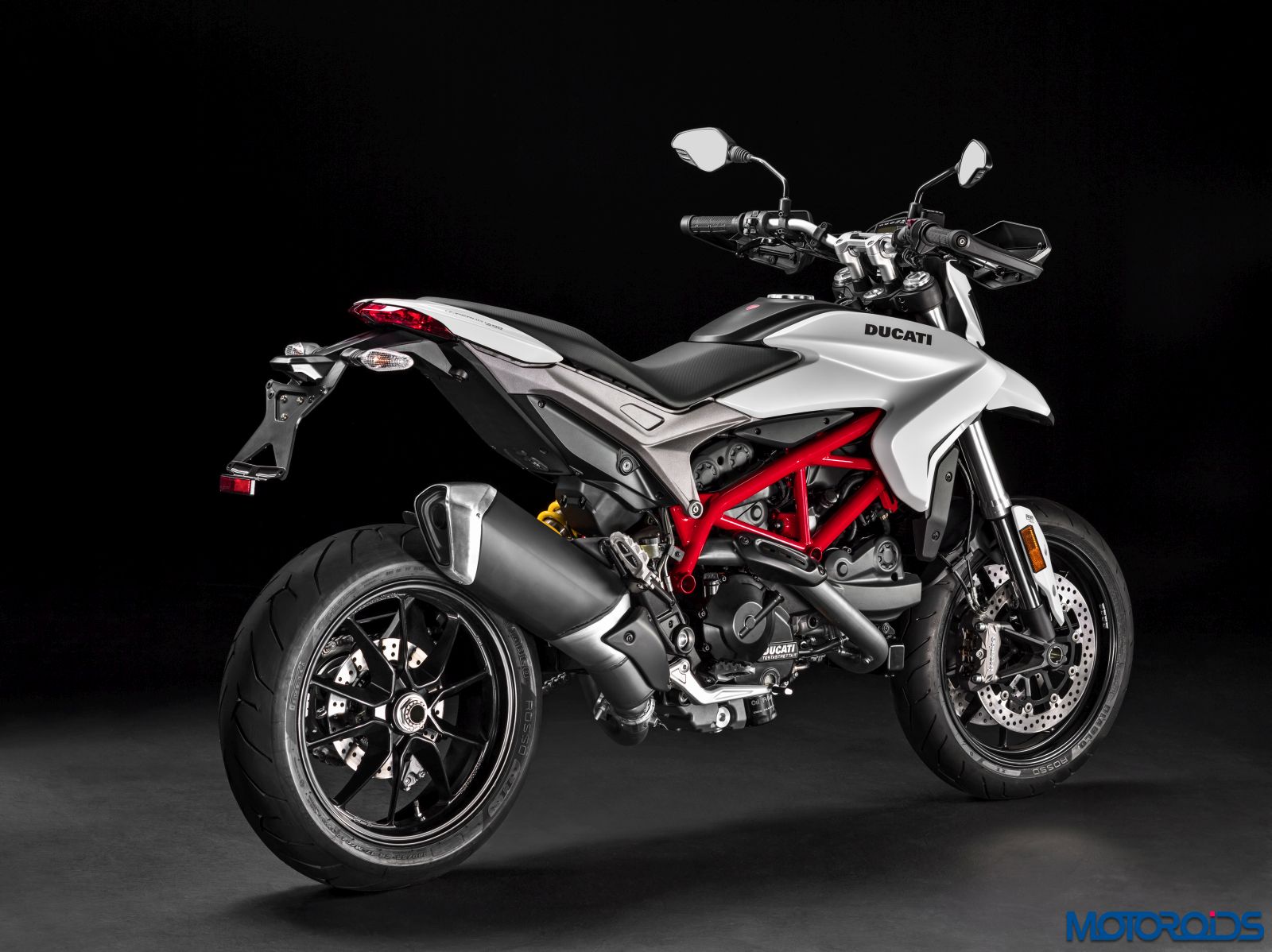

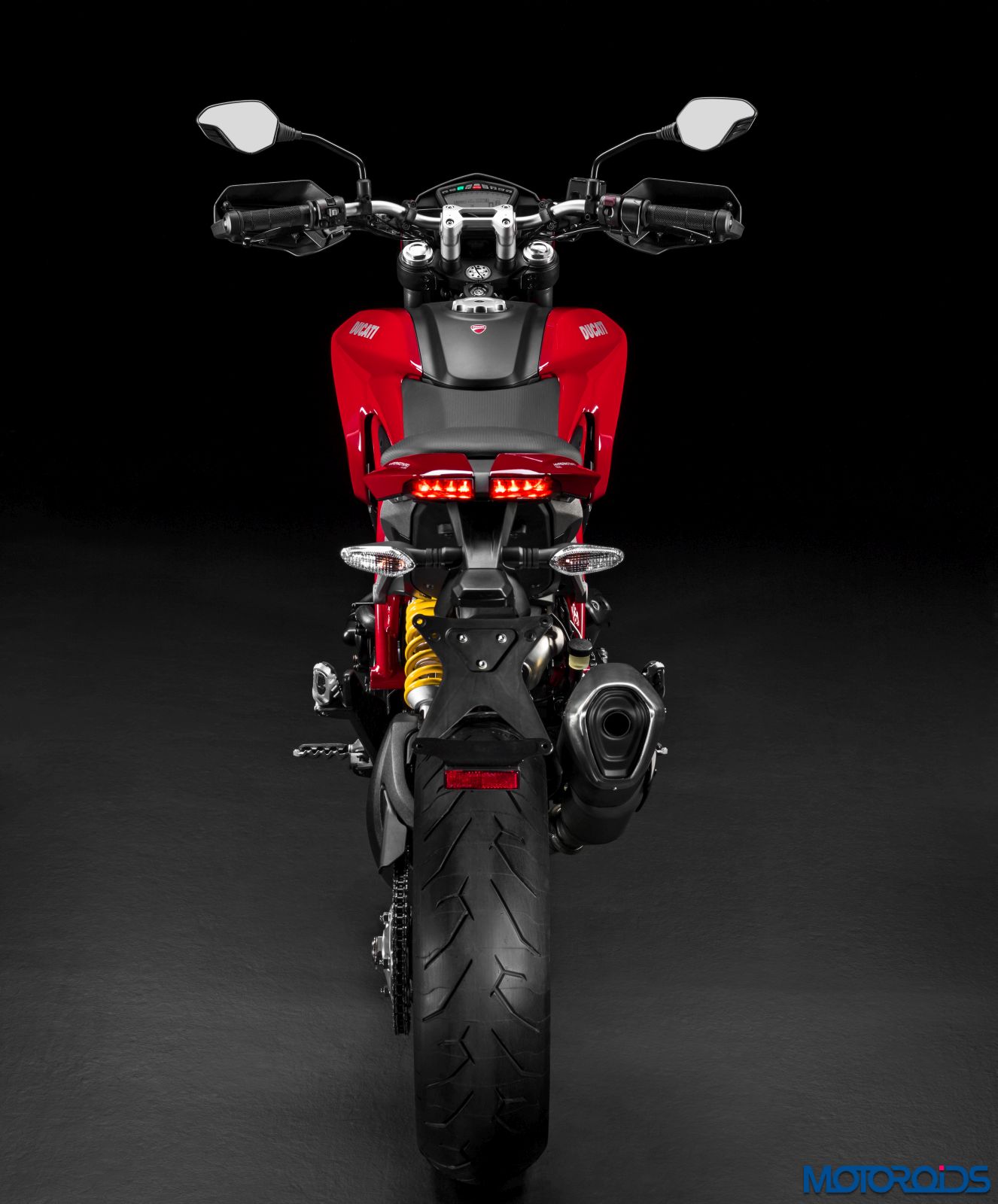

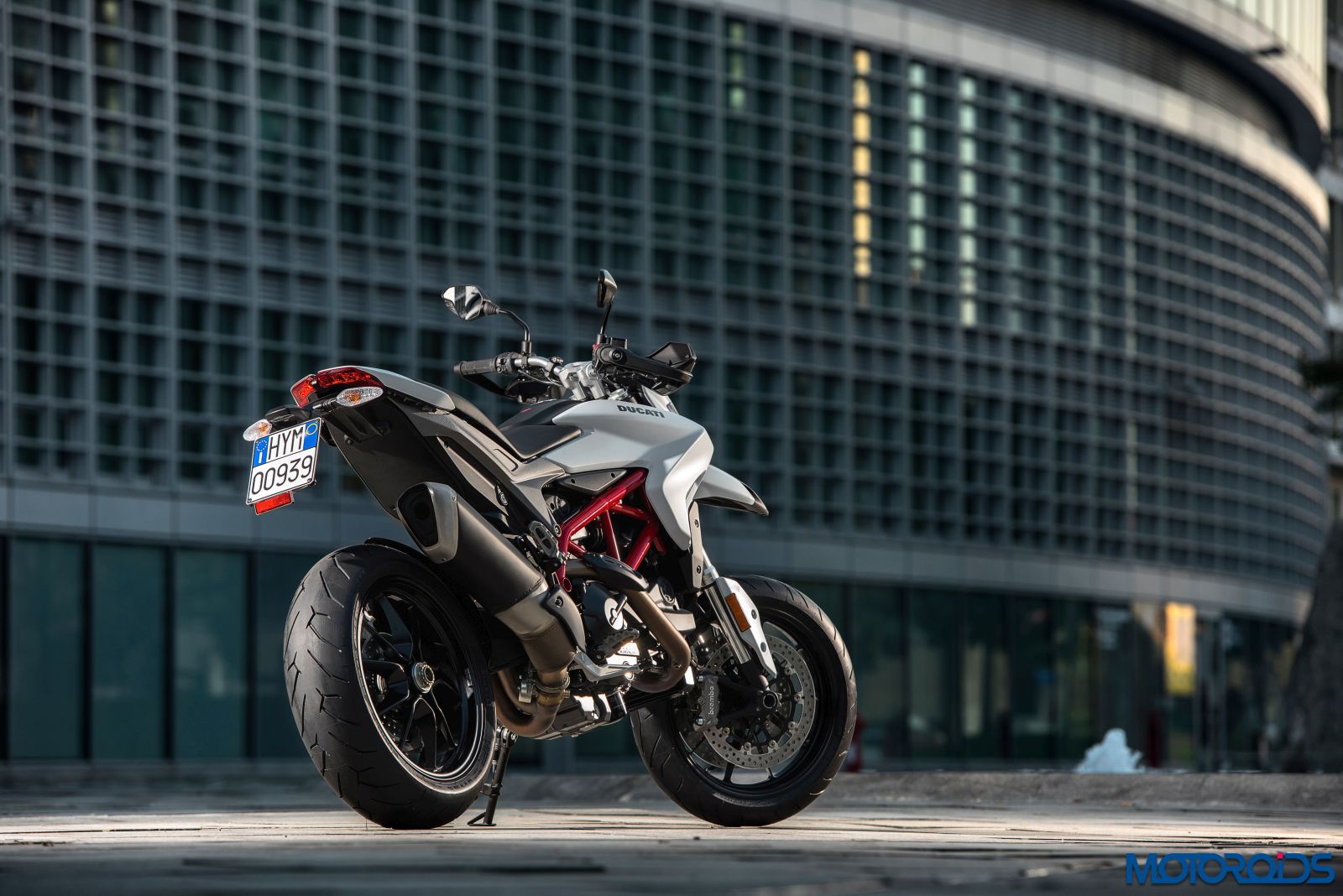

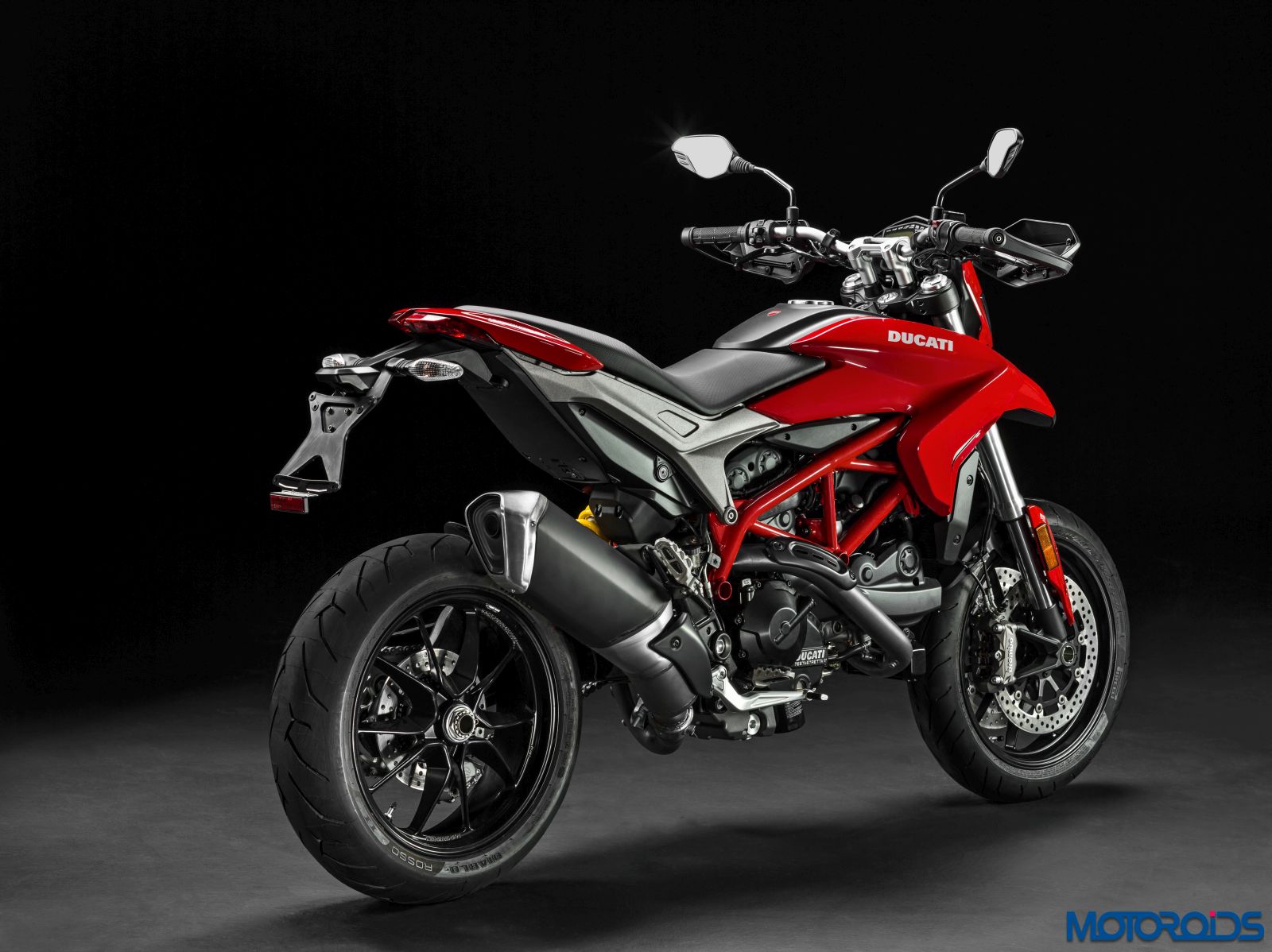

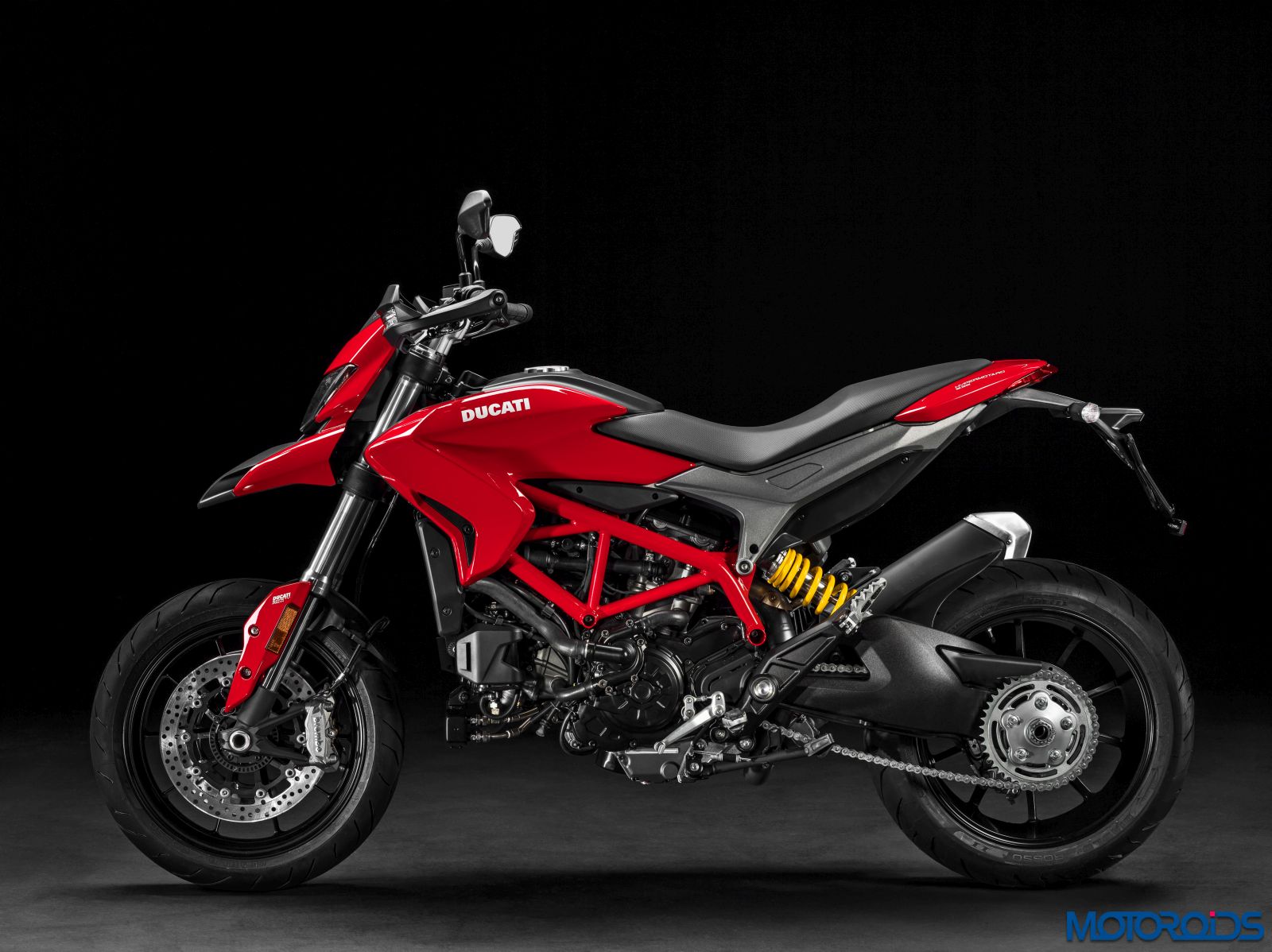

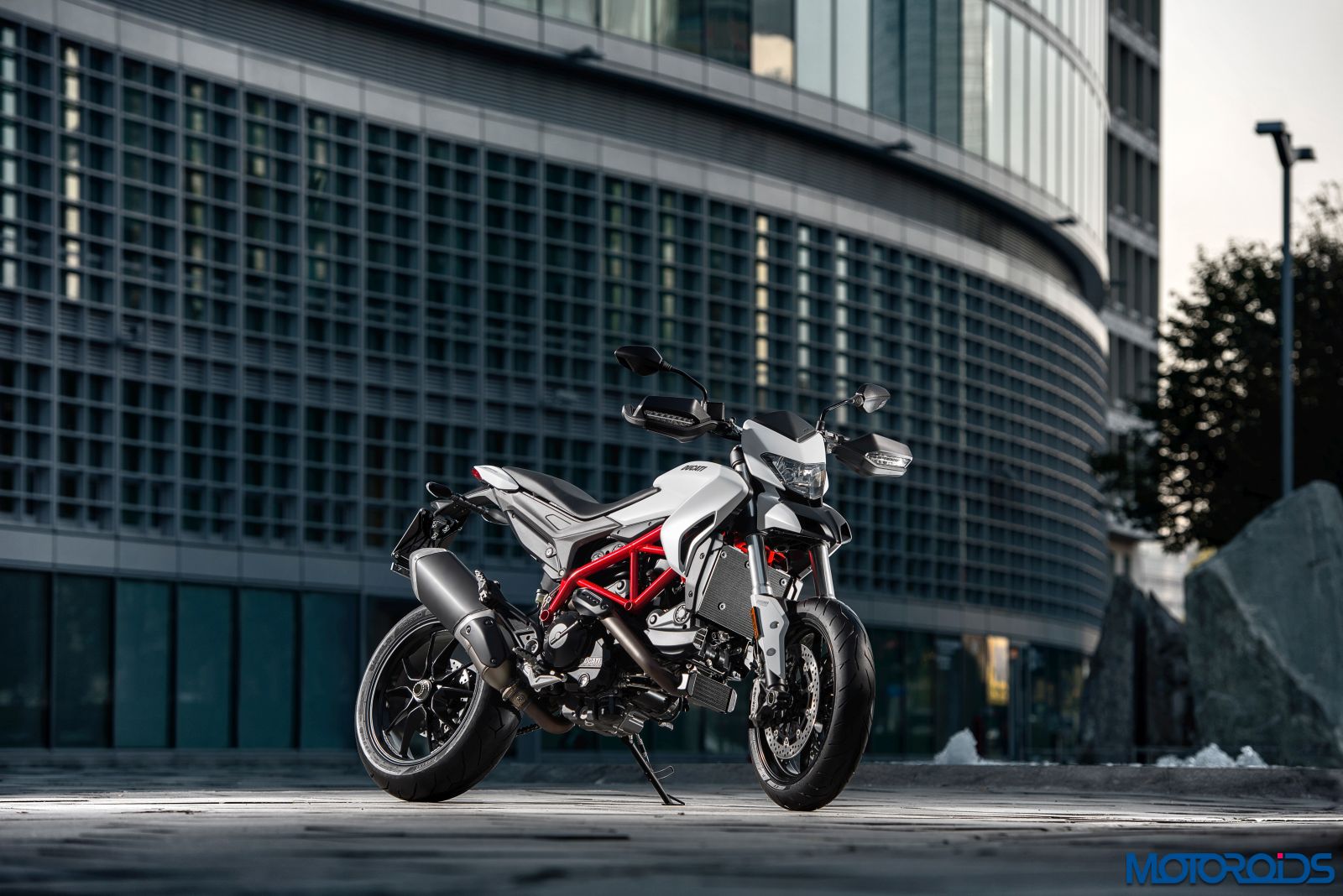

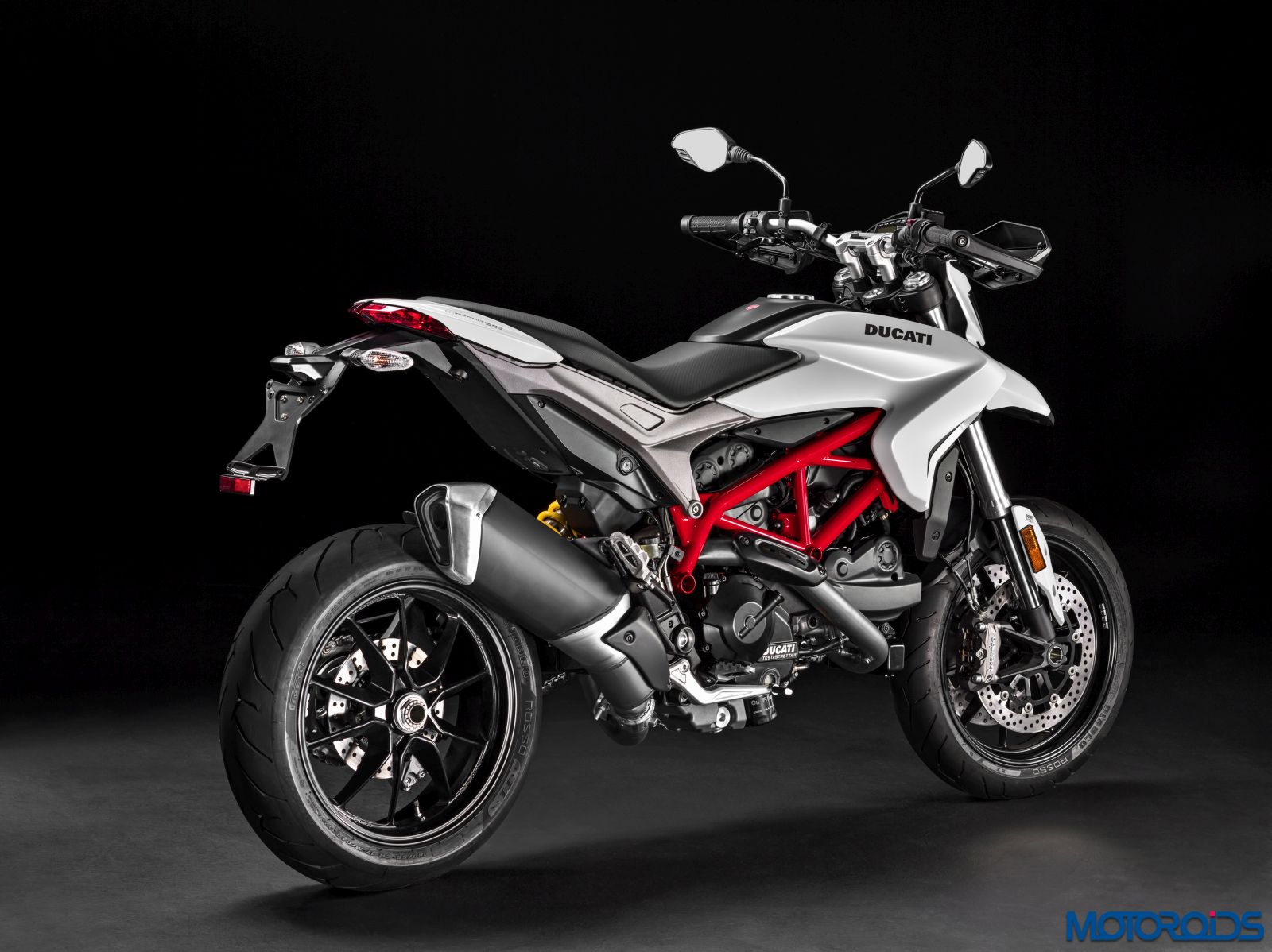

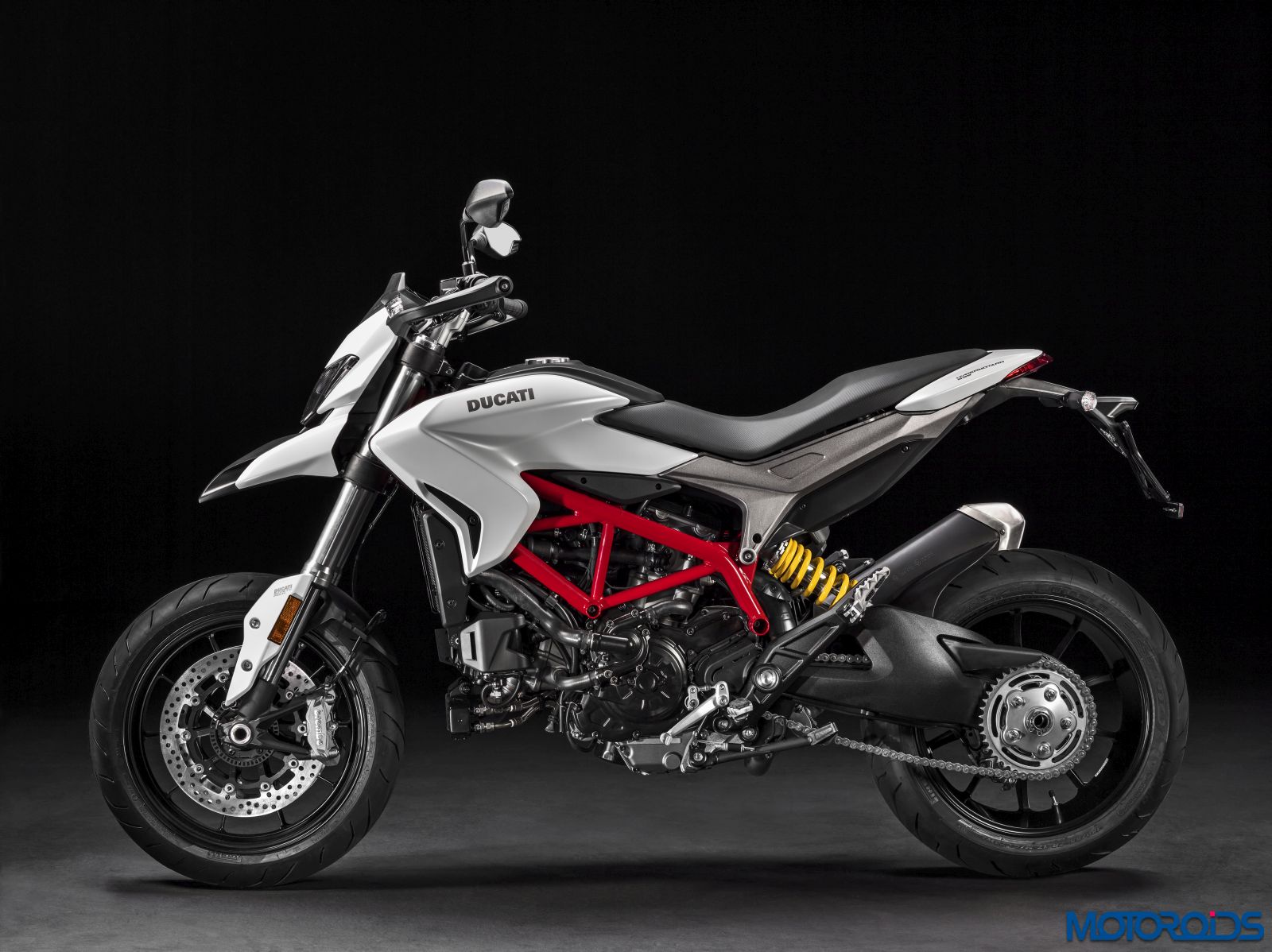

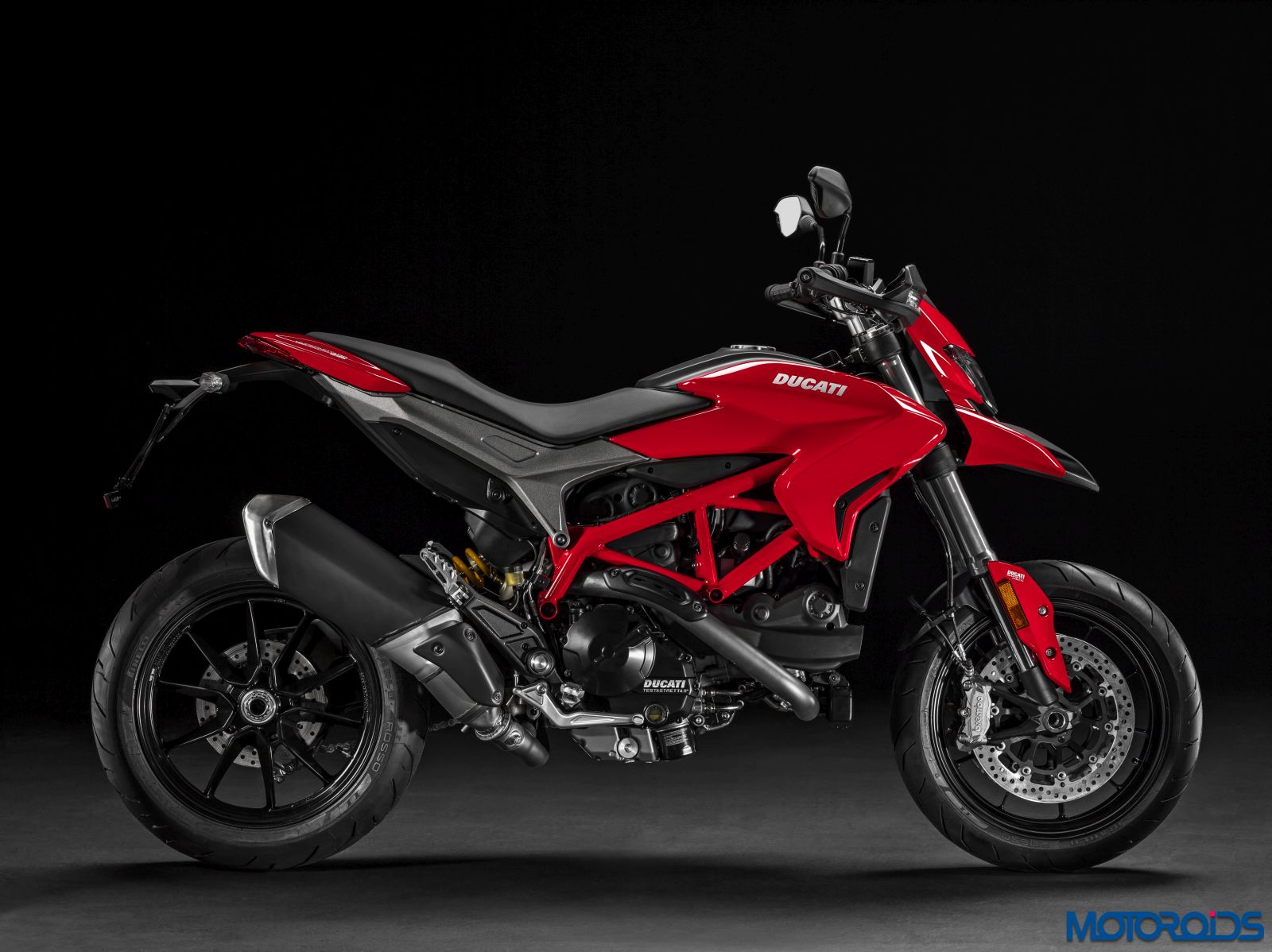

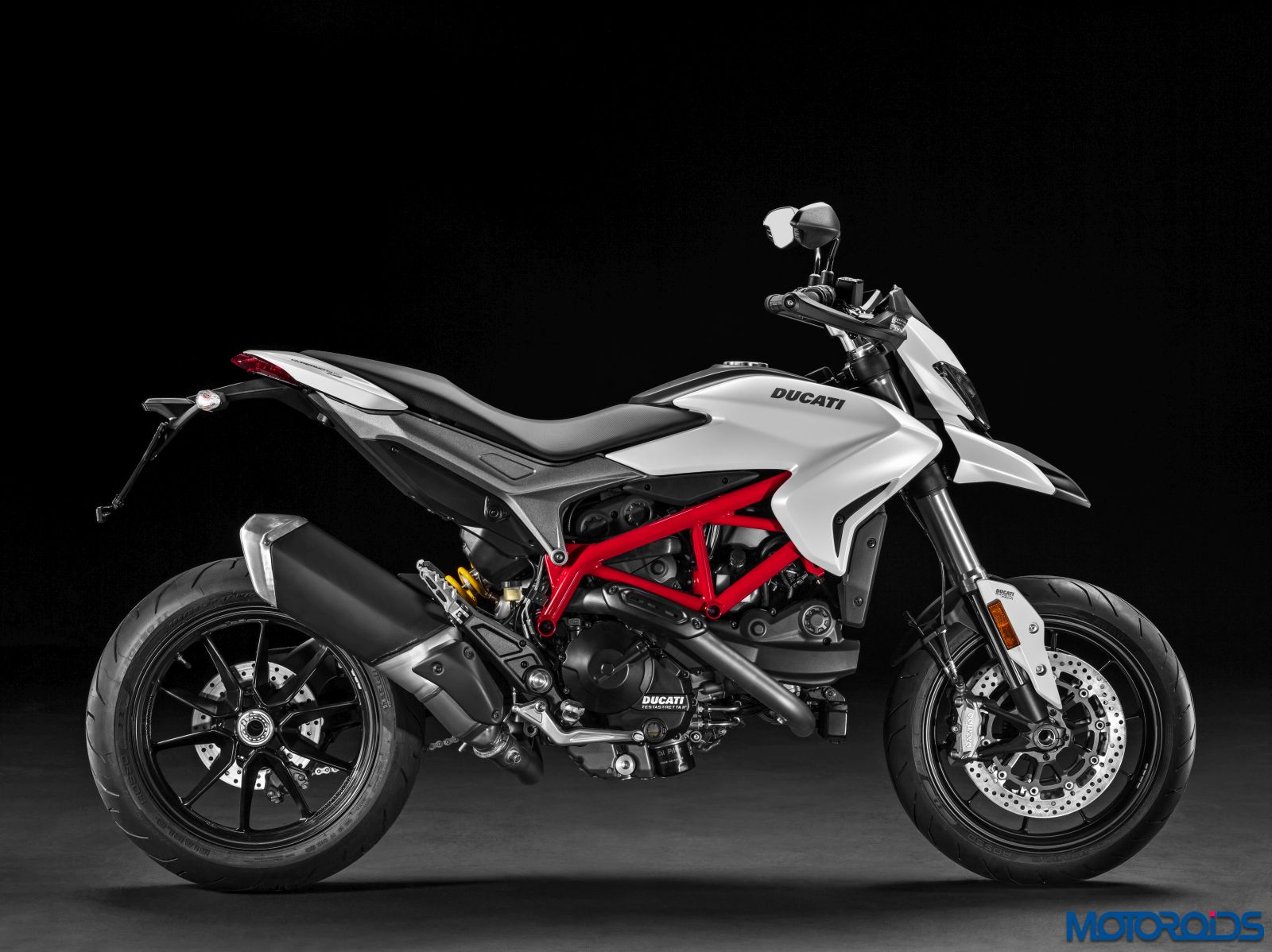

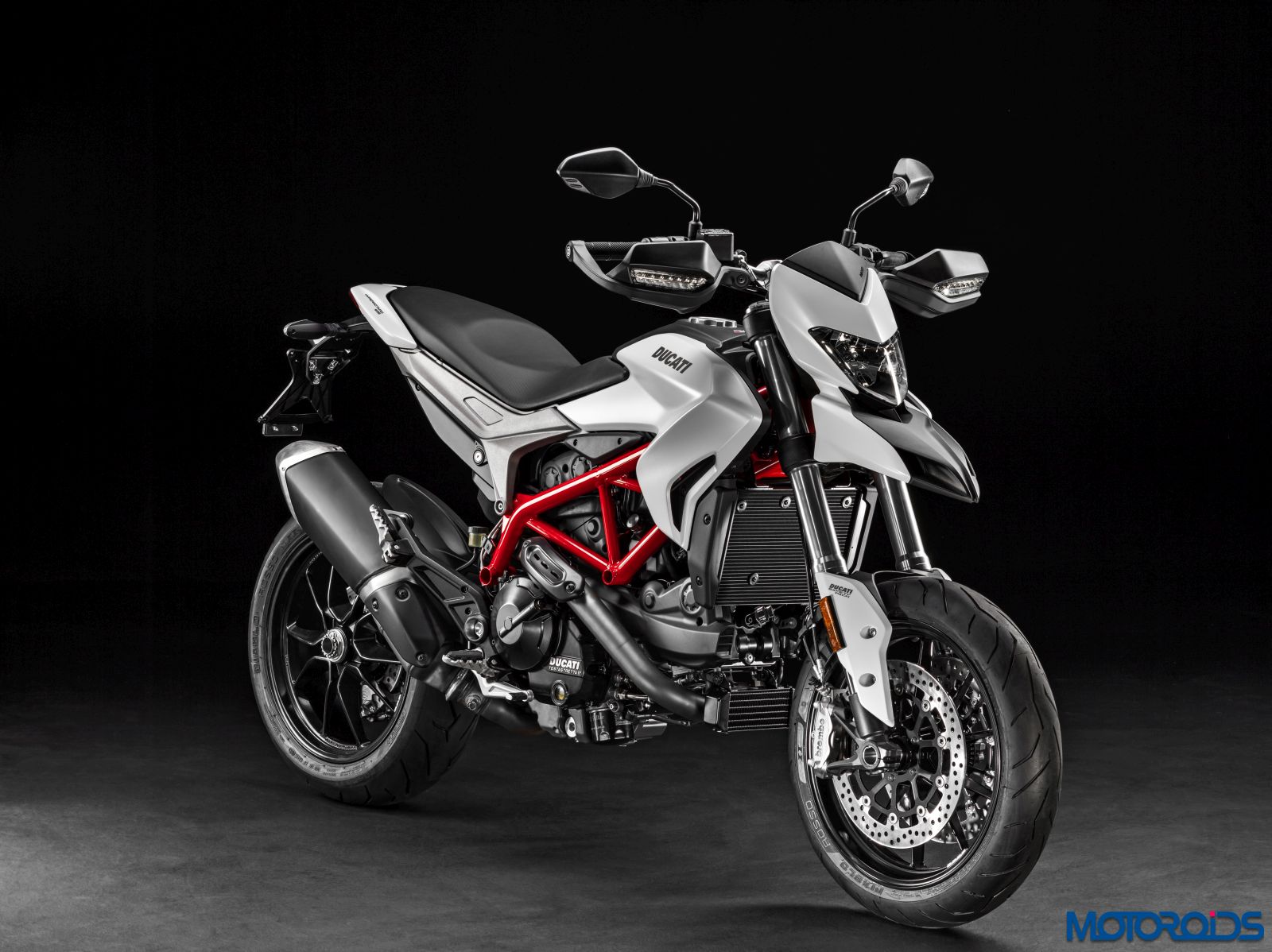

The Hypermotard 939 is available in the typical Ducati Red colouring as well as the elegant “Star White Silk”, both paired with a red frame. The Hypermotard 939 suspensions have a 43 mm diameter upside-down Kayaba fork with 170 mm travel and a Sachs shock absorber with adjustable rebound damping, providing 150 mm wheel travel. The Hypermotard 939 has a dry weight of 181 kg and a ride height of 850 mm. A raised comfort saddle with 20 mm of extra padding is also available as a Ducati Performance accessory. The Hypermotard 939 uses Pirelli Diablo Rosso II tyres.

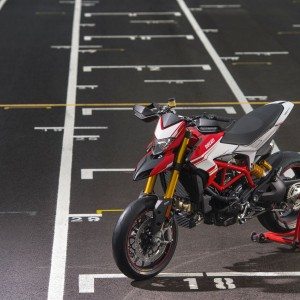

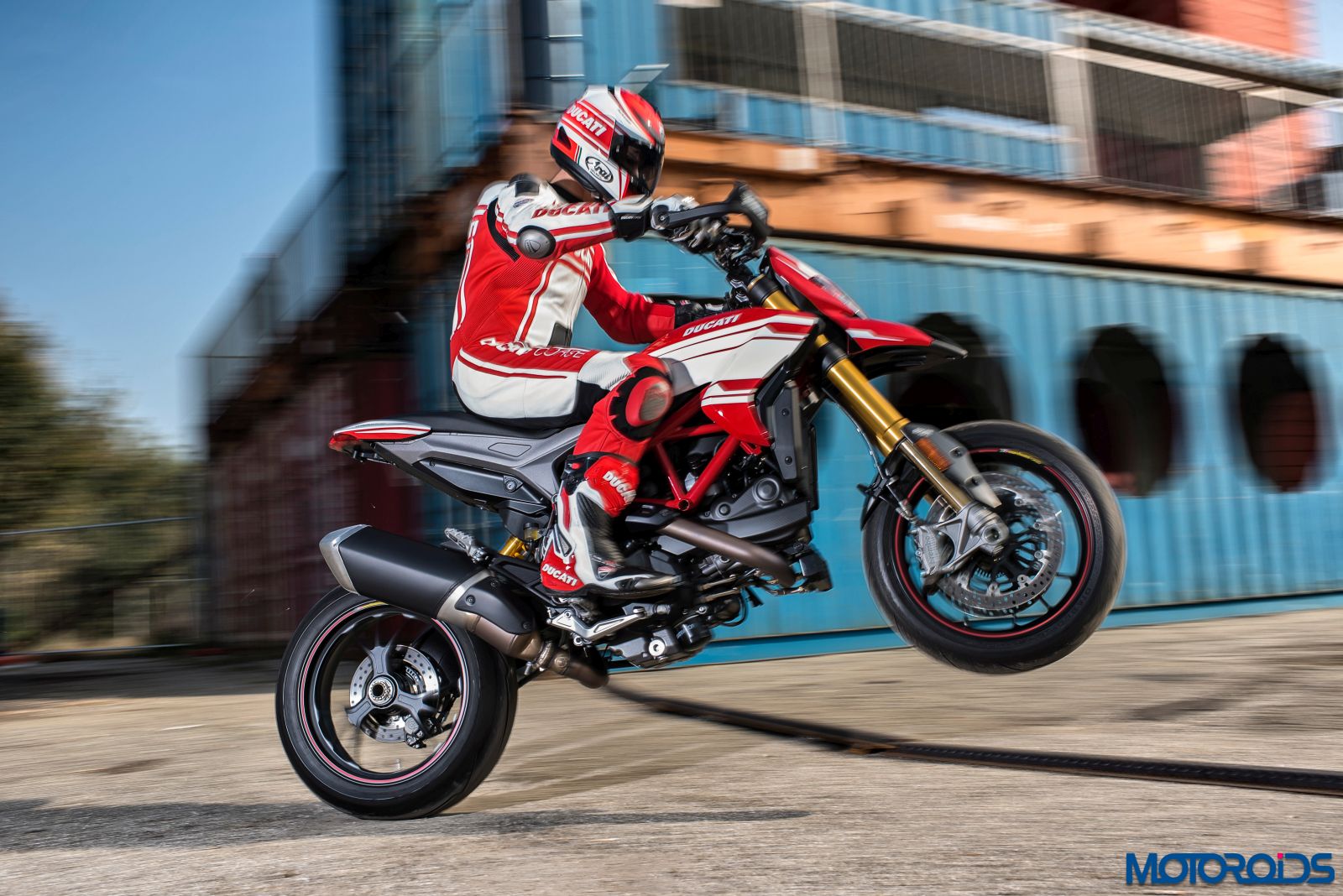

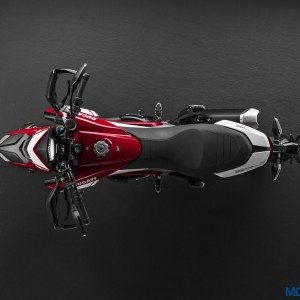

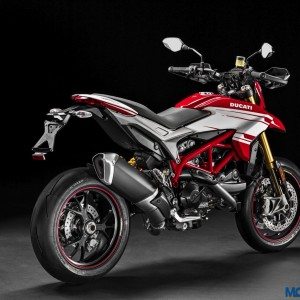

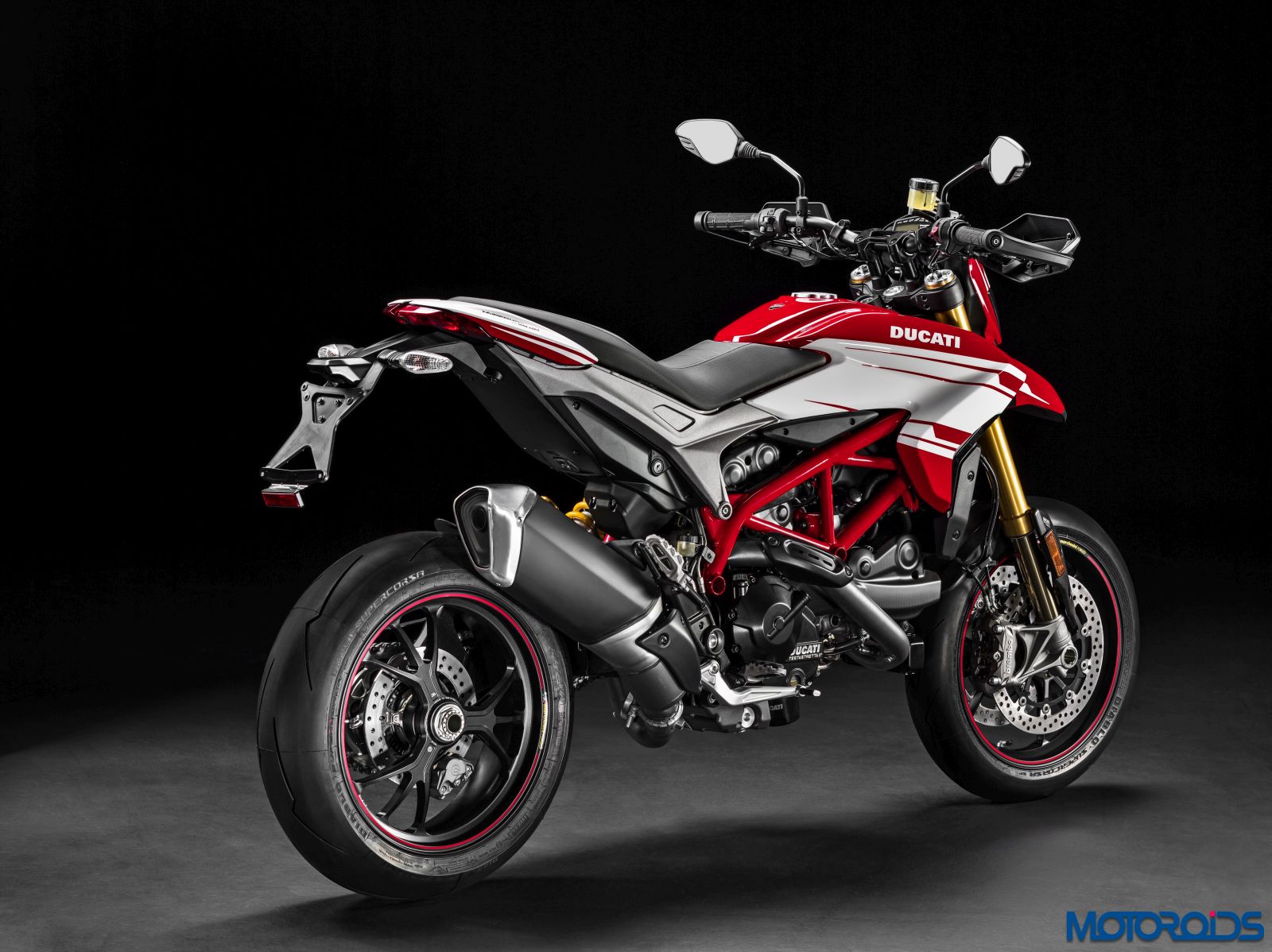

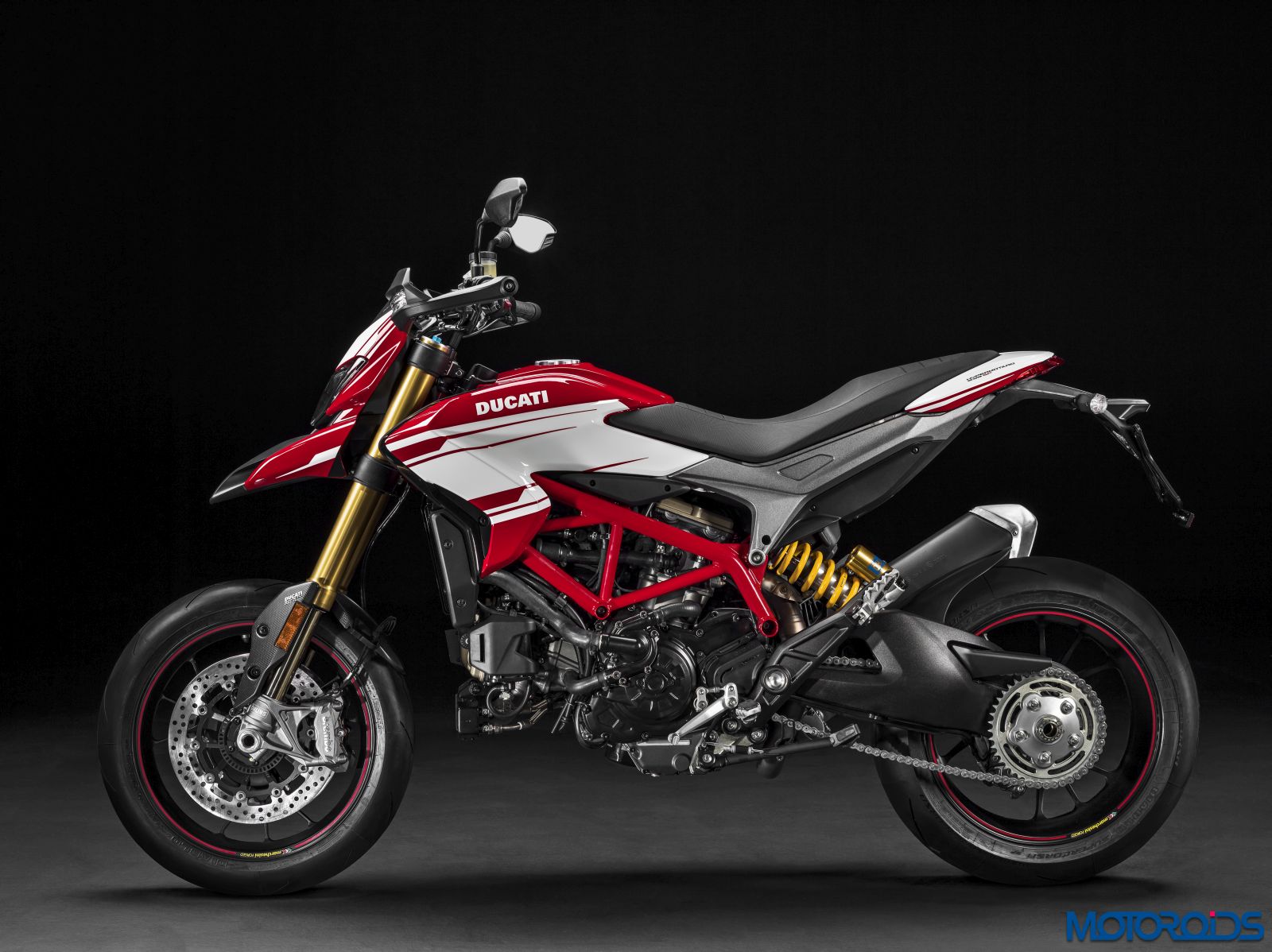

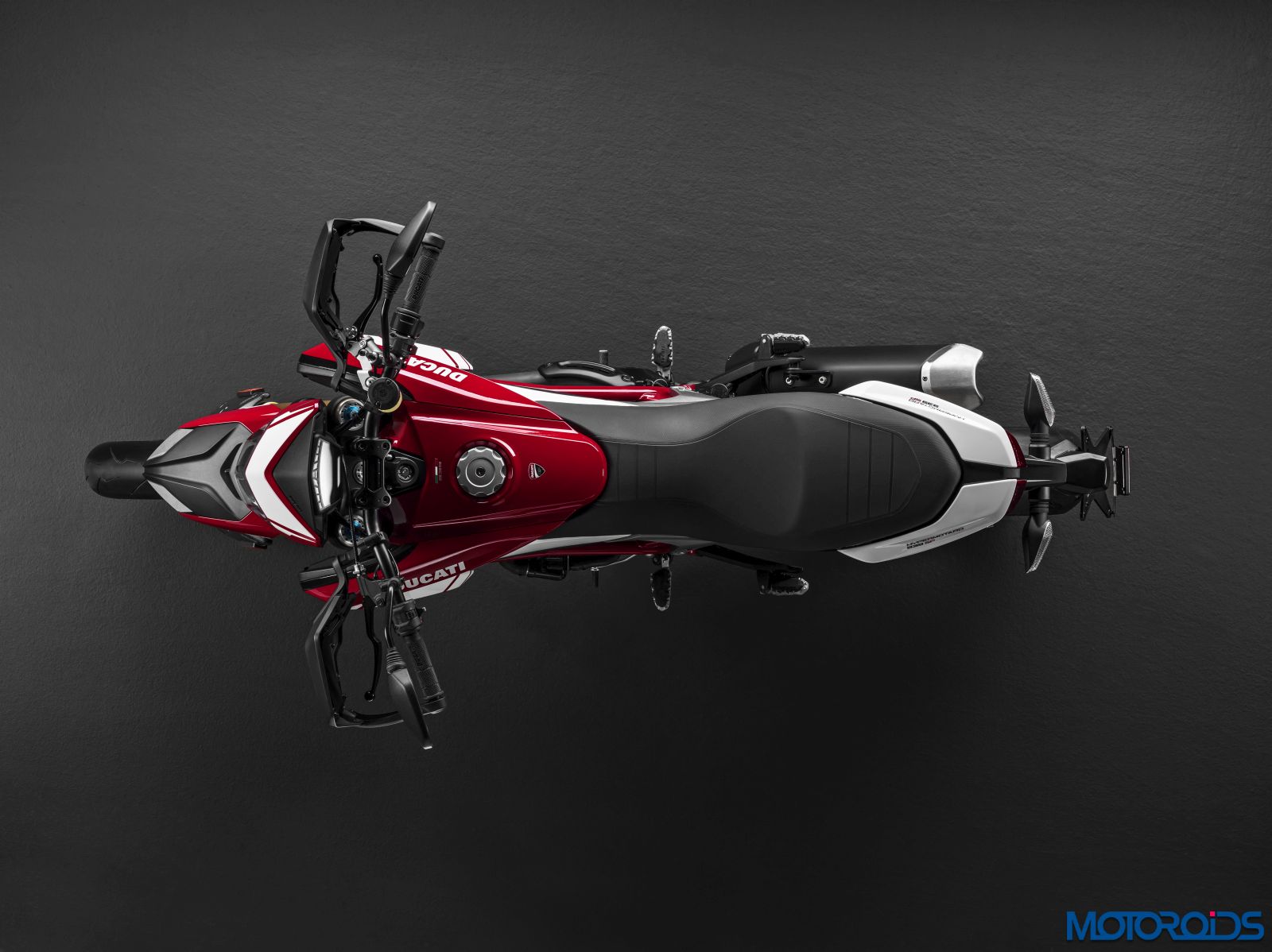

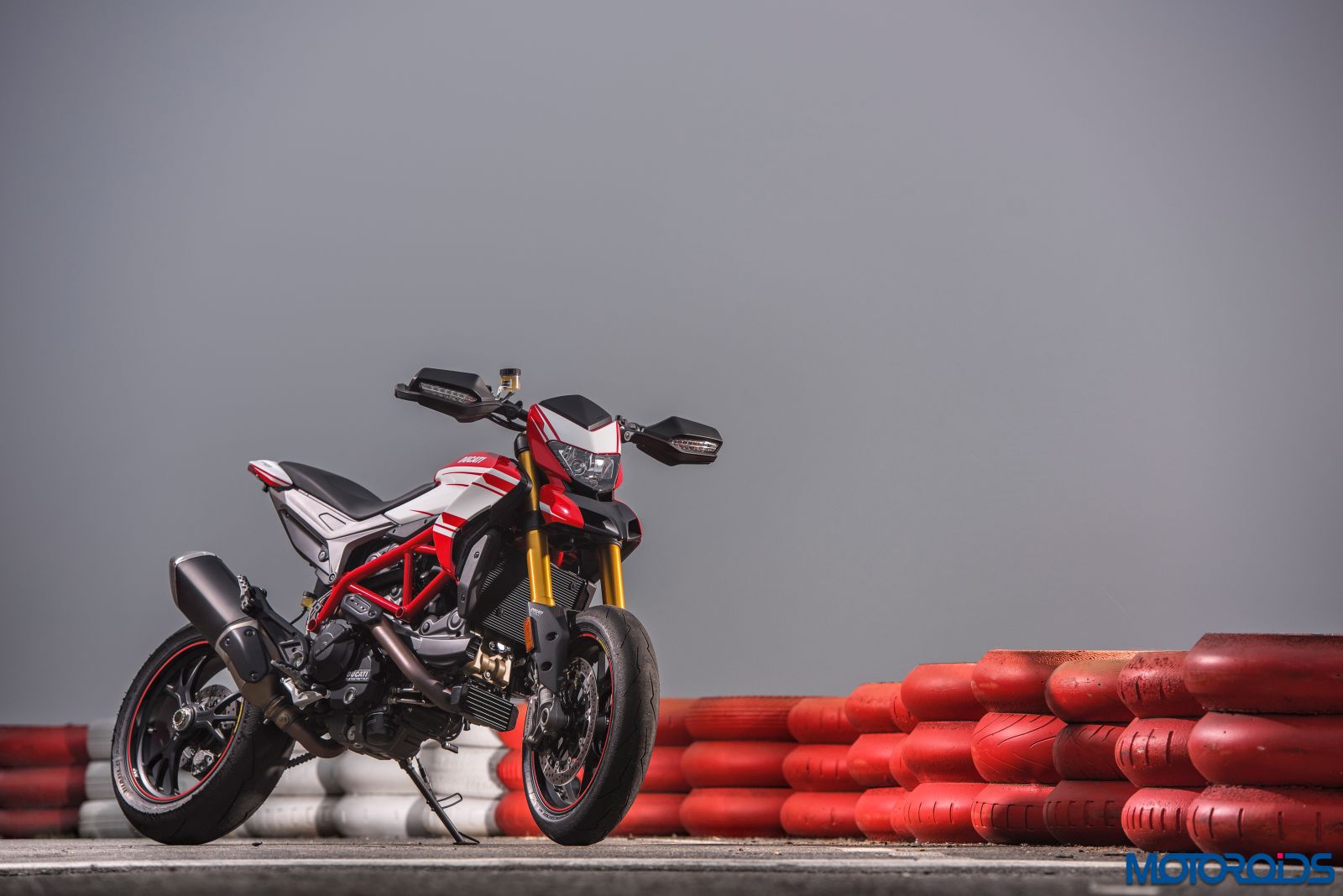

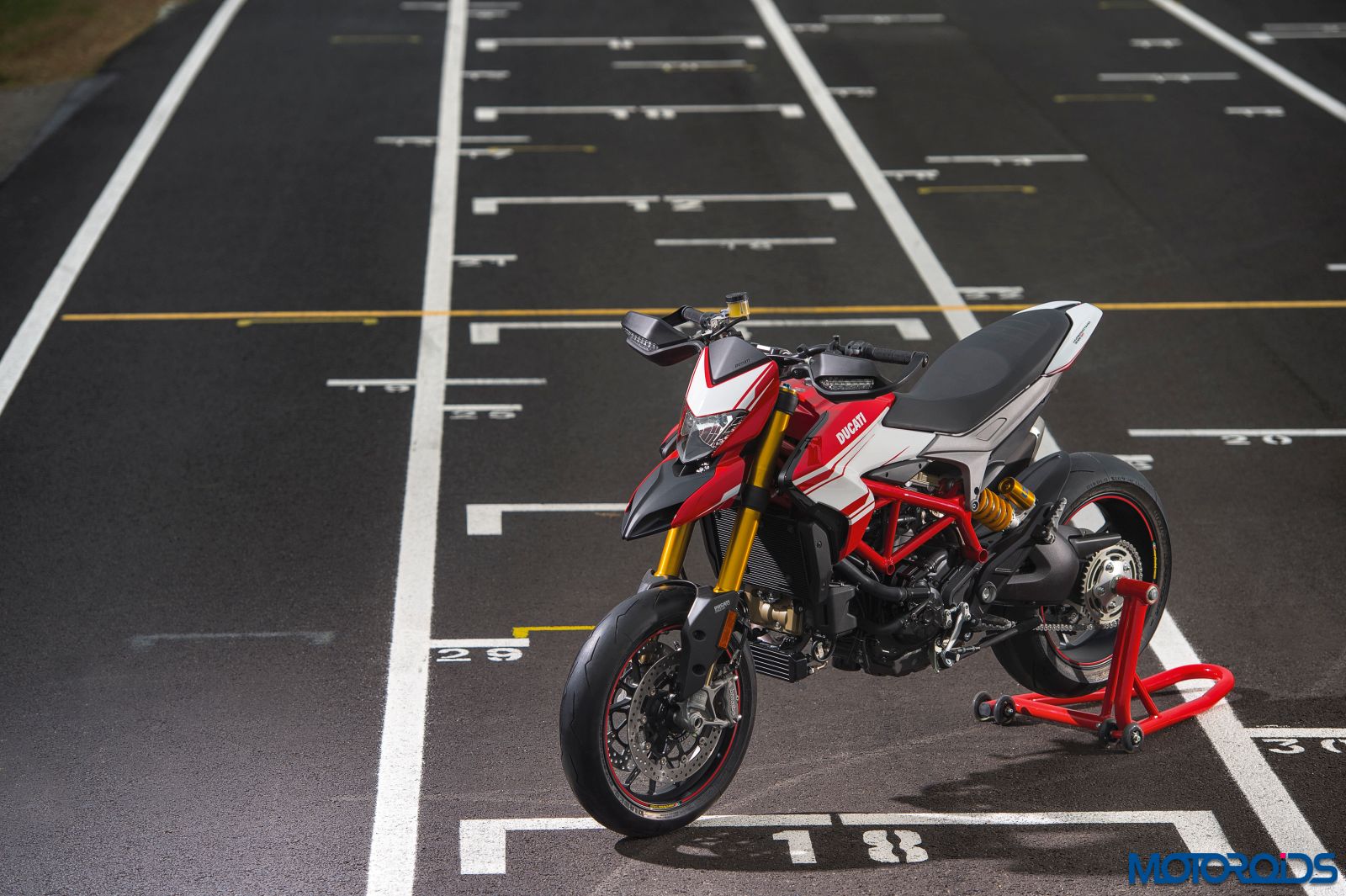

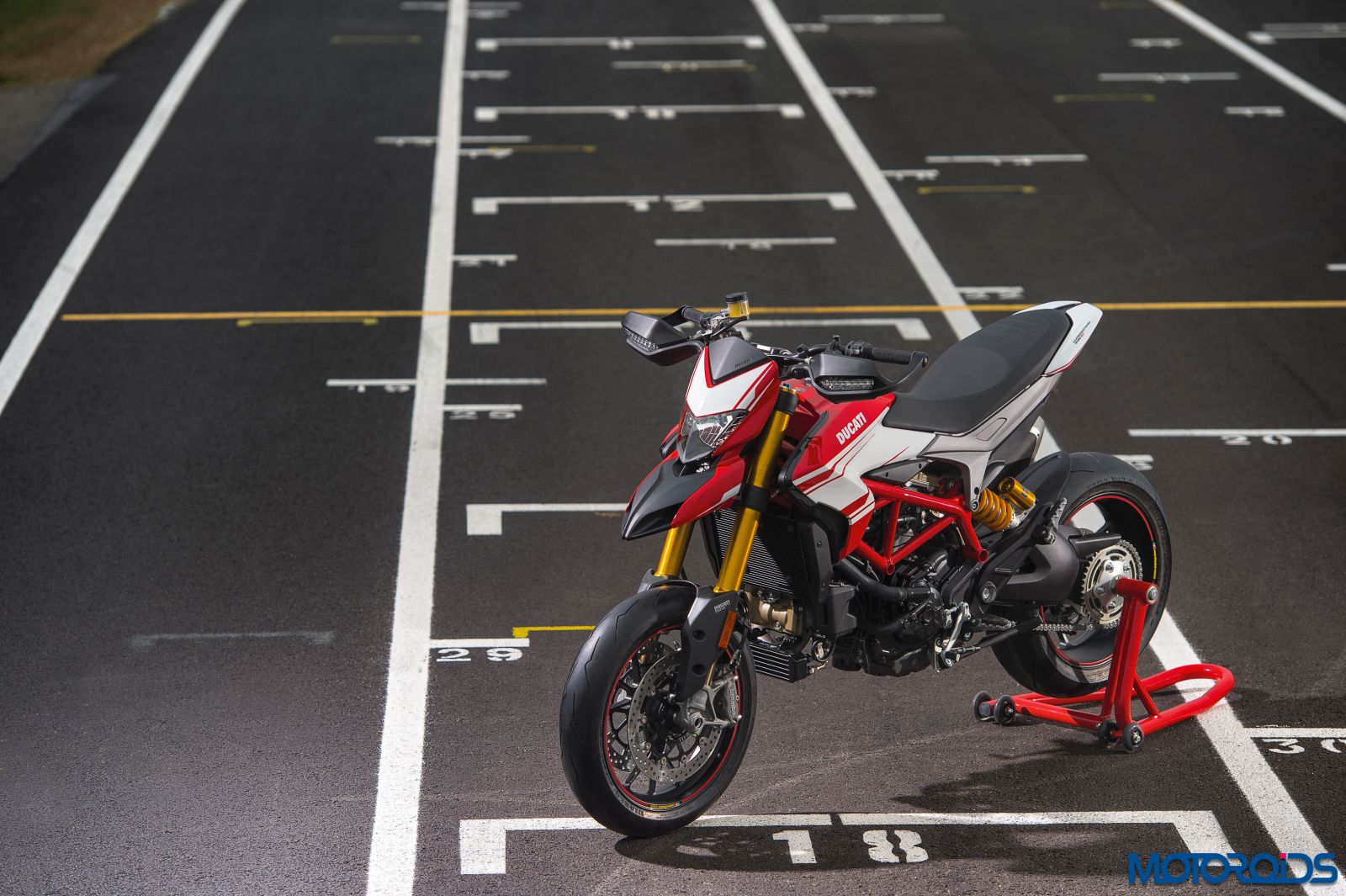

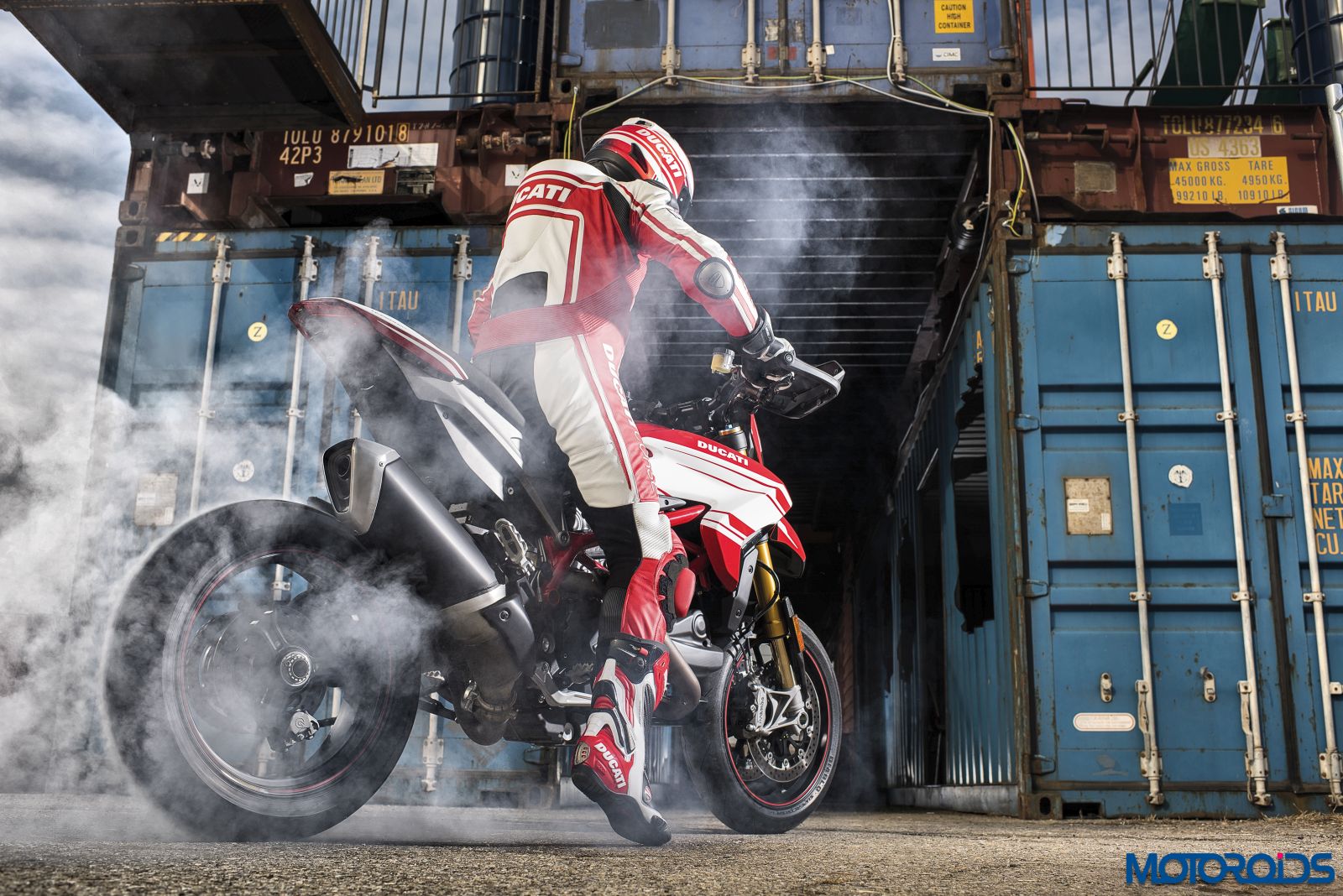

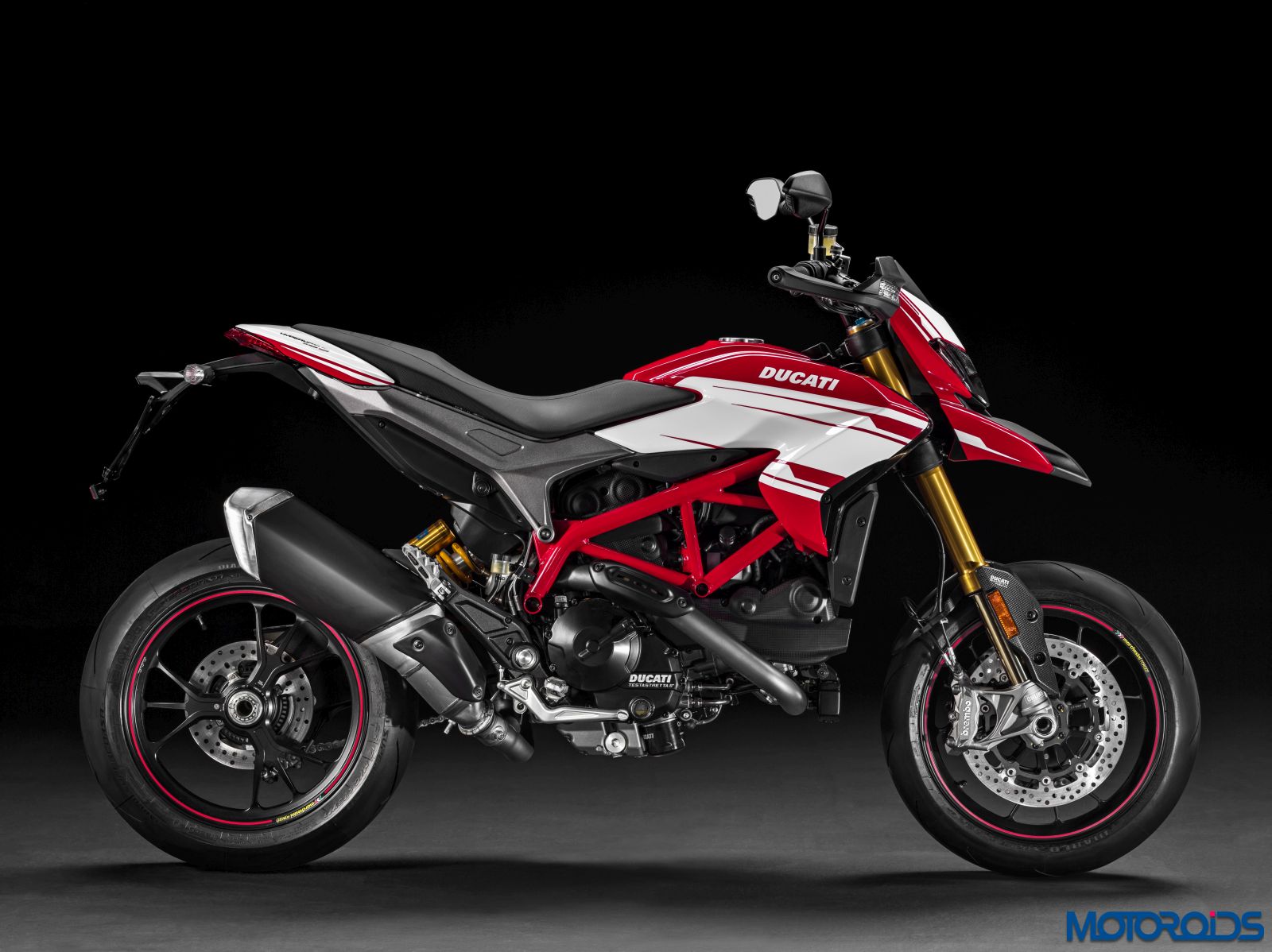

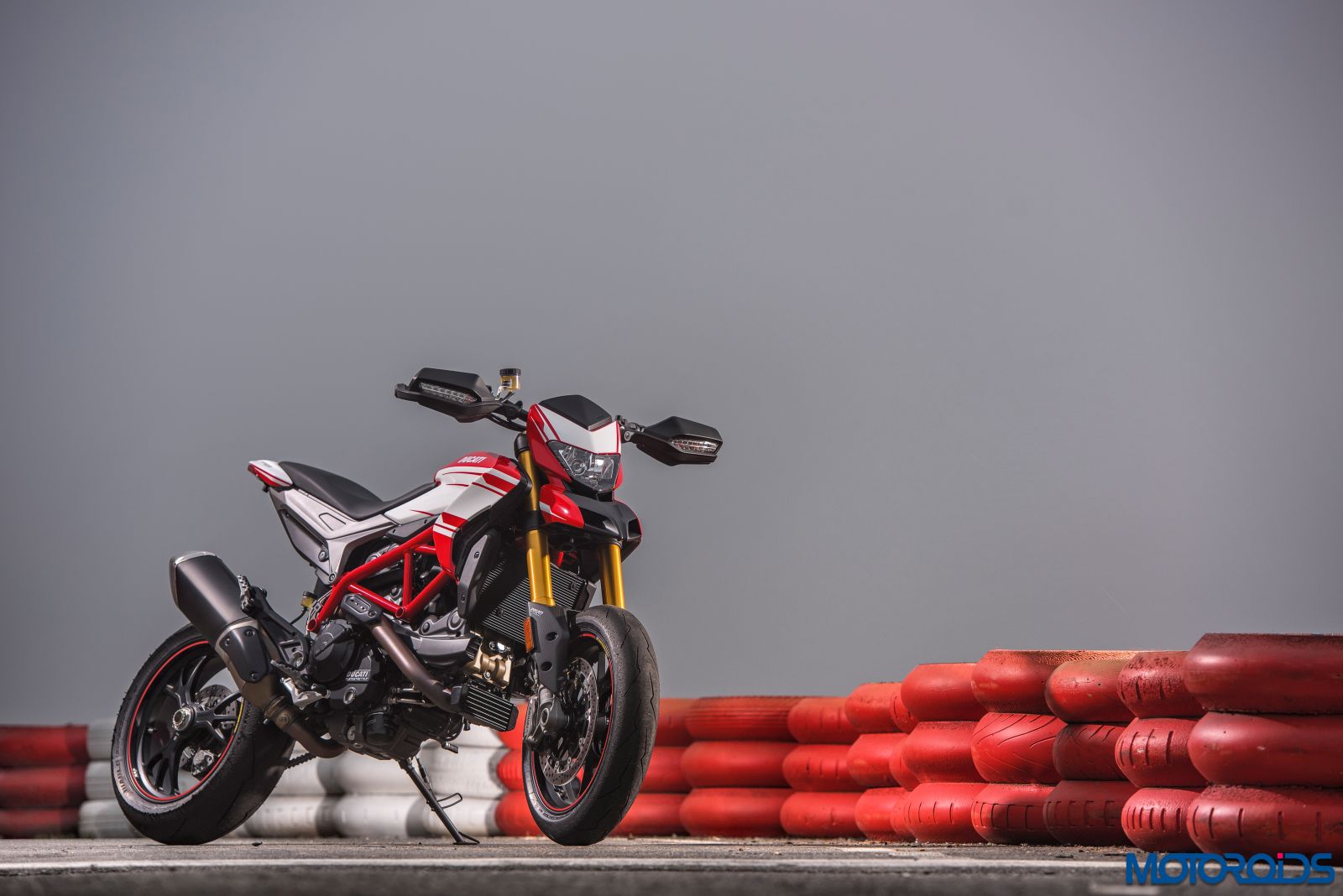

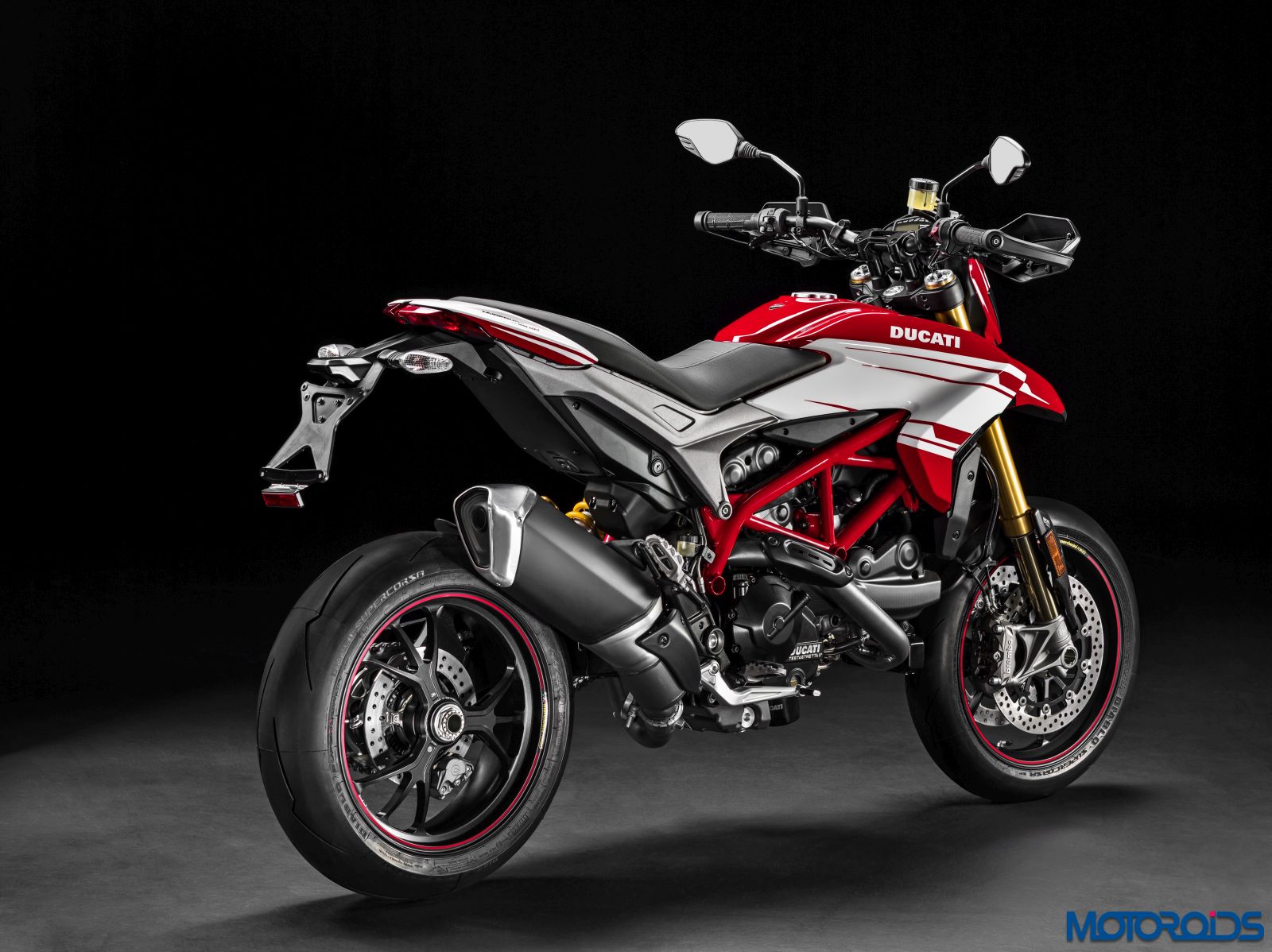

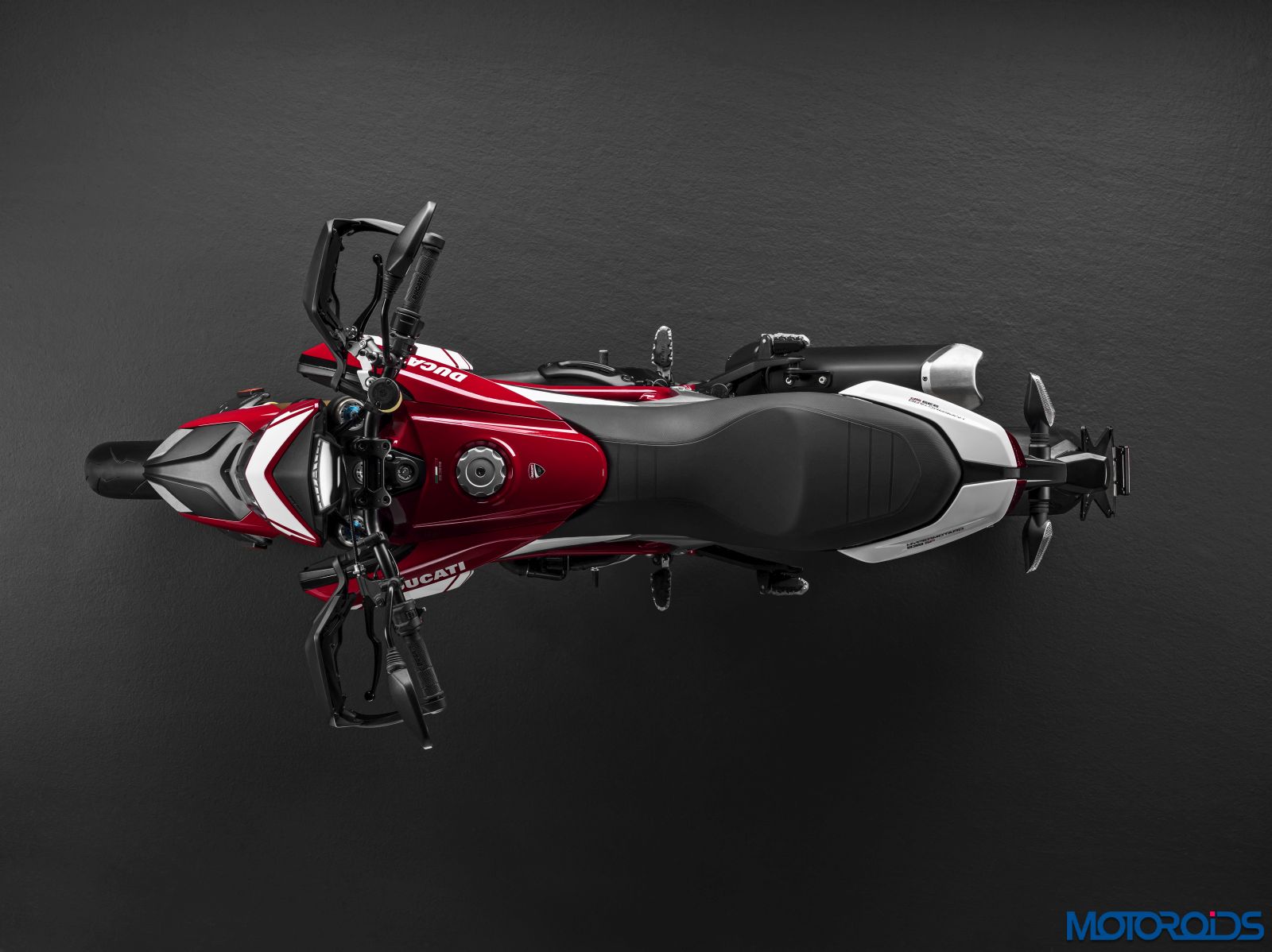

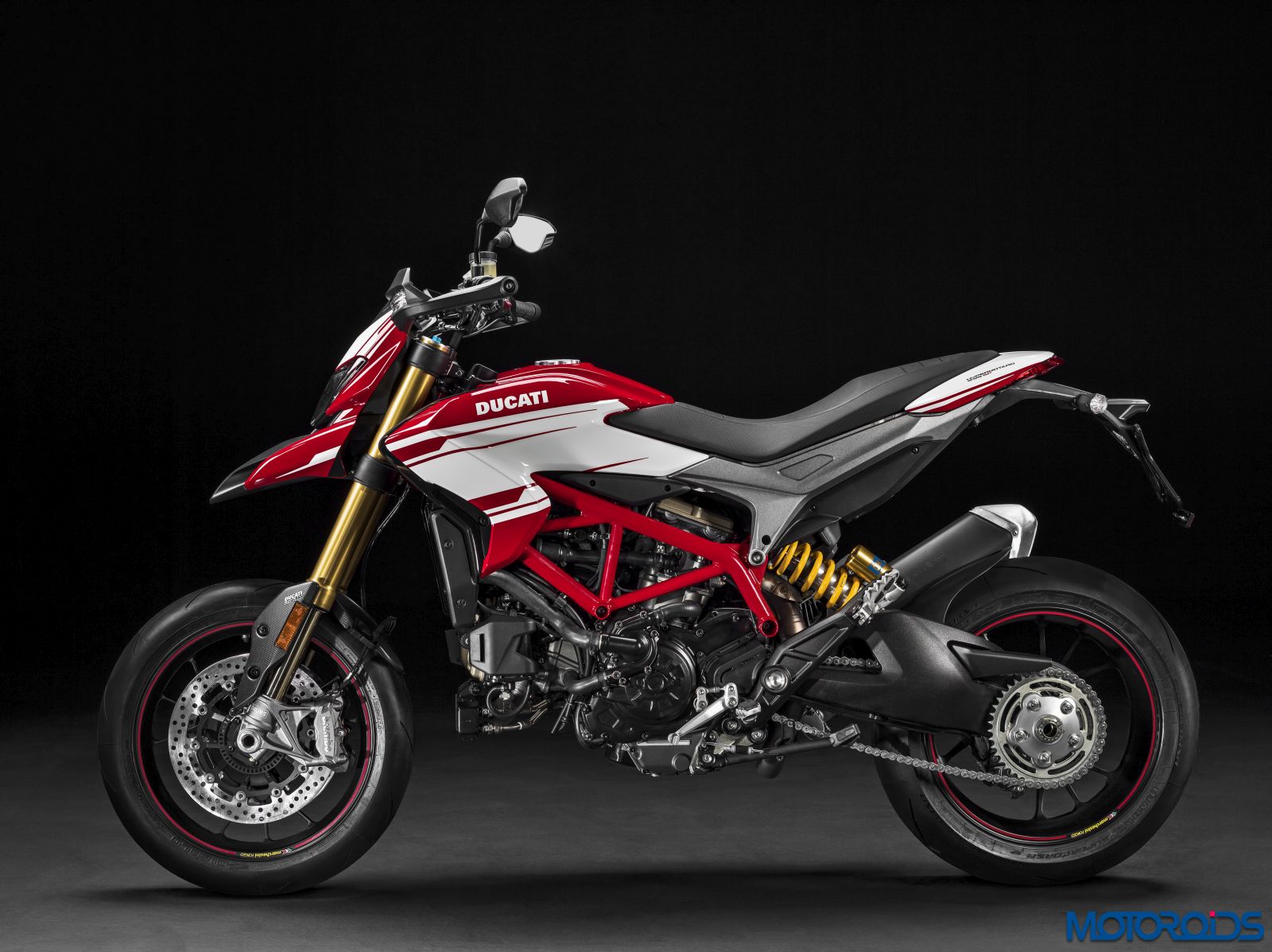

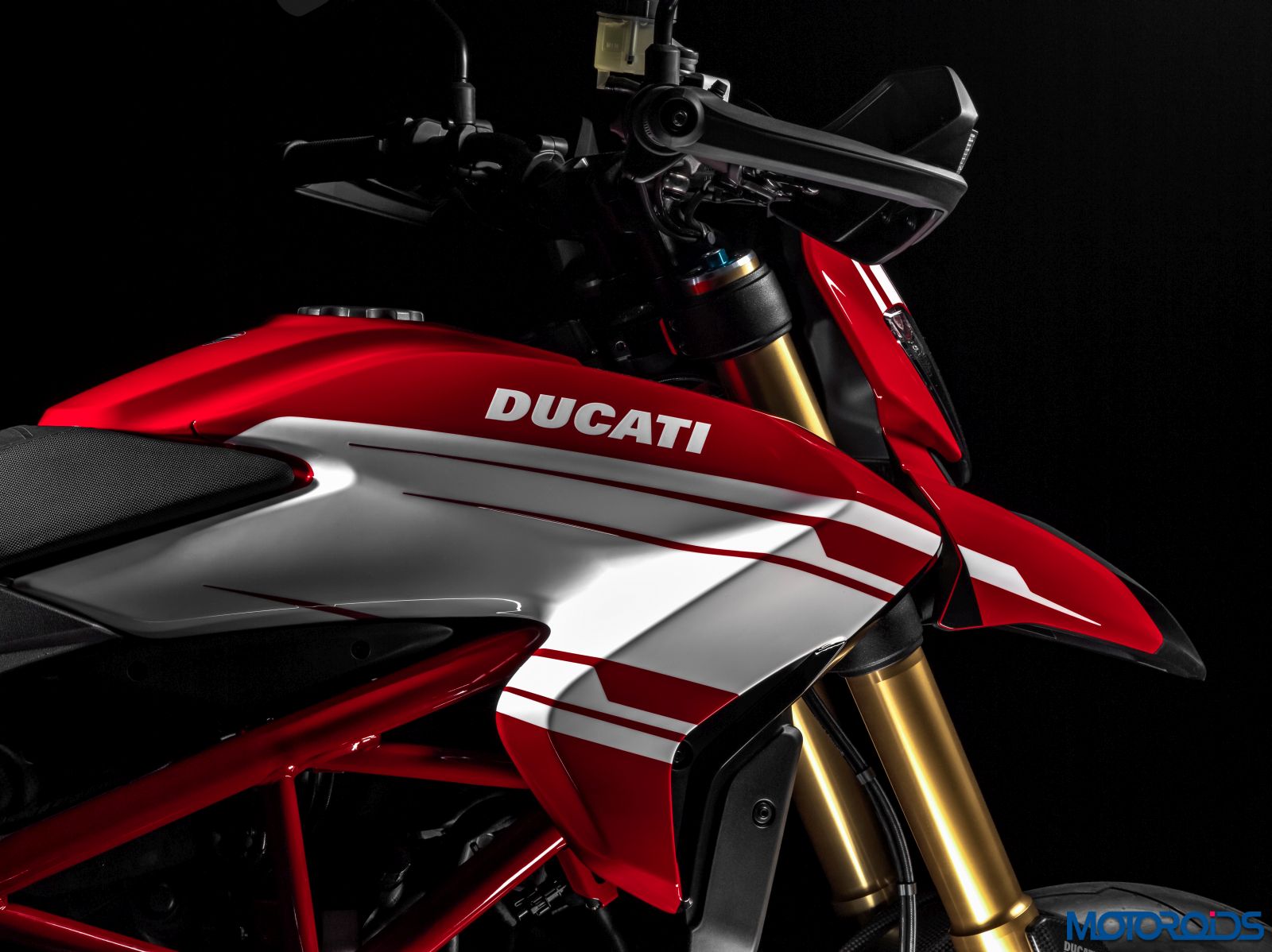

The Hypermotard 939 SP has a livery inspired by the MotoGP, a weight of 178 kg and at the front a fully adjustable 50 mm diameter upside-down Öhlins fork with 185 mm travel. The rear suspension uses a fully adjustable Öhlins shock absorber which allows for 175 mm rear wheel travel. The raised ride height of the SP version allows for a 47.5° lean angle, essential for extreme race-track riding. These specifications take the ride height of the Hypermotard 939 SP to 890 mm while a 20 mm lower saddle is available as a Ducati accessory on request. The Hypermotard 939 SP uses Pirelli Diablo Supercorsa SP tyres.

2016 DUCATI HYPERMOTARD 939 (7)

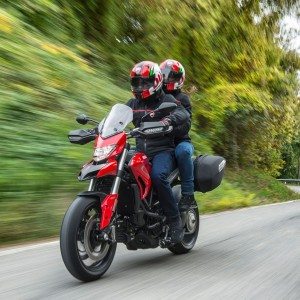

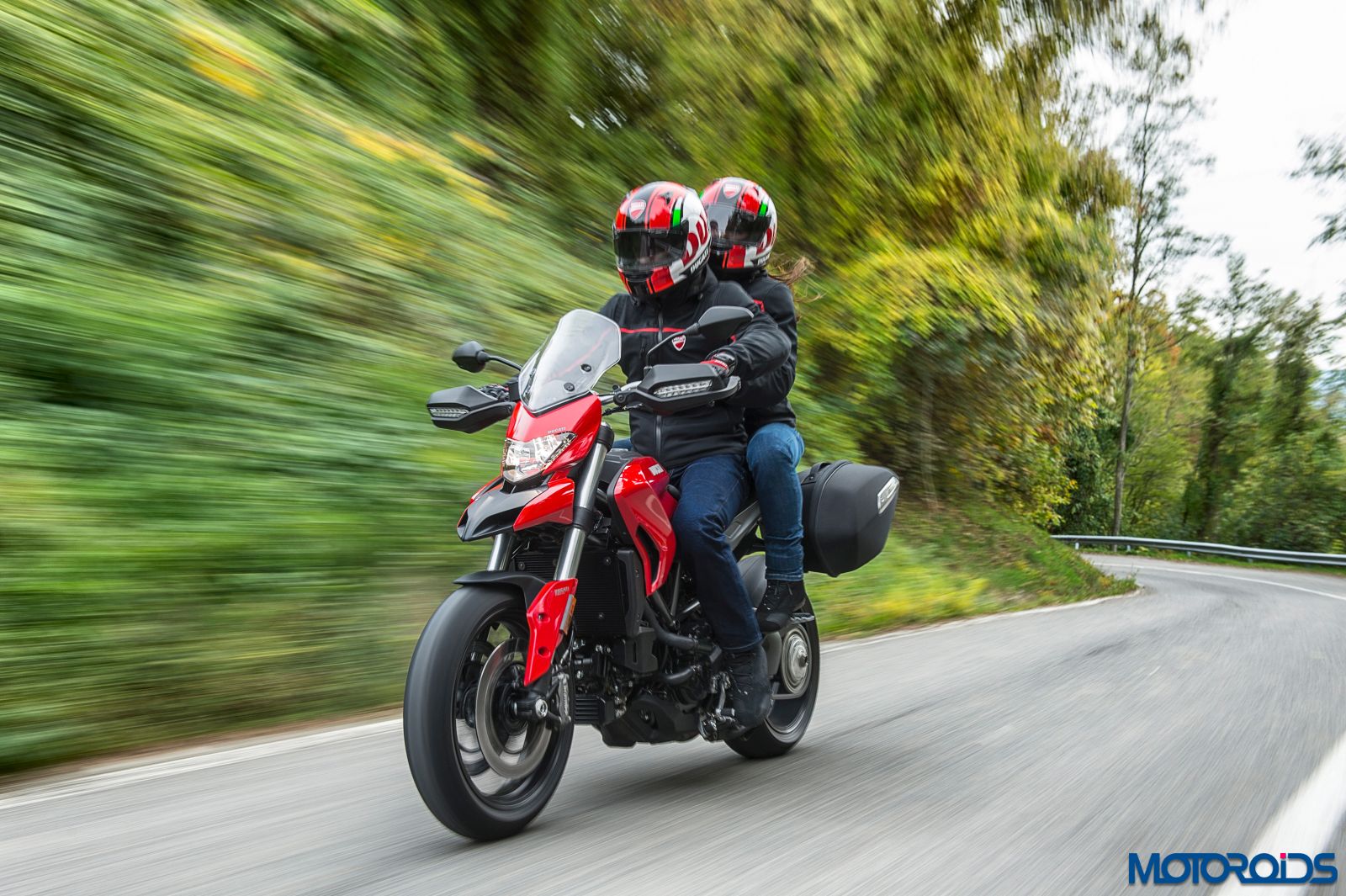

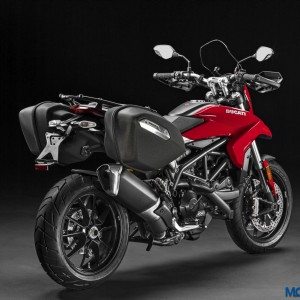

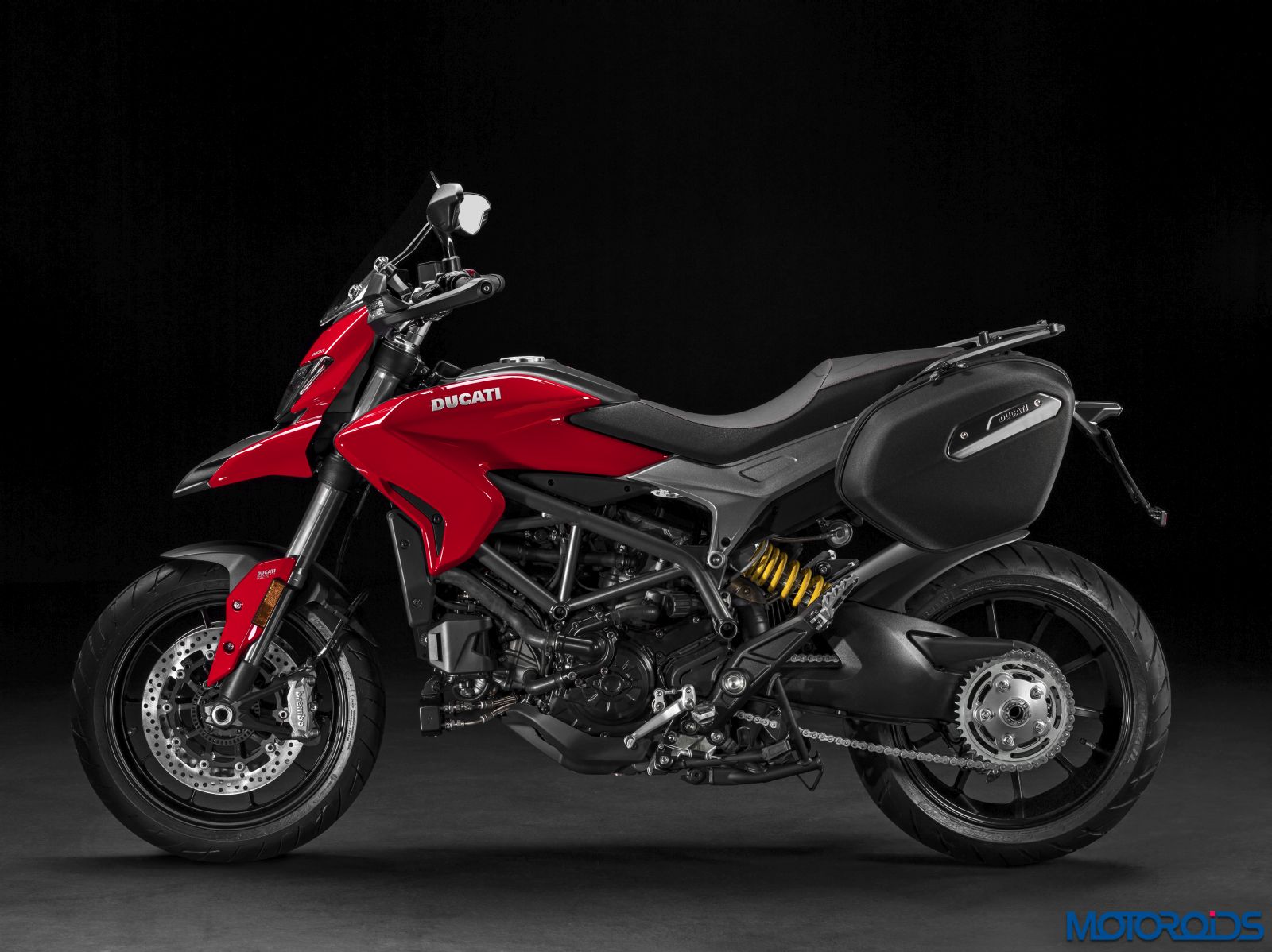

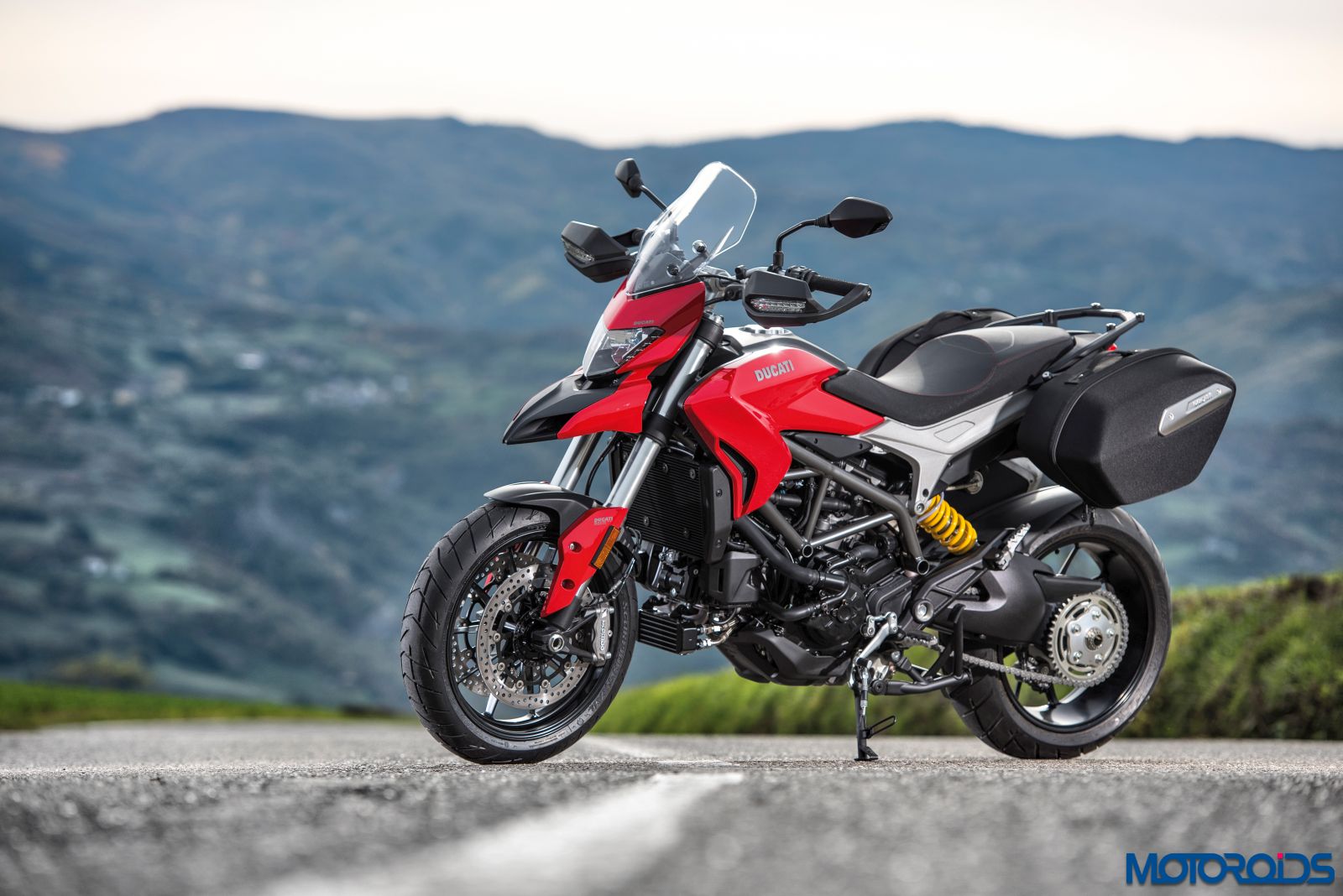

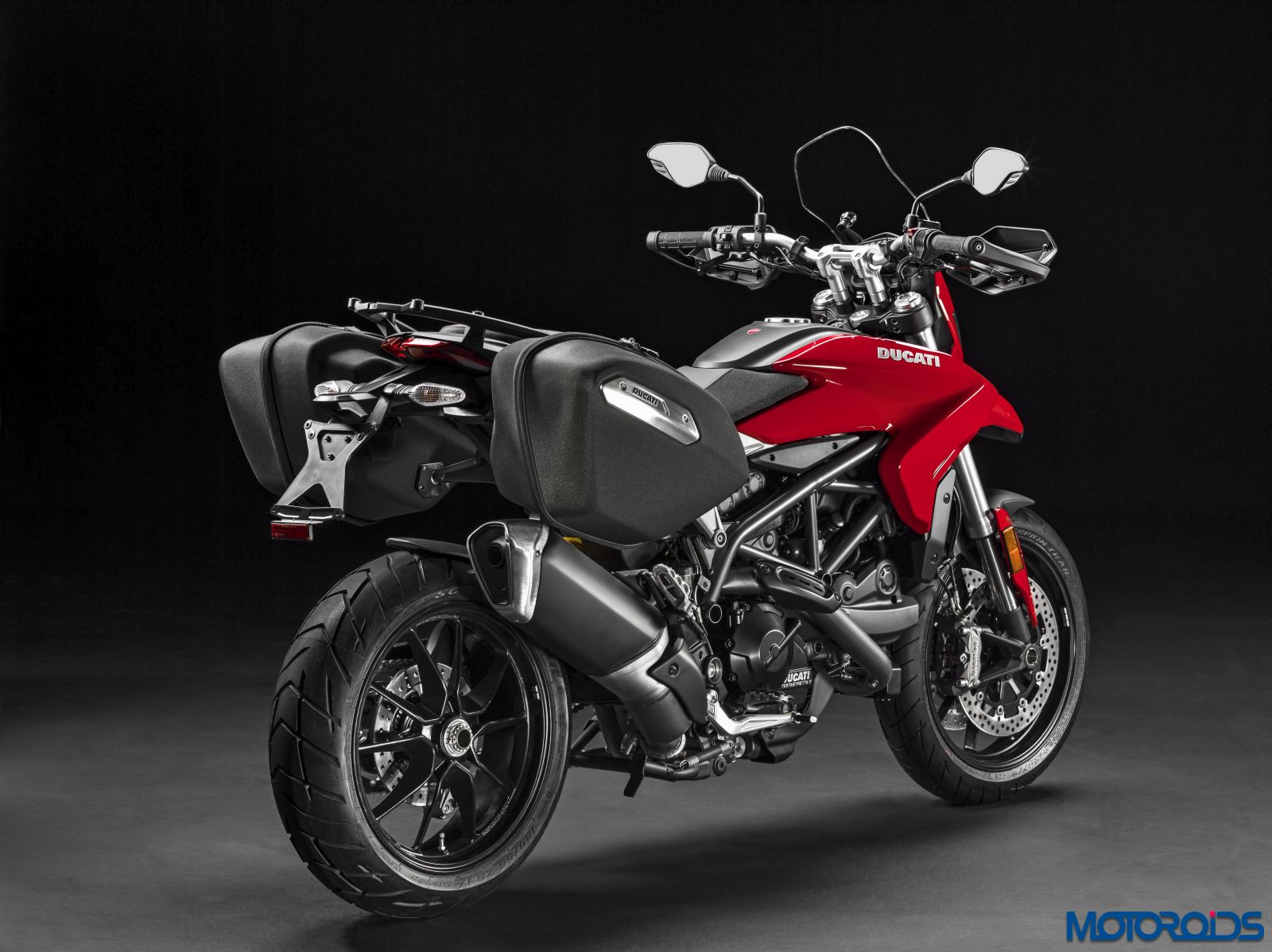

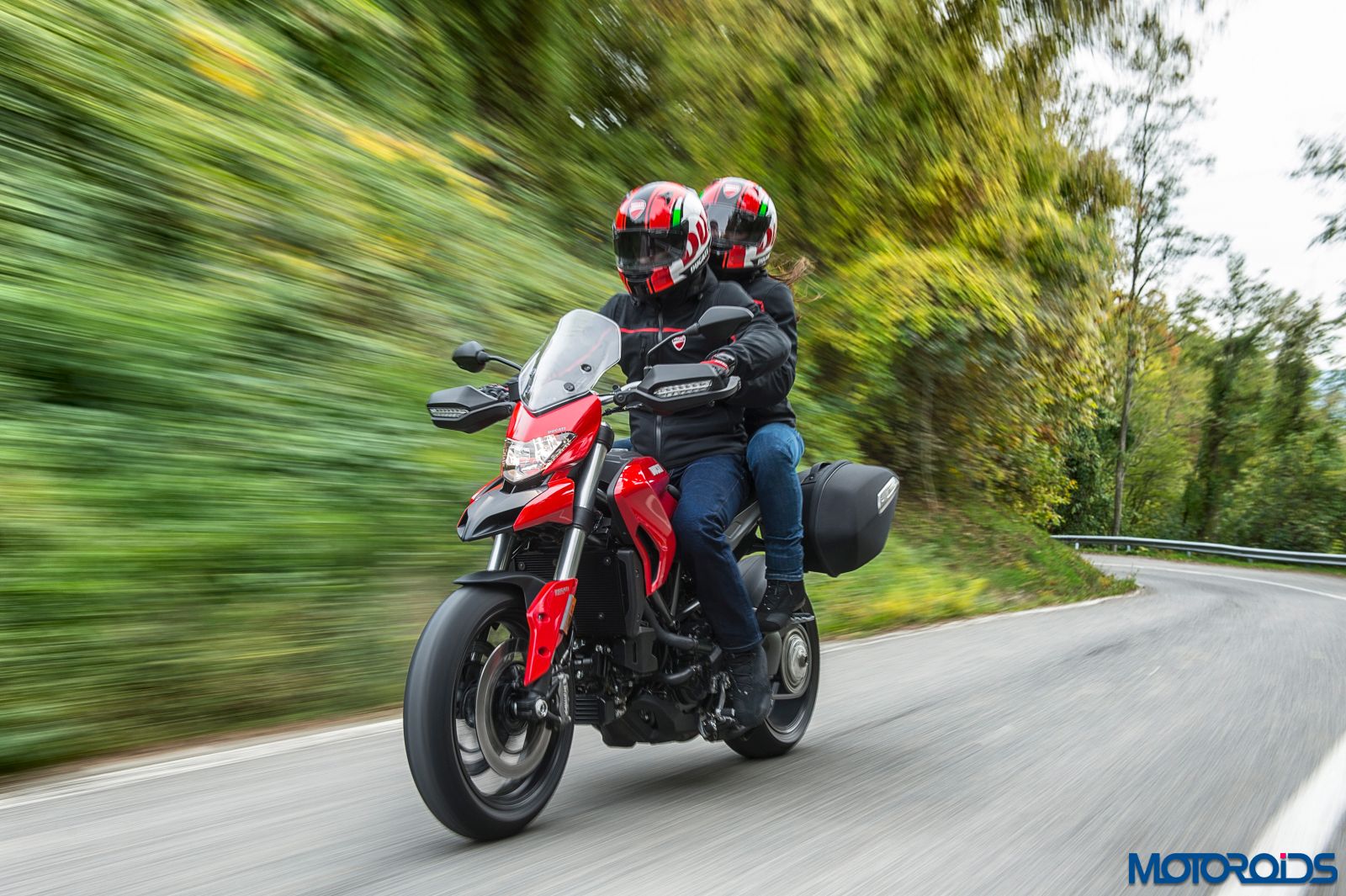

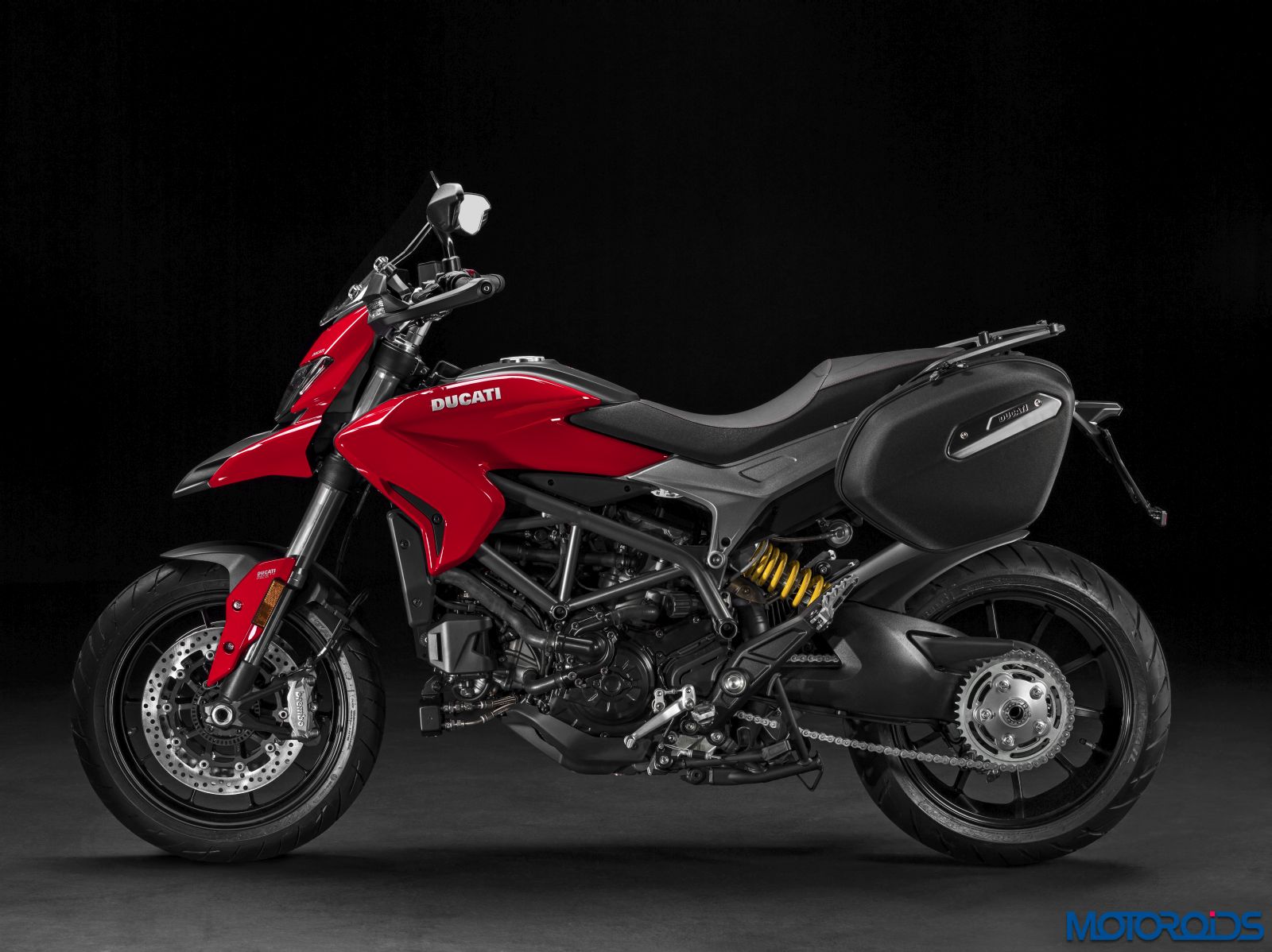

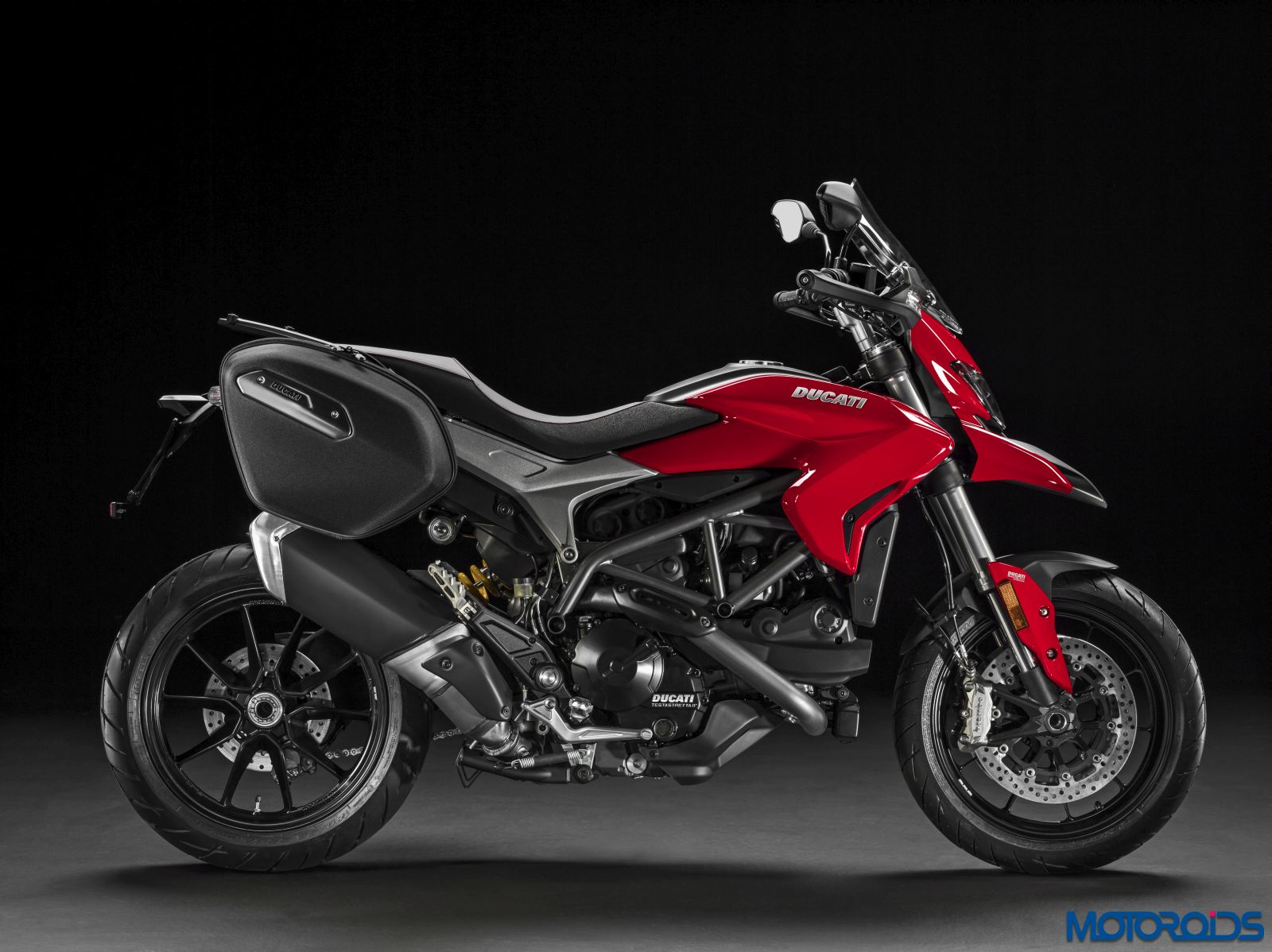

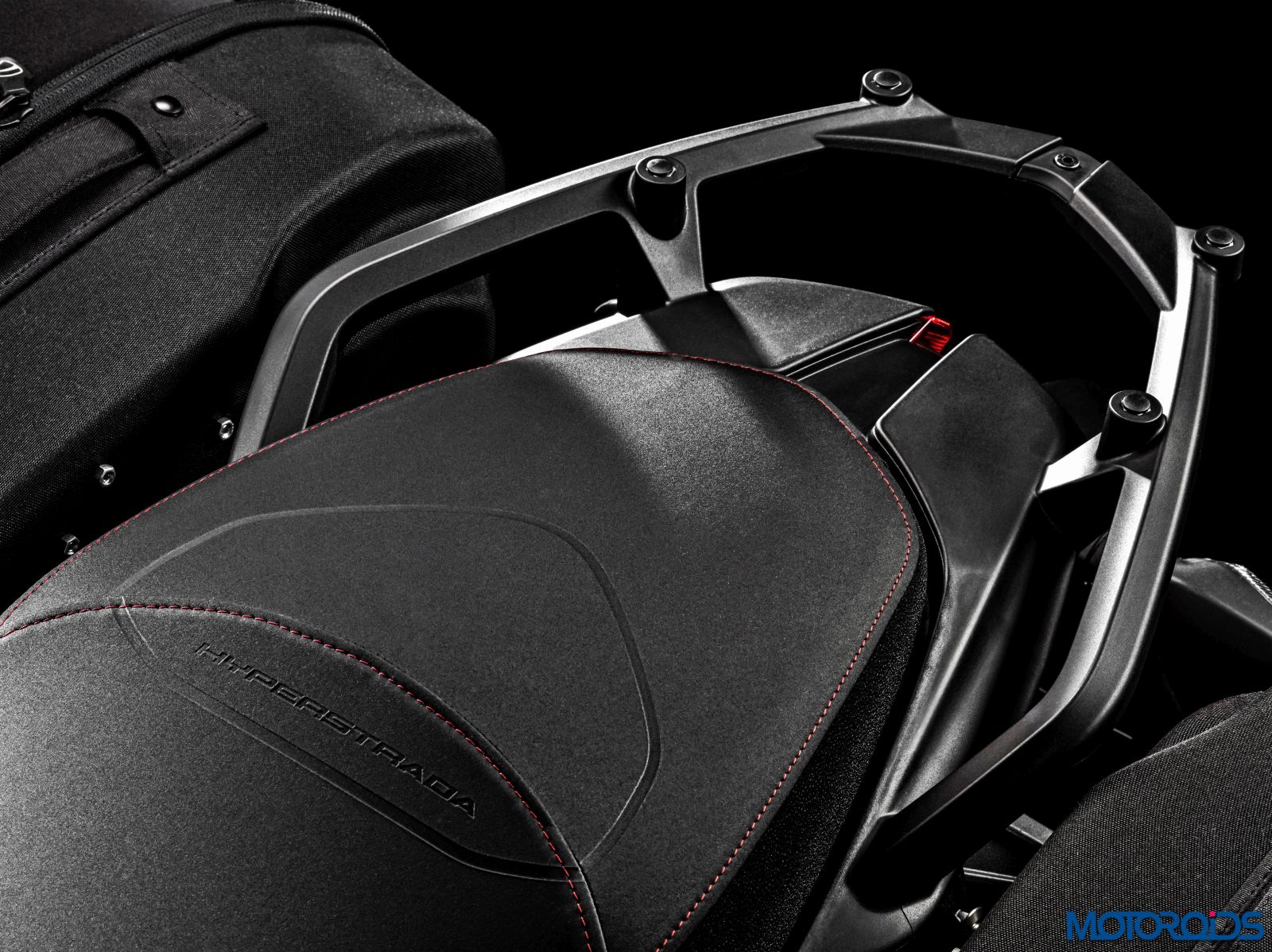

The Hyperstrada 939 is sold only in the Ducati Red tone but with an grey coloured frame. Designed for riding in non-urban contexts, it comes equipped with 50 litre semi-rigid removable bags and a centre stand. For enhanced comfort, the Hyperstrada 939 has handlebars raised by 20 mm and a touring windshield. There are also two 12 V power sockets, designed to power navigation instruments or thermal clothing. The Hyperstrada 939 is equipped with a wider saddle for increased comfort. In addition there are passenger grab handles designed for safe and comfortable use. The saddle, at a height of just 810 mm, allows for optimum footing even with a full load and a passenger. Another saddle that’s even more comfortable with 20 mm of extra foam can be ordered. The Hyperstrada 939 suspensions rely on a 43 mm upside-down Kayaba with 130 mm travel while at the rear there’s a Sachs shock absorber with easily adjustable rebound damping and remote spring pre-load which allows for 133 mm travel of the rear wheel. The Hyperstrada 939 has a dry weight of 187 kg and uses Pirelli Scorpion Trail tyres.

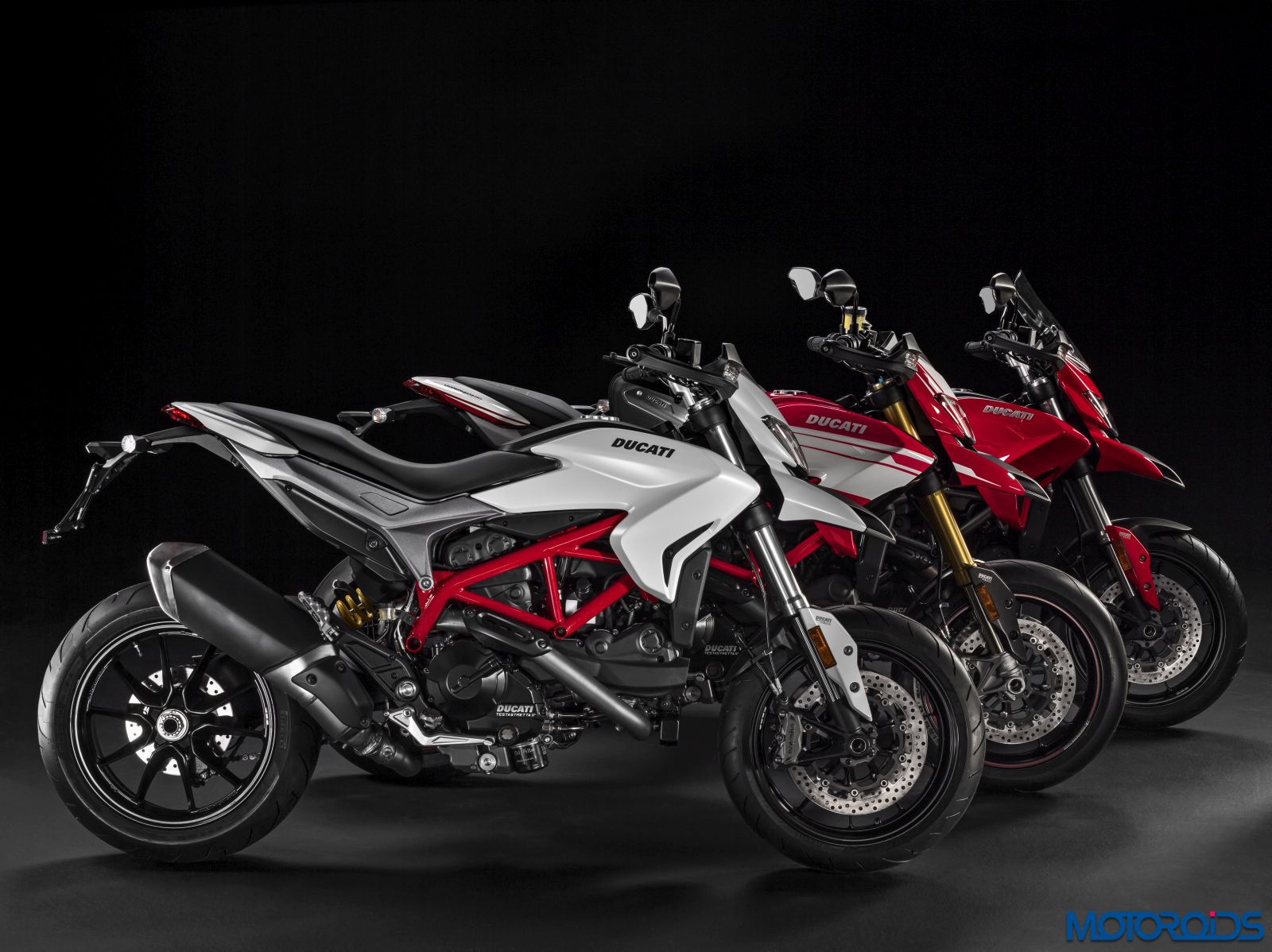

Hypermotard model and equipment overview at a glance:

2016 DUCATI HYPERMOTARD 939 (1)

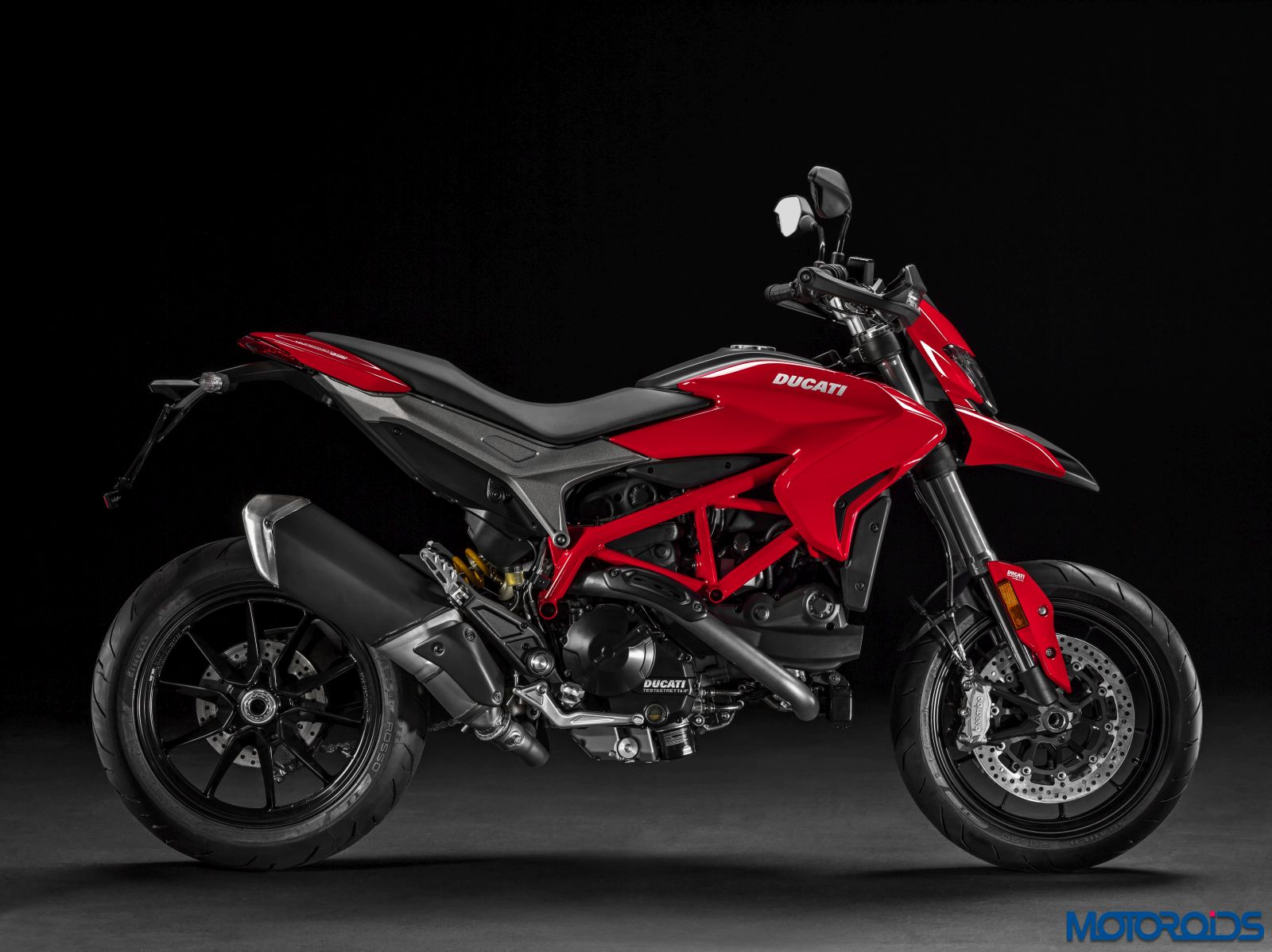

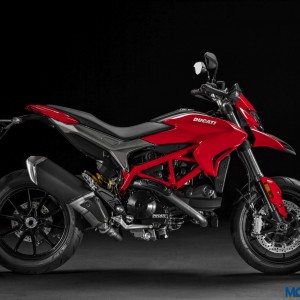

Hypermotard 939

Colours

  • Body | Frame | Wheels: Ducati red | red | black
  • Body | Frame | Wheels: Star White Silk | red | black

Equipment

  • 937 cm³ 113 hp 97.9 Nm Ducati Testastretta 11°
  • EURO 4 approved
  • Oil-cooling radiator
  • LCD instrument panel with gear indicator

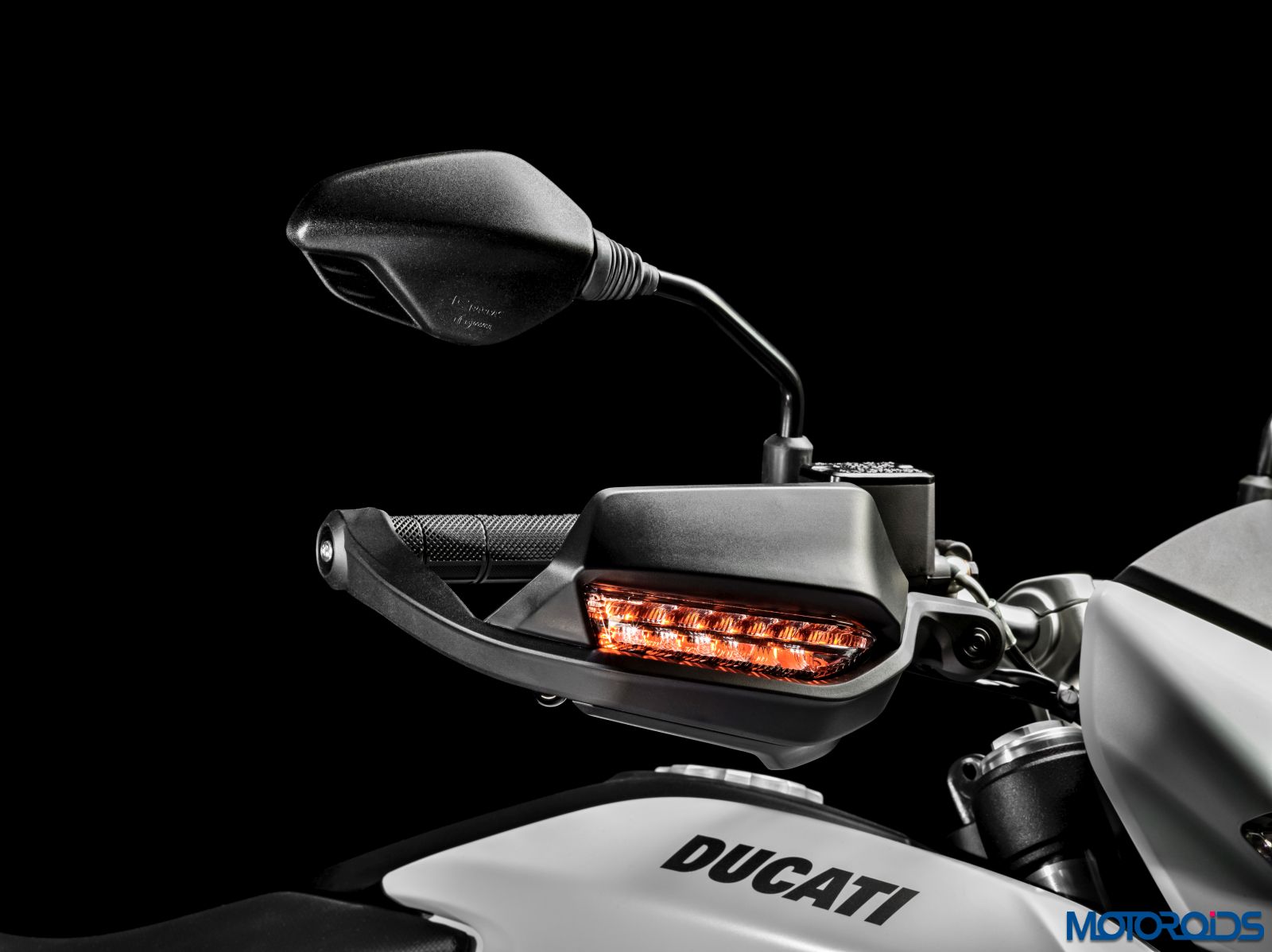

  • Hand-guards with integrated LED indicators
  • New silencer
  • Ducati Safety Pack (Bosch ABS, DTC)
  • Riding Modes (Sport | Touring | Urban)
  • Pirelli Diablo Rosso II tyres

2016 DUCATI HYPERMOTARD 939 SP (1)

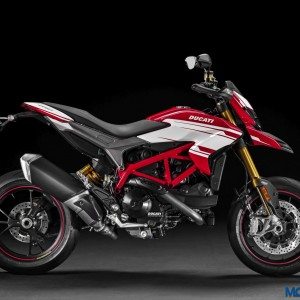

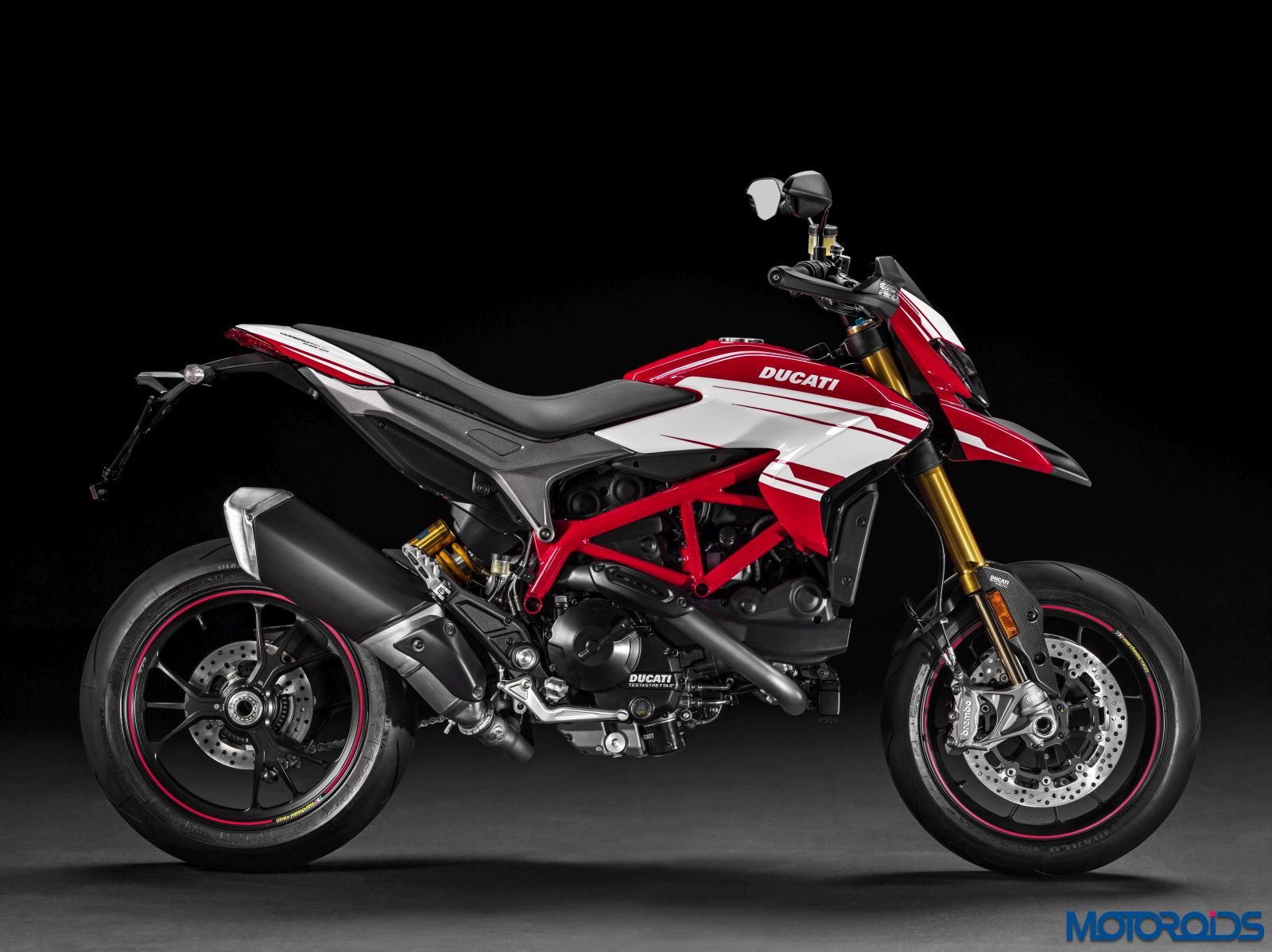

Hypermotard 939 SP

Colours

  • Body | Frame | Wheels: Red/white Ducati Corse| red | black

Equipment

  • 937 cm³ 113 hp 97.9 Nm Ducati Testastretta 11°
  • Magnesium head covers
  • EURO 4 approved
  • Oil-cooling radiator
  • LCD instrument panel with gear indicator
  • Hand-guards with integrated LED indicators
  • New silencer
  • Ducati Safety Pack (Bosch ABS, DTC)
  • Riding Modes (Race | Sport | Wet)
  • 3 spoke Marchesini forged wheels
  • Aluminium tapered handlebars
  • 50 mm Öhlins forks with fully adjustable diameter
  • Fully adjustable Öhlins rear suspension
  • Radial front brake pump with 5-position adjustable lever
  • Sport saddle
  • Carbon fibre front mudguard
  • Carbon fibre cam-belt covers
  • Pirelli Supercorsa SP tyres

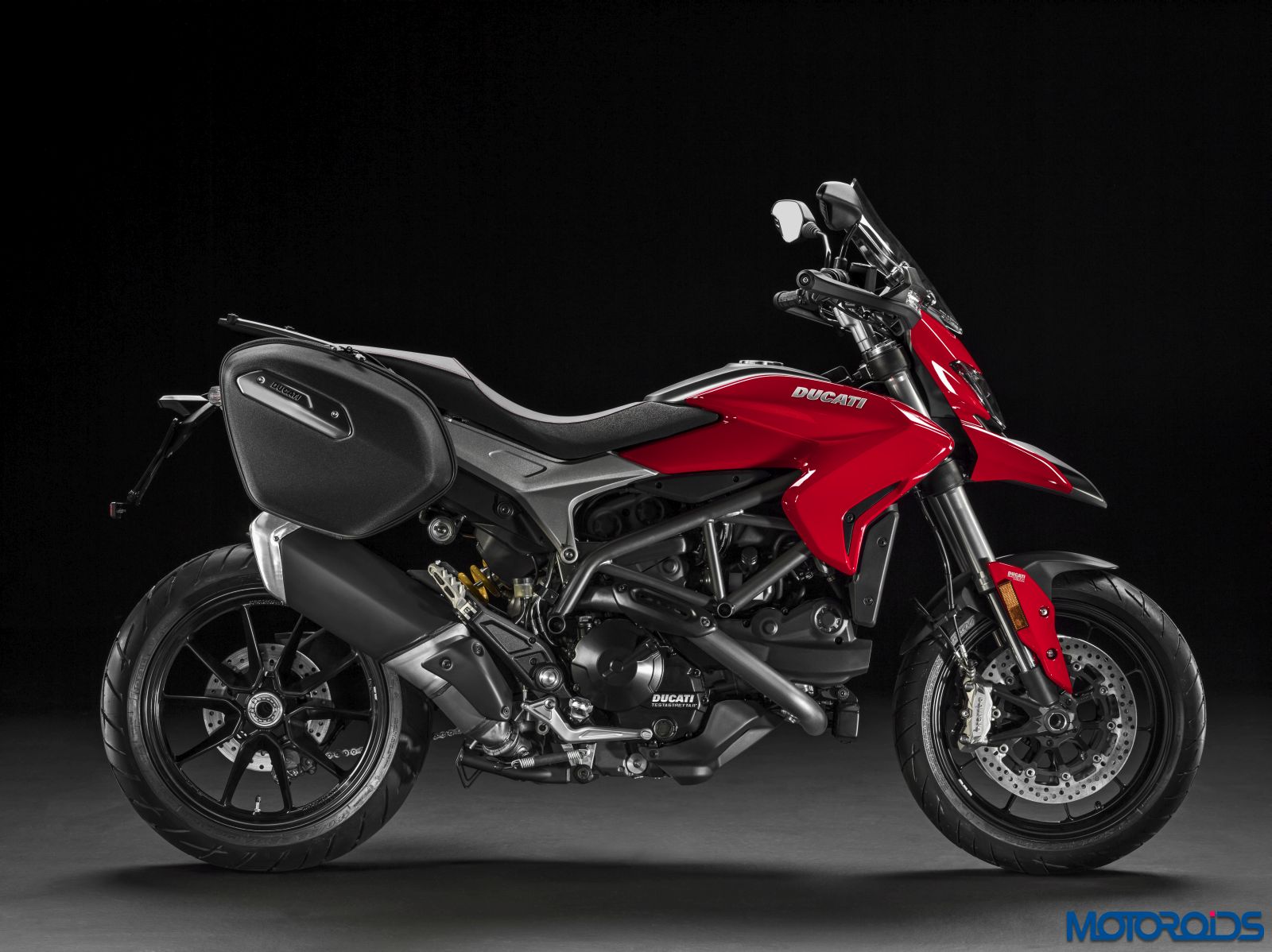

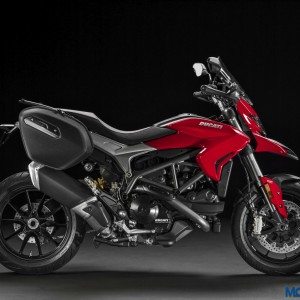

2016 DUCATI HYPERSTRADA 939 (1)

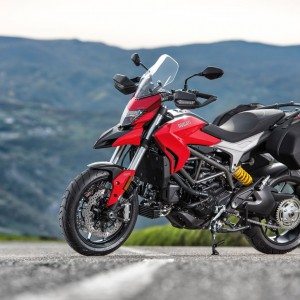

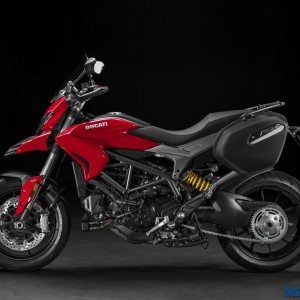

Hyperstrada 939

Colours

  • Body | Frame | Wheels: Ducati red | racing grey | black

Equipment

  • 937 cm³ 113 hp 97.9 Nm Ducati Testastretta 11°
  • EURO 4 approved
  • Oil-cooling radiator
  • LCD instrument panel with gear indicator
  • Hand-guards with integrated LED indicators
  • New silencer
  • Ducati Safety Pack (Bosch ABS, DTC)
  • Riding Modes (Sport | Touring | Urban)

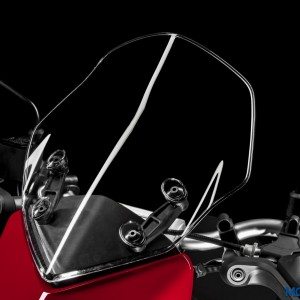

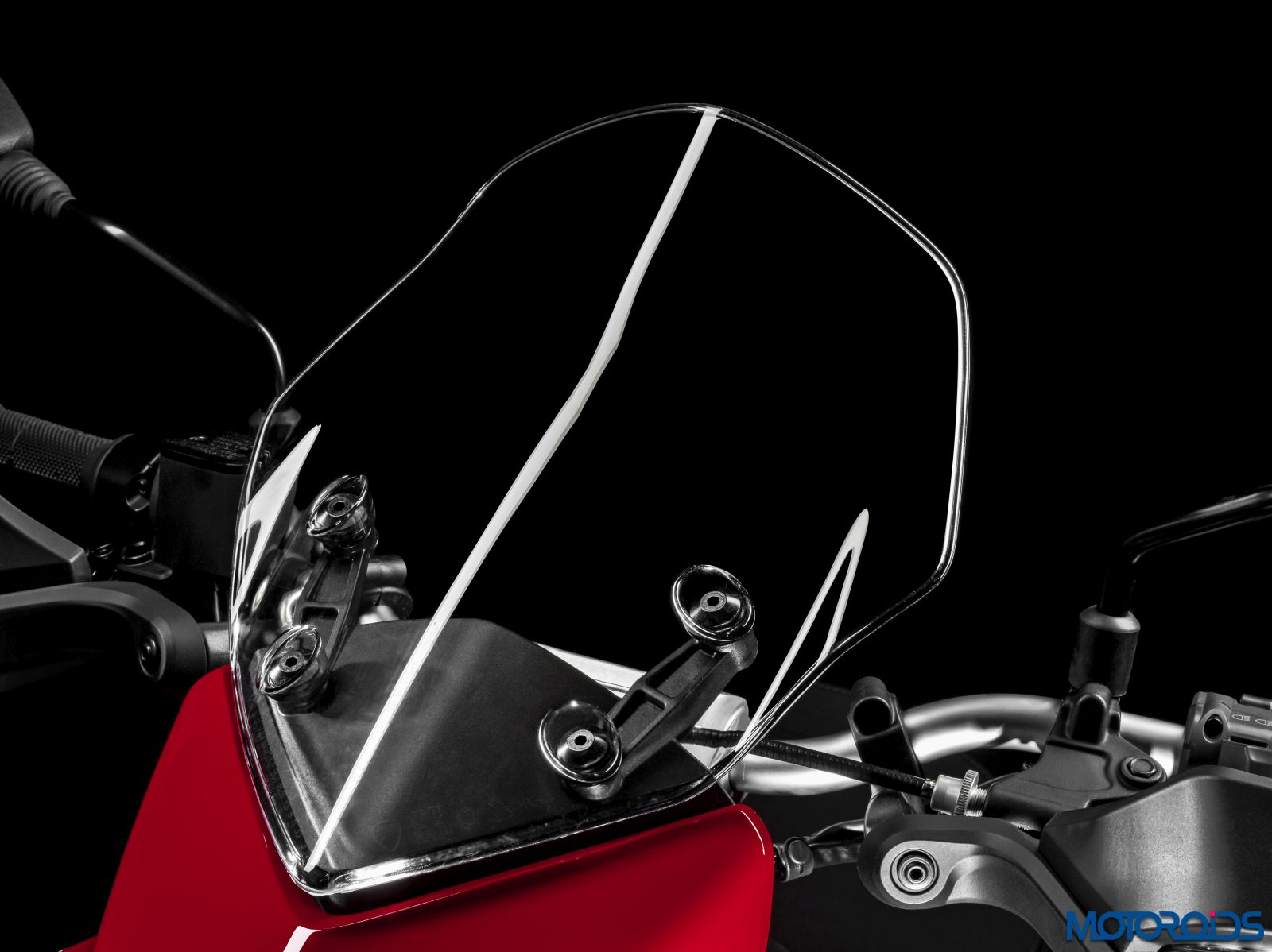

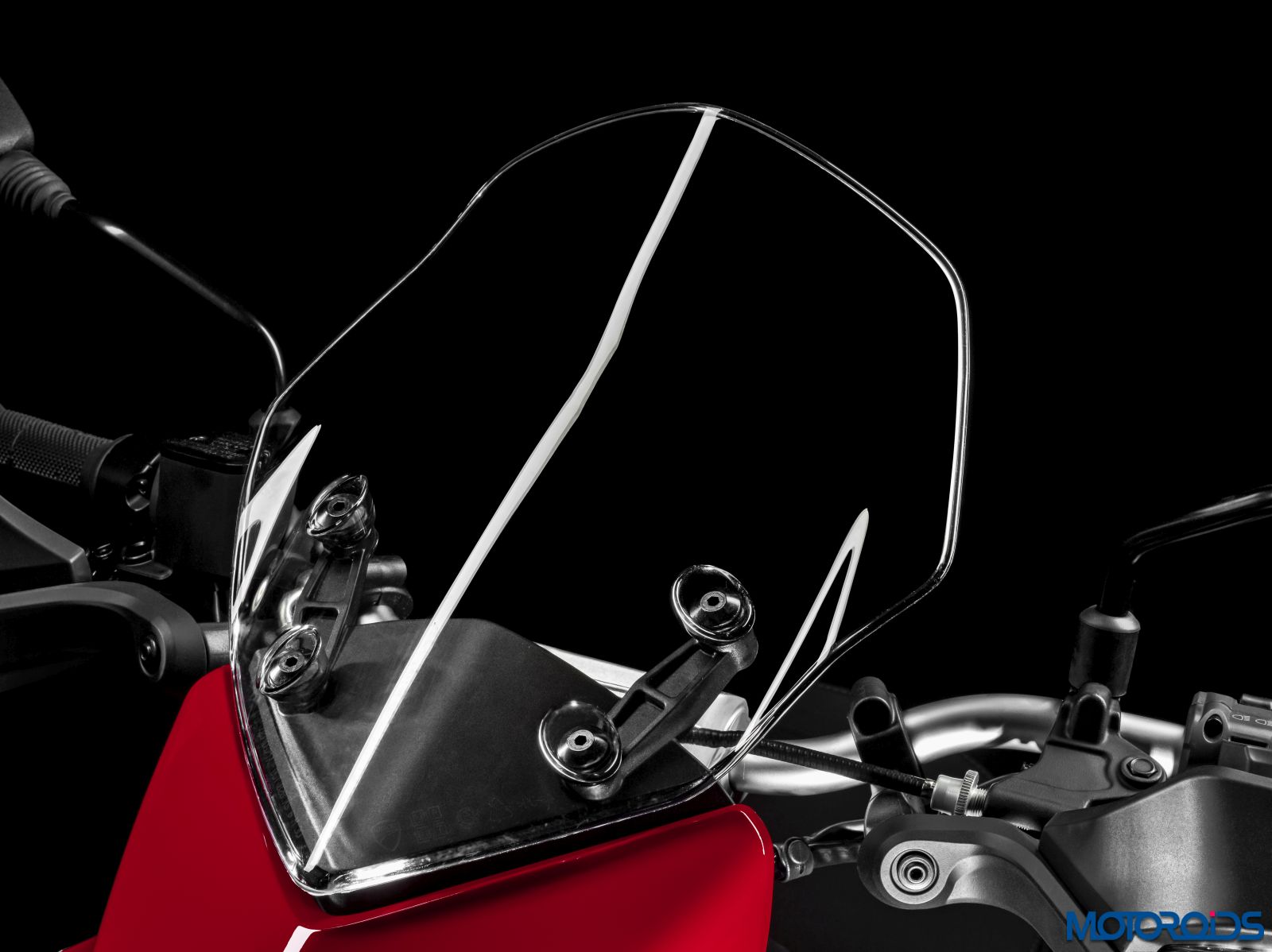

  • Touring screen*

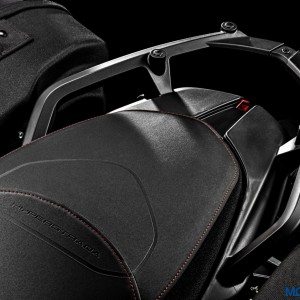

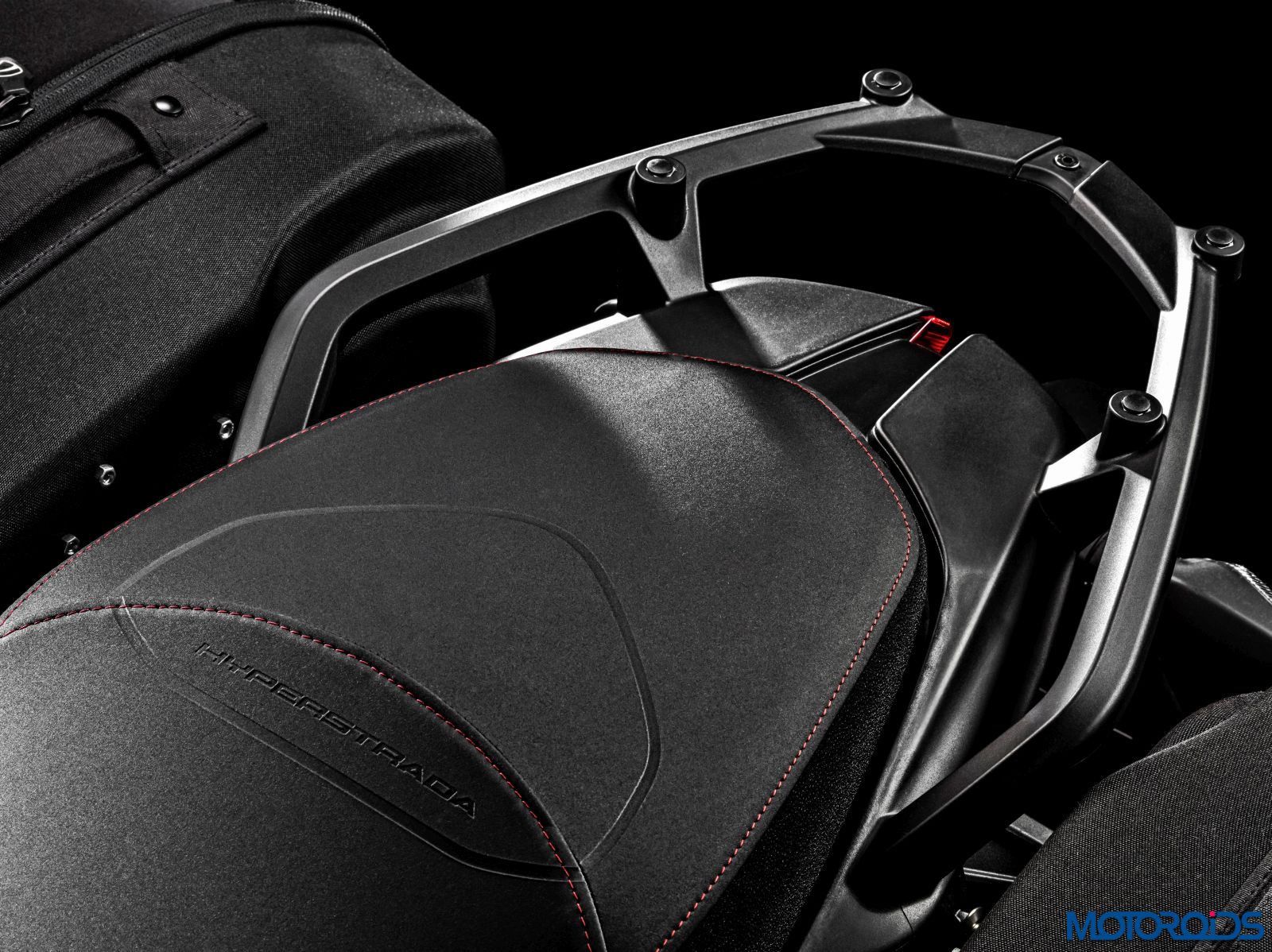

  • Touring seat*Passenger grab-handles*

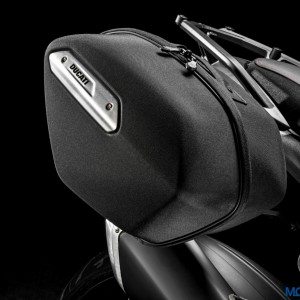

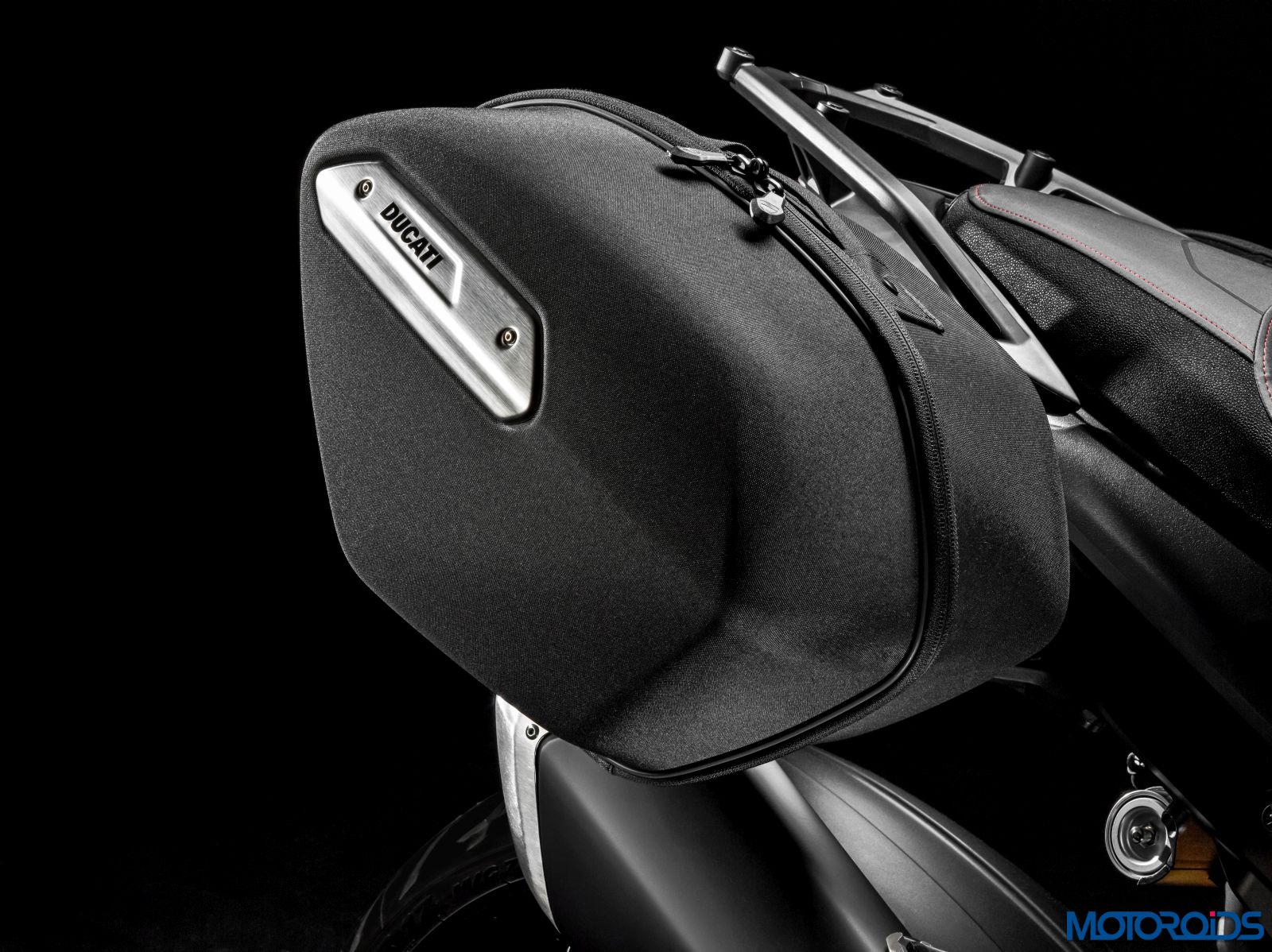

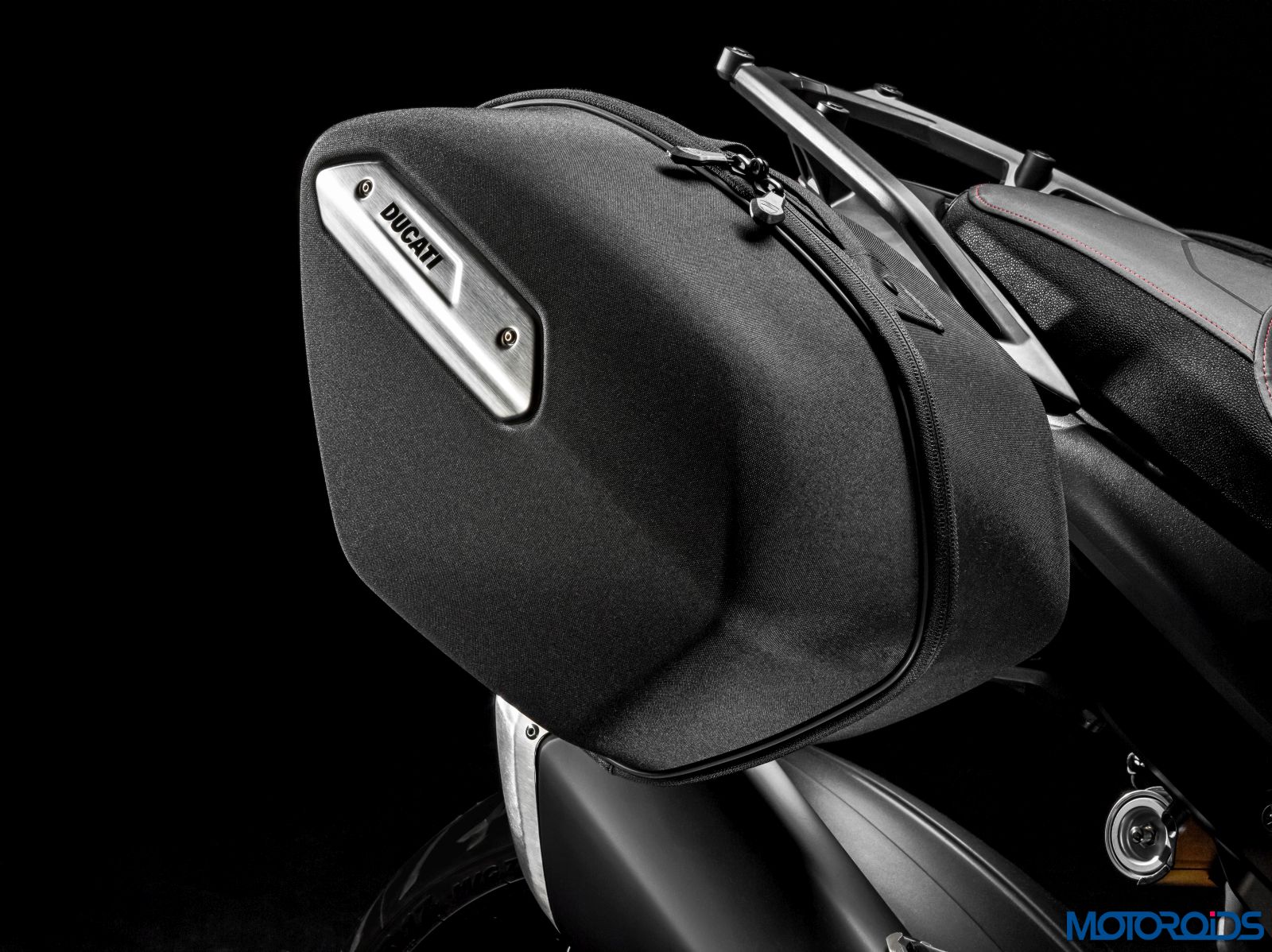

  • Side luggage*
  • Centre stand*
  • Engine sump guard*
  • Remote rear suspension pre-load
  • 2 x auxiliary 12 v power outlets
  • Enhanced generator
  • Extended front and rear mudguards
  • Pirelli Scorpion Trail II tyres

*Available from Ducati Performance also as an accessory for Hypermotard 939 and Hypermotard 939 SP

Know the new Ducati Hypermotard series in detail with a complete image gallery, official video and technical specificatons below. Don’t forget to share your views on the new Hypermotard range through the comments section.

Technical Specifications

ModelDUCATI HYPERMOTARD 939DUCATI HYPERMOTARD 939 SPDUCATI HYPERSTRADA 939
Engine
EngineNew Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooledNew Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled, magnesium valve coversNew Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled
Displacement937 cc937 cc937 cc
Bore X stroke94 x 67.5 mm94 x 67.5 mm94 x 67.5 mm
Compression ratio13.1:113.1:113.1:1
Power83.1 kW (113 hp) @ 9000 rpm83.1 kW (113 hp) @ 9000 rpm83.1 kW (113 hp) @ 9000 rpm
Torque97.9 Nm (72.2 lb-ft) @ 7500 rpm97.9 Nm (72.2 lb-ft) @ 7500 rpm97.9 Nm (72.2 lb-ft) @ 7500 rpm
Fuel injectionMagneti Marelli electronic fuel injection system. Throttle bodies with full Ride by Wire systemMagneti Marelli electronic fuel injection system. Throttle bodies with full Ride by Wire systemMagneti Marelli electronic fuel injection system. Throttle bodies with full Ride by Wire system
ExhaustSingle stainleess steel muffler with catalytic converter and two lambda probes.Single stainleess steel muffler with catalytic converter and two lambda probes.Single stainless steel muffler with catalytic converter and two lambda probes.
Transmission
Gearbox6 speed6 speed6 speed
Primary driveStraight cut gears; Ratio 1.85:1Straight cut gears; Ratio 1.85:1Straight cut gears; Ratio 1.85:1
Ratio1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/241=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/241=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final driveChain; Front sprocket 15; Rear sprocket 43Chain; Front sprocket 15; Rear sprocket 43Chain; Front sprocket 15; Rear sprocket 43
ClutchWet multiplate clutch mechanically operated, self-servo action on drive, slipper action on over-runWet multiplate clutch mechanically operated, self-servo action on drive, slipper action on over-runWet multiplate clutch mechanically operated, self-servo action on drive, slipper action on over-run
Chassis
FrameTubular steel Trellis frameTubular steel Trellis frameTubular steel Trellis frame
Front suspension43mm usd forksÖhlins fully adjustable 50mm usd forks43mm usd forks
Front wheel10-spoke in light alloy 3.50″ x 17″3-spoke forged light alloy 3.50″ x 17″10-spoke in light alloy 3.50″ x 17″
Front tyrePirelli Diablo Rosso II, 120/70 ZR17Pirelli Diablo Supercorsa SP, 120/70 ZR17Pirelli Scorpion Trail, 120/70 ZR17
Rear suspensionProgressive linkage with adjustable spring preload and rebound damping Sachs monoshock. Aluminium single-sided swingarmProgressive linkage with fully adjustable Öhlins monoshock. Aluminium single-sided swingarmProgressive linkage with adjustable spring preload and rebound damping Sachs monoshock. Remote hydraulic spring preload adjustment. Aluminium single-sided swingarm
Rear wheel10-spoke in light alloy 5.50″ x 17″3-spoke forged light alloy 5.50″ x 17″10-spoke in light alloy 5.50″ x 17″
Rear tyrePirelli Diablo Rosso II, 180/55 ZR17Pirelli Diablo Supercorsa SP, 180/55 ZR17Pirelli Scorpion Trail, 180/55 ZR17
Wheel travel (front/rear)170 mm (6.7 in) – 150 mm (5.9 in)185 mm (7.3 in) – 175 mm (6.9 in)130 mm (5.1 in) – 130 mm (5.1 in)
Front brake2 x 320 mm semi-floating discs, radially mounted Brembo monobloc callipers, 4- piston 2-pad, axial pump with adjustable lever, with Bosch ABS as standard2 x 320 mm semi-floating discs, radially mounted Brembo monobloc callipers, 4- piston 2-pad, radial pump with adjustable lever, with Bosch ABS as standard2 x 320 mm semi-floating discs, radially mounted Brembo monobloc callipers, 4- piston 2-pad, axial pump with adjustable lever, with Bosch ABS as standard
Rear brake245 mm disc, 2-piston calliper, with Bosch ABS as standard245 mm disc, 2-piston calliper, with Bosch ABS as standard245 mm disc, 2-piston calliper, with Bosch ABS as standard
InstrumentationLCD display with  Dot Matrix areaLCD display with Dot Matrix areaLCD display with  Dot Matrix area
Dimensions and weights
Dry weight181 kg (399 lb)178 kg (392 lb)187 kg (412 lb)
Kerb weight204 kg (450 lb)201 kg (443 lb)210 kg (463 lb)
Seat height870 mm (34.2 in)890 mm (35.0 in)810 mm (31.9 in)
Wheelbase1,493 mm (58.8 in)1,498 mm (59 in)1,485 mm (58.5 in)
Rake25.5°25.5°25.5°
Front wheel trail104 mm (4.1 in)104 mm (4.1 in)104 mm (4.1 in)
Fuel tank capacity16 l – 4.2 gallon (US)16 l – 4.2 gallon (US)16 l – 4.2 gallon (US)
Number of seatsDual seatDual seatDual seat
Standard equipmentRiding Modes, Power Modes, Ducati Safety Pack (ABS + DTC), RbW. Ready for anti-theft system, heated grips, sat-nav.Riding Modes, Power Modes, Ducati Safety Pack (ABS + DTC), RbW. Marchesini forged  rims, tapered aluminium handlebars, carbon fibre components: front mudguard, cam belt covers. Ready for anti-theft system, heated grips, sat-navRiding Modes, Power Modes, Ducati Safety Pack (ABS + DTC), RbW. 50 l (13.2 gal) semi-rigid side panniers with incorporated supports, touring windshield, touring seat, passenger grab handle, centre stand, larger front and rear mudguards, engine sump guard,two 12 V power outlets. Ready for anti-theft system, heated grips, sat-nav.
Additional equipment
Warranty (months)24 months unlimited mileage24 months unlimited mileage24 months unlimited mileage
Maintenance (km/months)15,000 km (9,000 mi)/12 months15,000 km (9,000 mi)/12 months15,000 km (9,000 mi)/12 months
Valve clearance adjustment (km)30,000 km (18,000 mi)30,000 km (18,000 mi)30,000 km (18,000 mi)
EmissionsEURO 4EURO 4EURO 4
2016 DUCATI HYPERSTRADA 939 (9)
2016 DUCATI HYPERSTRADA 939 (8)
2016 DUCATI HYPERSTRADA 939 (7)
2016 DUCATI HYPERSTRADA 939 (6)
2016 DUCATI HYPERSTRADA 939 (5)
2016 DUCATI HYPERSTRADA 939 (4)
2016 DUCATI HYPERSTRADA 939 (3)
2016 DUCATI HYPERSTRADA 939 (2)
2016 DUCATI HYPERSTRADA 939 (1)

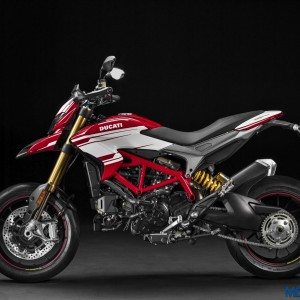

2016 DUCATI HYPERMOTARD 939 SP (10)
2016 DUCATI HYPERMOTARD 939 SP (9)
2016 DUCATI HYPERMOTARD 939 SP (8)
2016 DUCATI HYPERMOTARD 939 SP (7)
2016 DUCATI HYPERMOTARD 939 SP (6)
2016 DUCATI HYPERMOTARD 939 SP (5)
2016 DUCATI HYPERMOTARD 939 SP (4)
2016 DUCATI HYPERMOTARD 939 SP (3)
2016 DUCATI HYPERMOTARD 939 SP (2)
2016 DUCATI HYPERMOTARD 939 SP (1)

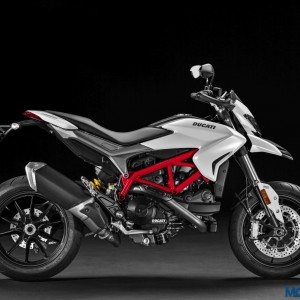

2016 DUCATI HYPERMOTARD 939 (16)

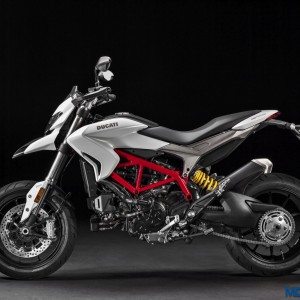

2016 DUCATI HYPERMOTARD 939 (15)
2016 DUCATI HYPERMOTARD 939 (14)
2016 DUCATI HYPERMOTARD 939 (13)
2016 DUCATI HYPERMOTARD 939 (12)
2016 DUCATI HYPERMOTARD 939 (11)

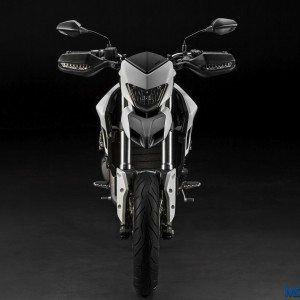

2016 DUCATI HYPERMOTARD 939 (10)
2016 DUCATI HYPERMOTARD 939 (9)
2016 DUCATI HYPERMOTARD 939 (8)
2016 DUCATI HYPERMOTARD 939 (7)
2016 DUCATI HYPERMOTARD 939 (6)
2016 DUCATI HYPERMOTARD 939 (5)
2016 DUCATI HYPERMOTARD 939 (4)
2016 DUCATI HYPERMOTARD 939 (3)

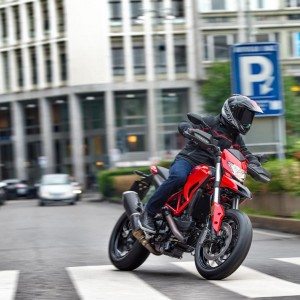

2016 DUCATI HYPERMOTARD 939 (2)
