Engine type | Single cylinder, 4-stroke, air-cooled, SOHC, 2-valves |
Displacement | 114cc |
Bore x stroke | 50.0 mm x 57.9 mm |
Compression ratio | 9.3 : 1 |
Maximum power | 5.3 kW @ 7,000 rpm |
Maximum Torque | 7.6 Nm @ 5,500 rpm |
Lubrication system | Wet sump |
Fuel system | Fuel Injection |

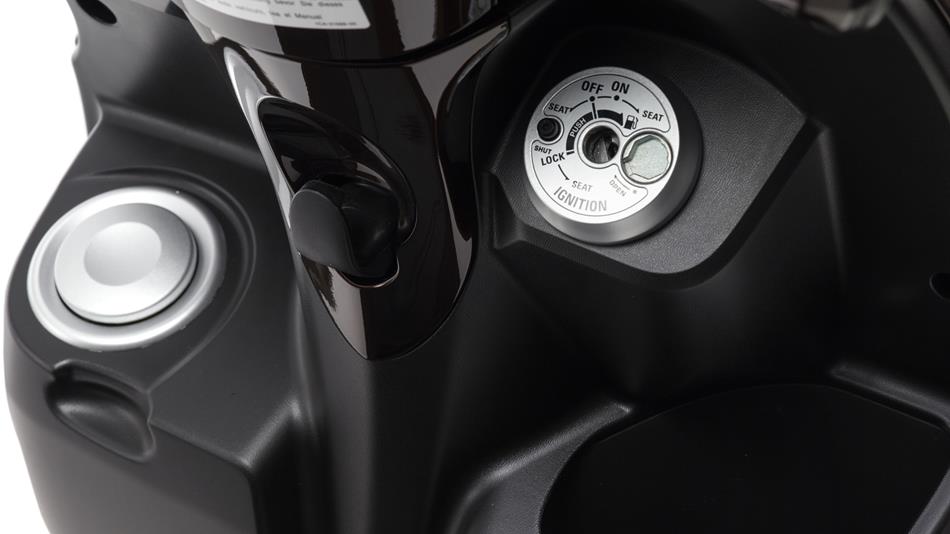

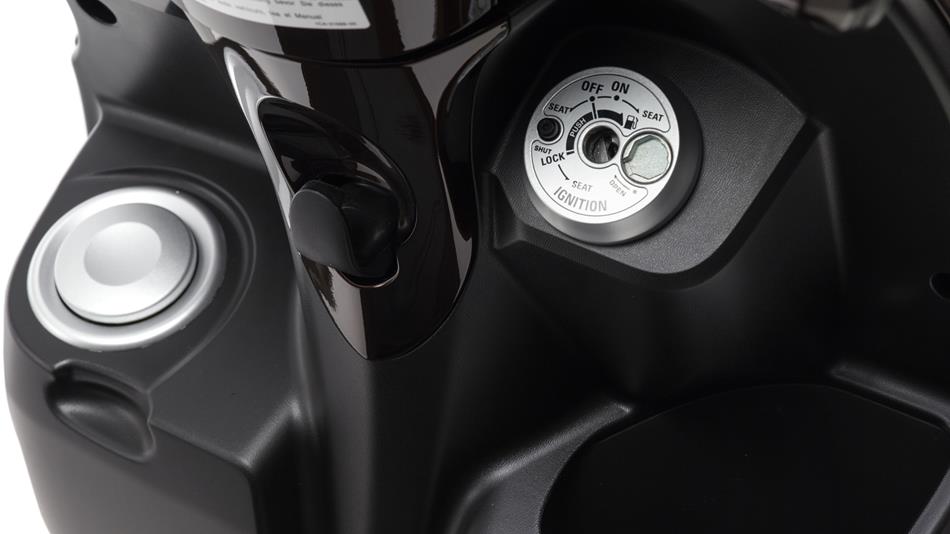

Ignition system | TCI |
Starter system | Electric |
Transmission system | V-Belt Automatic |
Chassis
Front suspension system | Telescopic fork |
Front travel | 85 mm |
Rear suspension system | Unit Swing |
Rear Travel | 70 mm |

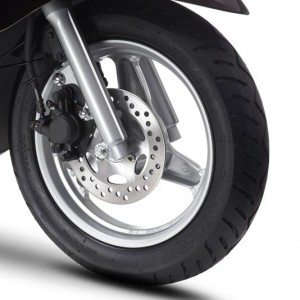

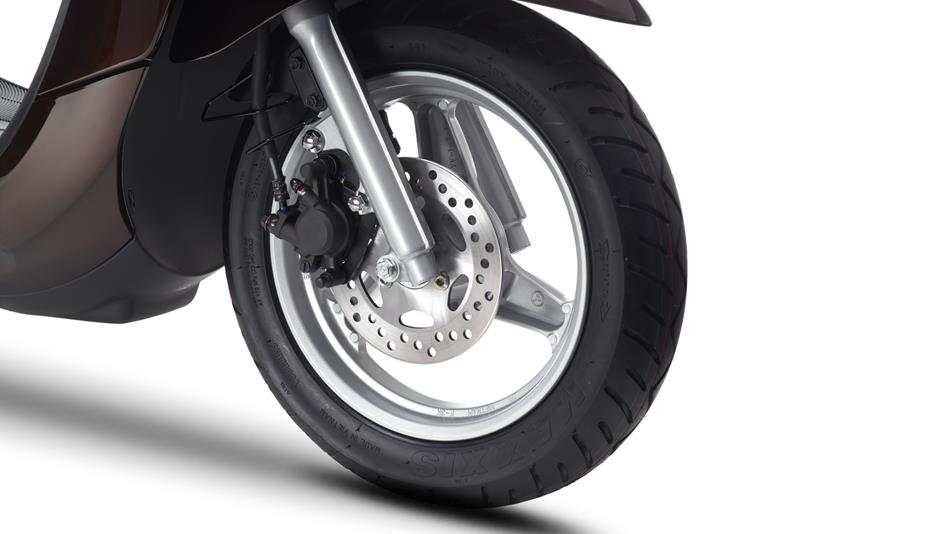

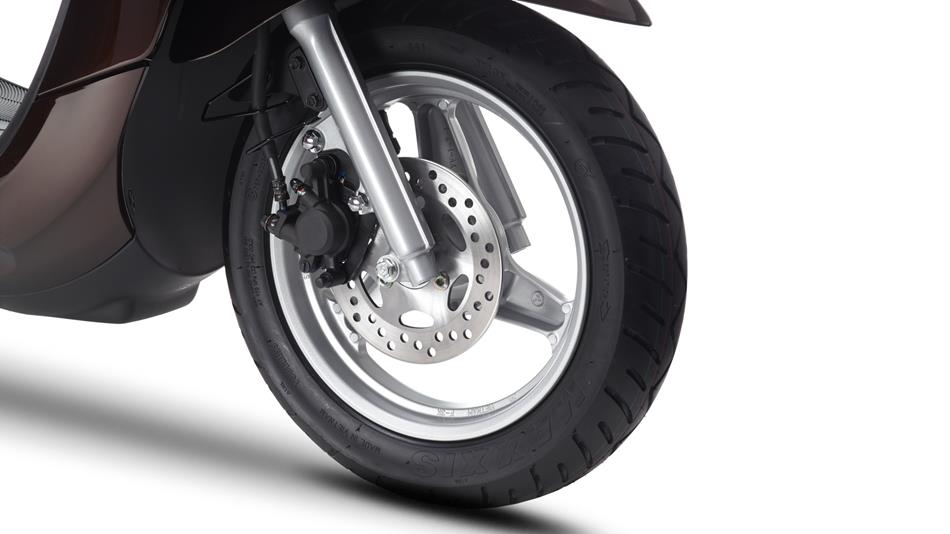

Front brake | Hydraulic single disc, Ø 180 mm |
Rear brake | Drum, Ø 130 mm |
Front tyre | 90/90-12 |
Rear tyre | 90/90-12 |
Dimensions
Overall length | 1,835 mm |
Overall width | 685 mm |
Overall height | 1,080 mm |
Seat height | 755 mm |
Wheelbase | 1,250 mm |
Minimum ground clearance | 115 mm |
Wet Weight | 98 kg |
Fuel tank capacity |
4.4 L |
