Pulsar 135: Specs and more images

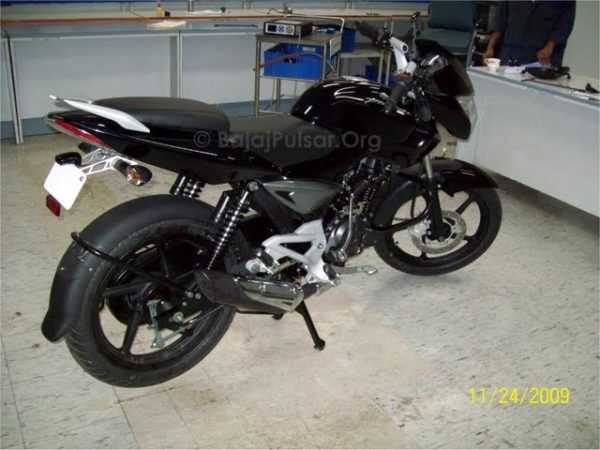

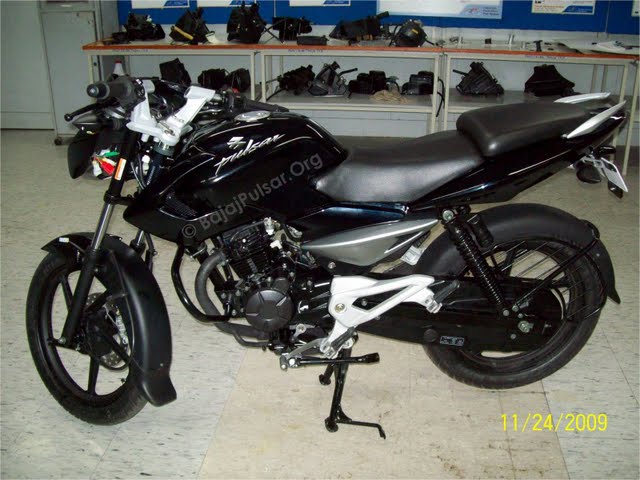

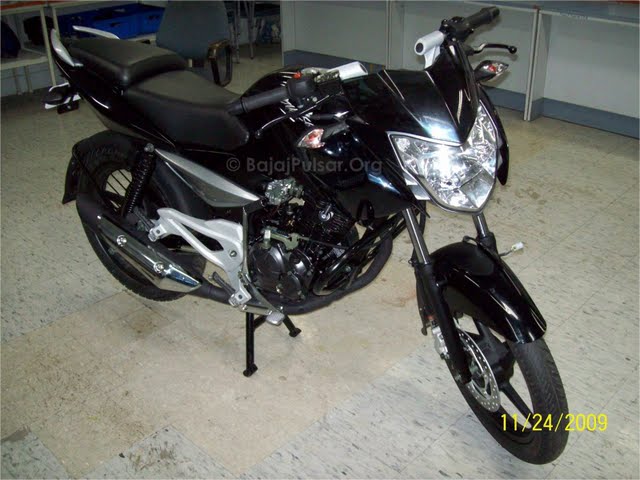

A couple of days back we brought you the exclusive scoop on the Pulsar 135. What we have today are the specs and some more photos which have leaked onto the internet.

Specifications:

Engine / Transmission

• Type: Single cylinder, 4 stroke, natural air cooled
• Displacement: 134.6 cc
• Max net power: 10.2 PS @ 7500 rpm
• Max net torque: 11.58 nm @ 5000 rpm
• Transmission: 5 Speed Constant Mesh
• Ignition System:  Digital CDI with Trics III, DC, microprocessor controlled
• Starting: Kick Start, Electric Start

Suspension

• Front:         130 mm Fork travel, Telescopic
• Rear:           105 mm Rear Wheel travel, Nitrox

Brakes

• Front:          200 mm Disc / 130 mm Drum, Mechanically expanding shoes
• Rear:          130 mm Drum, Mechanically expanding shoes

Tyres & Wheels

• Front: 2.75 x 17, 41 P
• Rear: 100 / 90 – 17, 55 P
• Rim – Front: 1.4 x 17” Die Cast AI. Alloy
• Rim – Rear: 2.15 x 17” Die Cast AI. Alloy
• Wheel:  Six-spoke Die Cast AI. Alloy

Fuel Tank

• Fuel tank capacity (reserve, usable): 12.0 Liters (1.83 Liters of reserve)

Electricals

• System 12 V (DC)
• Battery 12 V 5 Ah Maintenance Free Type (SS), 2.5 Ah (KS),
• Head lamp 12 V 35/35 W, HS-1 (Halogen)
• Tail / Stop lamp LED Type

Image Sources: satan69in @ xbhp.com, BajajPulsar.org
