So this is IT! Images and info about the upcoming KTM RC390 sports bike has finally hit the web world. All these details come from KTM Canada website, where these were accidentally published earlier today. It may be noted that the RC390 will make its first public outing at the EICMA show in Milan in November ’13.

While you can go through detailed information below, allow us to quickly tell you that the bike has a max power of 43bhp and a weight of just 147kgs. All this means that the bike has a power-to-weight ratio of 0.2kW-per-kg.

Following are the full details (as per KTM Canada website)

TELESCOPIC FORK

The KTM RC 390 has upside-down front fork from WP Suspension. These have a 43 mm outer tube diameter, which is the same as the bigger RC8 R.

FRAME

While the RC390’s frame is visually similar to that of the Duke sibling, it has been modified to suit the supersport ergonomics and dynamics. The steering head angle has been increased to 66,5 degrees, which results in a shorter trail, shorter wheelbase and increased ground clearance.

INSTRUMENT

The bike gets a 100 percent digital LCD display which has a gear indicator, service reminder information and all the usual stuff you expect from a supersport racing machine.

SWING ARM

The light alloy swingarm, along with a WP shock absorber, provides extreme torsional stiffness and outstanding tracking stability.

ktm rc390 pics 2

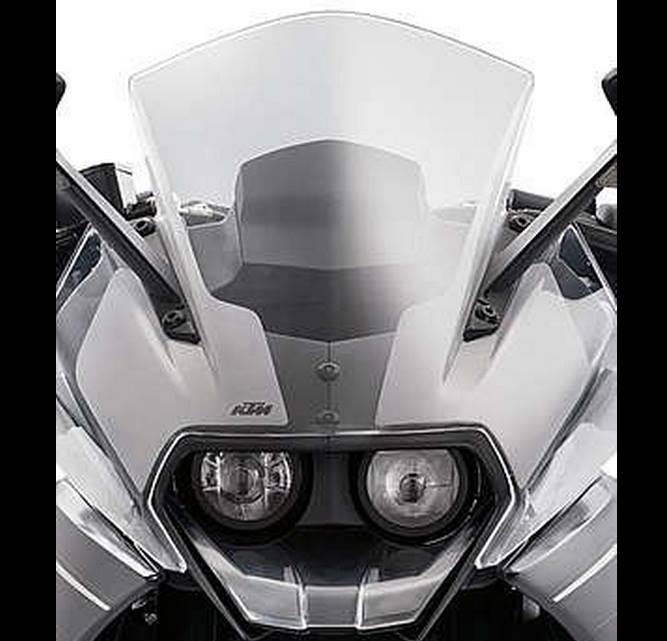

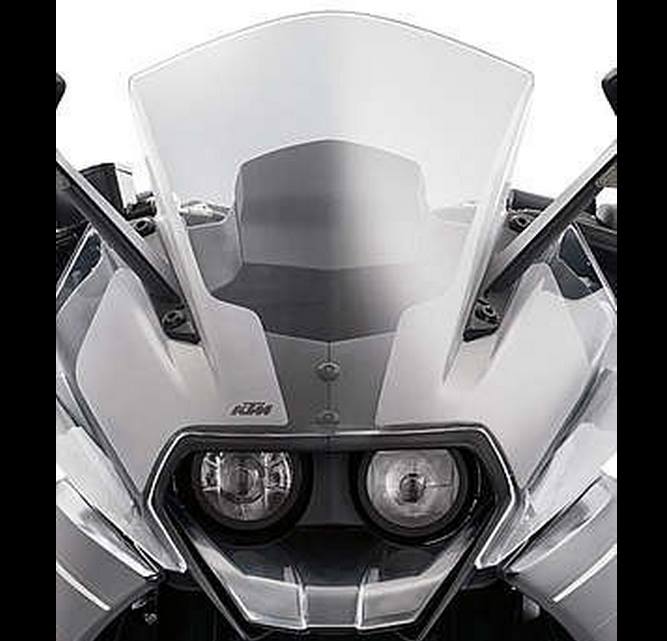

WIND SHIELD

The RC390 gets a advanced design wind shield for wind protection for rider’s chest and arms.

SEAT

A seat height of 820mm enables the rider to be high enough for sporty use and ‘big-bike’ feeling.

FUEL TANK

The bike comes with a new steel fuel tank , which has a capacity of 9,5 litres.

HANDLE BAR

The bike also gets new clip on handlebars which result into an aggressive riding position

STANDARD ABS

The comes equipped with ABS as standard.

ktm rc390 pics 3

ENGINE

Powering the bike is a state-of-the-art, liquid cooled, single-cylinder, four-stroke 375ccm engine which benefits from twin overhead camshafts, four valves and electronic fuel injection. The motor also boasts of a forged piston, Nikasil-cylinder-coating and forced feed lubrication with power-promoting body-evacuation. The engine has a max power of 43 bhp.

BRAKES

The brakes on the new KTM RC390 have been developed in cooperation with Brembo. Braking duities at front are courtesy a four piston radially bolted caliper in combination with a 300mm single brake disk. At the rear, the bike gets a single piston floating caliper with a single brake disk (230mm diameter).

As mentioned above, ABS comes as standard.

Go to next page for more images and technical specifications

KTM-RC390-pics-4
ktm-rc390-pics-5
KTM-RC390-pics-3
KTM-RC390-pics-2
KTM-RC390-pics-1

TECHNICAL DETAILS

ENGINE

Design1-cylinder 4-stroke engine, water-cooled
Displacement373.2 cm³
Bore89 mm
Stroke60 mm
Performance32 kW (43 hp)
Starting aidElectric starter
Transmission6 speed, claw shifted
Engine lubricationForced oil lubrication with 2 Eaton pumps
Primary gear ratio30:80
Secondary gear ratio15:45
Cooling systemLiquid cooling system, continuous circulation of cooling liquid with water pump
ClutchWet multi-disc clutch / mechanically operated
Ignition systemContactless, controlled, fully electronic ignition system with digital ignition timing adjustment

CHASSIS

FrameTubular space frame made from steel, powder-coated
ForkWP Suspension Up Side Down
Shock absorberWP Monoshock
Suspension travel front125 mm
Suspension travel rear150 mm
Brake system FrontDisc brake with four-pot brake caliper
Brake system RearDisc brake with one-pot brake caliper, floating brake discs
Brake discs – diameter Front300 mm
Brake discs – diameter Rear230 mm
Chain5/8 x 1/4” X‑Ring
Steering head angle66.5°
Wheel base1,340±15 mm
Ground clearance (unloaded)178.5 mm
Seat height (unloaded)820 mm
Total fuel tank capacity approx.10 l
Unleaded premium fuel (95 RON)
Weight without fuel approx.147 kg
