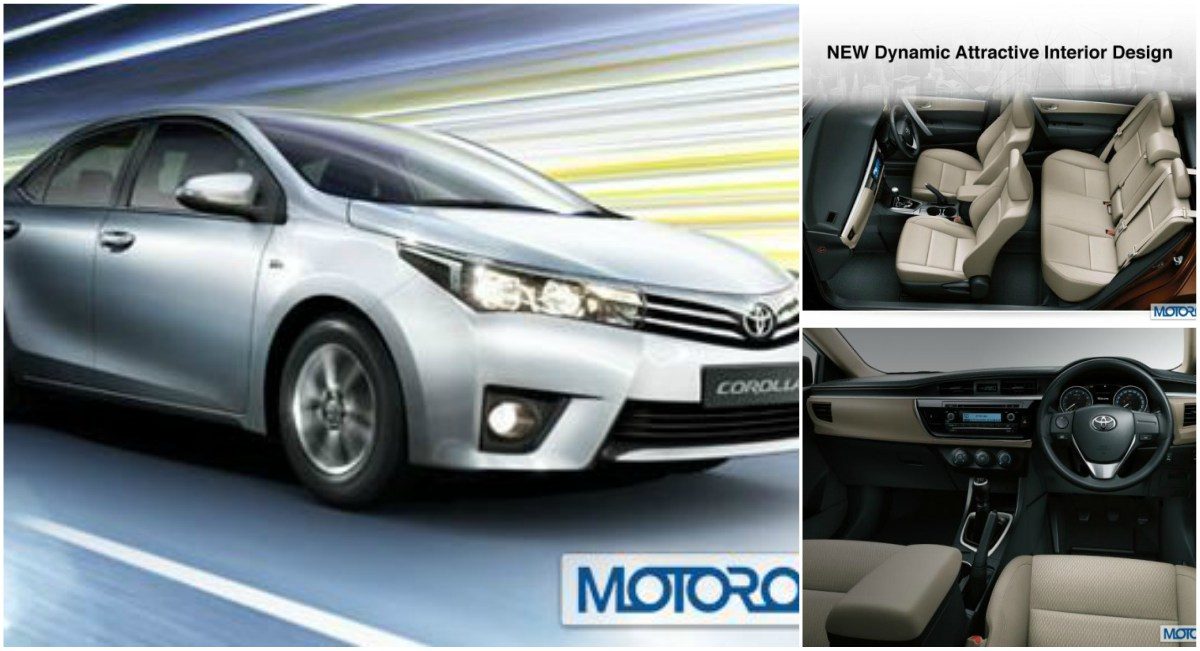

We brought to you the news of the new 2014 Corolla Altis getting launched in Indonesia a while back. In a bid to aquaint you better with the features and other noteworthy aspects of the car, we have downloaded a whole bunch of images, and feature list from Toyota’s Indonesian website. This piece has interior and exterior images of the new Corolla Altis along with details on all the features of the new car.
In its newest avatar, the Corolla Altis is powered by the same 1.8 litres naturally aspirated petrol engine that powers the current gen car. Power and torque are rated at 151 PS at 6400 rpm and 190 Nm at 4000 rpm. Apart from the manual transmission, a seven-speed CVT automatic with pedal shifters is also available.

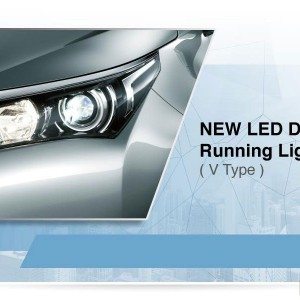

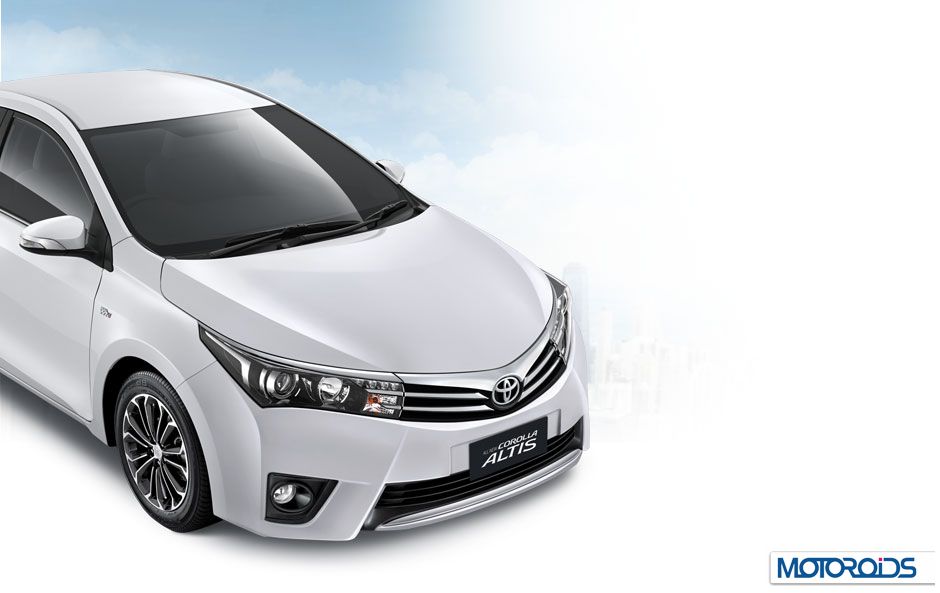

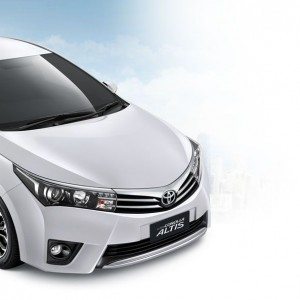

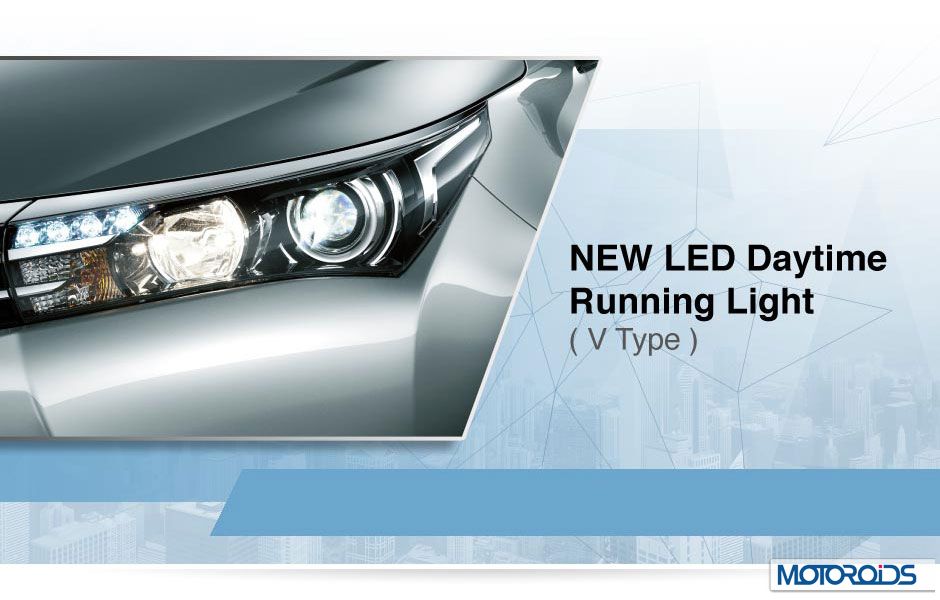

The new 2014 Toyota Corolla Altis features LED daytime running lights with a head leveller. For the sake of information, there is a new 3.5 Inch TFT MID displaying a whole bunch of data. The car also gets an auto A/C, a feature-rich audio system, 8-way adjustable seat for the driver, rearview camera and rain sensors.
The new 2014 Toyota Corolla Altis is slated to make its India debut at the 2014 Auto Expo in February. You can check out the complete feature list of the car and tech specs, along with a detailed image gallery on the next page, following the visual illustration of the car’s features on this page.

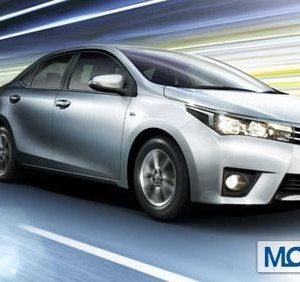

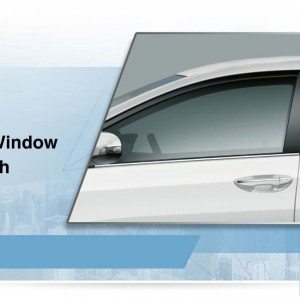

Exterior Features

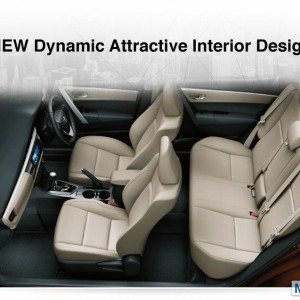

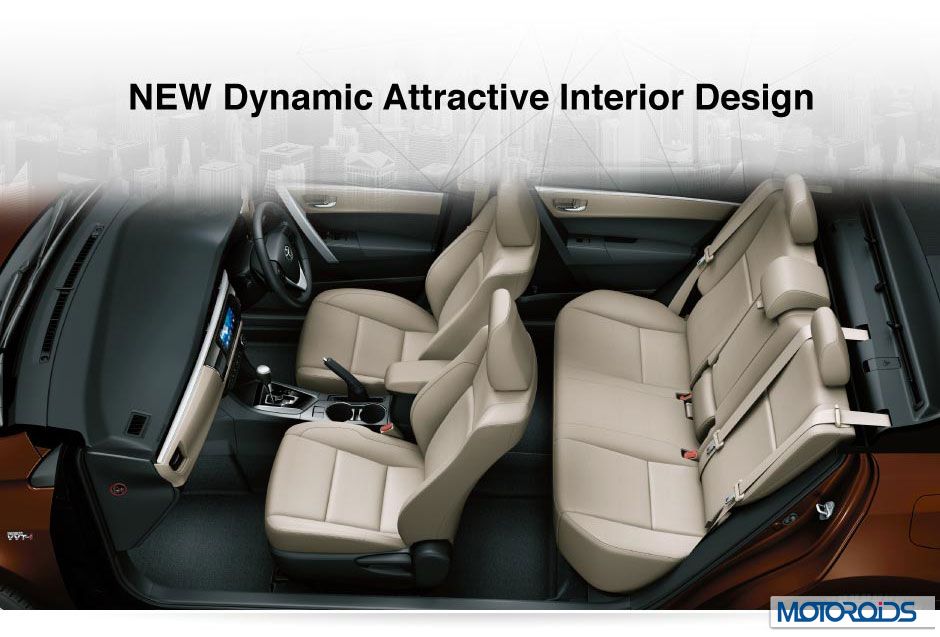

Interior Features

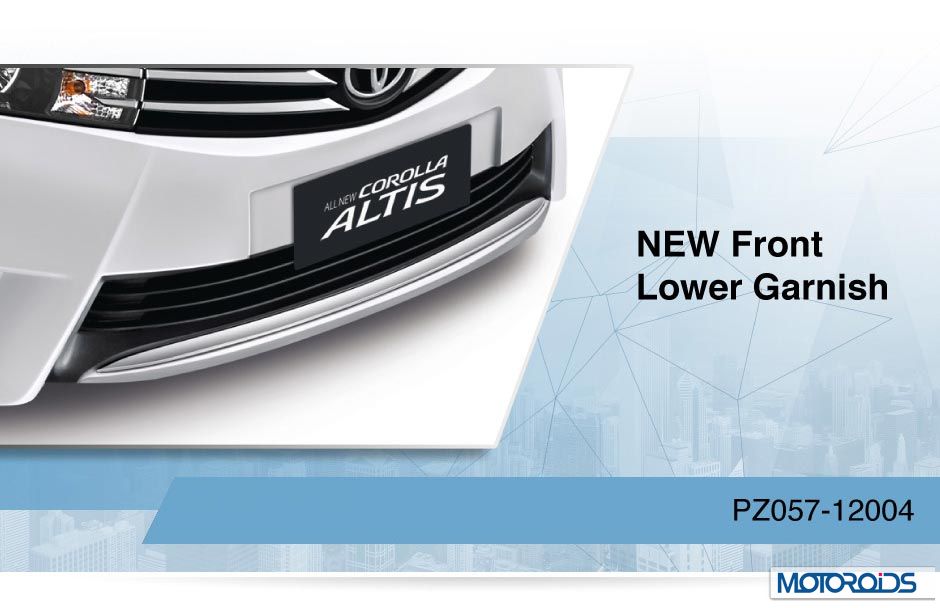

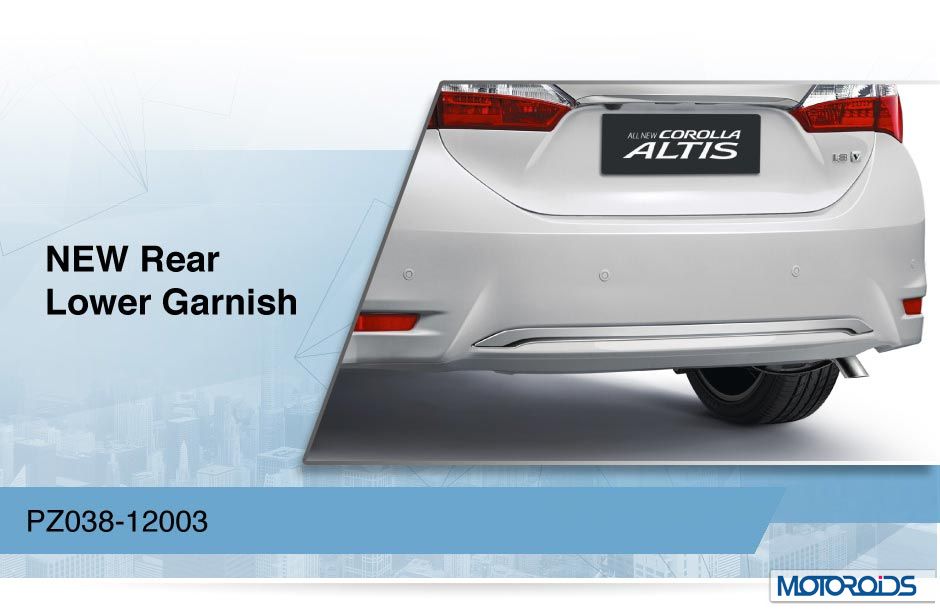

Accessories
2014 Toyota Corolla Altis Features List (As Stated on Indonesia website)
| Lampu Depan / Front Head Lamp | New LED Projector Headlamp and LED Daytime Running Light |
| Pengatur Ketinggian Lampu Depan / Head Leveling Device | auto |
| Lampu Sign Tambahan Samping/ Side Turn Signal Lamps | Built In Outermirror |

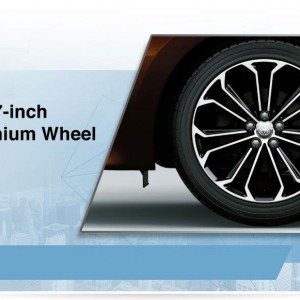

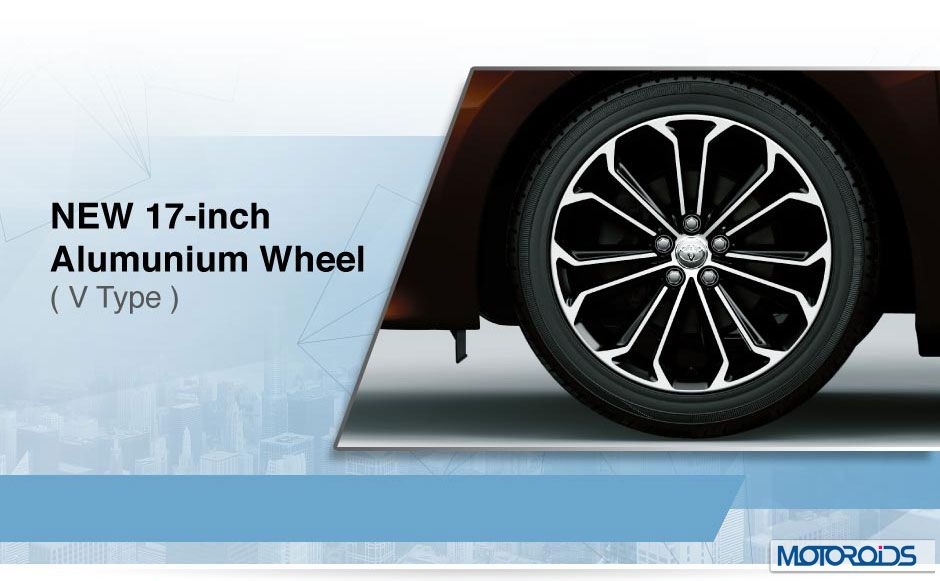

| Velg Roda / Alloy Wheel | 17-inch Aluminium Wheel |

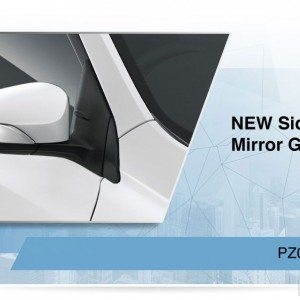

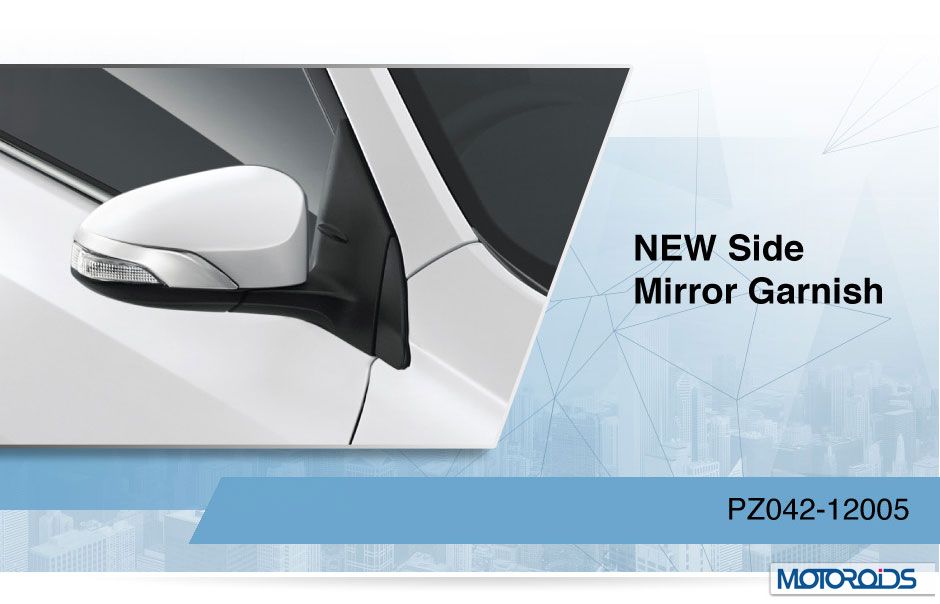

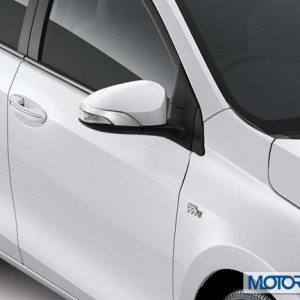

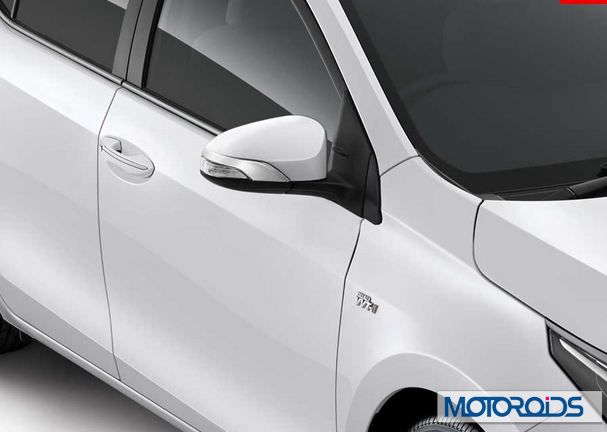

| Kaca Spion / Outter Mirror | New Side Mirror Garnish |
| Wiper Depan / Front Wiper | auto (rain sensor) |
| Meter Kombinasi / Combination Meter | Optitron with LCD Multi Information Display |

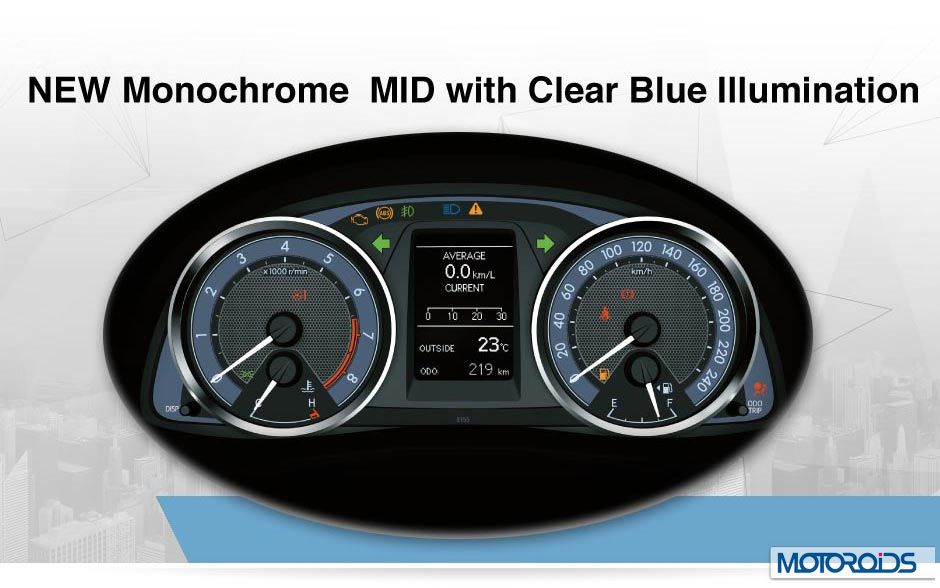

| Multi Information Display | New 3.5inch TFT Monochrome MID with Clear Blue Illumination |

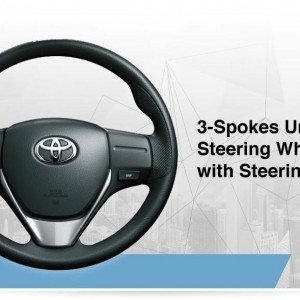

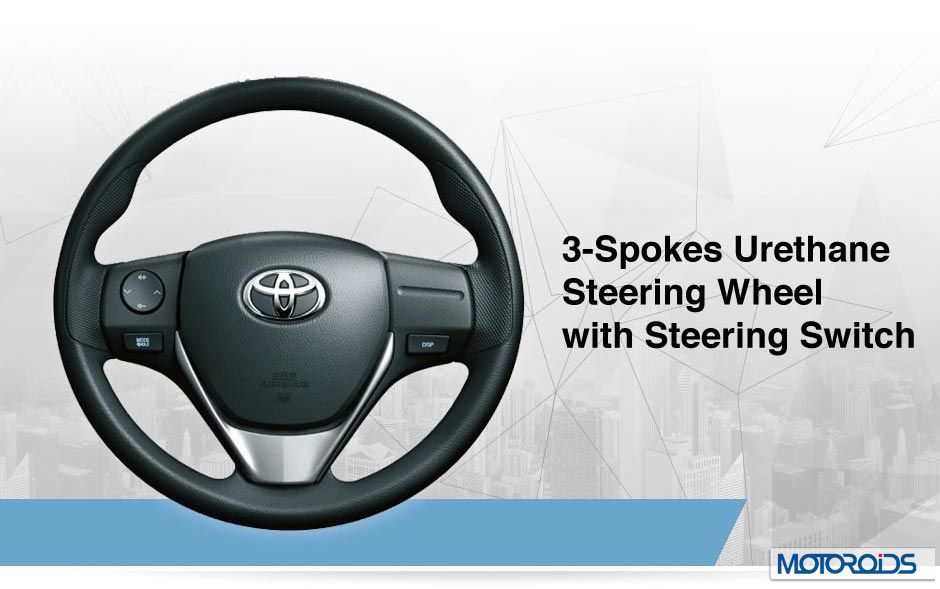

| Roda Kemudi / Steering Wheel | Leather with Steering Switch & Paddle Shift |

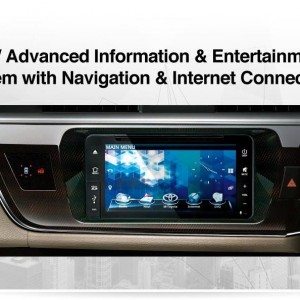

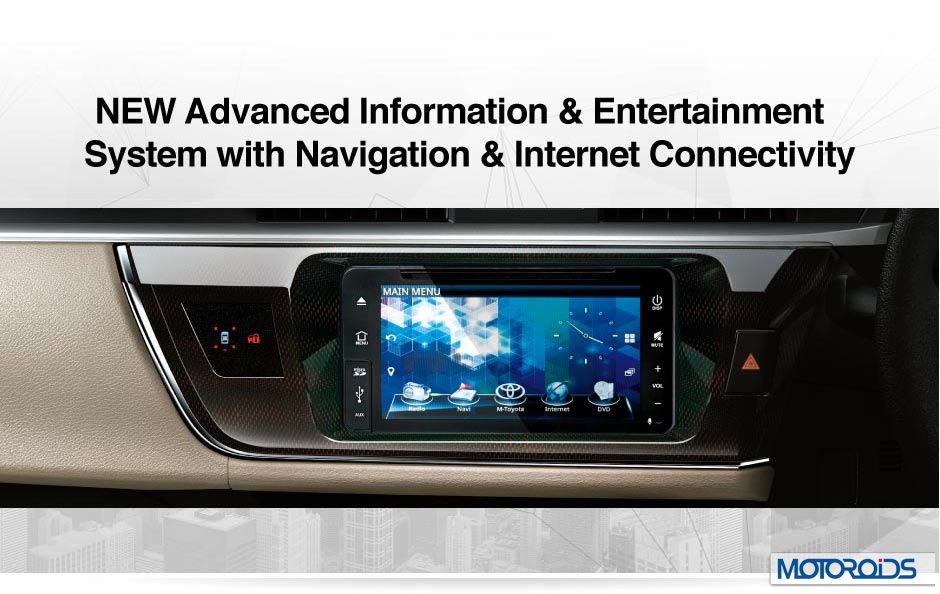

| Audio | 2 DIN Infotainment system with DVD, FM, AM, USB, AUX, Ipod ready, Micro SD, Internet connection, Navigation, DLNA, Gesture command, M-Toyota |
| Air Conditioner | automatic |
| Kursi Depan / Front Seat: Head rest, sliding, height adjuster, reclining | 8 Way Driver Power Seat Adjuster |
| Arm Rest Belakang / Rear Center Arm Rest | holder. silver lid |
| Lumbar Support | |

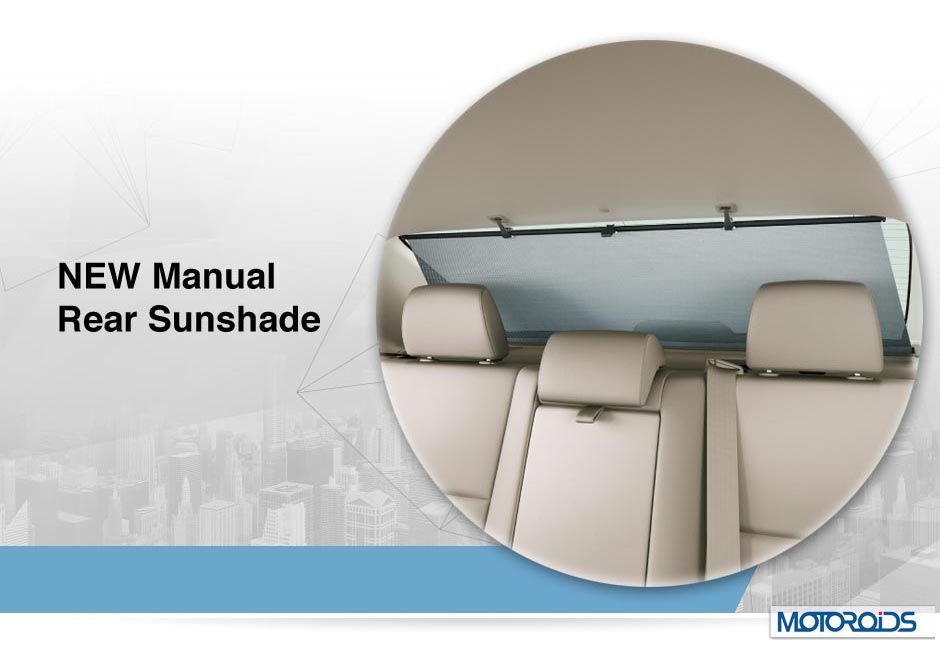

| Tirai UV | New Manual Rear Sunshade |
| Sensor Hujan / Auto Rain Sensor | Auto (Rain Sensor) |

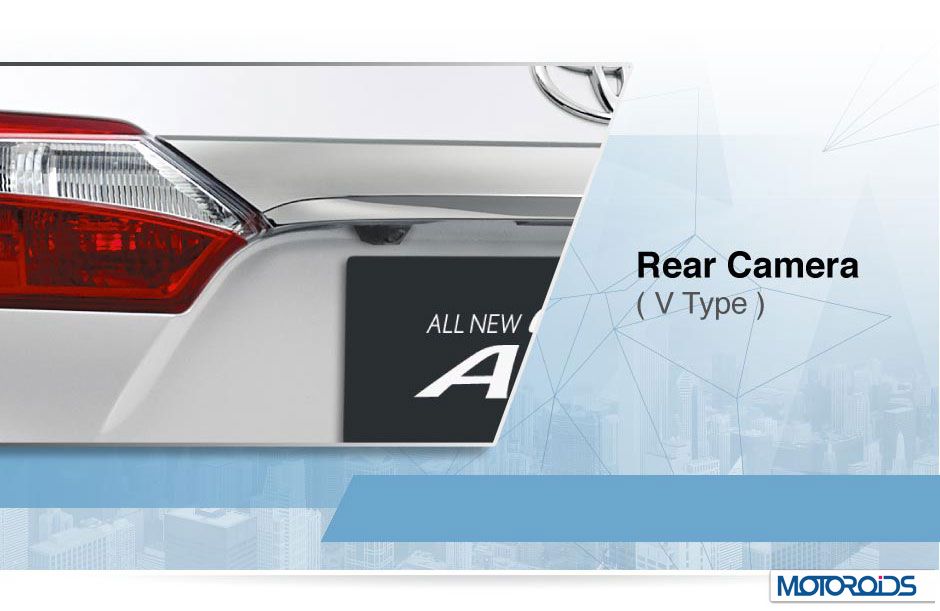

| Kamera Belakang / Rear Camera | |

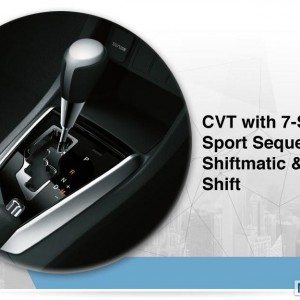

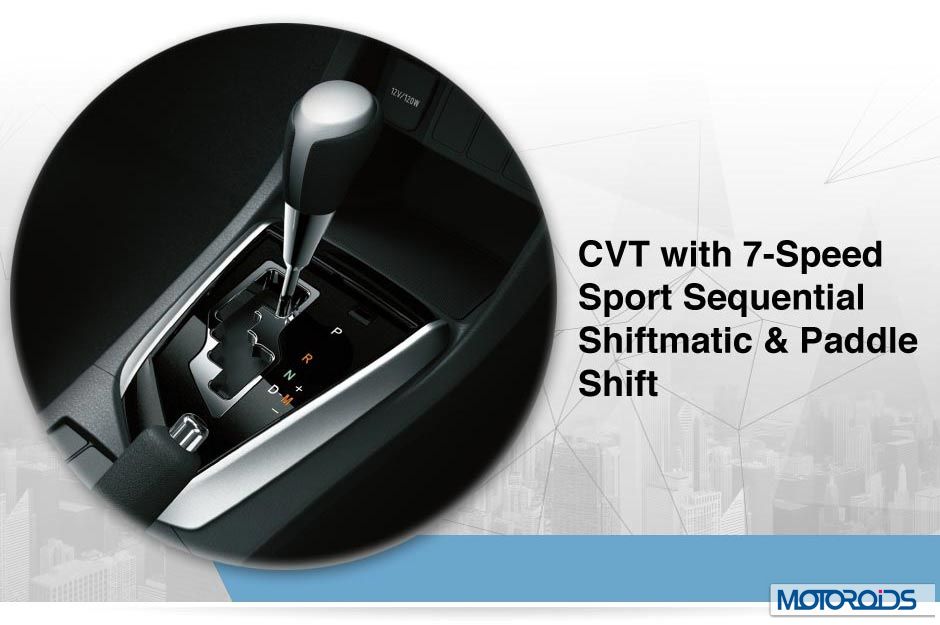

| Transmisi / Transmition | CVT with 7 Speed Sport Sequential Shiftmatic and Paddle Shift |
Exterior
| Lampu Depan / Front Head Lamp | New LED Projector Headlamp and LED Daytime Running Light |
| Pengatur Ketinggian Lampu Depan / Head Leveling Device | auto |
| Lampu Sign Tambahan Samping/ Side Turn Signal Lamps | Built In Outermirror |
| Ornament Grill Depan / Front Grille Ornament | – |
| Kaca Depan / Windshield | Green Laminated |
| Lampu Kabut depan / Front Fog Lamp | |
| Lampu Kabut belakang / Rear Fog Lamp | – |

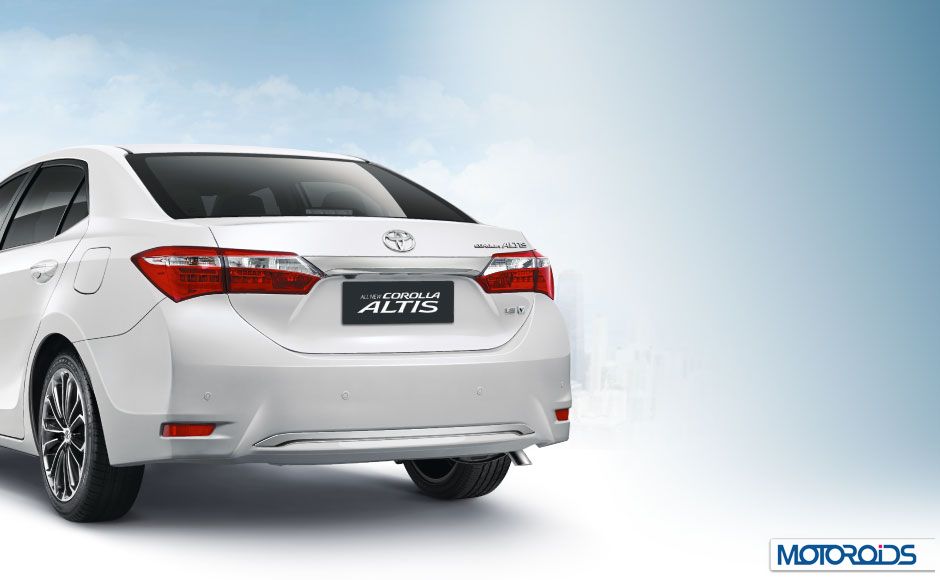

| Lampu kombinasi belakang / Rear Combination Lamp | ECE & LED |
| Velg Roda / Alloy Wheel | 17-inch Aluminium Wheel |
| Kaca Spion / Outter Mirror | New Side Mirror Garnish |
| Kaca Spion Tambahan / Front Fender Mirror | – |
| Ornament Samping / Side Moulding | – |
| Lampu Rem Tambahan / High Mount Stop Lamp | LED |
| Wiper Depan / Front Wiper | auto (rain sensor) |
| Wiper belakang / Rear Wiper | – |
| Antena / Antenna | RR Window Glass |
| Gagang Pintu Luar/ Outside Door Handle | Plating |
| Sticker Mobil / Body Stripe | – |
| Sensor Belakang / Back Sonar | |
| Sensor Sudut / Corner Sensor | |
| Ornament Knalpot / Muffler Cutter | |
| Spoiler Belakang / Rear Spoiler (Sedan) | – |
| Spoiler Atap Belakang / Rear Roof Spoiler (MPV, SUV, Hatchback) | – |
| Bumper Depan / Front Bumper | chrome ornament |
| Bumper Spoiler Depan / Front Bumper Spoiler | – |

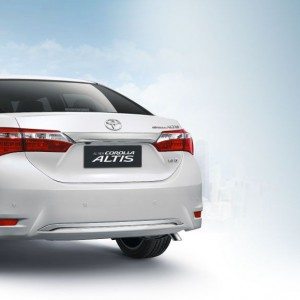

| Bumper Belakang / Rear Bumper | chrome ornament |
Interior
| Warna Dashborad / Dashboard Color | black & ivory |
| Warna instrument panel / Instrument Panel Color | brown cyber carbon |
| Warna Interior / Interior Color | ivory |
| SunVisor | with lamp |
| Meter Kombinasi / Combination Meter | Optitron with LCD Multi Information Display |
| Kontrol Spion Elektrik / Electric Outter Mirror Control | |

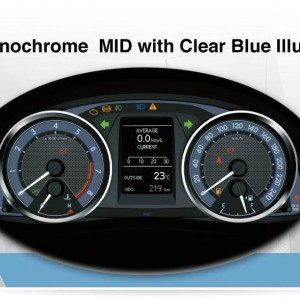

| Multi Information Display | New 3.5inch TFT Monochrome MID with Clear Blue Illumination |
| Lampu Ruangan / Room Lamp | |
| Roof Illumination | – |
| Illuminated Entry System | |
| Asbak / Ashtray | – |
| Roda Kemudi / Steering Wheel | Leather with Steering Switch & Paddle Shift |
| Tilt Steering | |
| Steering Switch | |
| Cruise Control | – |
| Cigarette Lighter | – |
| Accessory Power Outlet | |
| AUX Input | |
| Pengukur Tekanan Ban | – |
| Audio | 2 DIN Infotainment system with DVD, FM, AM, USB, AUX, Ipod ready, Micro SD, Internet connection, Navigation, DLNA, Gesture command, M-Toyota |
| Speaker | 6 Speaker |
| Air Conditioner | automatic |
| Jam Digital / Digital Clock | – |
| Door Inside Handle | Plating |
| Power Window | with Jamp Protection (Driver Only) |
| Power Door Lock | – |
| Captain Seat | – |
| Smart Entry | |
| Kursi Depan / Front Seat: Head rest, sliding, height adjuster, reclining | 8 Way Driver Power Seat Adjuster |
| Kursi Belakang baris 2 / 2nd Row Seat: Head rest, sliding, height adjuster, reclining | with Rear Seat Reclining |
| Kursi Belakang baris 3 / 3rd row seat: Head rest, sliding, height adjuster, reclining | – |
| Shift Knob [material] | Leather + Silver |
| Pengunci Pintu / Wireless Door Lock | – |
| Pembuka Tutup Bensin / Fuel lid Opener | – |
| Tempat Kartu / Ticket Holder | – |
Kenyamanan
| Kantong di belakang Kursi depan / Seatback Pocket | D+P |
| Arm Rest Depan / Front Arm Rest | – |
| Arm Rest Belakang / Rear Center Arm Rest | holder. silver lid |
| Bluetooth | |
| Tempat Kacamata / Sun Glass Holder | – |
| Lumbar Support | |
| Sun Roof | – |

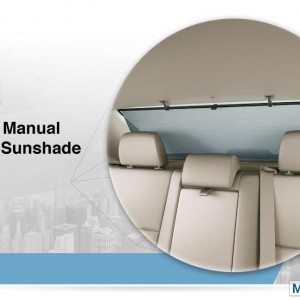

| Tirai UV | New Manual Rear Sunshade |
| Tilt & Telescopic | |
| Tempat Istirahat Kaki / Foot Rest | |
| Material Kursi / Seat Material | Leather |
| Laci Depan / Glove Box | with Lamp |
| Laci tengah / Console Box | Soft Leather |
| Kantong di Pintu / Door Pockets | D&P FR, RR |
| Jumlah Cup Holder / Total Cup Holder | 4 |
| Sensor Hujan / Auto Rain Sensor | Auto (Rain Sensor) |
| Rear Seat Relaxing System | – |
Keselamatan & Keamanan

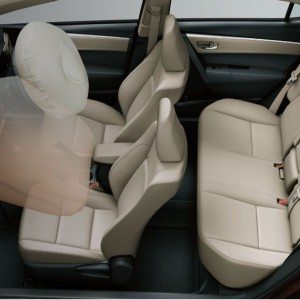

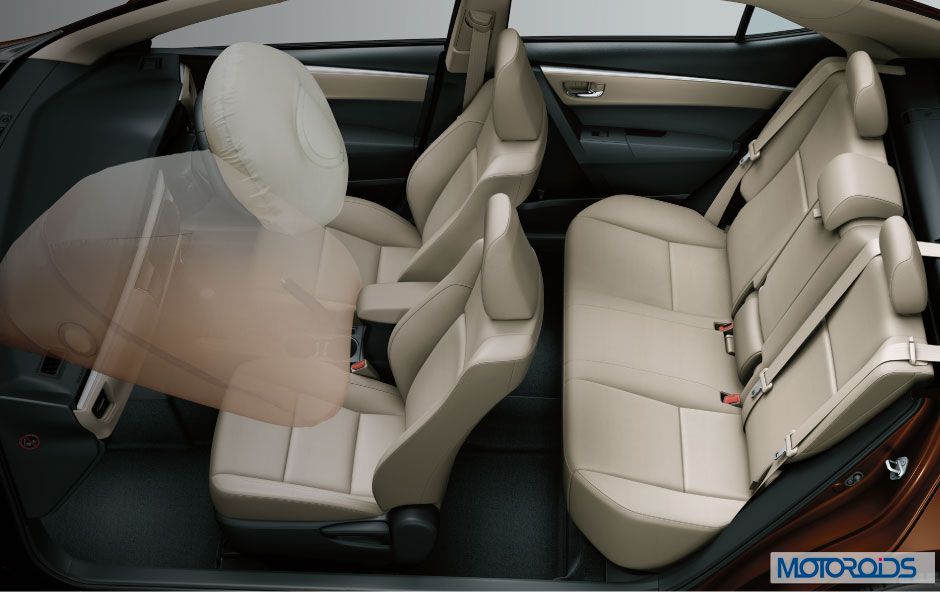

| SRS Airbag Depan / Front SRS Airbag | D+P |
| SRS Airbag Samping / Side SRS Airbag | D+P |
| ABS | |
| EBD | |
| BA | |
| Immobilizer | |
| Side Door Impact Beam | |
| GOA Body | |
| VSC | – |
| TRC | – |
| Child Protection | |
| Seat Belt Baris pertama / 1st Row Seat belt | D&P, 3 ELR (PT&FL) |
| Seat Belt Baris kedua / 2nd row Seat Belt | 3ELR*3 |
| Seat Belt Baris ketiga / 3rd row seat belt | – |
| Wireless Key System | – |

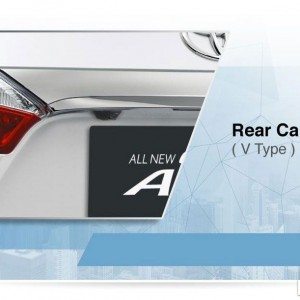

| Kamera Belakang / Rear Camera | |
| Window Defogger | |
| Auto Lock berdasarkan Kecepatan / Speed Auto Lock system | – |
| Collapse Steering Column | – |
Dimensi
| Overall Panjang / Length | 4620 |
| Overall Lebar / Width | 1776 |
| Overall Tinggi / Height | 1460 |
| Jarak Poros Roda / Wheelbase | 2700 |
| Jarak Pijak / Tread (Depan/Front) | 1517 |
| Jarak Pijak / Tread (Belakang / Rear) | 1522 |
| Jarak Terendah / Ground Clearance | – |
| Radius Putar / Turning Radius | – |
| Berat Kosong / Curb Weight | 1270 |
| Jumlah Roda (khusus Commercial) | – |
| Gros Vehicle Weight (khusus Commercial) | – |
| Panjang Dek Kargo (khusus Commercial) | – |
| Lebar Dek Kargo (khusus Commercial) | – |
| Tinggi Dek Kargo (khusus Commercial) | – |
Sasis
| Transmisi / Transmition | CVT with 7 Speed Sport Sequential Shiftmatic and Paddle Shift |
| Perbandingan Gigi / Gear Ratio 1st | – |
| Perbandingan Gigi / Gear Ratio 2nd | – |
| Perbandingan Gigi / Gear Ratio 3rd | – |
| Perbandingan Gigi / Gear Ratio 4th | – |
| Perbandingan Gigi / Gear Ratio 5th | – |
| Perbandingan Gigi / Gear Ratio 6th | – |
| Perbandingan Gigi / Gear Ratio Reverse | 2.604-1.680 |
| Perbandingan Gigi / Gear Ratio Final | 5356 |
| Suspensi Depan / Front Suspension | MacPherson strut |
| Suspensi Belakang / Rear Suspension | Torsion beam |
| Rem Depan / Front Brake | Ventilated disc |
| Rem Belakang / Rear Brake | Disc |
| Sistem Rem Tambahan / Additional Brake System | ABS + EBD + With + BA |
| Steering Gear | Rack and pinion |
| Ukuran Ban / Tires Size | 215/45 R17 91V |
Mesin

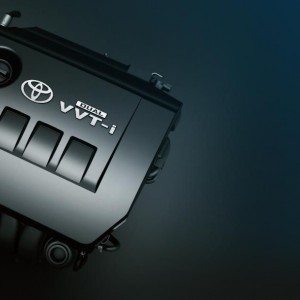

| Seri Mesin / Machine Serial | 2ZR-FE |

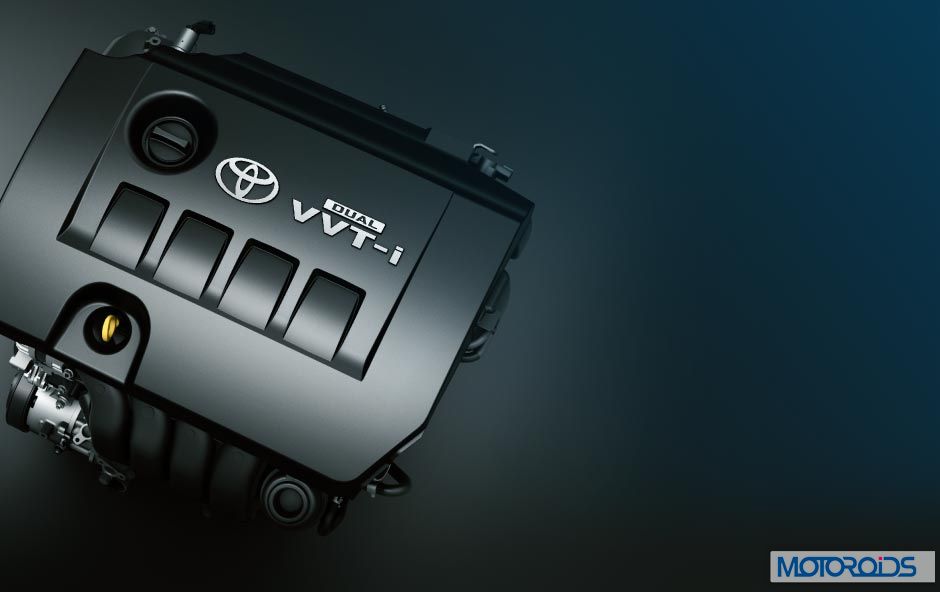

| Tipe Mesin / Engine Type | 16-Valve DOHC with Dual VVT-i |
| Isi Silinder / Displacement (cc) | 1798 |
| Diameter x Langkah / Bore X Stroke (mm) | 80.5 x 88.3 |
| Daya Maksimum / Maximum Output (Ps/rpm) | 151 /6400 |
| Torsi Maksimum / Maximum Torque (Nm/rpm) | 190 / 4000 |
| Sistem Pemasukan Bahan Bakar / Fuel System | EFI |
| Bahan Bakar / Fuel | Gasoline |
| Kapasitas Tangki / Fuel Capacity (liter) | 55 |
| Steering (Power Steering) | EPS |
