Meet the Honda CX500 based limited edition Blacktrack BT-01 cafe racer series : BT01R and BT-01S

|
Added in: News

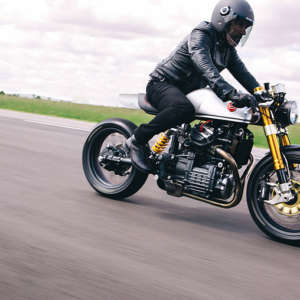

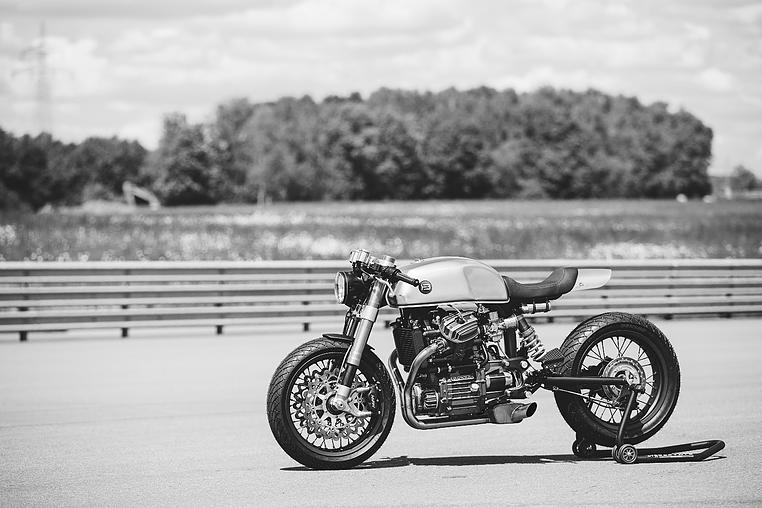

Blacktrack BT-01 cafe racer - 4

Favored by despatch riders in the 1980s for its reliability, the CX500 presented a unique engine layout and backbone frame design giving it an aesthetic edge, and a visual lightness which is ideal for a café racer. Fast forward to present times and the visually humble Honda CX500, found in pieces in a garage, served as the donor motorcycle for a sleek and modernized café racer. The motorcycle was a brainchild of Blacktrack designer and founder Sacha Lakic.

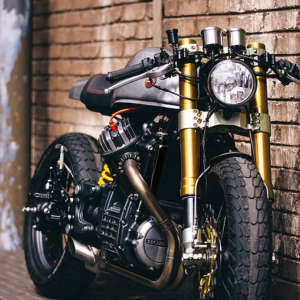

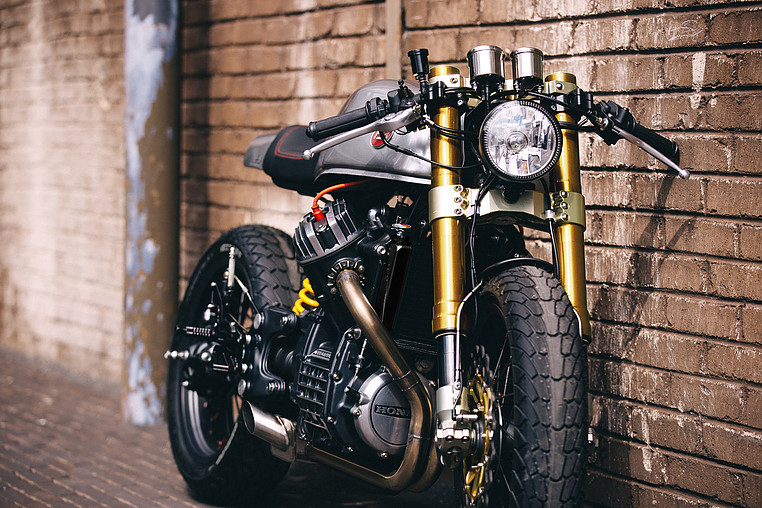

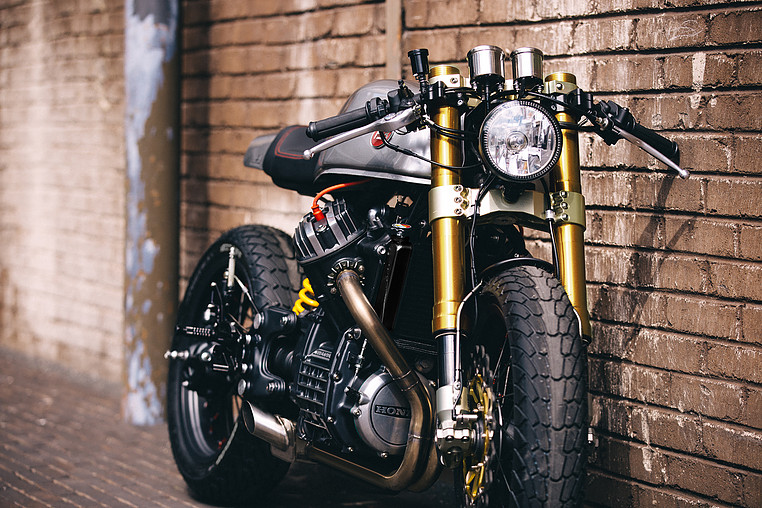

Blacktrack BT-01 cafe racer - 6

Meet the Blacktrack BT-01.

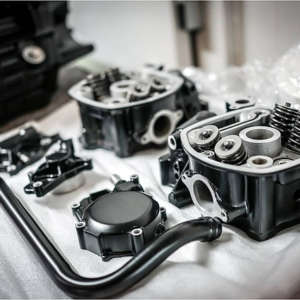

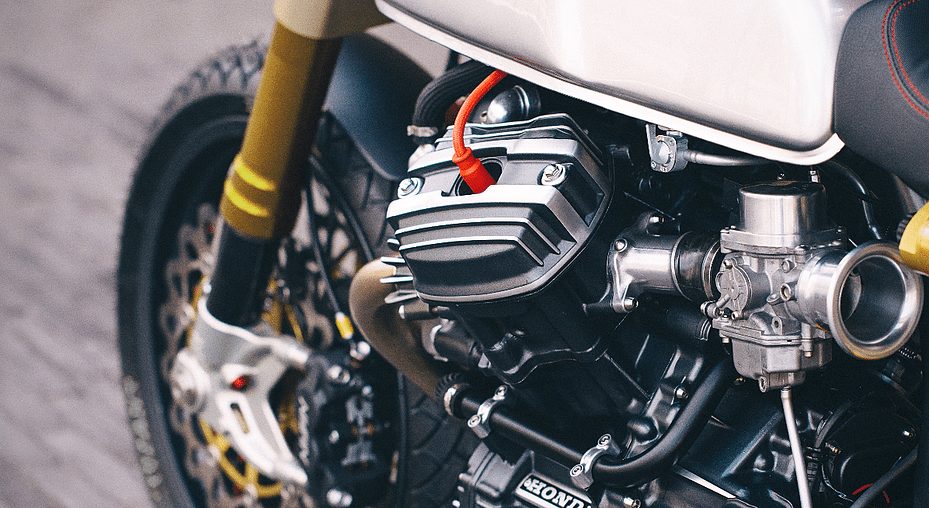

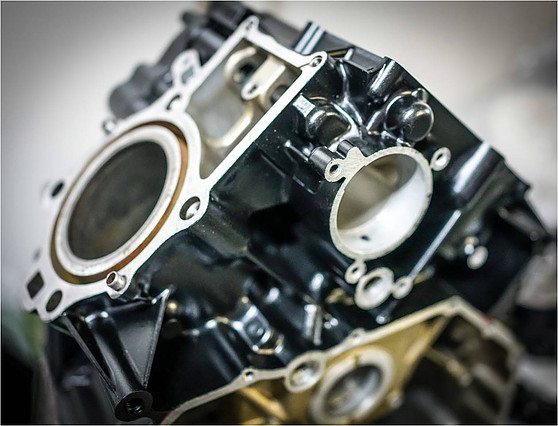

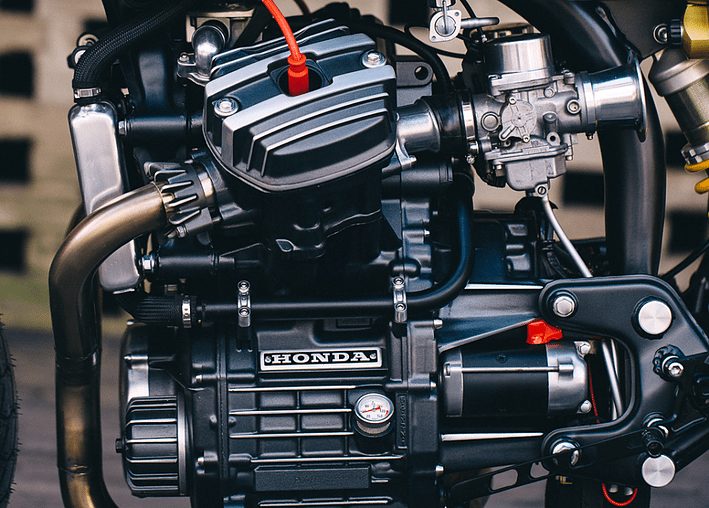

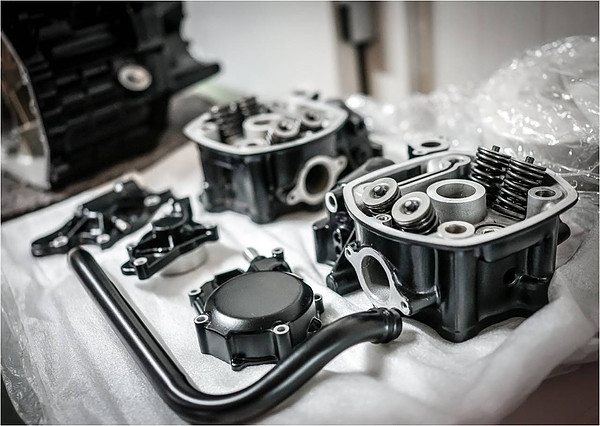

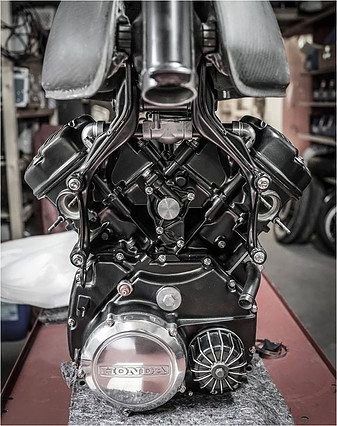

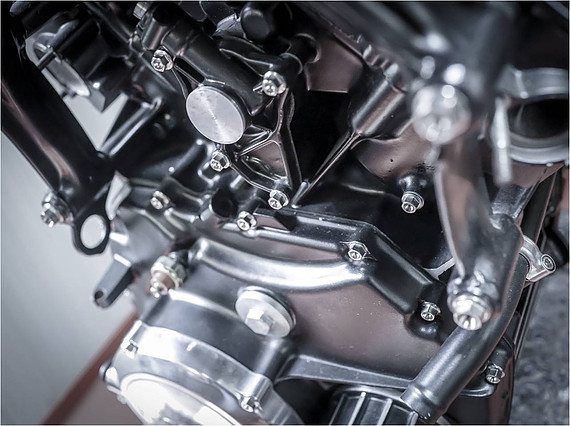

Each BT-01 will start out as a hand-picked, Honda CX500. Apart from its unique engine layout and backbone frame, the the CX500 also features a V-twin motor that has ample character and a pleasing sound. Each BT-01 donor will be treated to a thorough overhaul before any other work commences. The motorcycle will be designed to ensure optimal performance and reliability – from new bearings, gaskets and bushes, to a tailor-made wiring system.

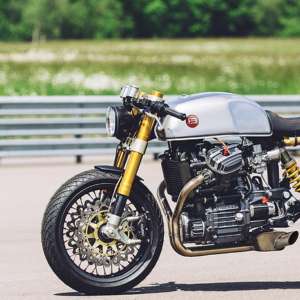

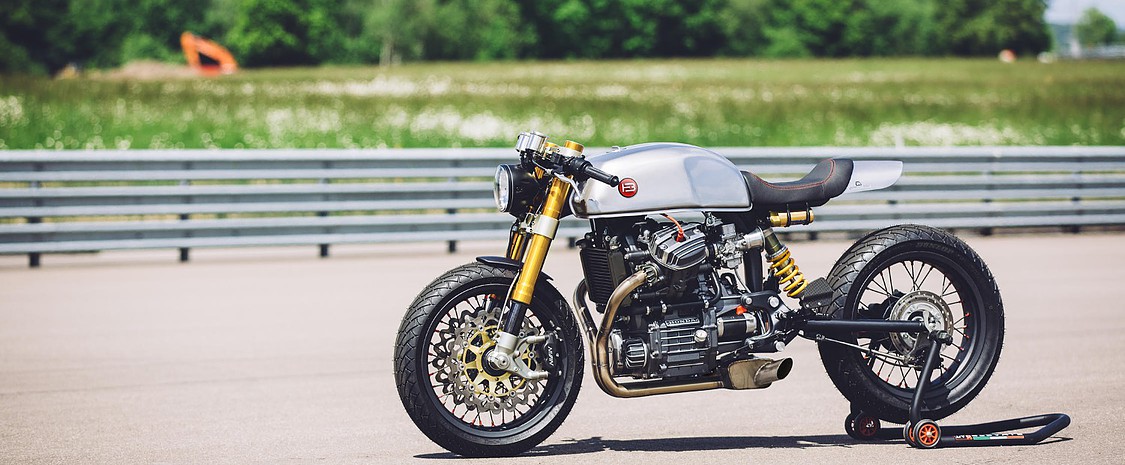

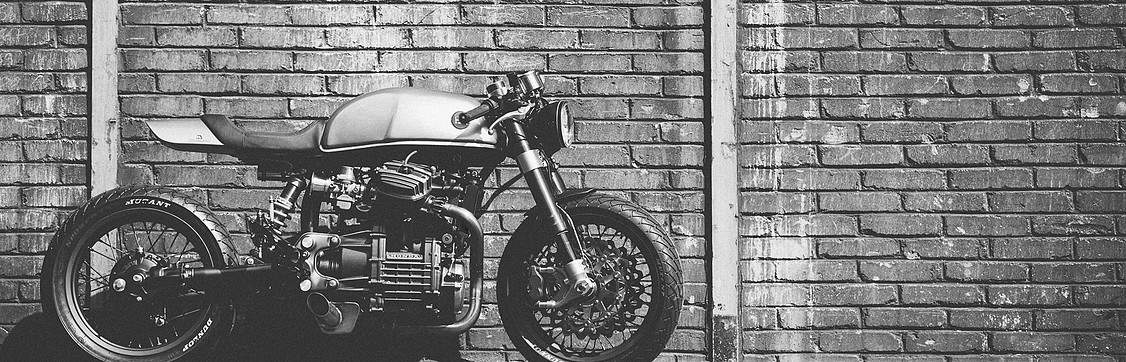

Blacktrack BT-01 cafe racer - 1

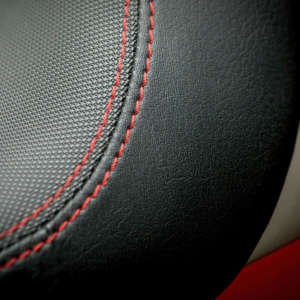

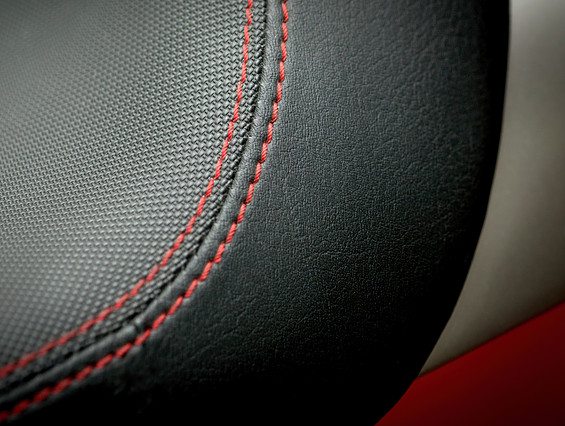

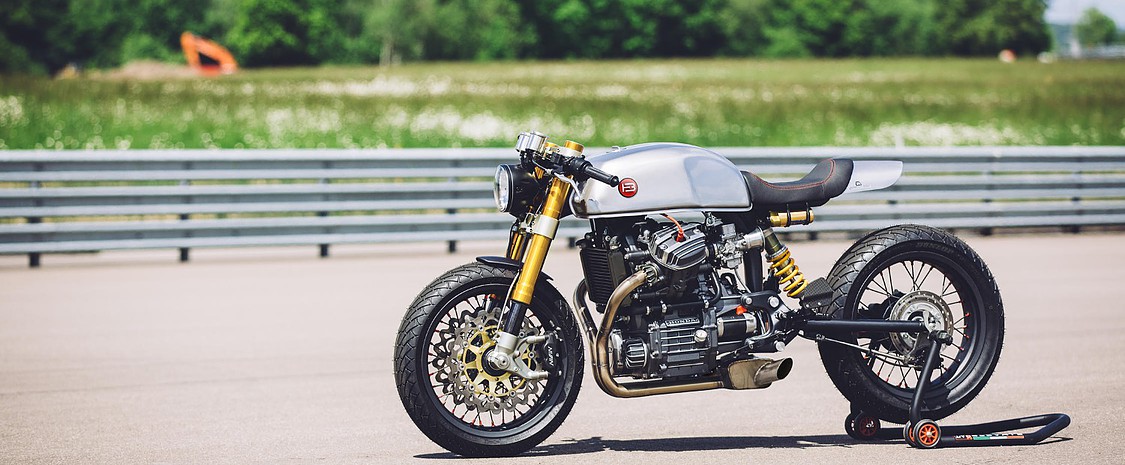

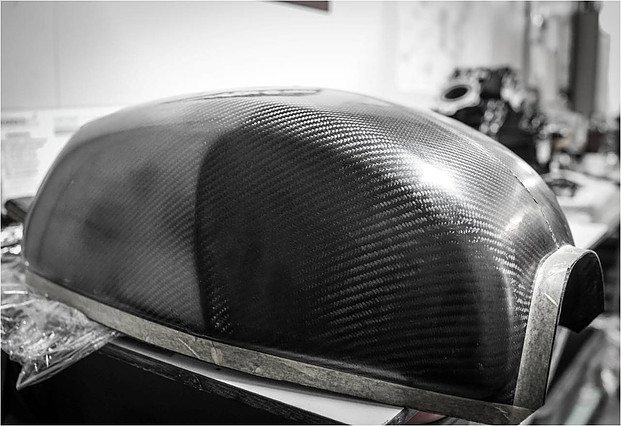

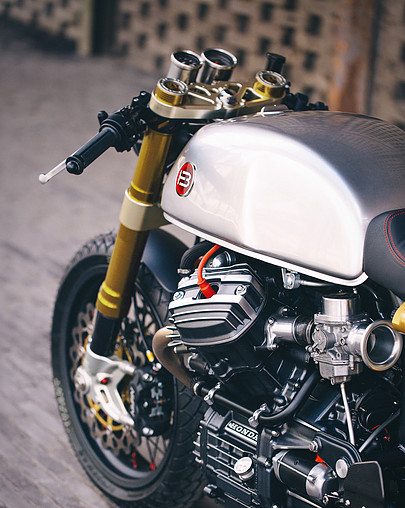

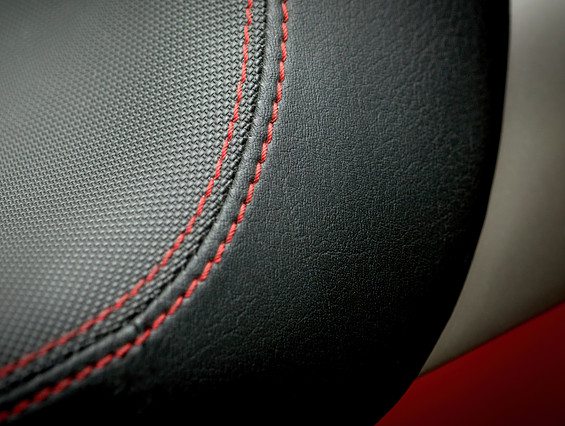

Visually, the stock CX500 will be completely overhauled. So while the fuel tank mimics the CX500’s original unit, it is tilted forward slightly. The solo seat is completed with non-slip upholstery and contrast stitching. Apart from visual changes, the finished motorcycle is claimed to be significantly lighter than stock machine.

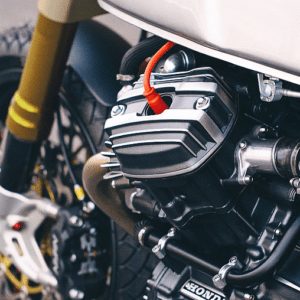

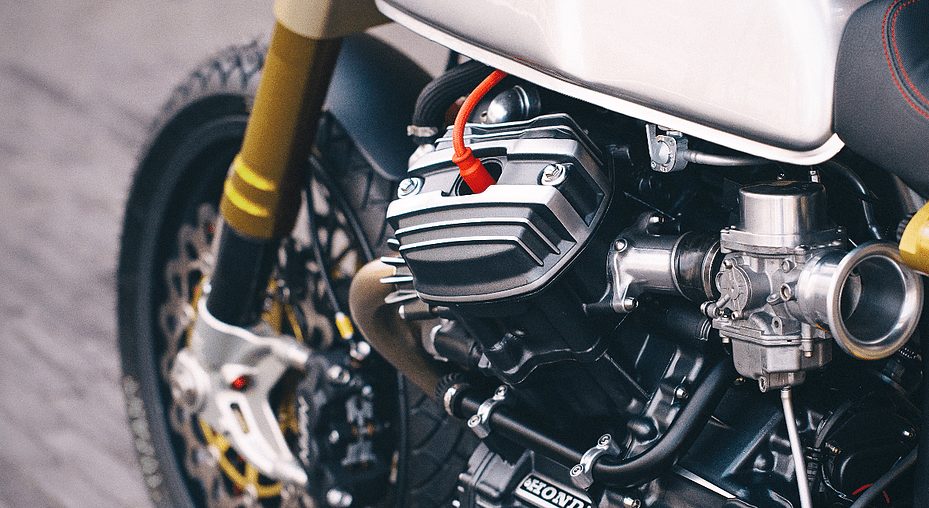

Blacktrack BT-01 cafe racer - 12

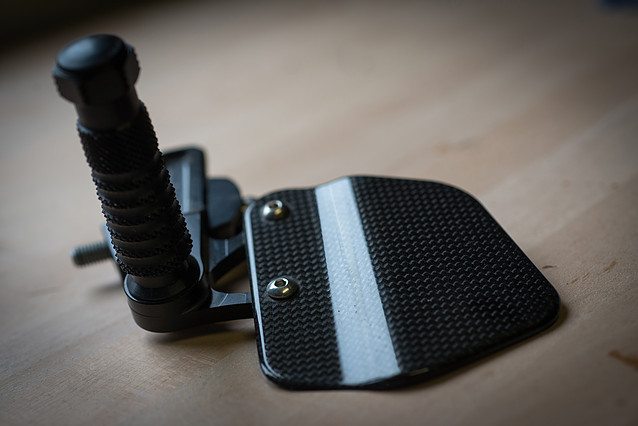

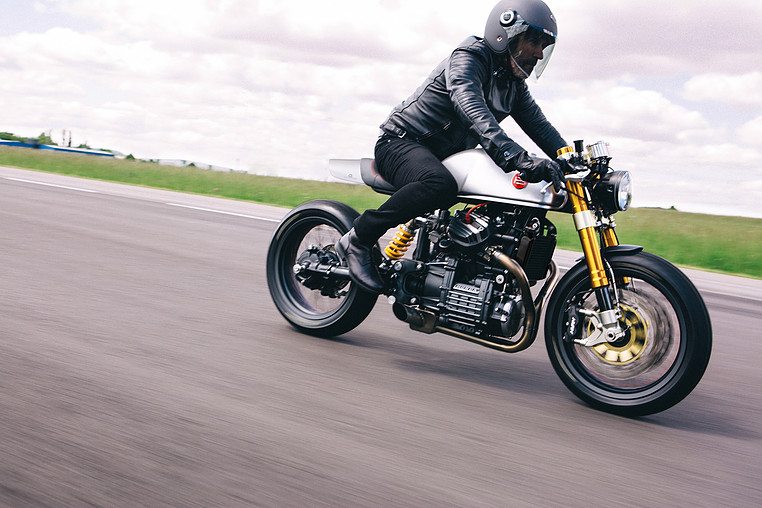

Being a cafe-raced, the BT-01 will come equipped with clip-on handlebars and rear set foot controls which will offer sporty ergonomics. Other features include discreet lighting, side-by-side gauges and a hand-made exhaust system. Every component is either painted, polished or powder-coated, with Blactrack’s signature red details found throughout.

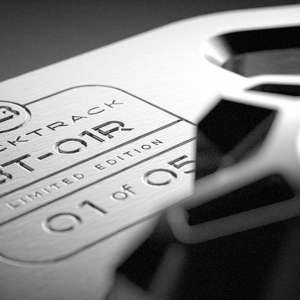

Blacktrack BT-01 cafe racer - 23

The BT-01 is available in two editions : the BT-01R (Race edition) and the BT-01S (Sport edition). The two editions are designed and built with different components.

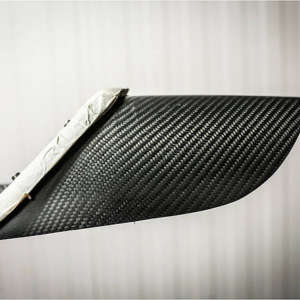

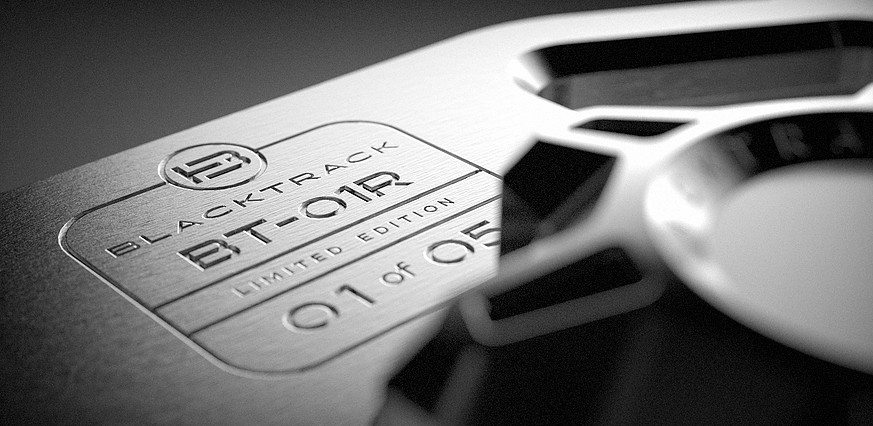

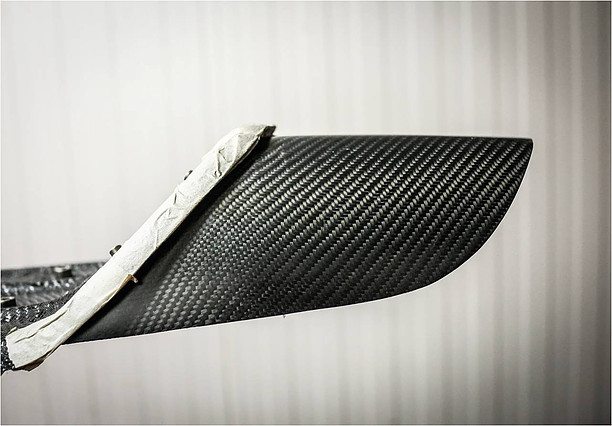

The production of the collectible BT-01R is limited to only five machines. The BT-01R features top shelf components including Öhlins suspension, Brembo brakes, Mikuni carbs and carbon fiber bodywork.

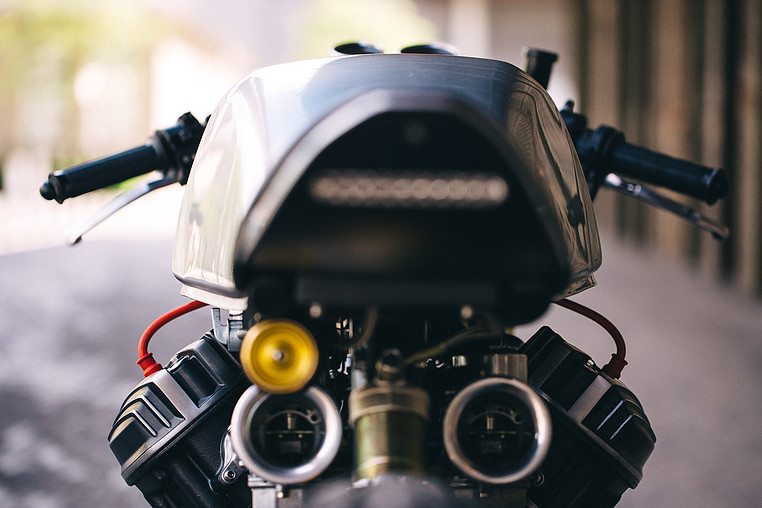

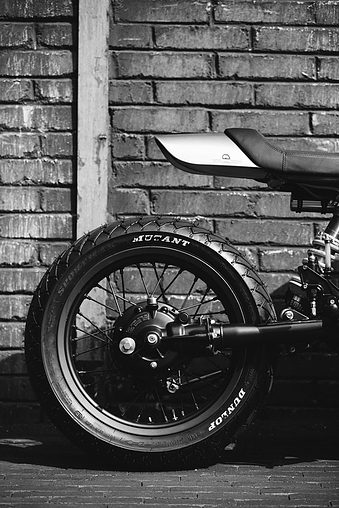

Blacktrack BT-01 cafe racer - 10

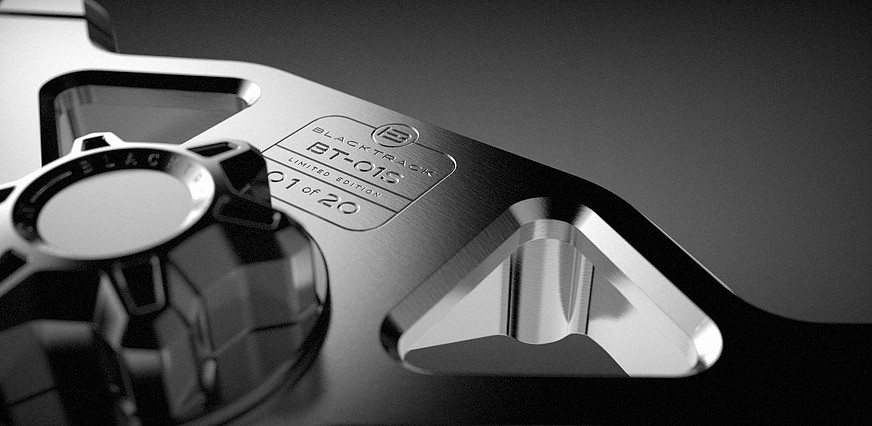

The BT-01S, on the other hand, is available in a small series of 20. The BT-01S is a raw cafe racer with performance that can be customized with any BT-01R parts, either before production or even after delivery.

Check out these limited edition motorcycles through the image gallery. Do let us know your views about the BT-01 series through the comments section below.

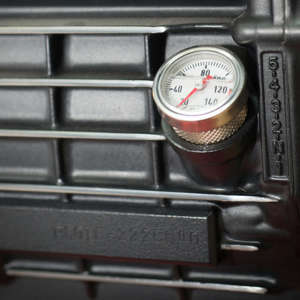

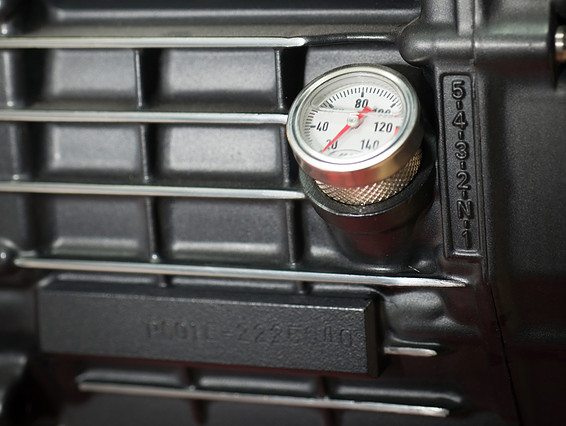

Blacktrack BT-01 cafe racer – 26

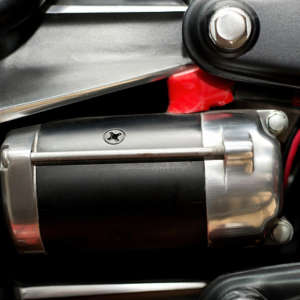

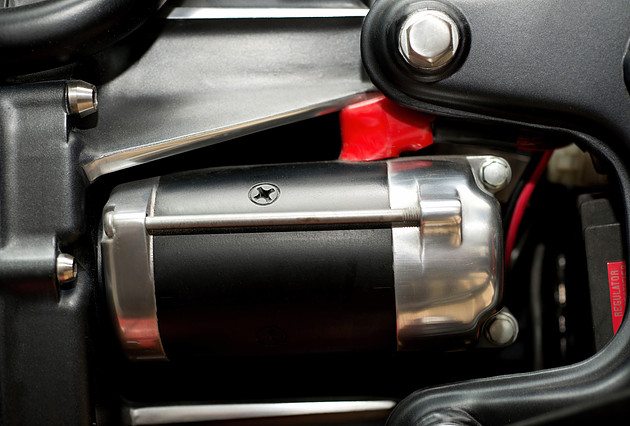

Blacktrack BT-01 cafe racer – 25

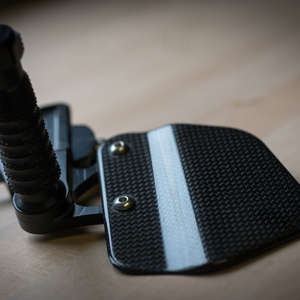

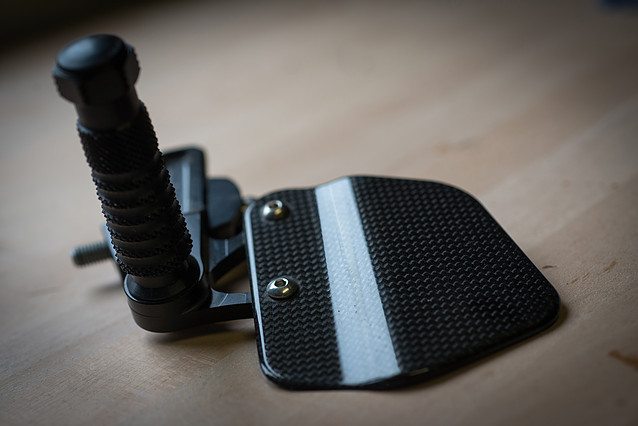

Blacktrack BT-01 cafe racer – 24
Blacktrack BT-01 cafe racer – 23
Blacktrack BT-01 cafe racer – 22

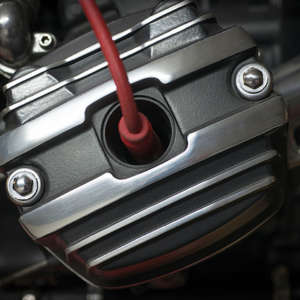

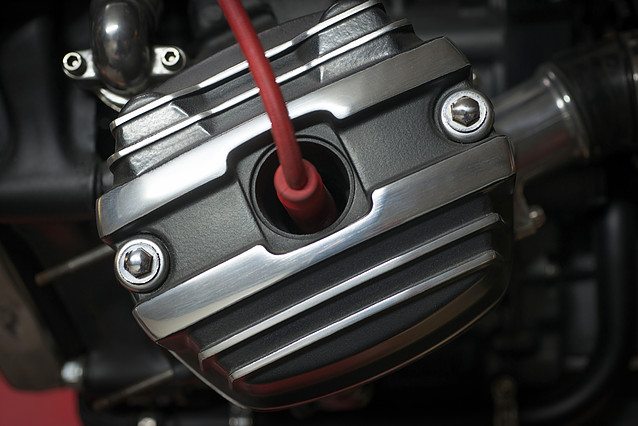

Blacktrack BT-01 cafe racer – 21

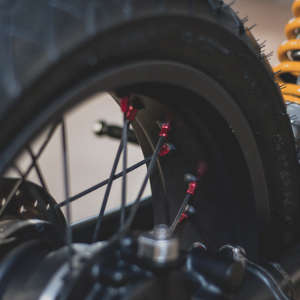

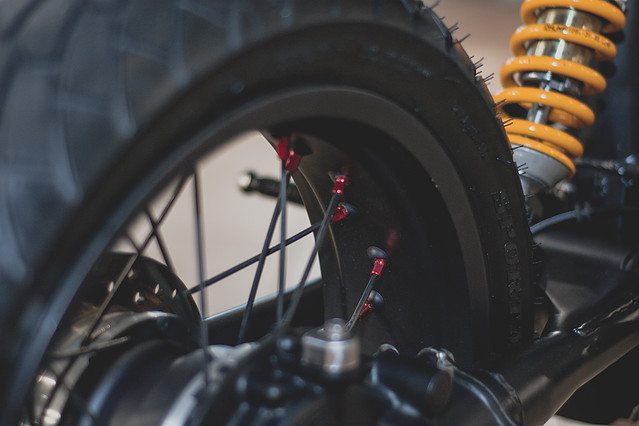

Blacktrack BT-01 cafe racer – 20

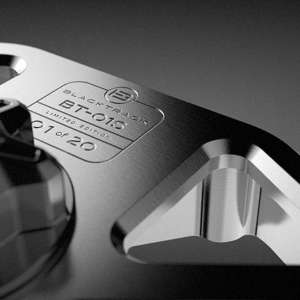

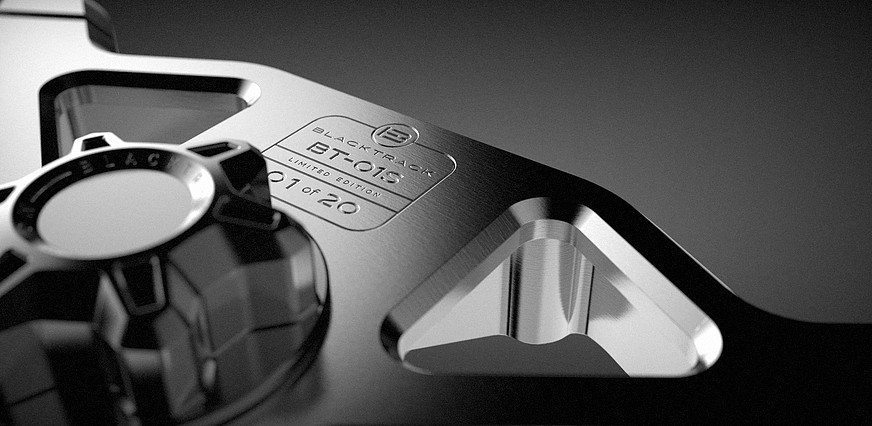

Blacktrack BT-01 cafe racer – 19

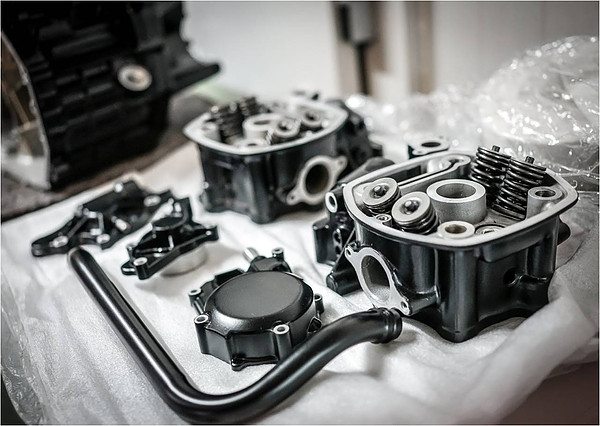

Blacktrack BT-01 cafe racer – 18

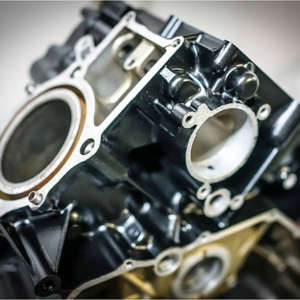

Blacktrack BT-01 cafe racer – 17

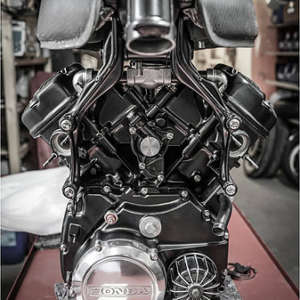

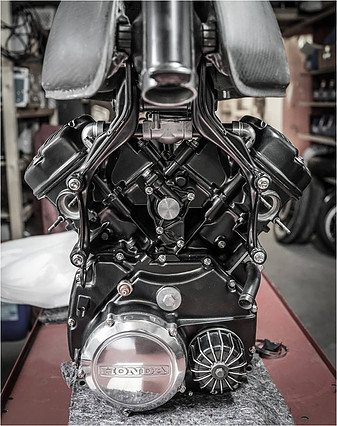

Blacktrack BT-01 cafe racer – 16

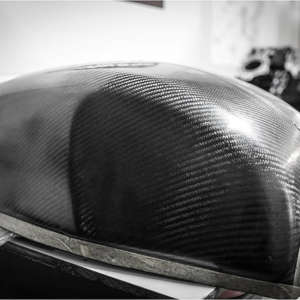

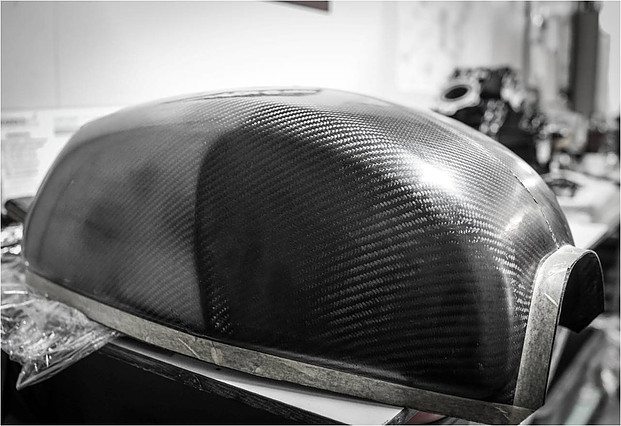

Blacktrack BT-01 cafe racer – 15

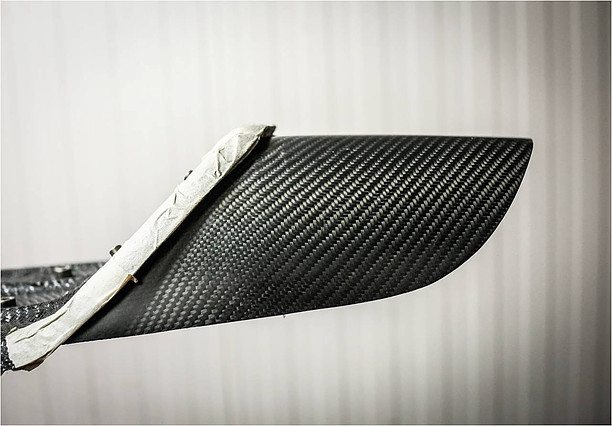

Blacktrack BT-01 cafe racer – 14

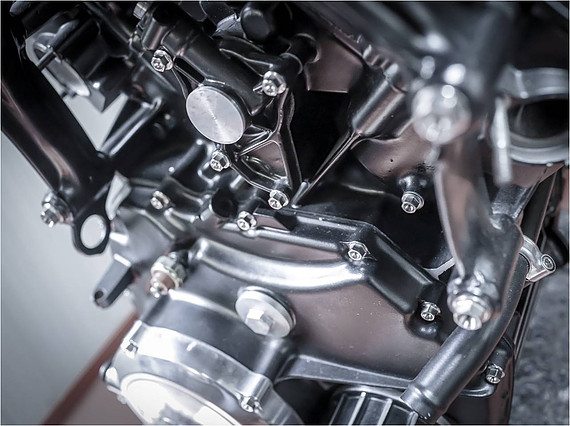

Blacktrack BT-01 cafe racer – 13
Blacktrack BT-01 cafe racer – 12

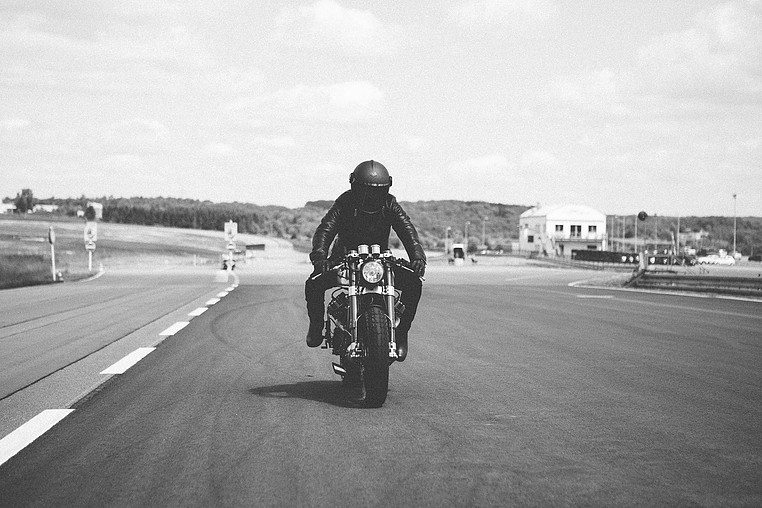

Blacktrack BT-01 cafe racer – 11
Blacktrack BT-01 cafe racer – 10

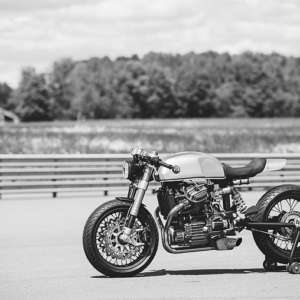

Blacktrack BT-01 cafe racer – 9

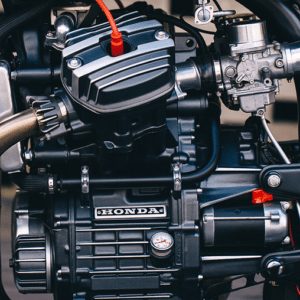

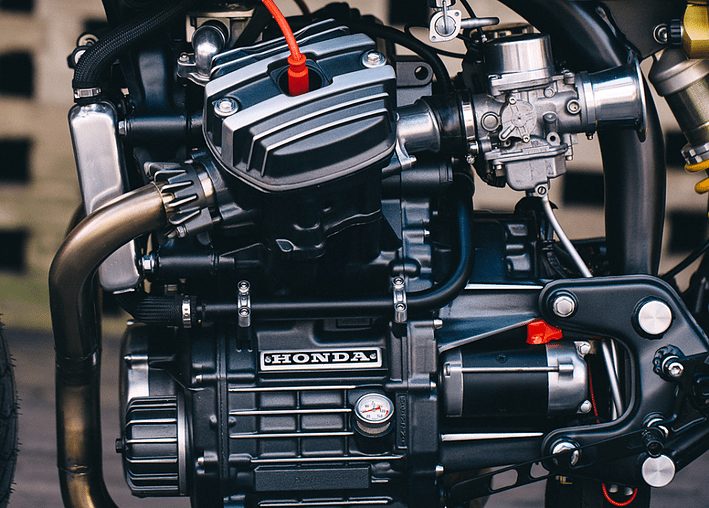

Blacktrack BT-01 cafe racer – 8

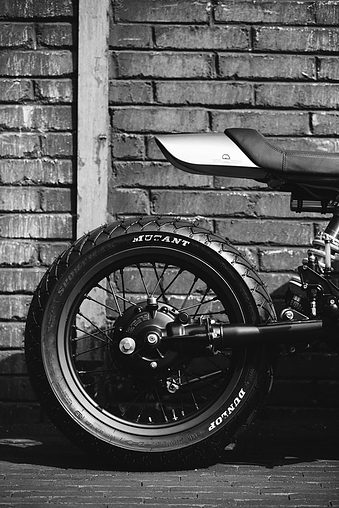

Blacktrack BT-01 cafe racer – 7
Blacktrack BT-01 cafe racer – 6
Blacktrack BT-01 cafe racer – 5
Blacktrack BT-01 cafe racer – 4

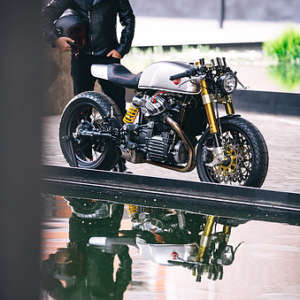

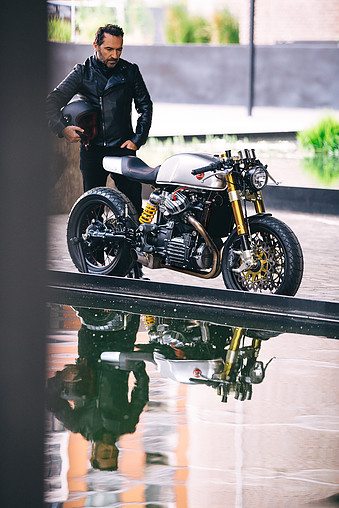

Blacktrack BT-01 cafe racer – 3

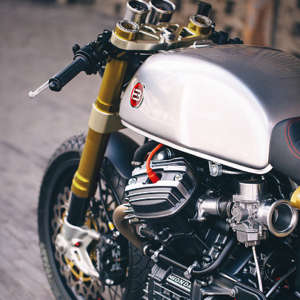

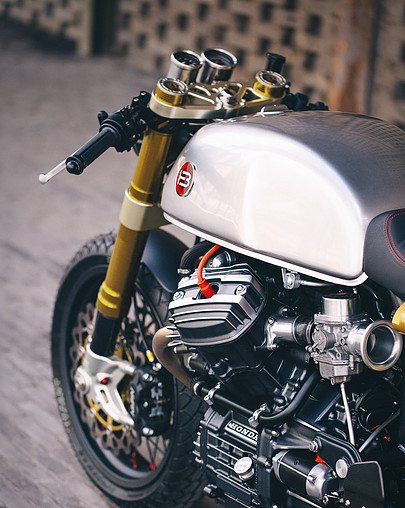

Blacktrack BT-01 cafe racer – 2
Blacktrack BT-01 cafe racer – 1

Technical Specifications

ModelBT-01SBT-01R

Engine

Engine TypeLongitudinal OHV 80° V-twin, 4 valves per cylinderLongitudinal OHV 80° V-twin, 4 valves per cylinder
Displacement497 cc497 cc
Bore and Stroke78 mm X 52 mm78 mm X 52 mm
Cooling systemliquidliquid
Gearbox5 speed5 speed
Final driveshaftshaft

Dimensions

Wheelbase1400 mm1400 mm
Overall length2000 mm2000 mm
Seat height760 mm760 mm
Width700 mm700 mm

Suspension

FrontÖhlins FG424 black front forkÖhlins FGRT 43 mm front fork
RearÖhlins S46DR1 rear monoshockÖhlinsTTX36 rear monoshock

Brakes

FrontNissin front dual disc brake and calipersBrembo 320 mm front dual disc brake and Brembo calipers
RearNissin rear brake disc and calipersRear brake disc – Brembo calipers

Brembo Racing PR19 radial master



ExhaustOriginal carbs and new Dyno-Jet kitSet of two brand new 39 mm Mikuni carbs
Rims (Wire-spoked rims)Front : 3.5 X 17 tubeless rim

Rear : 4.25 X 17 tubeless rim

Front : 3.5 X 17 tubeless rim

Rear : 4.25 X 17 tubeless rim

Tyres (Dunlop Sportmax Mutant)Front : 120 / 70ZR17

Rear : 150 / 60ZR17

Front : 120 / 70ZR17

Rear : 150 / 60ZR17

,
