Meet Leonhardt Gunbus: The biggest, baddest motorcycle on the planet

|
Added in: Features

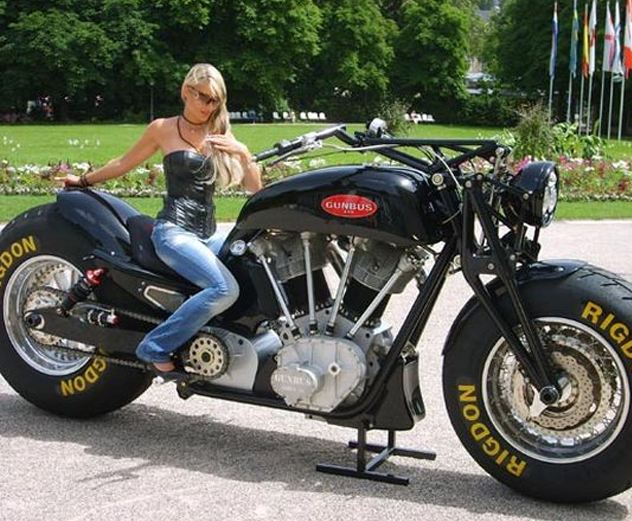

Leon Hardt Gunbus - world's biggest motorcycle (1)

You think you’ve seen the biggest, baddest, meanest machines? You think you’ve seen them all? The most ominous ones there are? Then try and chew on this! The Leonhardt Gunbus – a monster of a motorcycle, quite literally. This would make a Triumph Rocket III look like a toddler with a candy in its hand.

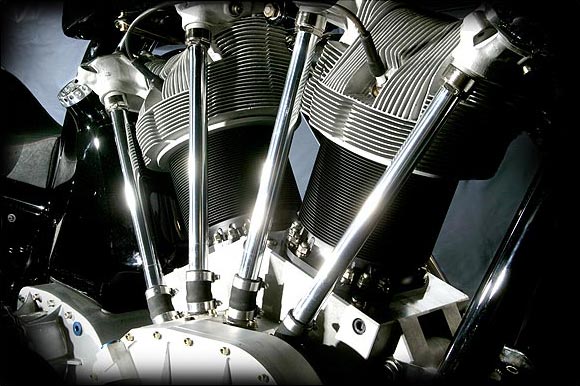

Without wasting much time, let us give you the vital stats first – its powered by a, wait for it, 6.7 liter 45 degree V twin with 350 horses and 710 nm of torque produced at 1900 rpm. All of it is functional – you can ride this thing, legally, if you have a heart big enough and a pair of family jewels tough enough.

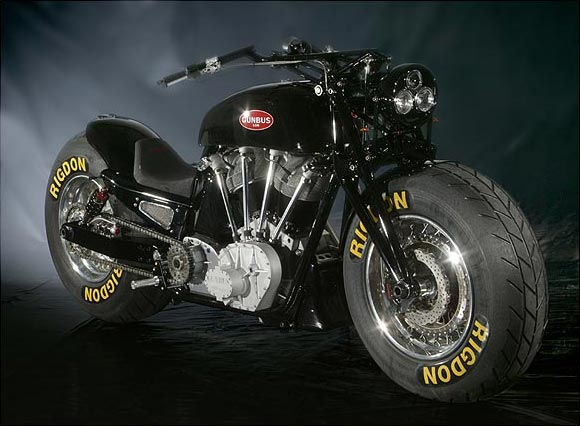

Leon Hardt Gunbus - world's biggest motorcycle (7)

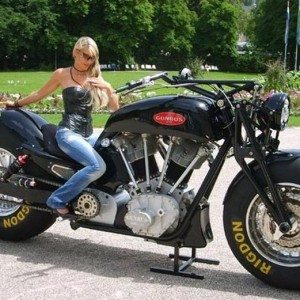

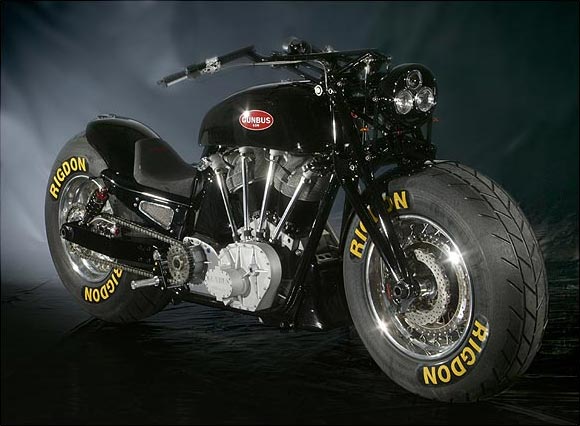

Standing at 3.47 meters length, the GUNBUS 410 can rival many a car for size. A well-balanced design when looked at as a standalone product, the Gunbus menaces you with its girth the moment you put a rider on top, and things in perspective. Made of steel and aluminium the concept demanded great mechanical and technical expertise, but Leonhardt with its expertise in engineering, pulled the feat in style.

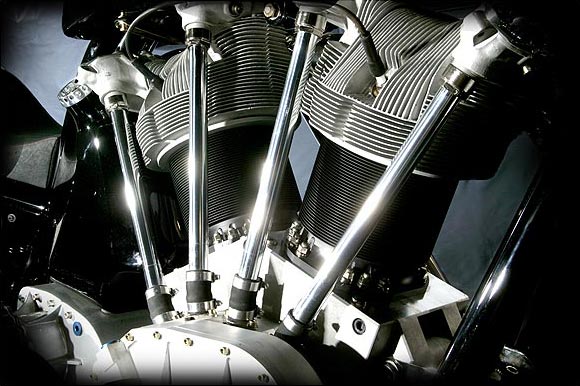

Leon Hardt Gunbus - world's biggest motorcycle (4)

We wouldn’t dare ask the acceleration and top speed of this mammoth, for we wonder whether one would ever dare to take this beast to those limits. However, if you fancy riding this one you’ll have to shell out no less than $3.5 lakh. Add to it the duties and transportation costs, and you’re looking at an amount that should be in the region of $ 5 lakh (or Rs 3 crore)

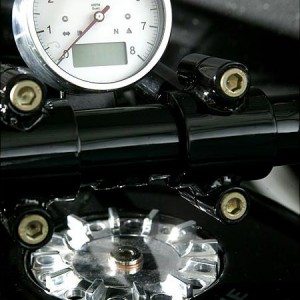

Leon Hardt Gunbus - world's biggest motorcycle (11)

Now that’s bad news, if you wished to have it parked in your garage. The good news is, enjoying the pictures of this beauty here on Motoroids is absolutely free!

Technical Data

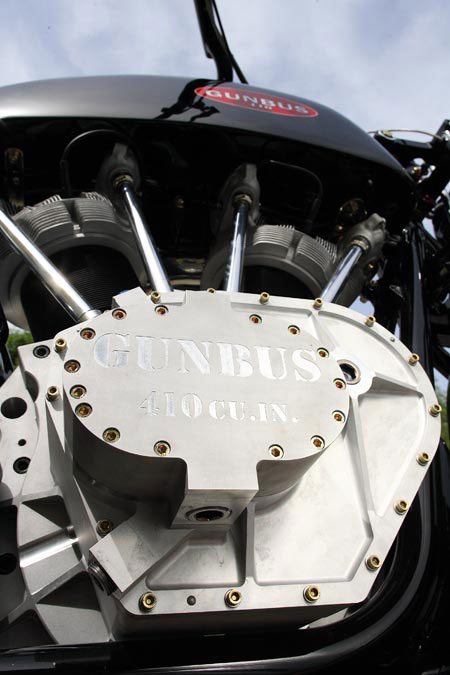

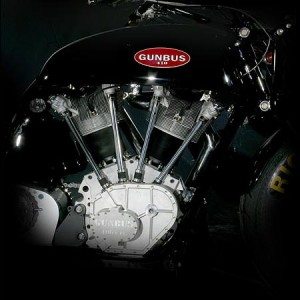

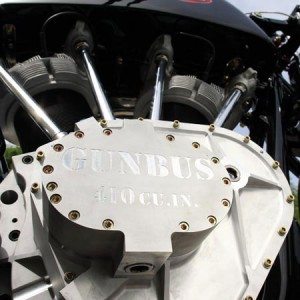

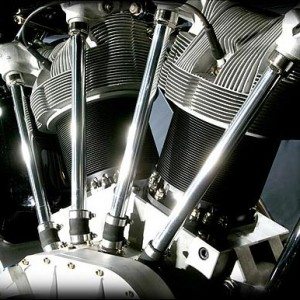

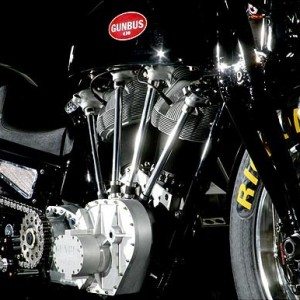

Engine:

  • 2-cylinder; V-type arrangement
  • Cylinder angle: 45°
  • Stroke of piston: 176 mm
  • Boring diameter: 156 mm
  • Piston capacity: 6728 cm³, 410 cu inches
  • Compression ratio: 8,7 : 1
  • Maximum engine torque: 710 Nm at 1900 RPM

Transmission:

  • 3-gear sequential transmission with reverse gear

Clutch:

  • 3-disk, sintered metal dry clutch
  • Diameter: 140 mm
  • Hydraulic operation

Driving gear:

  • Primary driving gear: duplex roller chain, 1″x 11/16″
  • Secondary driving gear: single roller chain, 1″x 11/16″

Chassis:

  • Steel tube frame; 25CrMo4; TIG welding
  • Steering head angle: 65°
  • Steel tube trapezoidal fork; 25CrMo4

Mixture control:

  • 2 single throttle valves; 70 mm diameter
  • Sequential fuel injection; lambda-controlled
  • Regulated catalytic converter; dual ignition
  • Electronic engine management with switch-off slip control

Tyres:

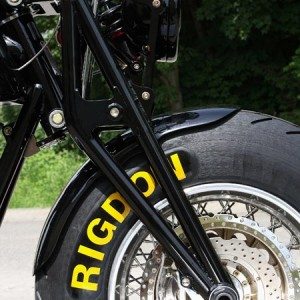

  • Front: 38” diameter; 11” width; Manufacturer: RIGDON, Germany

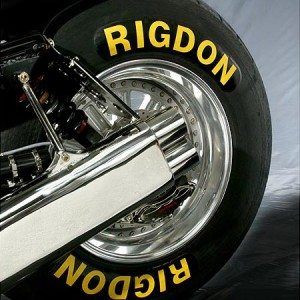

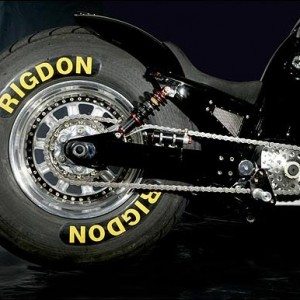

  • Rear: 42” diameter; 15” width; Manufacturer: RIGDON, Germany

Braking system:

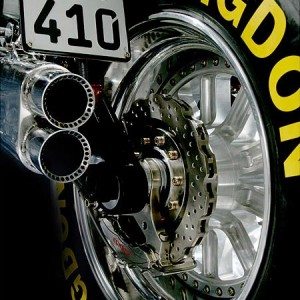

  • Front: two disks; 310 mm diameter
  • Rear: one disk; 310 mm diameter

Lubrication:

  • Dry sump lubrication

Dimension and weights:

  • Total length of vehicle: 3450 mm
  • Wheel base: 2410 mm
  • Total height: 1480 mm
  • Sitting height: 800 mm
  • Total weight, empty/curb weight: 650 kg

Title Image: DudeIwantThatt

Leon Hardt Gunbus – world’s biggest motorcycle

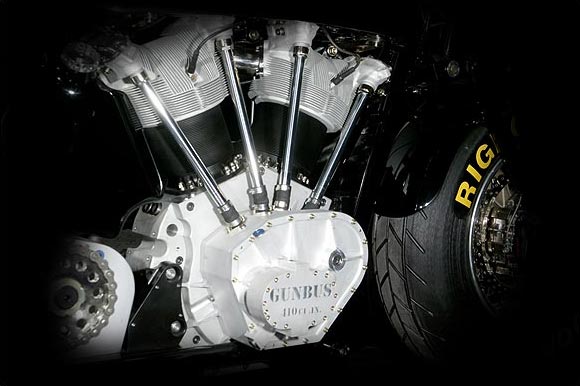

Leon Hardt Gunbus – world’s biggest motorcycle (16)
Leon Hardt Gunbus – world’s biggest motorcycle (15)
Leon Hardt Gunbus – world’s biggest motorcycle (14)

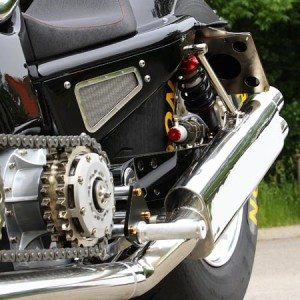

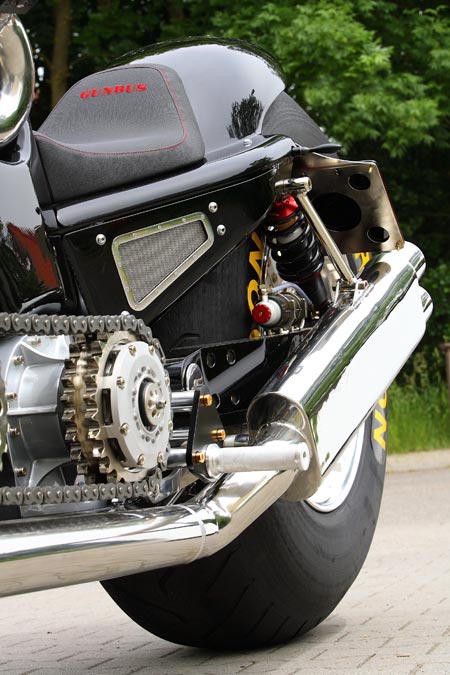

Leon Hardt Gunbus – world’s biggest motorcycle (13)

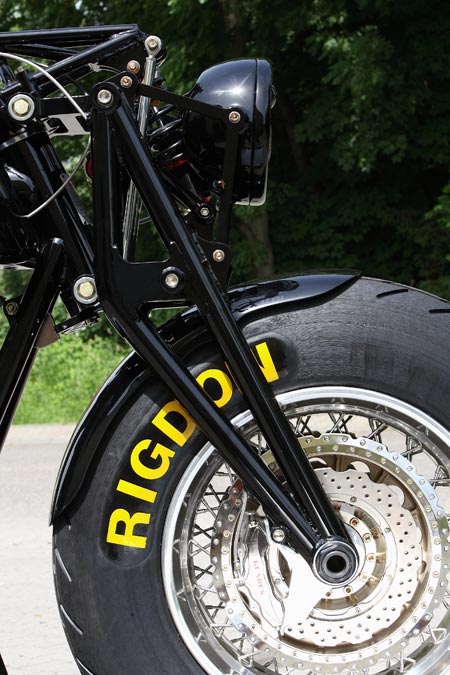

Leon Hardt Gunbus – world’s biggest motorcycle (12)

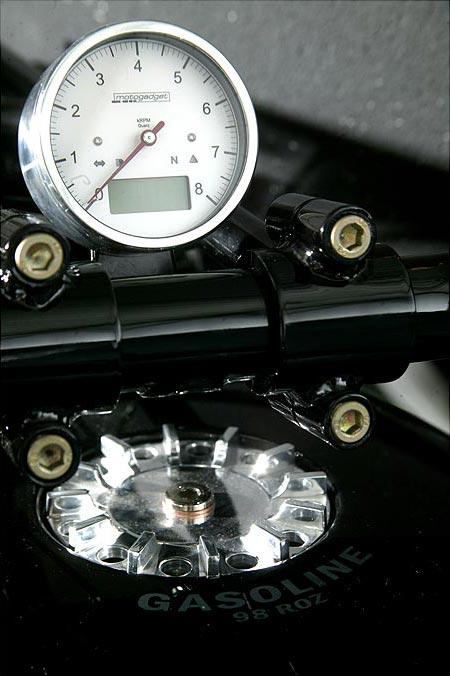

Leon Hardt Gunbus – world’s biggest motorcycle (11)

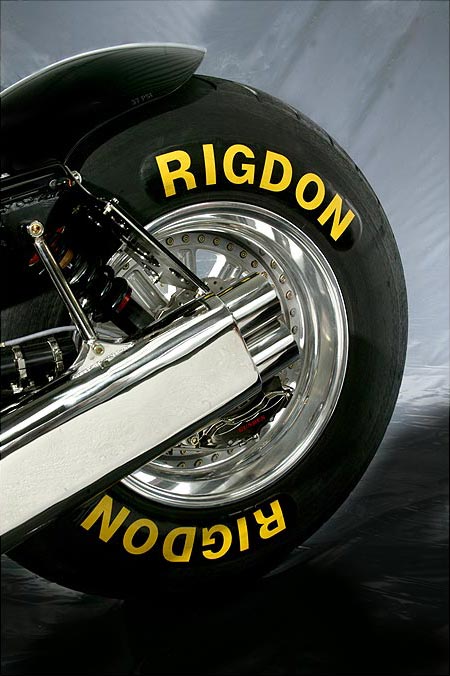

Leon Hardt Gunbus – world’s biggest motorcycle (10)

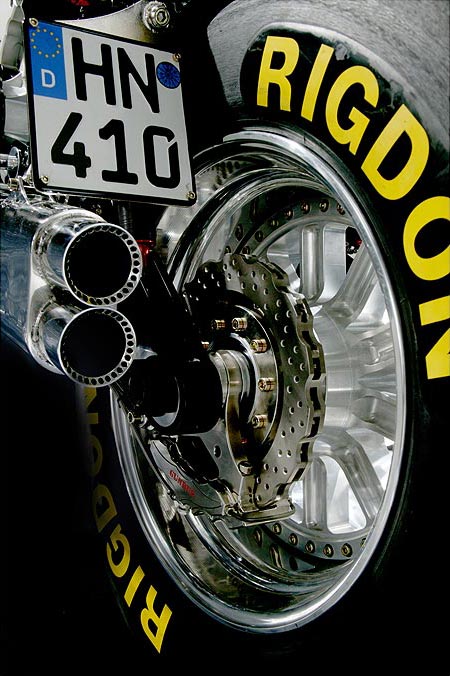

Leon Hardt Gunbus – world’s biggest motorcycle (9)

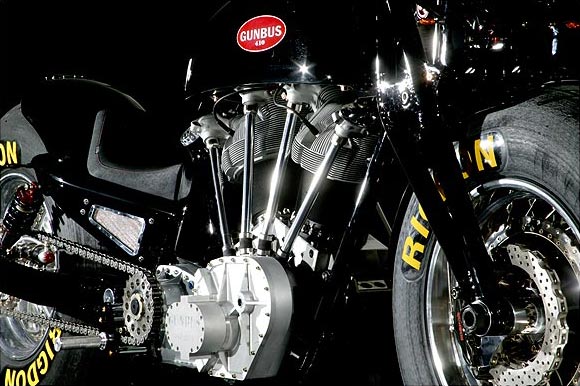

Leon Hardt Gunbus – world’s biggest motorcycle (8)

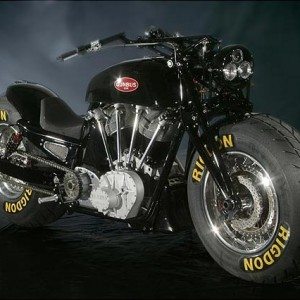

Leon Hardt Gunbus – world’s biggest motorcycle (7)

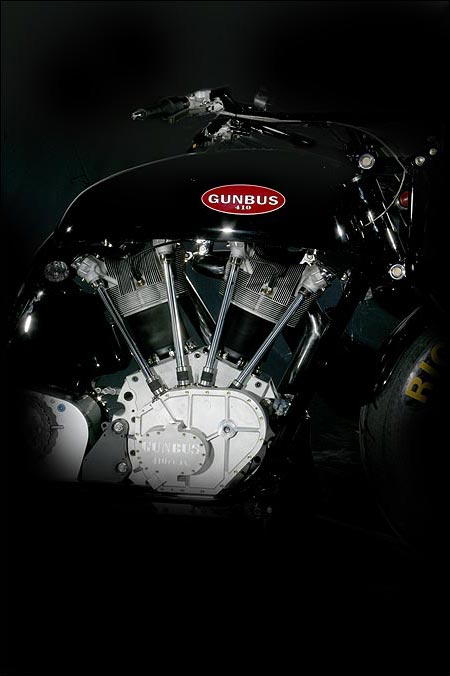

Leon Hardt Gunbus – world’s biggest motorcycle (6)

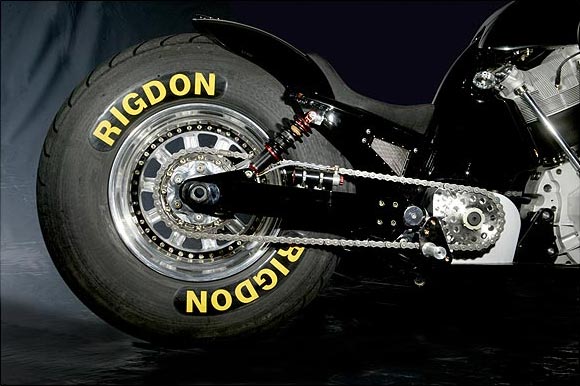

Leon Hardt Gunbus – world’s biggest motorcycle (5)
Leon Hardt Gunbus – world’s biggest motorcycle (4)

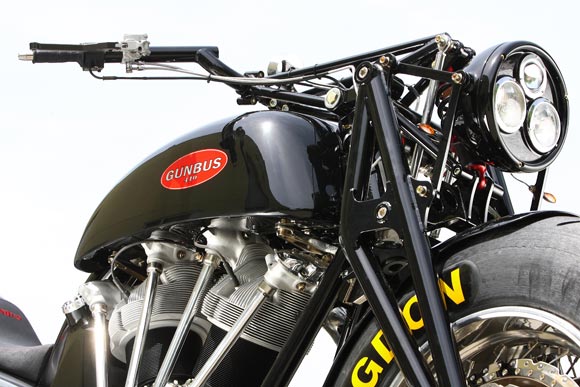

Leon Hardt Gunbus – world’s biggest motorcycle (3)
