EICMA 2016 : New 2017 Ducati Monster 797 is the most accessible of the Ducati nakeds

New 2017 Ducati Monster 797 unveiled at EICMA 2016. Here are more details, images, video and technical specifications of Ducati Monster 797.

|

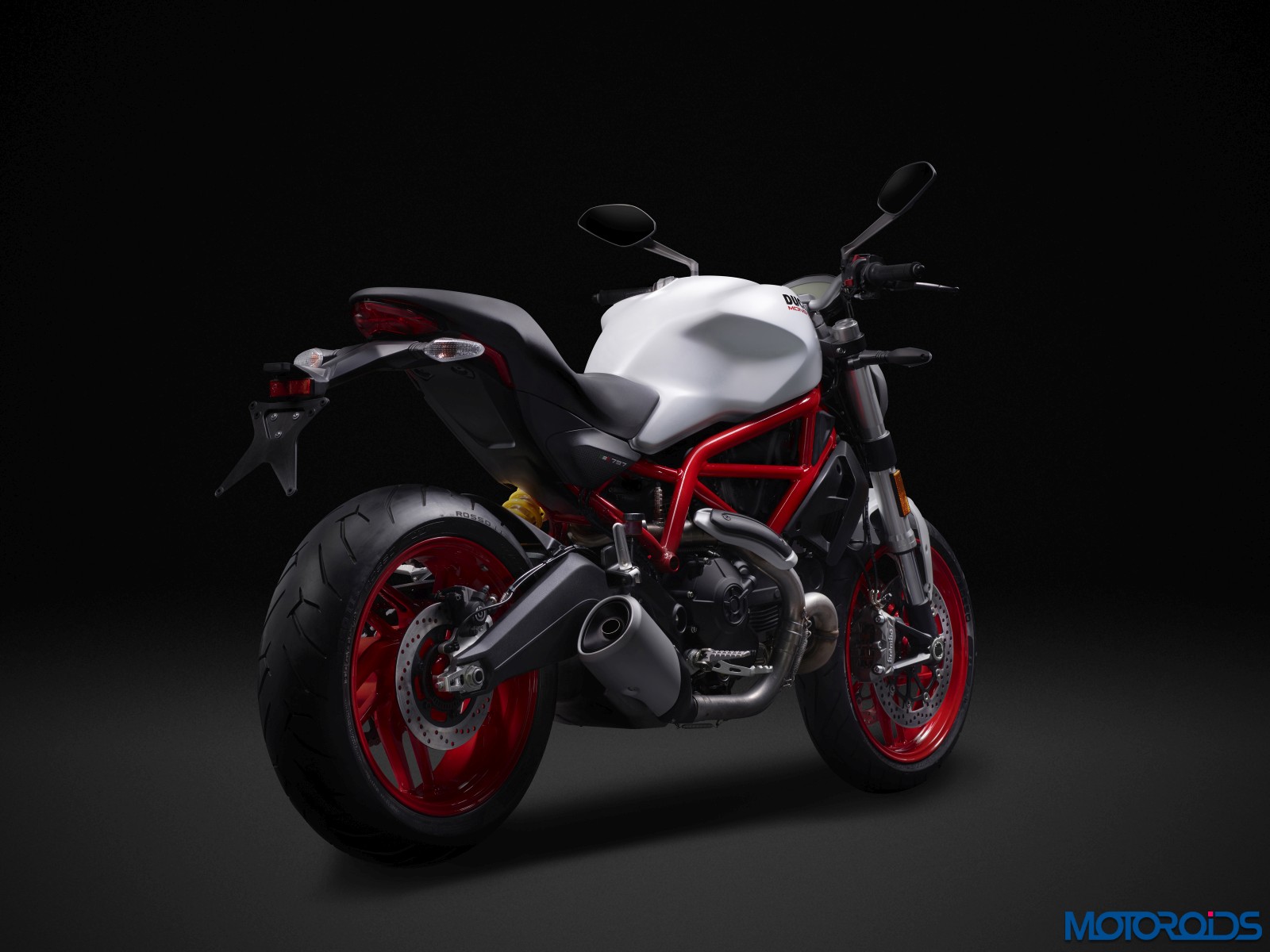

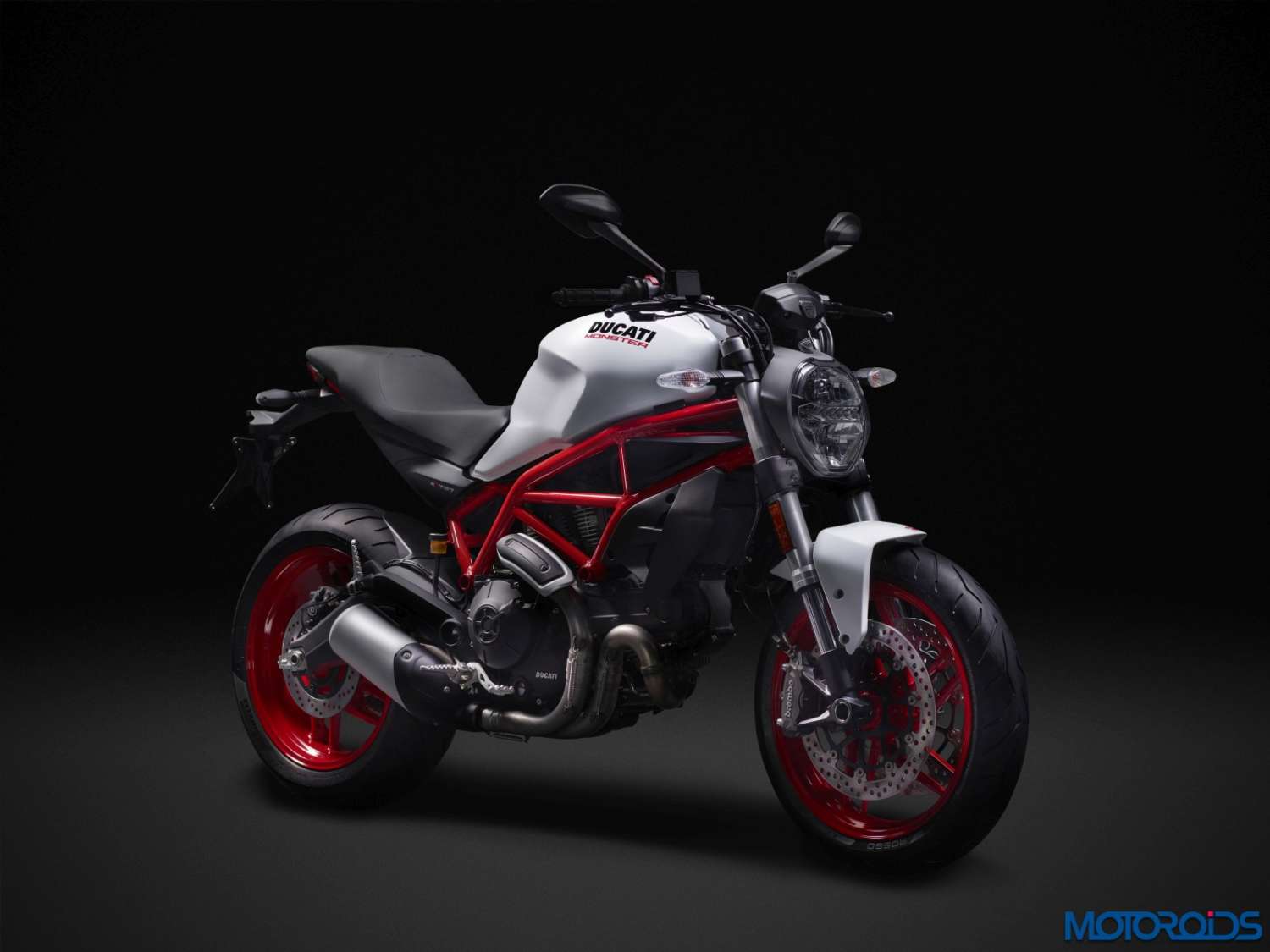

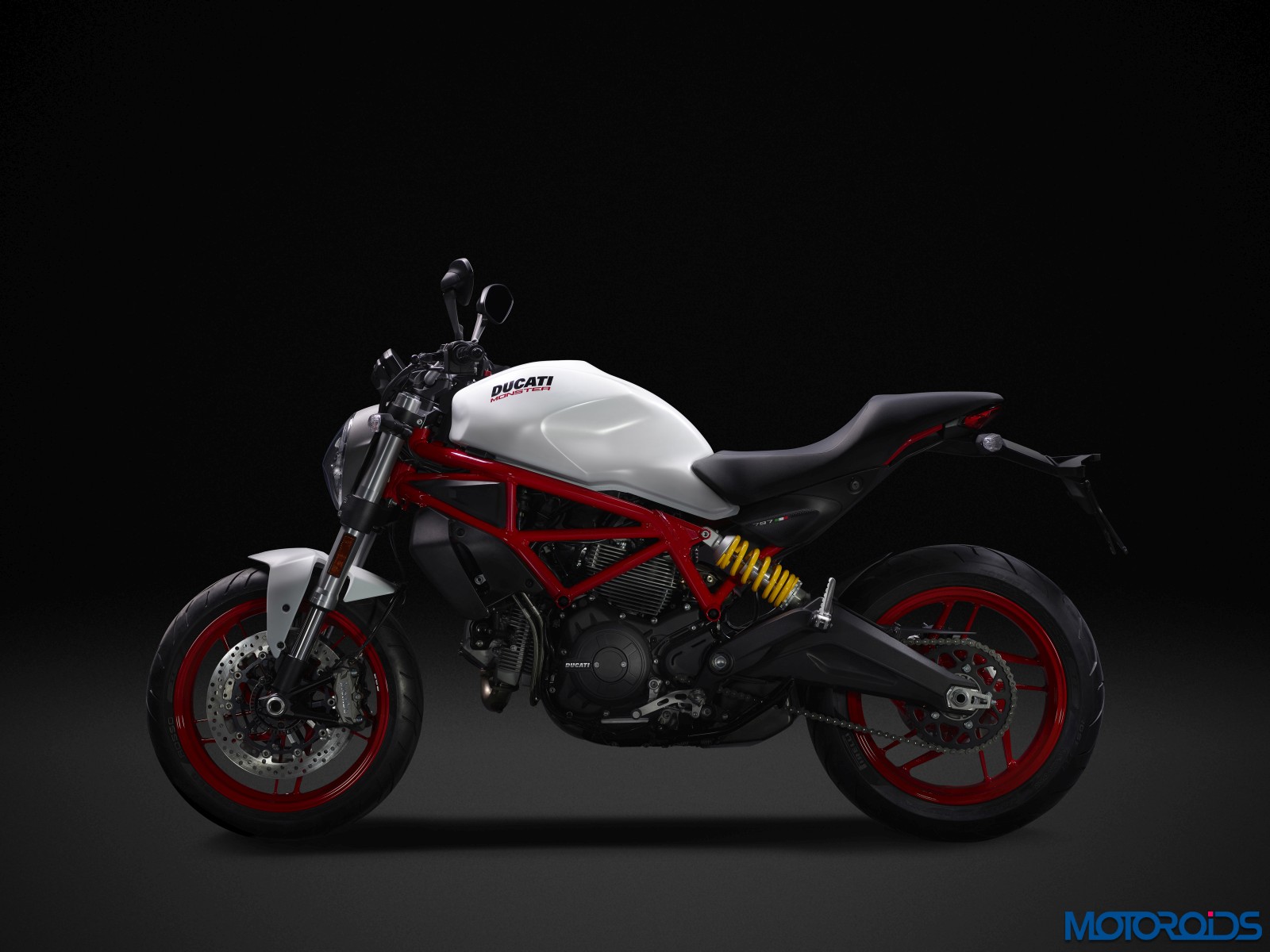

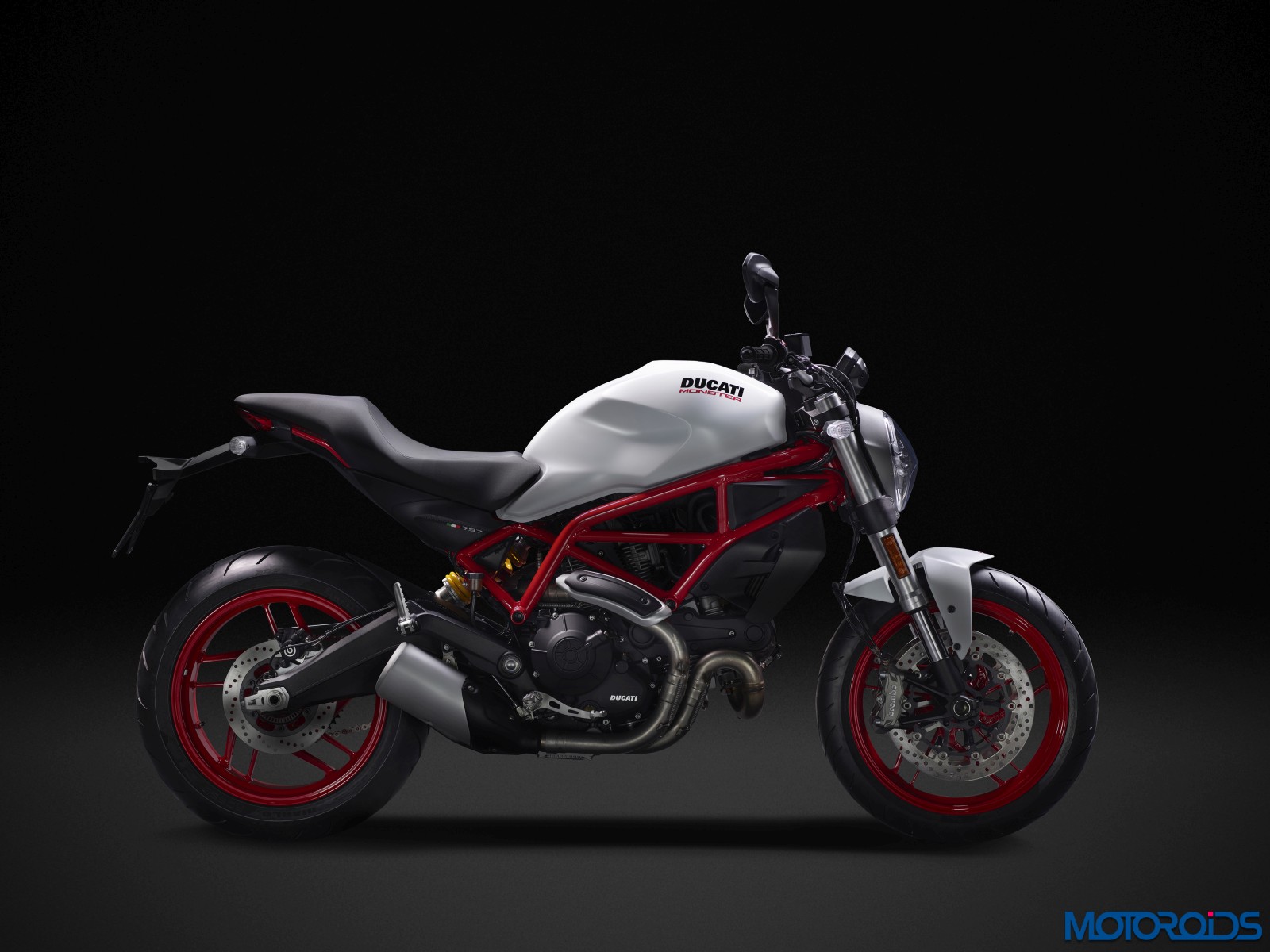

Ducati extended its Monster motorcycle family with the launch of the new Monster 797 at the ongoing 2016 EICMA motorcycle show in Milan. The Monster 797 is built around a traditional Tubular steel Trellis frame with cast aluminium twin-sided swingarm which proudly reveals its 803cc air-cooled Desmodue twin cylinder Euro 4 compliant engine.

EICMA 2016 : Limited Edition 2017 Ducati 1299 Superleggera packs some serious fire power

The Monster 797 is the new entry-level motorcycle in the Monster family and will be the most accessible of the Ducati nakeds. The Monster 797 is designed to combine the traditional elements with ultra-modern components. The motorcycle features LCD instrumentation, LED side lights and tail light plus new switchgears.

The 803 cc air-cooled Desmodue engine delivers a maximum power of 75 hp at 8,250 rpm and 69 Nm of peak torque at 5,750 rpm. The motor also complies with the new EURO 4 emission norms. Active safety is always ready to kick in thanks to the as-standard Bosch ABS. The ABS on the Monster 797 works in concert with a top-drawer front braking system consisting of two 320 mm Brembo discs gripped by two Brembo M4.32 radial calipers.

Checkout the new 2017 Ducati Monster 797 in action in the video below:

Meet the new 2017 Ducati Monster 797 at a glance:

Colours

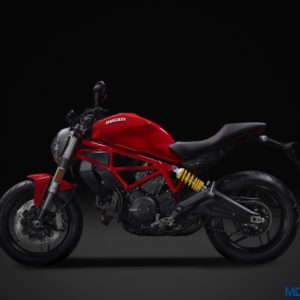

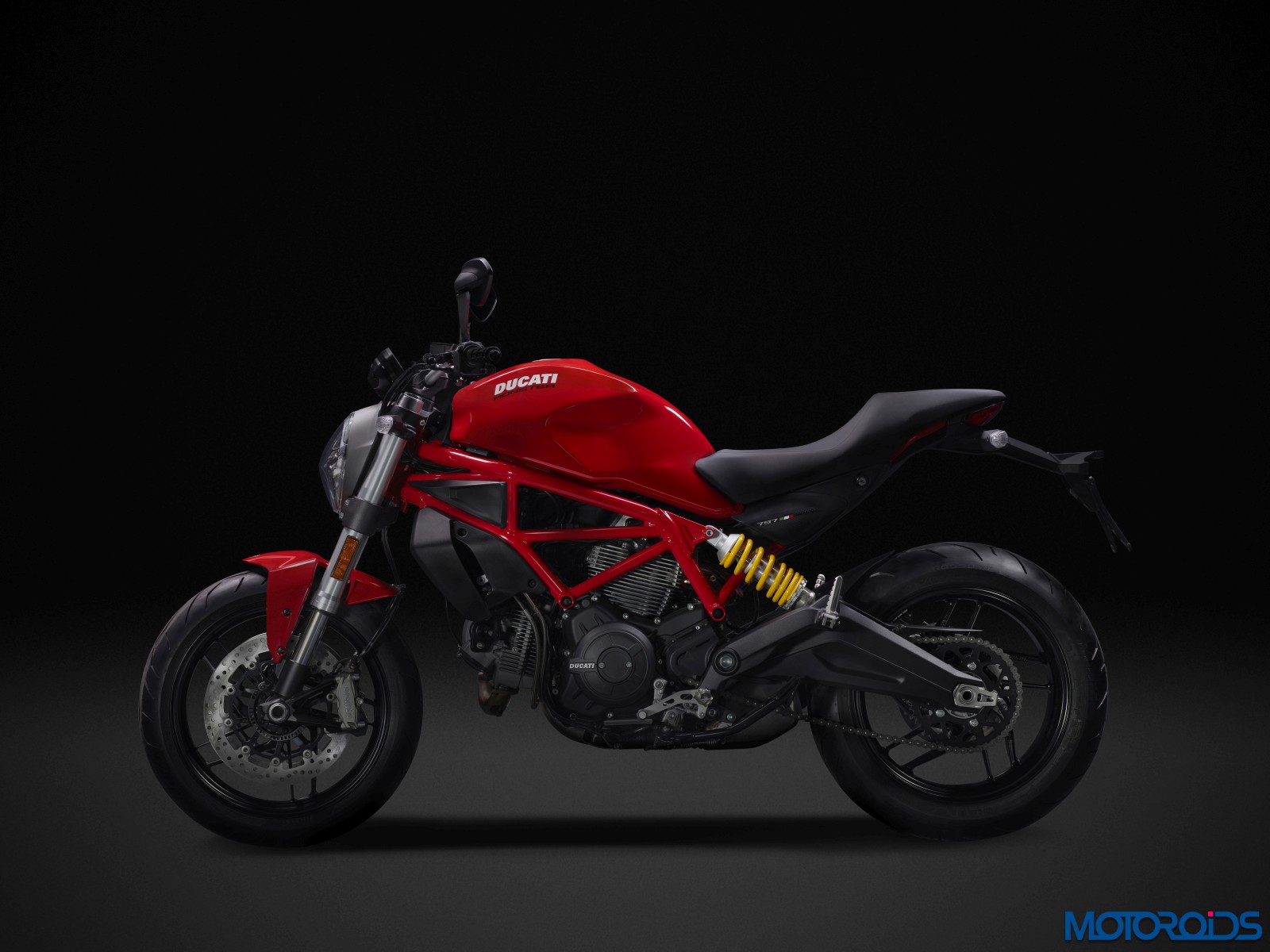

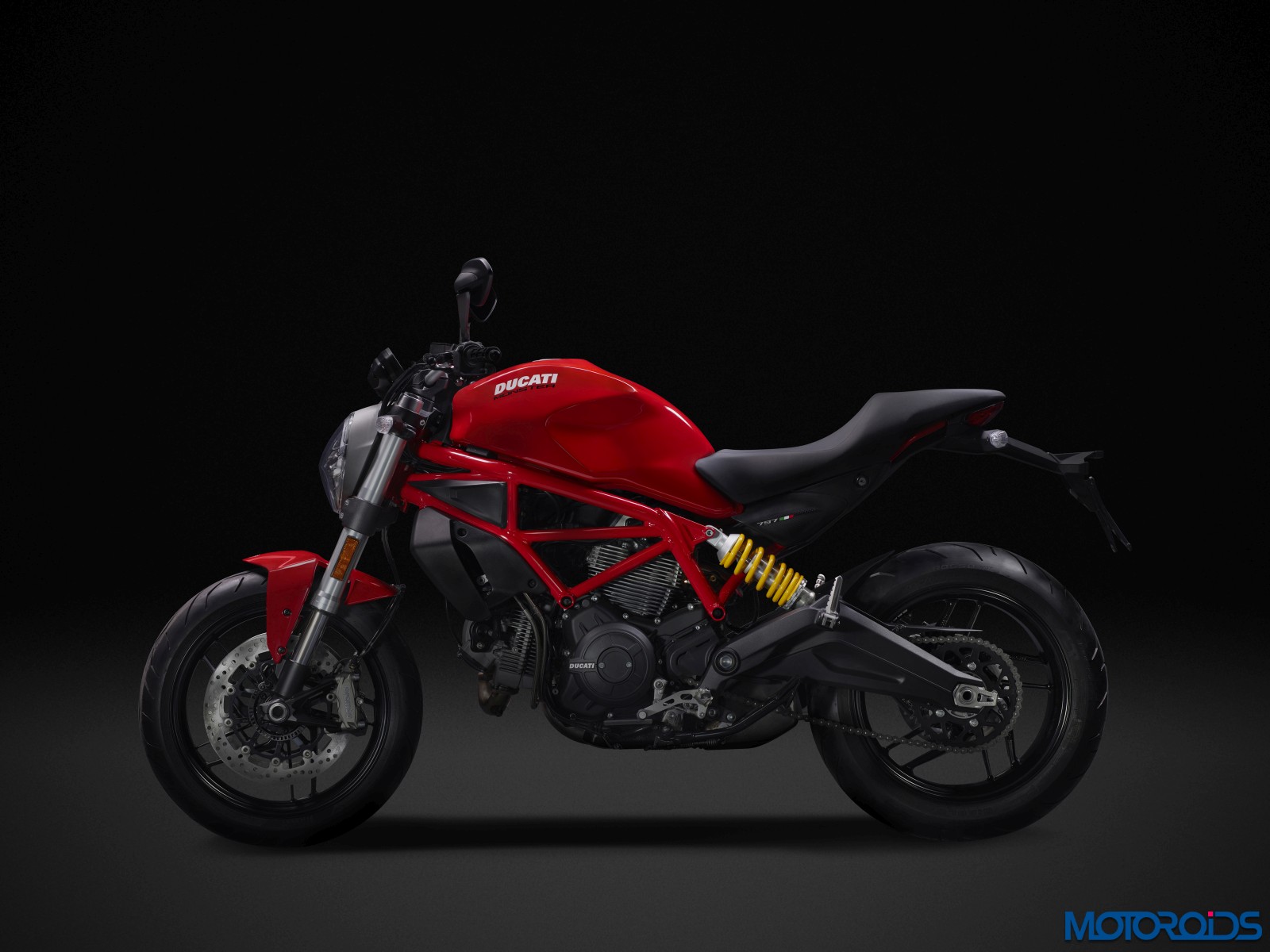

  • Ducati Red with red frame and black wheels

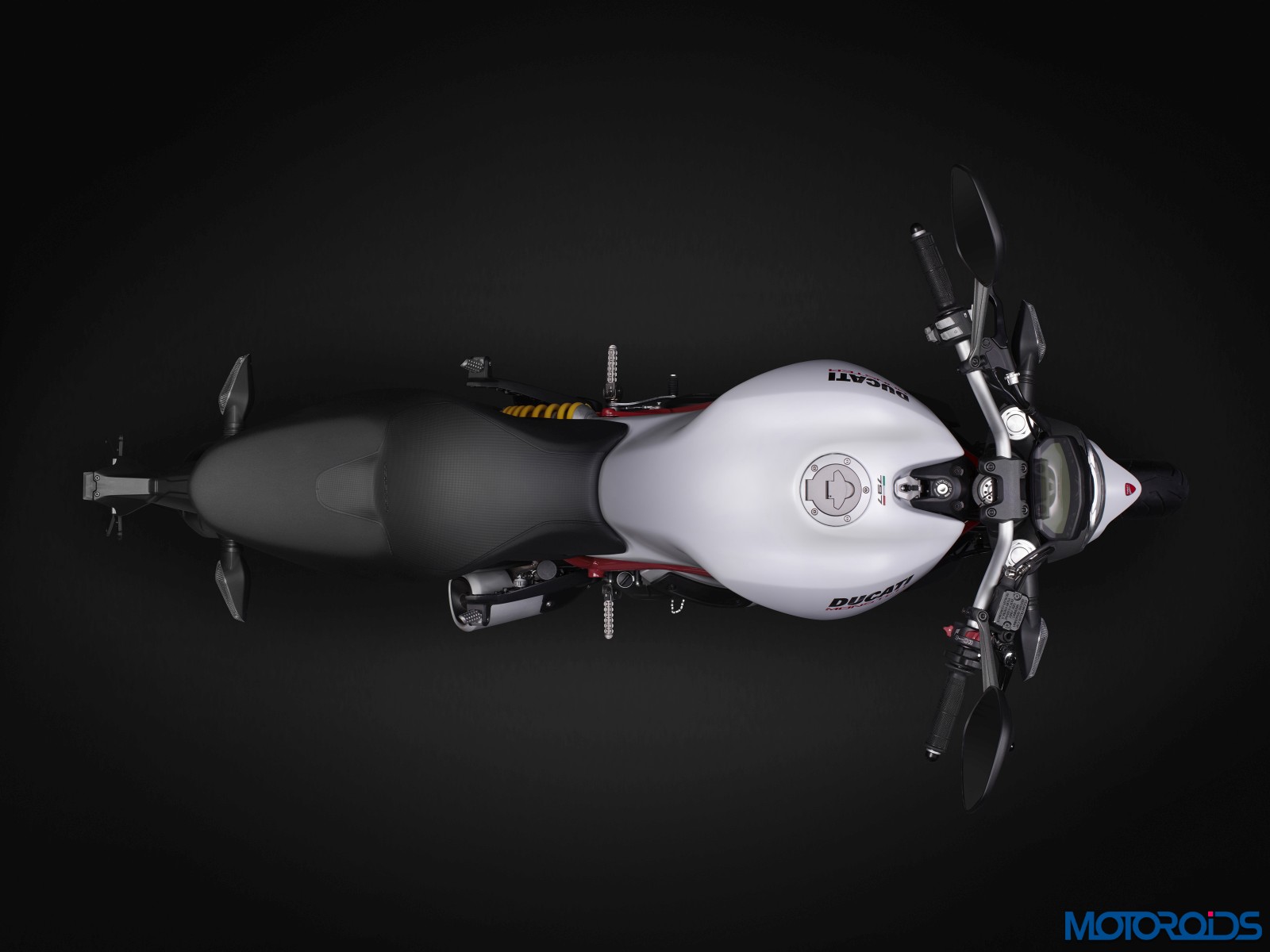

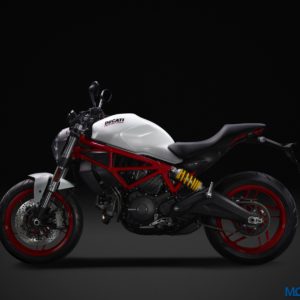

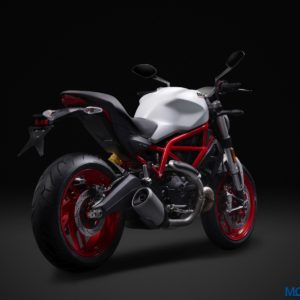

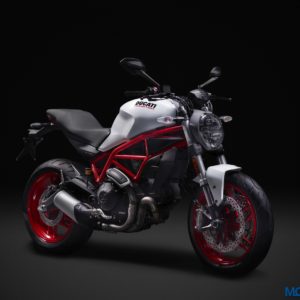

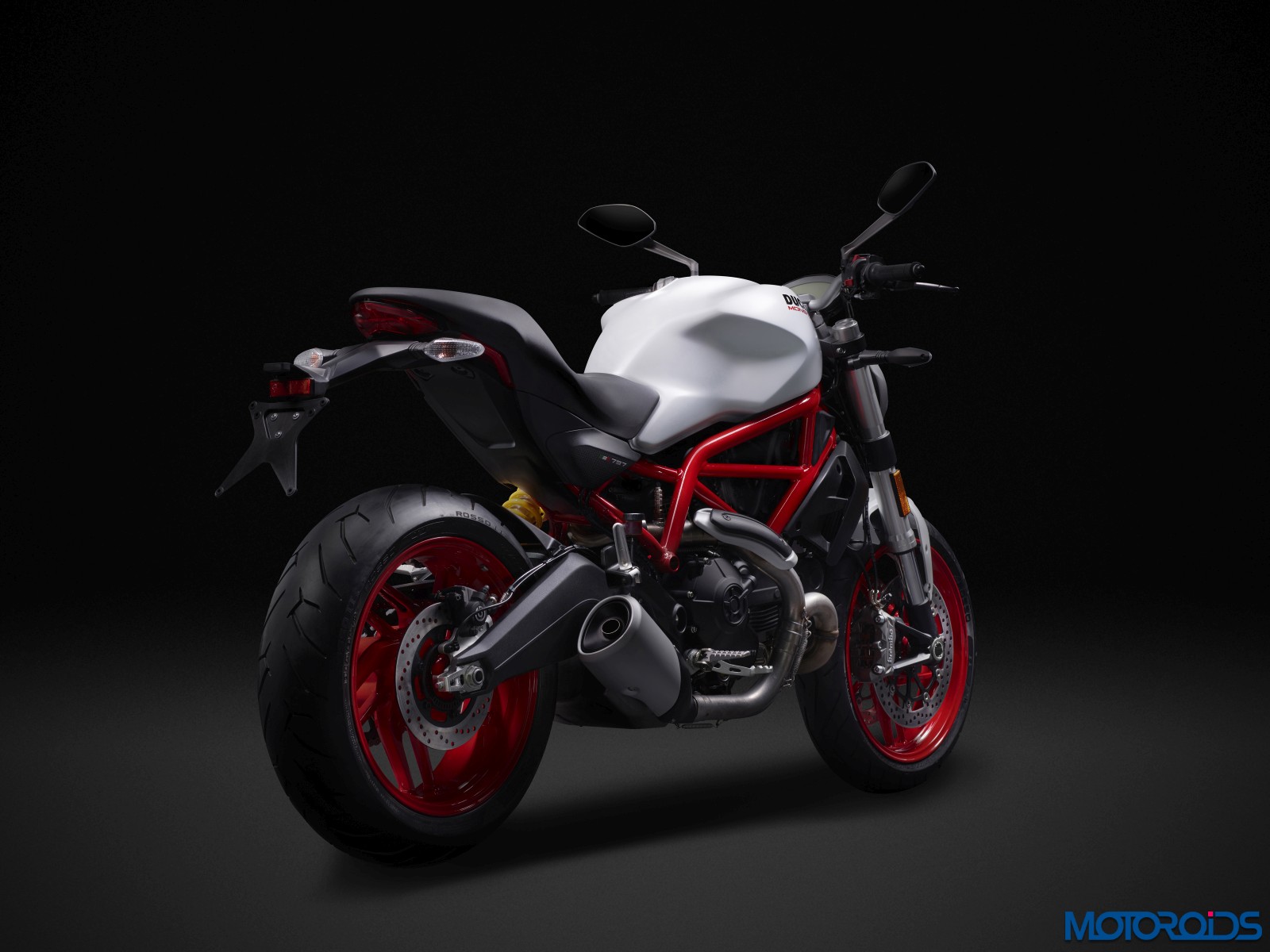

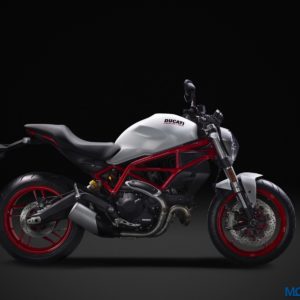

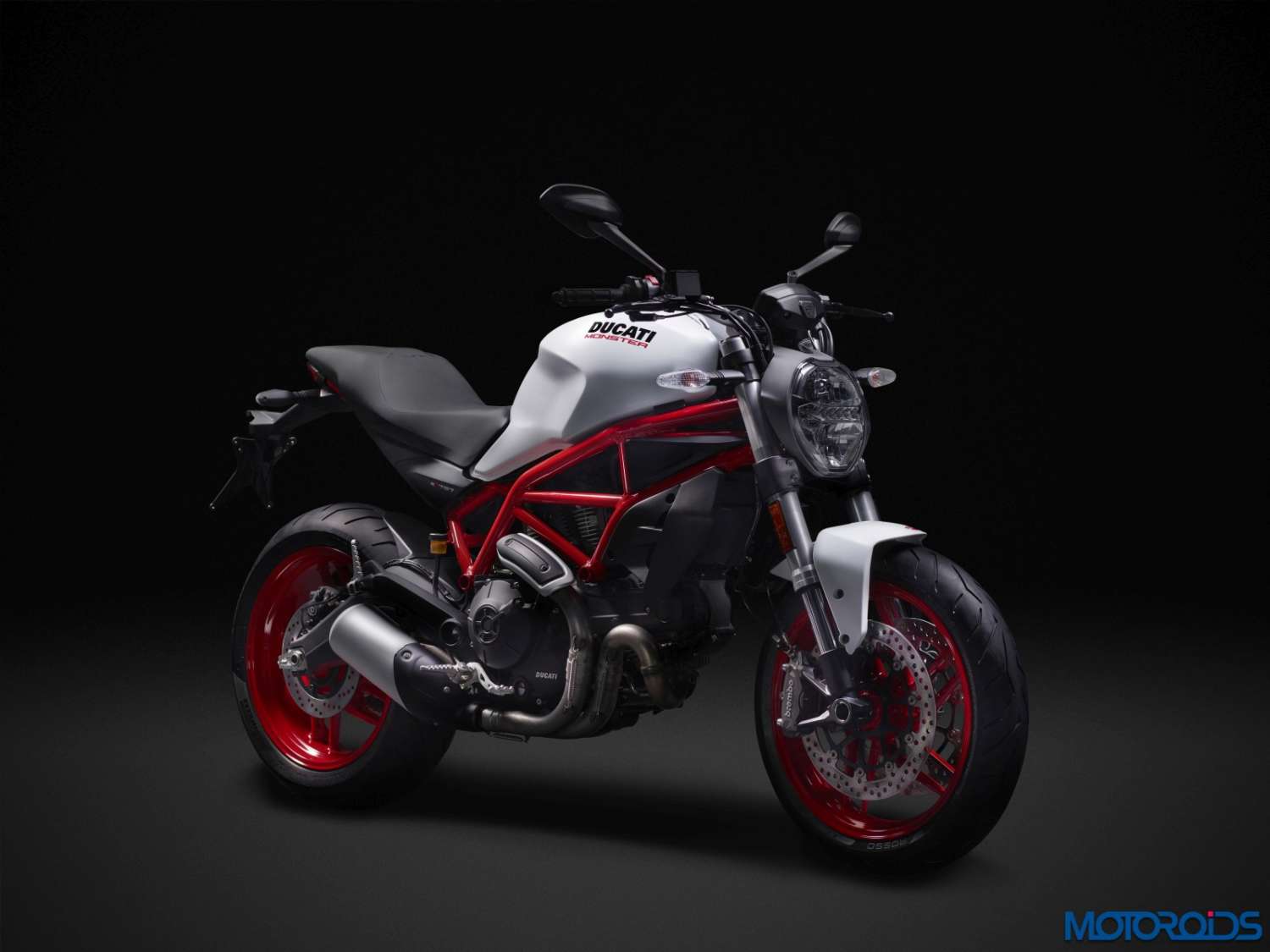

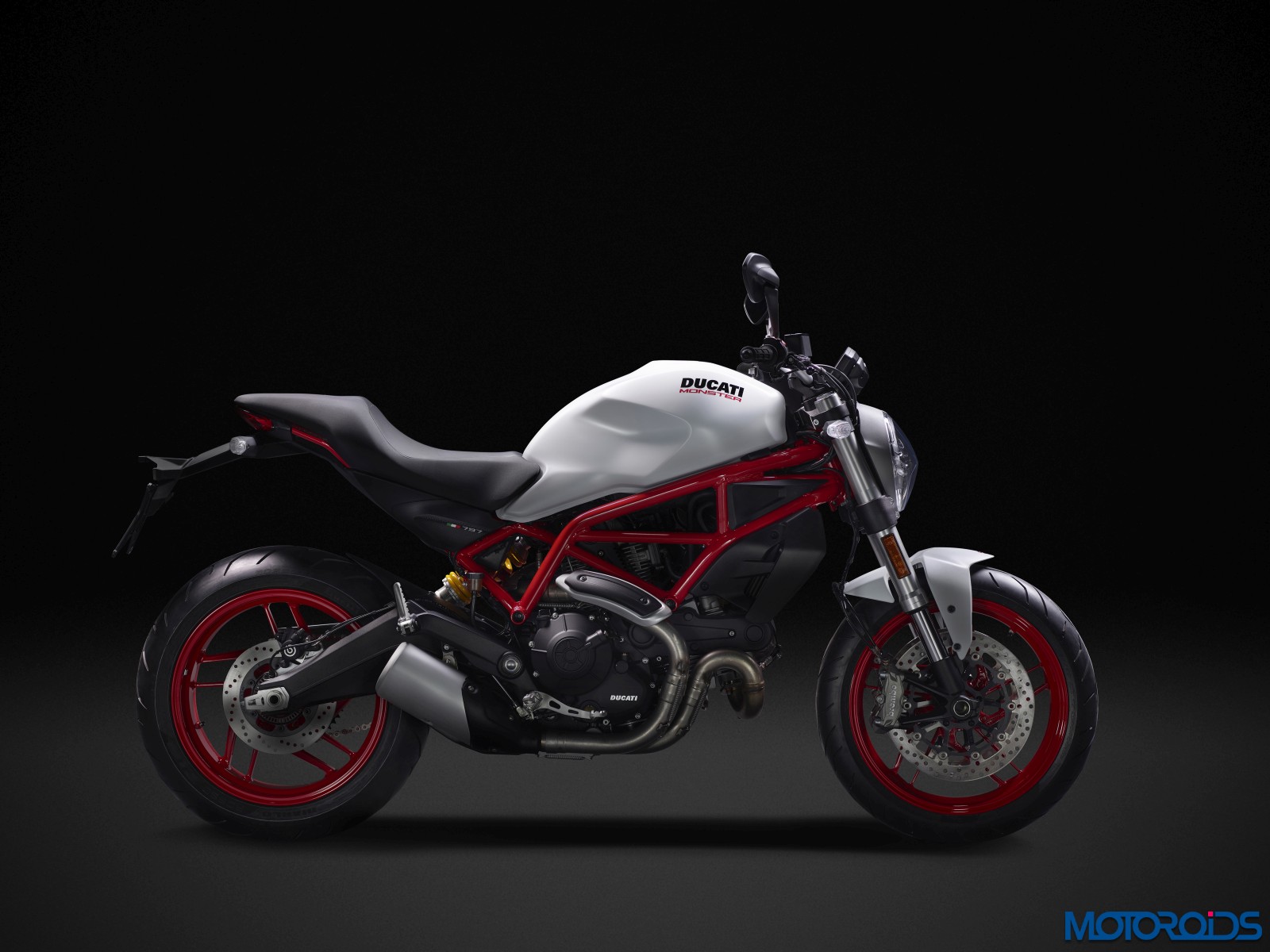

  • Star White Silk with red frame and red wheels
  • Dark Stealth with black frame and black wheels

Main equipment

  • 803 cm³ air-cooled Desmodue engine with 75 hp at 8,250 rpm and 69 Nm at 5,750 rpm
  • Euro 4 emissions
  • 2-in-1 exhaust with single silencer
  • Tubular steel Trellis frame with cast aluminium twin-sided swingarm
  • Seat height 805 mm
  • Fuel tank capacity 16.5 l
  • Light alloy 10-spoke wheels mounting Pirelli Diablo Rosso II tyres, 120/70 ZR17 up front and 180/55 ZR17 at the rear
  • Kayaba upside down 43 mm fork
  • Sachs shock with adjustable pre-load and rebound damping
  • Bosch ABS braking system as standard

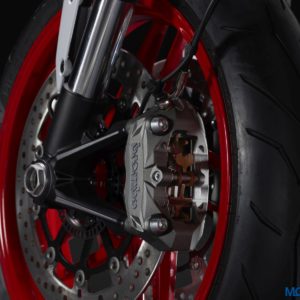

  • Front brake with dual 320 mm discs and Brembo M4.32 radial calipers
  • Rear brake with 245 mm disc
  • LCD Instrumentation

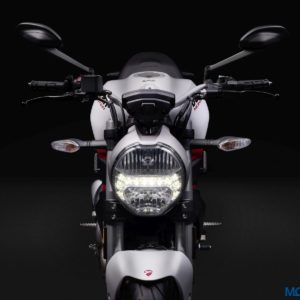

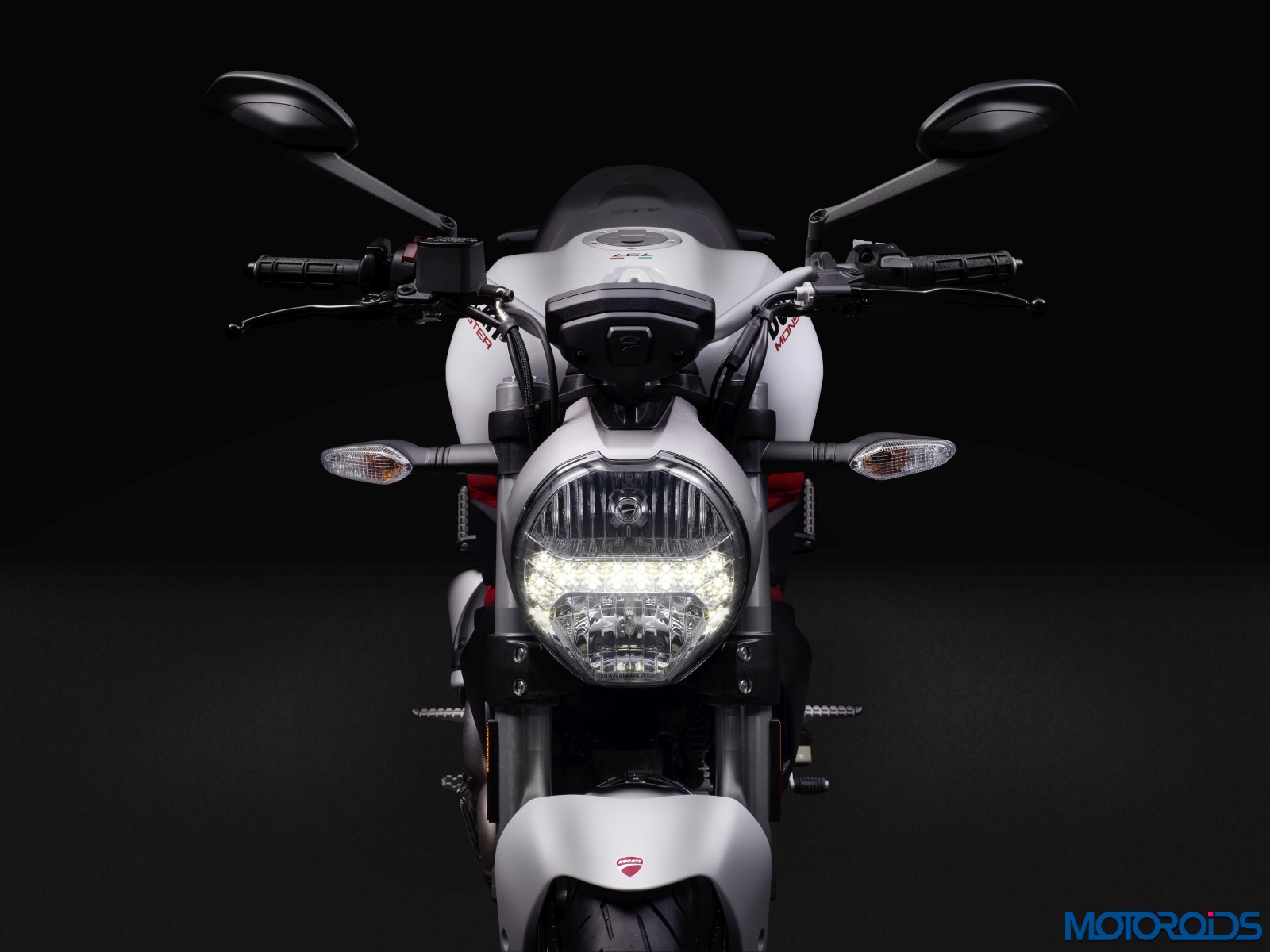

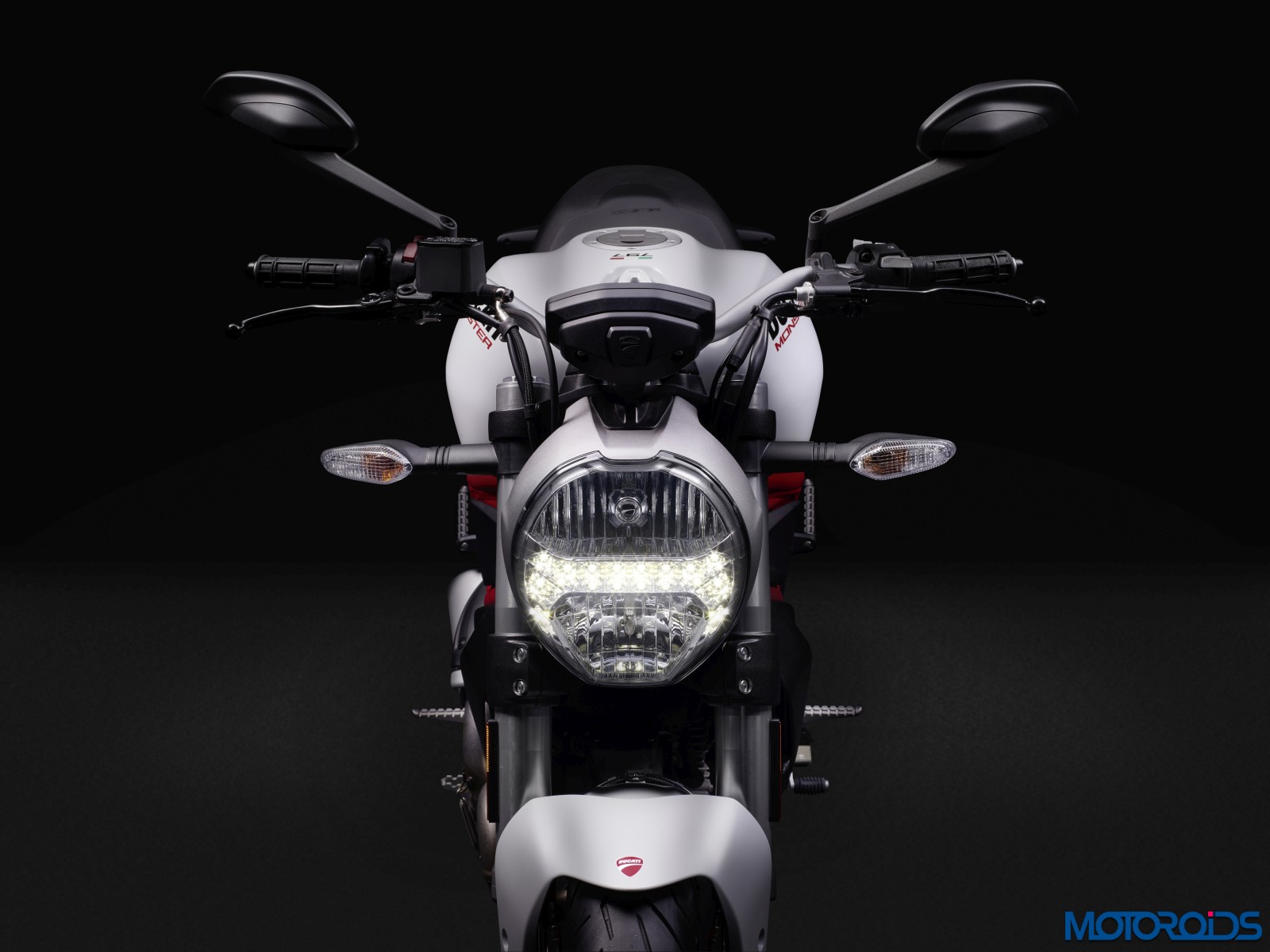

  • LED side lights and tail light
  • Under-seat USB port
  • Ready for Ducati Multimedia System

Here are the complete technical specifications of the new Ducati Monster 797:

Engine
EngineL-Twin, 2 Desmodromically actuated valves per cylinder, Air cooled
Displacement803 cc (49 cu in)
Bore X Stroke88 x 66 mm (3.46 x 2.60 in)
Compression Ratio11,0:1
Power75 hp (55 kW) @ 8250 rpm
Torque50.8 lb-ft (68.9 Nm) @ 5750 rpm
Fuel InjectionElectronic fuel injection system, Ø 50 throttle bodies
Exhaust2-1 system with catalytic converter and two lambda probes, Single stainless steel muffler with aluminium cover
Emission and ConsumptionEuro 4; Emissions CO2 121 g/km; Consumption  5.3 l/100 km
Transmission
Gearbox6 speed
Primary DriveStraight cut gears, Ratio 1.85:1
Ratio1=32/13 2=30/18 3=28/21 4=26/23 5=22/22 6=24/26
Final DriveChain drive, Front sprocket Z15, Rear sprocket Z46
ClutchAPTC wet multiplate clutch with mechanical control
Chassis
FrameTubular steel trellis frame
Front SuspensionØ 43 Kayaba usd fork
Front Wheel10-spoke light alloy, 3.50” x 17”
Front TyrePirelli Diablo Rosso II, 120/70 ZR17
Rear SuspensionSachs monoshock, Pre-load and rebound adjustable
Rear Wheel10-spoke light alloy, 5.50” x 17”
Rear TyrePirelli Diablo Rosso II, 180/55 ZR17
Wheel Travel (Front/Rear)130 mm (5.1 in)/ 150 mm (5.91 in)

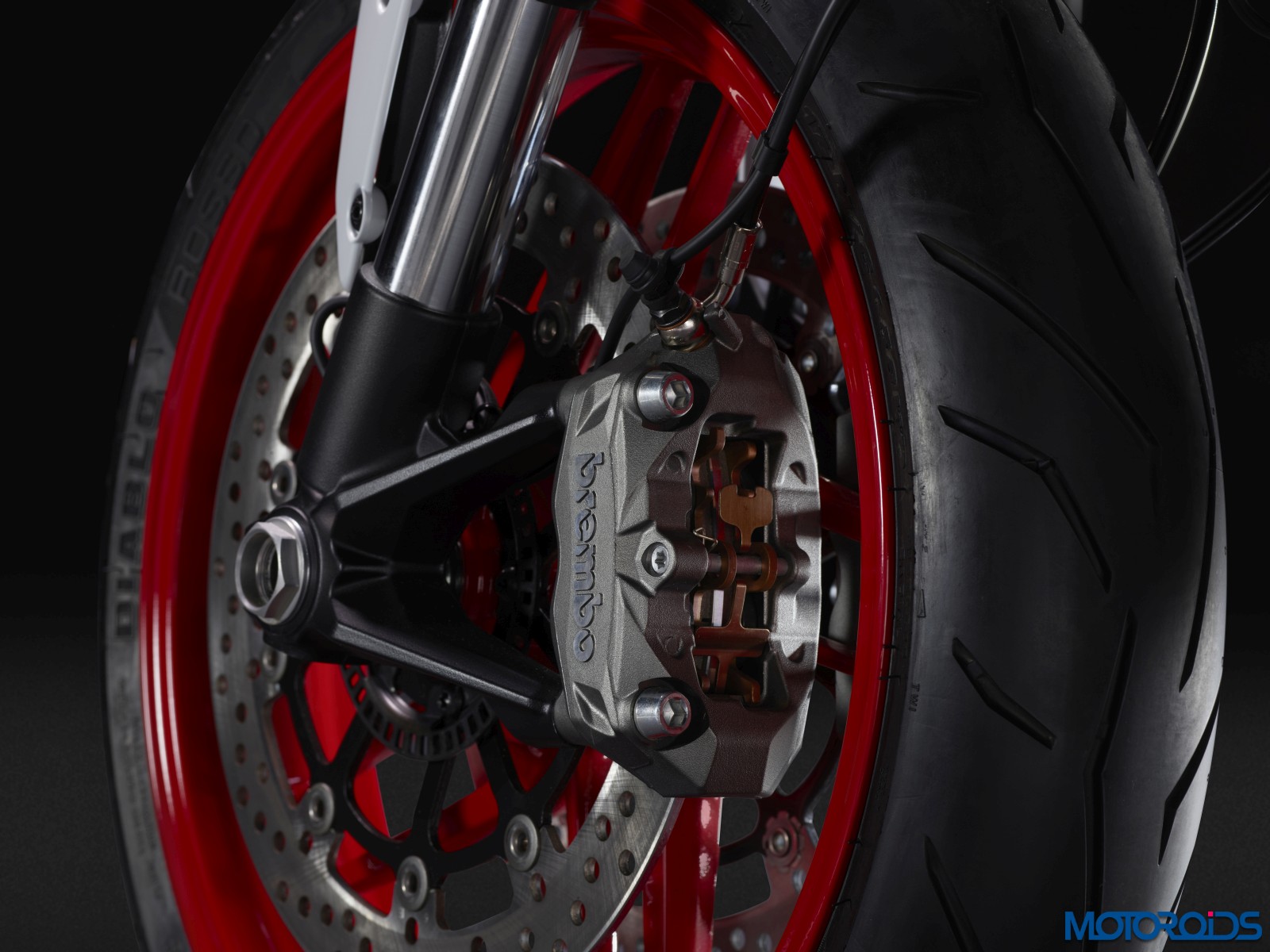

Front Brake2 x Ø 320 semi-floating discs, radially mounted monobloc Brembo M4.32 callipers, 4-piston, axial pump with Bosch ABS as standard equipment
Rear BrakeØ 245 disc, 1-piston calliper with Bosch ABS as standard equipment
InstrumentationLCD
Dimensions and Weights
Dry Weight175 kg (386 lb)
Kerb Weight193 kg (425 lb)
Seat Height805 mm (31.69 in)
Wheelbase1435 mm (56.50 in)
Rake24°
Trail90 mm (3.54 in)
Fuel Tank Capacity16.5 l (4.36 US gal)
Number of SeatsDual seat
Electronics
Standard ElectronicsBosch ABS, DMS ready, LED position light and tail light, USB power socket
Warranty
Warranty2 years unlimited mileage
