2018 Honda PCX125 Revealed: All Details, Tech Specs and Image Gallery

|

The Honda PCX125 scooter gets a complete style upgrade for 2018. Apart from the visual upgrade, the scooter also gets a new tubular steel duplex cradle frame, new wheels and tyres and an upgraded rear suspension. Plus ABS, and an engine that produces more peak power while maintaining outstanding fuel efficiency. The sit-in riding position, underseat storage for a full-face helmet and all-round build quality provide the ‘X’ level of Personal Comfort which give the PCX its name.

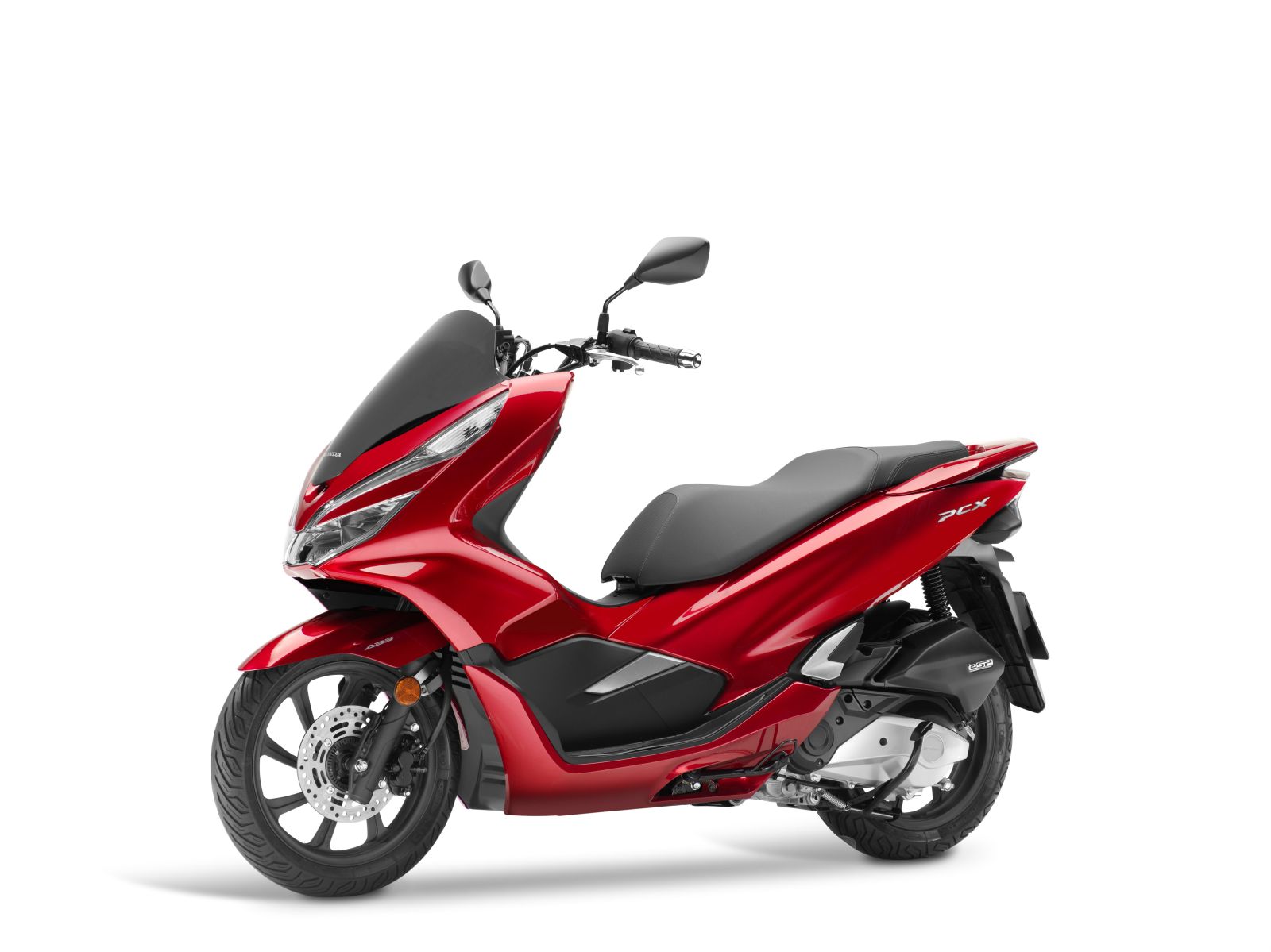

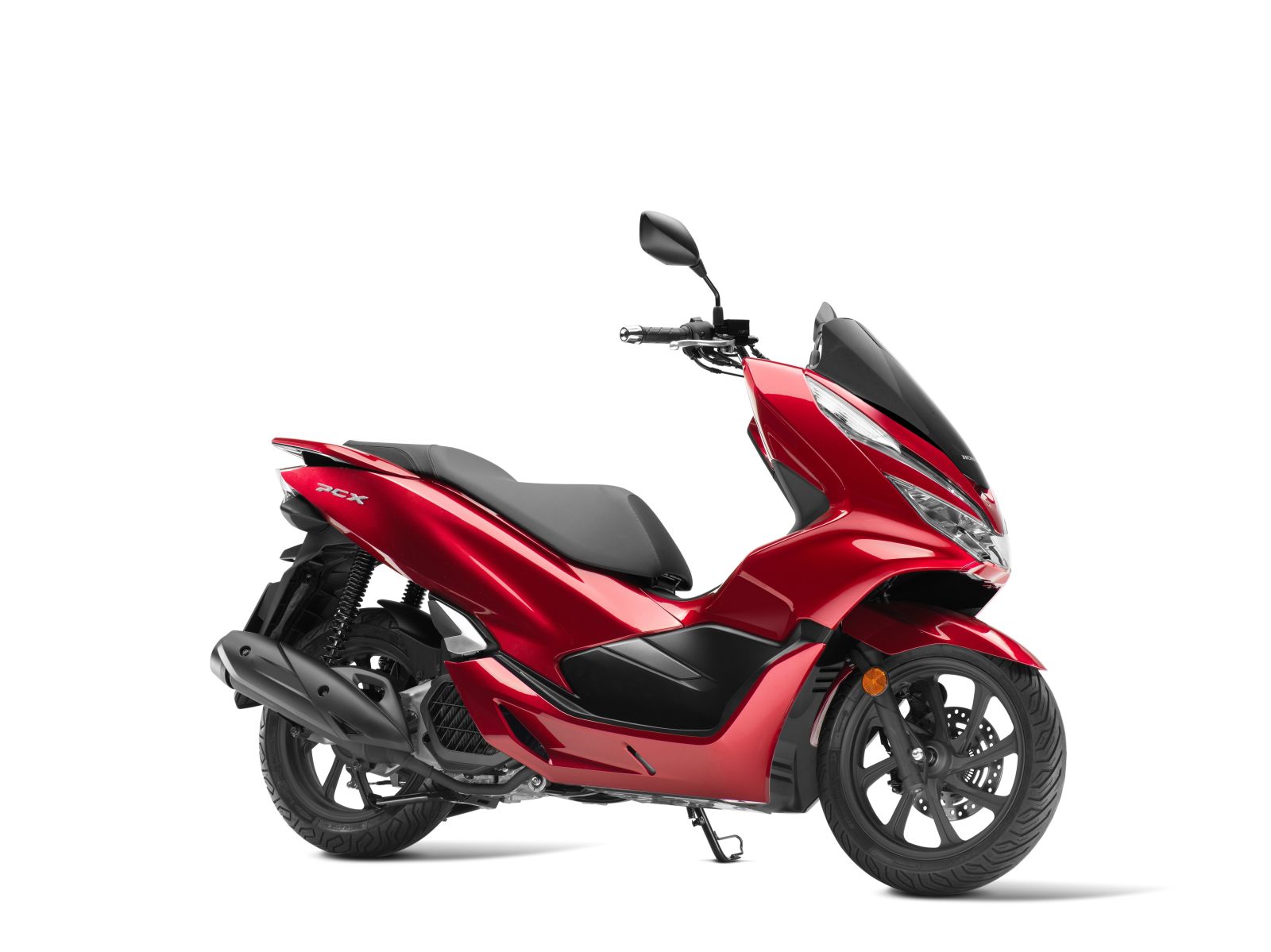

The new PCX125 expands on the theme, and employs new, natural contours of continuously varying curves. Again, the smooth, large areas are painted in the primary colour and link front to rear without interruption, and the lower bodywork is also much more integrated into the overall styling. Another detail redesign is the engine cover and airbox inlet, which are styled together as integrated parts.

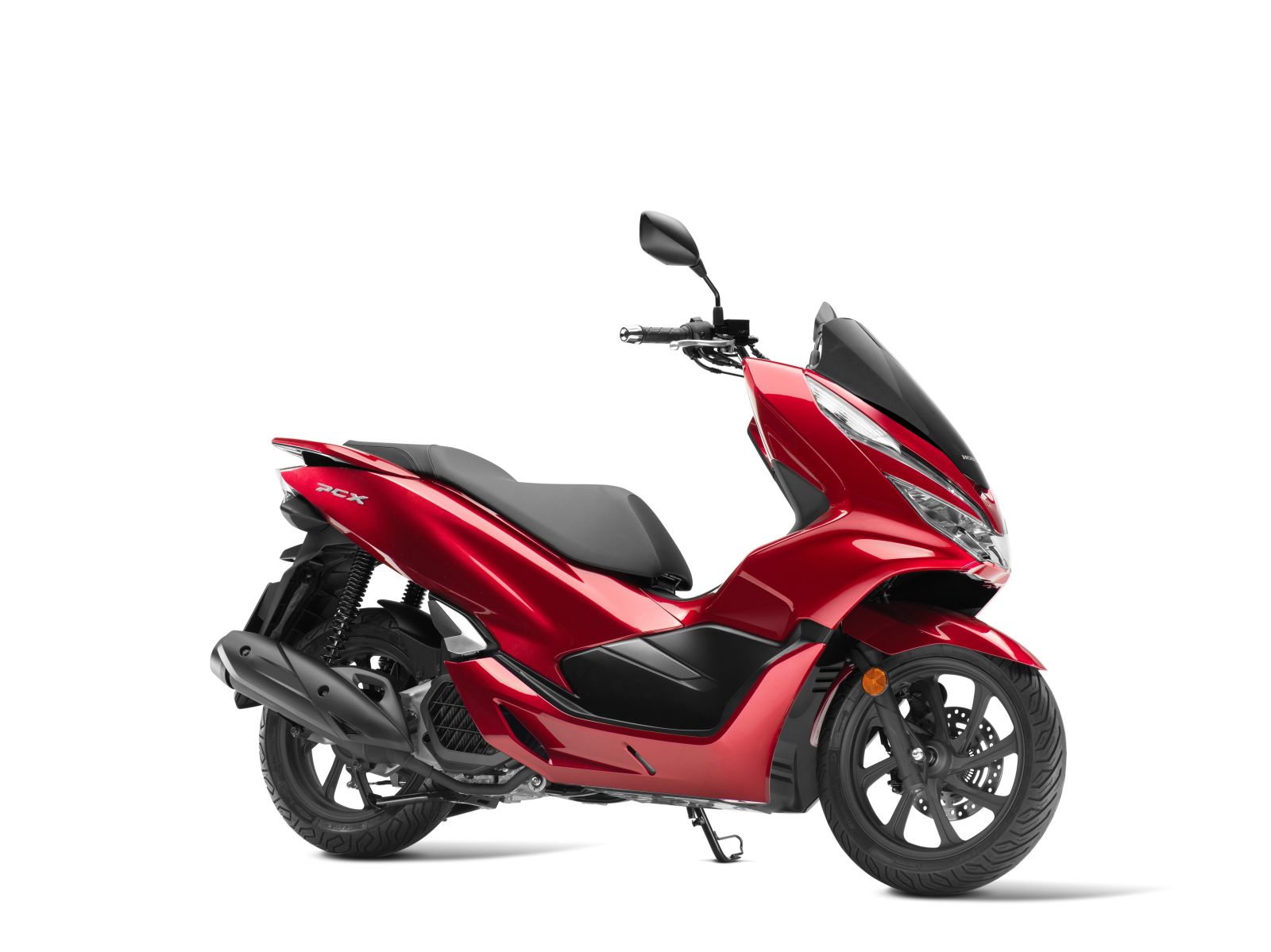

2018 Honda PCX125

2018 Honda PCX125

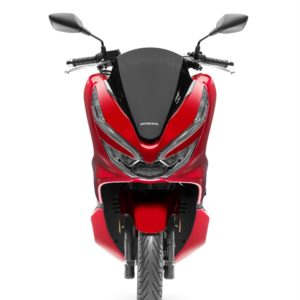

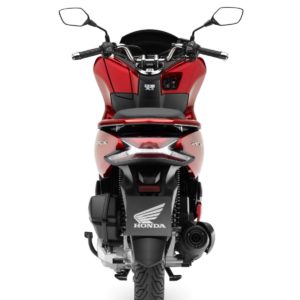

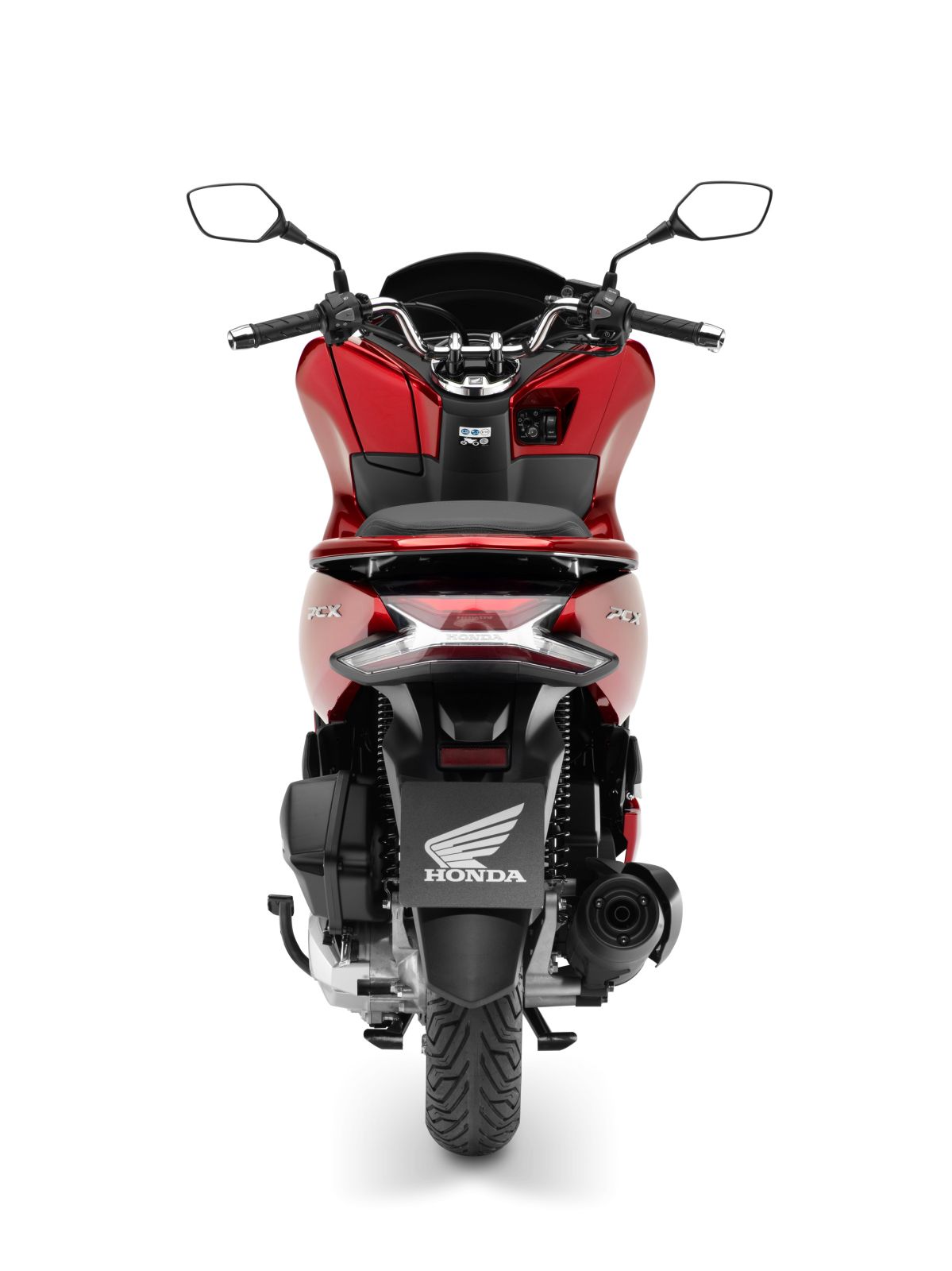

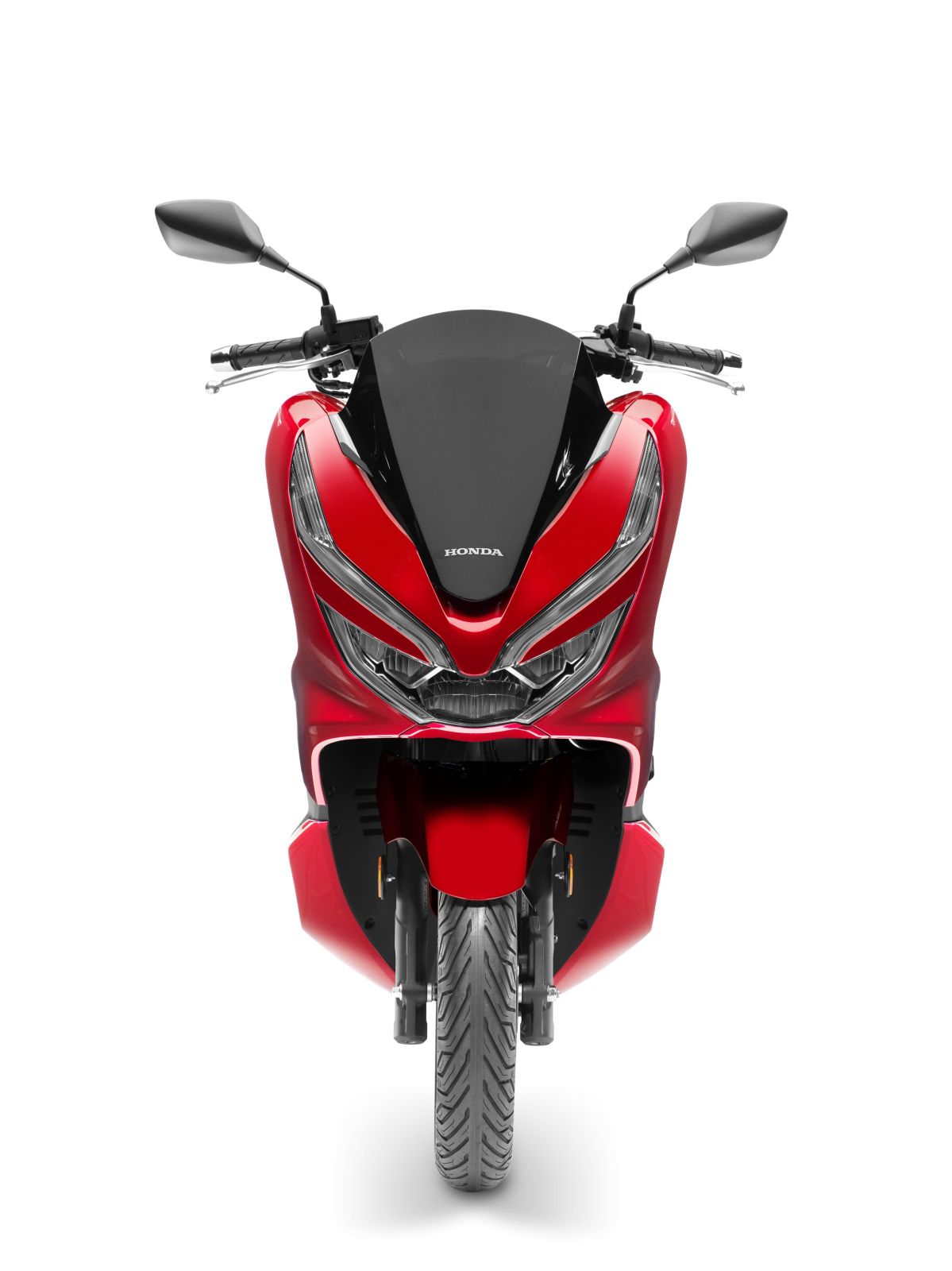

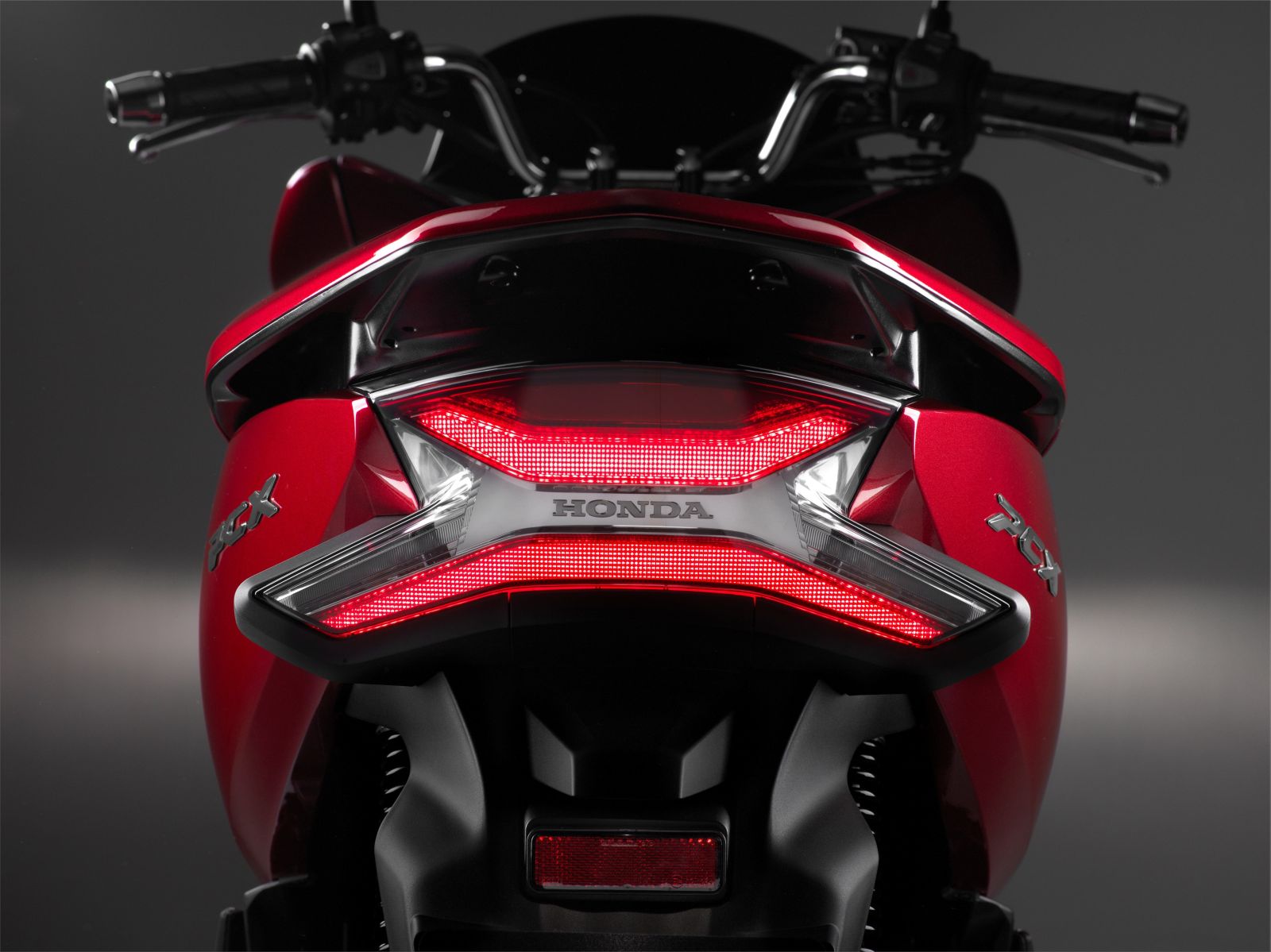

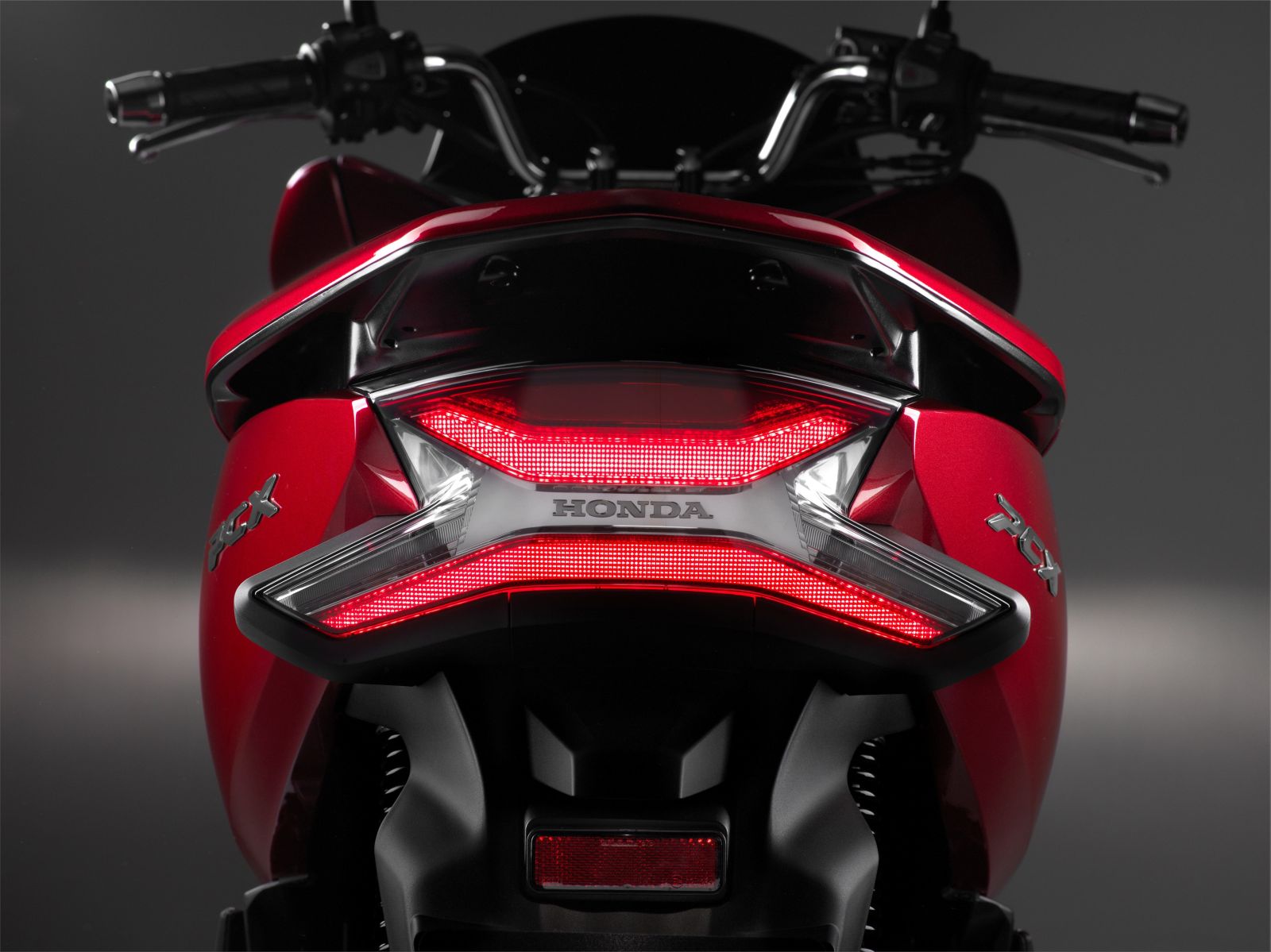

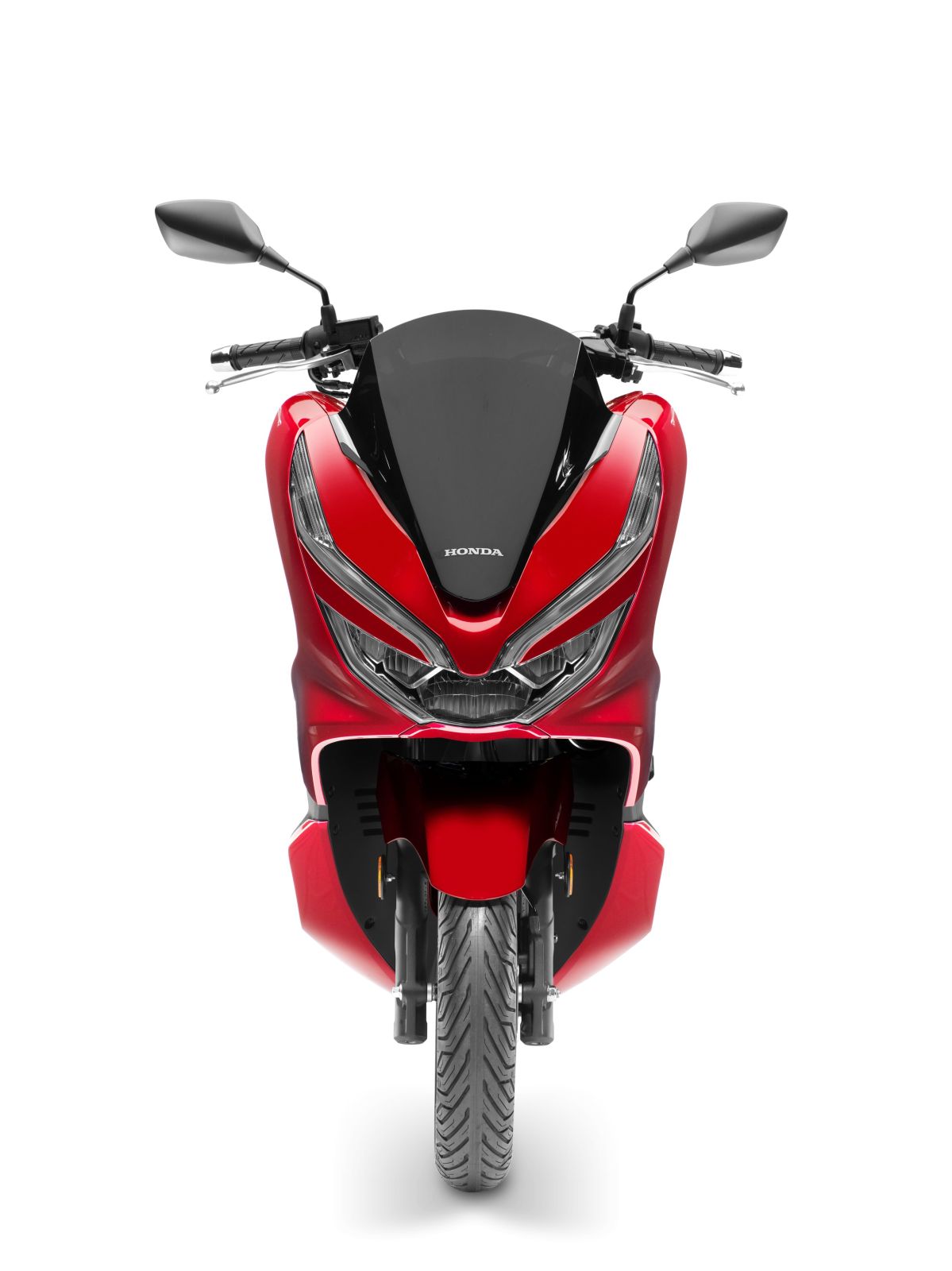

From the front, the LED headlights and razor-thin position lights slant independently upwards, with LED indicators discreetly filling out the upper, outer tips. The slim LED rear tail light/indicator unit is still two-tiered, but larger in size for increased visibility.

The rider’s view of the cockpit has been enhanced. The use of black against chrome around the handlebars adds a premium touch, as do chromed, tapered handlebar bar ends. The large left hand fairing pocket will hold a water bottle or drinks can and now has an extended lid (compared to the old design) to allow the rider to access the contents easily. It also contains a 12V AC adapter.

2018 Honda PCX125

2018 Honda PCX125

Both the seat and fuel lid are opened via one-touch switches and the ignition has a key shutter for extra security. Internal capacity of the underseat storage has been increased 1L to 28L, with no increase in body width, and will easily hold a full-face helmet.

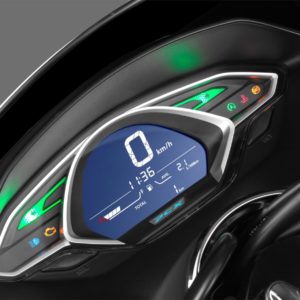

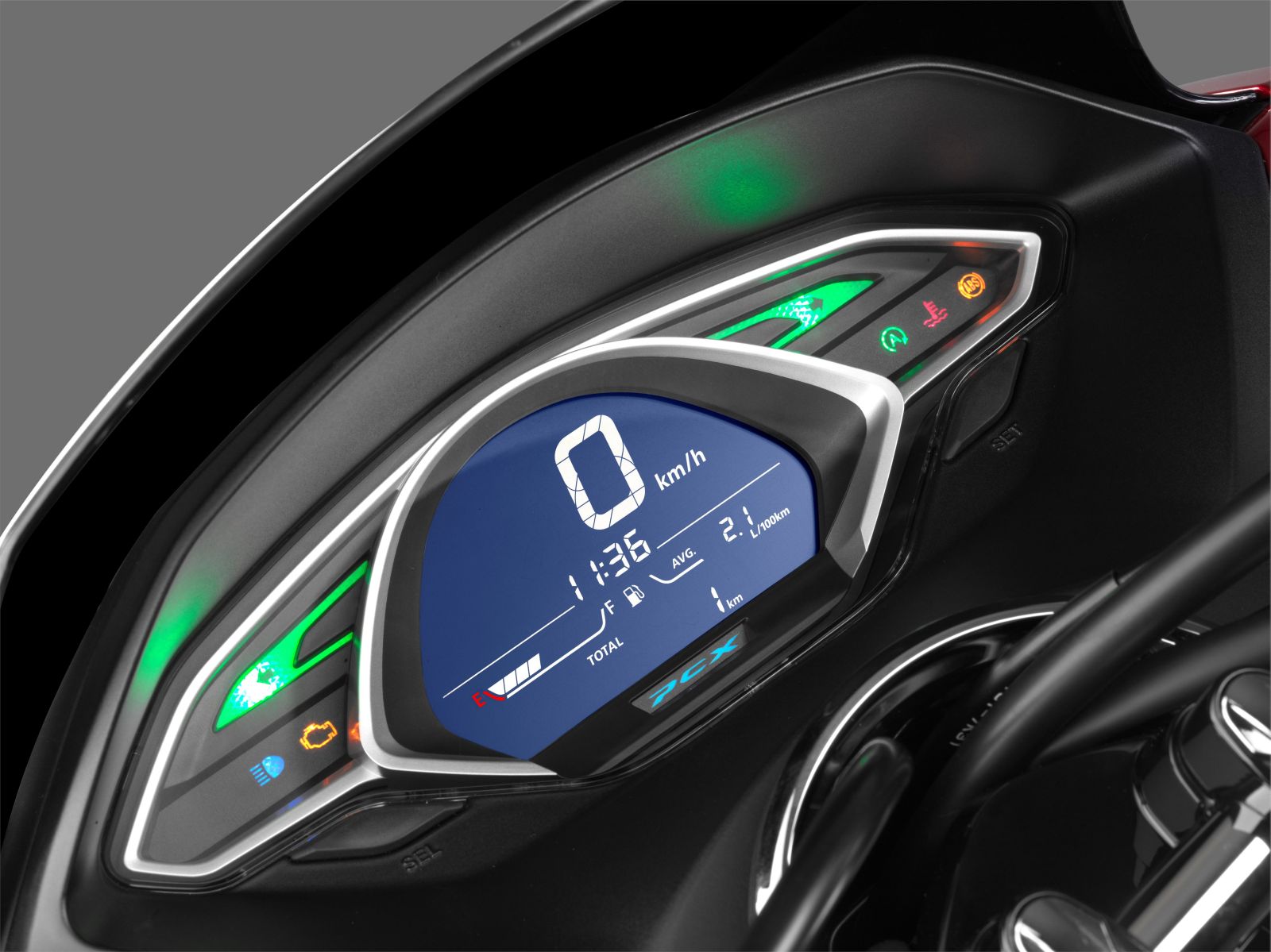

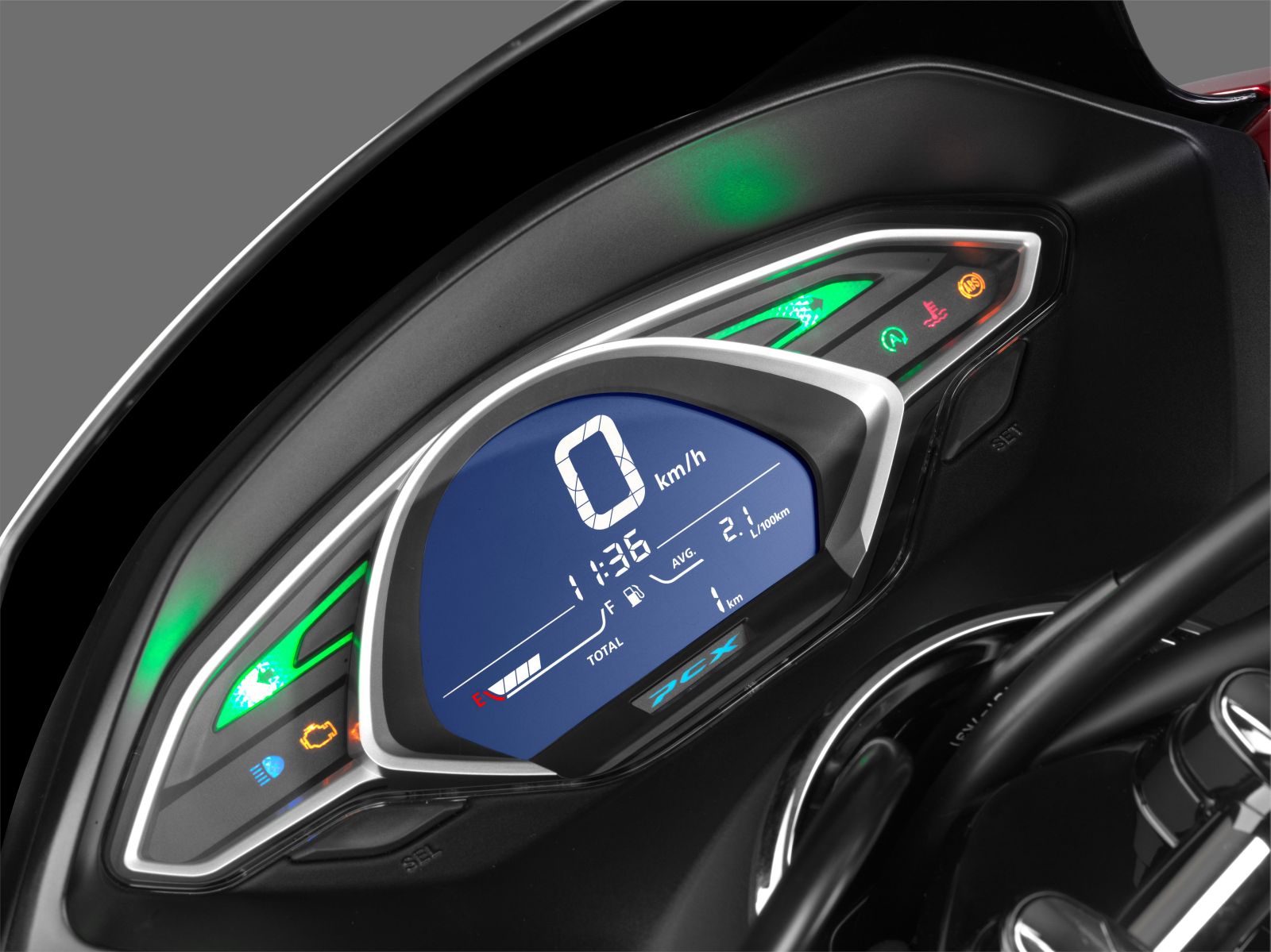

A new central console design presents all the information neatly and concisely in an easy-to-read format. An inverted LCD displays the speed, while other information available includes odometer, trip meter, fuel gauge, average fuel consumption and Idling Stop indicator.

The 2018 PCX125 will be available in four colour options:

  • Pearl Cool White
  • Pearl Nightstar Black
  • Matt Carbonium Grey Metallic
  • Pearl Splendor Red
2018 Honda PCX125

2018 Honda PCX125

Both front and rear wheels are lighter and use thinner rims, with an 8-spoke (rather than 5-spoke) design. Tyre sizes are also larger, 100/80-14 front and 120/70-14 rear (as opposed to 90/90-14 and 100/90-14).

In terms of performance, peak power is now up .4 bhp to 12.05 bhp @ 8,500rpm, with peak torque of 11.8Nm @ 5,000rpm. To achieve the gain the airbox now has a 1L larger volume than the previous design. Stopping power is provided by the two piston caliper 220mm front disk brake, and 130mm rear drum brake; single-channel ABS operates on the front brake.

2018 Honda PCX125

2018 Honda PCX125

A range of accessories are available for the 2018 PCX125, including windshield, 35 litre top box, top box carrier, U-lock, heated grips and outdoor scooter cover.

2018 Honda PCX125 Technical Specifications

ENGINE
Type Single-cylinder, liquid cooled, SOHC 4-stroke 2-valve
Displacement 125cc
Bore x Stroke 52.4 x 57.9mm
Compression Ratio 11:1
Max. Power Output 12 bhp @ 8,500rpm
Max. Torque 11.8Nm @ 5,000rpm
Oil Capacity 0.9 litres
FUEL SYSTEM
Carburation PGM-FI electronic fuel injection
Fuel Tank Capacity 8.0litres
Fuel Consumption 112 mpg (without Idling Stop) (WMTC mode)
ELECTRICAL SYSTEM
Starter Electric
Battery Capacity 12V/7AH (10H)
ACG Output 255W
DRIVETRAIN
Clutch Type Automatic, centrifugal, dry type
Transmission Type V-Matic
Final Drive 10.65
FRAME
Type Tubular steel duplex
CHASSIS
Dimensions (L´W´H) 1,923 x 745 x 1,107mm
Wheelbase 1,313mm
Caster Angle 27°
Trail 86mm
Seat Height 764mm
Ground Clearance 137mm
Kerb Weight 130kg
SUSPENSION
Type Front 31mm telescopic fork, 89mm axle travel
Type Rear Twin suspension aluminium swingarm, 84mm axle travel
WHEELS
Type Front 8-spoke cast aluminium
Type Rear 8-spoke cast aluminium
Rim Size Front 14M/C x MT2.15
Rim Size Rear 14M/C x MT3.50
Tyres Front 100/80-14M/C (48P)
Tyres Rear 120/70-14M/C (61P)
BRAKES
Type Front 220mm hydraulic disc with combined 2 piston caliper with ABS
Type Rear 130mm drum
INSTRUMENTS & ELECTRICS
Headlight LED
Taillight LED

2018 Honda PCX125 Image Gallery

2018 Honda PCX125
2018 Honda PCX125
2018 Honda PCX125
2018 Honda PCX125
2018 Honda PCX125
2018 Honda PCX125
