2017 Yamaha SCR950 Scrambler revealed : Complete details, images and tech specs

|
Added in: News

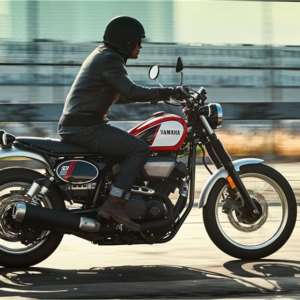

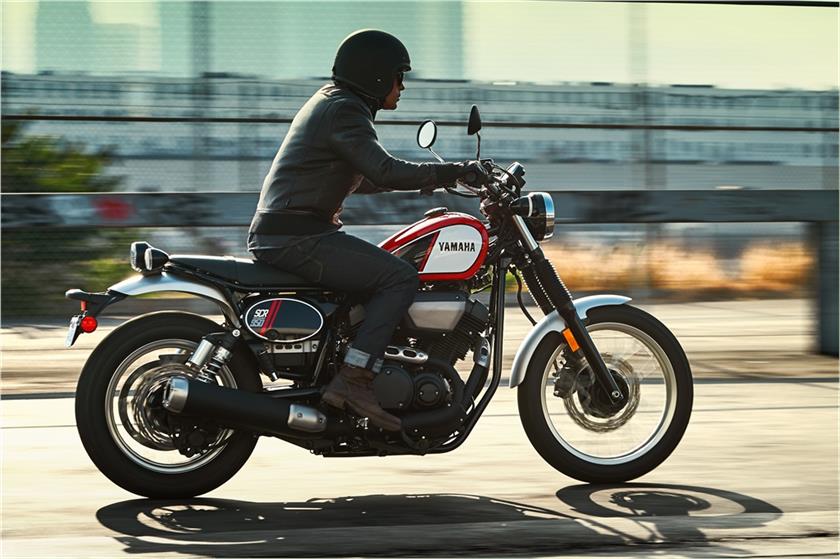

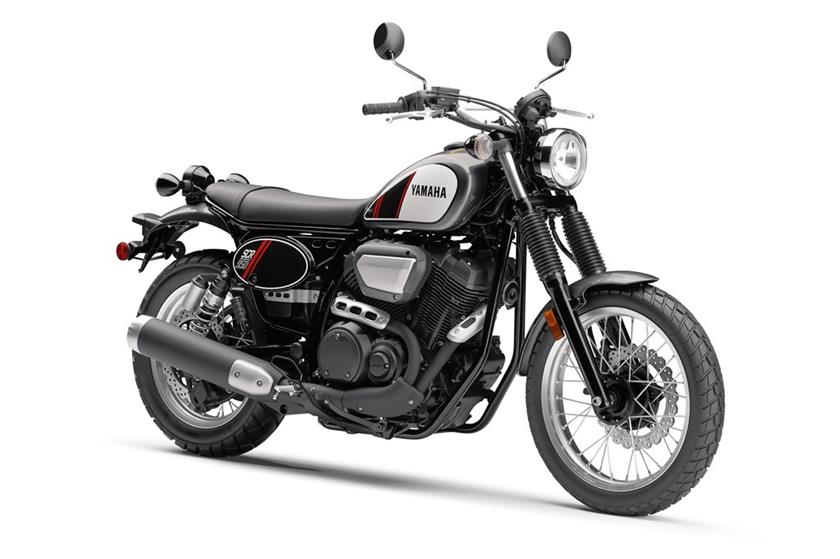

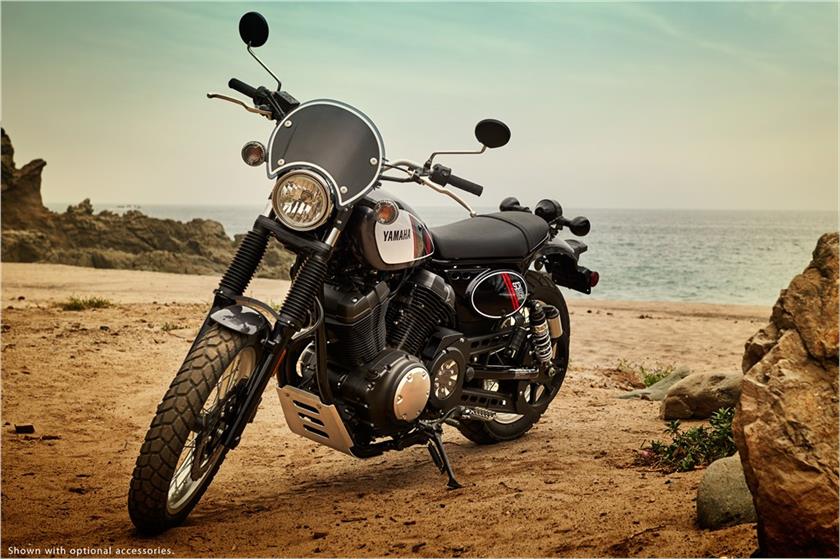

2017 Yamaha SCR950 Scrambler (34)

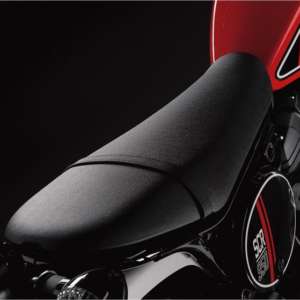

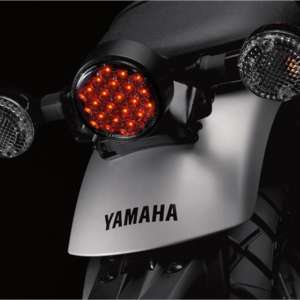

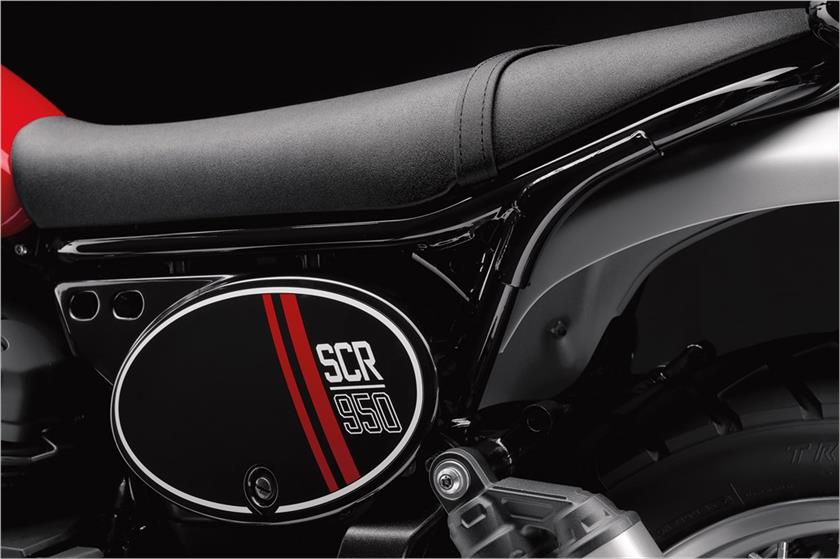

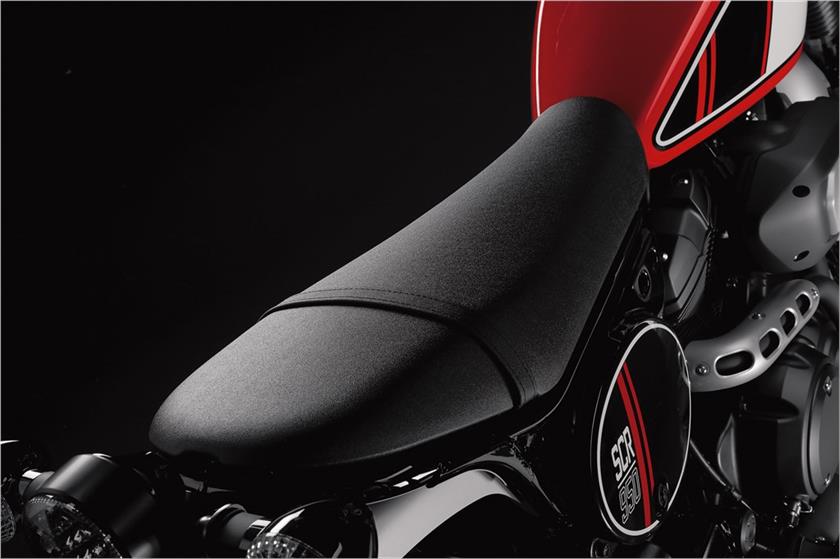

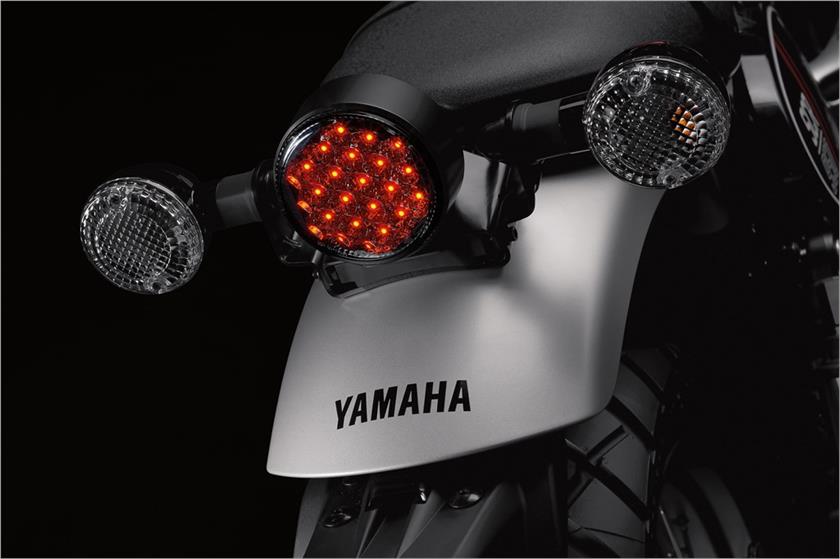

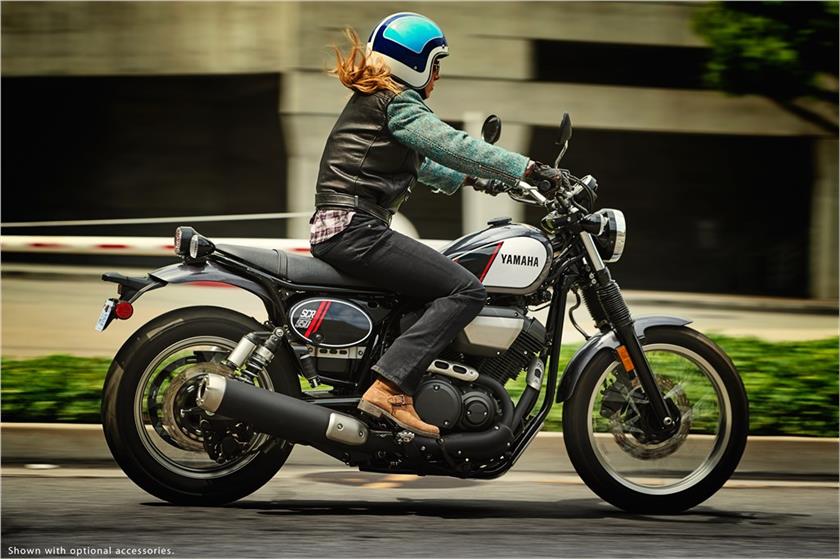

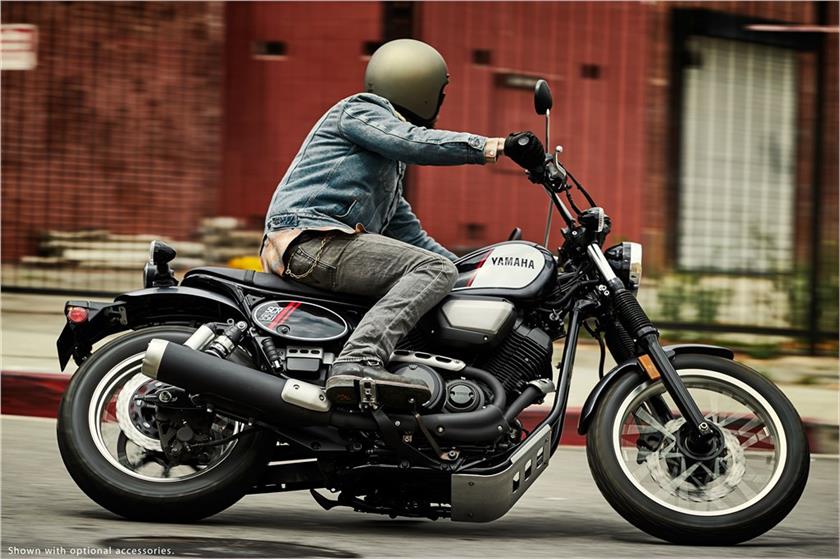

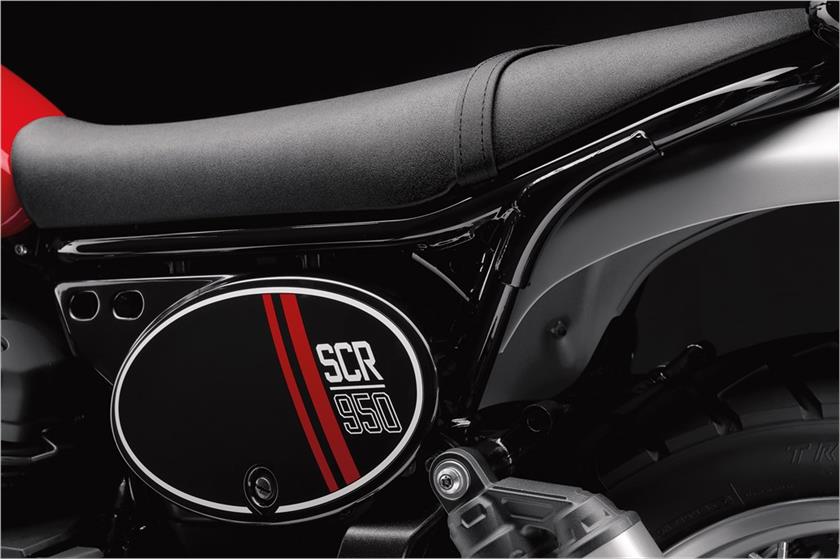

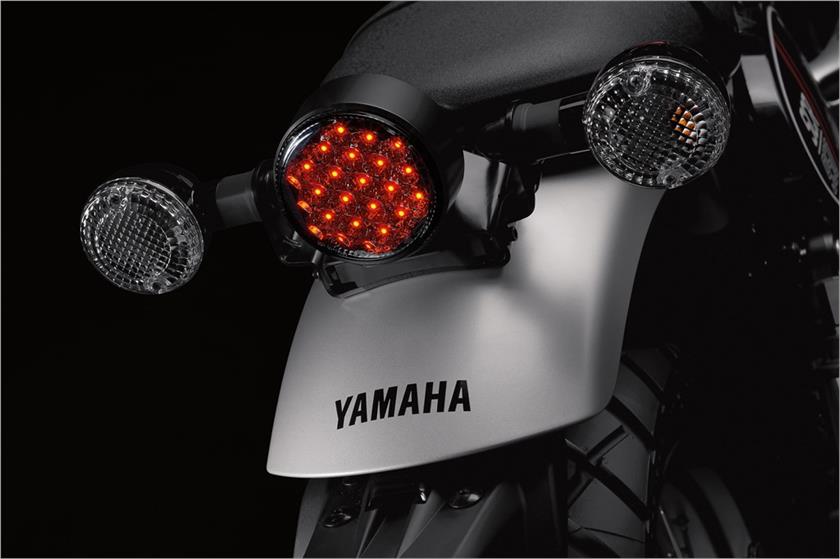

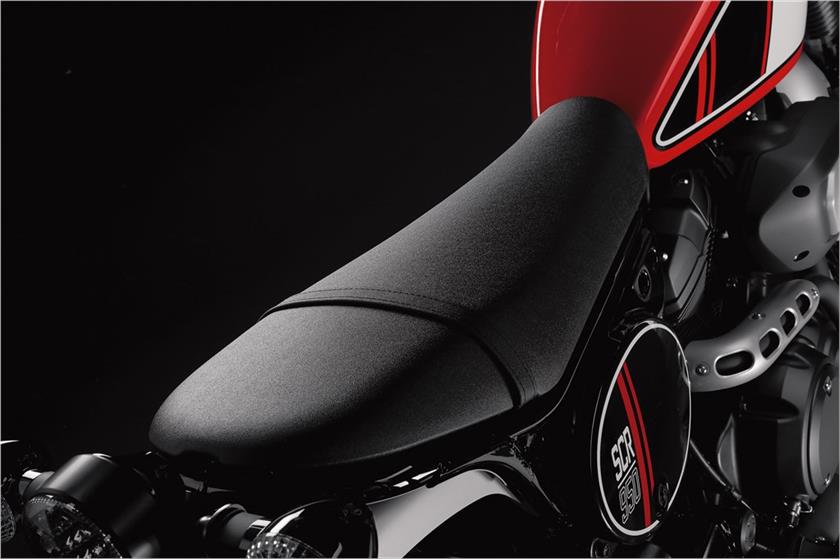

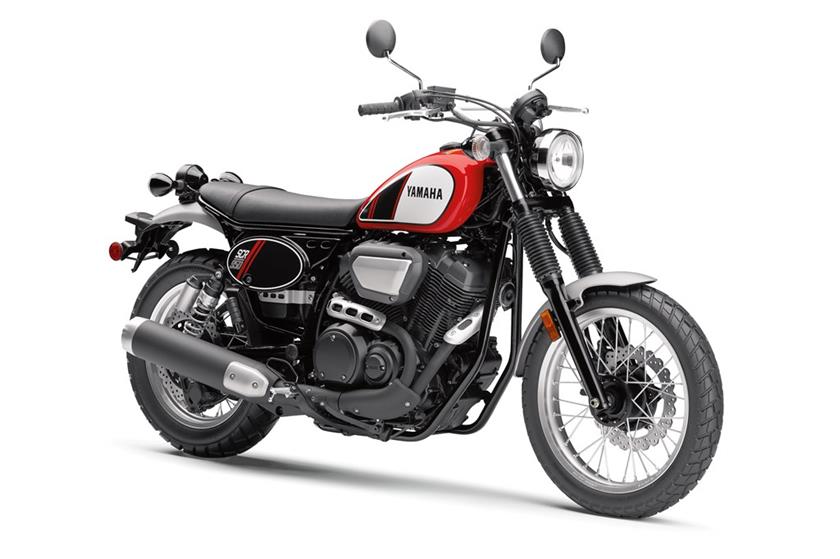

Yamaha has updated its middleweight line-up with the introduction of the new 2017 SCR950 Scrambler. The SCR950 comes equipped with low-profile bench seat, retro-racing side number plates, fork boots and bold color accents. The LED rear taillight adds to the stylish “neo-retro” appeal while the high-mounted turn signals improve visibility and boost the classic styling lines.

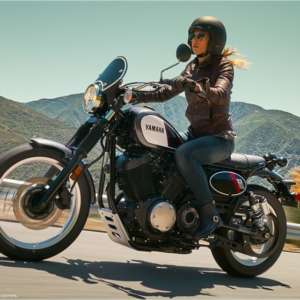

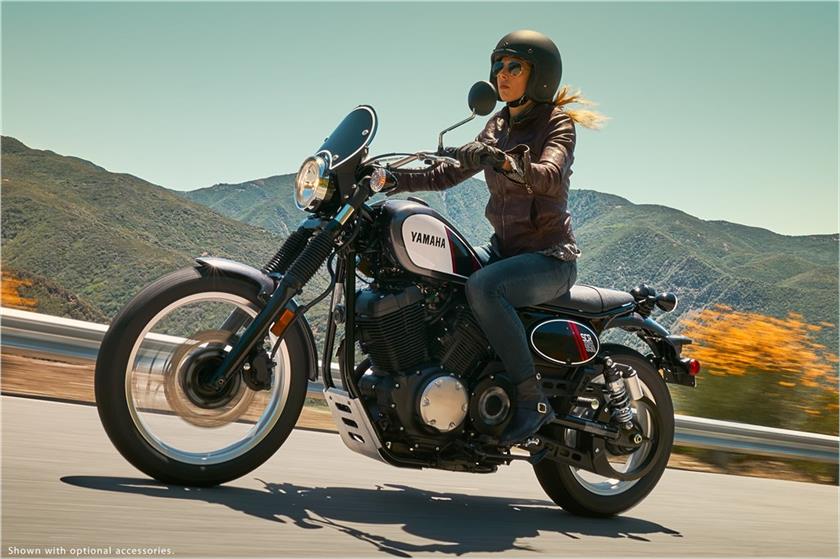

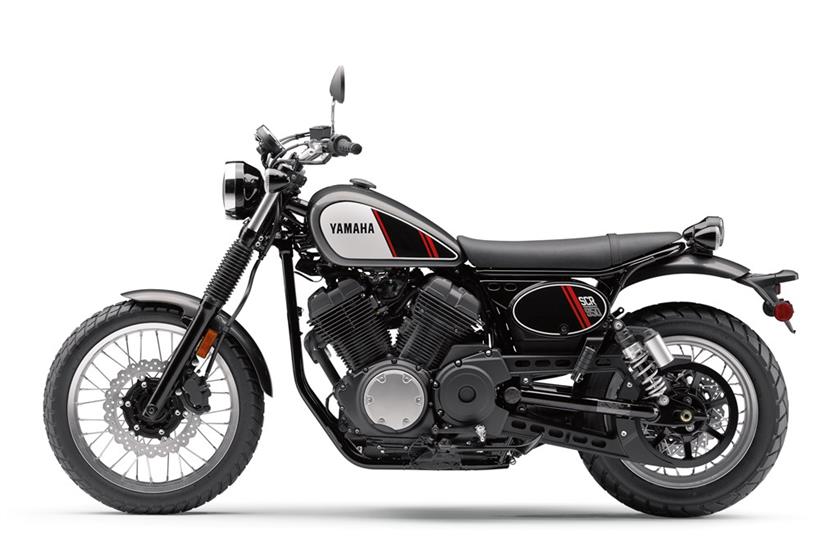

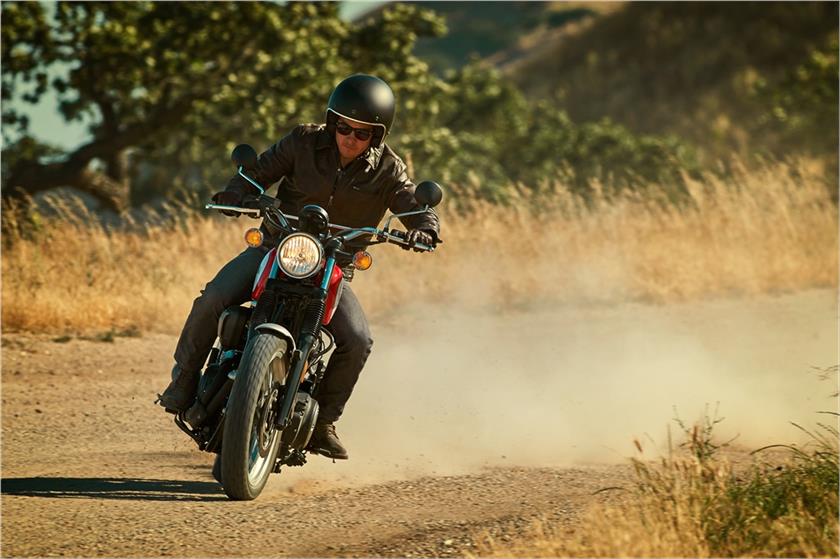

2017 Yamaha SCR950 Scrambler (15)

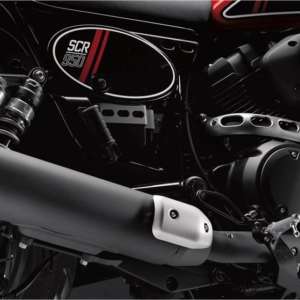

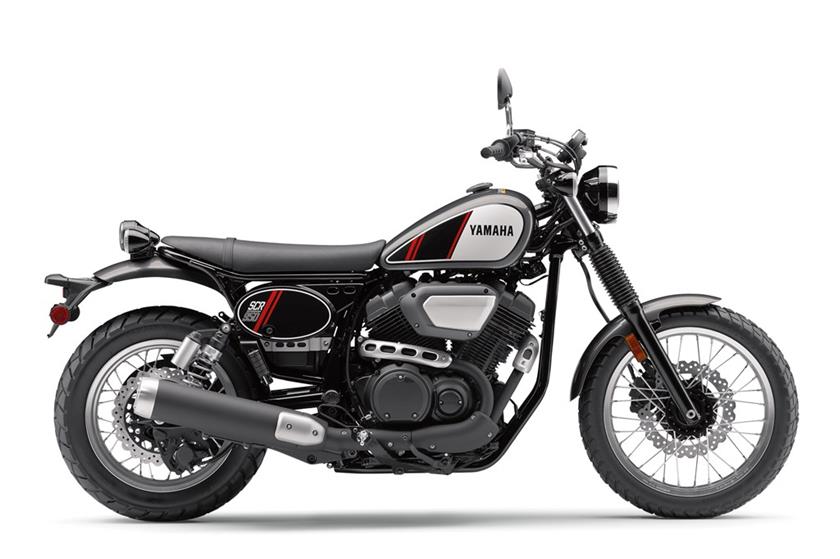

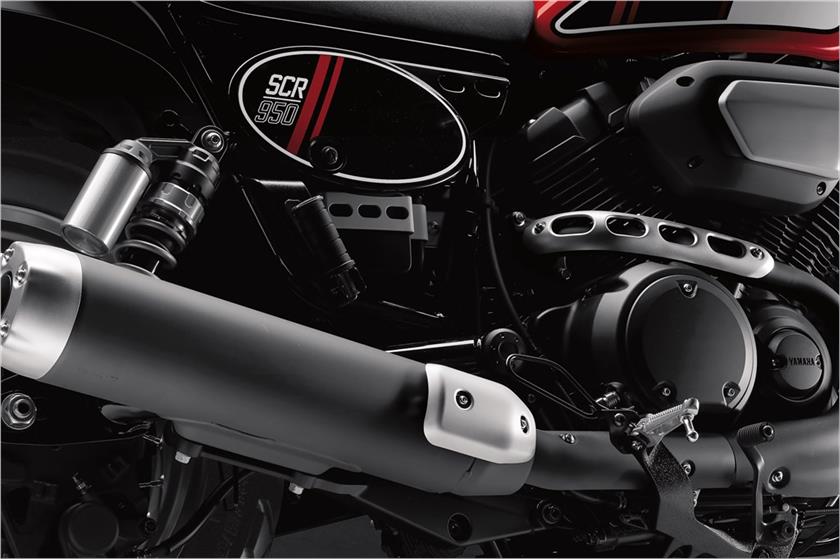

The motorcycle is built around a double-cradle frame and is aimed to offer sporty geometry for nimble, responsive handling. The front and rear suspension systems too are tuned to provide great comfort and handling while contributing to the machine’s stylish low profile. Upfront is a beefy 41mm fork while at the rear is a twin shocks — which include piggyback-style gas chambers. A 2-into-1 exhaust pipe with an upswept muffler offers improved ground clearance.

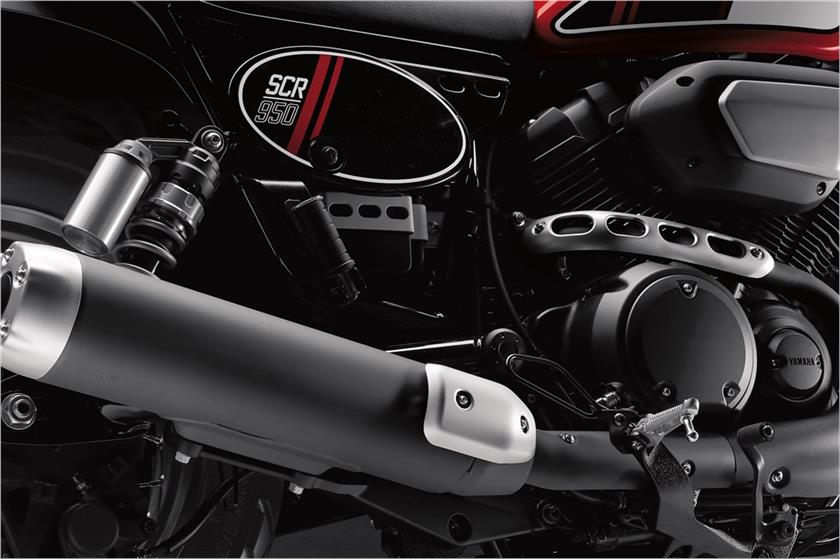

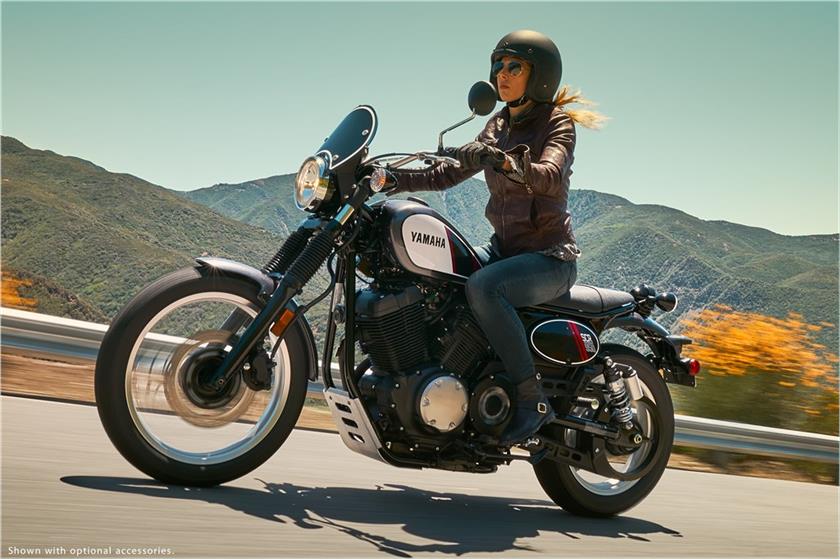

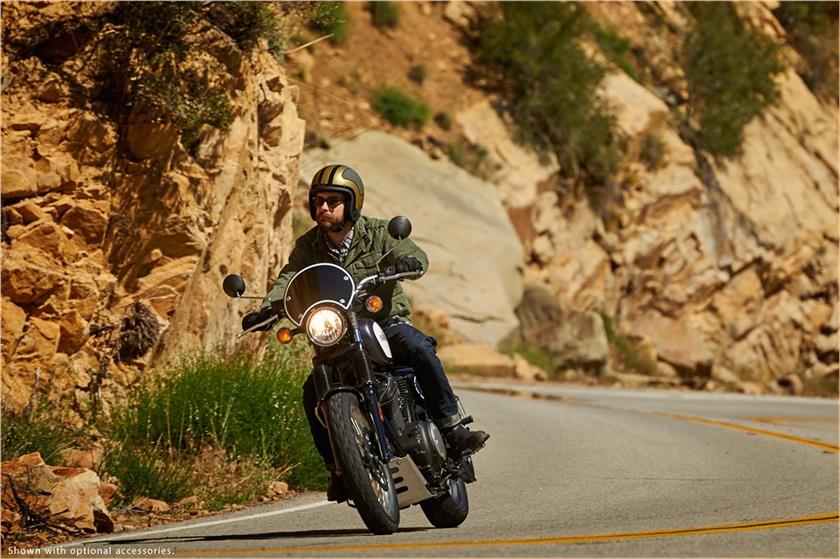

2017 Yamaha SCR950 Scrambler (38)

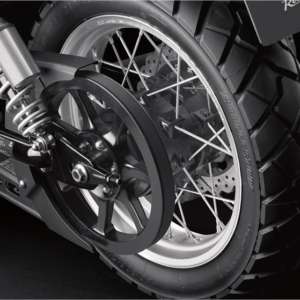

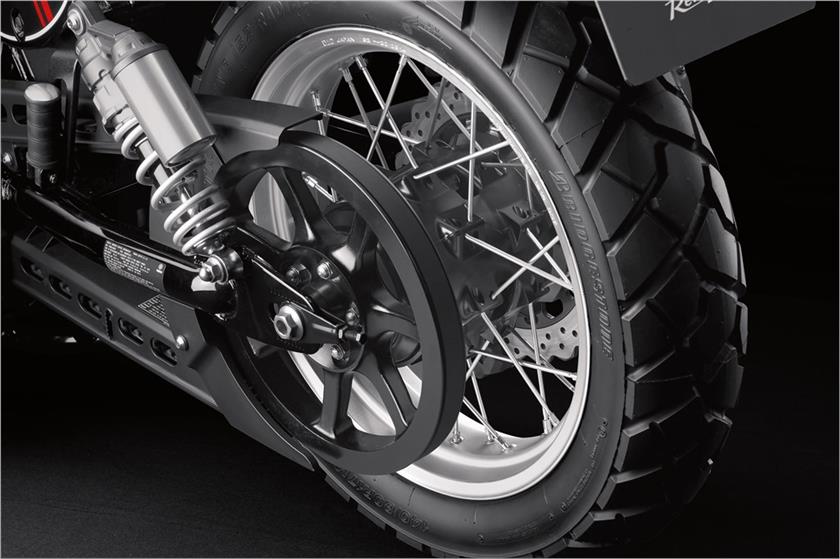

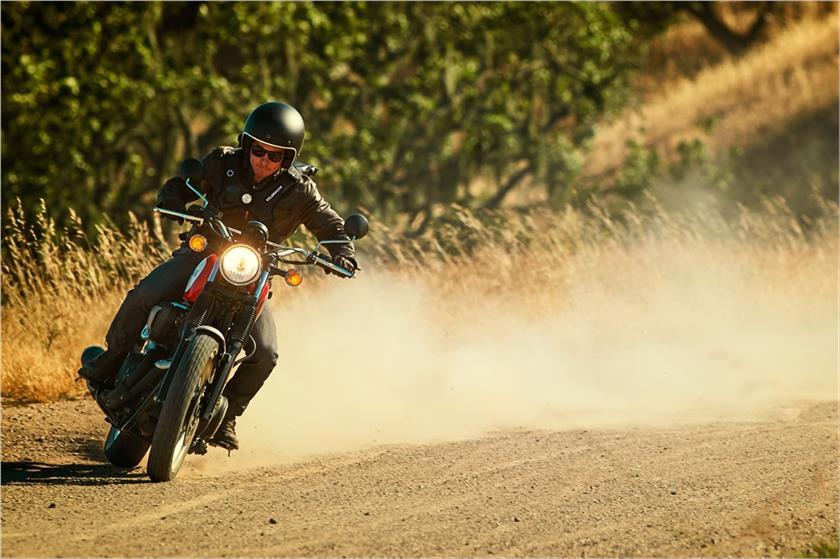

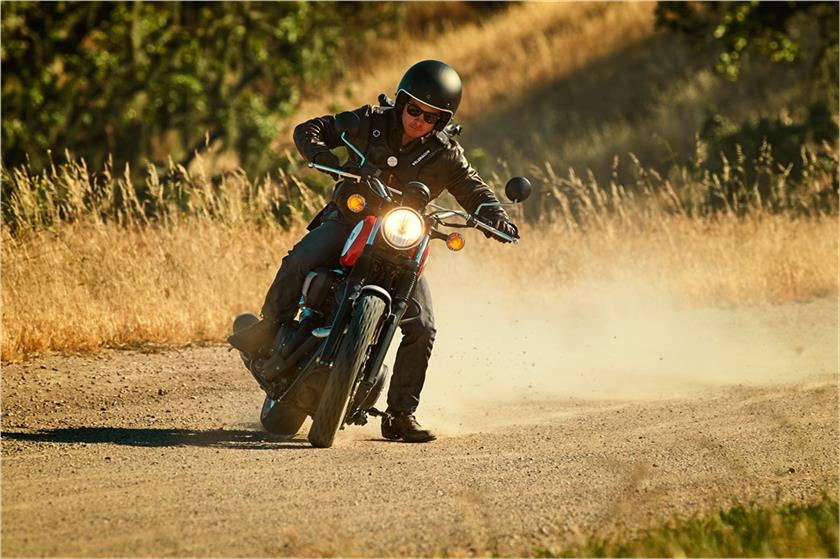

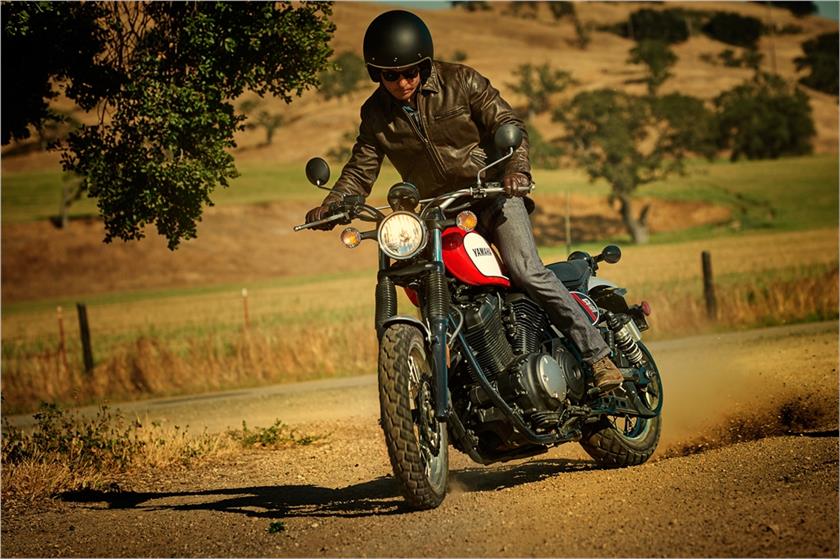

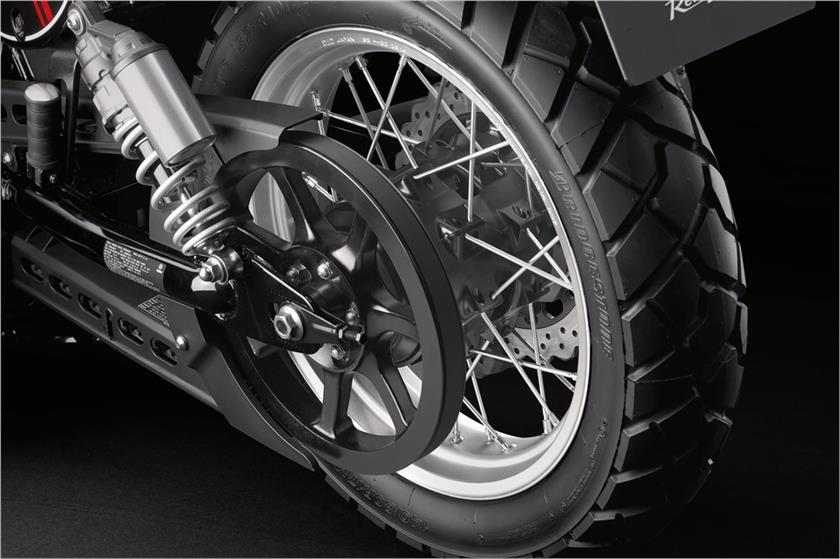

The motorcycle rides on strong aluminum rims and spoked wheels which are designed to handle harsh road conditions The rugged, block-pattern 19-inch front and 17-inch rear tires air claimed to provide an ideal balance of grip, durability and agile handling.

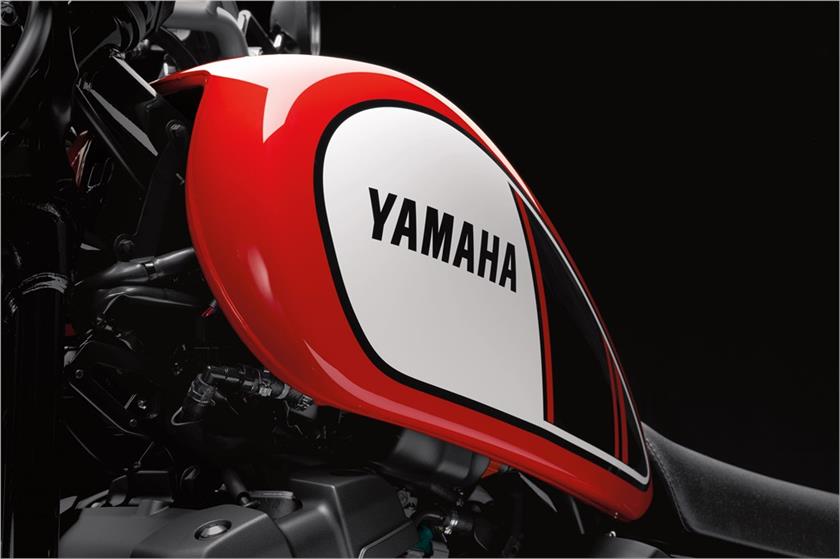

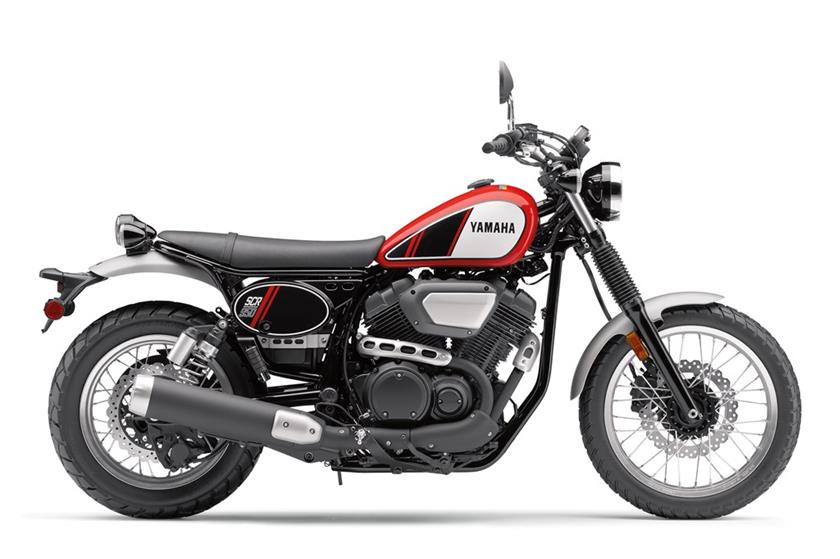

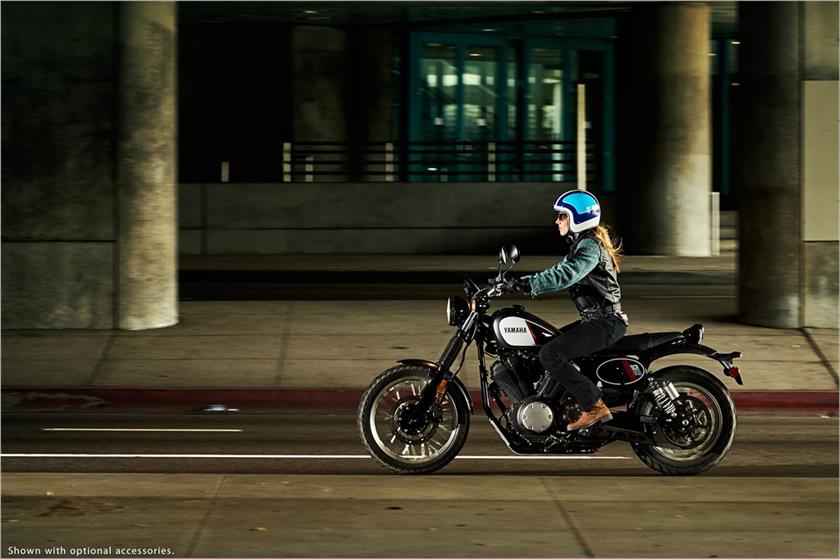

2017 Yamaha SCR950 Scrambler (35)

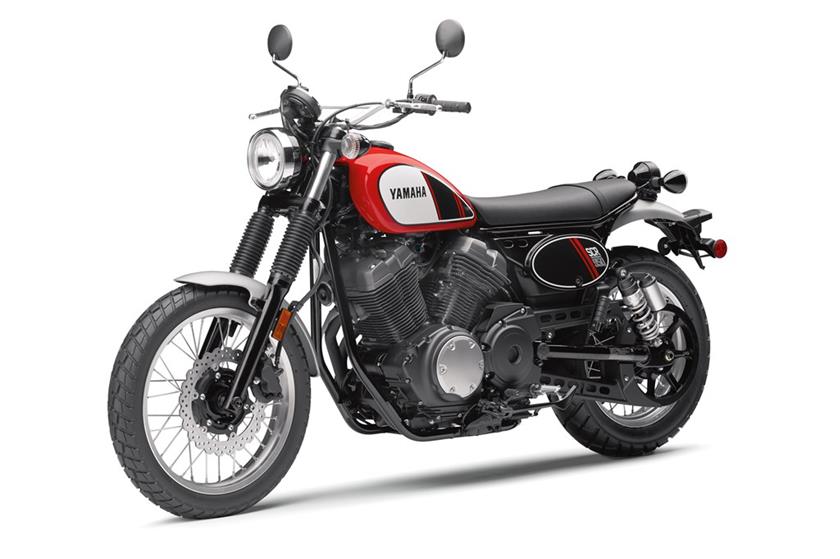

The new SCR950 draws power from a 942cc air-cooled SOHC 60° V-twin engine with four valves per cylinder. The engine comes mated to a five-speed transmission and a compact belt drive. Anchoring duties are provided by a 298mm disc brake upfront and 298mm at the rear, both equipped with wave rotors. The front brake uses a floating-mount for heat-distortion resistance.

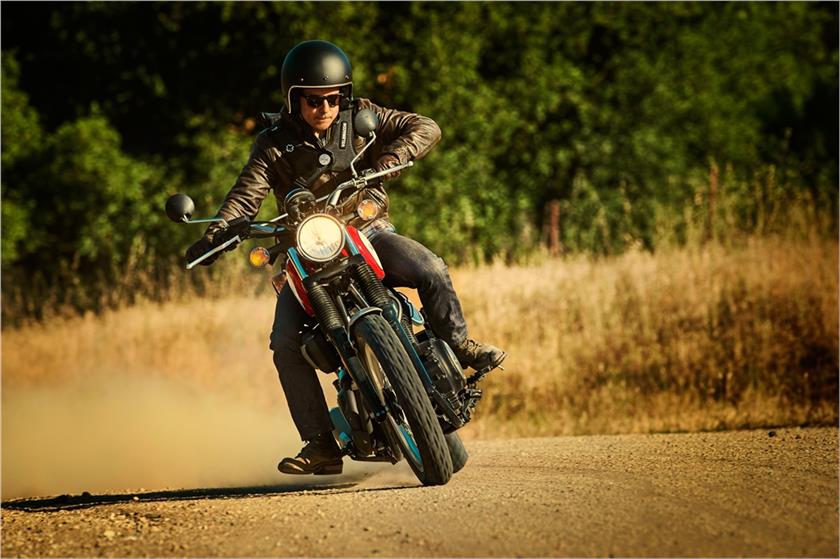

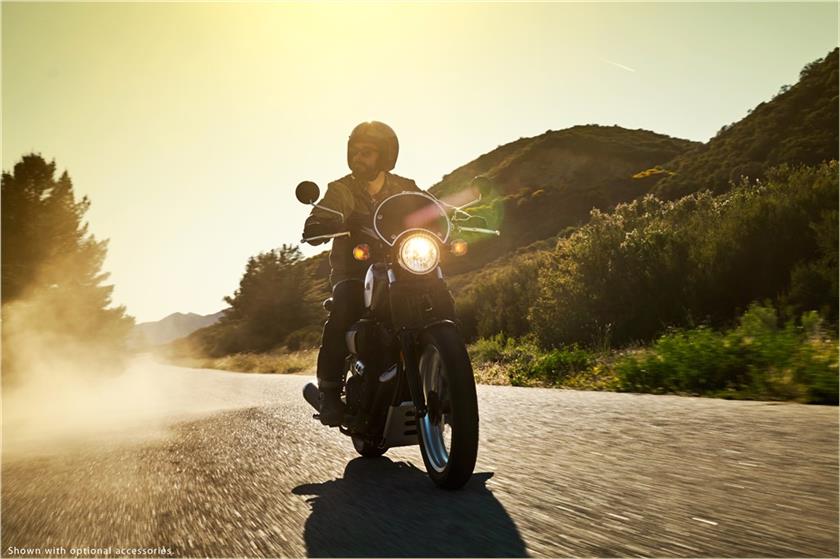

2017 Yamaha SCR950 Scrambler (39)

Check out the new Yamaha SCR950 Scrambler in the official video and the image gallery below. Do let us know your views about this Scrambler-style motorcycle through the comments section below.

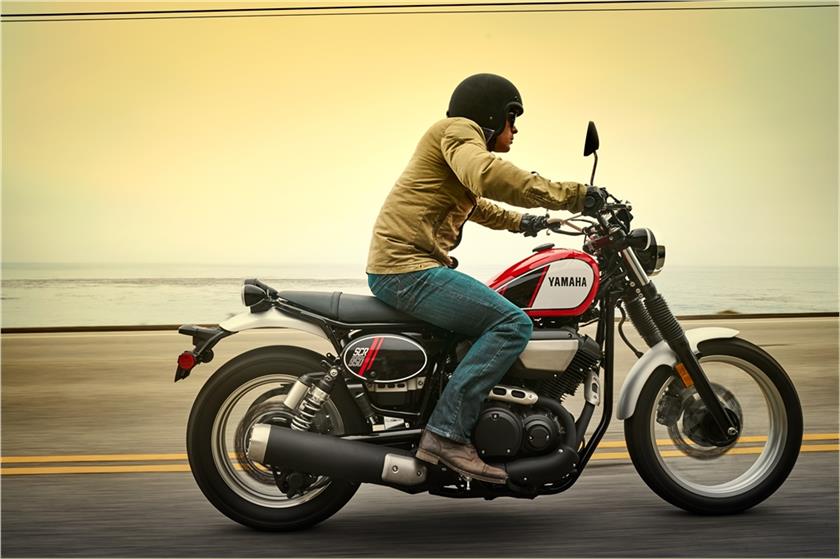

2017 Yamaha SCR950 Scrambler (41)

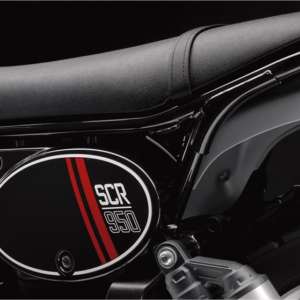

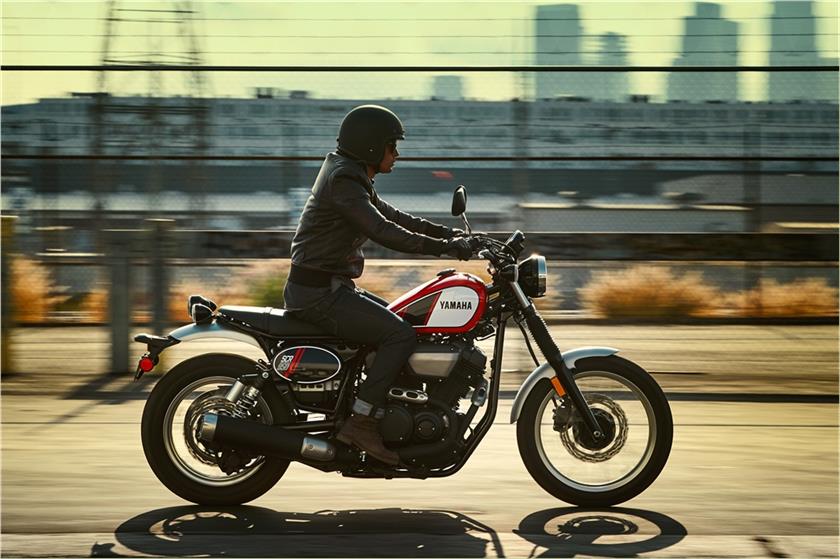

2017 Yamaha SCR950 Scrambler (40)

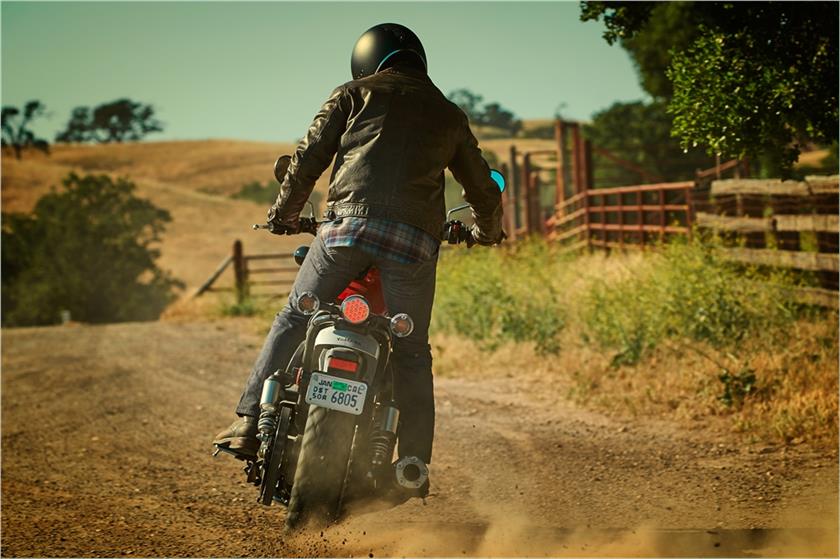

2017 Yamaha SCR950 Scrambler (39)
2017 Yamaha SCR950 Scrambler (38)

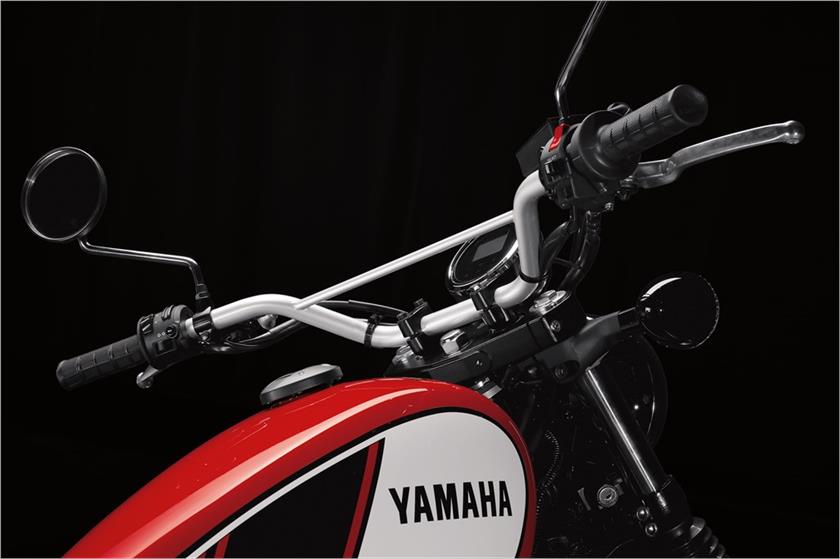

2017 Yamaha SCR950 Scrambler (37)
2017 Yamaha SCR950 Scrambler (36)

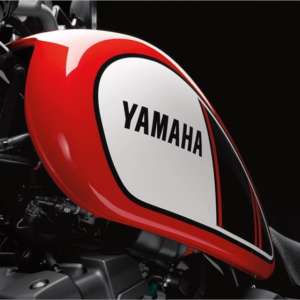

2017 Yamaha SCR950 Scrambler (35)
2017 Yamaha SCR950 Scrambler (34)

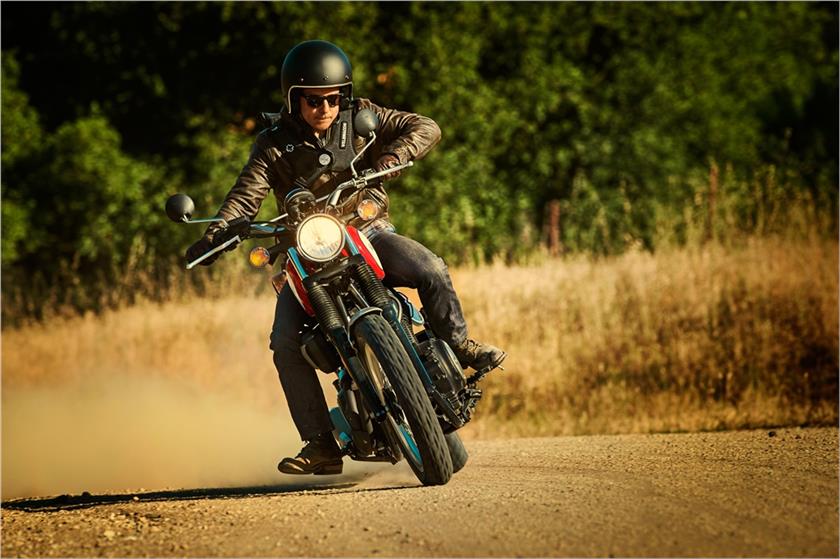

2017 Yamaha SCR950 Scrambler (33)

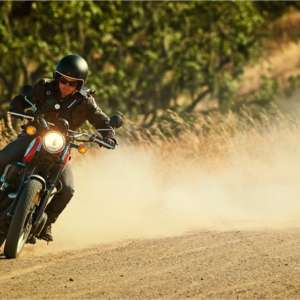

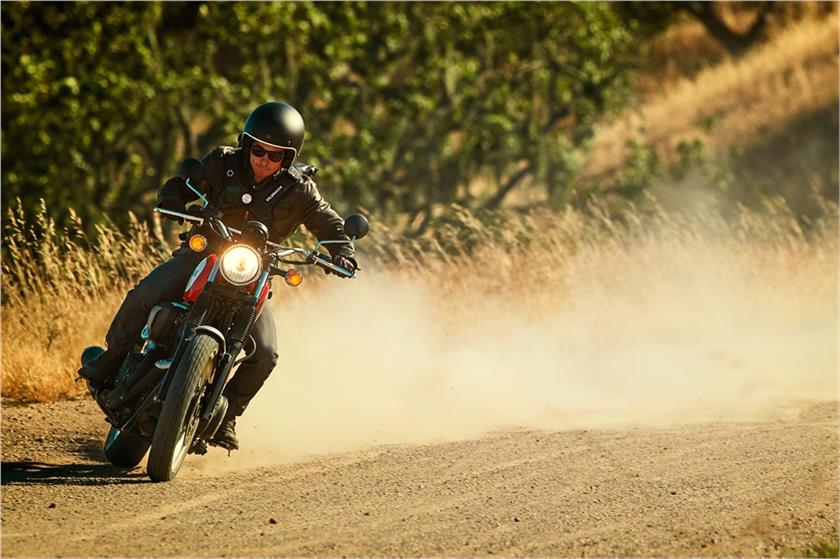

2017 Yamaha SCR950 Scrambler (32)

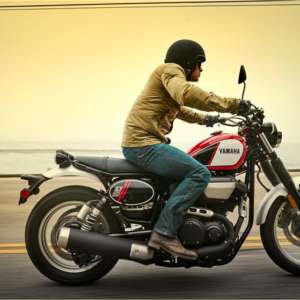

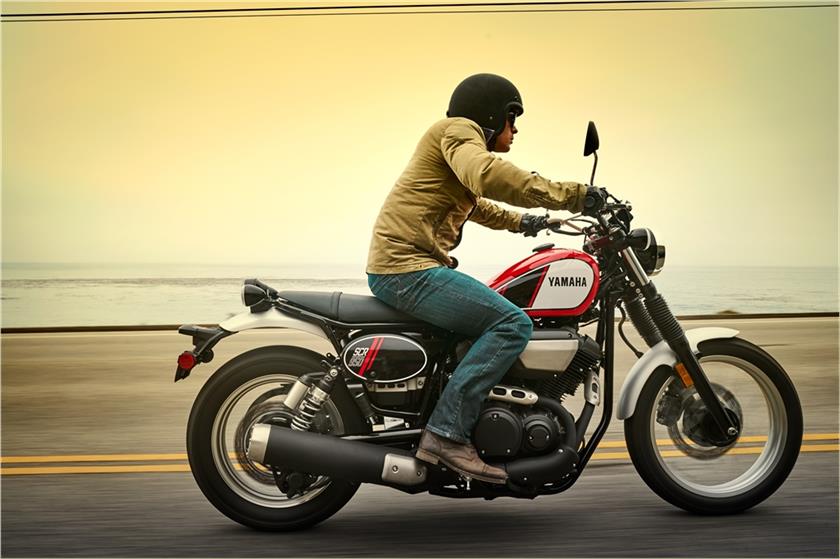

2017 Yamaha SCR950 Scrambler (31)

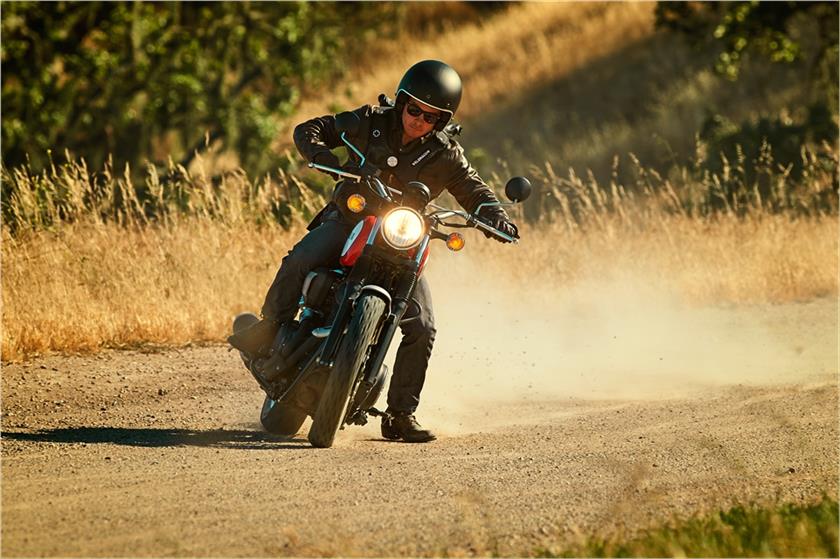

2017 Yamaha SCR950 Scrambler (30)

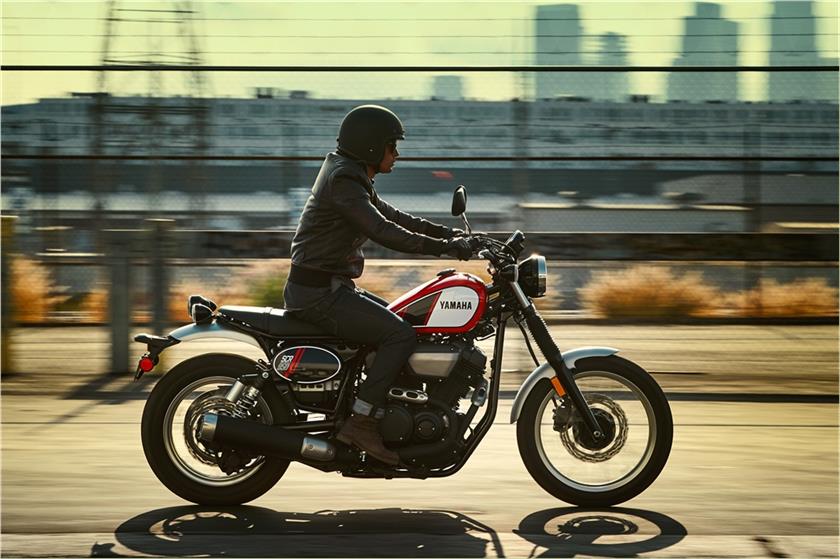

2017 Yamaha SCR950 Scrambler (29)

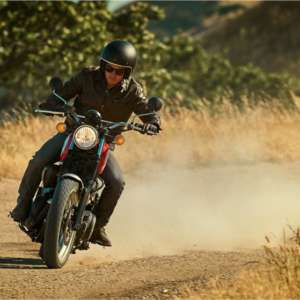

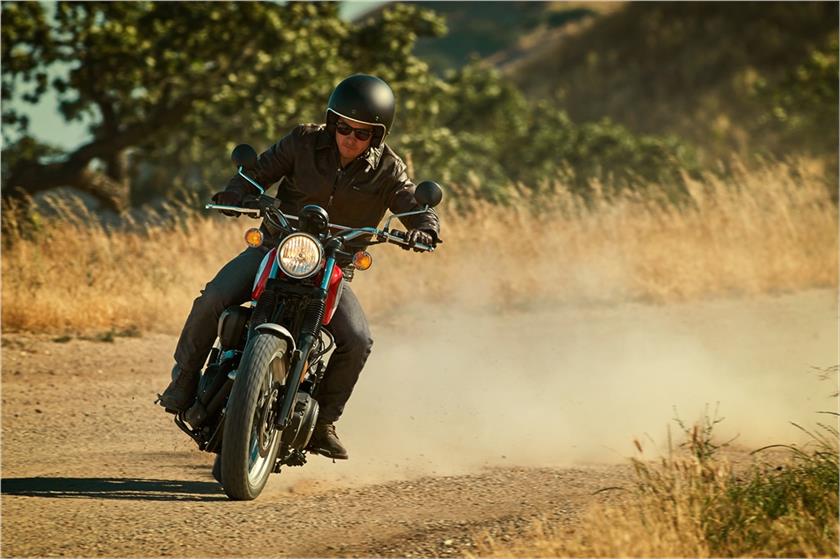

2017 Yamaha SCR950 Scrambler (28)

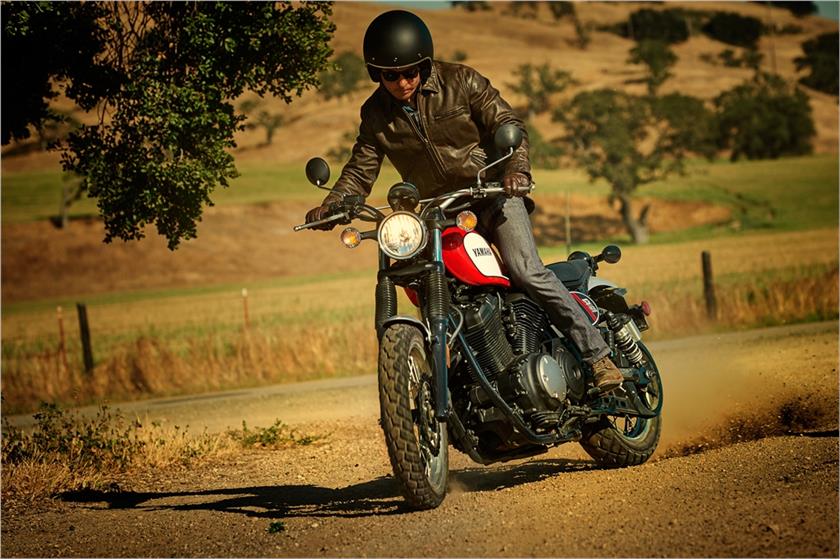

2017 Yamaha SCR950 Scrambler (27)

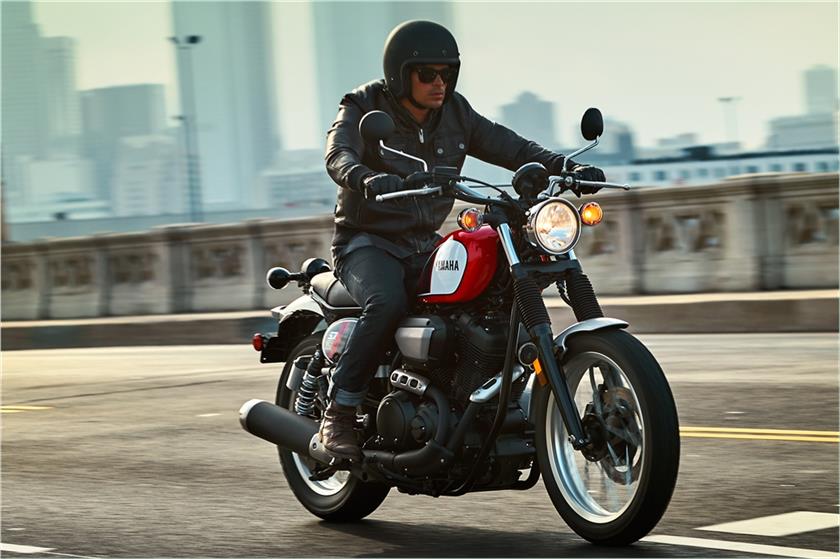

2017 Yamaha SCR950 Scrambler (26)

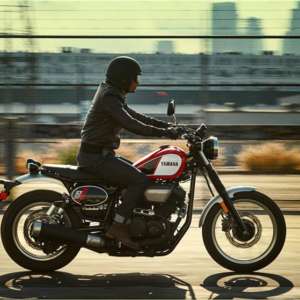

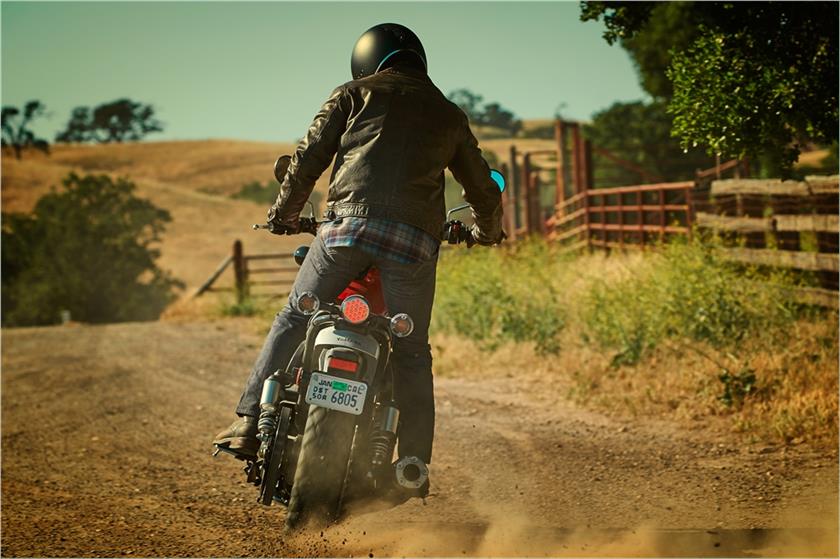

2017 Yamaha SCR950 Scrambler (25)

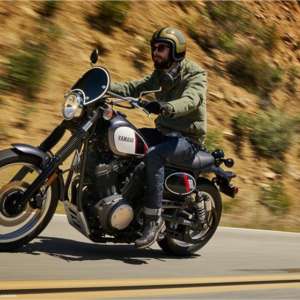

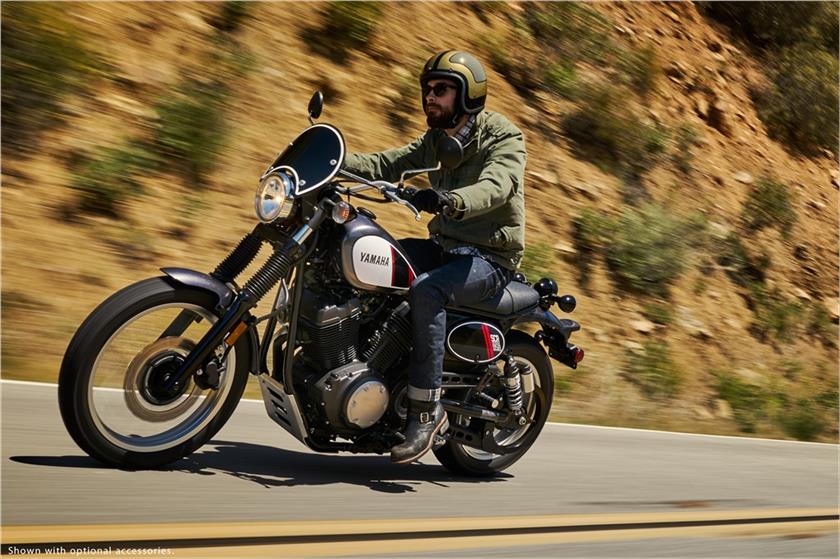

2017 Yamaha SCR950 Scrambler (24)
2017 Yamaha SCR950 Scrambler (23)

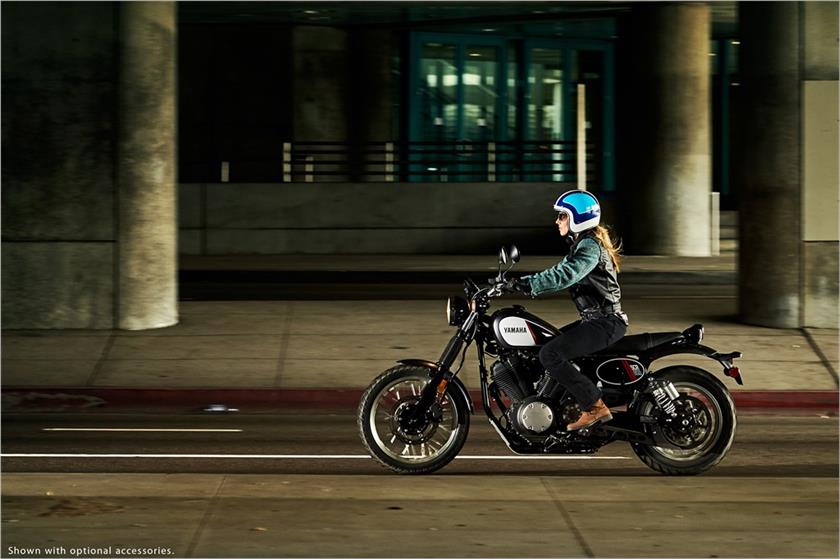

2017 Yamaha SCR950 Scrambler (22)

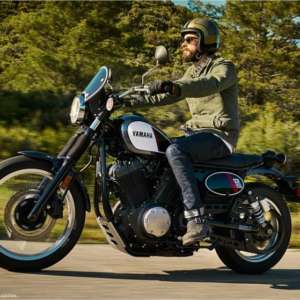

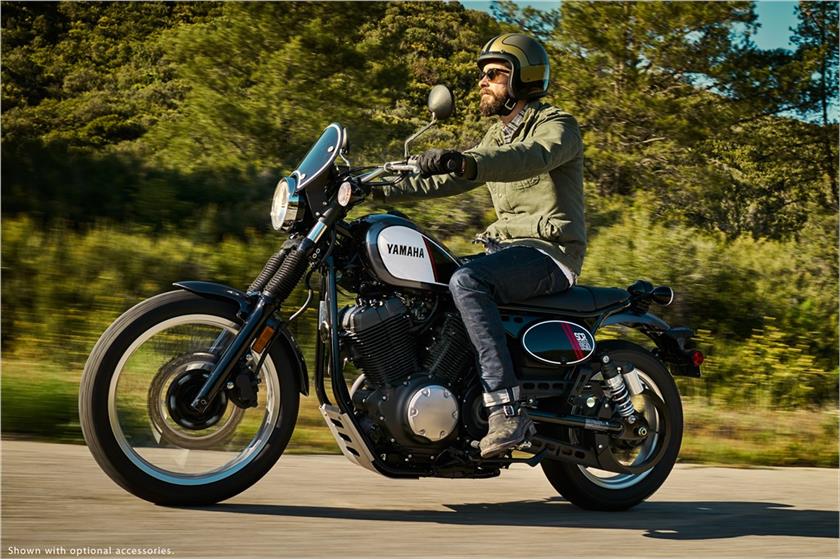

2017 Yamaha SCR950 Scrambler (21)

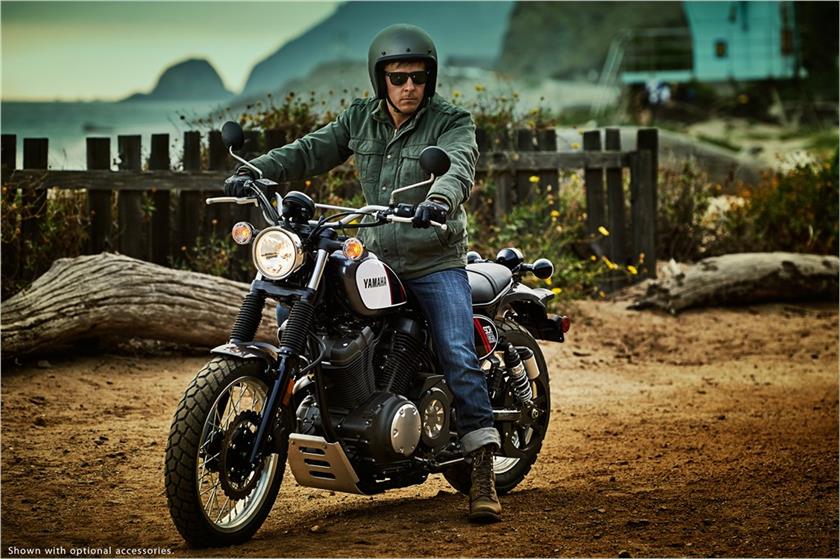

2017 Yamaha SCR950 Scrambler (20)

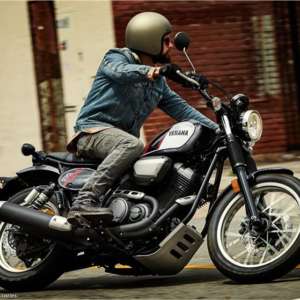

2017 Yamaha SCR950 Scrambler (19)

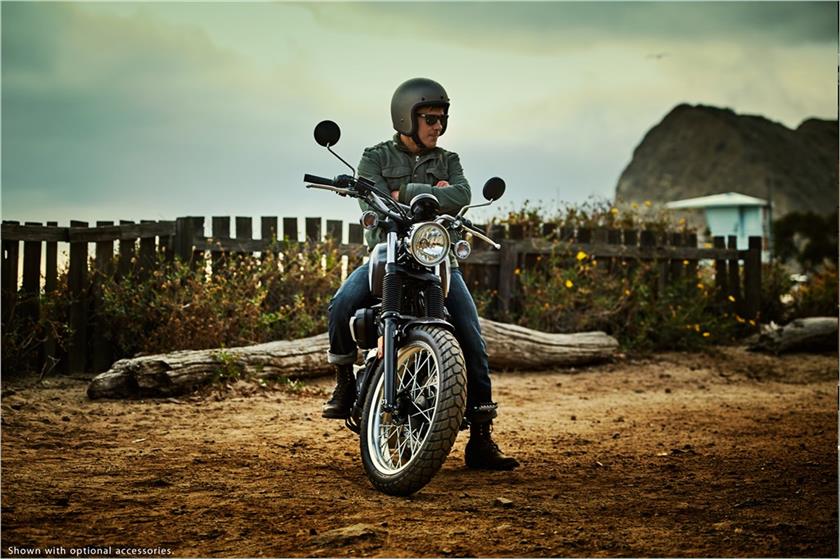

2017 Yamaha SCR950 Scrambler (18)

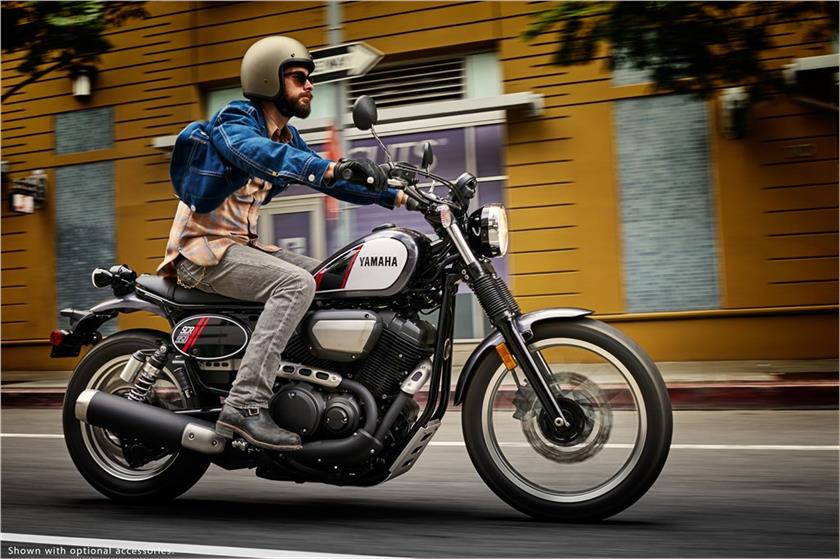

2017 Yamaha SCR950 Scrambler (17)

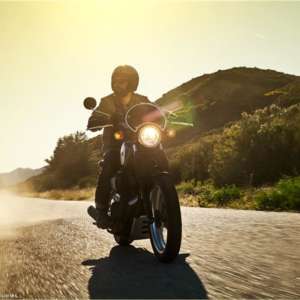

2017 Yamaha SCR950 Scrambler (16)
2017 Yamaha SCR950 Scrambler (15)

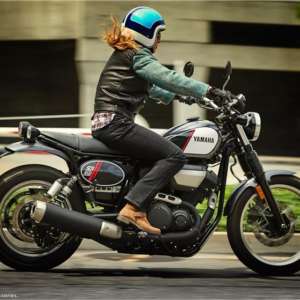

2017 Yamaha SCR950 Scrambler (14)

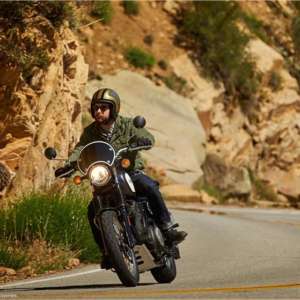

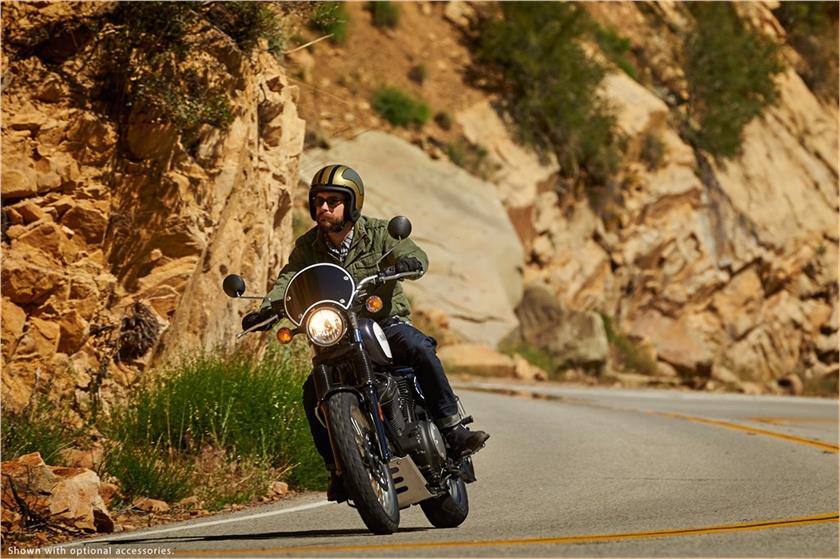

2017 Yamaha SCR950 Scrambler (13)

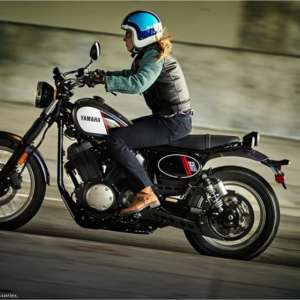

2017 Yamaha SCR950 Scrambler (12)

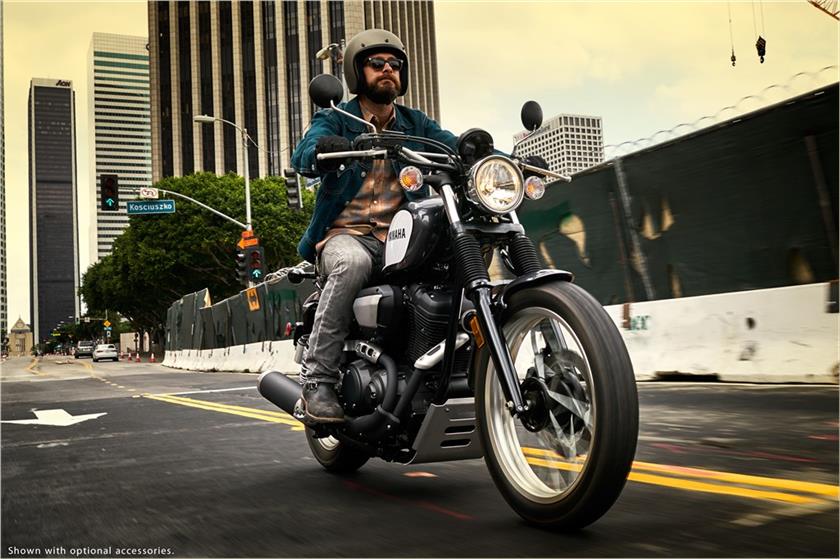

2017 Yamaha SCR950 Scrambler (11)

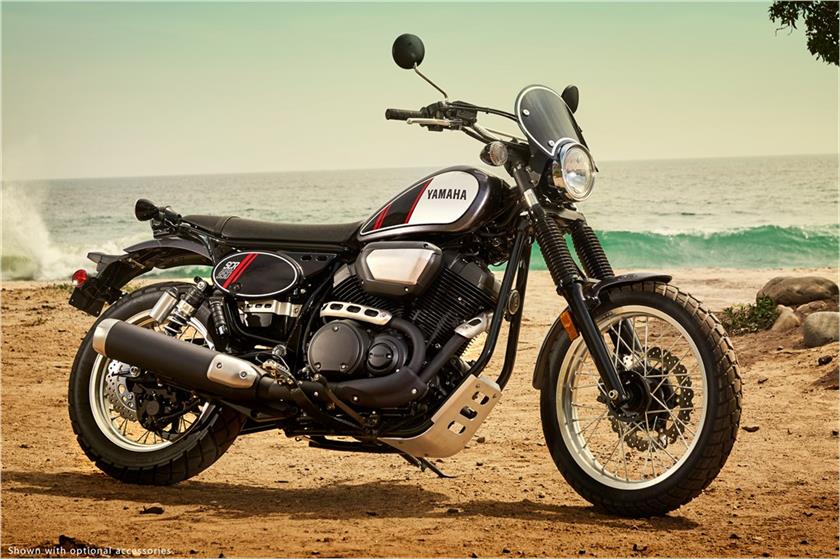

2017 Yamaha SCR950 Scrambler (10)

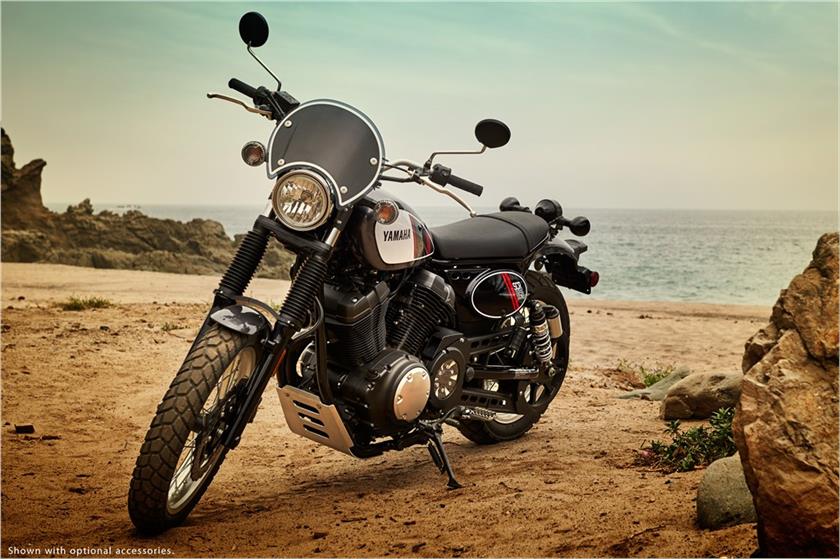

2017 Yamaha SCR950 Scrambler (9)

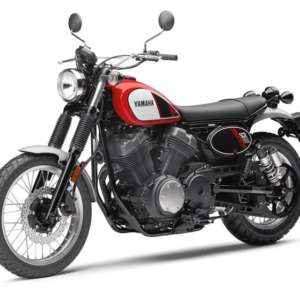

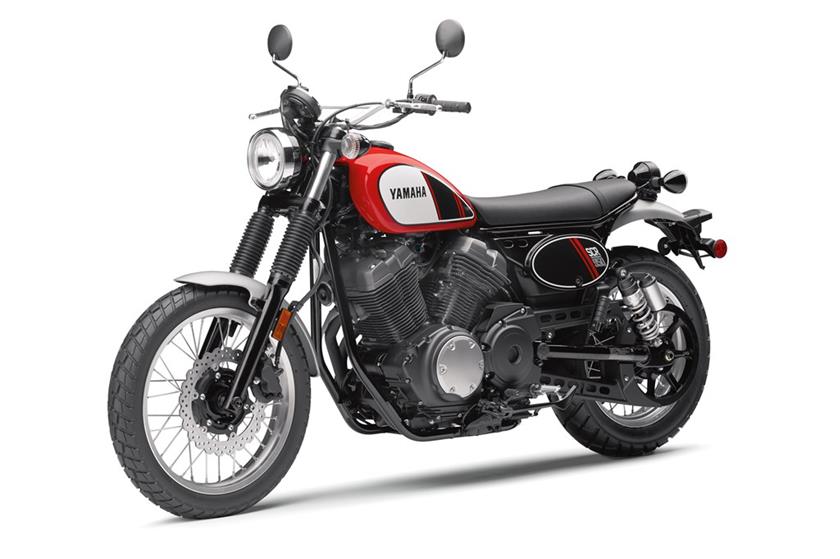

2017 Yamaha SCR950 Scrambler (8)

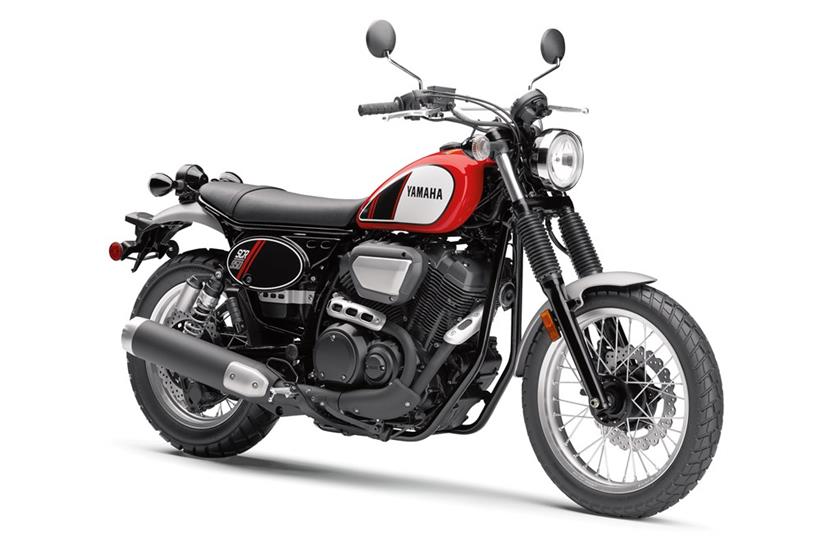

2017 Yamaha SCR950 Scrambler (7)

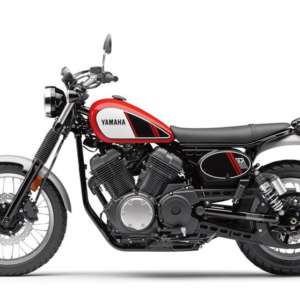

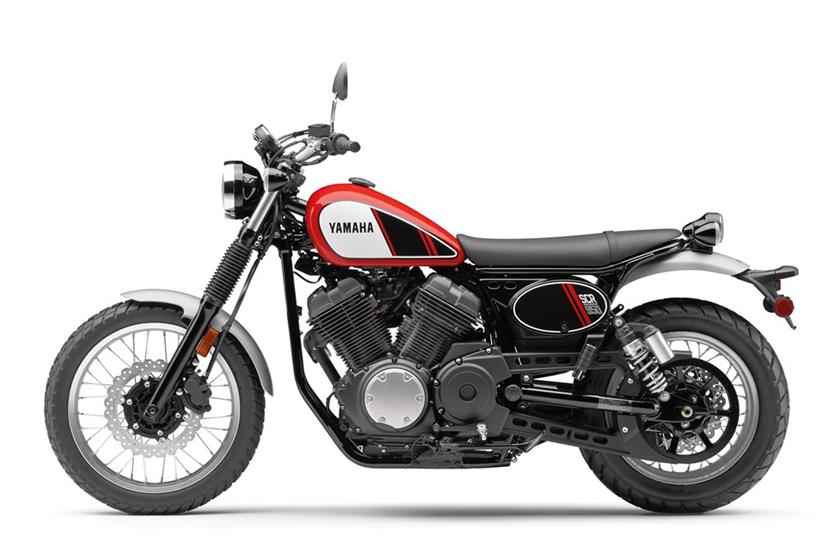

2017 Yamaha SCR950 Scrambler (6)

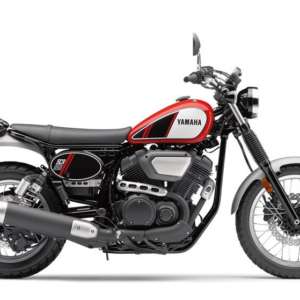

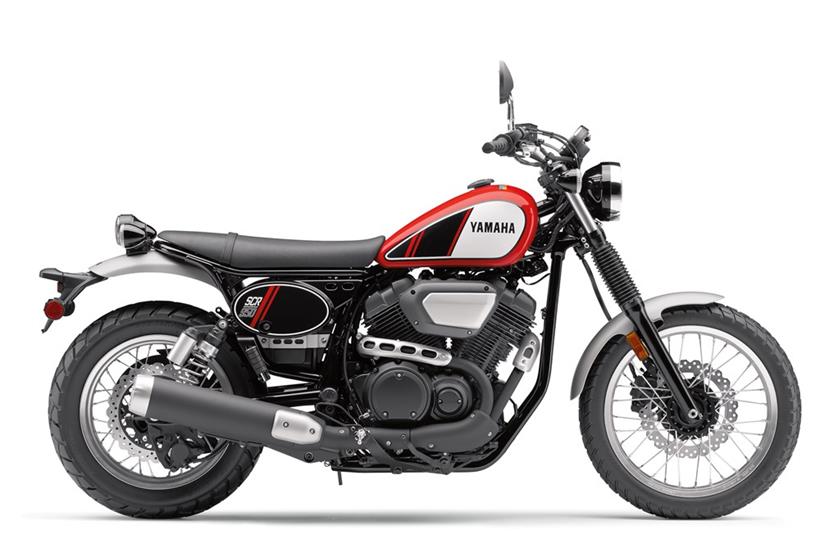

2017 Yamaha SCR950 Scrambler (5)

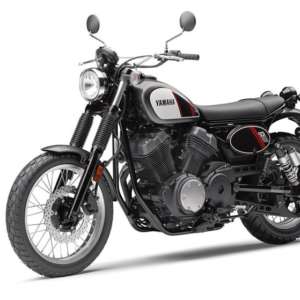

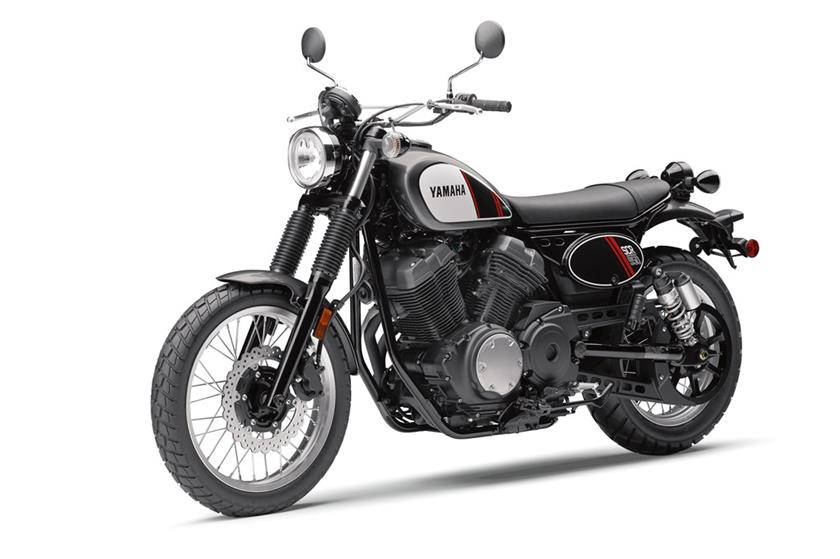

2017 Yamaha SCR950 Scrambler (4)

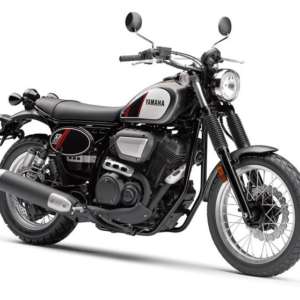

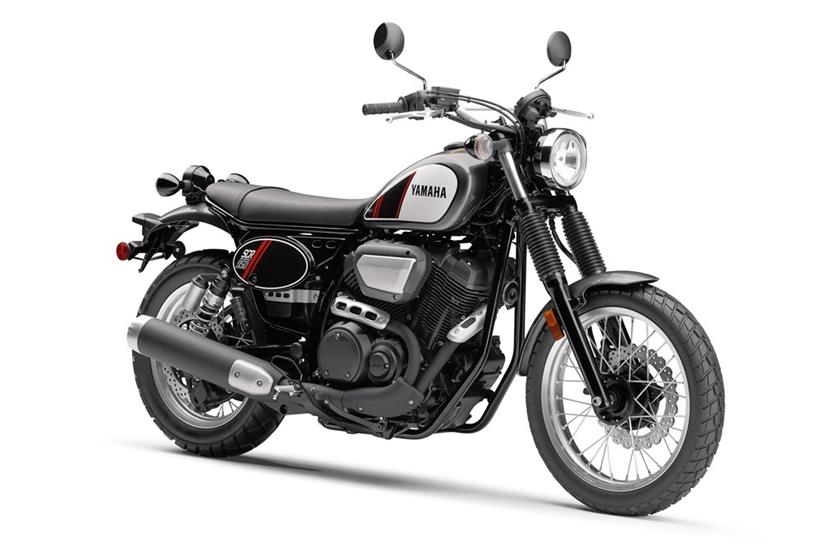

2017 Yamaha SCR950 Scrambler (3)

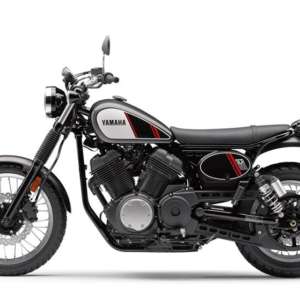

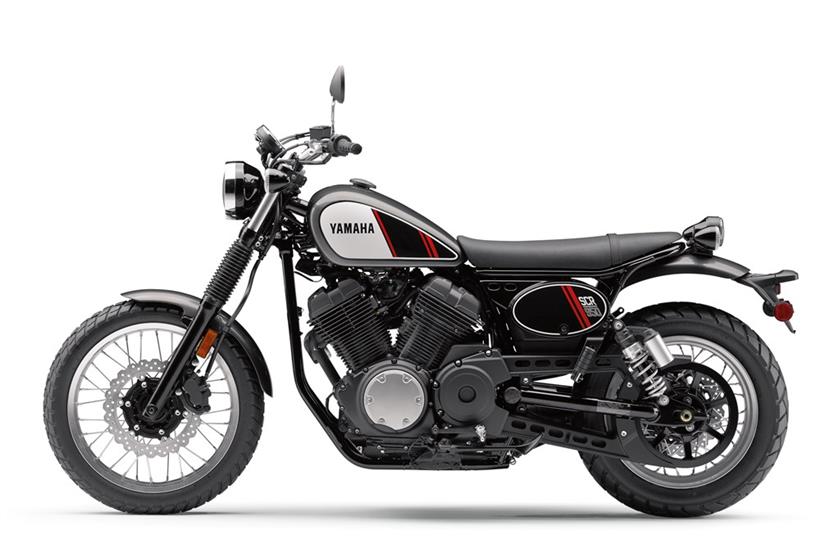

2017 Yamaha SCR950 Scrambler (2)

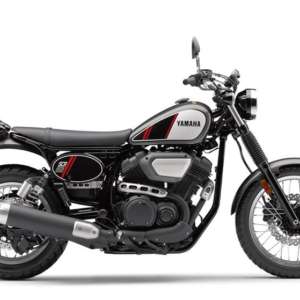

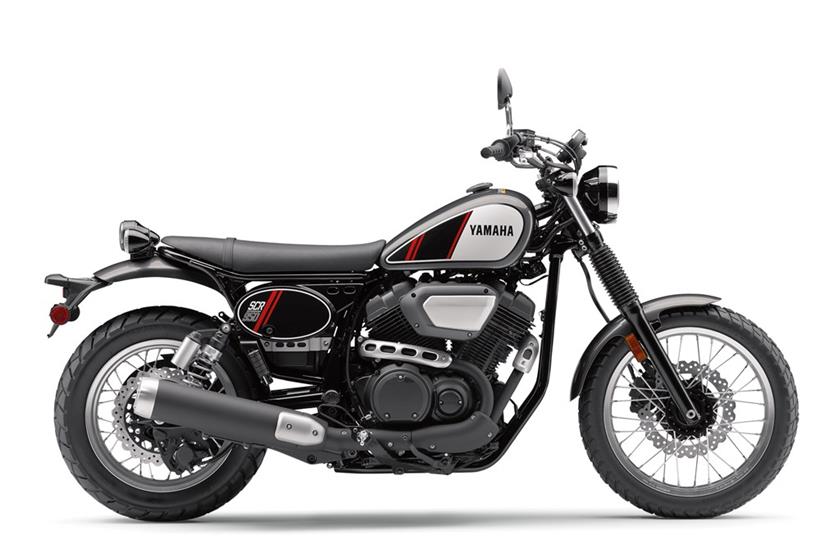

2017 Yamaha SCR950 Scrambler (1)

Technical Specifications

Engine
Engine Type58-cubic-inch (942cc) air-cooled SOHC 4-stroke V-twin; 4 valves
Bore x Stroke85.0mm x 83.0mm
Compression Ratio9.0:1
Fuel DeliveryFuel injection
IgnitionTCI: Transistor Controlled Ignition
Transmission5-speed; multiplate wet clutch
Final DriveBelt
Chassis
Suspension / FrontTelescopic fork, 4.7-in travel
Suspension / RearDual piggyback shocks, 2.8-in travel
Brakes / FrontWave-type disc, 298mm
Brakes / RearWave-type disc, 298mm
Tires / Front100/90-19
Tires / Rear140/80R17
Dimensions
L x W x H88.6 in x 35.2 in x 45.9 in

(2250 mm x 894 mm x 1165mm)

Seat Height32.7 in (830 mm)
Wheelbase62.0 in (1574 mm)
Rake (Caster Angle)28.4°
Trail5.1 in (129 mm)
Ground Clearance5.5 in (139 mm)
Fuel Capacity3.2 gal (12 litres)
Wet Weight547 lb (248 kg)
, ,
