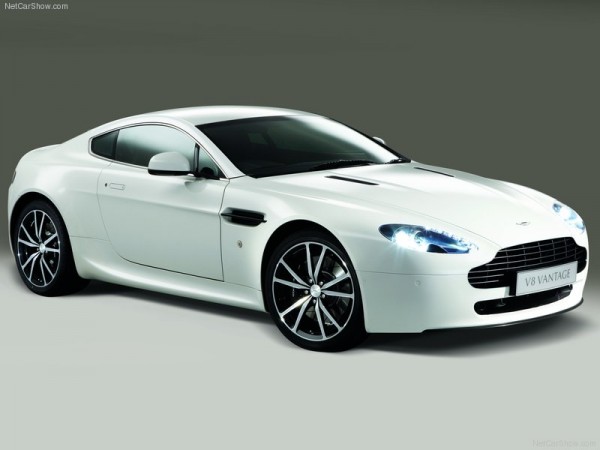

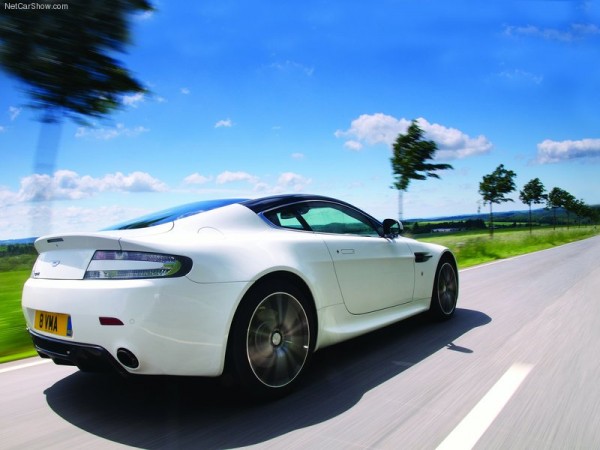

V8 Vantage
Specifications
Body
Two seat, two door coupe or soft cover convertible top body style
Bonded aluminium structure
Aluminium, magnesium alloy, composite and steel body
Extruded aluminium door side impact beams
Halogen projector headlamps (main beam)
High Intensity Discharge headlamps (dipped beam)
LED rear lamps
Engine
All alloy quad overhead cam 32 valve 4735cc V8.
Front mid-mounted engine, rear wheel drive
Fully catalysed stainless steel exhaust system with active bypass valves.
Maximum Power
420 bhp (313 kW / 426 PS)
Maximum Torque
470 Nm (346 lb.ft)
Acceleration
0-60 mph in 4.7 seconds
0-62 mph (100 km/h) in 4.9 seconds
Maximum Speed
180 mph (290 km/h)
Transmission
Rear mid-mounted six speed manual gearbox. Alloy torque tube with carbon fibre propeller shaft. Limited slip differential. Final Drive Ratio 3.909:1
Steering
Rack and pinion, power-assisted steering, 3.0 turns lock-to-lock. Column tilt and reach adjustment.
Suspension
Front: Independent double wishbone incorporating anti-dive geometry, coil springs, anti-roll bar and monotube dampers
Rear: Independent double wishbones with anti- squat and anti-lift geometry, coil springs, anti-roll bar and monotube dampers
Wheels
Front: 8.5J x 19”
Rear: 9.5J x 19”
Tyres
Bridgestone Potenza
Front: 235/40 ZR19
Rear: 275/35 ZR19
Brakes
Front: Ventilated and grooved steel discs, 355 mm diameter
Rear: Ventilated and grooved steel discs, 330 mm diameter
Dynamic Stability Control (DSC)
Anti-lock braking system (ABS)
Electronic Brakeforce Distribution (EBD)
Emergency Brake Assist (EBA)
Traction Control
Positive Torque Control
Dimensions
Length: 4380mm (172.5 in)
Width: 1865mm (73.5 in) (excluding mirrors)
2025 mm (80 in) (including mirrors)
Height (Coupe): 1255 mm (49.5 in)
Height (Roadster): 1265 mm (50 in)
Wheelbase: 2600 mm (102.5 in)
Front track: 1570 mm (62.0 in)
Rear track: 1560 mm (61.5 in)
Turning circle (kerb to kerb): 11.1m (36.5 ft)
Boot capacity (Coupe): 300 litres (10.6 cu.ft)
Boot capacity (Roadster): 144 litres (5.0 cu.ft)
Fuel tank capacity: 80 litres (17.6 UK Gal / 21.1 US Gal)
Weight (Coupe): 1630 kg (3595 lb)
Weight (Roadster): 1710 kg (3770 lb)
Interior
Full grain leather interior
Alcantara headlining
Alloy facia trim and Graphite centre console finish
Sports seats with 10-way electric adjustment
Dual stage driver and passenger front airbags
Side airbags (sports seats only)
Heated rear screen
Automatic temperature control
Organic Electroluminescent (OEL) displays
Trip computer
Glass ECU
LED map reading lights
Rear parking sensors
Powerfold exterior mirrors
Tyre pressure monitoring*1
Alarm and immobiliser
Remote-control central door locking and boot release
Tracking device (Standard in the UK only)
In Car Entertainment
160W Aston Martin audio system with six-CD autochanger
Integrated Apple iPod*4 connector
USB connectors with Waveform Audio Format (WAF), Windows Media Player (WMA) and MPEG (MP3) audio file compatibility
Options
Sportshift*3 automated manual transmission
20 Spoke Alloy wheels with Diamond Turned Finish
20 Spoke Alloy wheels with Diamond Turned Finish and Graphite Finish
10 Spoke Forged Alloy wheels with Diamond Turned and Silver Finish
Sports Pack with 5 Spoke Forged Alloy wheels with Diamond Turned and Silver Finish
Sports Pack with 10 Spoke Forged Alloy wheels with Diamond Turned and Graphite Finish
N400 Sill Design
Magnum Silver bonnet and side strake meshes
Clear Rear Lamps
Auto dimming interior rear view mirror*1
Auto dimming interior rear view mirror with garage door opener
Alarm upgrade (volumetric and tilt sensor)
Memory seats and exterior mirrors (3 positions)
Heated seats
Lightweight seats with six-way adjustment (Does not include side airbags. Not available in USA or Canada)
Perforated leather seat inserts
Microspin Alloy Facia Trim
Iridium Interior with Piano Black Facia Trim
Iridium Interior with Prism Alloy Facia Trim
Piano Black facia trim
Polished Alloy Tread Plates
Personalised sill plaques
Front parking sensors
Tracking device*2
First aid kit
Smokers’ pack
Cruise control
Bluetooth telephone preparation
Boot mounted umbrella
Hard Disk Drive (HDD) satellite navigation system*1
Satellite Radio system (USA only)
700W Aston Martin Premium Audio System with Dolby® Pro Logic II®
1000W Bang & Olufsen Beosound Audio System
