Check out the new Honda CBR250RR in 360-degree


Honda CBR250RR - Official Images - 3

After creating quite some buzz in its concept form, the production spec Honda CBR250RR finally broke cover on July 25, 2016. The CBR250RR is not a replacement to the CBR250R and we’d probably never get this motorcycle in the Indian market. But the new CBR250RR is so appealing that we just can’t seem to get enough of it. While we may not meet the CBR250RR in the real world anytime soon, we got a chance to admire the motorcycle in the virtual world. PT Astra Honda, the principle dealer for Honda in Indonesia, recently updated its page with a 360-degree image of the new CBR250RR which lets you have an upclose look at the motorcycle.


Check out the 360-degree image on Astra Honda’s official website

The futuristic CBR250RR concept which was showcased at the 2015 Tokyo Motor Show was impressive and the production spec model was equally appealing. From the futuristic headlight to the minimal, twin-pod tail lamp, the new CBR250RR will most probably give other quarter-litre motorcycles some sleepless nights. It’s not just the aesthetics that make the CBR250RR so special. The motorcycle carries some serious hardware such as upside down telescopic fork upfront and Pro-link suspension featuring 5-step preload for the rear, Throttle-By-Wire and selectable engine modes.

Don’t Miss –  All-new Honda CBR250RR revealed : Details, Images and Walk Around Video

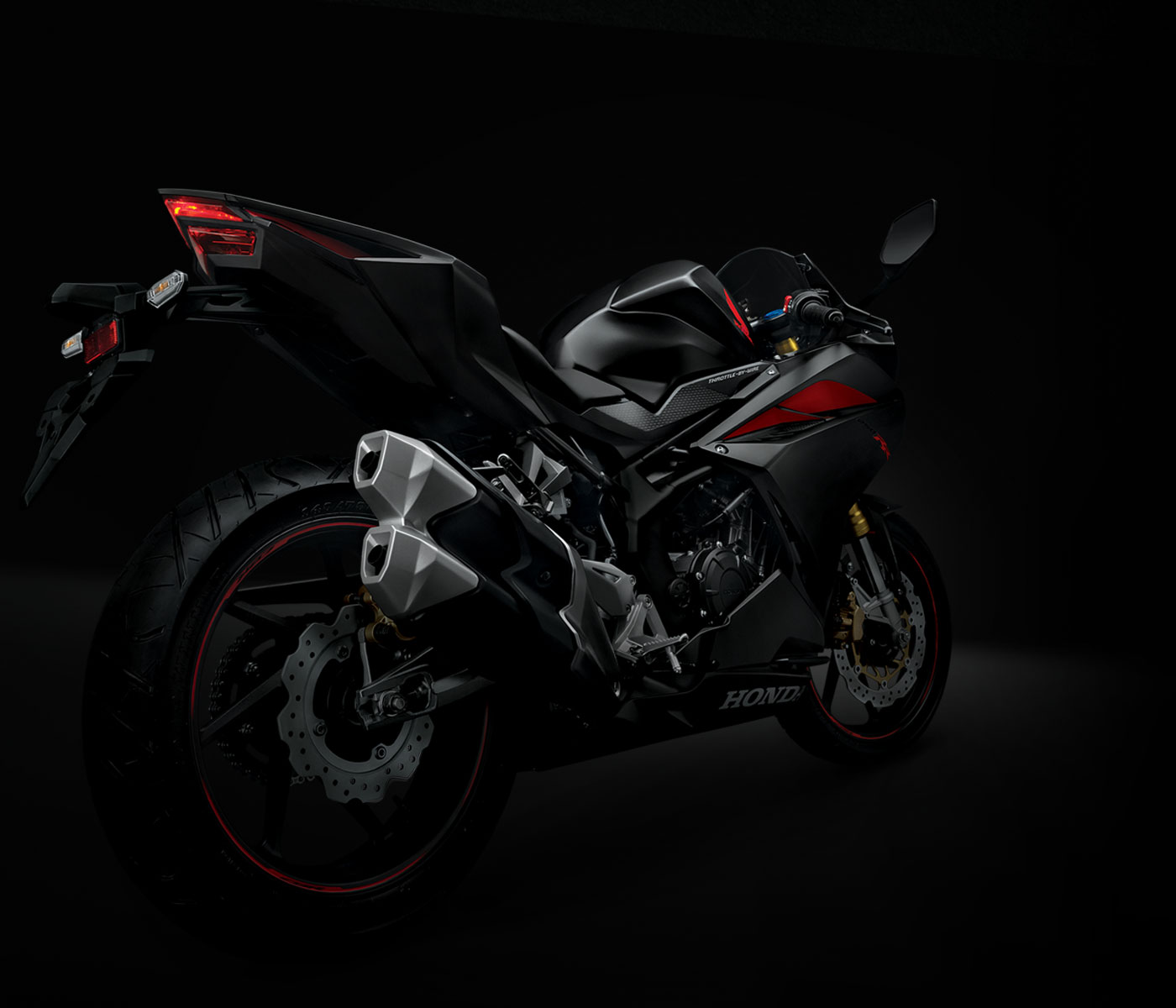

Honda CBR250RR - Rear Three Quarter

Honda still hasn’t revealed the performance numbers. The motorcycle draws power from a 249.7cc 4-stroke, 8-valve, liquid cooled parallel twin cylinder engine. The engine is expected to deliver around 35 bhp of power which is in the range of what the current breed of quarter-litres from Japan are delivering.

Here are the technical specifications of the CBR250RR followed by an image gallery. Do let us know your thoughts about the motorcycle through the comments section below.

Displacement249.7 cc
Type4-Stroke, 8-Valve, Parallel Twin Cylinder
Cooling SystemLiquid Cooled With Auto Electric Fan
Bore x Stroke62.0 x 41.4 mm
Compression Ratio11.5: 1
TransmissionManual, 6 Speed (1-N-2-3-4-5-6)
ClutchMultiplate Wet Clutch with Coil Spring
Fuel InjectionPGM-FI
Throttle SystemThrottle-By-Wire System with Accelerator Position Sensor
Length x Width x Height2,060 x 724 x 1,098 mm
Wheelbase1,389 mm
Seat Height790 mm
Ground Clearance145 mm
Fuel Tank Capacity14.5 litre
Oil Capacity1.9 litre
Frame, Brake and Suspension
FrameSteel pipe truss frame
Brakes (Front)310 mm Hydraulic Disc, Dual Piston (STD Type & ABS Type)
Brakes (Rear)240 mm Hydraulic Disc, Single Piston (STD Type & ABS Type)
Front suspensionInverted Telescopic Front Suspension
Rear suspensionAluminum Swing Arm (5 Adjustable Mono Suspension with Pro-Link System)
Tyre Size
Front Tyre110/70 – 17 54S (Tubeless)
Rear Tyre140/70 – 17 66S (Tubeless)

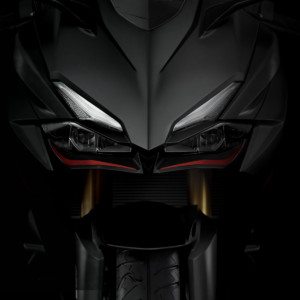

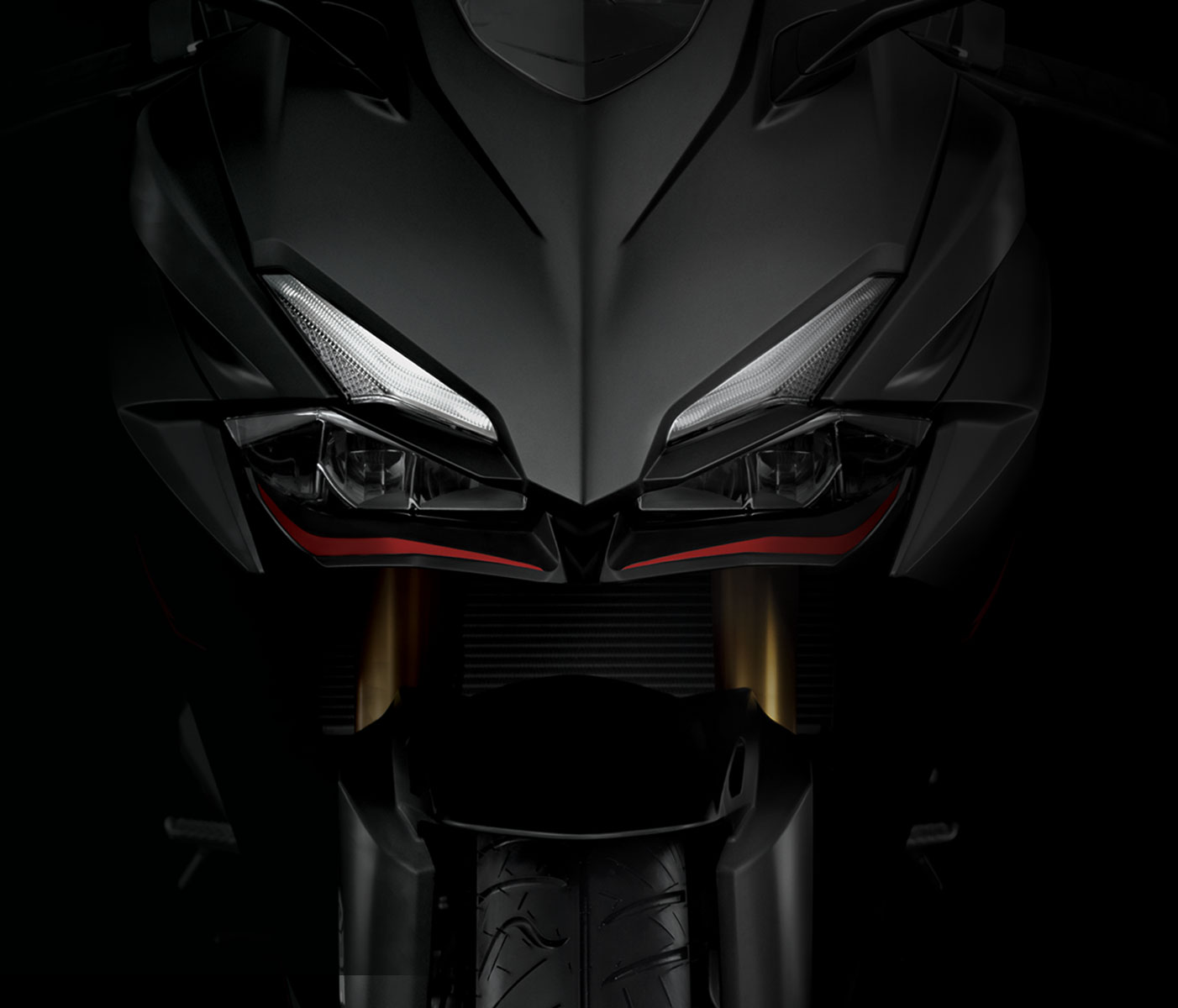

Honda CBR250RR – Headlight – PT-AHonda

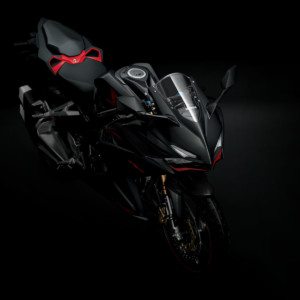

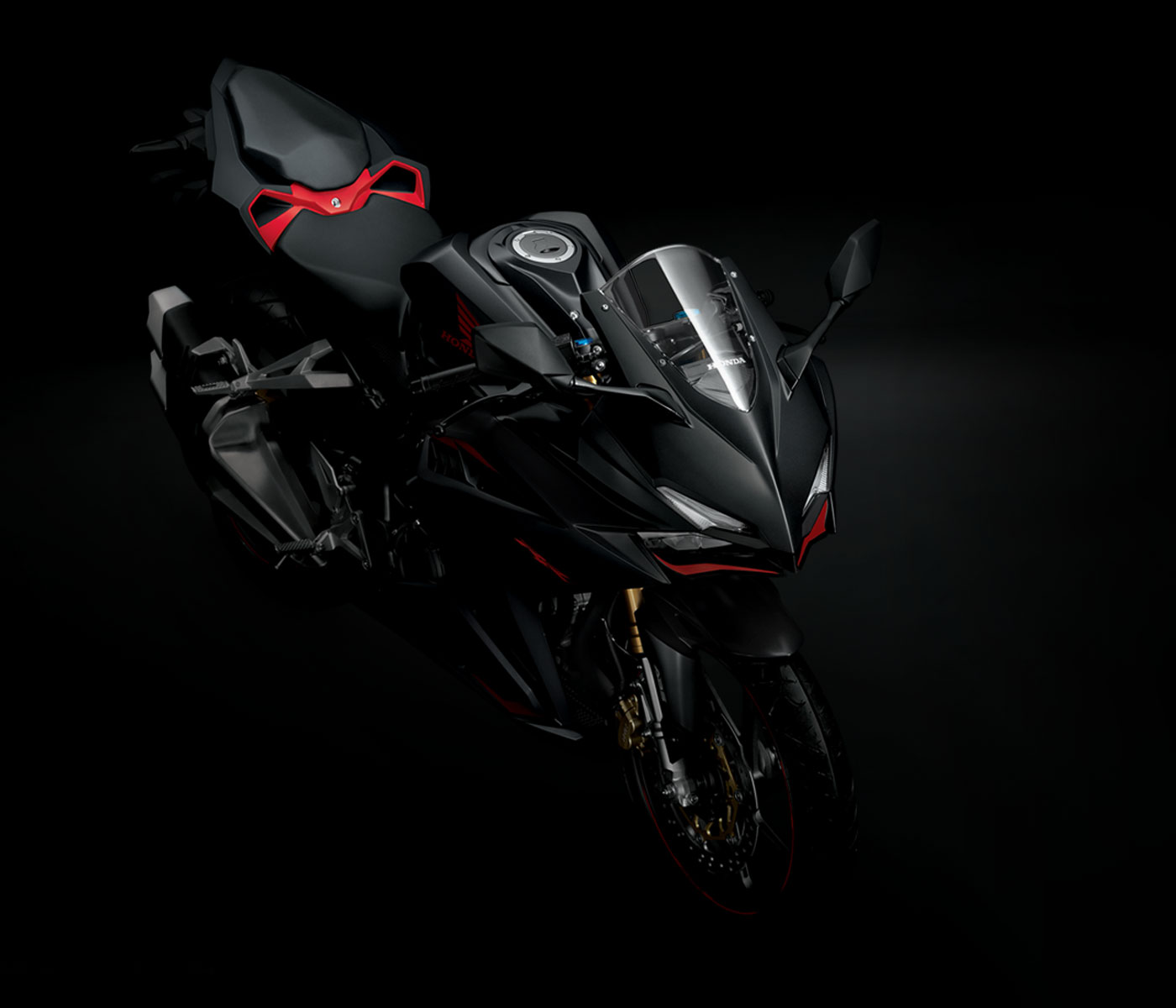

Honda CBR250RR – Front Three Quarter

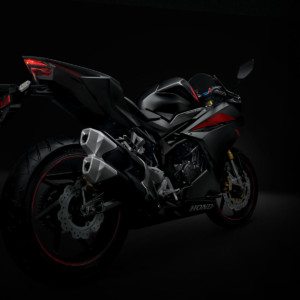

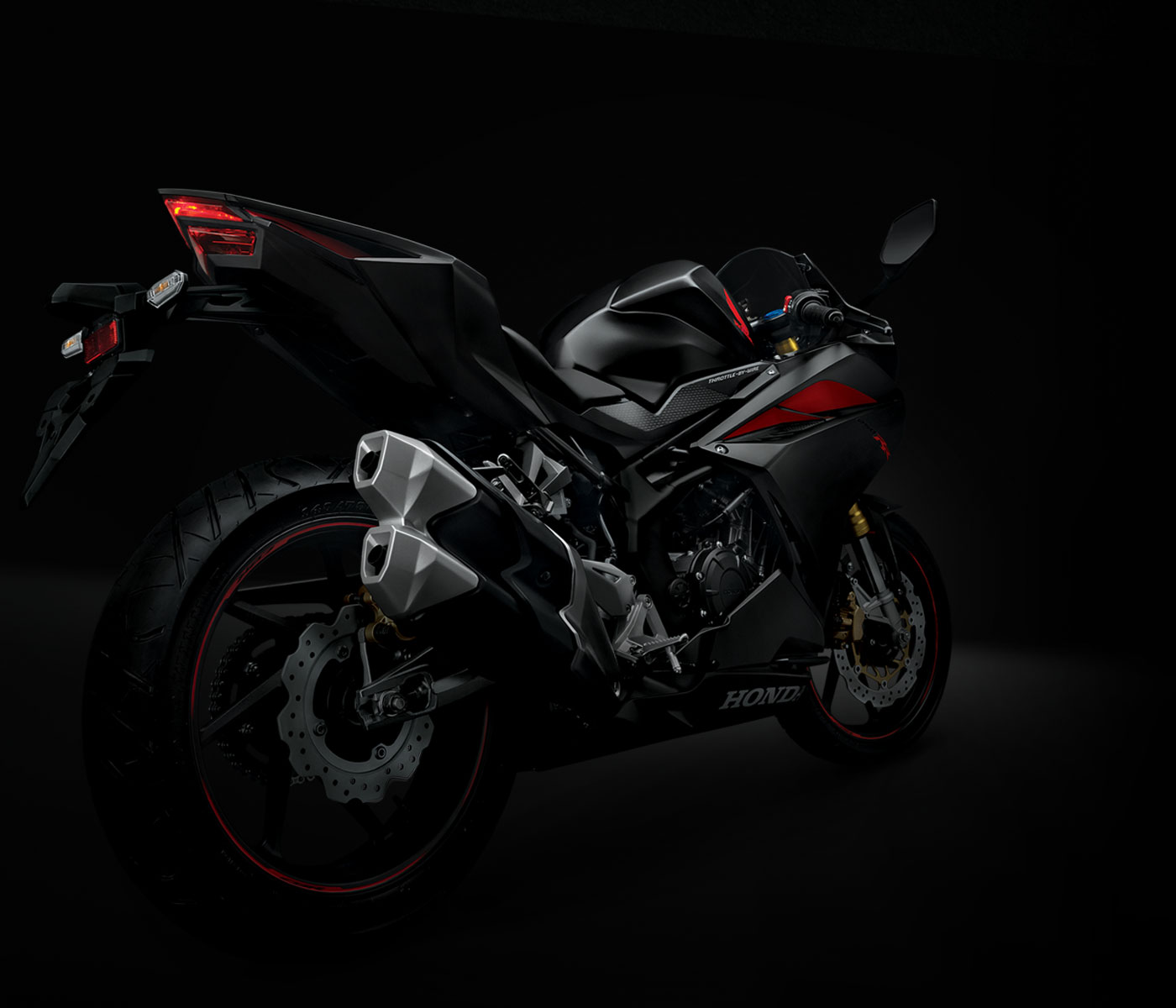

Honda CBR250RR – Rear Three Quarter
Honda CBR250RR – Official Images – 3
Honda CBR250RR – Official Images – 2
Honda CBR250RR – Official Images – 1
Honda CBR250RR – Tail Light
Honda CBR250RR – Instrument Cluster

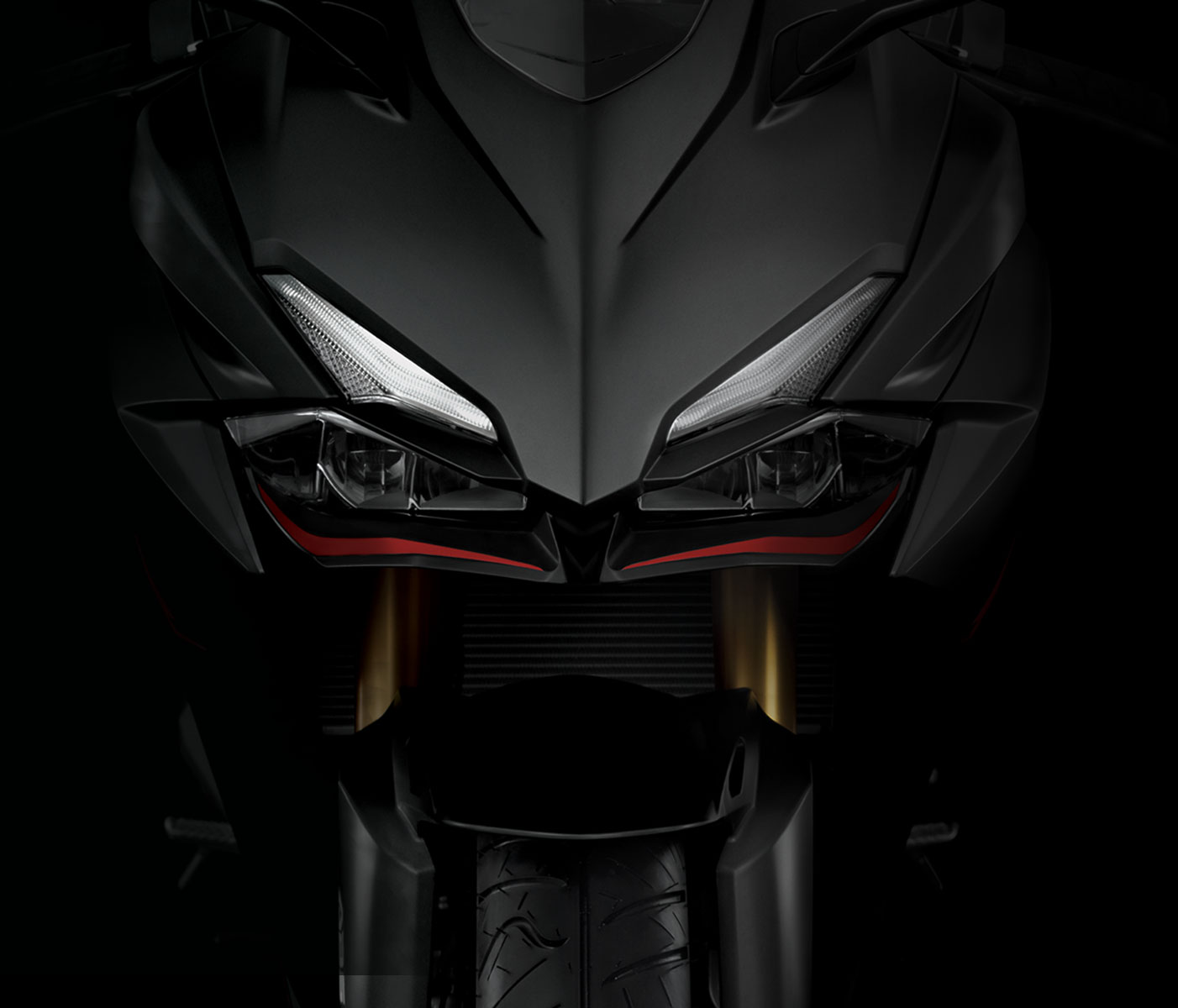

Honda CBR250RR – Headlight
Honda CBR250RR – Headlight – Rear Panel
Honda CBR250RR – Headlight – 1
Honda CBR250RR – Front
