Making of the Lamborghini Huracan: We Visit Raging Bull’s Sant’ Agata Plant

Let’s go step by step through the production line of the brand new Lamborghini Huracan:

Station1

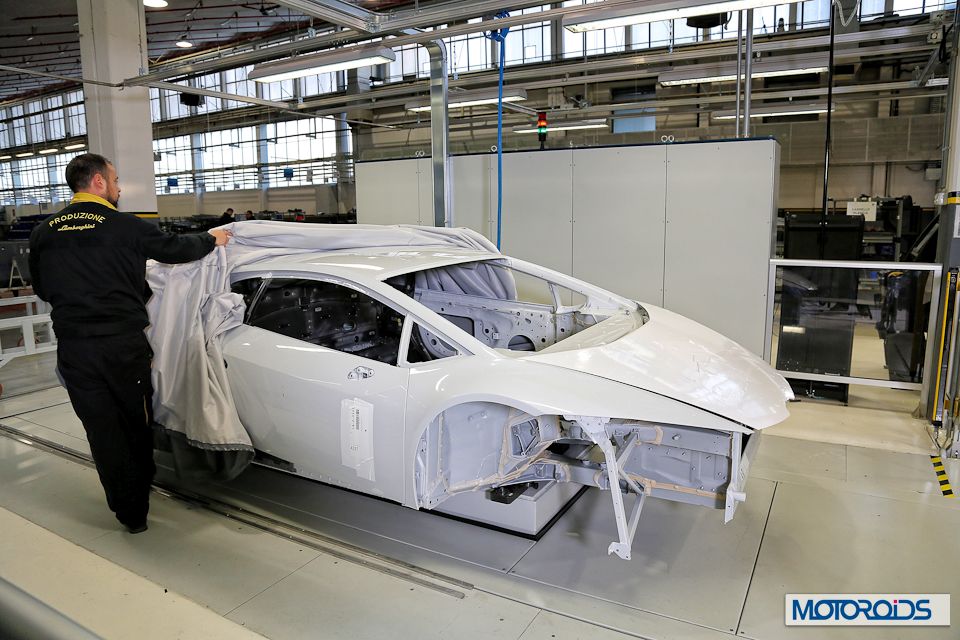

Station 1: The body is already painted by external supplier. It gets posed on an automatic, hydraulic base to “travel” on it all the way till the end of the line. Plastic covers arefitted on the painted body for avoiding any damage during the process.

Station2

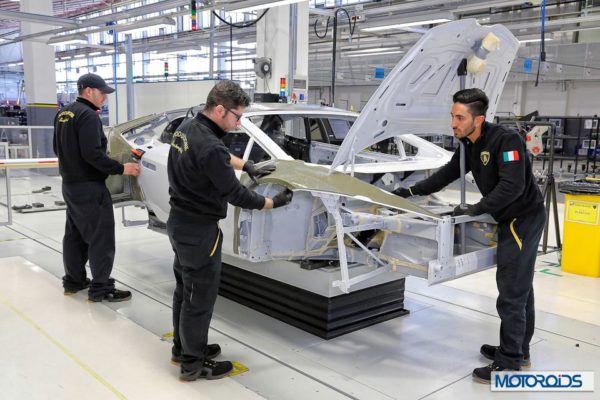

Station 2: Various mechanical parts are assembled.

Station3

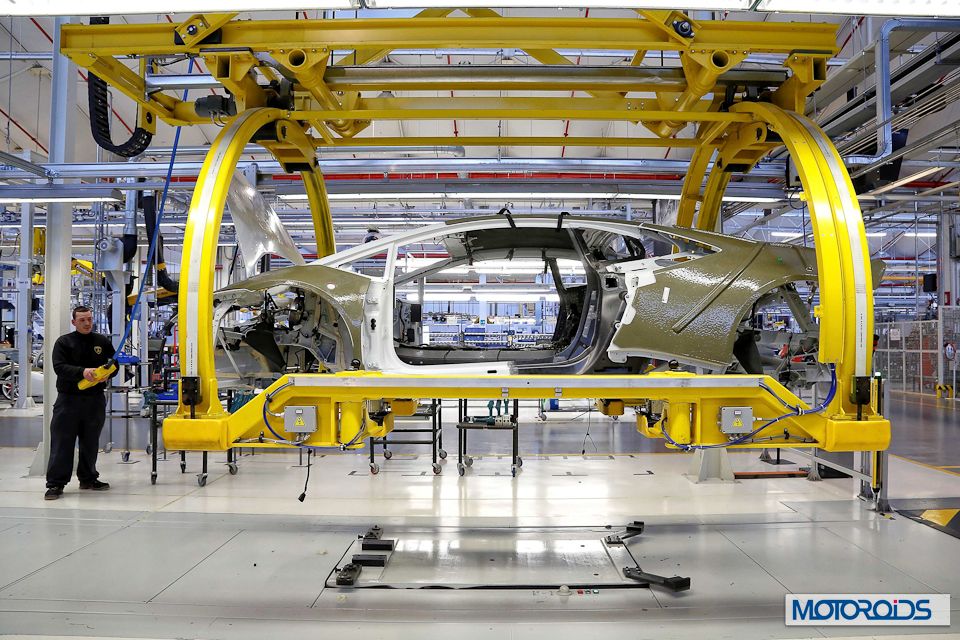

Station 3: The body is fitted in a rotating yellow frame for the brake pedal and a/c circuit assembly.

Station4

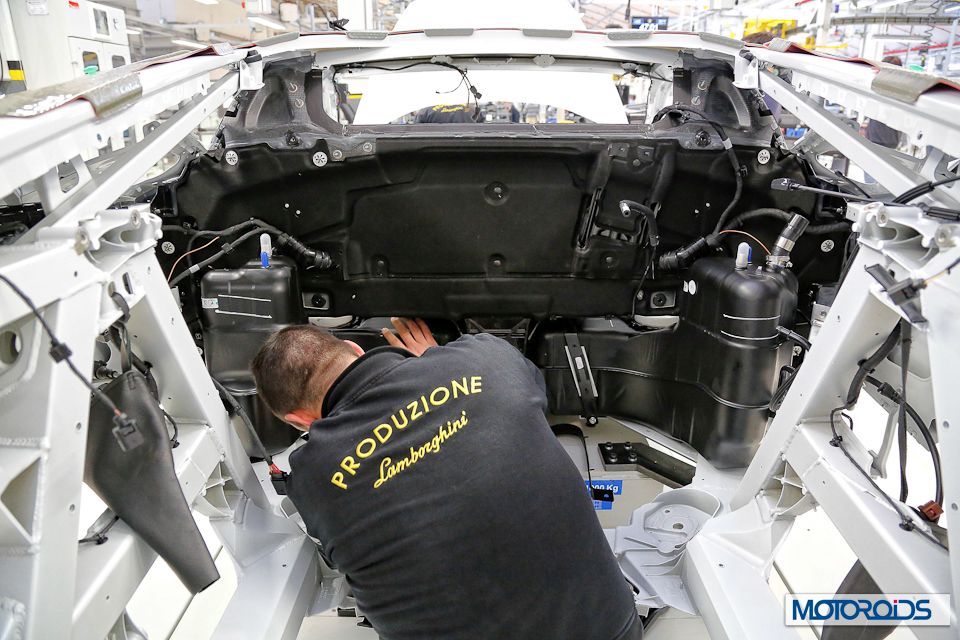

Station 4: Steering wheel and the two fuel tanks are assembled.

Station5

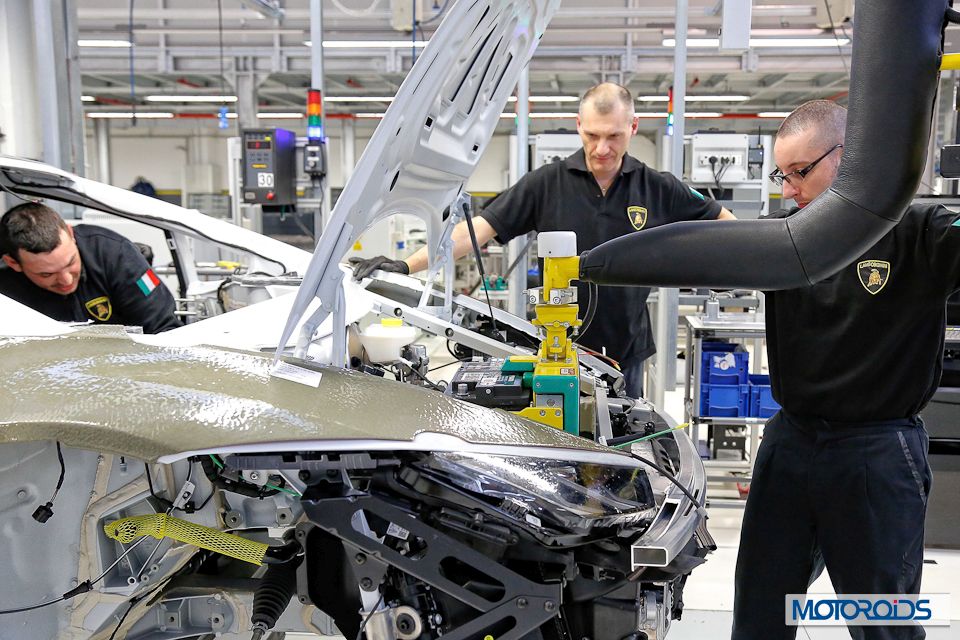

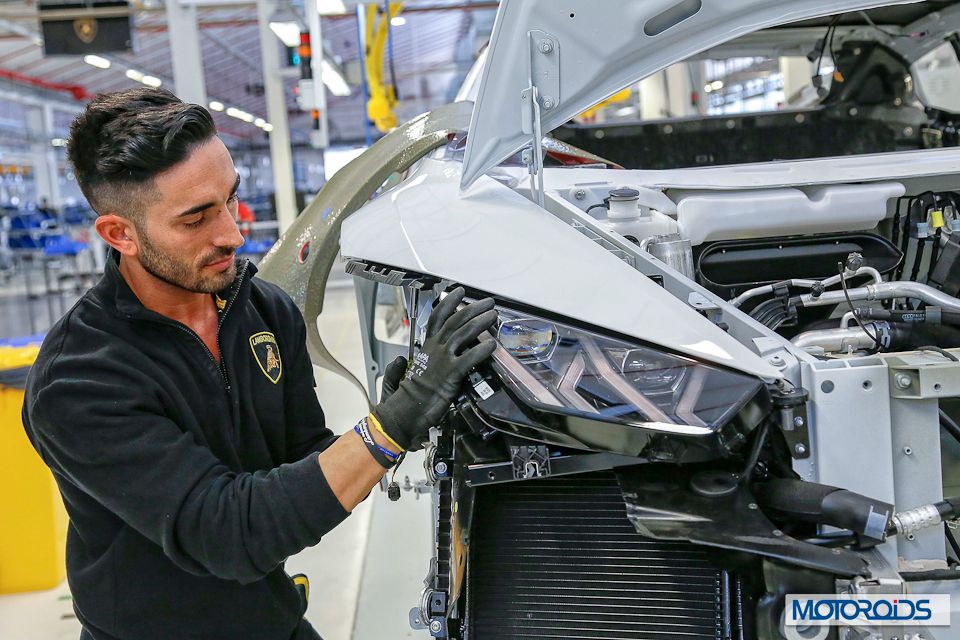

Station 5: Front LED lights assembly

Station6

Station6: Battery is fitted and the cabin is getting prepared for further assembly.

Station7

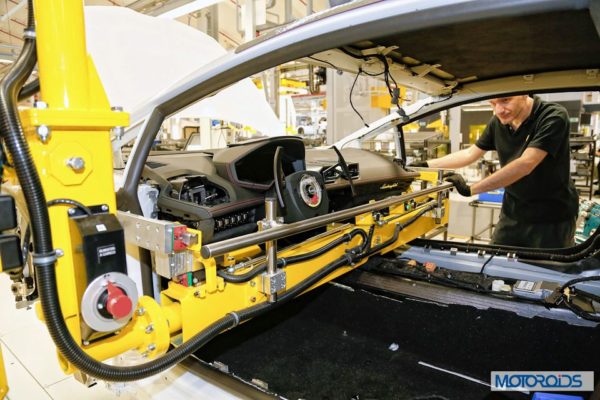

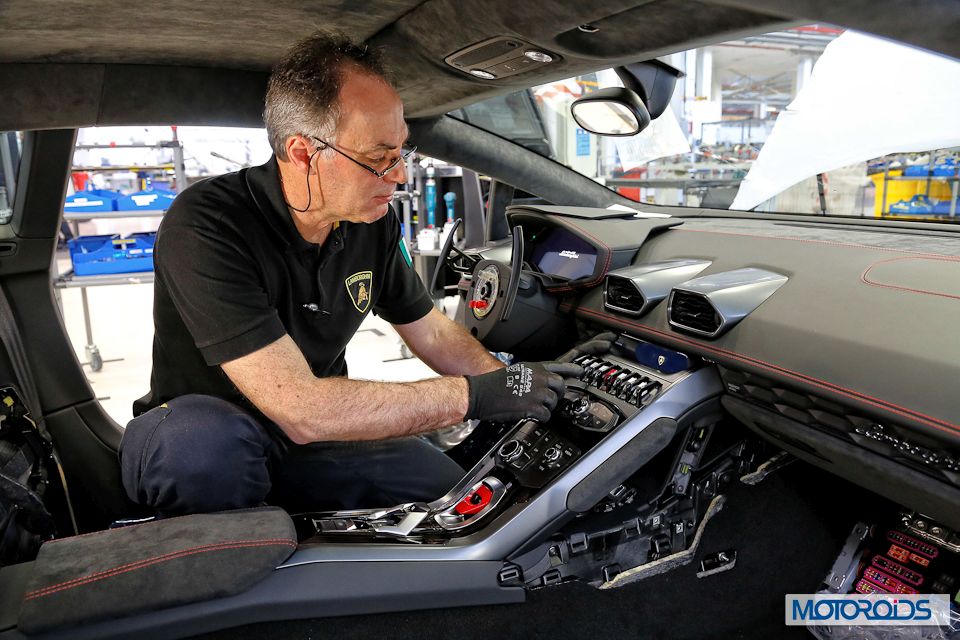

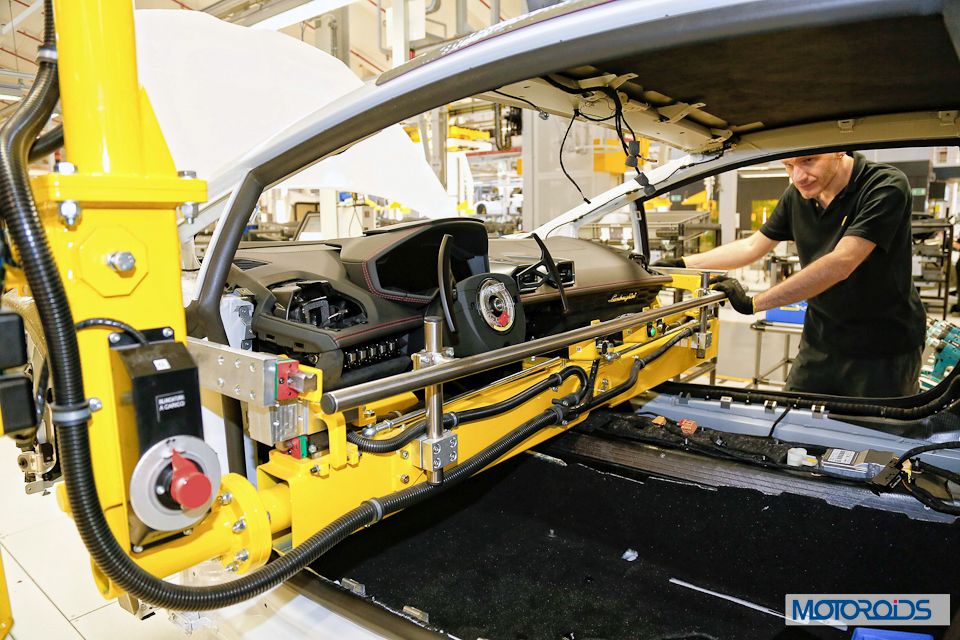

Station 7: The dashboard is assembled with different cable connections behind it.

Station8

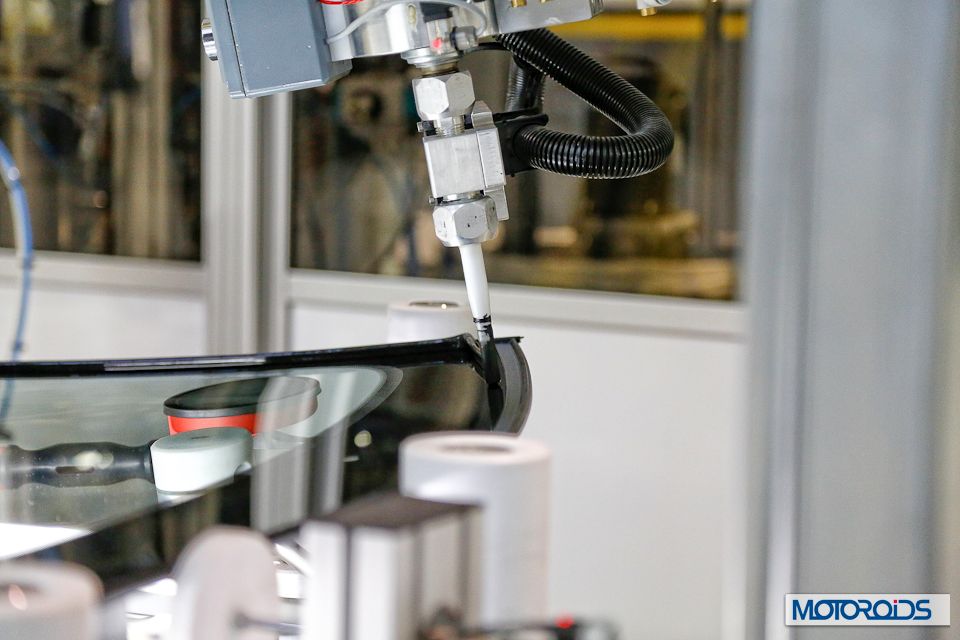

Station 8: The glue for the windshield is applied by a robotised arm.

Station 9: Engine oil radiator is fitted.

Station10

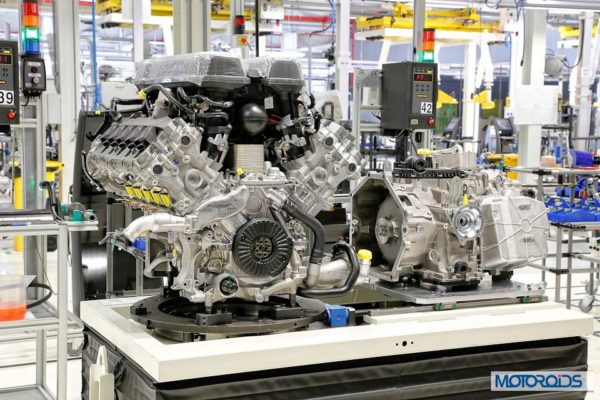

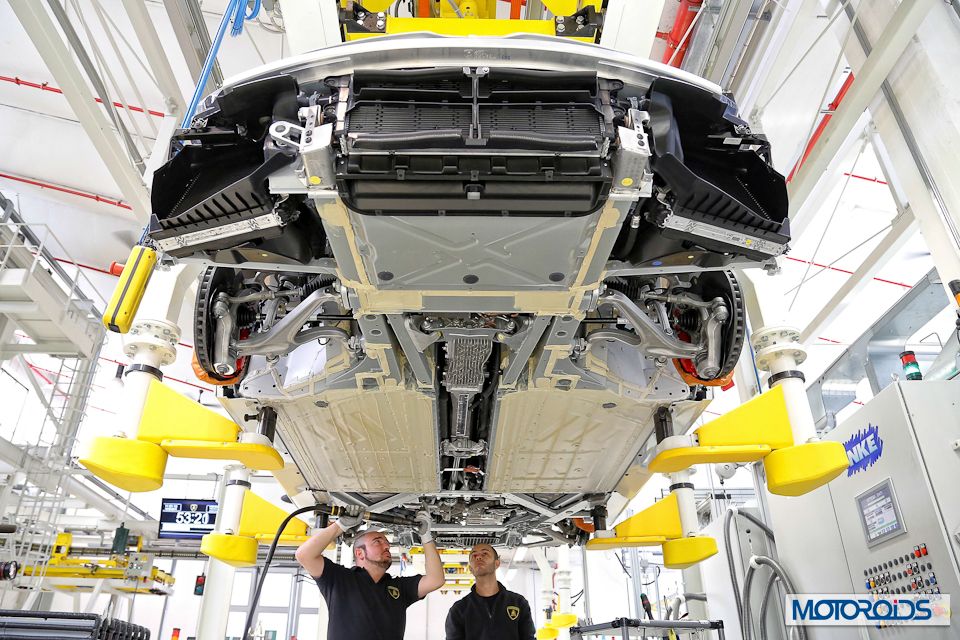

Station 10: This is probably the most spectacular station of all. It is time for the engine – transmission to be fitted in the body. The process is handmade and needs extreme precision by the operator for not provoking any damage to the car body.

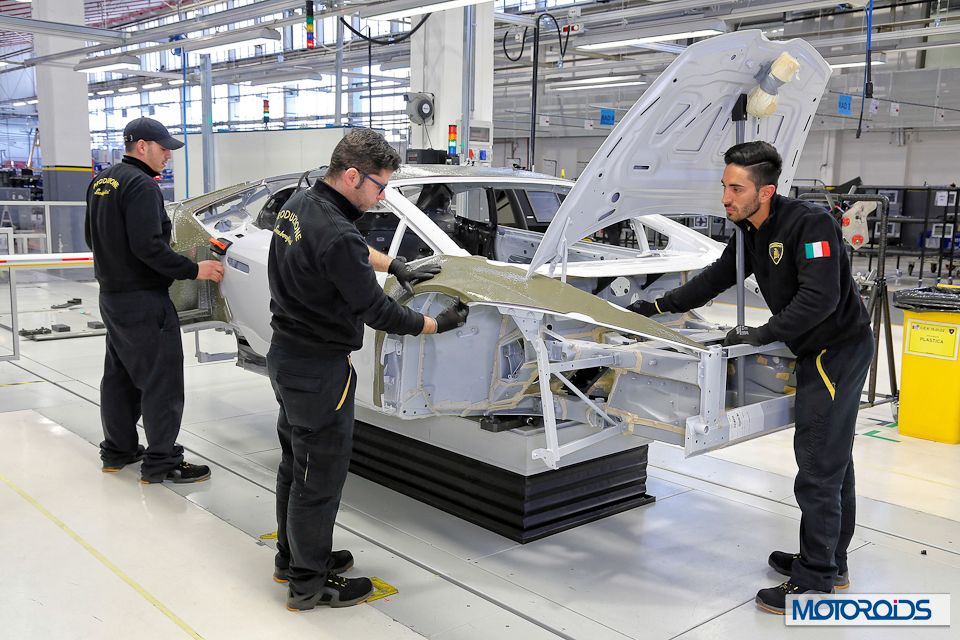

Station 11: Body side panels are assembled.

Station12

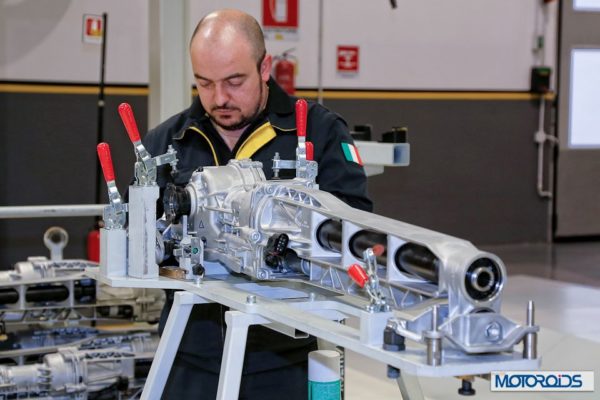

Station 12: Front differential and main transmission axle assembly.

Station13

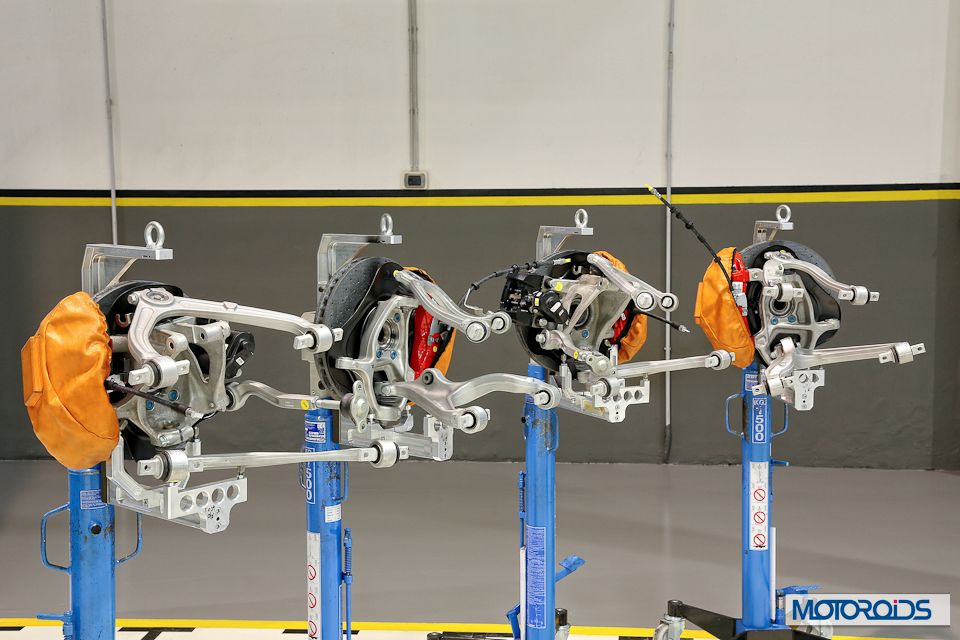

Station 13: Suspension and brakes assembly.

Station14

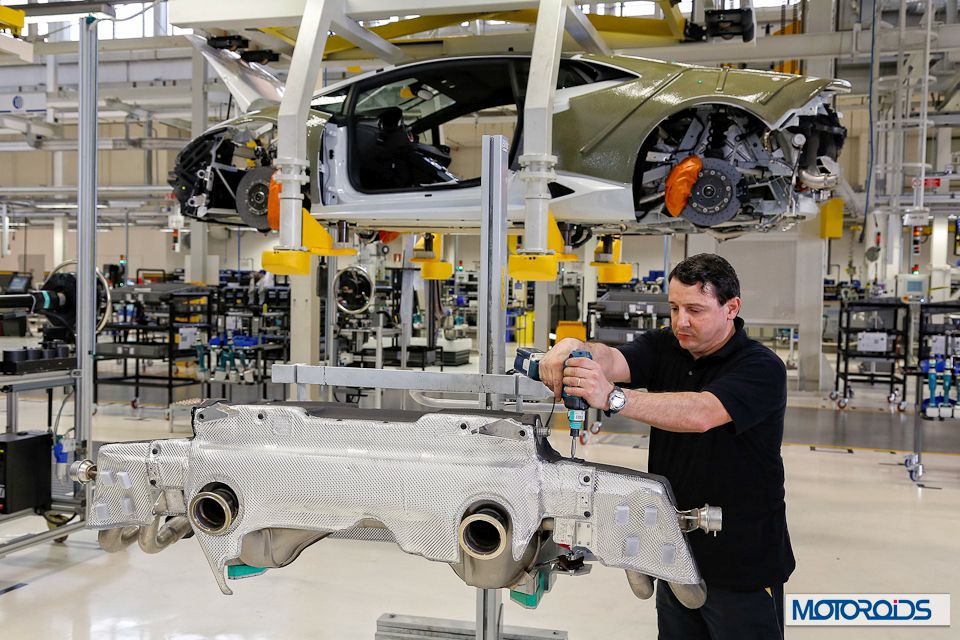

Station 14: Exhaust assembly.

Station15

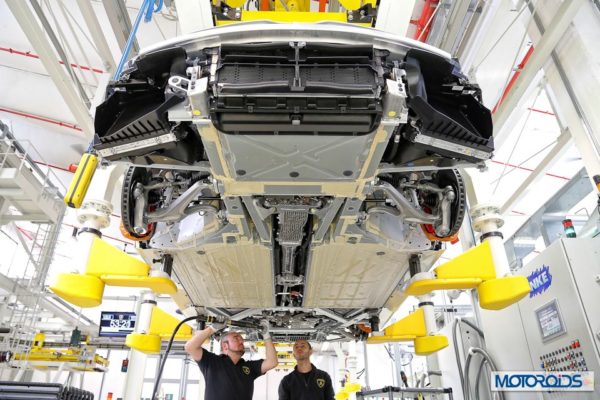

Station 15: An automatic refill system for engine and transmission lubricants, brake and steering funds, is assembled.

Station16

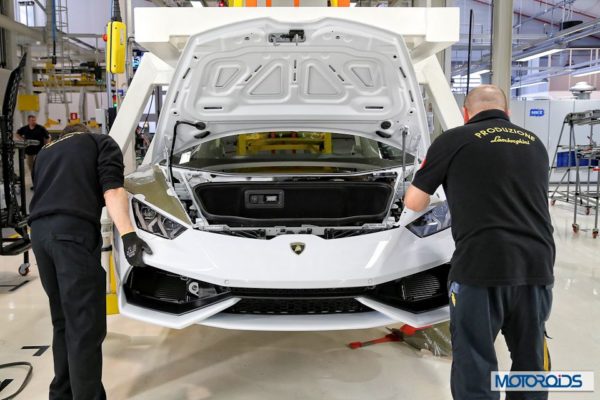

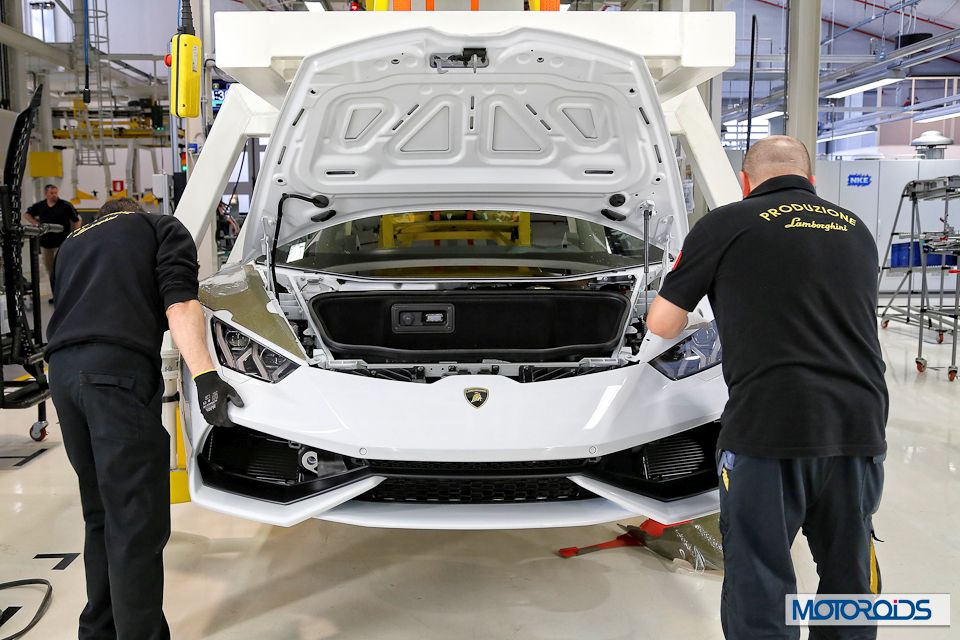

Station 16: bumpers and rear lights are assembled.

Station17

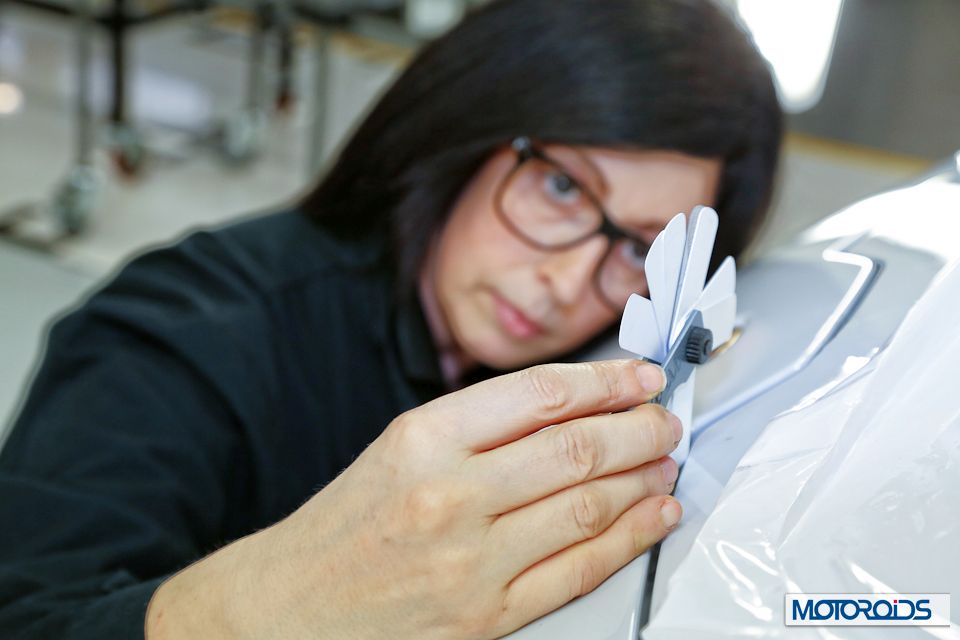

Station 17: on this station takes place the first quality control check on the surface of the car. Technical quality checks start from the second station in the assembly line.

Station18

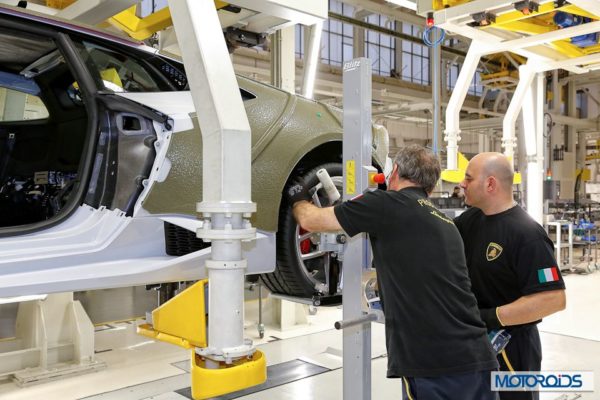

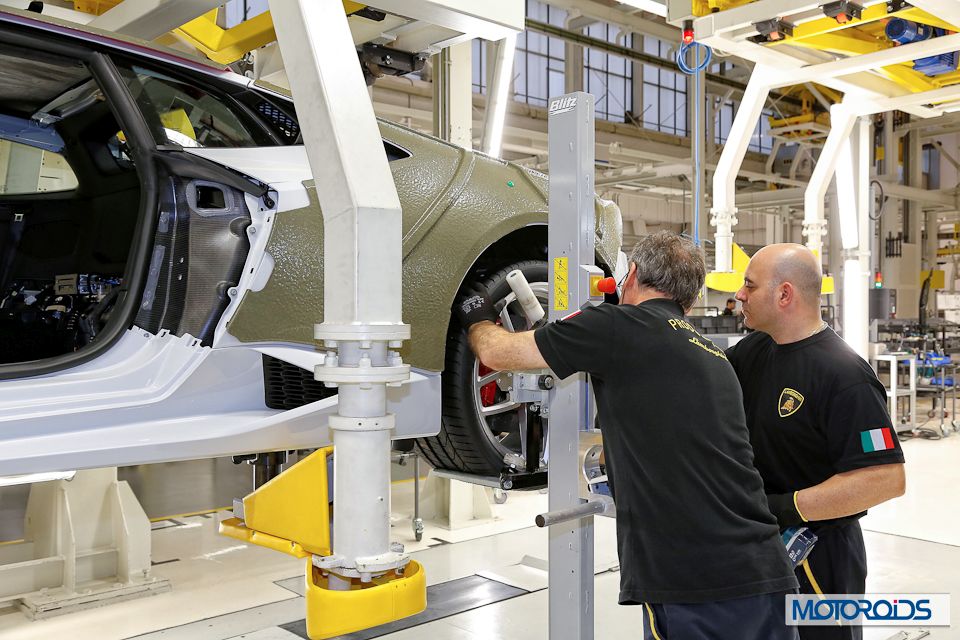

Station 18: Wheels and tyres are assembled.

Station19

Station 19: Engine cover and air filters (for engine and a/c) are assembled.

Station20

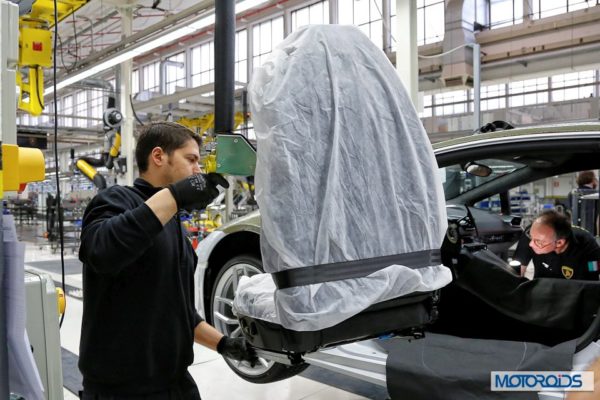

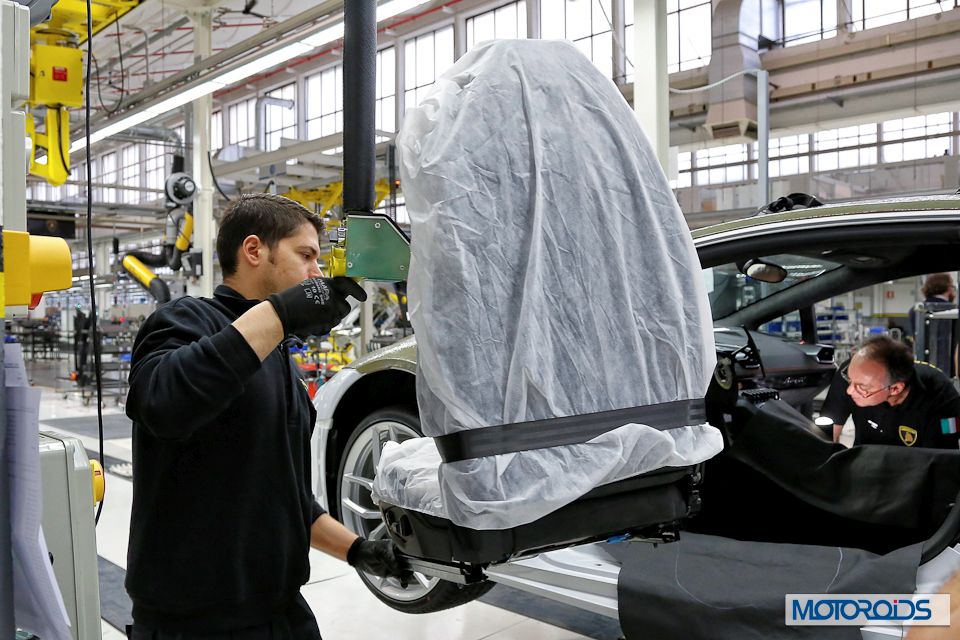

Station 20: Front bonnet and seats are assembled.

Station21

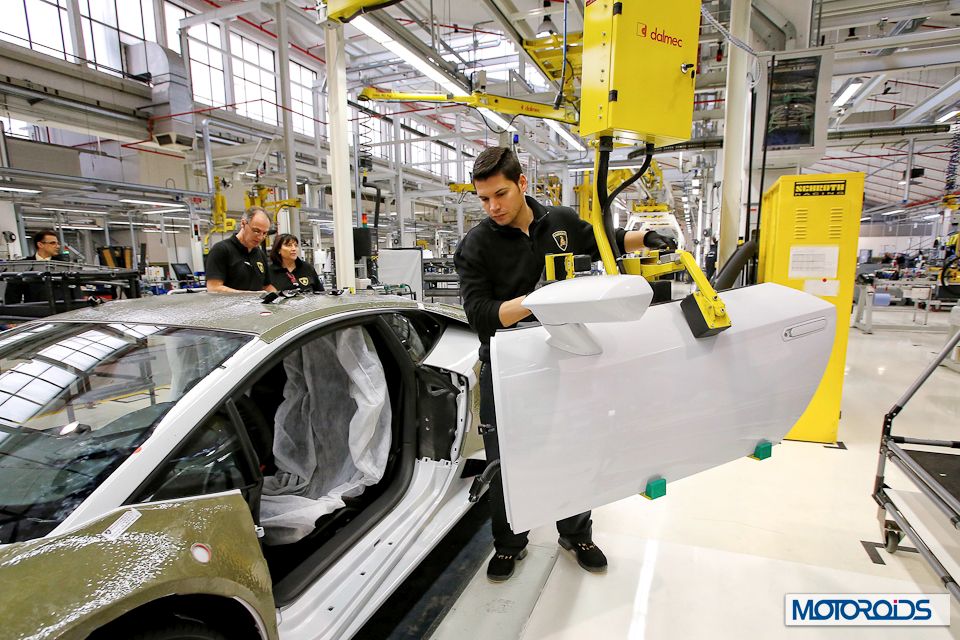

Station 21: doors are assembled. The doors are predetermined for every single body from the beginning of the process.

Station22

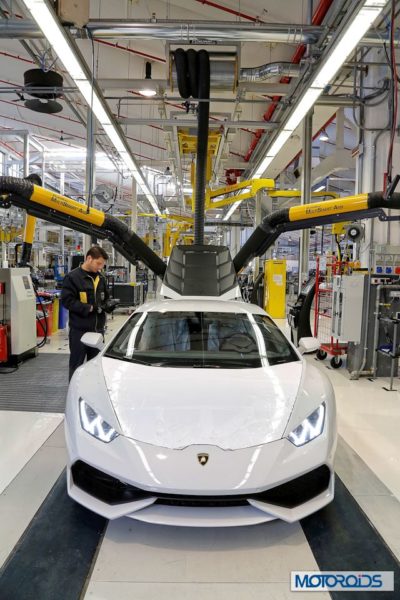

Station 22: Full electronic check. The V10 engine starts for the very first time.

Station23

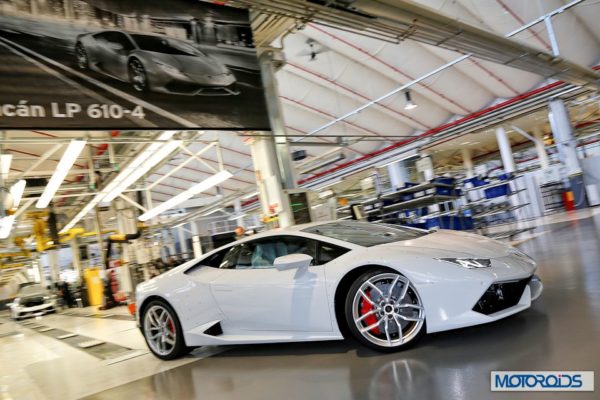

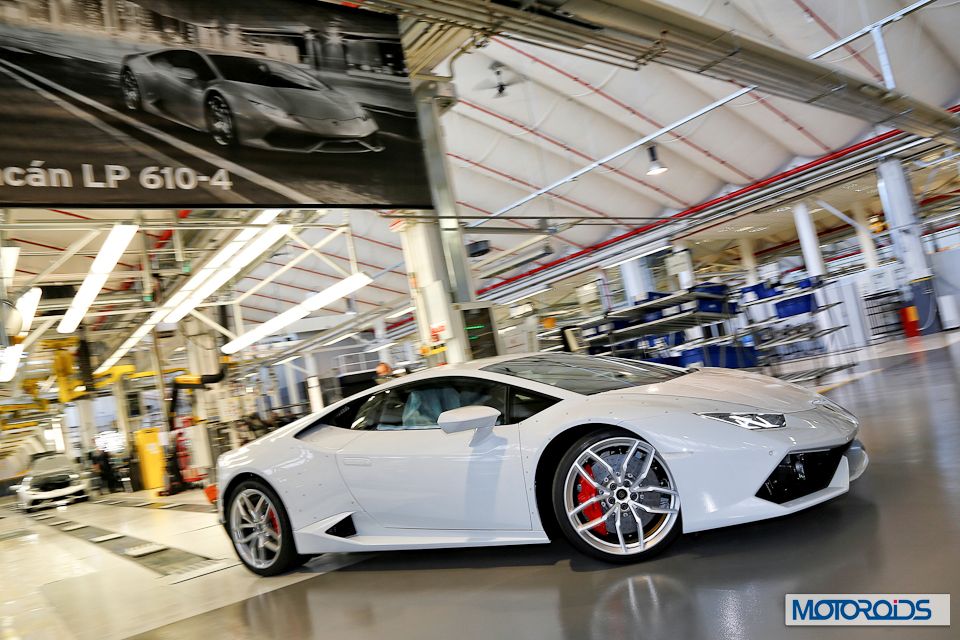

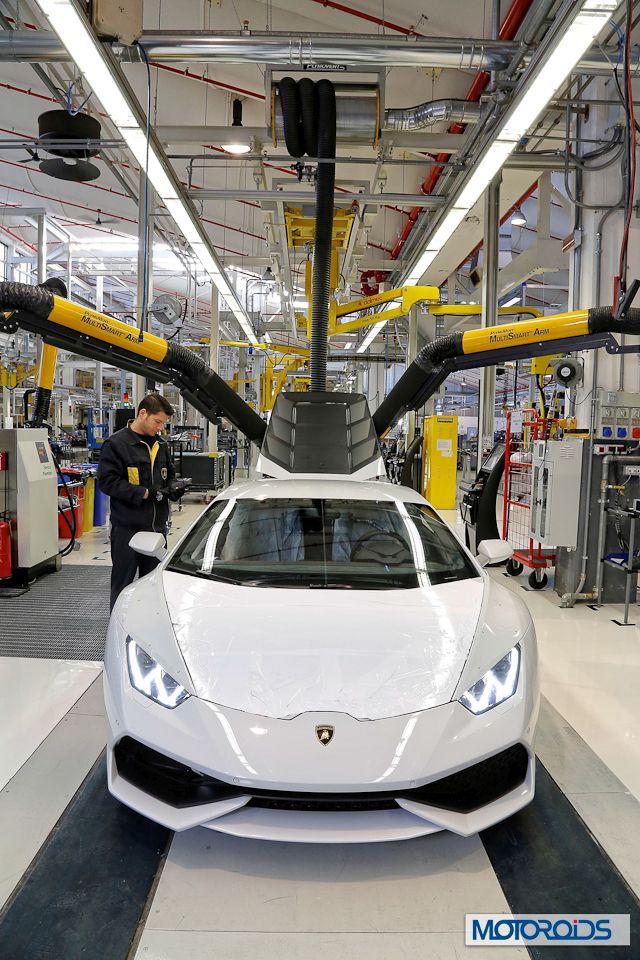

Station 23: Final quality control and exit from the assembly line. The new Huracan will go for a short ride before being ready for delivery.

If you visit Italy you can arrange a visit to the Lamborghini museum and factory. The tour costs 40 euros per person. For more information follow the url below

https://www.lamborghini.com/en/museum/factory-visit/
