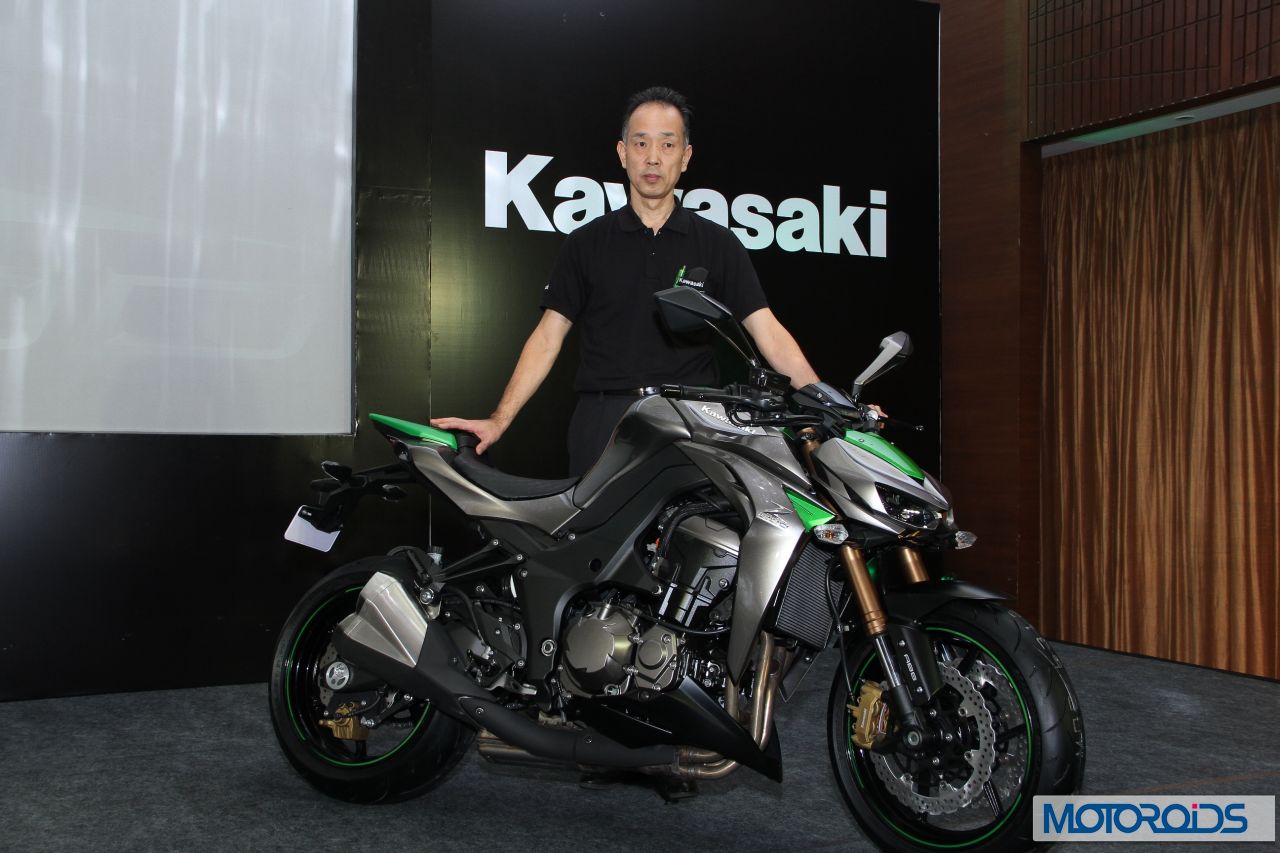

Z1000 TECHNICAL SPECIFICATIONS
ENGINE
Type: Liquid-cooled, 4-stroke In-Line Four
Displacement: 1,043 cm3
Bore and Stroke: 77.0 x 56.0 mm
Compression ratio: 11.8:1
Valve system: DOHC, 16 valves
Fuel system: Fuel injection: ø38 mm x 4 (Keihin), with oval sub-throttles
Ignition: Digital
Starting: Electric
Lubrication: Forced lubrication, wet sump
Transmission: 6 speed, return
Maximum power: 104.5 kW {142 PS} / 11,000 rpm
Maximum torque: 111 N.m {11.3 kgf.m} / 7,300 rpm
FRAME, TYRES, BRAKES
Type: Twin-tube, aluminum
Wheel travel: Front: 120 mm
Rear:122 mm
Tyre: Front: 120/70ZR17M/C (58W)
Rear: 190/50ZR17M/C (73W)
Brake Front: Dual semi-floating 310 mm petal discs
Caliper: Dual radial-mount, monobloc, opposed 4-piston
Brake Rear: Single 250 mm petal disc
Caliper: Single-piston
DIMENSIONS
Overall length: 2,045 mm
Overall width: 790 mm
Overall height: 1,055 mm
Wheelbase: 1,435 mm
Ground clearance: 125 mm
Seat height: 815 mm
Curb mass: 221 kg
Fuel capacity:17 Litres

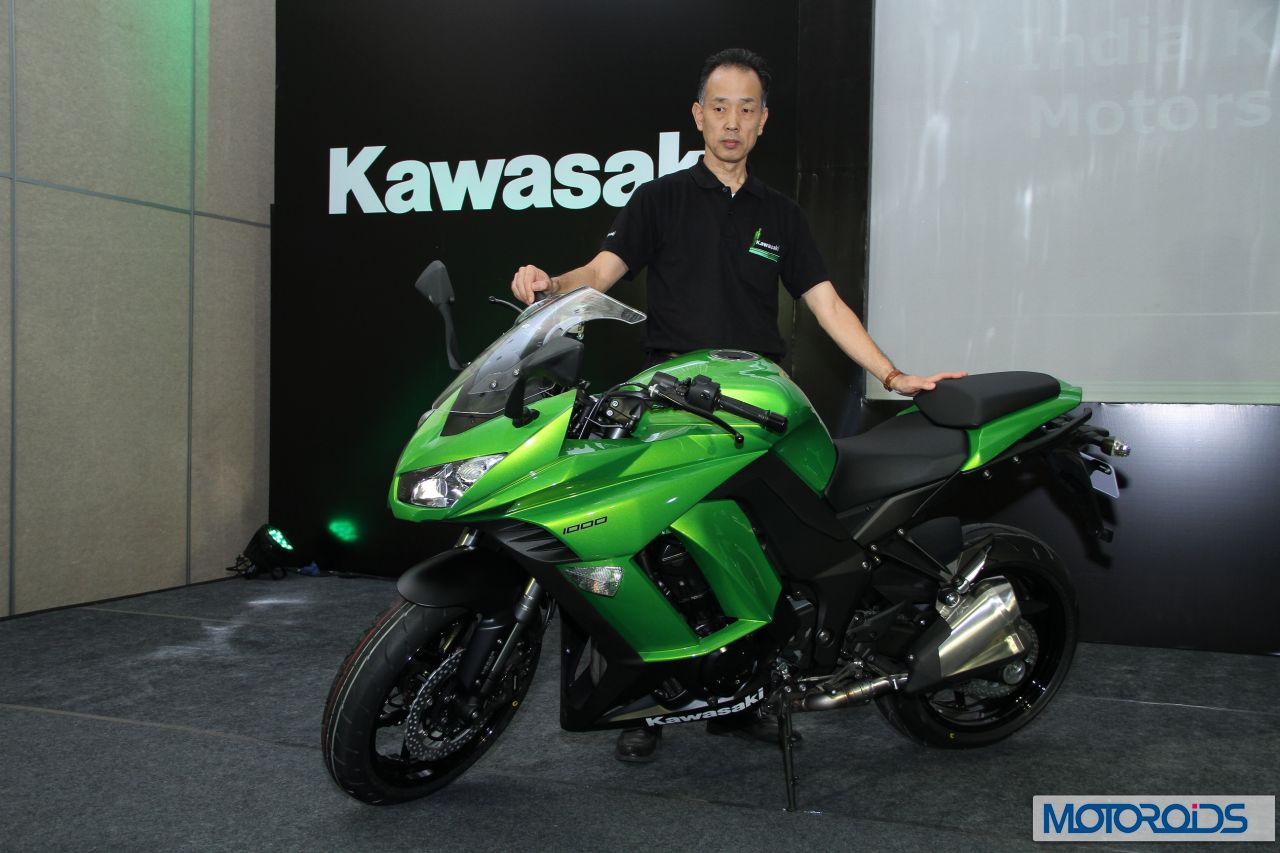

Ninja1000 TECHNICAL SPECIFICATIONS
ENGINE
Type: Liquid-cooled, 4-stroke In-Line Four
Displacement: 1,043 cm3
Bore and Stroke: 77.0 x 56.0 mm
Compression ratio:11.8:1
Valve system: DOHC, 16 valves
Fuel system: Fuel injection: ø38 mm x 4 (Keihin), with oval sub-throttle
Ignition: Digital
Starting: Electric
Lubrication: Forced lubrication, wet sump
Transmission: 6 speed, return
Maximum power: 104.5 kW {142 PS} / 10,000 rpm
Maximum torque: 111 N.m {11.3 kgf.m} / 7,300 rpm
FRAME, TYRES, BRAKES
Type: Aluminium twin-tube
Wheel travel: Front: 120 mm
Rear:138 mm
Tyre: Front: 120/70ZR17M/C (58W)
Rear: 190/50ZR17M/C (73W)
Brake Front: Type: Dual semi-floating 300 mm petal discs
Caliper: Dual radial-mount, monobloc, opposed 4-piston
Brake Rear: Type: Single 250 mm petal disc
Caliper: Single-piston
DIMENSIONS
Overall length: 2,105 mm
Overall width: 790 mm
Overall height: 1,170 mm/1,230 mm
Wheelbase: 1,445 mm
Ground clearance: 135 mm
Seat height: 820 mm
Curb mass: 230 kg
Fuel capacity:19 Litres
