Official pictures of the 2014 Kawasaki Z1000SX released

Added in: Kawasaki

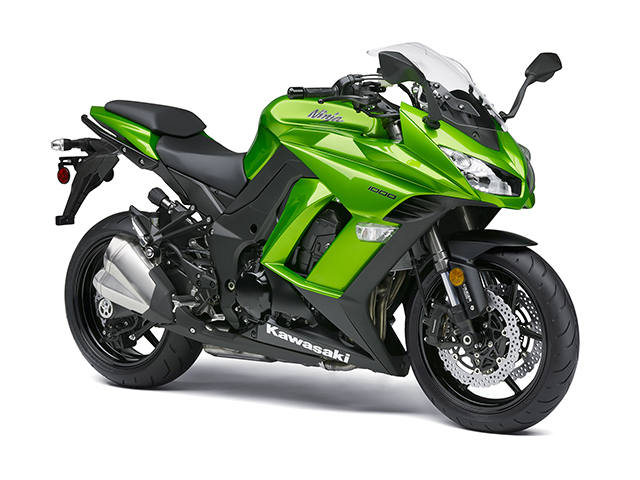

2014 Kawasaki Z1000SX - 3

Subsequent to our post on the spy shots of the Kawasaki Z1000SX, here are the official set of pictures of the 2014 Kawasaki Z1000SX Sports Tourer.

As pointed out earlier, the biggest change in the motorcycle comes in form of Kawasaki’s KRTC traction control system (present on the ZX636R, ZX10R and ZX14R) with three riding modes to choose from, in addition to a switchable two mode power selector. While the first two KRTC modes are for flat out acceleration performance, the third option has been tuned for a low traction environment i.e. wet and slippery conditions. Also an Anti-Lock Braking System (ABS) is being offered as an option on the new set of Tokico monobloc radial mount front brake calipers with a remote adjuster.

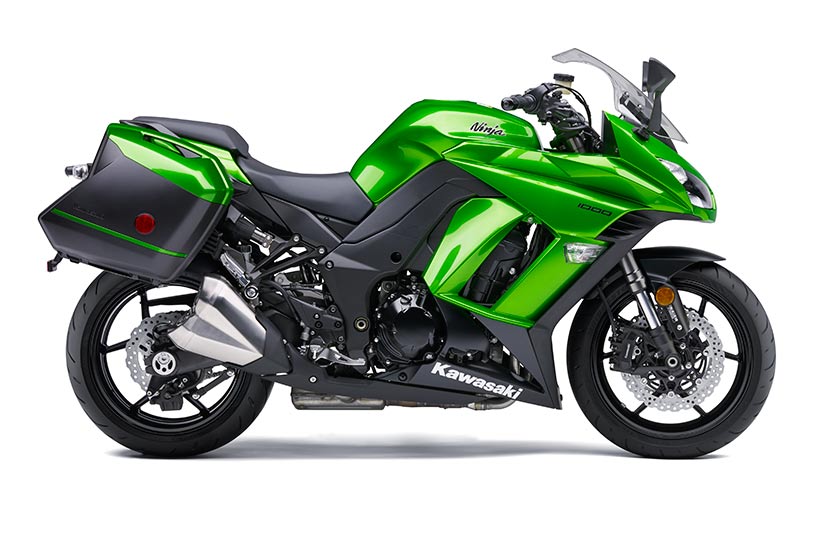

2014 Kawasaki Z1000SX - 2

The 16 valve 1043cc DOHC liquid cooled engine has been treated to minor mapping tweaks for ‘more instant and responsive power delivery,’ as claimed by Kawasaki. Intake cams have been revised for a better low and mid range grunt, while a taller sixth gear has been cogged in for a more relaxed highway cruising experience.

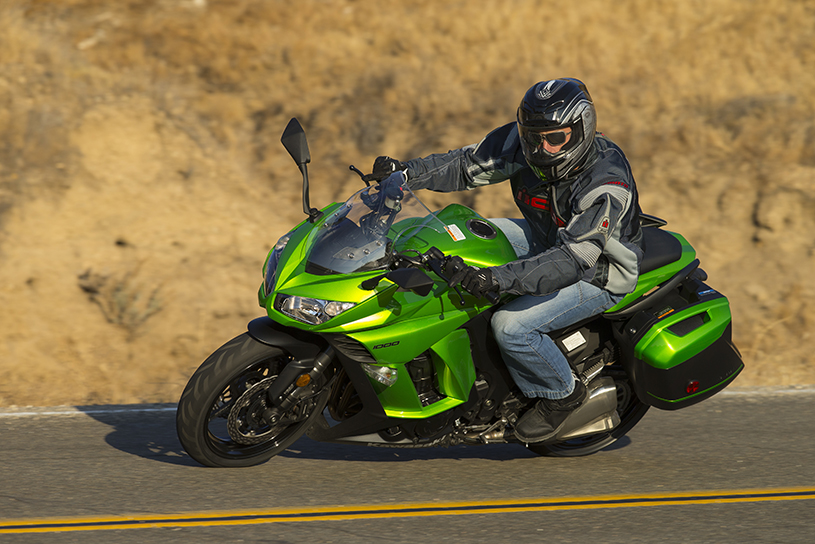

2014 Kawasaki Z1000SX - 5

The Sports Tourer now gets a more visually appealing set of integrated Kawasaki Quick Release (KQR) 29 litre panniers on a redesigned sub-frame that looks a part of the bike unlike the earlier variants. While the front 41mm inverted suspension remains the same, a new Remote rear spring preload adjuster has been put in place for quick tuning in accordance with co-passenger and luggage weight. A redesigned set of grab-rails have been put in place for added holding comfort for the co-rider.

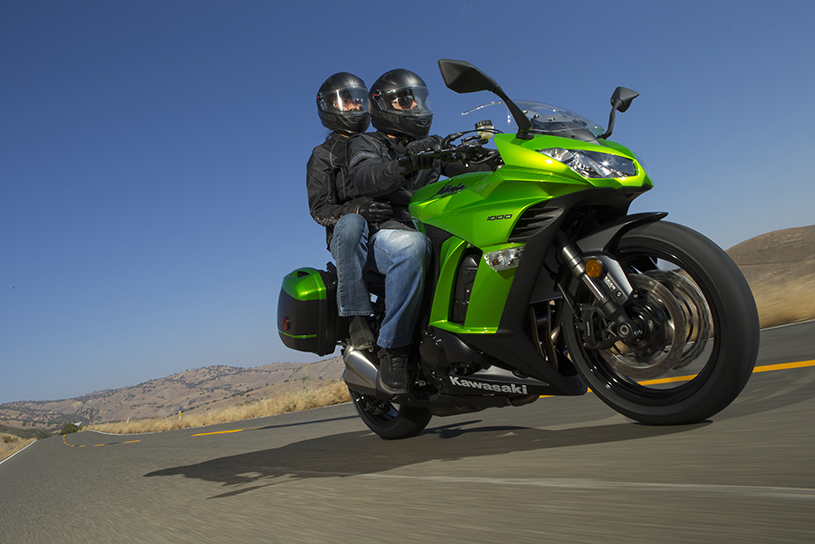

2014 Kawasaki Z1000SX - 4

Yasushi Kawakami, MD of Kawasaki Motors Europe, said: “With such a wide appeal, the Z1000SX has already gained many fans from both supersports and touring backgrounds. With so many additional features for the coming season we are sure it will retain its commanding position in the sports touring market.”


EngineFour-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four
Bore x Stroke77.0 x 56.0 mm
Compression Ratio11.8:1
Fuel SystemDFI® with four 38mm Keihin throttle bodies,
oval sub-throttles
IgnitionTCBI with digital advance
Final DriveX-ring Chain
Rake/Trail24.5 deg / 4.0 in.
Frame TypeAluminum Backbone
Front Tire Size120/70 ZR17
Rear Tire Size190/50 ZR17
Wheelbase56.9 in.
Front Suspension41 mm inverted cartridge fork with stepless compression and rebound damping,
adjustable spring preload / 4.7 in.
Rear SuspensionHorizontal monoshock with stepless rebound damping,
remotely adjustable spring preload / 5.4 in.
Front brakesDual 300mm petal-type rotors with radial-mount
four-piston monobloc calipers and ABS
Rear brakesSingle 250mm petal-type rotor with single-piston caliper, with ABS
Fuel Capacity19 litres
Seat Height32.3 in.
Curb Weight231 kgs
Overall length82.9 in.
Overall width31.1 in.
Overall height:
(Wndscrn Down/UP)
46.1 / 48.4 in.
Color(s)Candy Lime Green, Candy Cascade Blue
