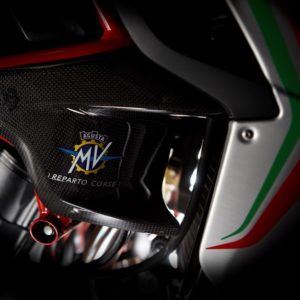

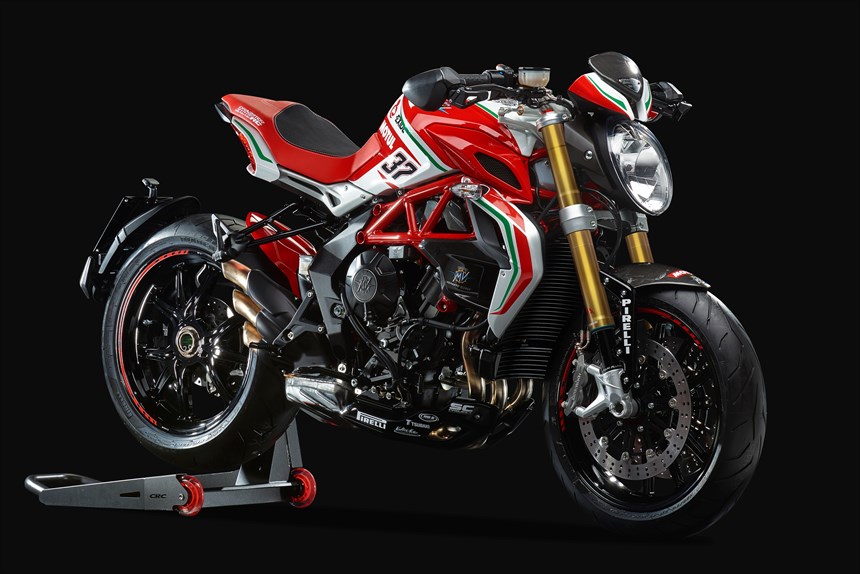

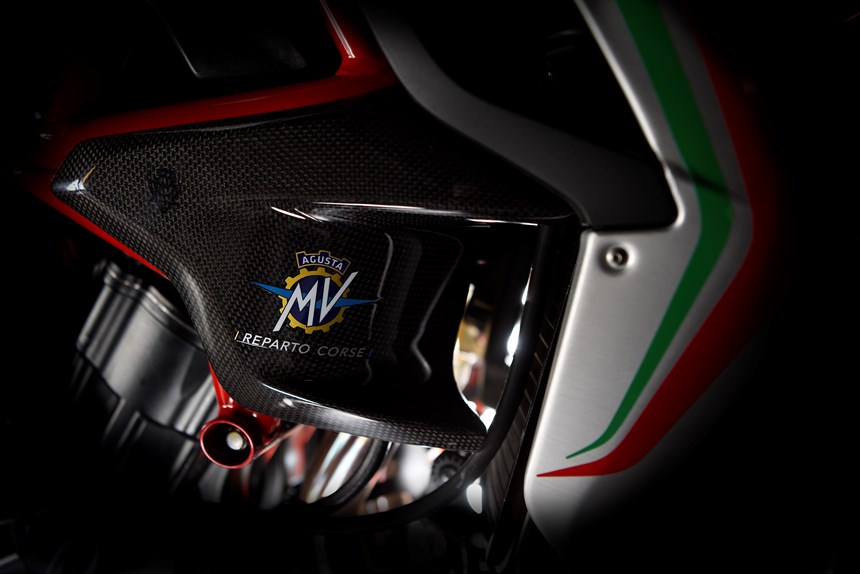

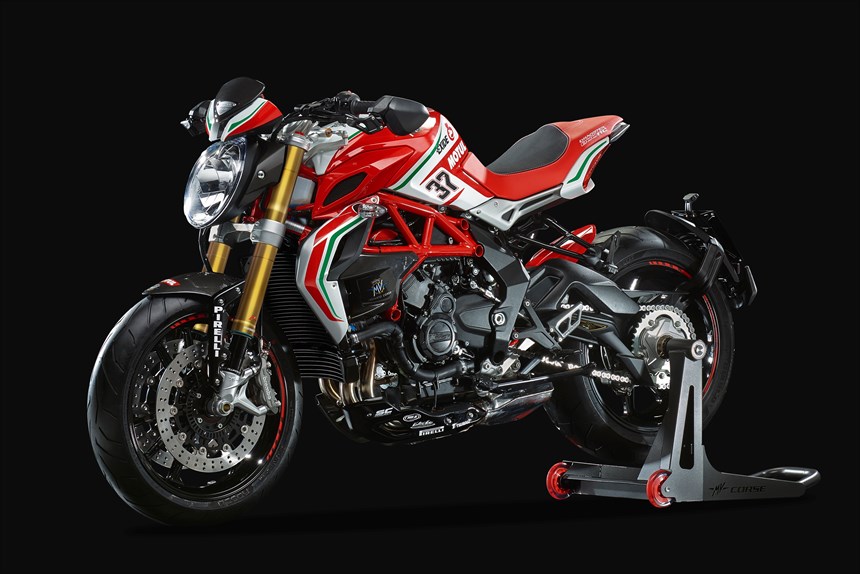

MV Agusta motorcycle has unveiled the limited edition of its Dragster 800 roadster. Christened as the Dragster 800 RC, the motorcycle is limited to 350 units and is built on the basis of Dragster RR. The motorcycle uses abundance of carbon fiber components which, along with reducing weight, distinguish it from the standard Dragster 800. The front mudguard, radiator heat deflectors, and the compact front fairing combined with the RC forged wheels with a lightweight and racing design are aimed at achieving technical excellence.

limited-edition-mv-agusta-dragster-800-rc-5

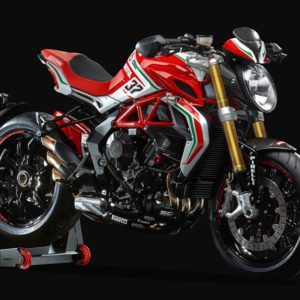

The three-cylinder, 4 stroke, liquid cooled engine delivers a healthy 140 hp of power at 13,100 rpm and 86 Nm of torque at 10,100 rpm. The engine weighs 52 kg and exploits a racing-derived counter-rotating crankshaft to reduce inertia in corner entry.

Also Read : Limited edition MV Agusta F3 RC 800 and 675 revealed

limited-edition-mv-agusta-dragster-800-rc-12

The digital instrumentation is formed by a clear LCD panel and dashboard indicators. It also forms the point of interaction for the Motor & Vehicle Integrated Control System. Based on the electronic control unit designed specifically for MV Agusta, it allows to the rider to exploit the Dragster 800 RC with four riding configurations. One of which offers complete personalization, parameter by parameter including motor response, rev limiter, engine torque management, throttle sensitivity and engine braking. The dragstrip performance is further ehanced with the Quickshifter EAS 2.0 which allows rapid gear changes both up and down the gearbox. Traction control is offered on eight levels, or entirely disengaged; allowing the rider to choose between spinning the rear wheel out of corners or contrastingly with the tranquility of complete electronic intervention.

Don’t Miss : MV Agusta F3 800 RC Launched In India, Priced INR 19.5 lakh Ex-Pune, Bookings Now Open

limited-edition-mv-agusta-dragster-800-rc-9

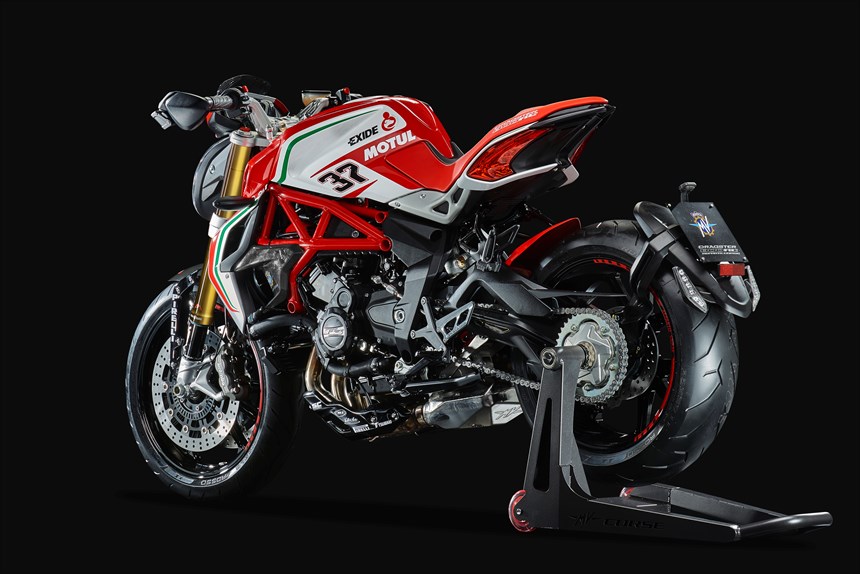

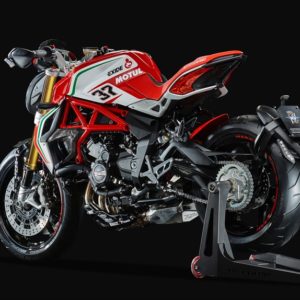

The Dragster 800 RC also gets red anodized finish on the fully adjustable upside-down fork stanchions. Complete adjustability is also available on the Sachs rear suspension mated to a single-sided swing arm with a fulcrum point between aluminum alloy plates that are united to the tubular steel trellis frame. The braking system composed of 320 mm diameter front discs and Brembo four-piston radial calipers are aligned to the tame the savage power.

limited-edition-mv-agusta-dragster-800-rc-11

Check out the complete technical specifications of the limited edition MV Agusta below, followed by a detailed image gallery.

ENGINE
TypeThree cylinder, 4 stroke, 12 valve
Timing systemD.O.H.C
Total displacement798 cm3 (48.68 cu. in.)
Compression ratio13.3:1
StartingElectric
Bore x stroke79 mm x 54.3 mm (3.1 in. x 2.1 in.)
Max. power- r.p.m. (at the crankshaft)**103 kW (140 hp) at 13,100 r.p.m.
Max. torque – r.p.m.86 Nm (8.77 kgm) at 10,100 r.p.m.
Maximum speed*245.0 km/h (153.1 mph)
Cooling systemCooling with separated liquid and oil radiators
Engine management systemIntegrated ignition – injection system MVICS 2.0 (Motor & Vehicle Integrated Control System) with six injectors. Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire Torque control with four maps, Traction Control with eight levels of intervention
Electronic quick-shiftMV EAS 2.0 (Electronically Assisted Shift up & down)
ClutchWet, multi plate with slipper clutch
TransmissionCassette style; six speed, constant mesh
Primary drive19/36
GEAR RATIO
First gear13/37
Second gear16/34
Third gear18/32
Fourth gear19/30
Fifth gear21/30
Sixth gear22/29
Final drive ratio16/41
ELECTRICAL EQUIPMENT
Voltage12 V
Alternator350 W at 5,000 r.p.m.
Battery12 V – 8.6 Ah
DIMENSIONS AND WEIGHT
Wheelbase1,380 mm (54.30 in.)
Overall length2,060 mm (81.06 in.)
Overall width825 mm (32.46 in.)
Saddle height811 mm (31.91 in.)
Min. ground clearance149 mm (5.86 in.)
Trail95 mm (3.74 in.)
Dry weight168 kg (370.4 lbs.)
Fuel tank capacity16.6 l (4.39 U.S. gal.)
FRAME
TypeALS Steel tubular trellis
Rear swing arm pivot plates materialAluminium alloy
FRONT SUSPENSION
TypeMarzocchi “UPSIDE DOWN” telescopic hydraulic fork in DLC treated aluminium, with red colour anodized fork legs and having rebound-compression damping and spring preload external and separate adjustment
Fork dia.43 mm (1.69 in.)
Fork travel125 mm (4.92 in.)
REAR SUSPENSION
TypeProgressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment
Single sided swing arm materialAluminium alloy
Wheel travel125 mm (4.92 in.)
BRAKES
Front brakeDouble floating disc with Ø 320 mm (Ø 12.6 in.) diameter, with steel braking disc and flange
Front brake caliperBrembo radial-type, with 4 pistons Ø 32 mm (Ø 1.26 in.)
Rear brakeSingle steel disc with Ø 220 mm (Ø 8.66 in.) dia.
Rear brake caliperBrembo with 2 pistons – Ø 34 mm (Ø 1.34 in.)
ABS SystemBosch 9 Plus with RLM (Rear wheel Lift-up Mitigation)
WHEELS
Front: Material/sizeForged aluminium alloy 3.50” x 17”
Rear: Material/sizeForged aluminium alloy 6.00” x 17”
TYRES
Front120/70 – ZR 17 M/C (58 W)
Rear200/50 – ZR 17 M/C (75 W)
FAIRING
MaterialThermoplastic – Carbon
CONTENTS
Steering damperManually adjustable with 8 settings – Certificate of origin – Limited Edition
