KTM Duke 390 vs Honda CBR400R: Spec to spec comparison

Added in: Comparisons

KTM Duke 390 vs Honda CBR400R

Honda cbr400r vs ktm duke 390

With the KTM Duke 390 already confirmed for launch and the Honda CBR400R slated to hit our shores this year alongwith the other two 400s, we decided to stack the KTM Duke 390 against the Honda CBR400R on the specifications chart.

KTM Duke 390Honda CBR400R
Engine model typeSingle Cylinder 4 stroke
DOHC 4 valve water-cooled
Parallel Twin 4 stroke
DOHC 4 valve water-cooled
Total displacement373.2cc399cc
Bore × stroke (mm)89.0 x 60.067.0 × 56.6
Compression ratio12.9: 111.0: 1
Maximum power44ps @ 9500 rpm46ps @ 9500 rpm
Maximum torque35nm @ 7250 rpm37nm @ 7500 rpm
Power to weight ratio316.5 ps/ tonne252.74 ps/ tonne
Fuel supplyBosch EFIHonda PGM-FI
IgnitionSelf-start, Bosch EMS83Self-start, Full transistor battery ignition
with Honda Ignition Security System
(H.I.S.S.) chip encoded keys
CockpitFully DigitalFully Digital
Clutch typeWet multi-plate with coil springsWet multi-plate with coil springs
Gearbox6 Speed6 Speed
Final driveX-Ring sealed chainO-Ring sealed chain
Suspension front43mm WP spec’d Inverted41mm Conventional telescopic
Suspension rearDirect linked monoshock with
ten position spring preload
Pro-Link monoshock with
nine-position spring preload adjustability
SwingarmPin-jointed die-cast aluminiumSteel square pipe
Frame typeTrellisDiamond
Ground Clearance (mm)170140
Wheelbase (mm)13671410
Seat height (mm)800785
Tyres front110/70 ZR 17M/C120/70 ZR 17M/C
Tyres Rear150/60 ZR 17M/C160/60 ZR 17M/C
Brakes FrontSingle 300mm Single Disc
with four piston caliper
Single 320mm Single Petal Disc
with twin piston caliper
Brakes RearSingle 230mm Single Disc
with single piston caliper
Single 240mm Single Petal Disc
with single piston caliper
ABSYesYes, Combined ABS
Fuel tank capacity11 litres15 litres
Fuel consumptionNot specified39.7 kpl (under standard test conditions with speed constant at 60 kph)
Minimum turning radiusNot specified2.7 metres
Dry Weight (kgs)139 (dry weight)182 (dry weight)- 194 (curb weight)
Top speed160 kph estimatedNot specified

Let us draw a rough estimate on the performance front of the two motorcycles.

The 0-100 acceleration figures of the KTM Duke 390 have been estimated at close to the 6 seconds mark- thanks to the following video posted by Austrian Online Motorcycle Magazine 1000 ps. Top speed has already been estimated in the region of 160 kph by journalists.

Though the acceleration and top figures of the Honda CBR400R aren’t out yet, one could roughly estimate by taking the CBR500R as a reference which cranks out 46.9 bhp (47.6 ps) vis-a-vis the CBR400R which pumps 46ps (45.4 bhp). Surprisingly the difference in cubic capacity hasn’t spelt any difference in weight. A closer comparison between the two indicate differences in stroke i.e. 66.8mm (CBR500R) and 56.6mm (CBR400R) and compression ratio at 10.7:1 and 11.0:1 respectively. And though the gear ratios of the CBR400R have been revealed by Honda, the figures of the CBR500R are nowhere to be seen. But still going ahead for the sake of estimation of the performance the CBR400R would pack in, here are a couple of video that indicate the 0-100 kph and top speeds of the Honda CBR500R.

0-100 kph

Dyno tested top speed

In case it hasn’t been easy for you to calculate, here are the snapshots and you may draw your performance calculations:

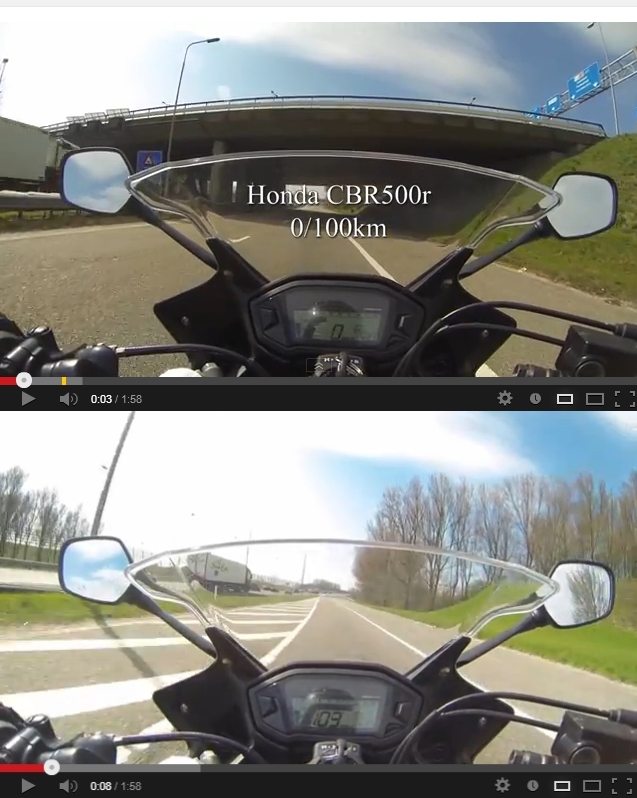

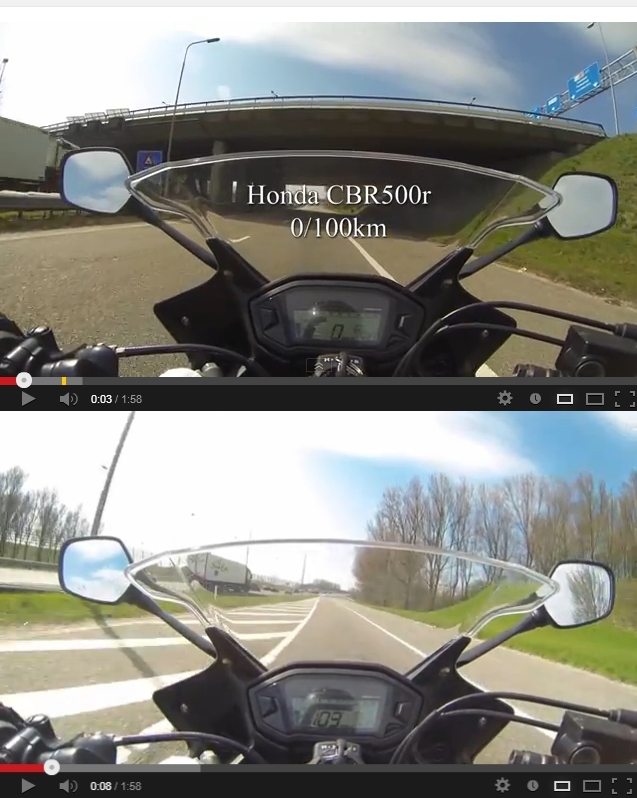

0-100 kph (5 seconds approx)

Honda CBR400R top 0-100 kph estimation

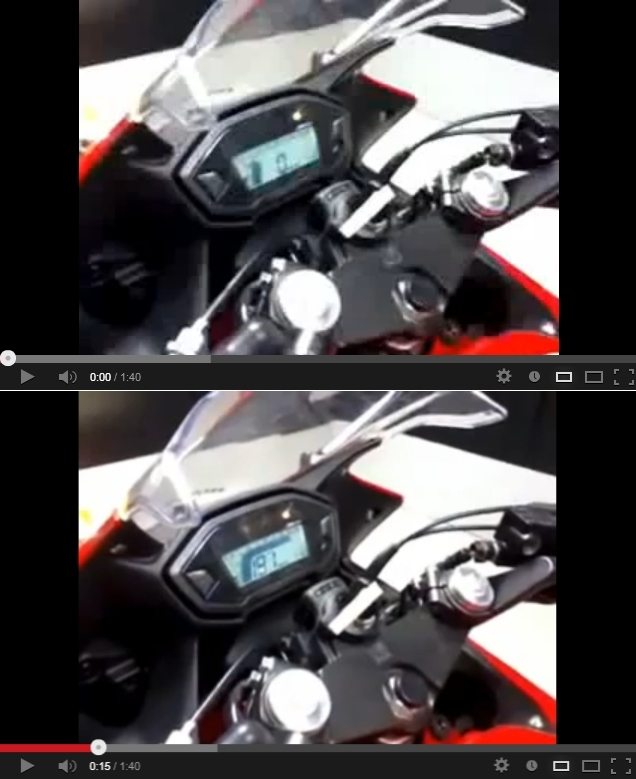

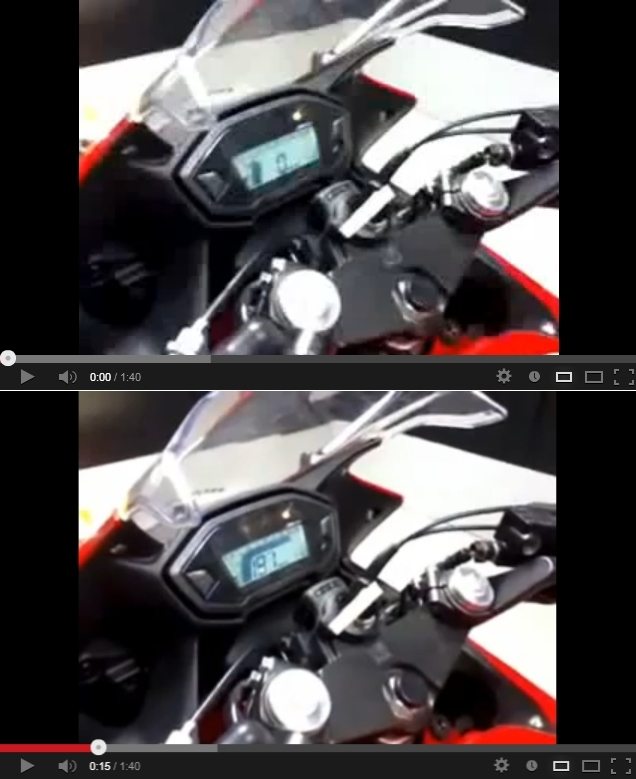

Dyno tested top-speed (191 kph)

Honda CBR400R top speed estimation

Won’t be out of place to state that numbers ticking on the dyno change dramatically in real world conditions- the bike isn’t facing any wind drag in the video 😉

In conclusion, the performance graph of the CBR400R is still a secret and though many would put the Honda down, more particularly on the power-to-weight ratio- but looking at the CBR500R references, the Honda with its quick spinning parallel twin might manage to put up a good fight against the Orange Mantis.

Pricing is going to play an extremely crucial role. Assuming that if  the performances of both the motorcycles are on par with each other, what premium would you pay for the CBR over the Duke if you’d wish to go for the Honda? Or it’s just the Duke for you, and the CBR400R just doesn’t matter?
