EICMA 2016 : New Ducati Multistrada 950 is aimed to be accessible and versatile

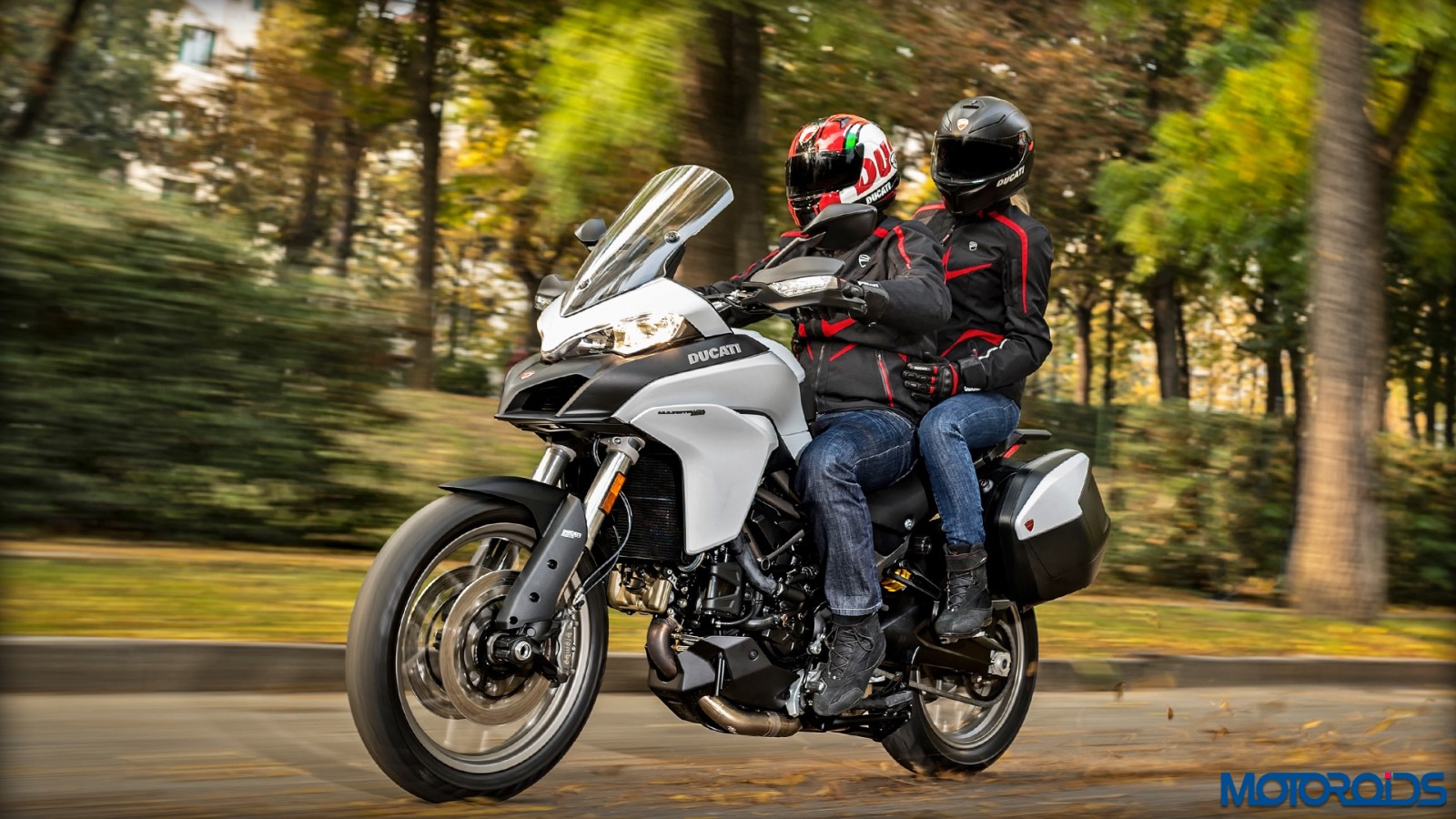

Ducati has extended its Multistrada portfolio with the addition of the new, relatively lower displacement model, the Multistrada 950. The new Multistrada 950 is the Bologna-based bike manufacturer’s smallest “multibike”, which is designed to provide all the excitement of the Multistrada in a more accessible and versatile way. The Multistrada 950 is for those who want to get in some touring (and perhaps enjoy the company of a passenger) and those who want an agile fun bike that’s ideal for everyday use. The Multistrada 950 is built around Tubular steel Trellis frame. The motorcycle weighs 229 kg wet.

EICMA 2016: [VIDEO] Ducati Scrambler Desert Sled can bolt through deserts without breaking a sweat

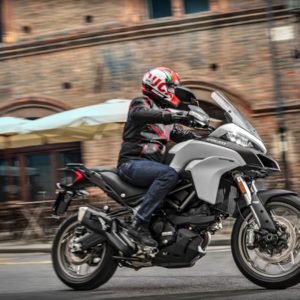

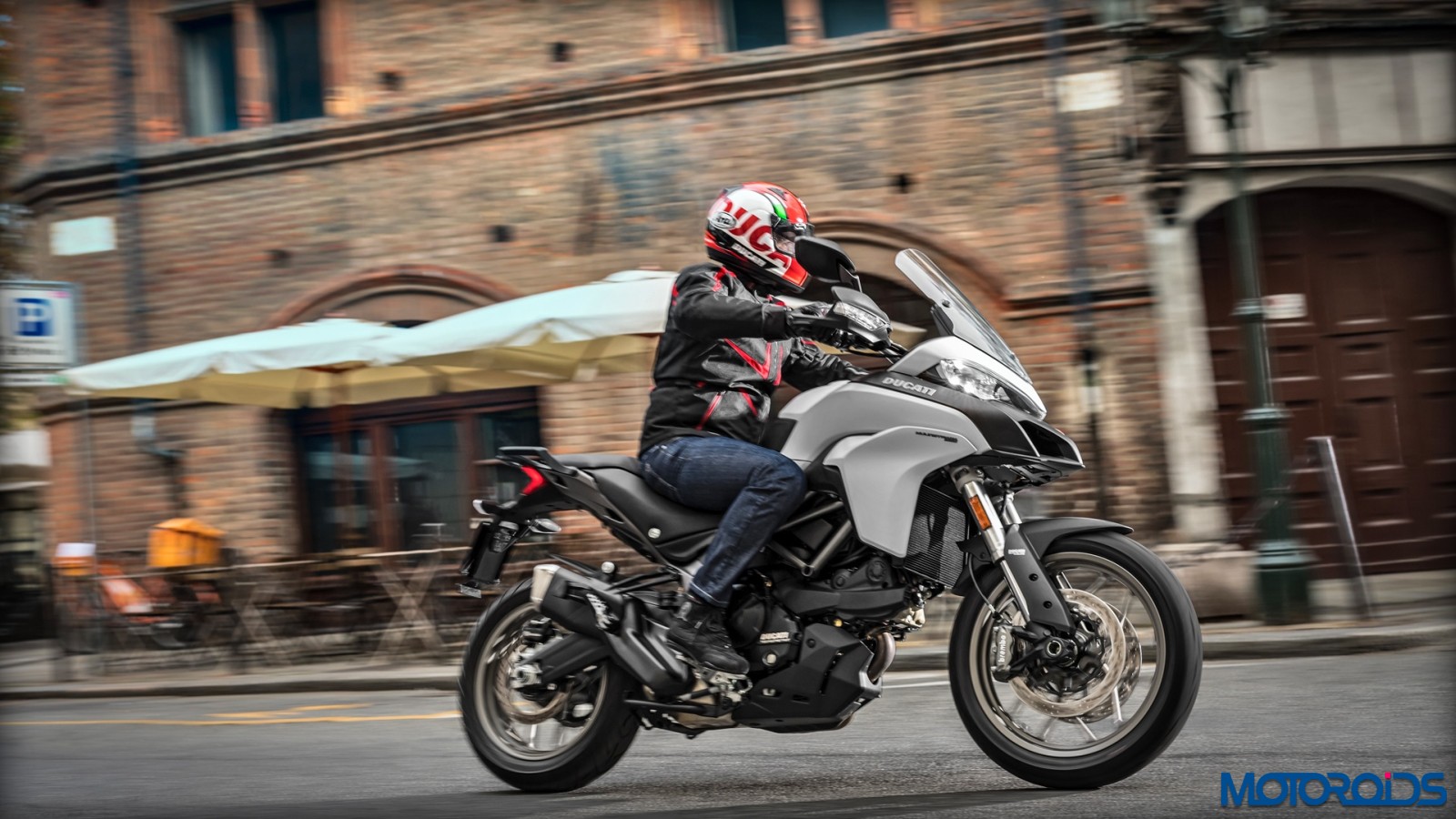

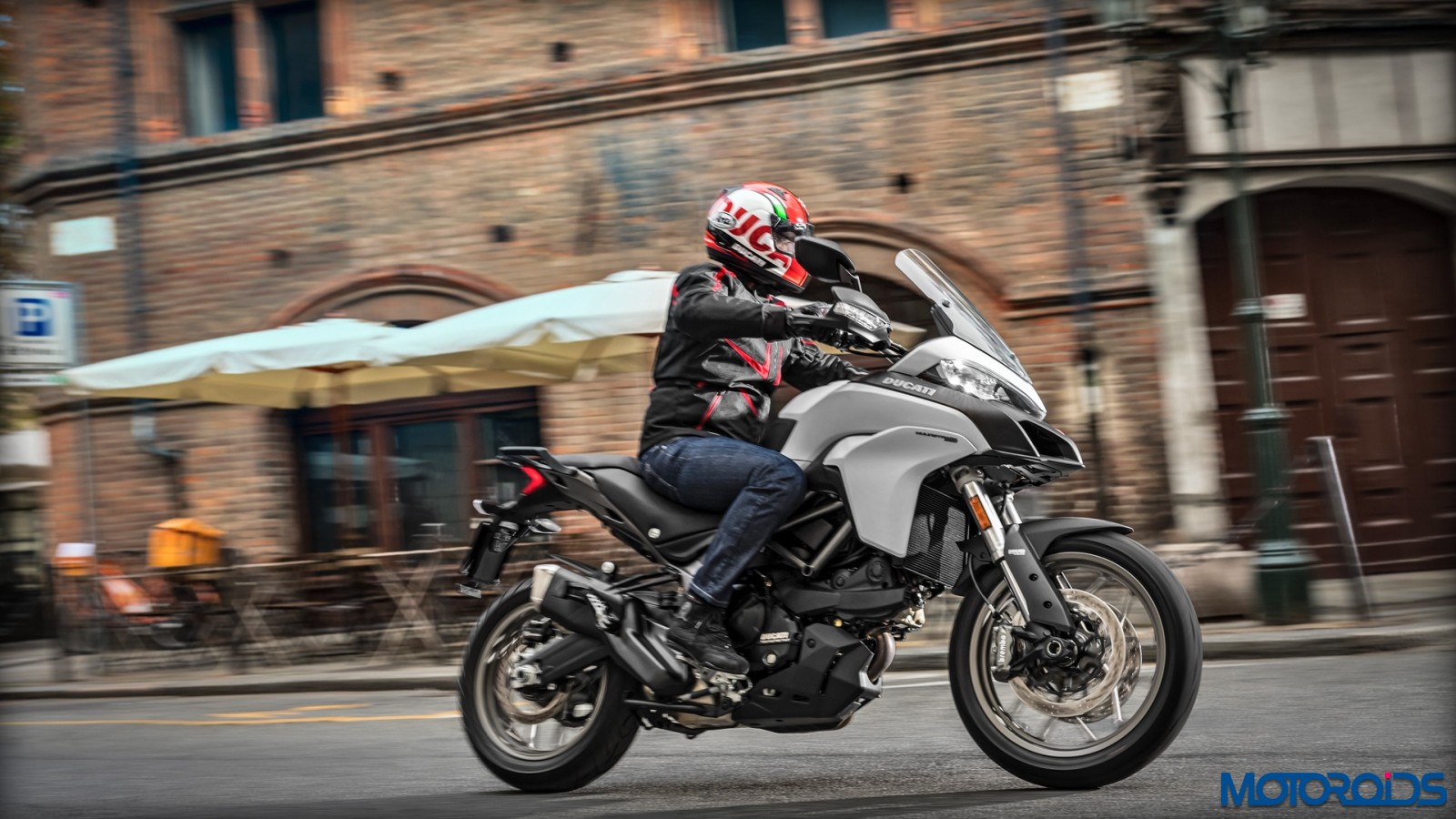

ducati-multistrada-950-5

The Multistrada 950 is powered by Ducati’s existing 937 cc liquid cooling Testastretta 11° twin-cylinder engine which is now EURO IV emission compliant. The 94 x 67.5 mm bore and stroke produce 113 hp of power at 9,000 rpm and a 96.2 Nm of torque at 7,750 rpm. The Multistrada 950 has four Riding Modes (Sport, Touring, Urban and Enduro), each programmed to act on the electronic Ride-by-Wire (RbW) engine control system and the ABS and DTC levels.

EICMA 2016 : Limited Edition 2017 Ducati 1299 Superleggera packs some serious fire power

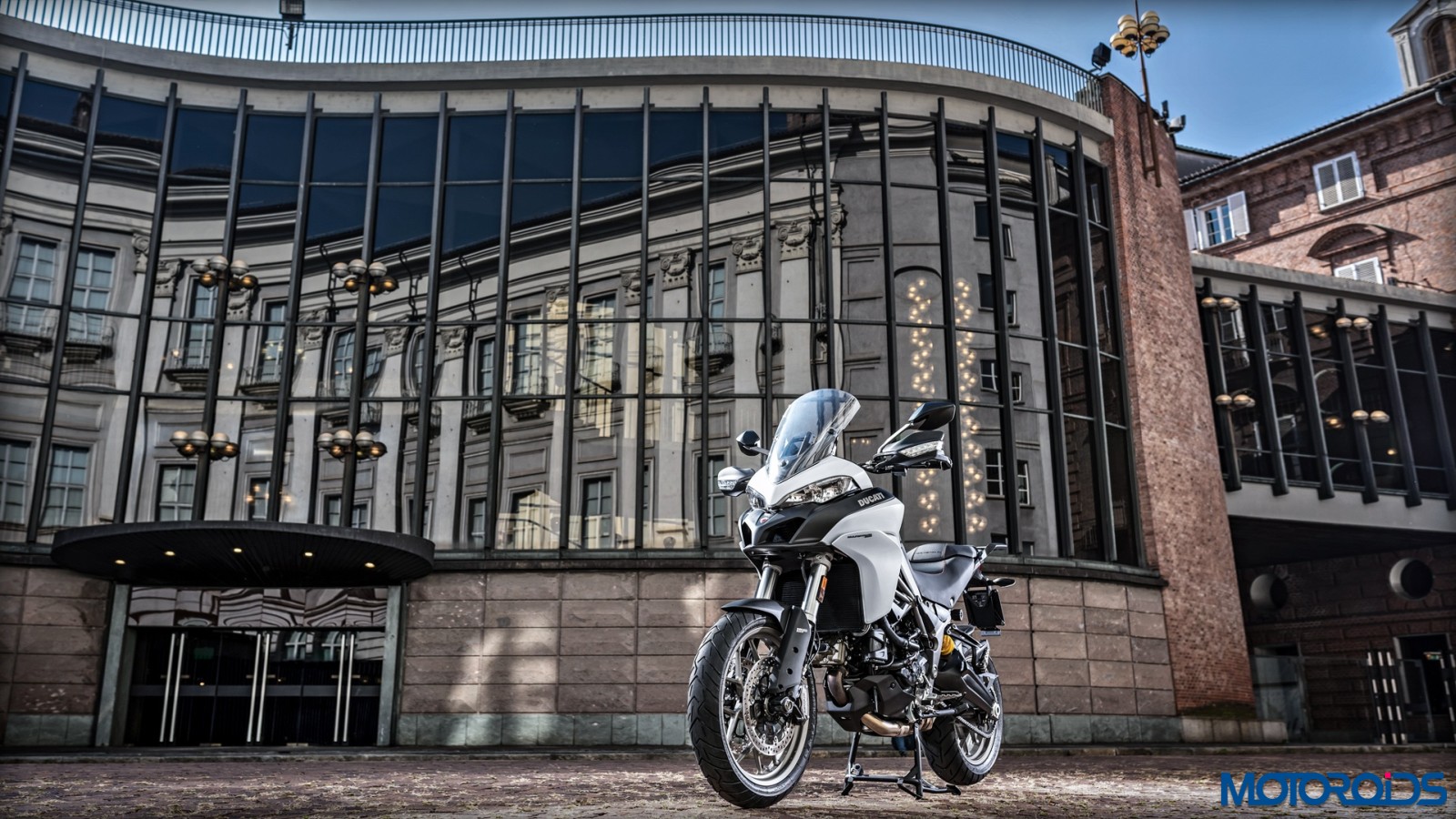

ducati-multistrada-950-10

The Multistrada 950 instrument panel consists of a LCD display which provides the rider with primary and secondary information. The unit gives info on speed, rpm, total distance ridden, selected gear, trip 1 and trip 2, engine coolant temperature, fuel level and, of course, a clock. The display also shows the selected Riding Mode, miles remaining, real-time fuel consumption, average fuel consumption, average speed, air temperature, travel time and road ice warning.

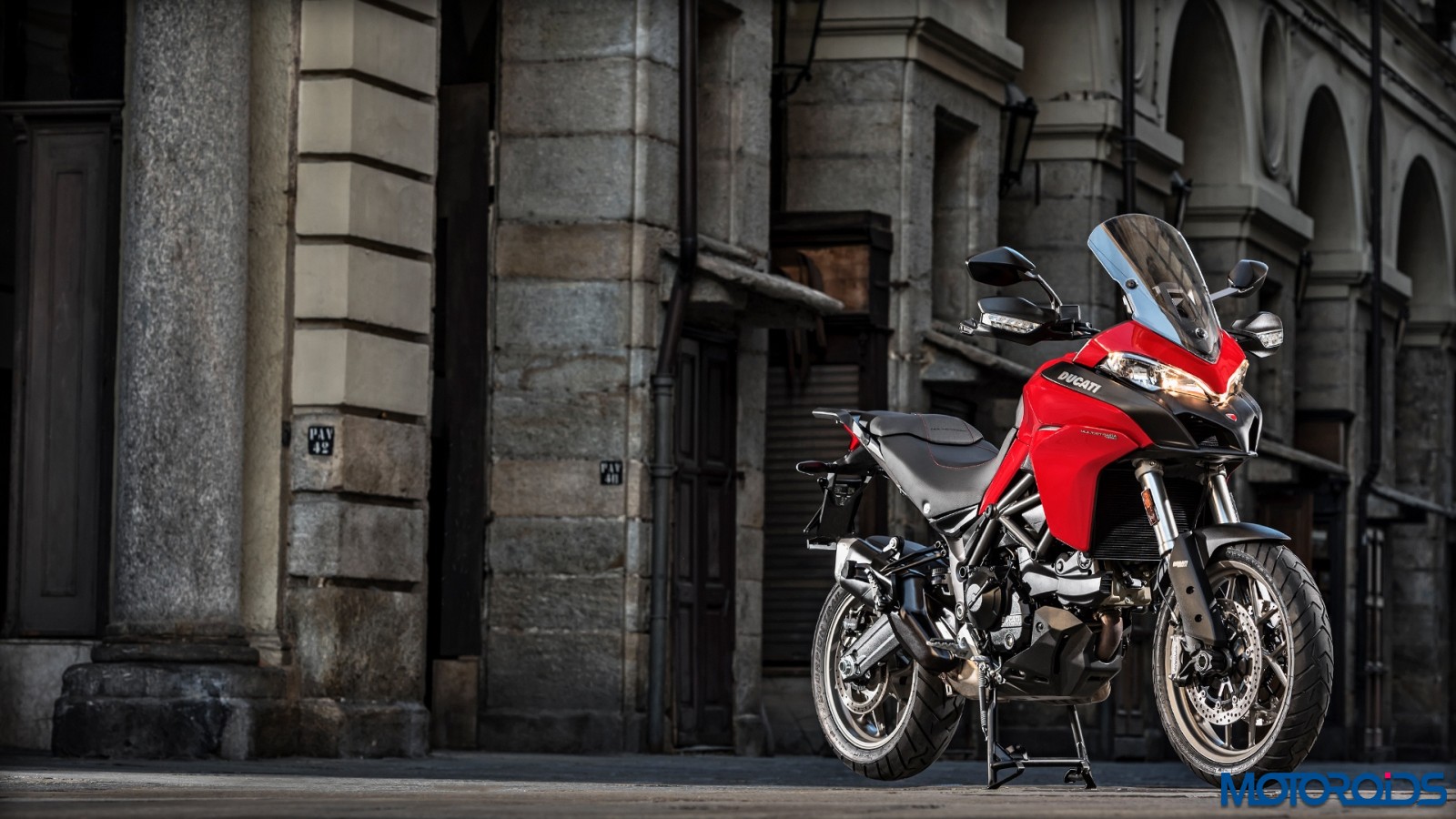

ducati-multistrada-950-13

Safety package includes DSP (Ducati Safety Pack), Bosch ABS System and Ducati Wheelie Control (DWC). Check out the complete technical specifications of the new Ducati Multistrada 950 below.

Engine
Type Testastretta, L-Twin cylinder, 4 valve per cylinder, Mono Spark, Desmodromic, liquid cooled
Displacement 937 cc
Bore x Stroke 94 x 67.5 mm
Compression ratio 12.6:1
Power 83.1 kW (113 hp) @ 9,000 rpm
Torque 96.2 Nm (71.0 lb-ft) @ 7,750 rpm
Fuel injection Bosch electronic fuel injection system, cylindrical throttle bodies with Ride-by-Wire, diameter 53 mm
Exhaust Stainless steel muffler with catalytic converter and 2 lambda probes, single stainless steel muffler
Transmission
Gearbox 6 speed
Primary drive Straight cut gears; Ratio 1.84:1
Ratio 1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final drive Chain; Front sprocket 15; Rear sprocket 43
Clutch Wet multiplate clutch mechanically operated, self-servo action on drive, slipper action on over-run
Chassis
Frame Tubular steel Trellis frame
Front suspension KYB 48 mm fully adjustable USD fork
Front wheel Cast alloy, 3.00″ x 19″
Front Tyre Pirelli Scorpion Trail II 120/70 R19
Rear suspension Fully adjustable Sachs monoshock unit. Remote spring preload adjustment. Aluminium double-sided swingarm
Rear wheel Cast alloy, 4.50″ x 17″
Rear tyre Pirelli Scorpion Trail II 170/60 R17
Front wheel travel 170 mm (6.7 in)
Rear wheel travel 170 mm (6.7 in)
Front brake 2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc callipers, 4-piston, 2-pad, with ABS as standard equipment
Rear brake 265 mm disc, 2-piston floating calliper, with ABS as standard equipment
Instrumentation LCD
Dimensions and weight
Dry weight 205.7 kg (453.5 lb)
Wet weight (KERB) 229 kg (504.9 lb)
Seat height Non adjustable 840 mm (820 – 860 mm with accessory seats); (33.1 in standard; 32.3 – 33.9 accessory seats)
Wheelbase 1,594 mm (62.76 in)
Rake 25.2°
Trail 105.7 mm (4.16 in)
Fuel tank capacity 20 l – 5.3 gallon (US)
Number of seats Dual seat
Equipments
Additional equipments Riding Modes, Power Modes, Ducati Safety Pack (ABS + DTC)
Warranty
Warranty 24 months unlimited mileage
Maintenance service intervals 15,000 km (9,000 mi) / 12 months
Valve clearance check 30,000 km (18,000 mi)
Emissions and Consumption
Standard Euro 4
Consumption CO2 124 g/km – 5.3 l/100 km
