Unveiled: 2014 Honda NC750X and NC750S. Set to replace the NC700X

|

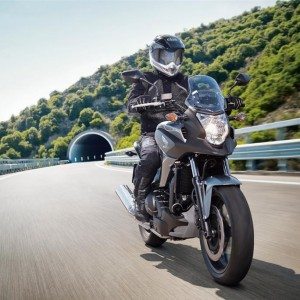

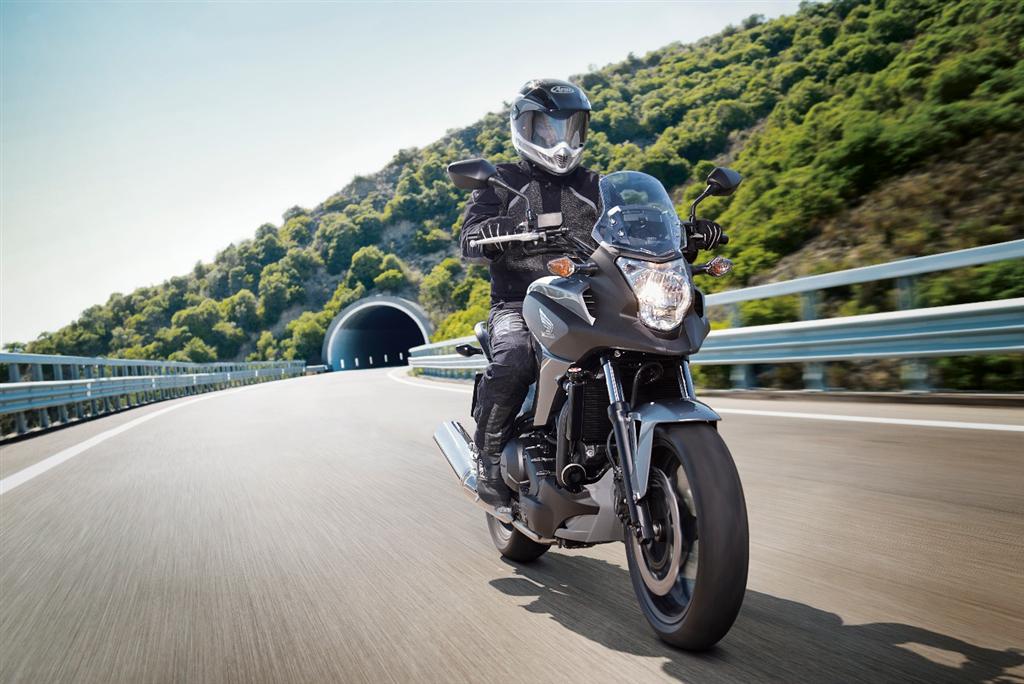

2014 Honda NC750X-3

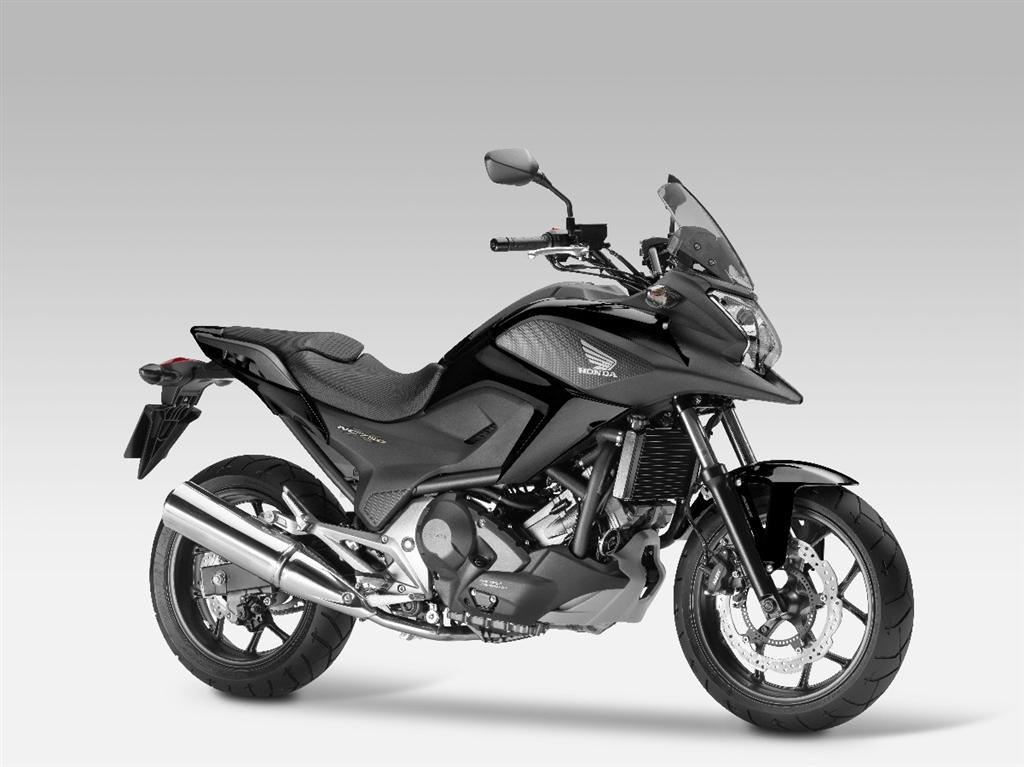

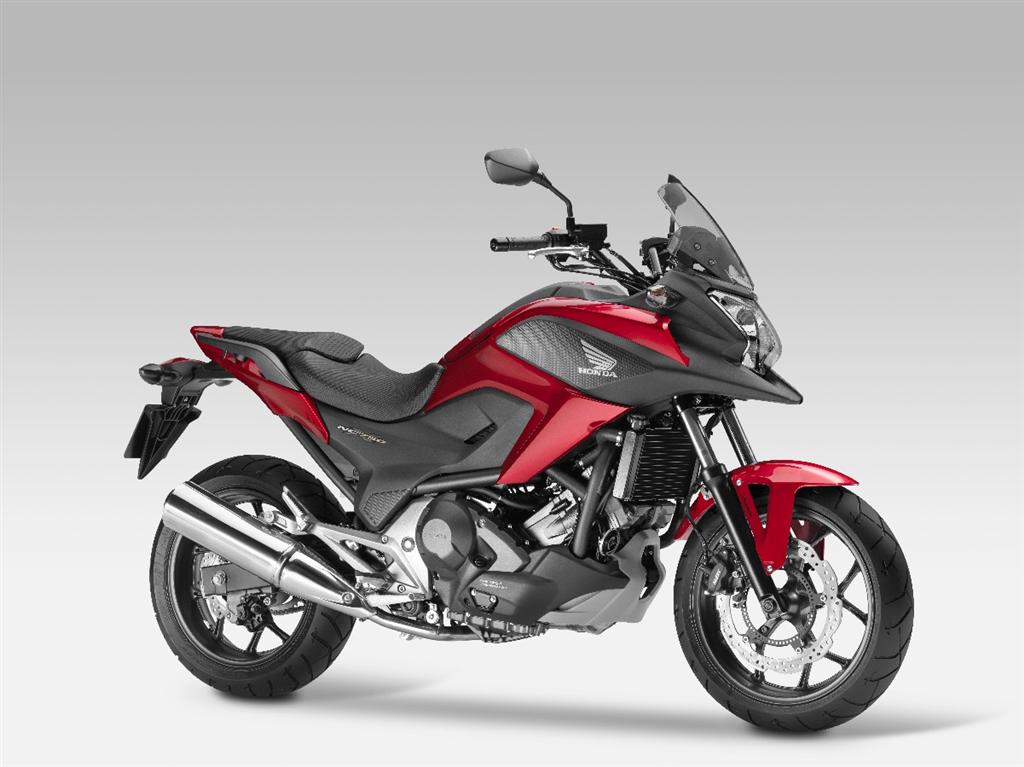

Honda had already announced last year that the existing NC700X would be replaced by a more powerful 750cc variant in 2014. And what better event could it be for the Japanese manufacturer to announce the 2014 Honda NC750X and the Honda NC750S at the EICMA 2013.

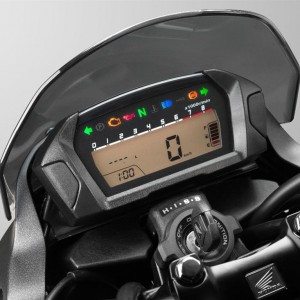

2014 Honda NC750S-2

With a power bump alongwith the displacement, the 2014 Honda NC750X would produce 55bhp @ 6250 rpm from the existing 47.6 bhp and with max torque rated at 68nm @ 4750 rpm compared to the earlier 60nm. The better part of the update is that the more powerful versions would be frugal performers when it came to fuel consumption.

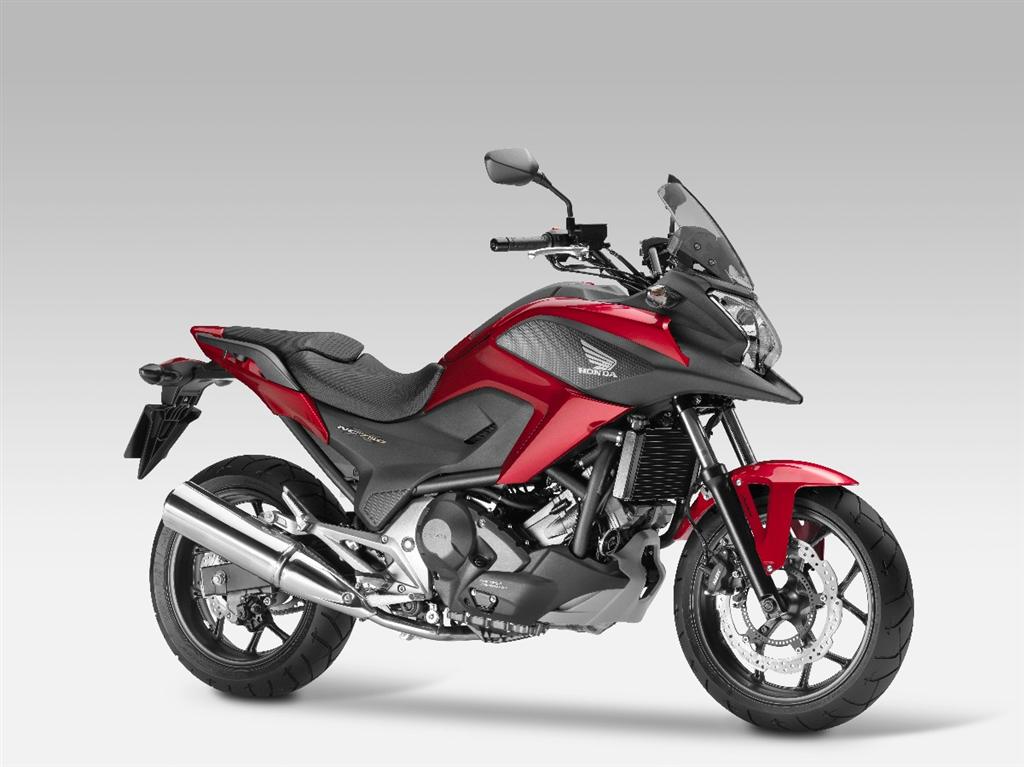

2014 Honda NC750X-2

The 745cc parallel twin gets an increased bore of 77mm (4mm more than before) and 80mm stroke. Other changes include an extra engine balancer and a modified exhaust system. Also the six speed gearbox is 6% taller in the first five gears and 3% in the sixth giving the 2014 Honda NC750X an extra dash of 12kph at the top end.

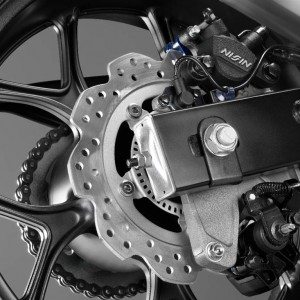

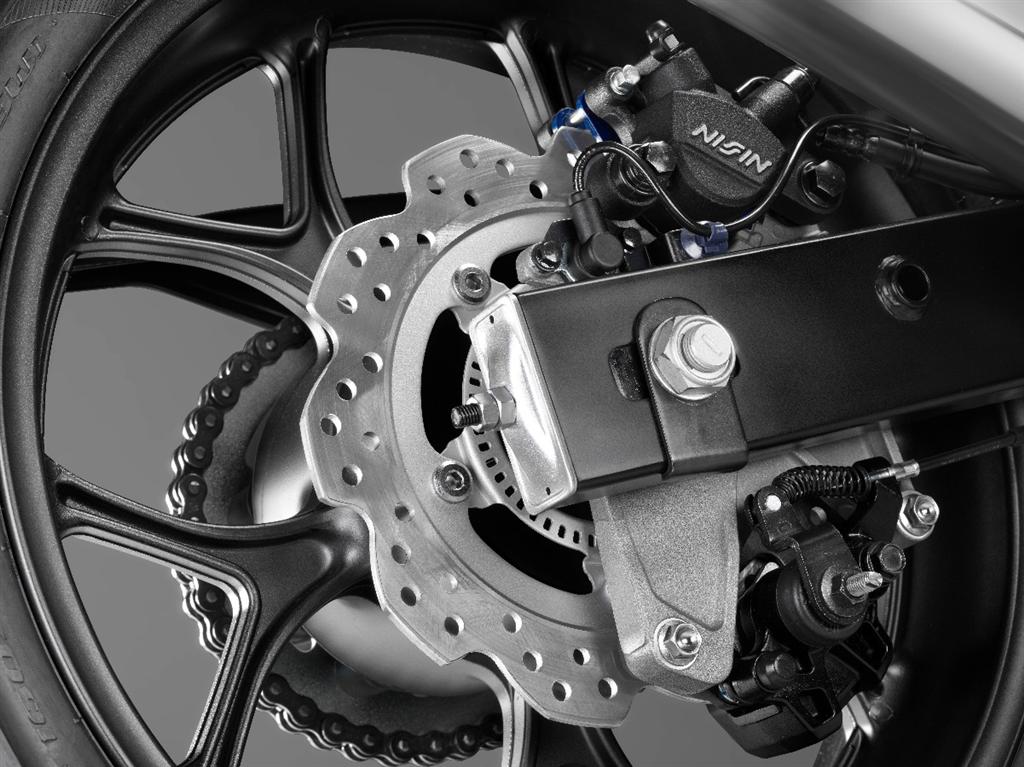

2014 Honda NC750X- ABS brakes

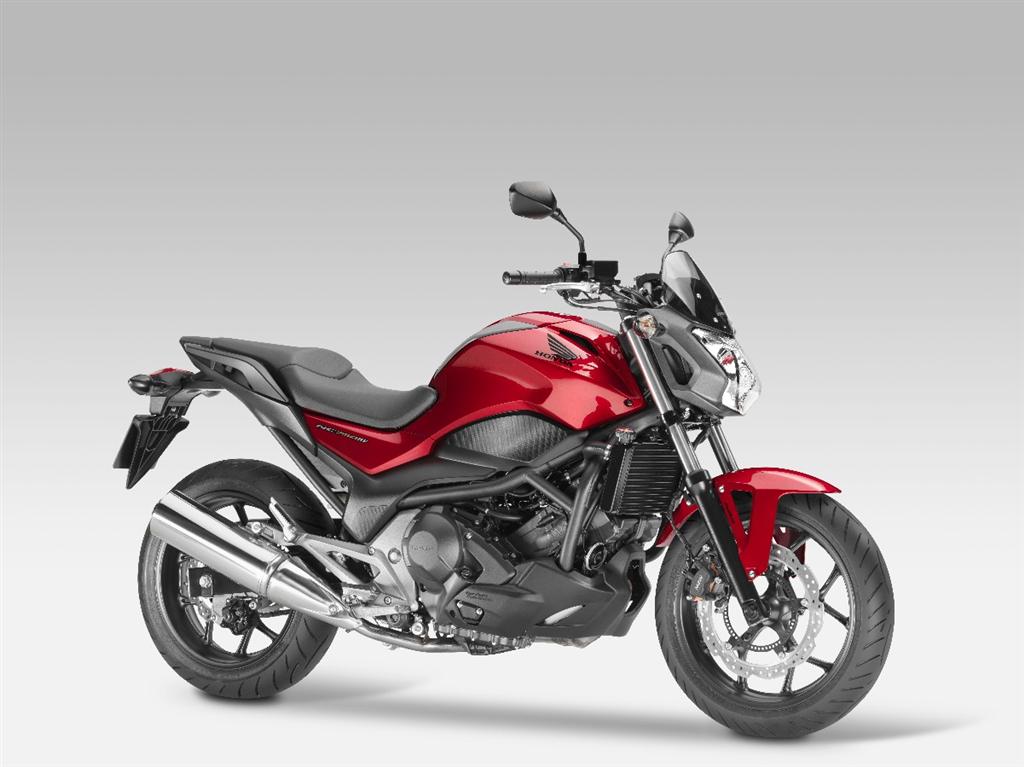

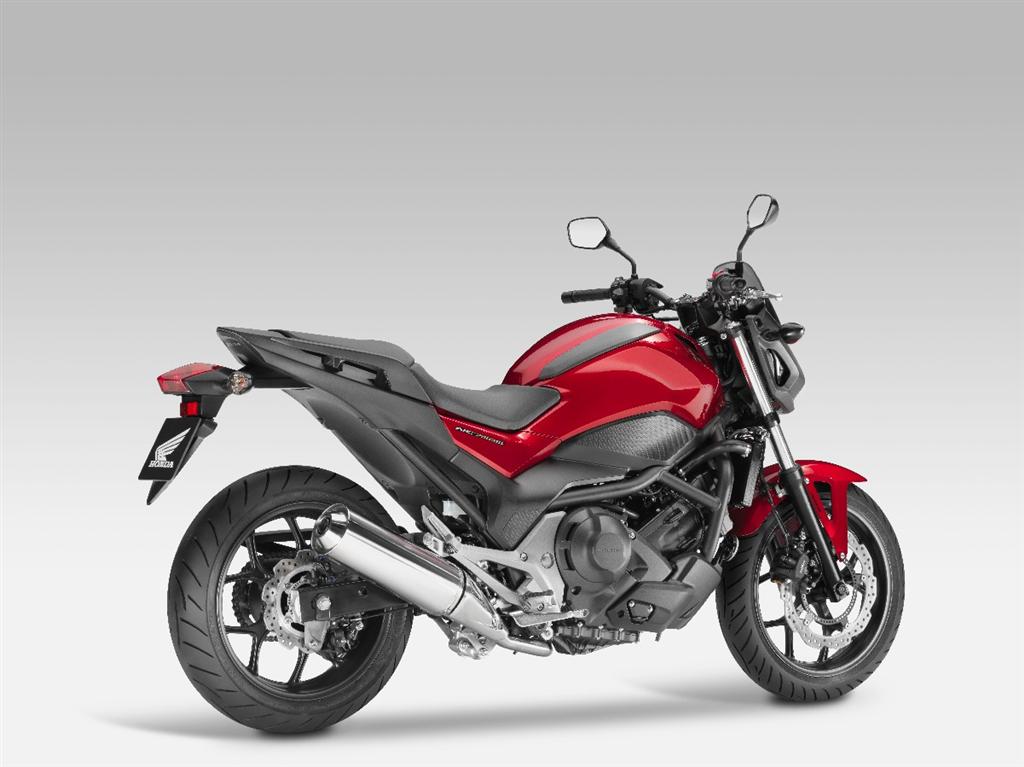

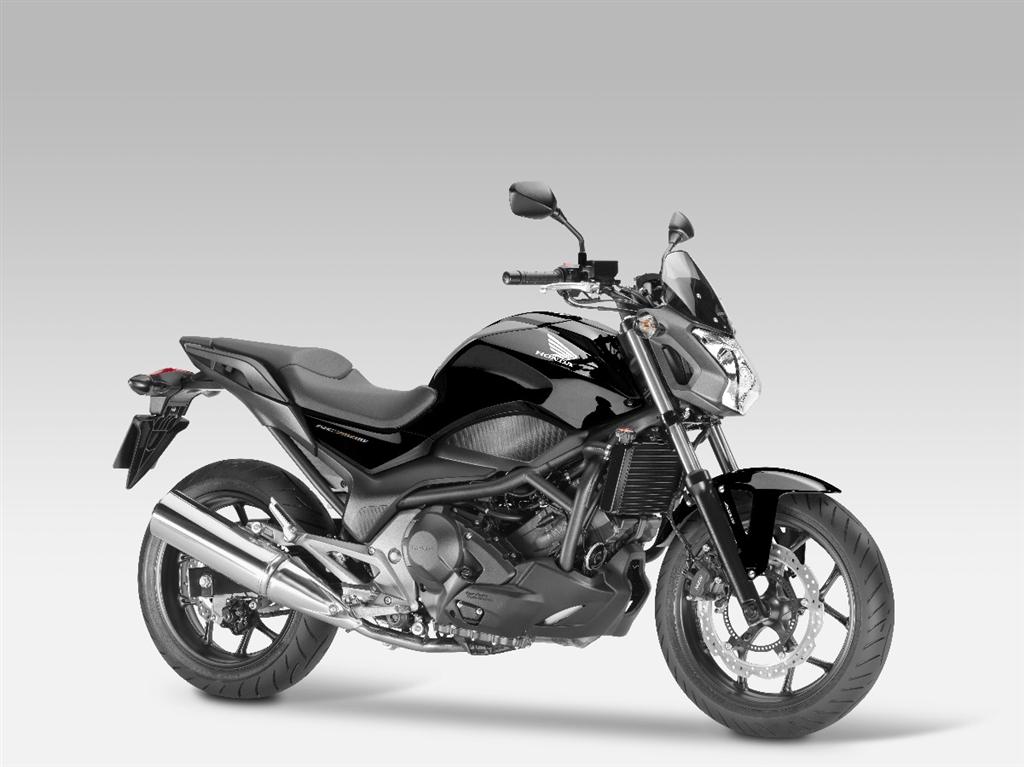

The 2014 Honda NC750S is basically the NC750X sans the fairing with a Dual Clutch transmission (DCT). Alongwith options of Manual Transmission (MT) and Automatic Transmission (AT), the NC750S further features Drive (D) and Sport (S) modes. A two channel ABS is standard on both the NC750X and the NC750S.

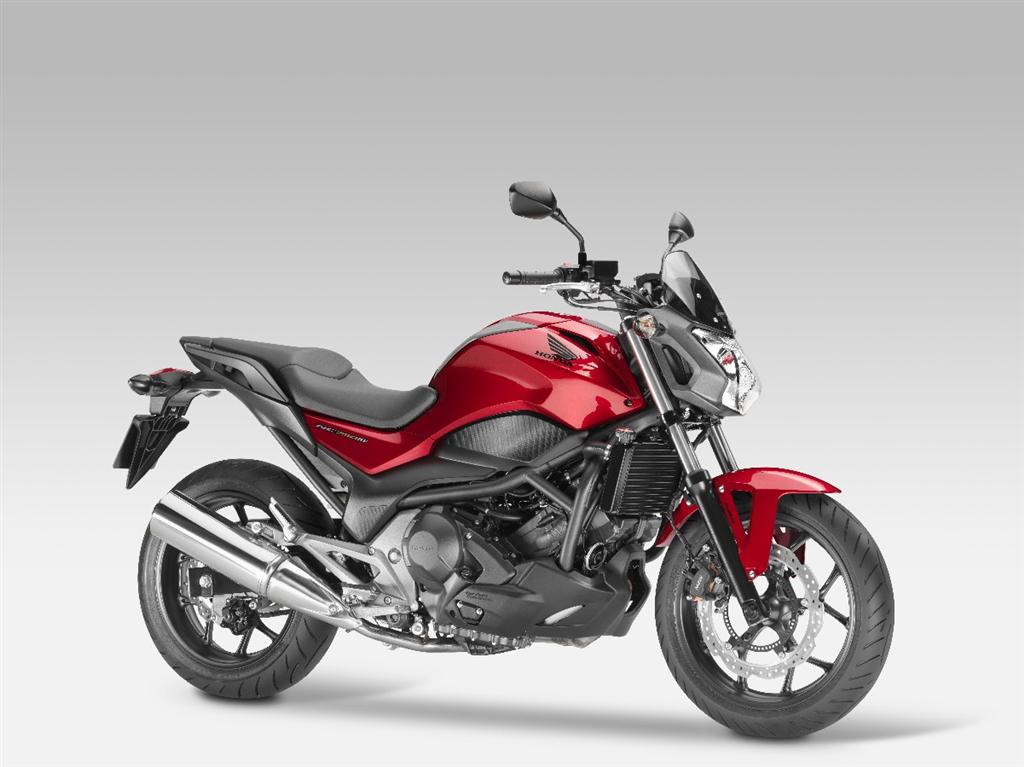

2014 Honda NC750S-5

SPECIFICATIONS

ENGINE 2014 Honda NC750X 2014 Honda 750S
Type Parallel Twin, 8-valve SOHC, liquid-cooled Parallel Twin, 8-valve SOHC, liquid-cooled
Displacement 745 cc 745 cc
Bore x stroke 77 x 80 mm 77 x 80 mm
Compression ratio 10.7: 1 10.7: 1
Maximum power 55 hp @ 6250 rpm 55 hp @ 6250 rpm
Maximum torque 68 Nm @ 4750 rpm 68 Nm @ 4750 rpm
Oil Capacity 3.7 liters 4.1 liters
POWER
Type PGM-FI PGM-FI
Fuel tank capacity 14.1 liters 14.1 liters
Consumption 28.9 km / l 28.9 km / l
ELECTRICAL SYSTEM
Starting Electric Electric
Battery 12 V / 11.2 Ah 12 V / 11.2 Ah
Power alternator 420W at 5,000 r / min  450W at 5000 rev / min
TRANSMISSION
Clutch Multi-plate in oil bath Wet, double, oil bath
Gearbox A 6-speed (also version DCT) A 6-speed DCT
Final drive Chain Chain
FRAME
Configuration A diamond steel tubing A diamond steel tubing
CHASSIS
(The L’A) Dimensions 2,210 x 780 x 1,285 2,195 x 780 x 1,130
Wheelbase 1.540 mm 1,525 mm
Rake 27 ° 27 °
Trail 110 mm 110 mm
Seat height 830 mm 790 mm
Height from the ground 165 mm (minimum) 140 mm (minimum)
Weight in running order 219 kg (ver. DCT: 229 kg) with a full tank of petrol 226 kg (fully fueled)
SUSPENSION
Front Telescopic fork 41 mm, 153.5 mm excursion 41 mm telescopic fork, 120mm axle travel
Rear Monoshock with Pro-Link, 150mm axle travel Monoshock with Pro-Link, 120mm
WHEELS
Front 10-spoke cast aluminum 10-spoke cast aluminum
Rear 10-spoke cast aluminum 10-spoke cast aluminum
WHEELS
Front 17M / C x MT3.50 17M / C x MT3.50
Rear 17M / C x MT4.50 17M / C x MT4.50
TIRES
Front 120/70ZR17 M / C (58W) 120/70ZR17M/C (58W)
Rear 160/60ZR17 M / C (69W) 160/60ZR17M/C (69W)
BRAKES
Type 2-channel ABS 2-channel ABS
Front 320 mm wave disc, 2-piston caliper, sintered metal pads Wave disc 320 mm with 2-piston caliper, sintered metal pads
Rear Wave disc, 240 mm single-piston caliper, resin mold pads Wave disc 240 mm, single-piston caliper, resin mold pads
EQUIPMENT AND LIGHTS

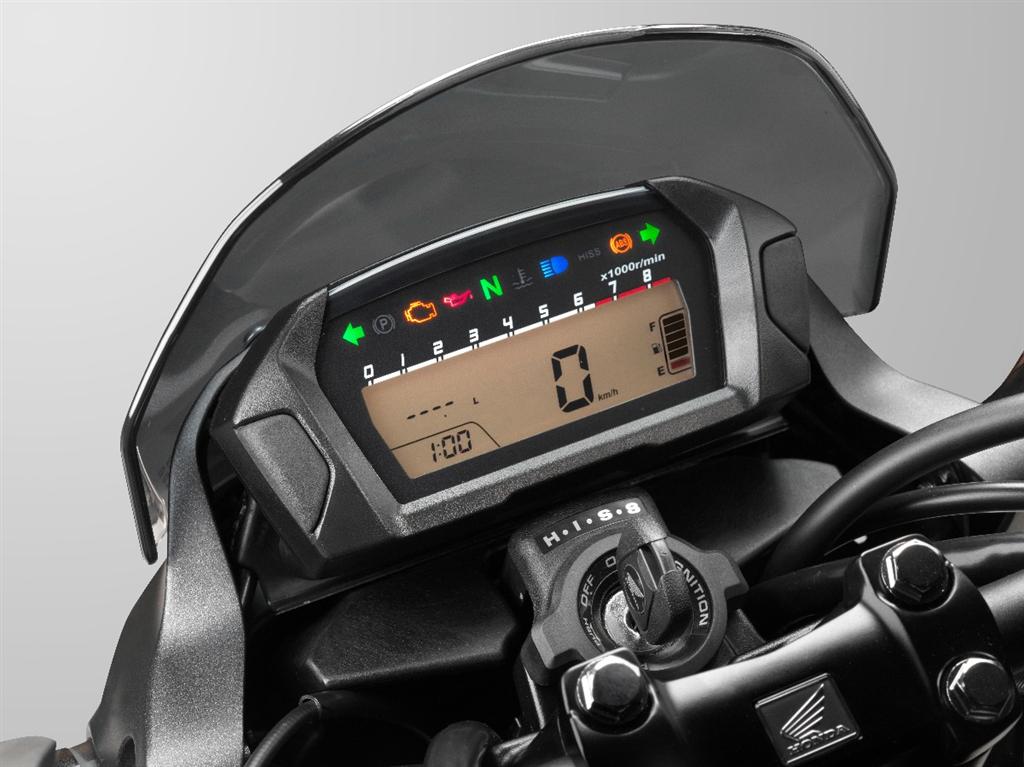

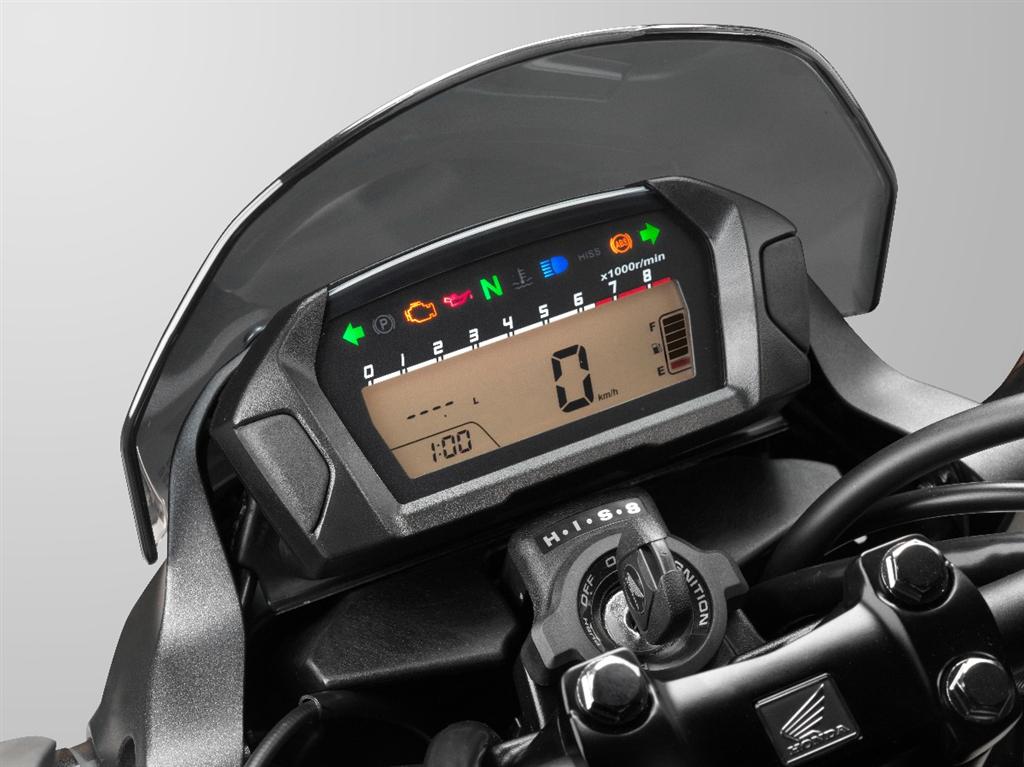

Instrumentation LCD numeico speedometer, tachometer bar, clock, fuel gauge, odometer with dual trip, gear indicator, trip computer, service lights LCD digital tachometer, digital tachometer bar, clock, fuel gauge, odometer with dual trip, gear indicator, trip computer, coolant temperature warning light.
Security system HISS HISS
Headlight 12V, 60W x 1 (high) / 55W x 1 (low beam) 12V, 60W x 1 (high) / 55W x 1 (low beam)
Rear light 5 W x 1 5 W x 1

2014 HONDA NC750X AND 2014 HONDA NC750S DCT IMAGE GALLERY

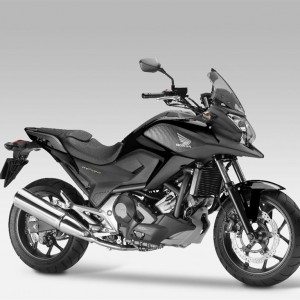

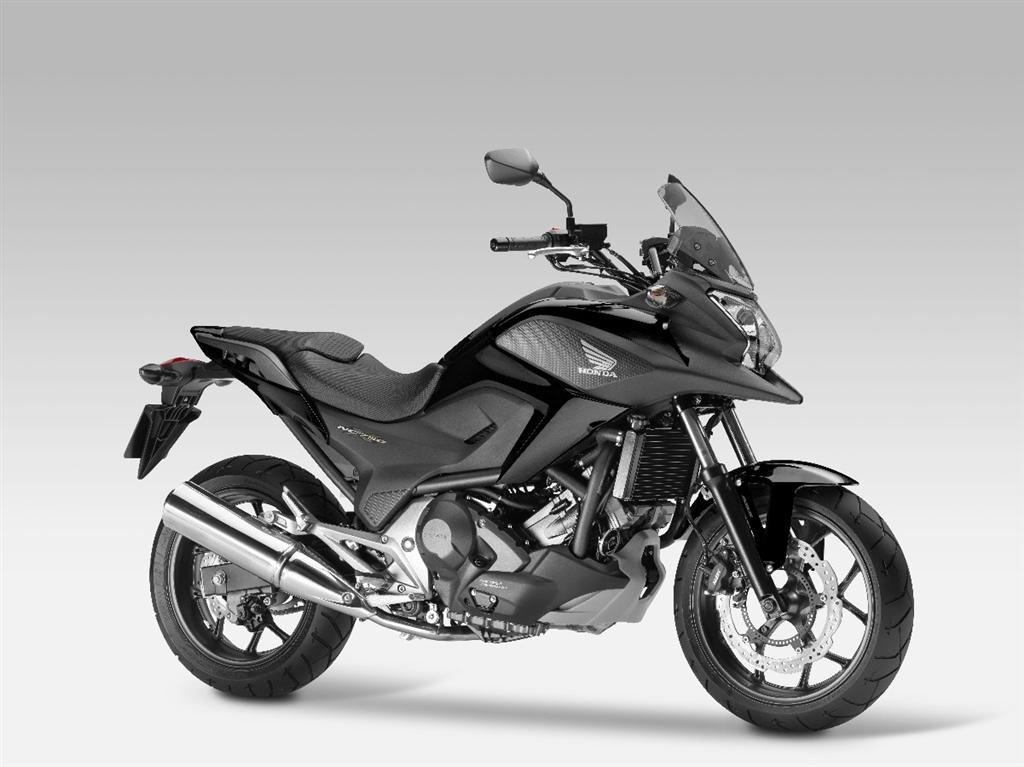

2014 Honda NC750X
2014 Honda NC750X- ABS brakes
2014 Honda NC750X-2
2014 Honda NC750S-2
2014 Honda NC750X-3

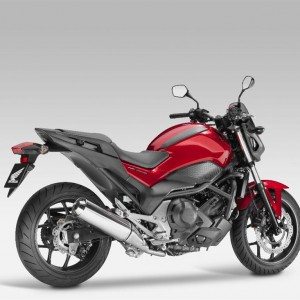

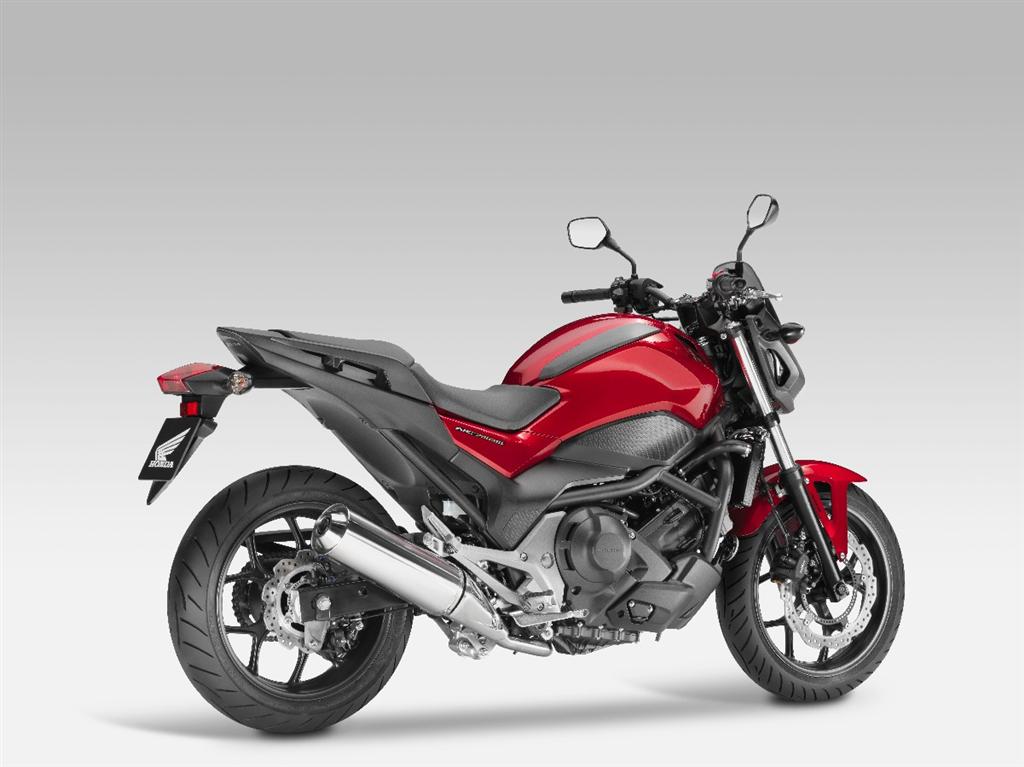

2014 Honda NC750S-3

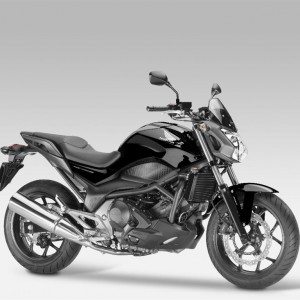

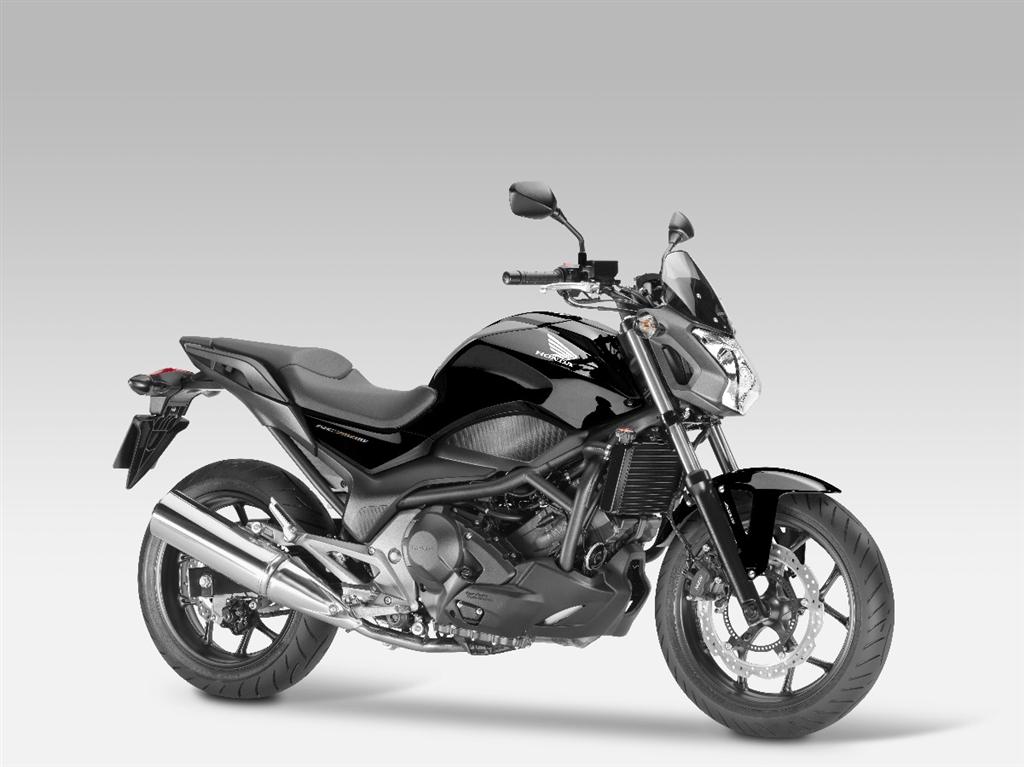

2014 Honda NC750S-4
2014 Honda NC750S-5

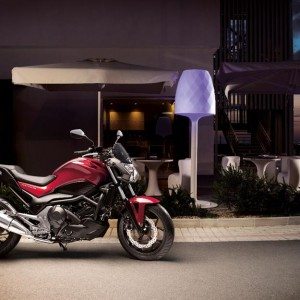

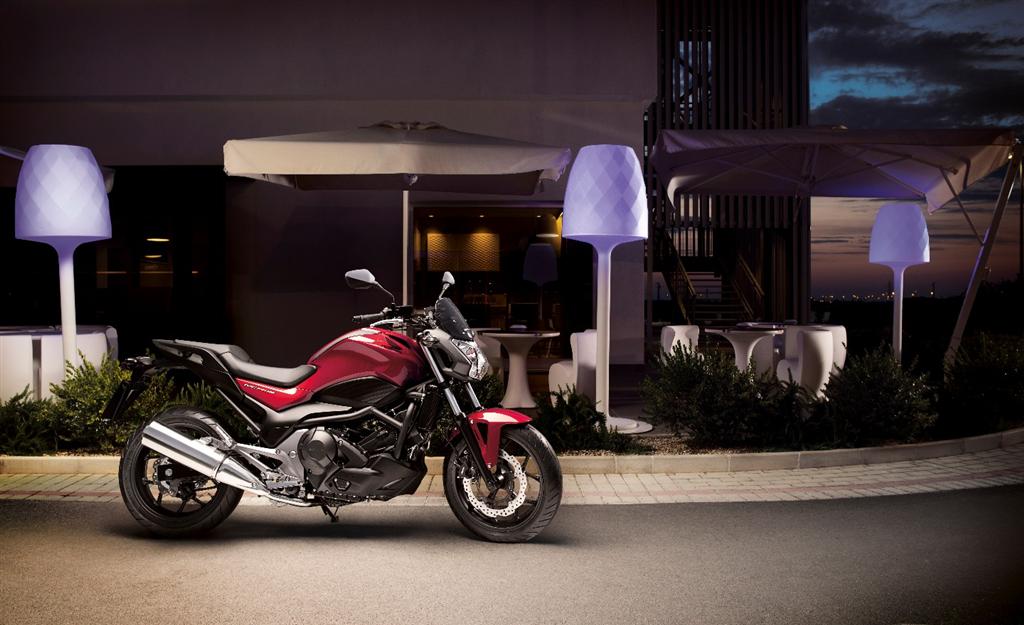

2014 Honda NC750S
