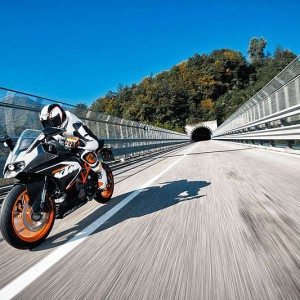

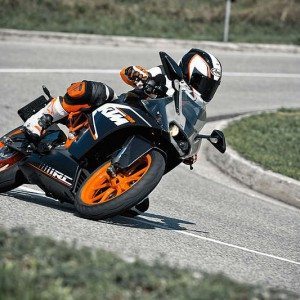

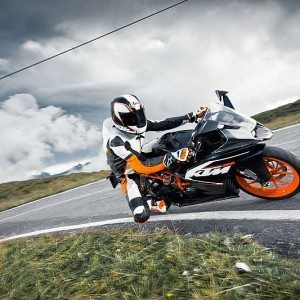

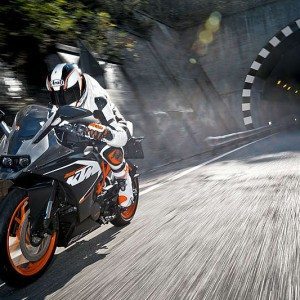

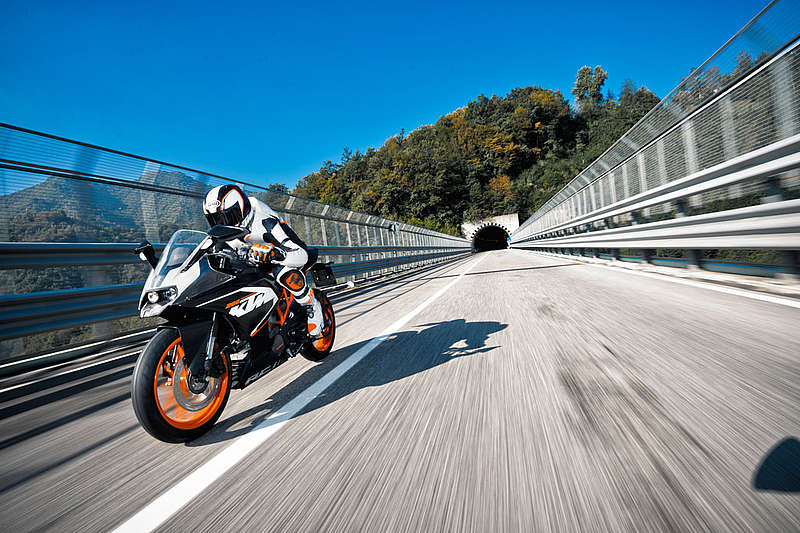

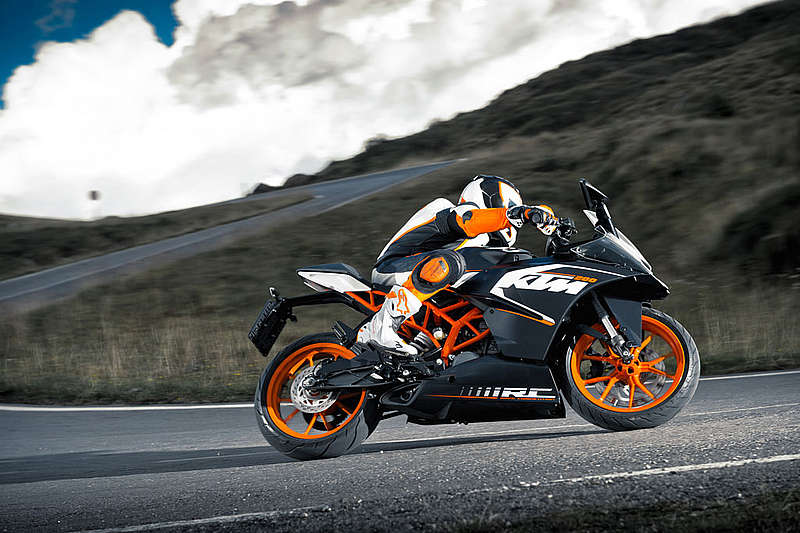

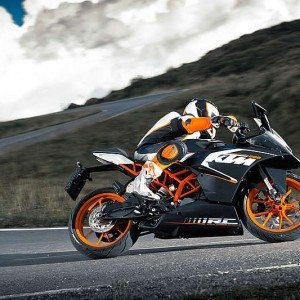

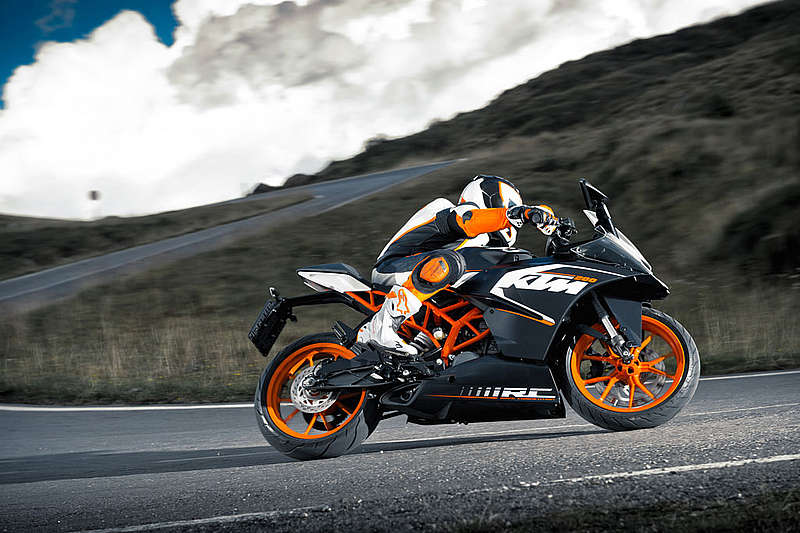

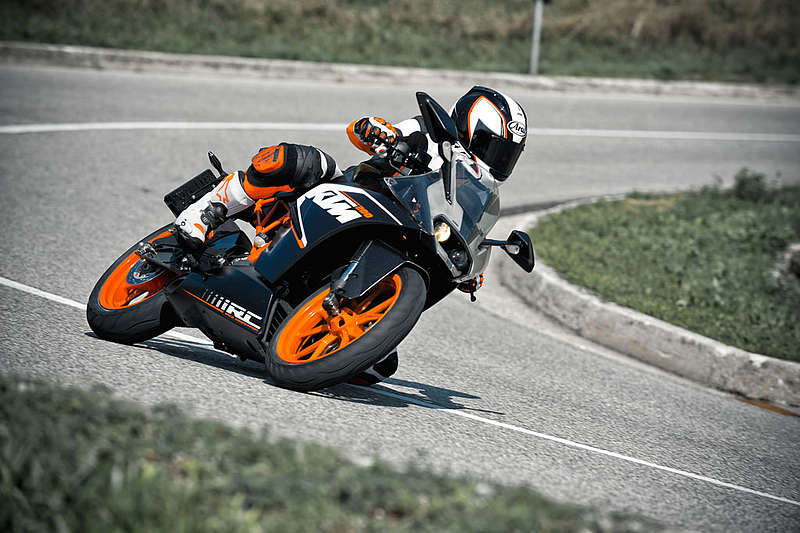

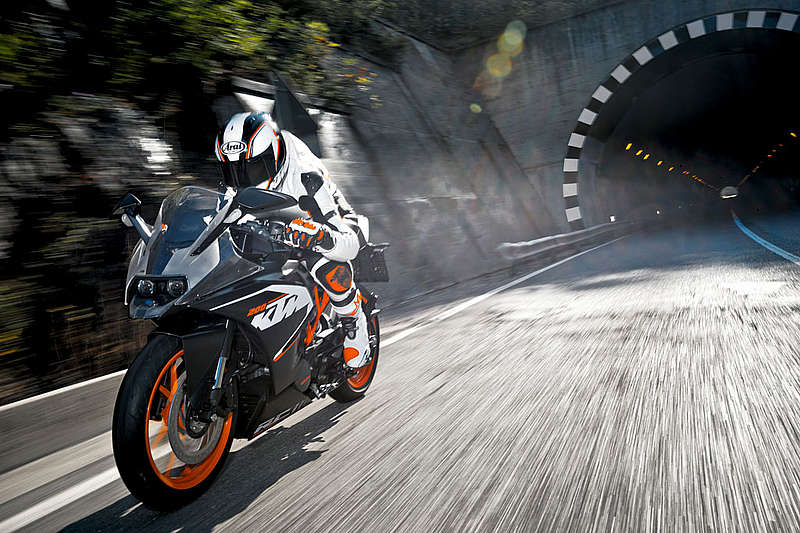

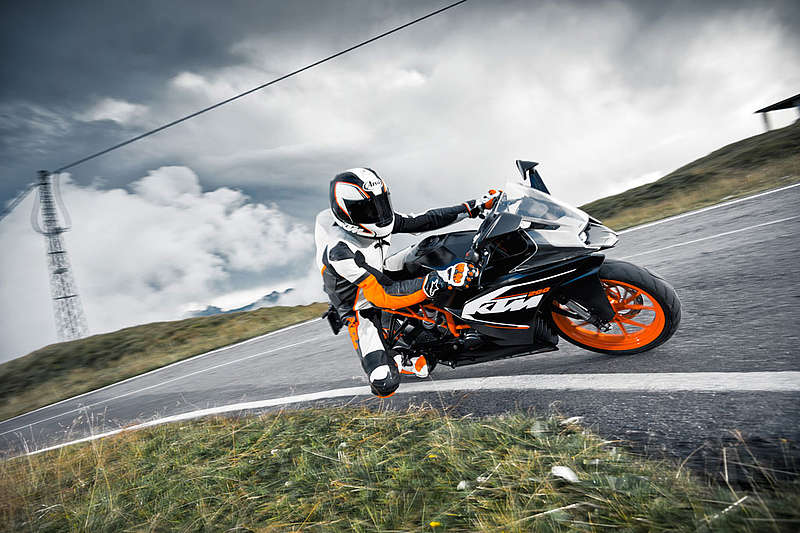

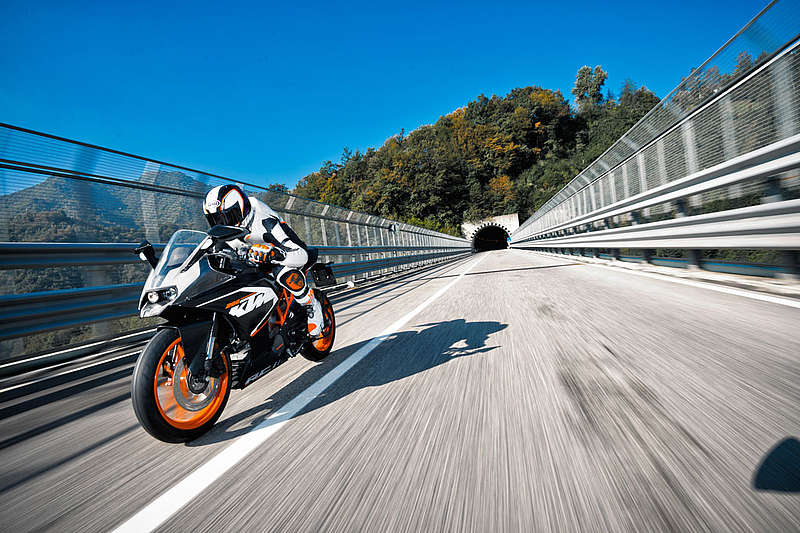

KTM RC 200 Images
KTM RC 200 Full Technical Specifications
ENGINE
| Design | Single-cylinder, 4-stroke, spark-ignition engine, liquid-cooled |
|---|---|
| Displacement | 199.5 cm³ |
| Bore | 72 mm |
| Stroke | 49 mm |
| Performance | 19 kW (25 hp) |
| Starting aid | Electric starter |
| Transmission | 6-speed, claw shifted |
| Engine lubrication | Forced oil lubrication with 1 rotor pump |
| Primary gear ratio | 22:72 |
| Secondary gear ratio | 14:42 |
| Cooling system | Liquid cooling system, continuous circulation of cooling liquid with water pump |
| Clutch | Clutch in oil bath / mechanically operated |
| Ignition system | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
CHASSIS
| Frame | Tubular space frame made from steel tubes, powder-coated |
|---|---|
| Fork | WP Suspension 4357 |
| Shock absorber | WP Suspension 4618 EM |
| Suspension travel front | 125 mm |
| Suspension travel rear | 150 mm |
| Brake system Front | Disc brake with four-pot brake caliper |
| Brake system Rear | Disc brake with one-pot brake caliper, floating brake discs |
| Brake discs – diameter front | 300 mm |
| Brake discs – diameter rear | 230 mm |
| Chain | 5/8 x 1/4” X‑Ring |
| Steering head angle | 66.5° |
| Wheel base | 1,340±15 mm |
| Ground clearance (unloaded) | 178.5 mm |
| Seat height (unloaded) | 820 mm |
| Total fuel tank capacity approx. | 10 l Unleaded premium fuel (95 RON) |
| dry weight | 137.5 kg |
