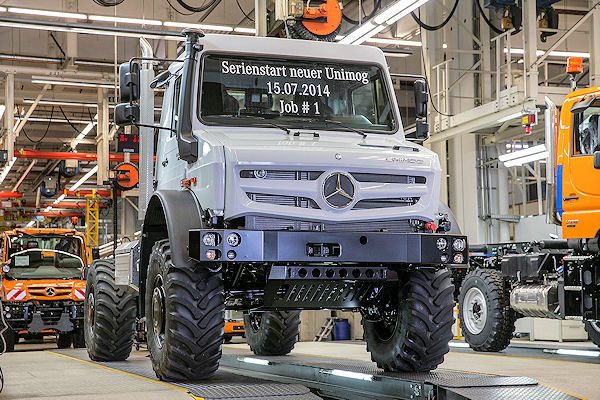

New 2014 Mercedes-Benz Unimog rolls off the line

|
Added in: Daimler

We often hear people talking about wanting to travel around the world once they retire. They imagine themselves in floral shirts and neon green shorts, hiding their bald pate with a straw hat, sipping on a blue drink by the beach. Those are lazy people, the real travelers wake up one day, find a map, a few shorts and some tees, get their Passports stamped to enter multiple countries and traverse across nations in their Mercedes-Benz Unimog.

mercedes-unimog-01

The new generation of the extreme all-terrain Mercedes-Benz  Unimog combines high efficiency, cutting-edge technology and outstanding system expertise to deliver a concept that impresses with its power and performance. At the same time, the new vehicles are environment-friendly and just as rugged as their predecessors. The new vehicles have a cab-behind-engine configuration with a redesigned radiator grille and bumpers equipped with bi-halogen headlamps. The new heating and air-conditioning system guarantees a pleasant working climate, while vehicle operation and handling are made easier by the clearly laid-out operating concept as well as by the front camera, which provides an extended field of vision.

The drive comes from a high-torque Euro VI four-cylinder engine from the OM 934 engine series, which makes the Unimog suitable for motorway use with a technical top speed of 90 km/h. Standardised mounting points allow for a wide range of different implements and attachments, while the uprated vehicle hydraulics and a new engine power take-off as mechanical interface make it possible to drive powerful implements up to 600 Nm. Safety is ensured by a powerful premium engine brake.

Unimog 2014

Off-road handling has been enhanced with a lower centre of gravity, compressed-air disc brakes on all wheels, stronger axles, a revised torque tube configuration with strengthened axle connection at the front, new torsion-bar stabilisers on the front axle and dirt guards for all assemblies and components. The standard equipment includes engageable all-wheel drive, differential locks all-round, ABS and EQR (Electronic Quick Reverse).
A torsional flexibility of up to 600 mm, an axle articulation of up to 30 degrees, high angles of approach/departure of 44 degrees at the front and 51 degrees at the rear, a breakover angle of 34 degrees, an extremely high slope climbing ability of 45 degrees, a side tilting angle of 38 degrees and a fording ability of max. 1.20 m are specifications that allow safe driving in extreme off-road situations. An extra off-road transmission range covers speeds between 2.5 km/h and 35 km/h. The Tirecontrol Plus tyre pressure control system has been completely redesigned with selection options for “Rough road”, “Sand” and “Road”.

Unimog

Yaris Pürsün, Head of Mercedes-Benz Special Trucks: “The new extreme all-terrain Unimogs set a new benchmark in the off-road sector. They impress with their ability to handle every terrain and master every challenge – be it in forest fire-fighting, flood areas or open-cast mining. The Unimog is an all-rounder, and we’ve been able to further improve its qualities despite the major challenges posed by Euro VI. That’s a really fantastic achievement.”
