BMW G 310 R instrument cluster, colour options and technical specifications revealed

|
Added in: BMW Bikes

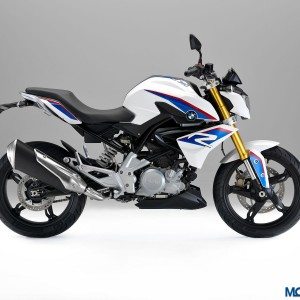

BMW G 310 R (K03) white

Last week, we had brought you the details of the new G 310 R, a motorcycle to be co-produced by BMWTVS. This time around, we got our hands on some more, new details of this upcoming motorcycle such as color options, a detailed view of the instrument cluster and the complete technical specifications.

Also read: New TVS BMW roadster: details, images and specs

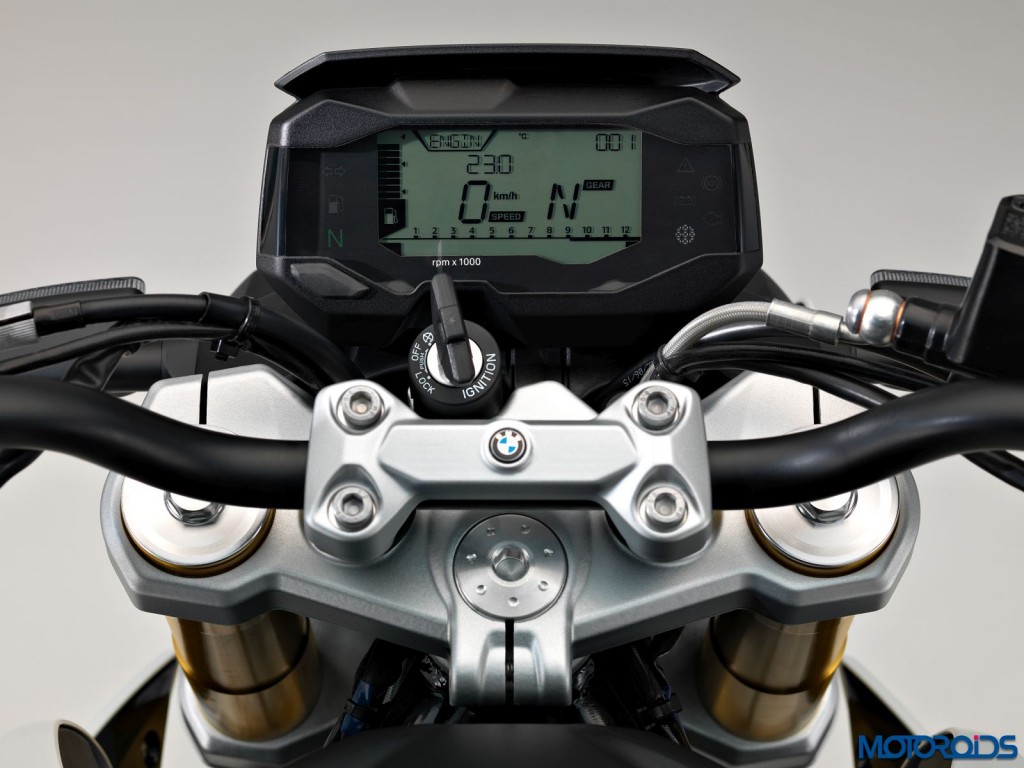

BMW G 310 R (K03) instrument cluster

The rectangular multi-functional instrument cluster on the G 310 R includes a LCD display at the centre which is surrounded with tell-tale indicators on both the sides. The liquid crystal digital display is claimed to offer excellent clarity along with a wide range of information such as the odometer, fuel gauge, trip meter, top speed, average speed, tachometer, clock, gear position and engine temperature. Left side of the digital display houses the low fuel warning, neutral light, turn indicators and high-beam indicator. To the right side of the digital display is a general warning indicator, low battery level indicator, ABS light, an engine warning indicator and a gear up-shift indicator.

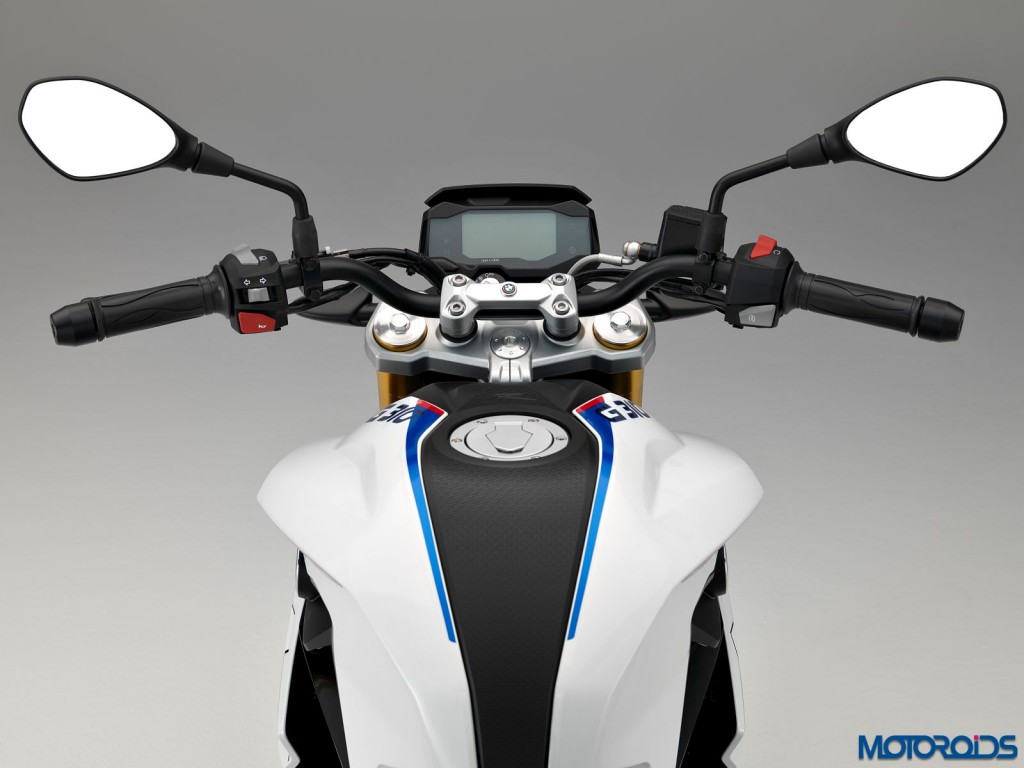

2016 BMW-TVS-G-310-R - Instrument Cluster and Handlebar

The overall display looks compact in images and, to a certain extent reminds us of the unit that is seen on the Suzuki Gixxer 155/SF. Compare that against the unit on the KTM motorcycles in India and you have equal amount of information, if not more, in an even more compact unit than any other product in the segment. The switchgear is not something out of the box either, as one would expect from a BMW Motorrad product. The list of controls include electric ignition, engine kill switch and pass light to name a few. The steel-braided brake lines, apart from adding to the list of premium features of the G 310 R, should also improve the braking feedback.

BMW G 310 R (K03) blue

The G 310 R will be powered by a 313 cc liquid cooled, single cylinder engine which produces a maximum power of 34 hp at 9500 rpm and a maximum torque of 28 Nm at 7500 rpm mated to a 6 speed gearbox. Other features include a 11 litre fuel tank, upside down forks, ABS, aluminium swing arm and a 240 mm disc brake at the rear and a 300 mm disc brake at the front.

Also see: BMW G 310 R – Official riding video

The BMW G 310 R will be developed and engineered in BMW Motorrad’s plant in Munich and manufactured in the TVS Motor Company’s plant at Bengaluru, India. The G 310 will compete with the likes of the Benelli TNT 300 and KTM Duke 390. It is expected to make a debut at the upcoming 2016 Auto Expo and carry a price tag of of Rs 3 lakh. Once launched, customers can order the new G 310 R in three color options – black, blue and white.

BMW G 310 R (K03) black
BMW G 310 R (K03) blue
BMW G 310 R (K03) white

While we await more details about the launch and the prices, here is the complete technical specifications of the new BMW-TVS G 310 R. Do let us know your opinions about this new motorcycle from BMW-TVS duo through the comments section.

Engine

TypeWater-cooled, single-cylinder 4-stroke engine, four valves, two overhead camshafts, dry sump lubrication
Bore x stroke80 mm x 62,1 mm
Capacity313 ccm
Rated output25 kW (34 PS) at 9500 U/min (ECE Version)
Max. torque28 Nm at 7500 U/min
Compression ratio10,6 : 1
Mixture control / engine managementElectronic fuel injection, BMS-E2
Emission controlClosed-loop 3-way catalytic converter, emission standard EU-4

Performance / fuel consumption

Maximum speed145 km/h
Consumption w.r.t WMTC for 100km3,3 l
Fuel typeUnleaded super, minimum octane rating 95 (RON)

Electrical system

AlternatorAlternator 330 W
Battery12 V / 8 Ah, maintenance free

Power transmission

ClutchMultiple-disc clutch in oil bath, mechanically operated
GearboxSynchromesh 6-speed transmision Integrated in the motor housing.
DriveEndless O-ring chain with shock damping in rear wheel hub

Chassis / brakes

FrameBolted steel frame, drive unit load-bearing, tubular steel rear frame.
Front wheel location / suspensionUpside down fork , Ø 41 mm
Rear wheel location / suspensionSolid die-cast aluminum swingarm, directly hinged monoshock, adjustable preload
Suspension travel front / rear140 mm / 131 mm
Wheelbase1,374 mm
Castor102,3 mm
Steering head angle64,9°
WheelsCast aluminium wheels
Rim, front3.0 x 17″
Rim, rear4.0 x 17″
Tyres, front110/70 R 17
Tyres, rear150/60 R 17
Brake, frontSingle disc, diameter 300 mm, 4-piston fixed caliper, radially bolted
Brake, rearSingle disc, diameter 240 mm, single-piston floating caliper
ABSBMW Motorrad ABS

Dimensions / weights

Length1.988 mm
Width (incl. mirrors)896 mm
Height (excl. mirrors)1.227 mm
Seat height, unladen weight785 mm
Inner leg curve, unladen weight1.785 mm
Unladen weight, road ready, fully fuelled158,5 kg

Dry weight

Permitted total weight345 kg
Payload (with standard equipment)186,5 kg
Usable tank volume11 l
Reserve1 L
2016 BMW-TVS-G-310-R – Instrument Cluster and Handlebar
BMW G 310 R (K03) instrument cluster
BMW G 310 R (K03) instrument cluster
BMW G 310 R (K03) black
BMW G 310 R (K03) blue
BMW G 310 R (K03) white
BMW G 310 R (K03) black
BMW G 310 R (K03) blue
BMW G 310 R (K03) white
BMW G 310 R (K03) black
BMW G 310 R (K03) blue
BMW G 310 R (K03) white
