INTERMOT 2016: Meet the 2017 Honda CB1100 RS and CB1100 EX

|

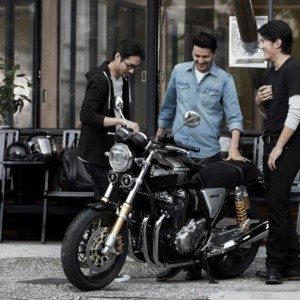

2017-Honda-CB1000-RS-12

Apart from the new 2017 CBR1000RR SP and SP2 supersports, Honda also unveiled the updated CB1100 at the 2016 INTERMOT show. The old school styling is now accompanied by performance upgrades, modern hardware and electronics. For 2017, Honda has introduced two versions of the CB1100, the CB1100 EX and the CB1100 RS. The new Honda CB1100 RS is designed to deliver minimal, hand-crafted style and sporting edge while the CB1000 EX exudes even more classic style, and features new stainless steel spoke wheels, Showa suspension and LED lighting.

INTERMOT 2016: New 2017 Honda CBR1000RR Fireblade SP gets more power & electronics, sheds weight

Both the retro styled motorcycles draw power from a 1,140 cc  inline four-cylinder, air and oil-cooled, DOHC engine which delivers  89 bhp of power 7,500 rpm and 91 Nm of torque at 5,500 rpm. The engine comes mated to a  6-speed transmission. The engine gets a revised inlet and exhaust systems and is now equipped with an assist slipper clutch.

2017-Honda-CB1000-EX-3

Apart from the engine, the Honda CB1000 RS and CB1000 EX also share the double steel cradle frame but get different dimensions and hardware. So while the CB1000 RS gets 10-spoke diecast aluminium wheels, wrapped around in fatter (120/70 R17 and 180/55 R17) tyres, the CB1000 EX gets 18in x 2.50 MT wire spoke wheels with relatively thinner (110/80 R18 and 140/70 R18) set. The CB1000 RS also gets a slightly thicker front suspension (43mm) than the CB1000 EX (41mm).

Get the complete insights of the CB1000 RS and CB1000 EX through Honda’s official release below.

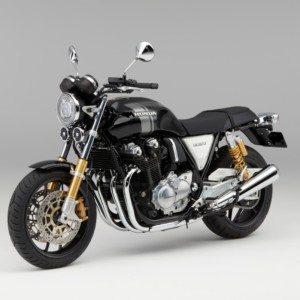

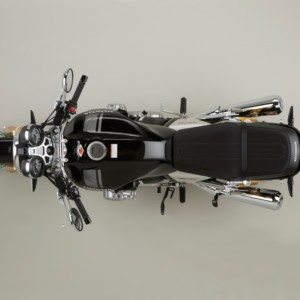

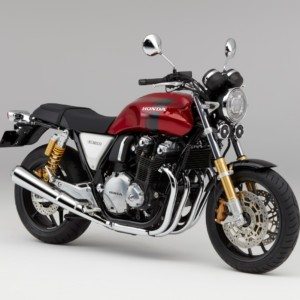

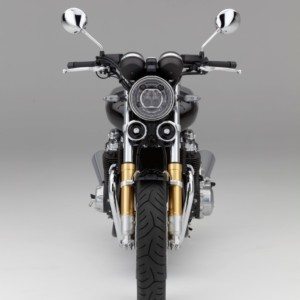

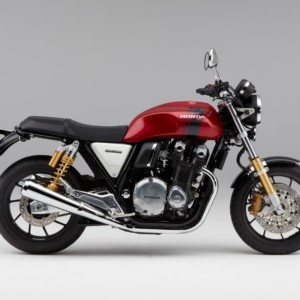

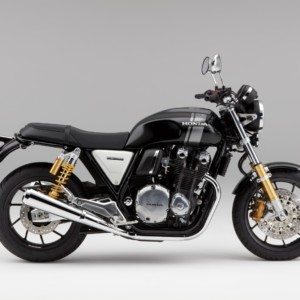

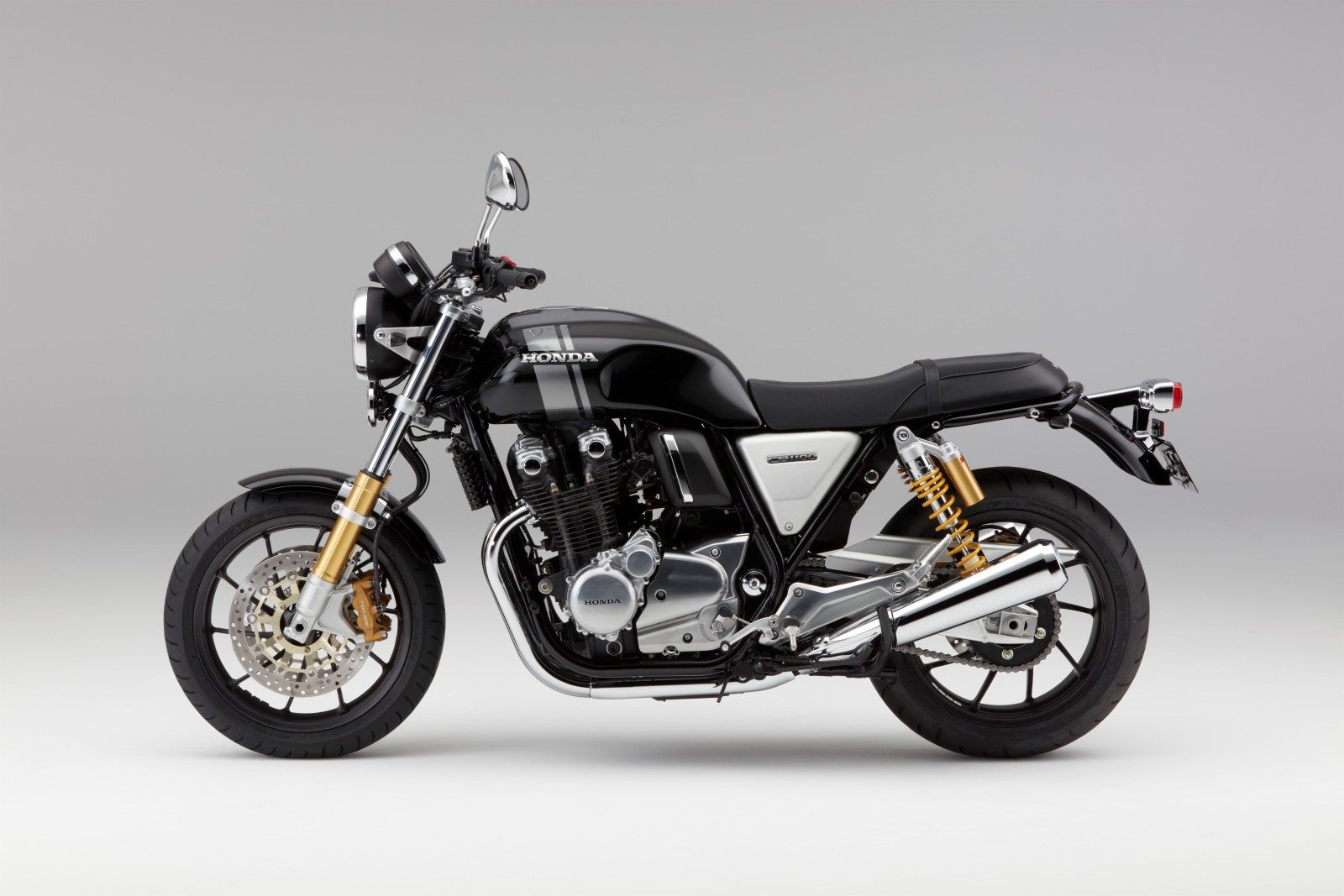

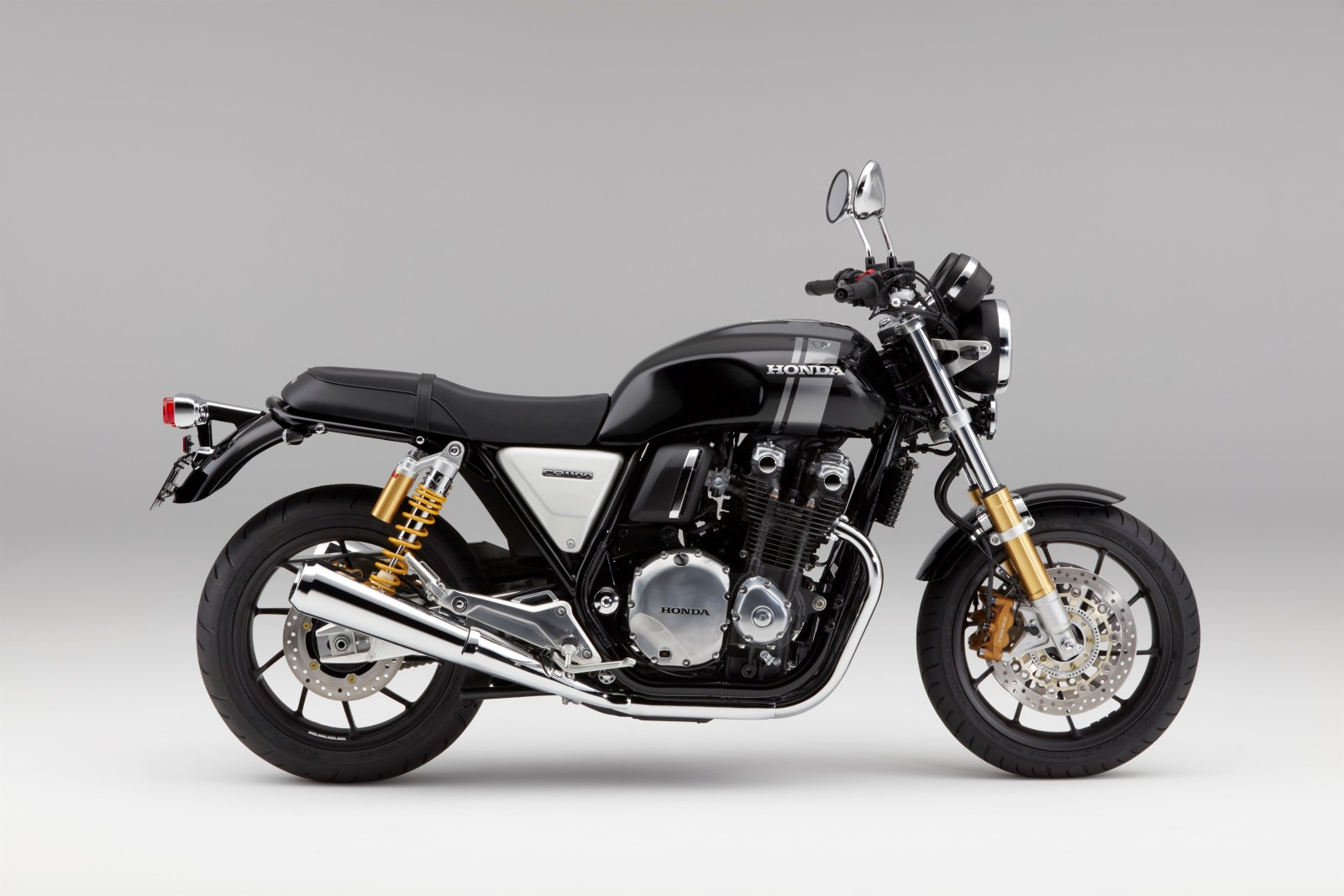

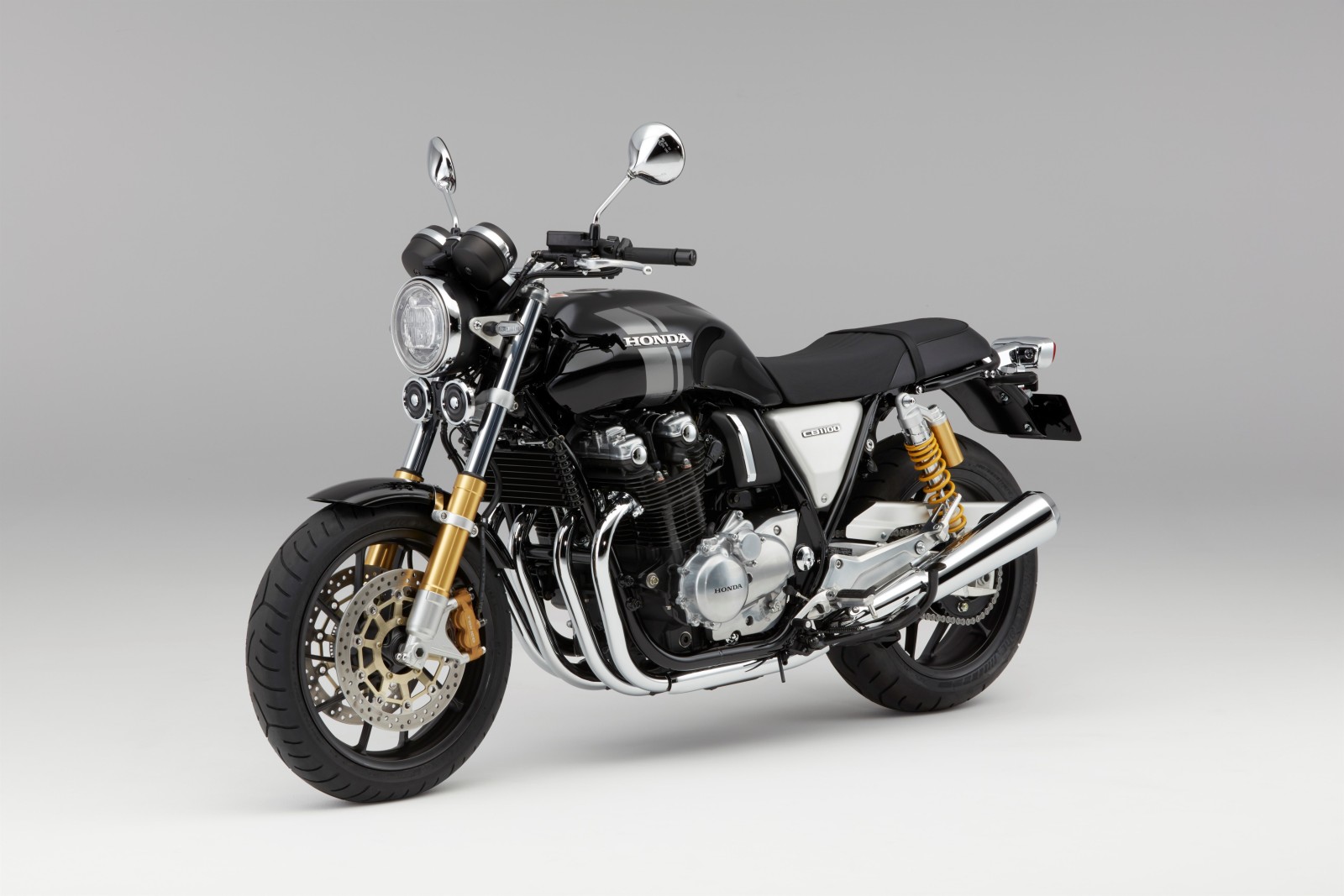

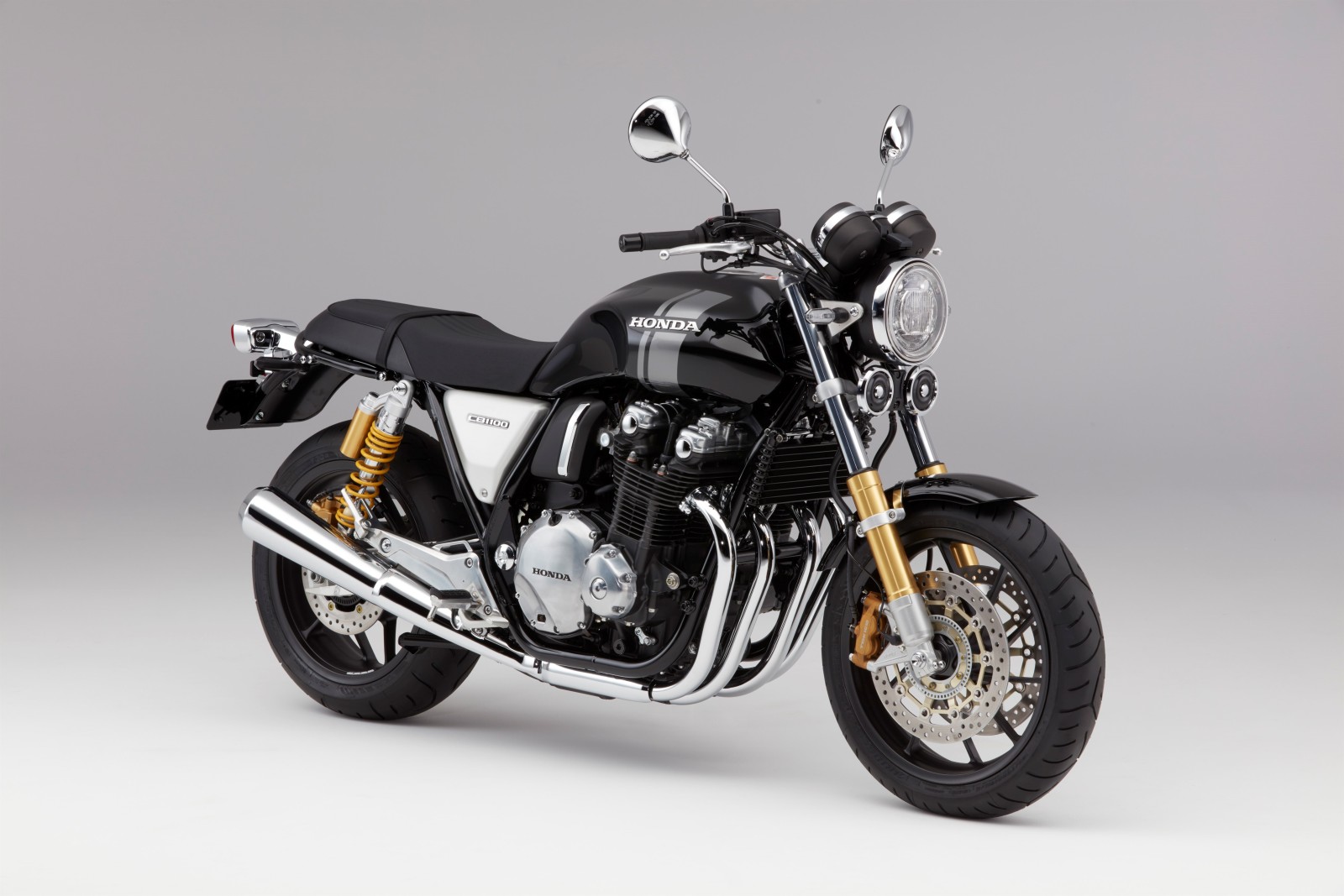

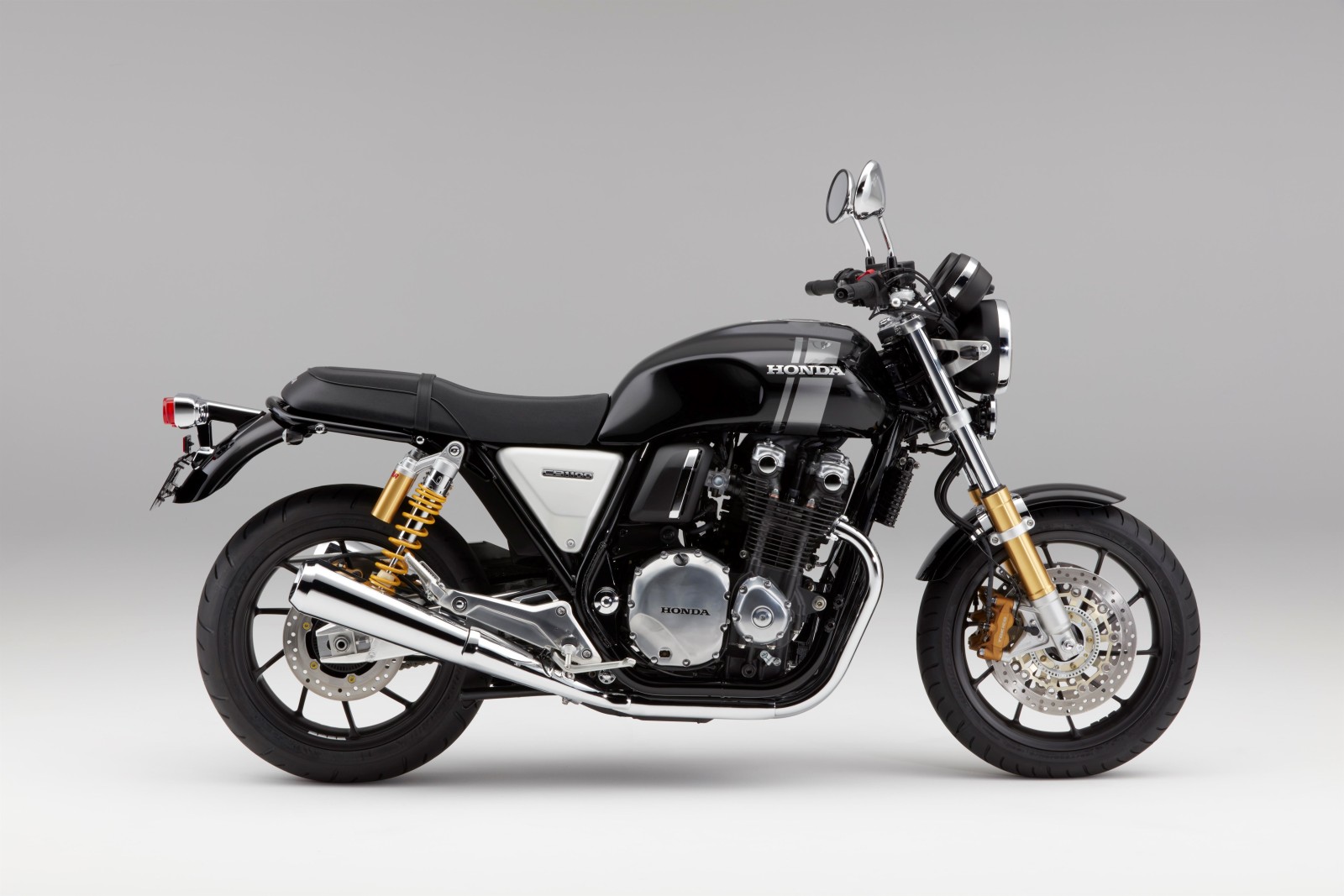

Meet the CB1100 RS through the official release:

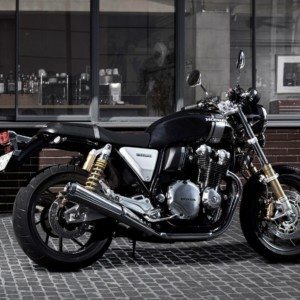

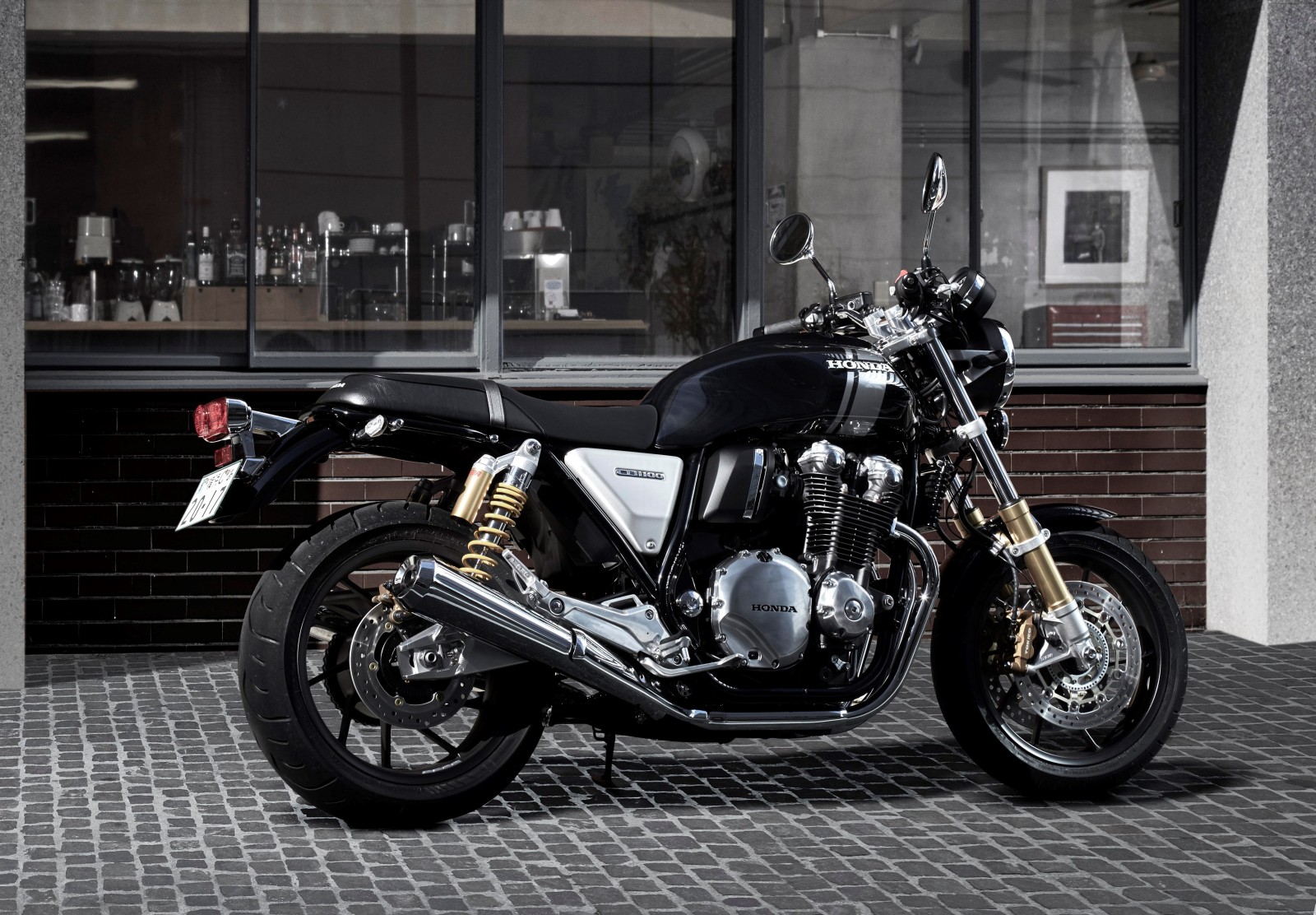

2017-Honda-CB1000-RS-16

Model Overview

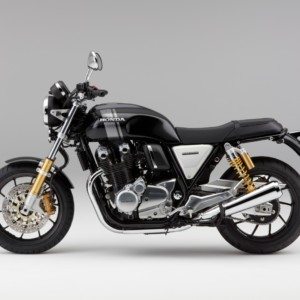

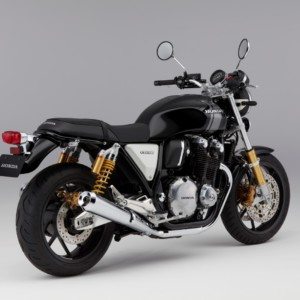

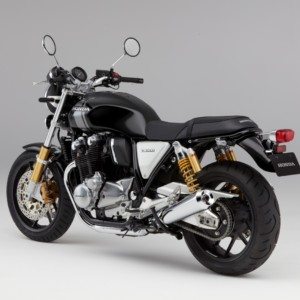

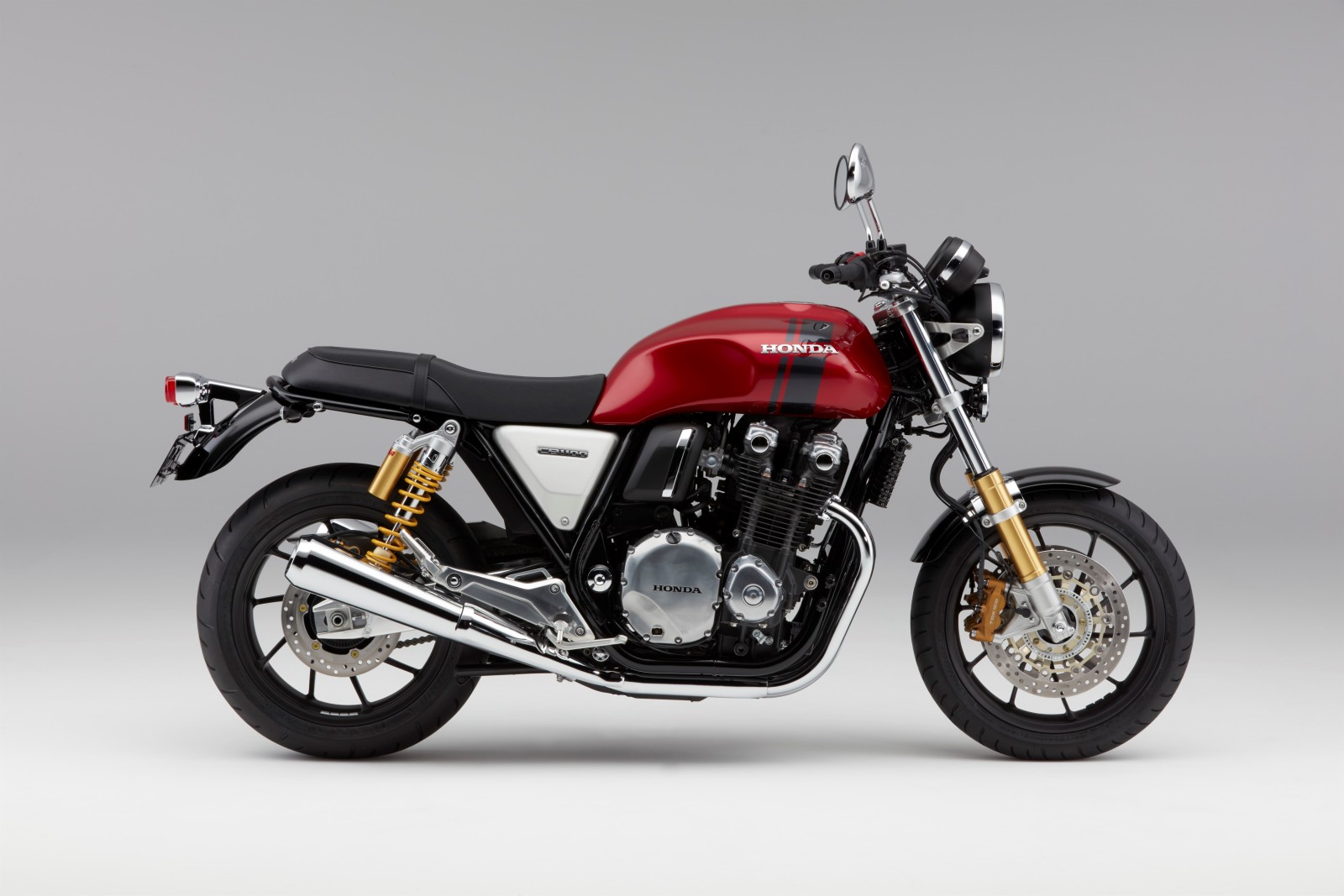

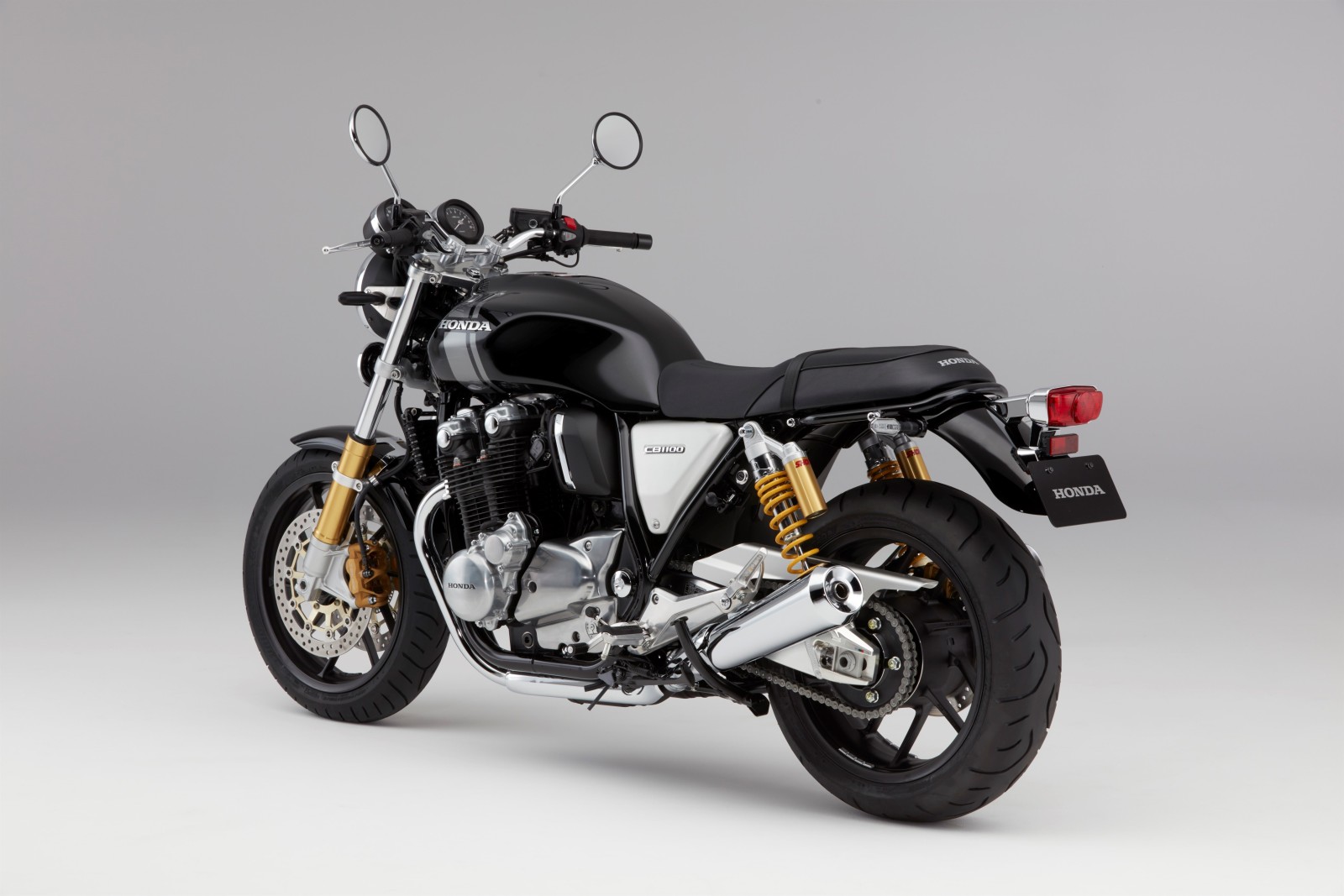

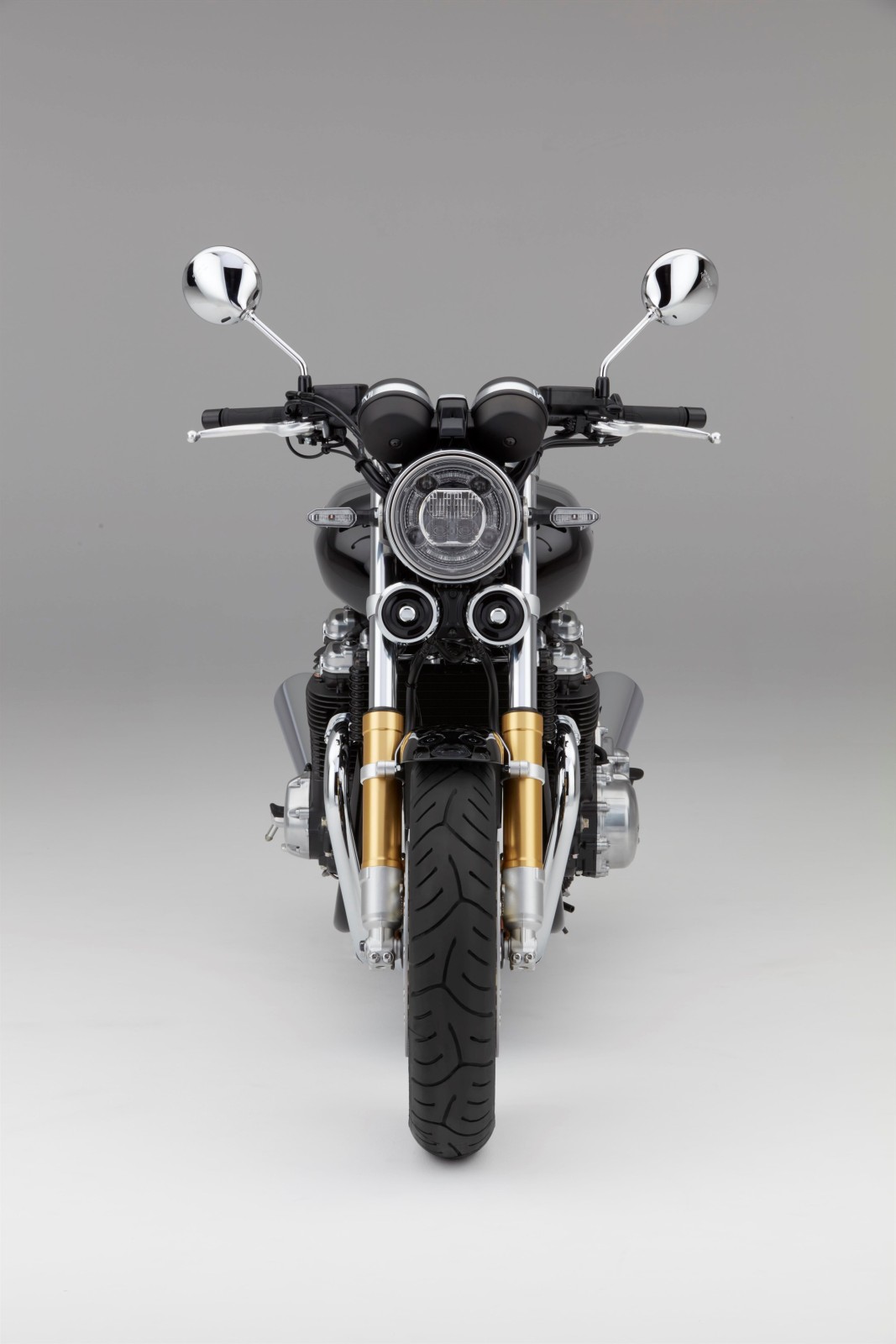

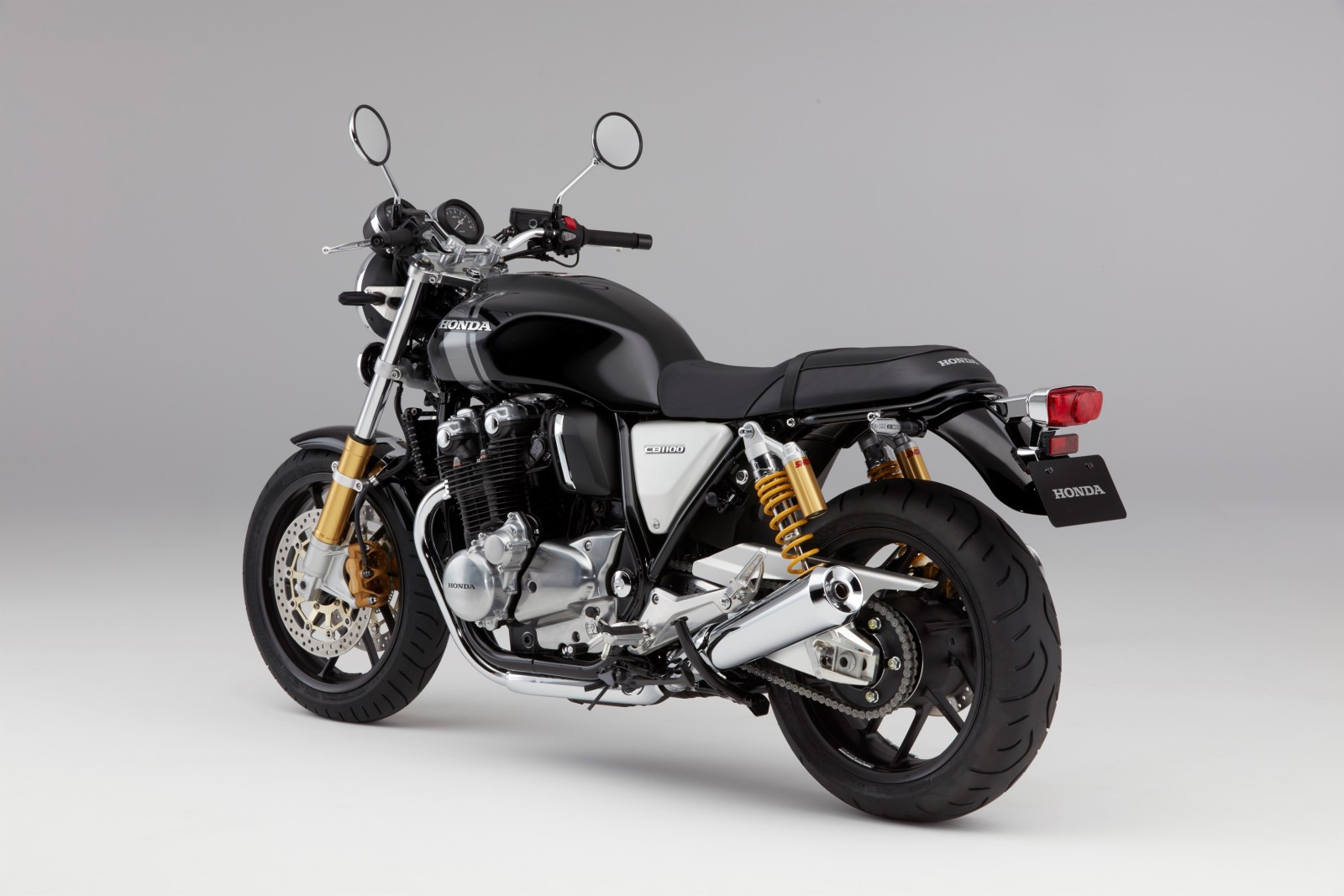

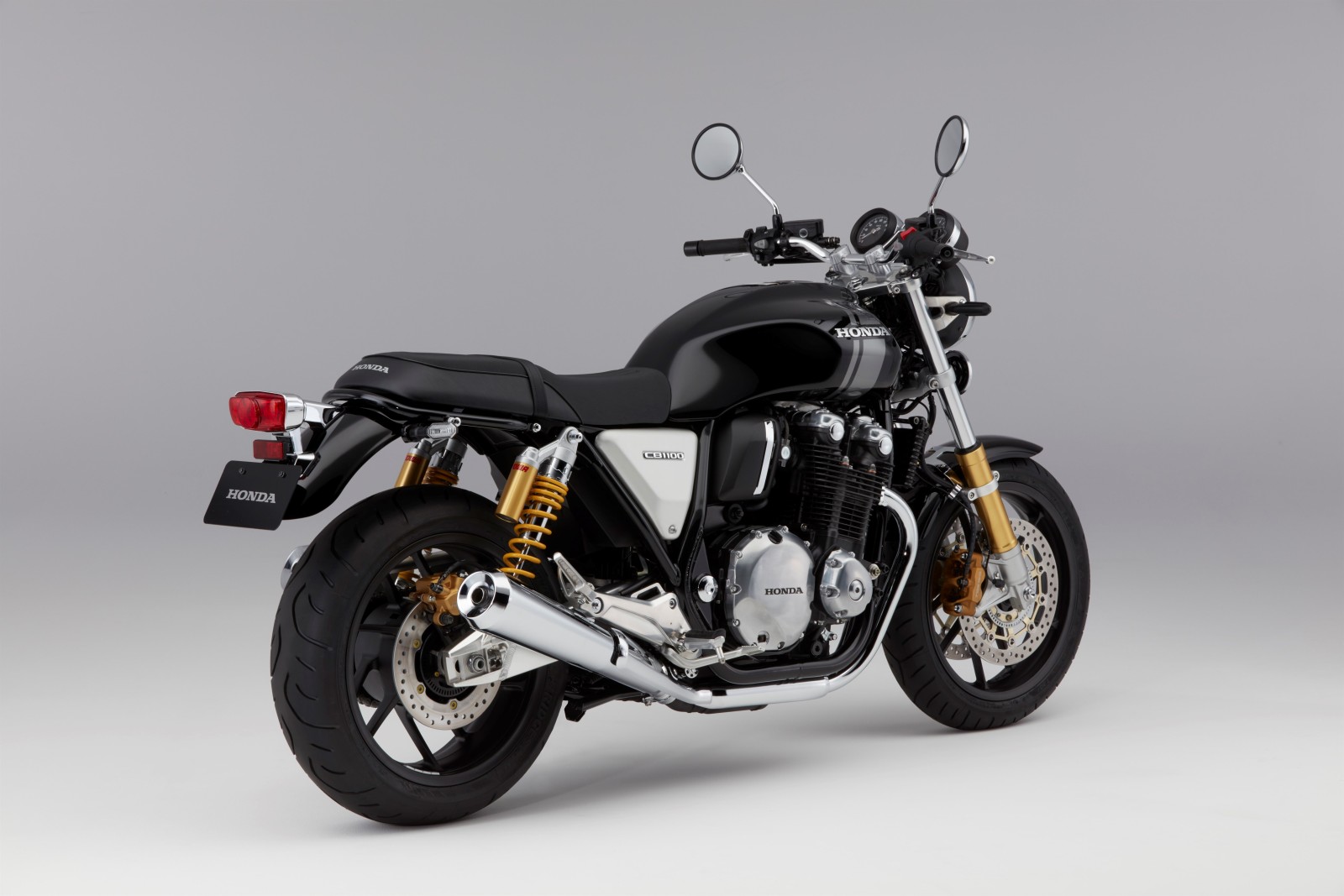

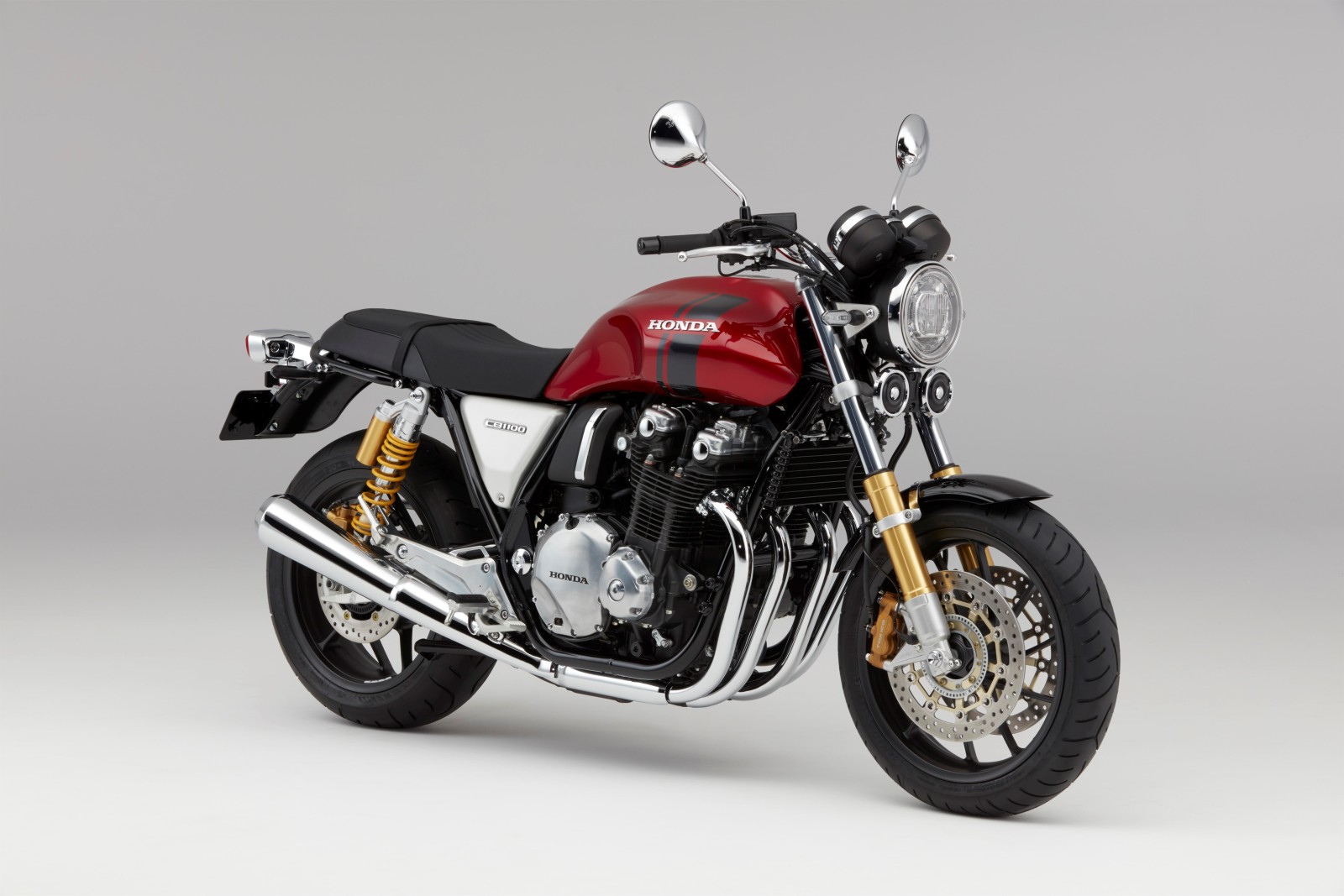

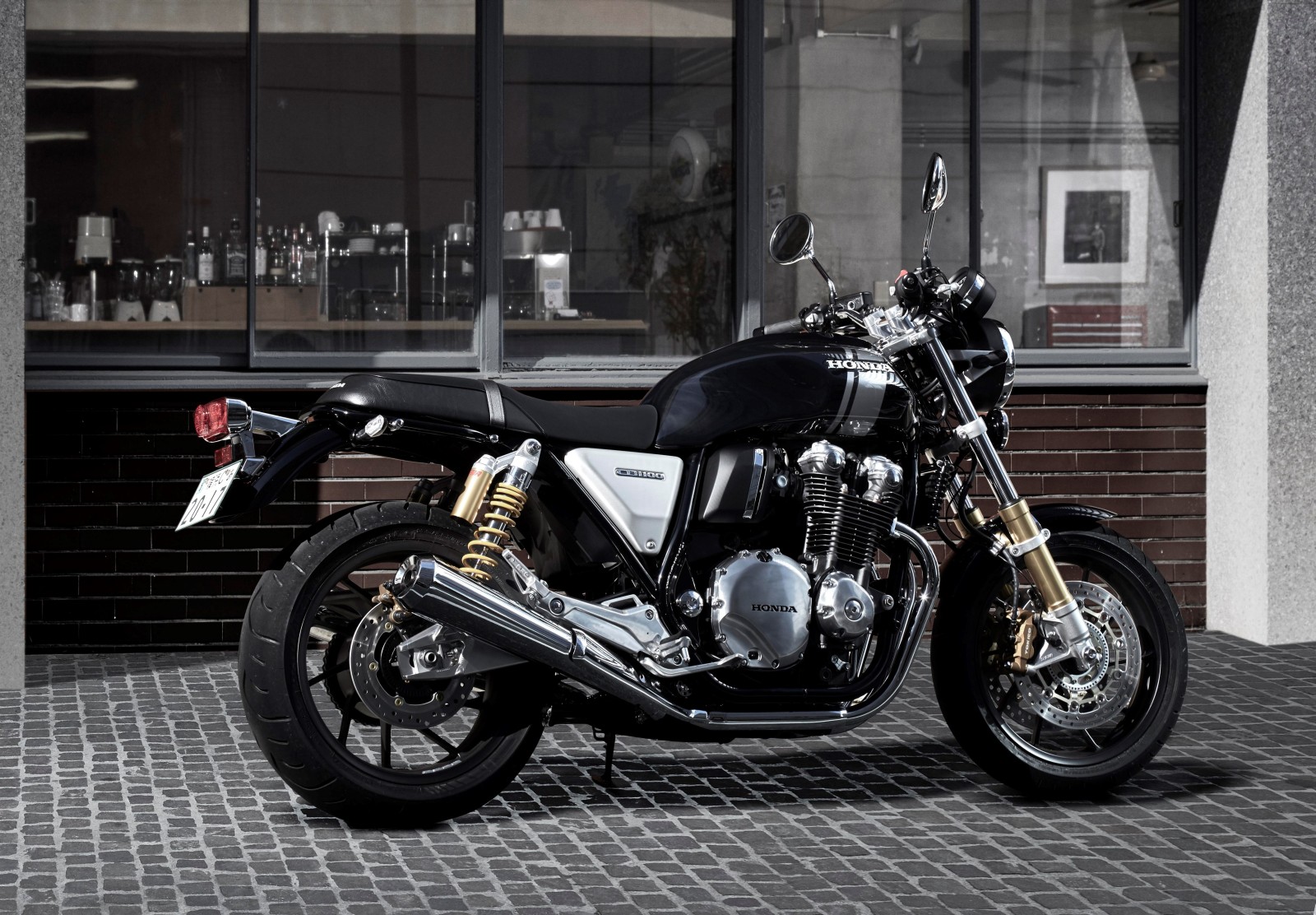

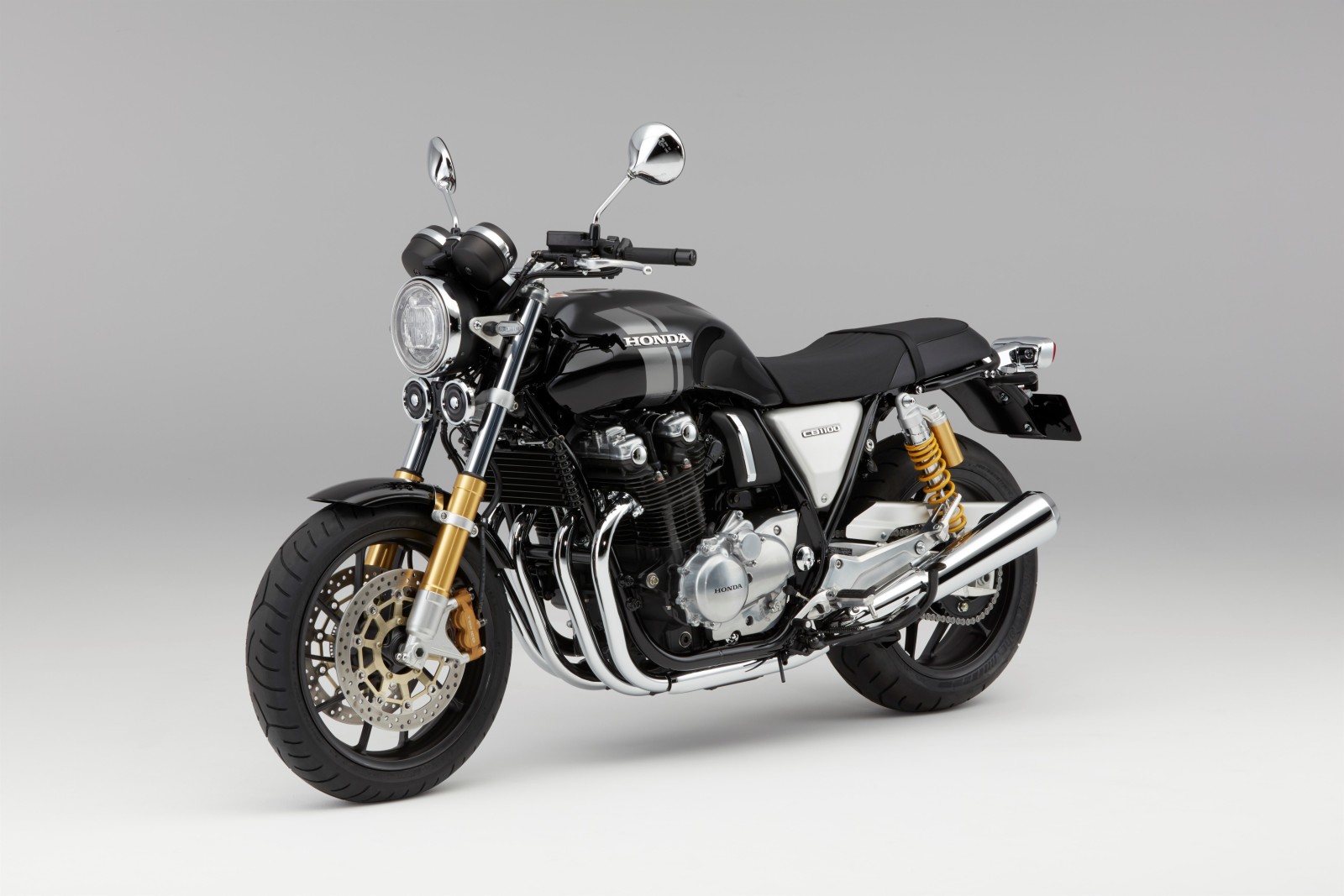

Stripped back and lean, the CB1100 RS has the look of a 1970s race bike, with more than a hint of café racer. The curvaceous fuel tank – made without seam-welded lips – evokes hand-made craftsmanship, while the single round headlight and twin instrument dials outline a timeless silhouette. Adding crisp-edged modernity, all lighting is LED.

Backing up the sportier styling, the CB1100 RS’s chassis uses sharper geometry matched than the EX, with firmer Showa suspension, front radial-mount four-piston brakes, cast aluminium 17-inch wheels and sportsbike-spec tyre sizes. A lower, more compact riding position moves the rider’s weight forward, complementing the chassis changes.

The air-cooled four-cylinder engine breathes more easily thanks to a revised inlet tract and smaller, lighter 4-2-2 exhaust system while an assist slipper clutch makes for easier lever engagement and rear wheel stability on downshifts.

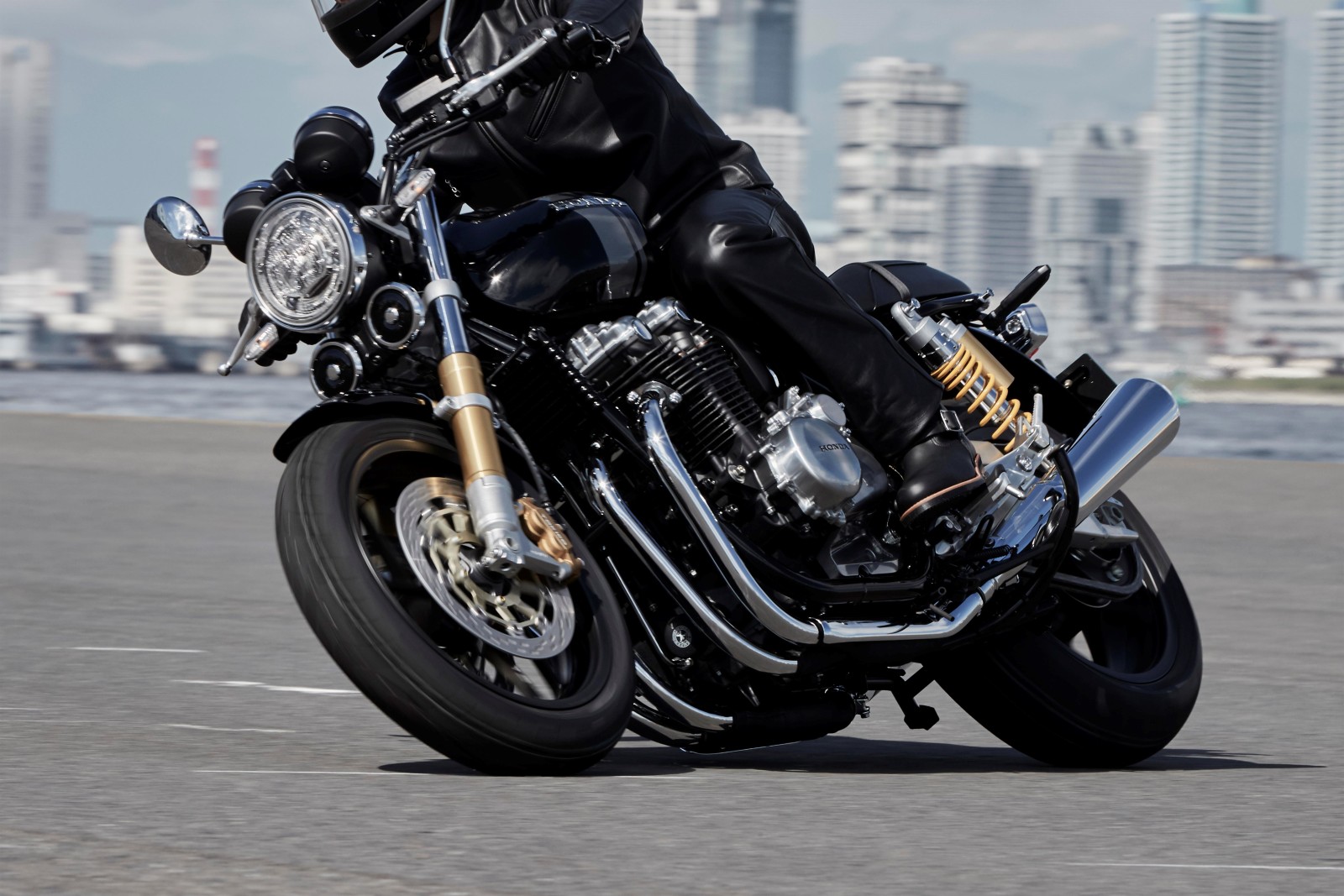

With a keener edge to its appeal and performance, the CB1100 RS is a perfect machine to cut through the city in style, and cut loose on winding roads at weekends. It exudes exquisite engineering that draws in the observer, and is also a platform ripe for customization, and ready for an owner’s imagination.

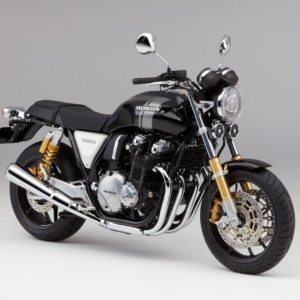

2017-Honda-CB1000-RS-9

Key Features

Chassis

The CB1100 RS’s classic tubular steel double cradle frame holds the engine with four rigid and two rubber mounts. It features tighter steering geometry than the CB1100 EX, with rake and trail of 26°/99mm and wheelbase of 1485mm (as opposed to 27°/114mm/1490mm) to give faster steering and more responsive handling. Seat height is 795mm with kerb weight of 252kg.

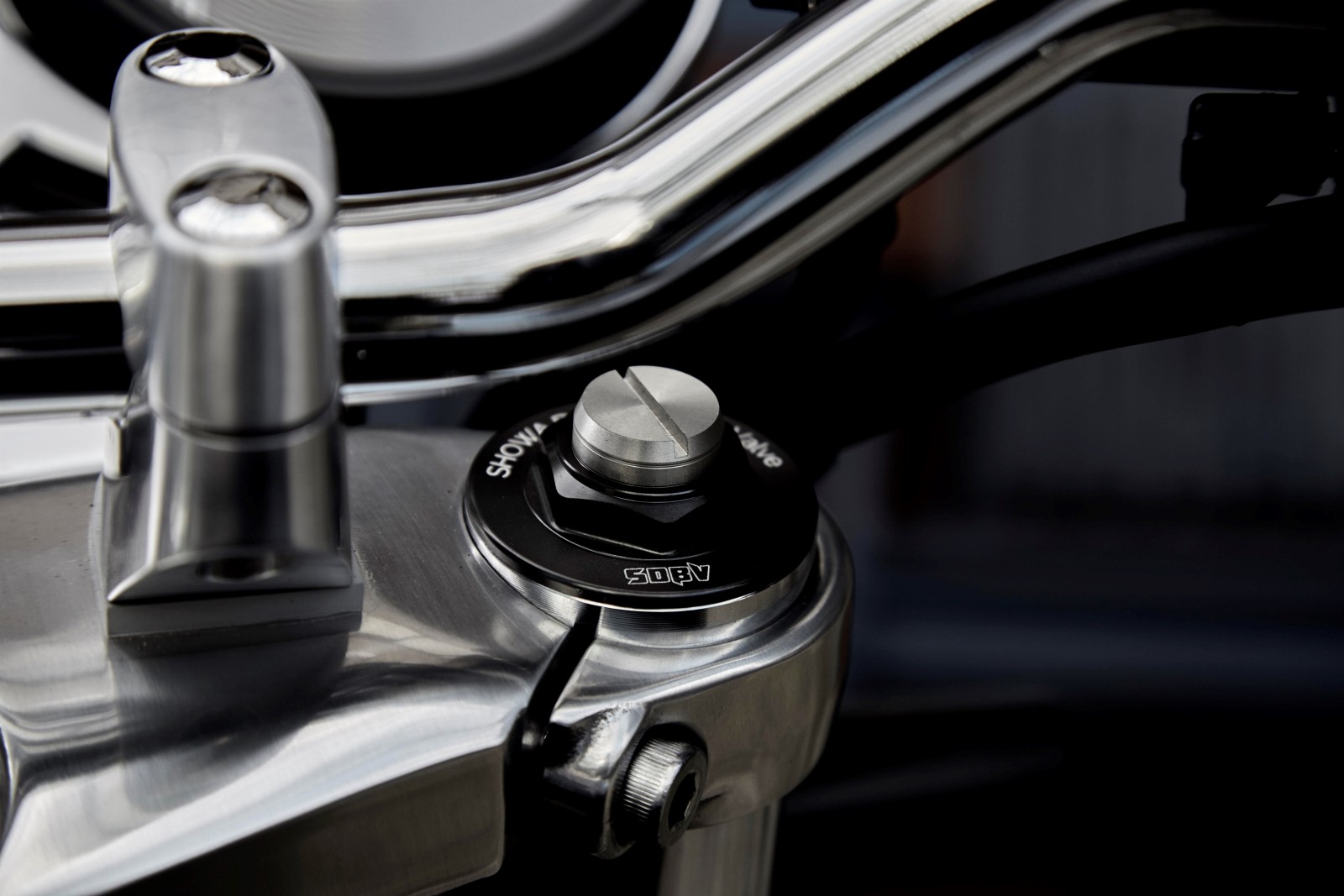

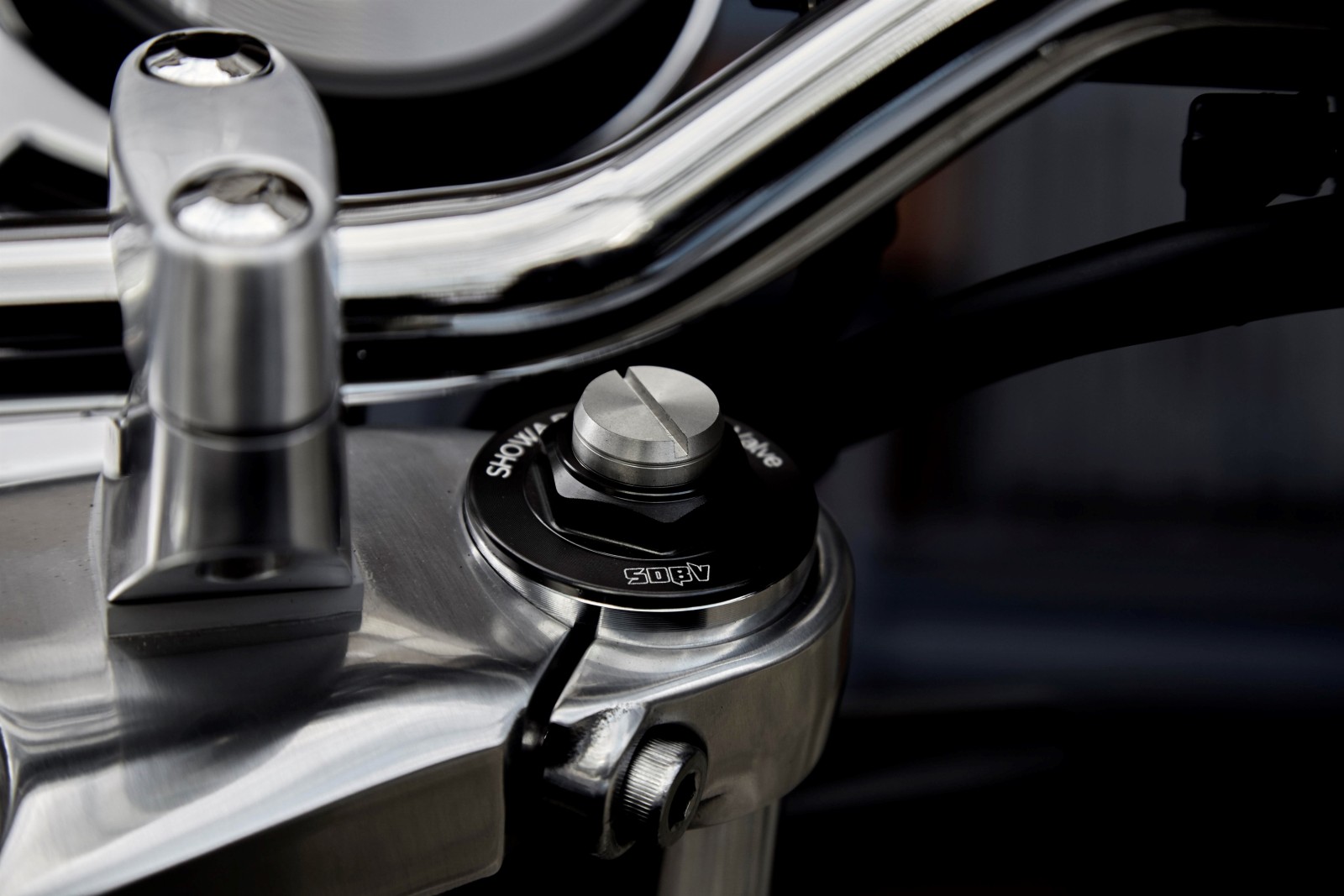

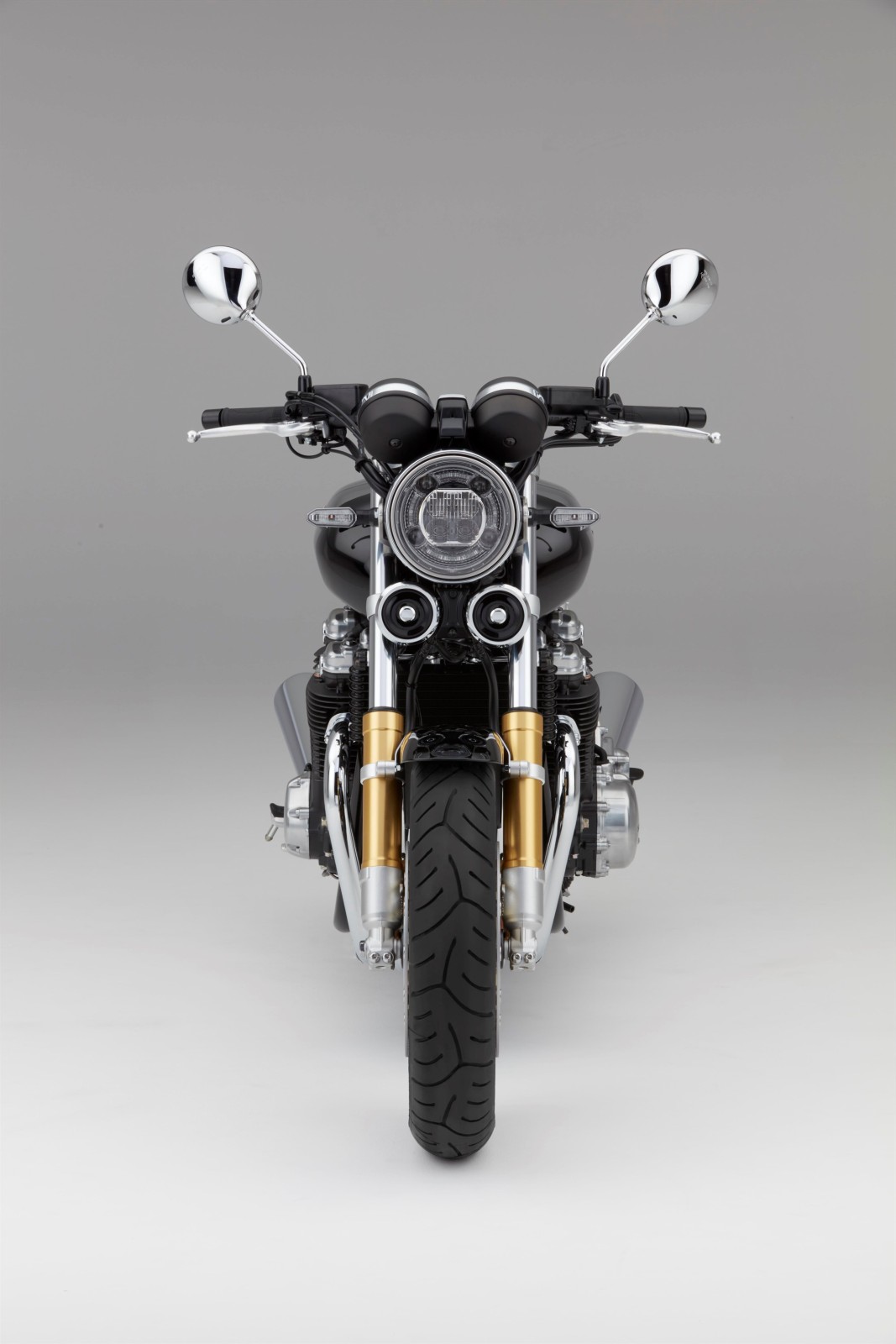

As well as a more aggressive stance and riding position the CB1100 RS is also equipped with a Showa Dual Bending Valve (SDBV) 43mm two-piece front fork, which uses two valves to generate both compression and rebound damping force giving linear feel, excellent ride quality and precise road holding. A new die-cast aluminium top yoke features a buffed finish and clear coat, while the bottom yoke holds the fork legs in a higher position.

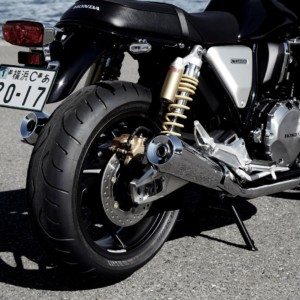

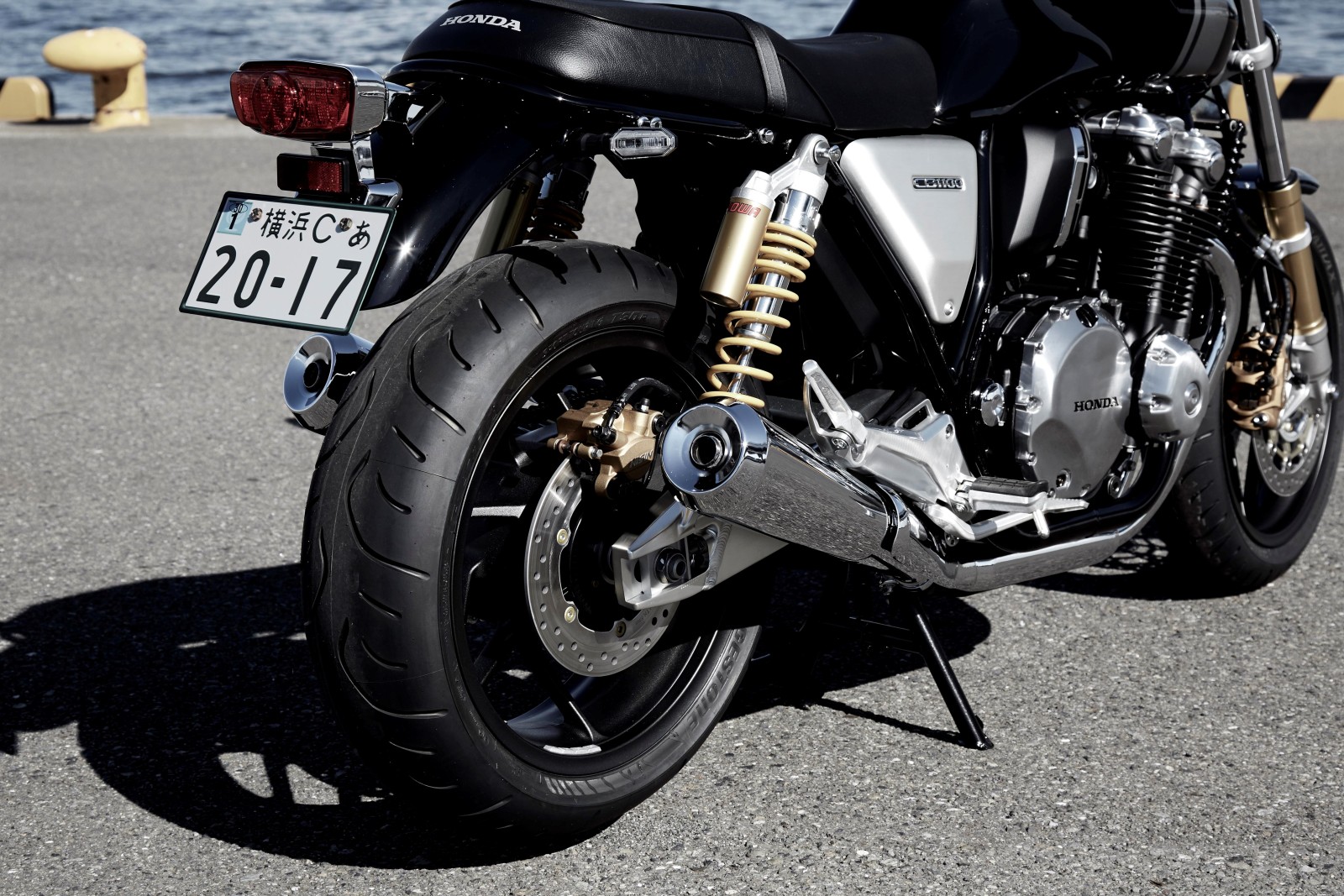

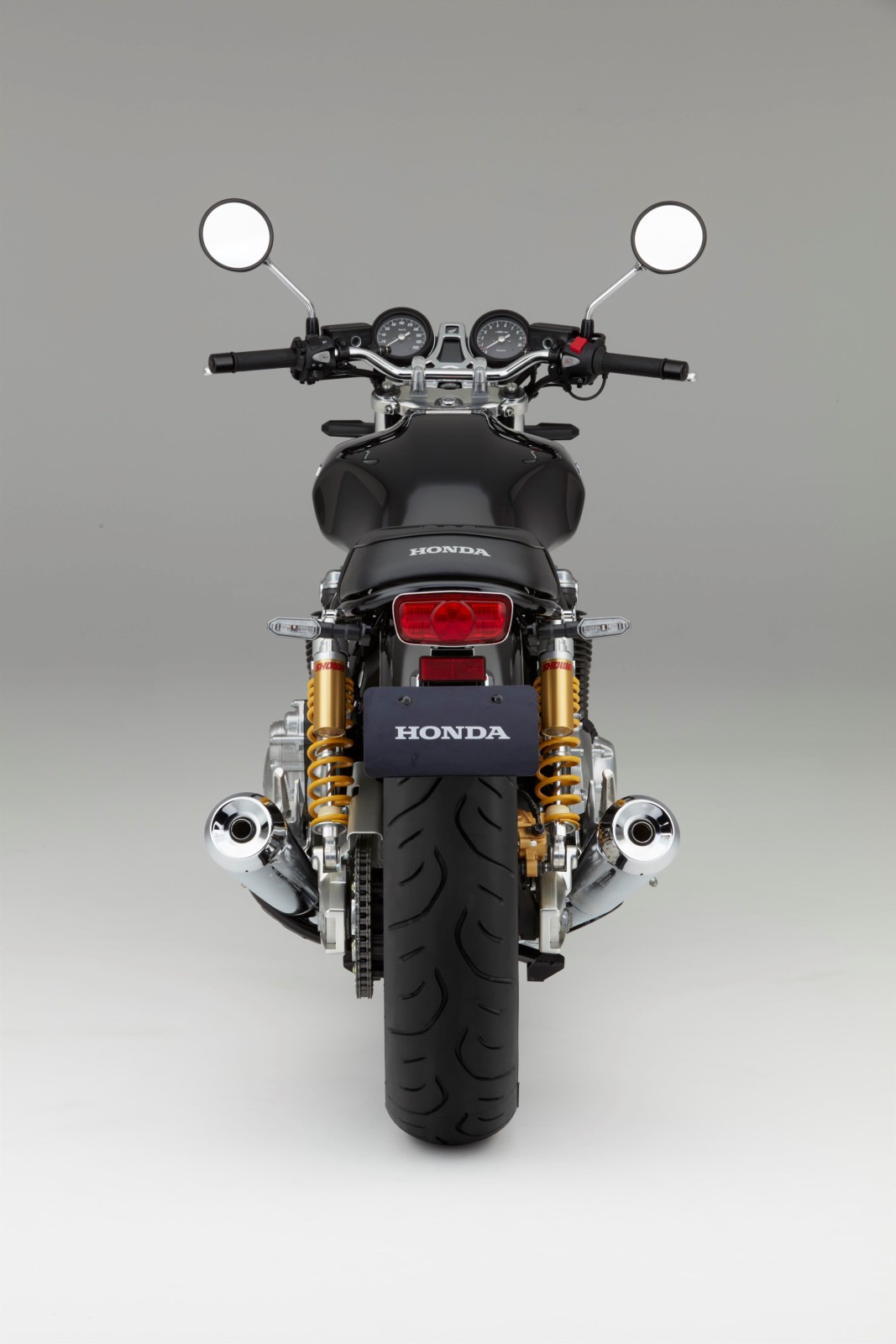

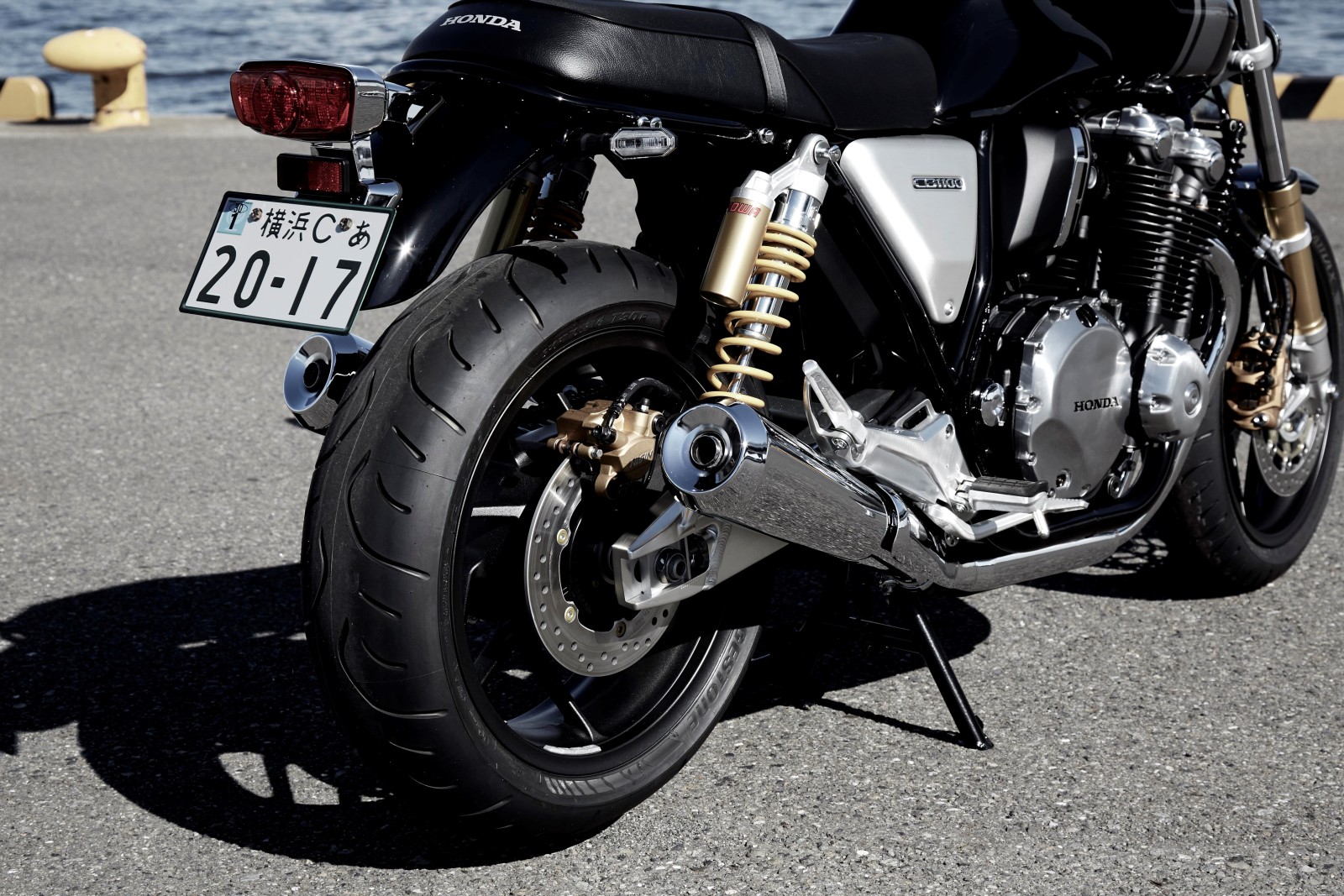

Twin Showa remote-reservoir rear shocks (with damping rates to match the front fork) operate through a new aluminium swingarm, which has a clean look thanks to an under slung rear brake hose. An aluminium chain guard replaces the previous plastic design.

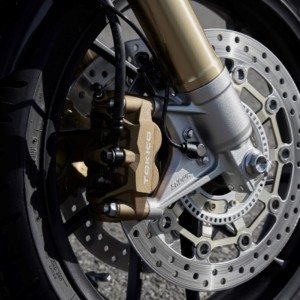

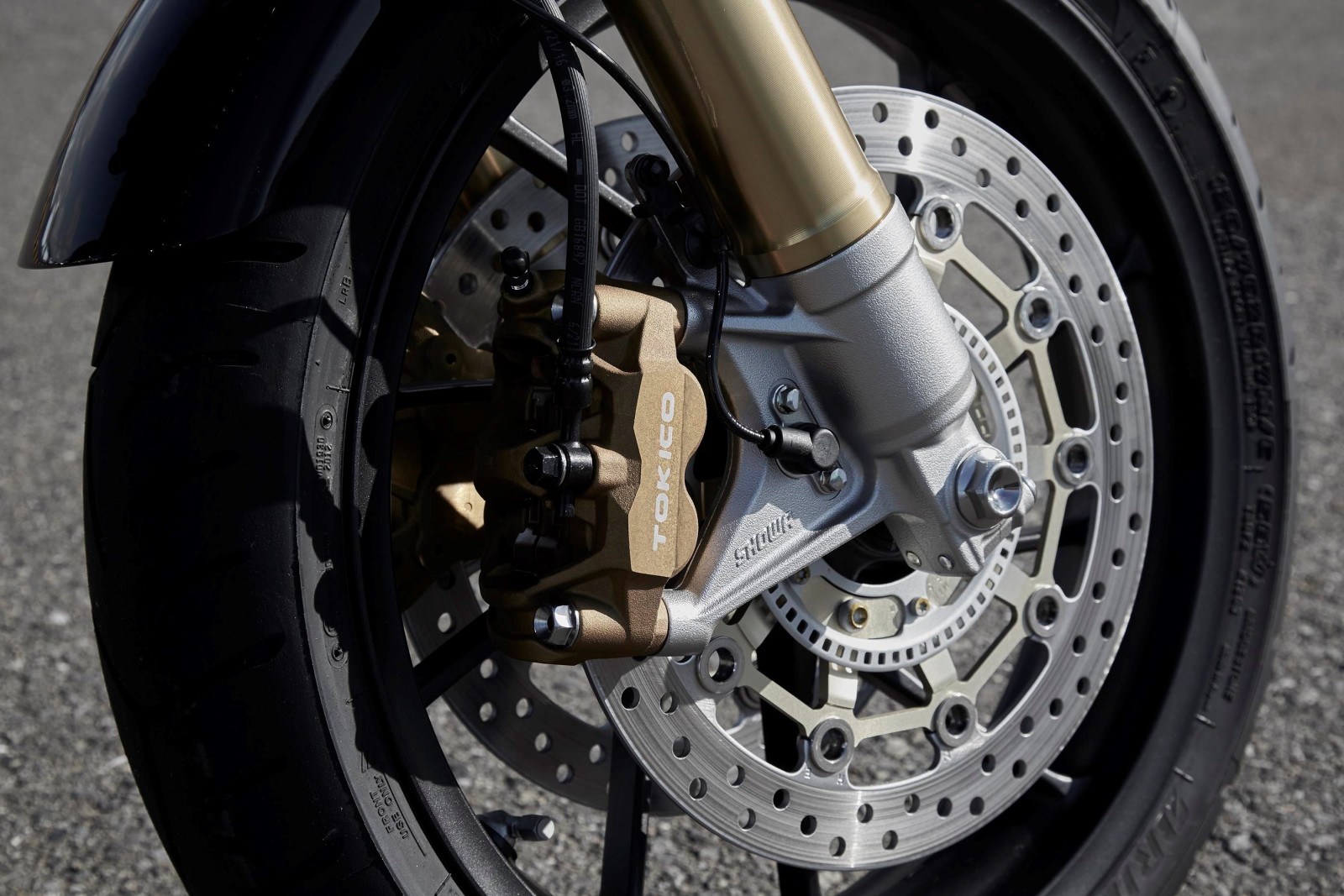

Dual radial-mount four-piston Tokico brake calipers grip 310mm floating discs with ABS control, the rear single-piston caliper works a 256mm disc. The CB1100 RS also features 17-inch cast aluminium wheels – finished in black – wearing sportsbike-sized 120/70 ZR17 and 180/55 ZR17 front and rear tyres. Three effects from this change are obvious: quicker side-to-side steering, improved cornering traction and a 3% increase in acceleration due to the overall gearing change of the smaller rolling diameter of the rear tyre. L-shaped air valves make checking tyre pressure easy.

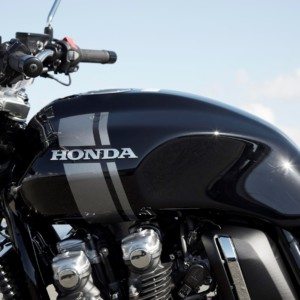

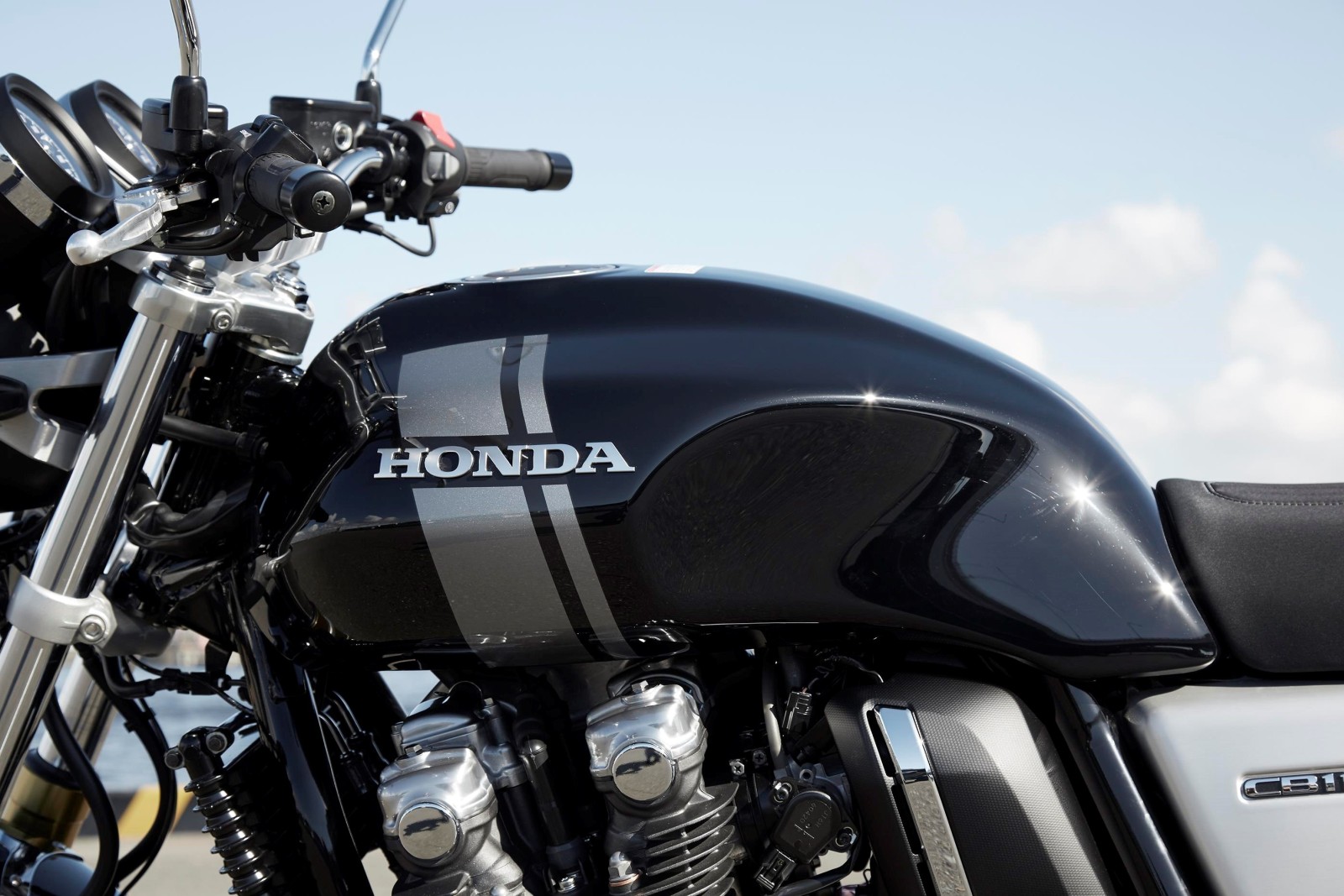

Together with the look of the exposed engine, the shape of the fuel tank – its curves and lines – go a long way to give a naked motorcycle its character and appeal Honda’s engineers wanted to maintain a 186 miles plus range, but were also focused on creating a truly hand-made look.

The 16.8L fuel tank they came up with does away with the seam-welded lips along both bottom edges, and pays homage both to CB history and contemporary style with a cutaway section that displays the cam cover to the rider. It’s topped with an aircraft style filler cap.

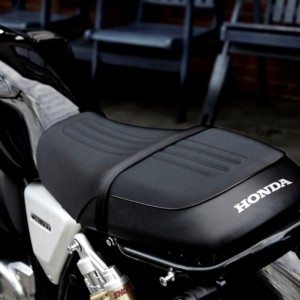

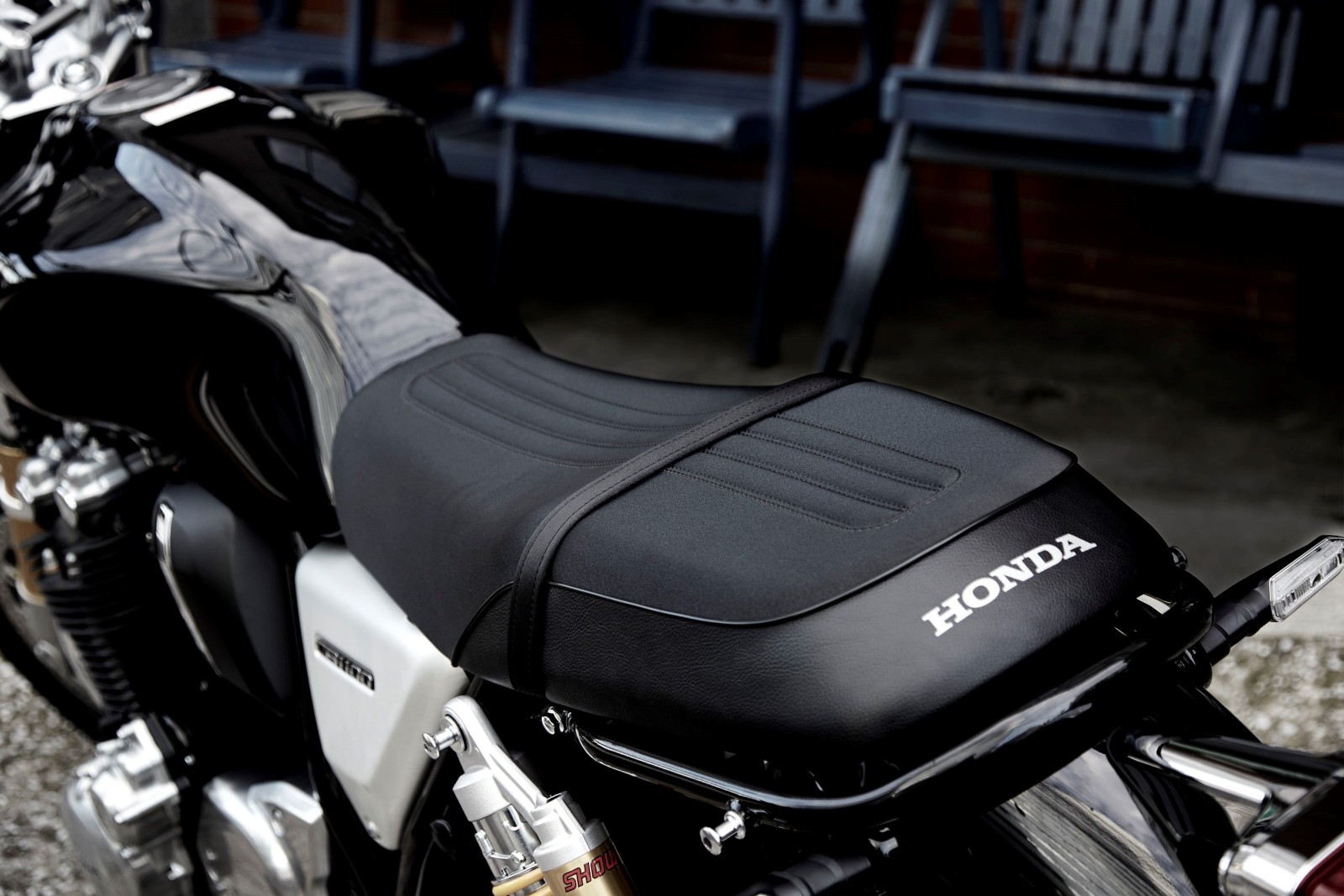

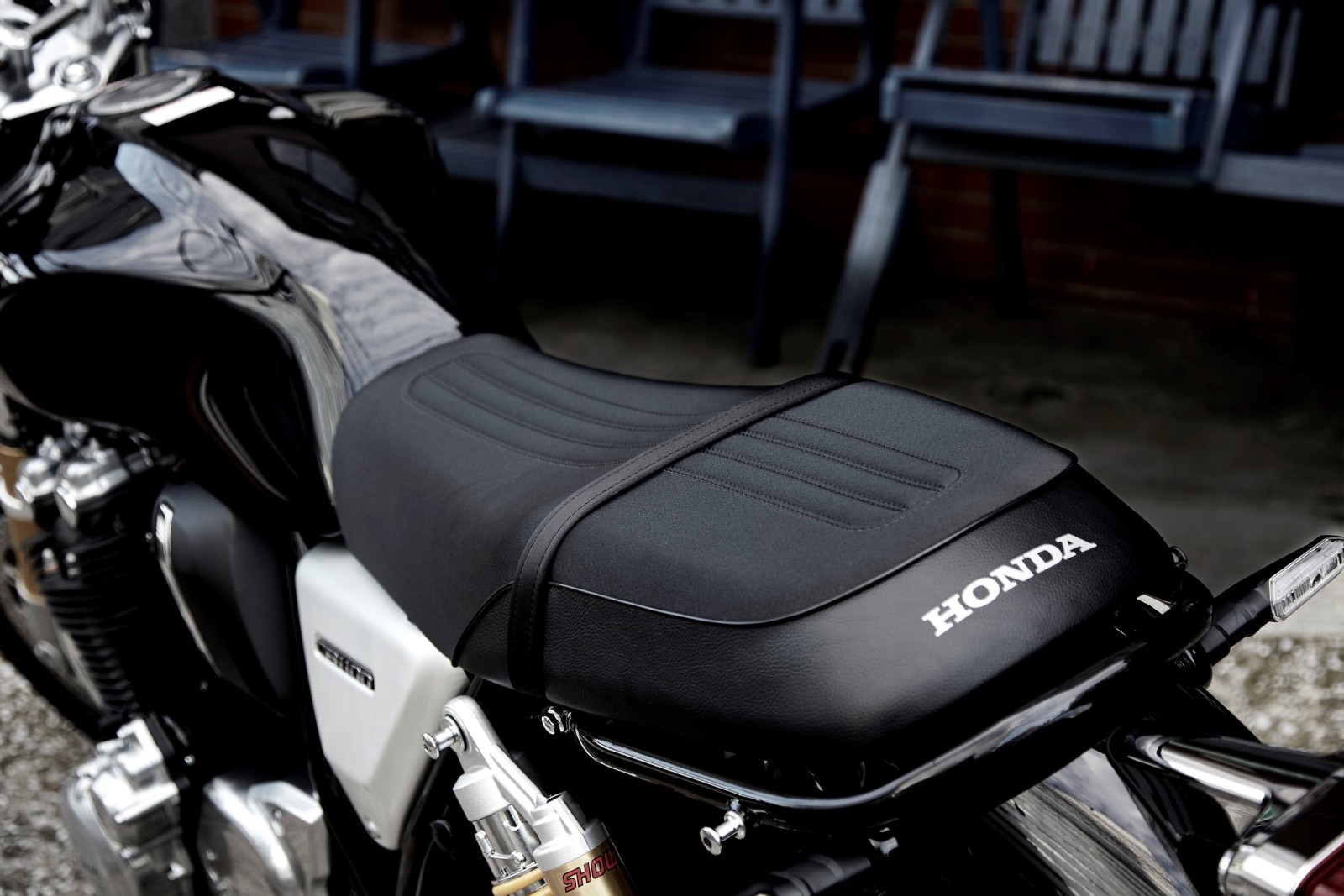

Building on the modern café racer theme the sidepanels are constructed of pressed aluminium with a textured ‘hairline’ finish while the seat is stripped back to a slim, sporty profile. The black seat frame rails add seamless lines without clutter and the black chrome steel rear mudguard has a more rounded cross section.

A compact black resin front mudguard skims the front tyre and ties in subtly with the machine’s minimalism. A long sidestand makes it easier to get the machine upright.

The handlebar is clamped 7mm forward (compared to the previous design) and more compact, sleeker die-cast aluminium hangers mount both rider and pillion footpegs. Standing proud, the round front headlight – an LED unit with spiral running light – crowns the front of the CB1100 RS and is held with aluminium stays flanked by compact LED indicators.

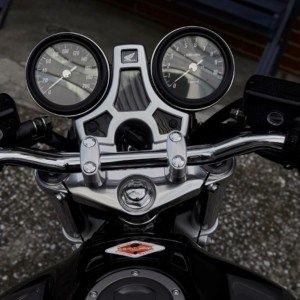

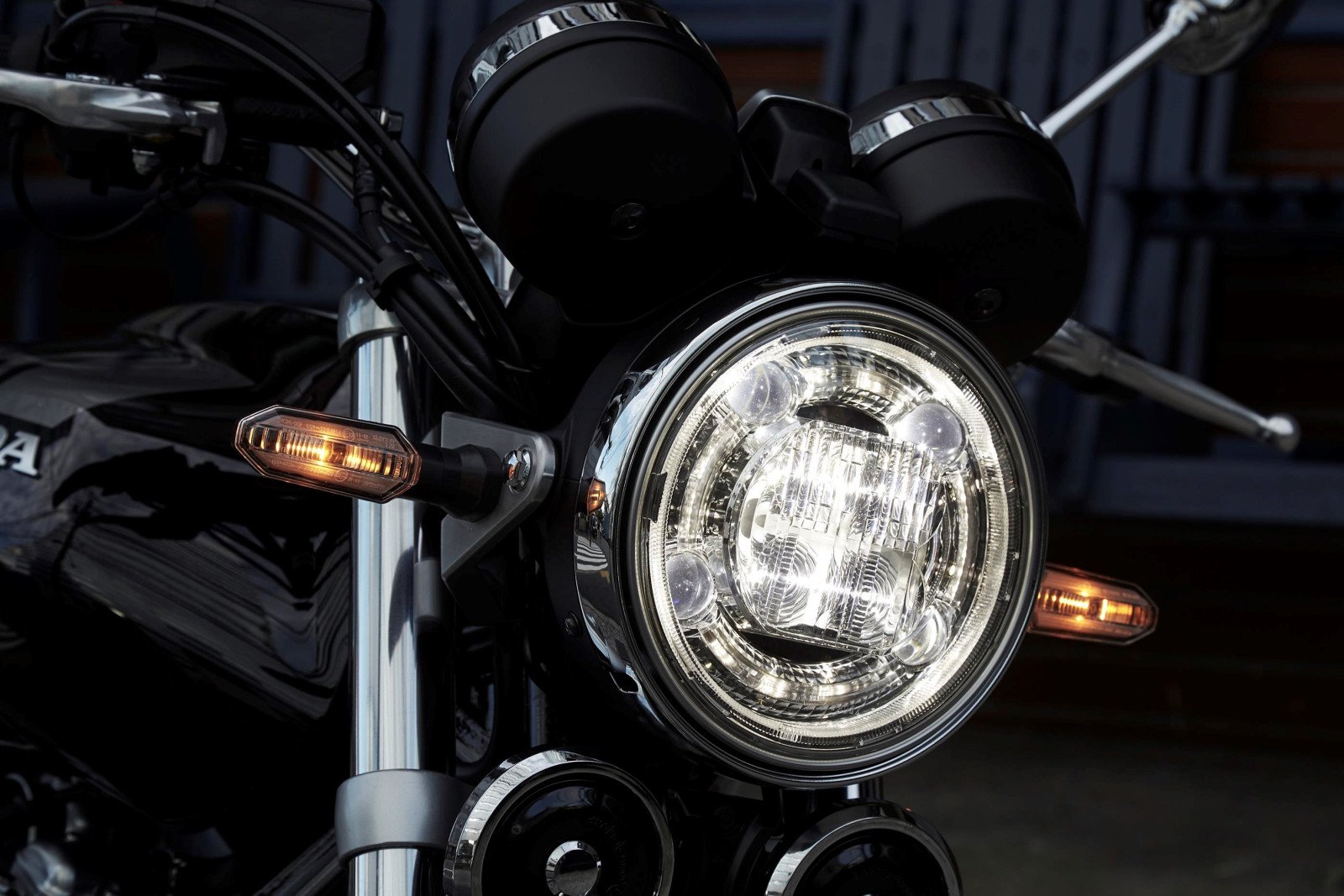

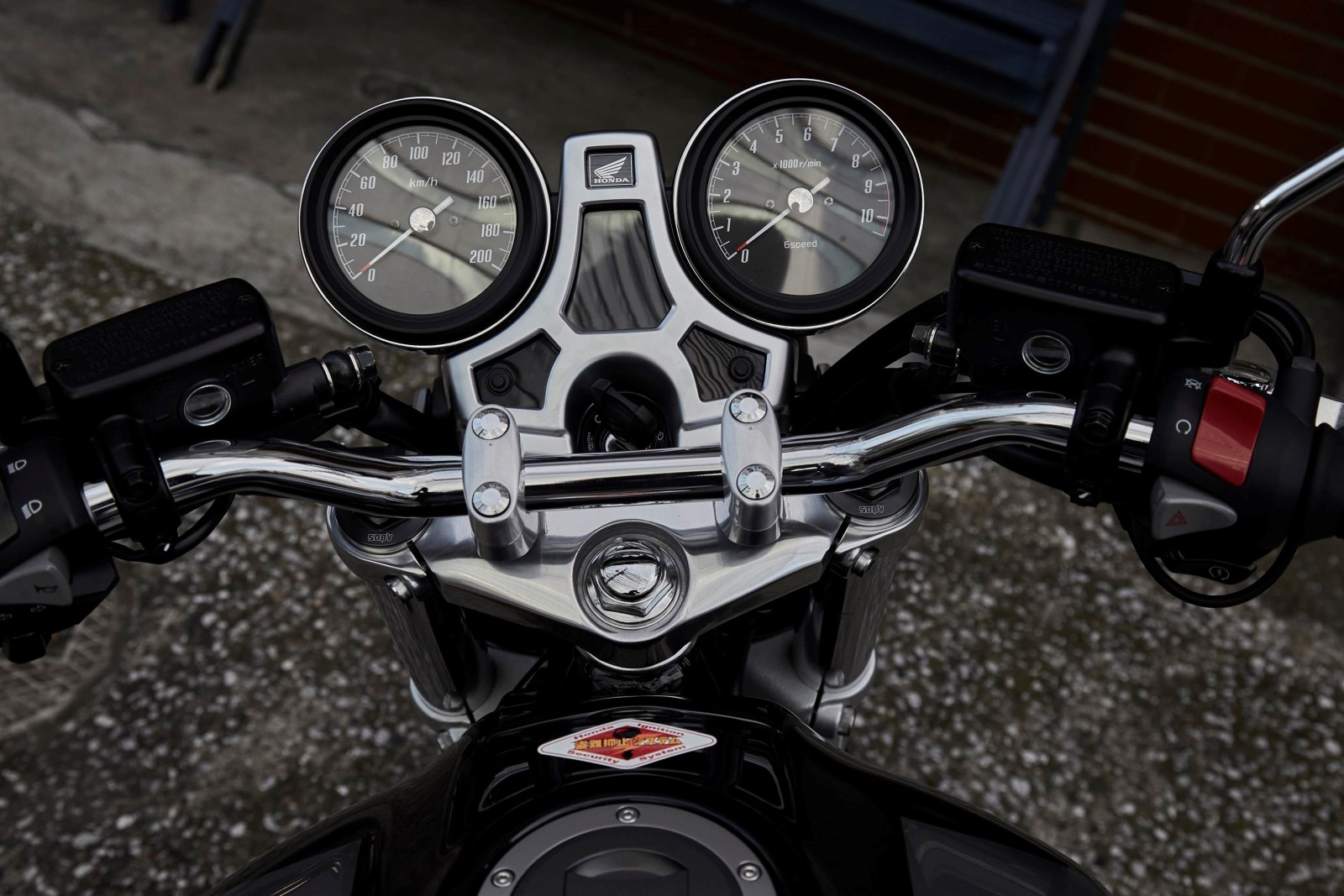

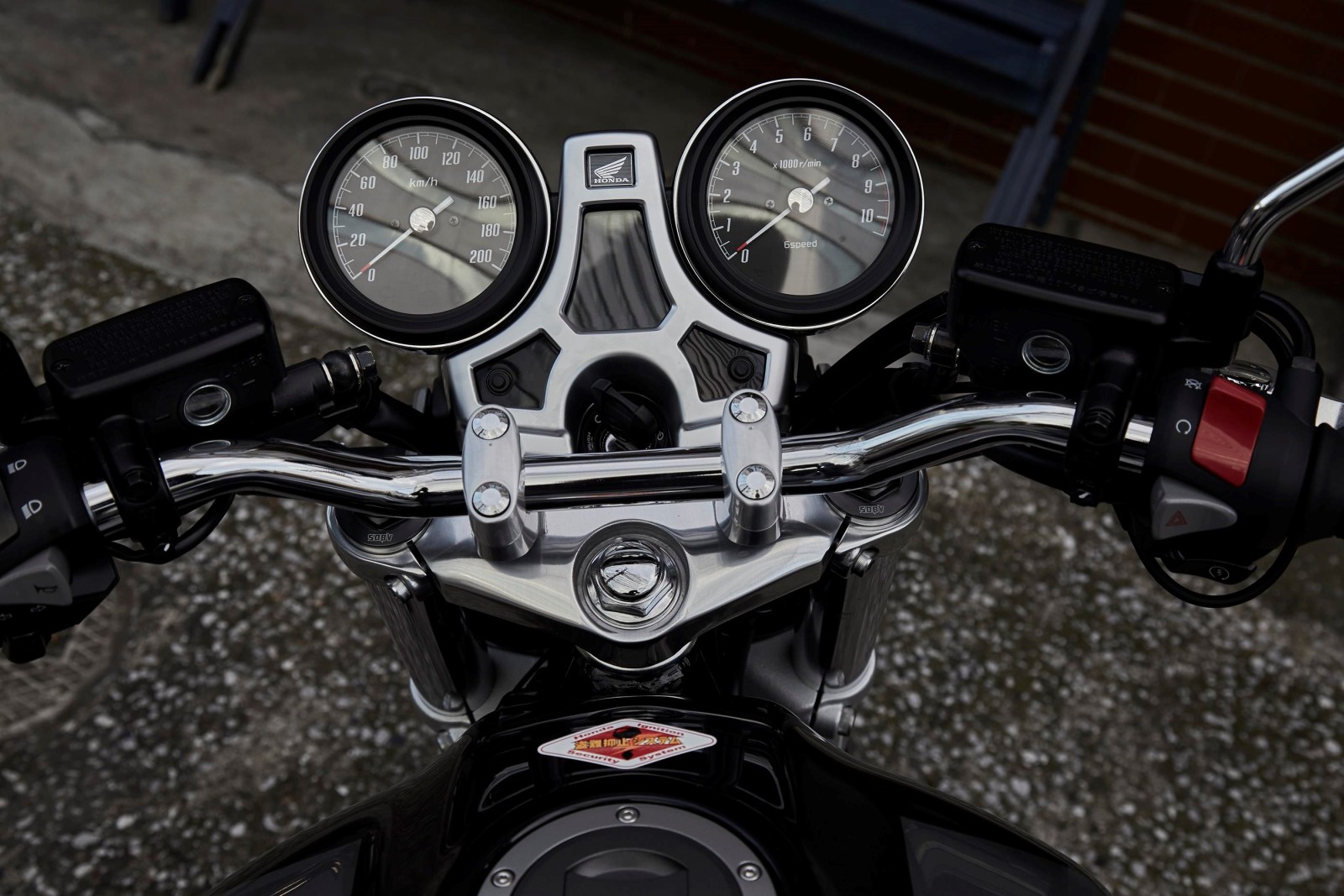

The LED rear light, indicators and number plate mounting bracket has been minimalised for a streamlined look and the circular speedo and rev counter are dressed in satin black with a chrome band. Equipment includes a fuel gauge and clock, gear position indicator, fuel efficiency gauge and range computer. Ignition is now via a ‘wave’ style key.

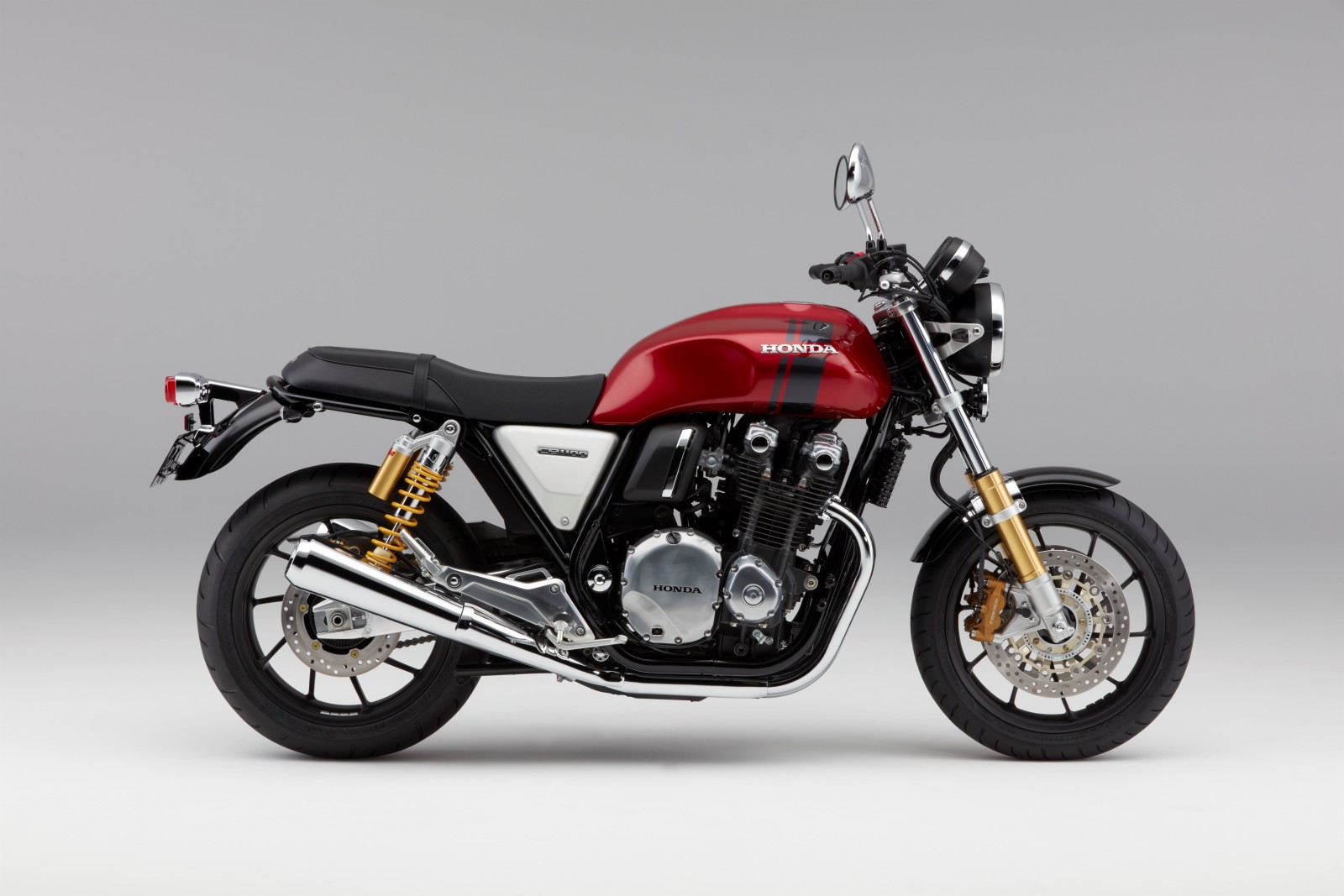

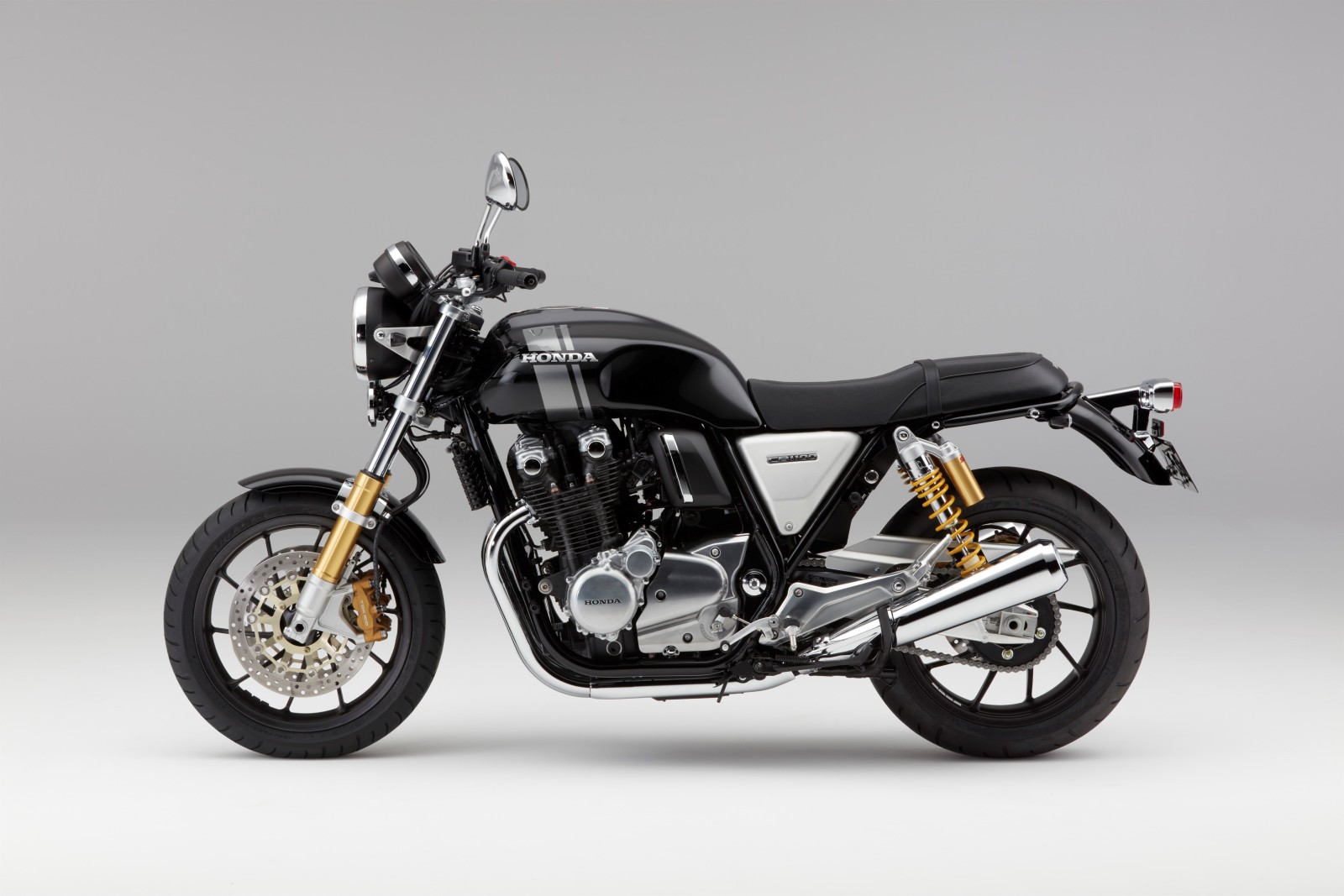

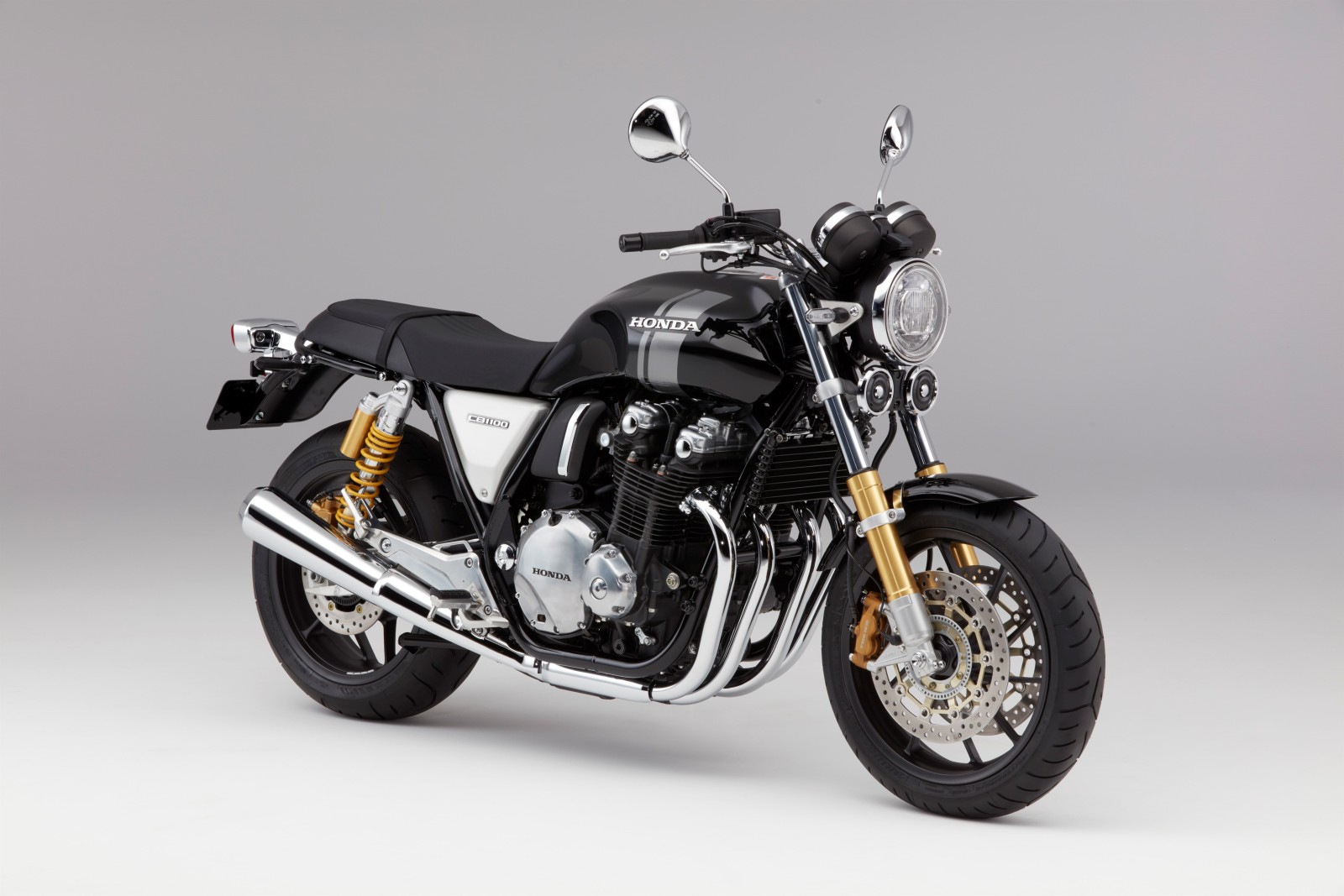

The CB1100 RS will be available in Candy Prominence Red and Graphite Black with a super smooth finish suggestive of repeated, and fastidious, wet sanding.

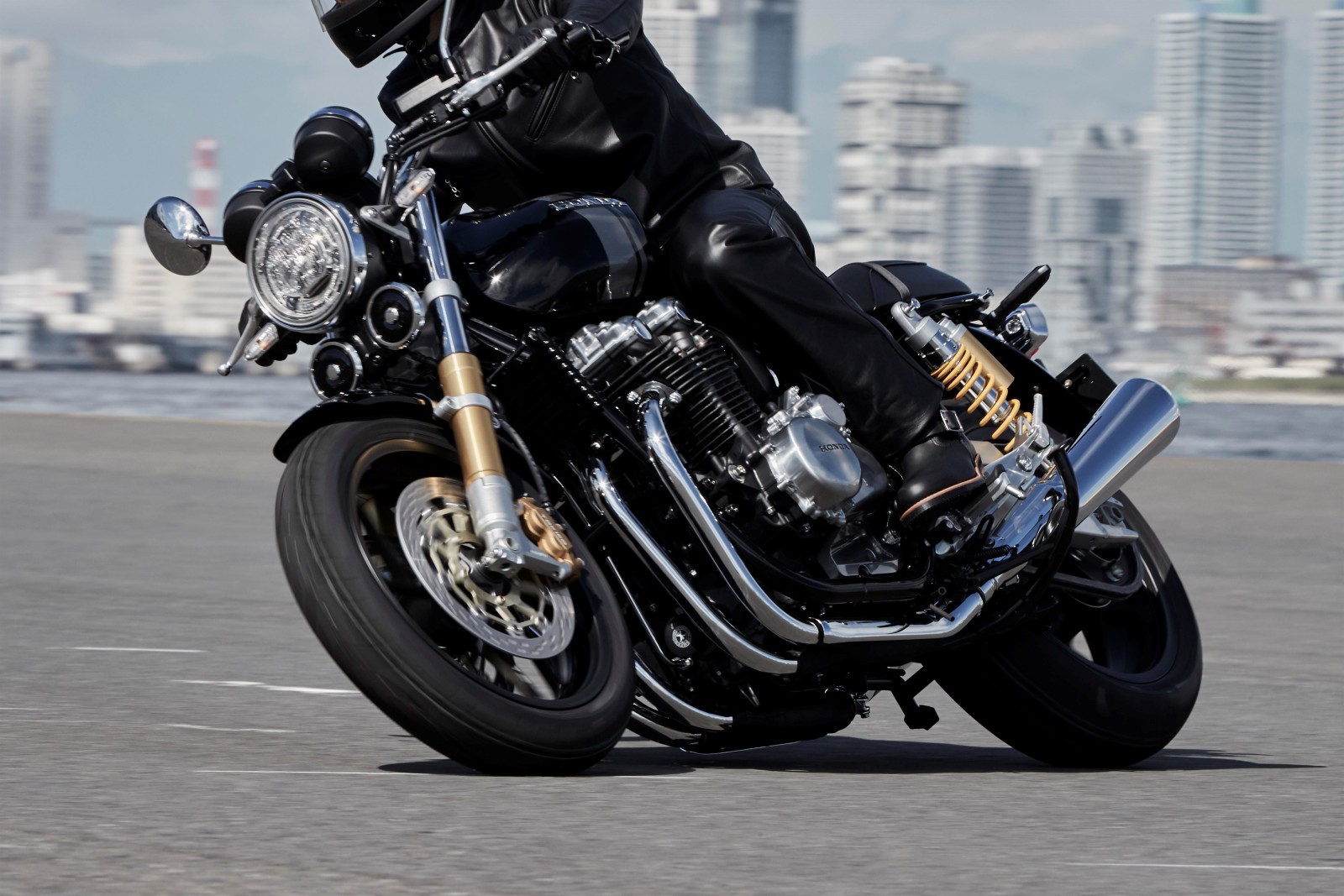

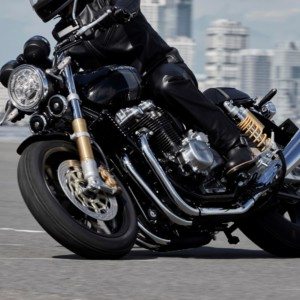

2017-Honda-CB1000-RS-21

Engine

At the heart of the CB1100 RS is its muscular DOHC engine. Linear, instantly accessible drive is what this motor’s all about, and plenty of it, anywhere in the rev range. Maximum power output of 89bhp arrives at 7,500rpm with peak torque figure of 91Nm delivered @ 5,500rpm.

Finished in black, with natural aluminium engine and cam covers its air (via 2mm fins) and oil-cooled (via a 335mm 9-tier, front-mounted oil cooler) and revs to 8,500rpm. Compression ratio is 9.5:1, with bore and stroke set at 73.5mm x 67.2mm.

The twin camshafts are driven by a central chain, and the valve included angle is 26.5° inlet and exhaust. Inlet valve diameter is 27mm, with a 2.5mm stem; exhaust 24mm with 2.5mm stem. A single secondary balancer shaft ensures smooth running.

PGM-FI and 32mm throttle body are fed through a revised, shortened air inlet tract and new air cleaner, and work with the pair of shorter (minus 70mm in length, 7% less in diameter and 2.4kg lighter) chrome-plated exhaust mufflers to boost low and mid-rpm engine reaction.

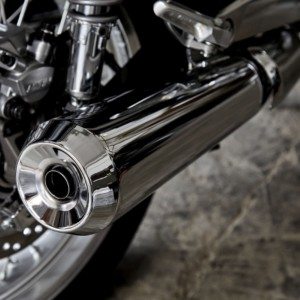

Internally split into two expansion chambers, each muffler features dual hole-punched link pipes optimised for resonance and the generation of an evocative four-cylinder engine note. Both mufflers hug the machine tighter for improved ground clearance and the downpipes are double skinned to stop heat discolouration.

An assist slipper clutch is now fitted. With die-cast aluminium cam and slipper cam it saves weight, reduces lever effort by 16% and minimizes rear wheel ‘hop’ through engine braking on rapid down changes. The six-speed gearbox, ­­with carefully matched ratios for gears 1-5 gives crisp response and acceleration, while 6th is an overdrive reducing fuel consumption and lowering engine rpm at highway speeds. Final drive is by 530 chain.

The CB1100 RS engine is Euro 4 compliant.

ENGINE
TypeInline four-cylinder, air and oil-cooled, DOHC
Engine Displacement (cm³)1140
Bore´Stroke (mm)73.5 x 67.2
Compression Ratio9.5:1
Max. Power Output89bhp/7,500rpm
Max. Torque91Nm/5,500rpm
Oil Capacity4.9l/4.4l
FUEL SYSTEM
CarburationPGM-FI electronic fuel injection
Fuel Tank Capacity16.8 litres
Fuel Consumption
ELECTRICAL SYSTEM
StarterElectric
Battery Capacity12V 11.2Ah
ACG Output12V 21.7A/5000rpm 0.336kw
DRIVETRAIN
Clutch TypeWet, multiplate clutch
Transmission Type6-speed
Final DriveChain
FRAME
TypeDouble steel cradle
CHASSIS
Dimensions (L´W´H)2,180 x 800 x 1100mm
Wheelbase1,485mm
Caster Angle26°
Trail99mm
Seat Height795mm
Ground Clearance130mm
Kerb Weight252kg
Turning radius2.7m
SUSPENSION
Type Front43mm conventional fork (SDBV) with adjustable spring preload
Type RearTwin shocks with adjustable spring preload
WHEELS
Type Front10-spoke diecast aluminium
Type Rear10-spoke diecast aluminium
Rim Size Front17in x 3.50MT
Rim Size Rear17in x 5.50MT
Tyres Front120/70 R17
Tyres Rear180/55 R17
BRAKES
ABS System Type2 Channel
Type FrontHydraulic dual floating 310mm disks with radial fit 4-piston calipers (2-channel ABS)
Type RearHydraulic disk (2-channel ABS)
INSTRUMENTS & ELECTRICS
Instruments
Security SystemHISS
HeadlightLED
TaillightLED

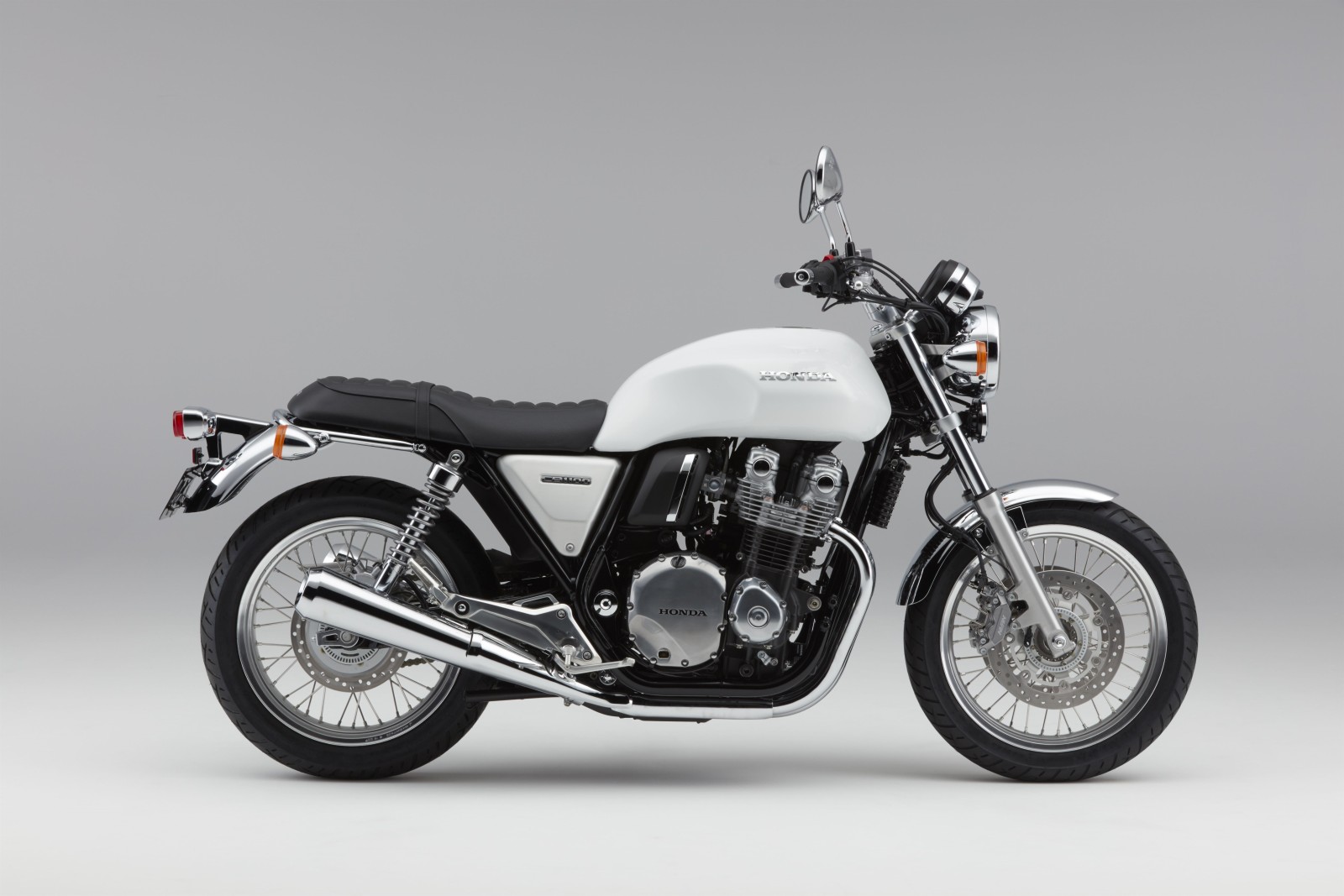

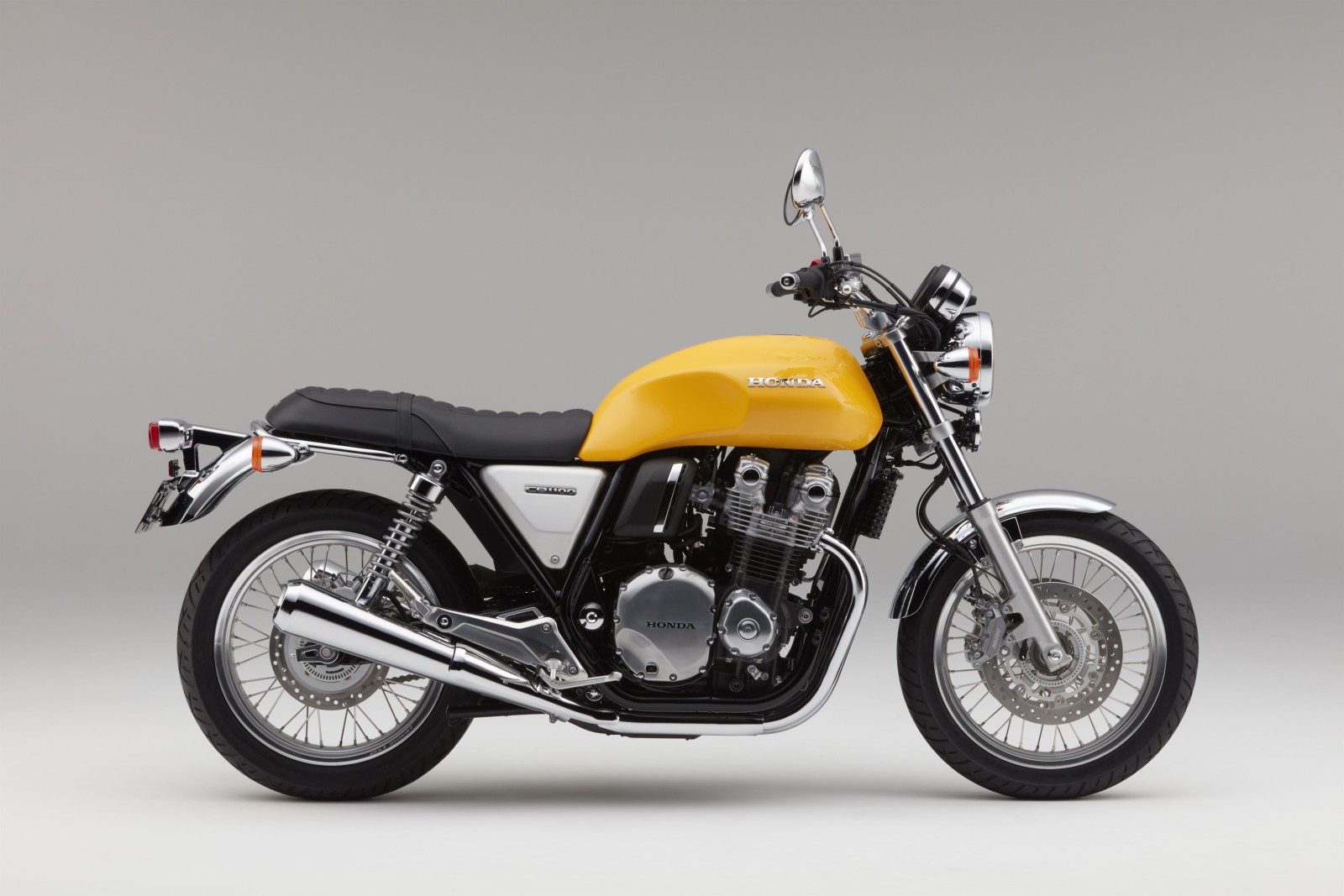

Meet the CB1000 EX through the official release:

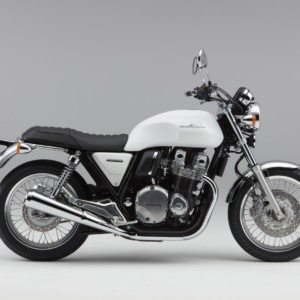

2017-Honda-CB1000-EX-4

Model Overview

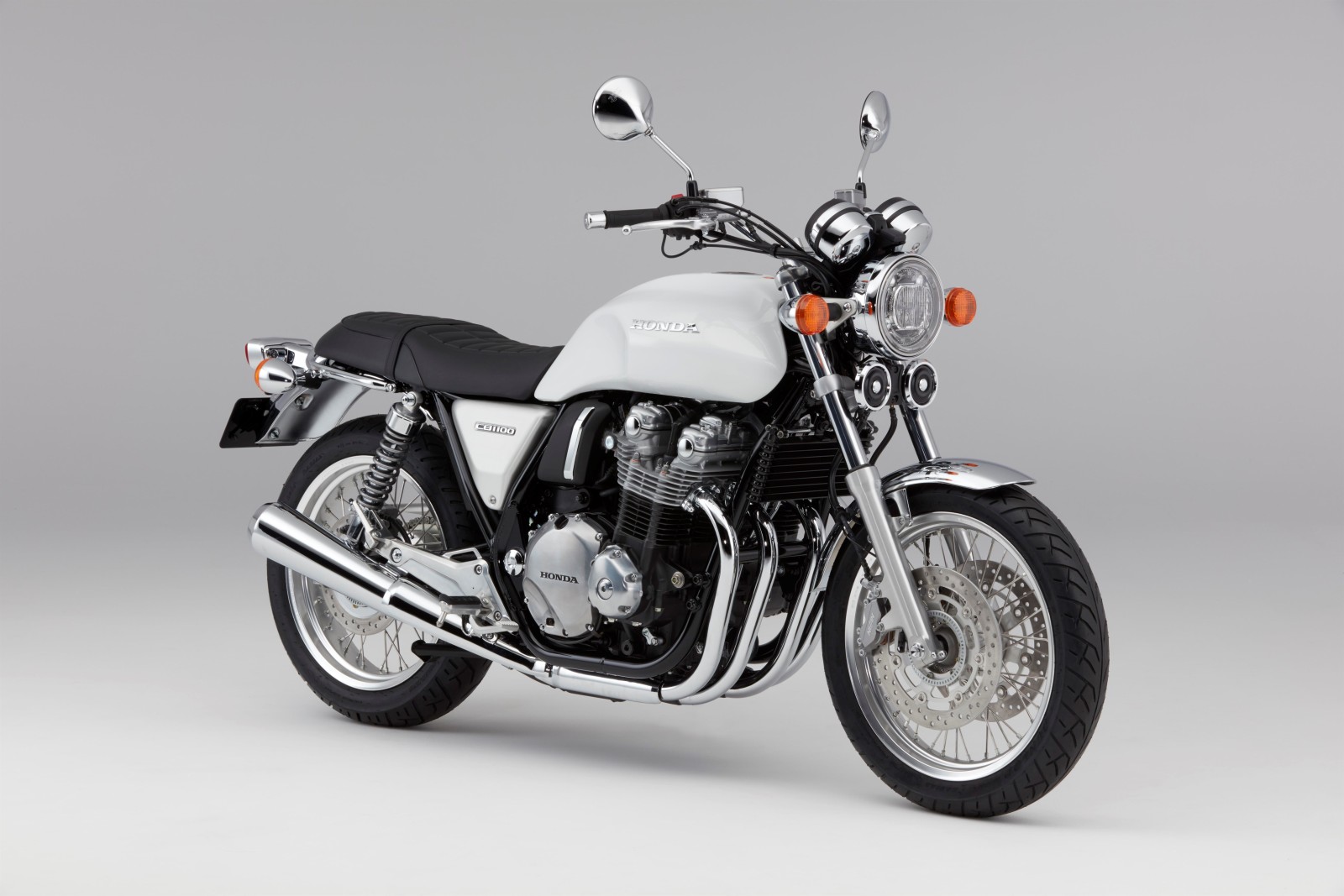

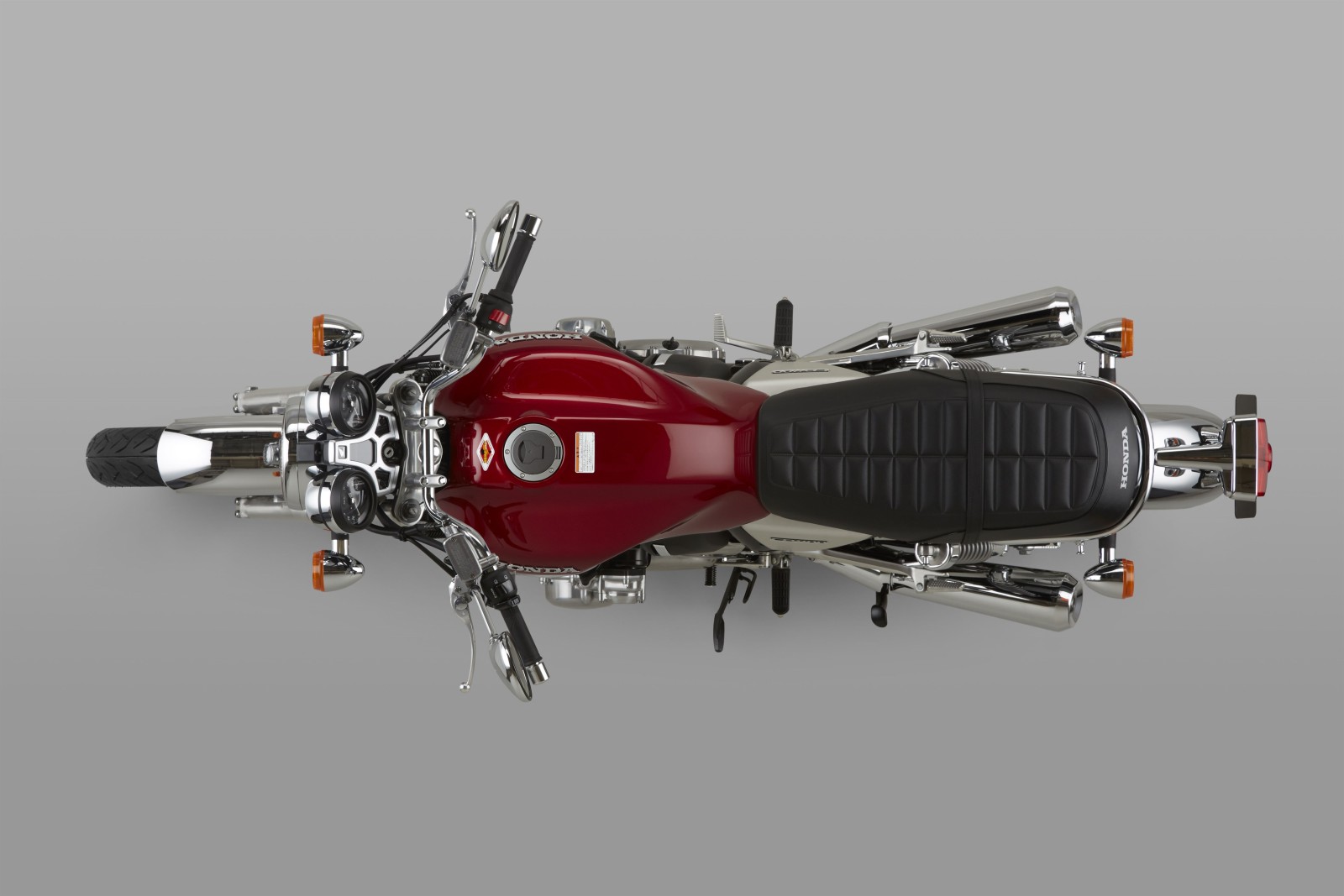

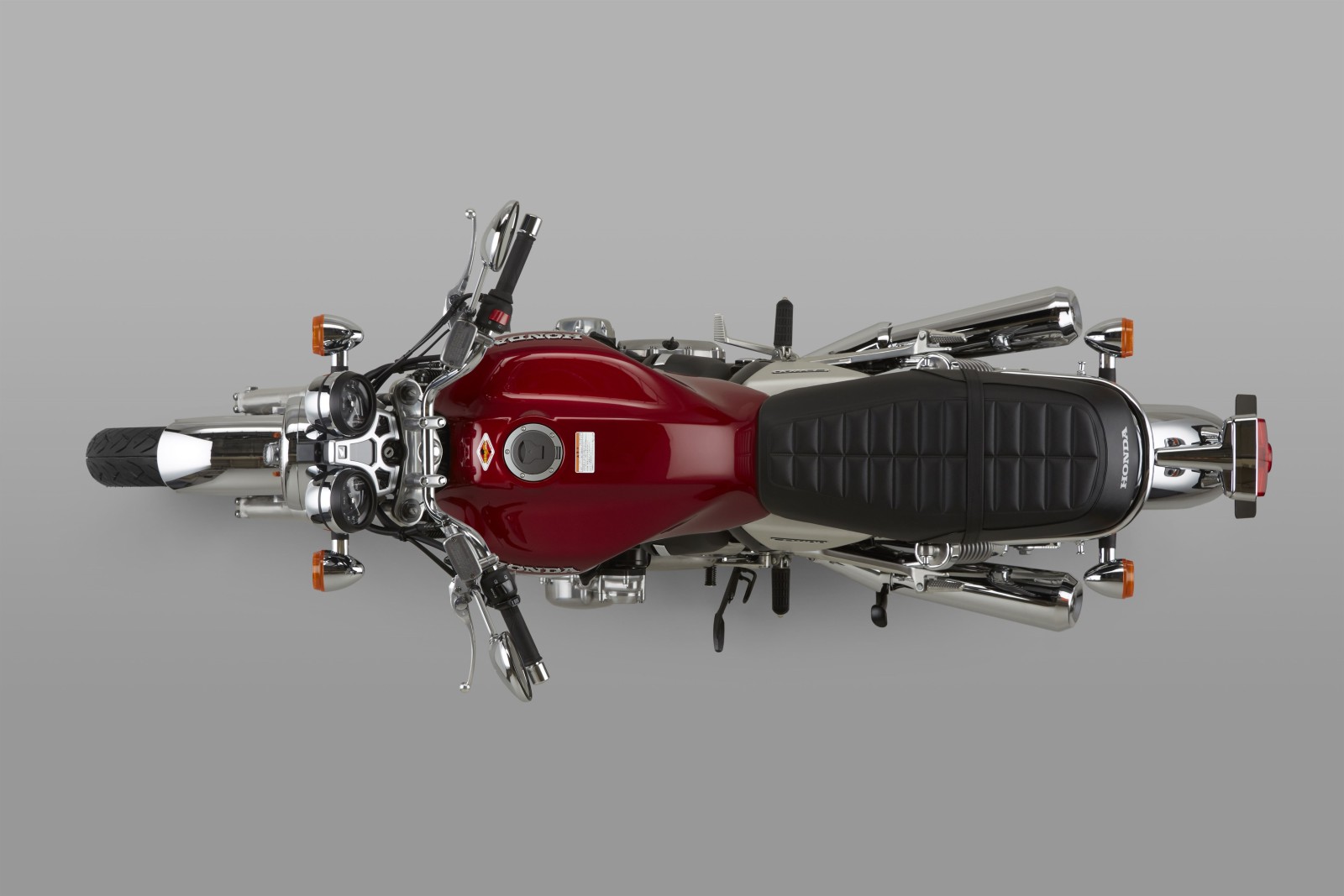

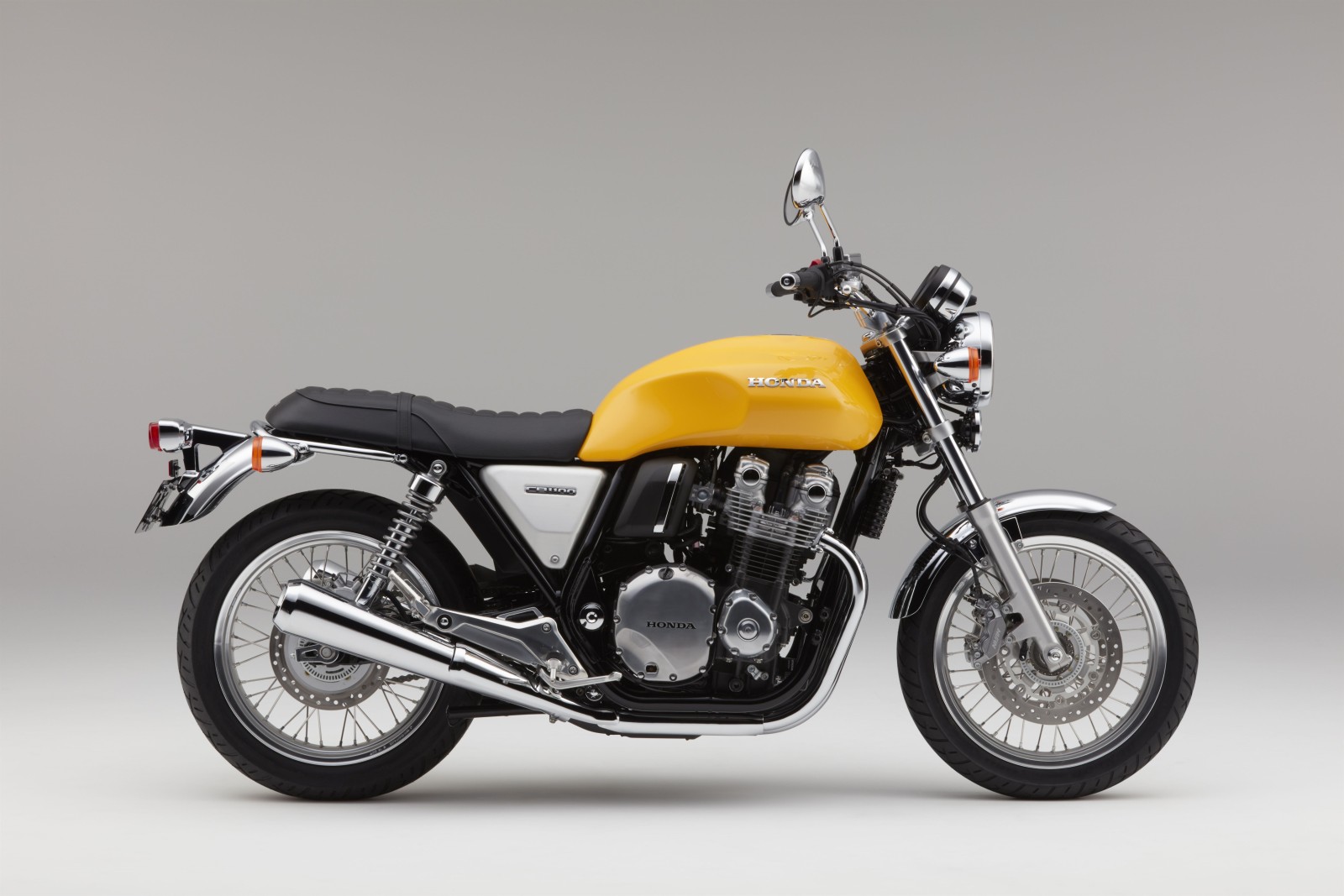

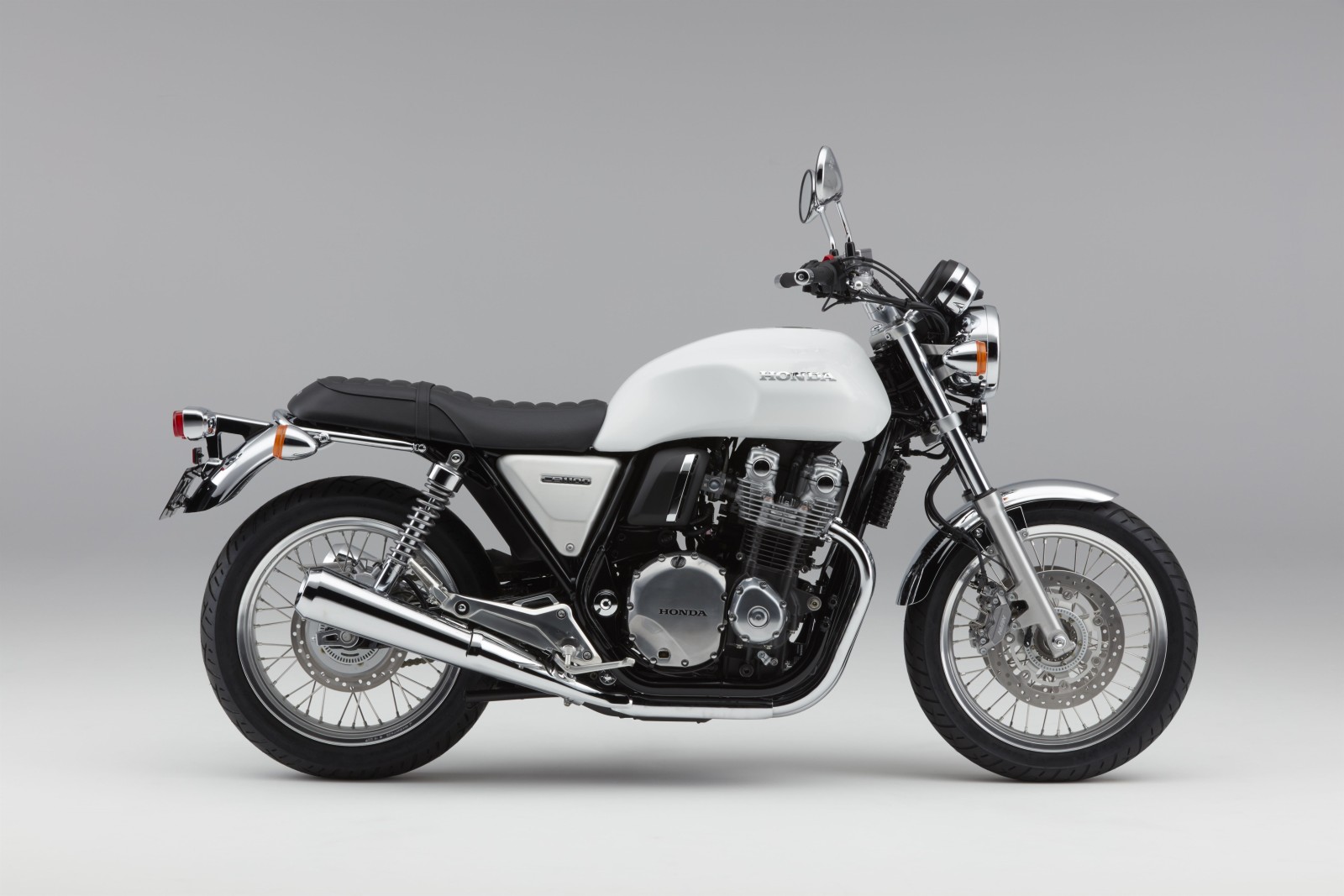

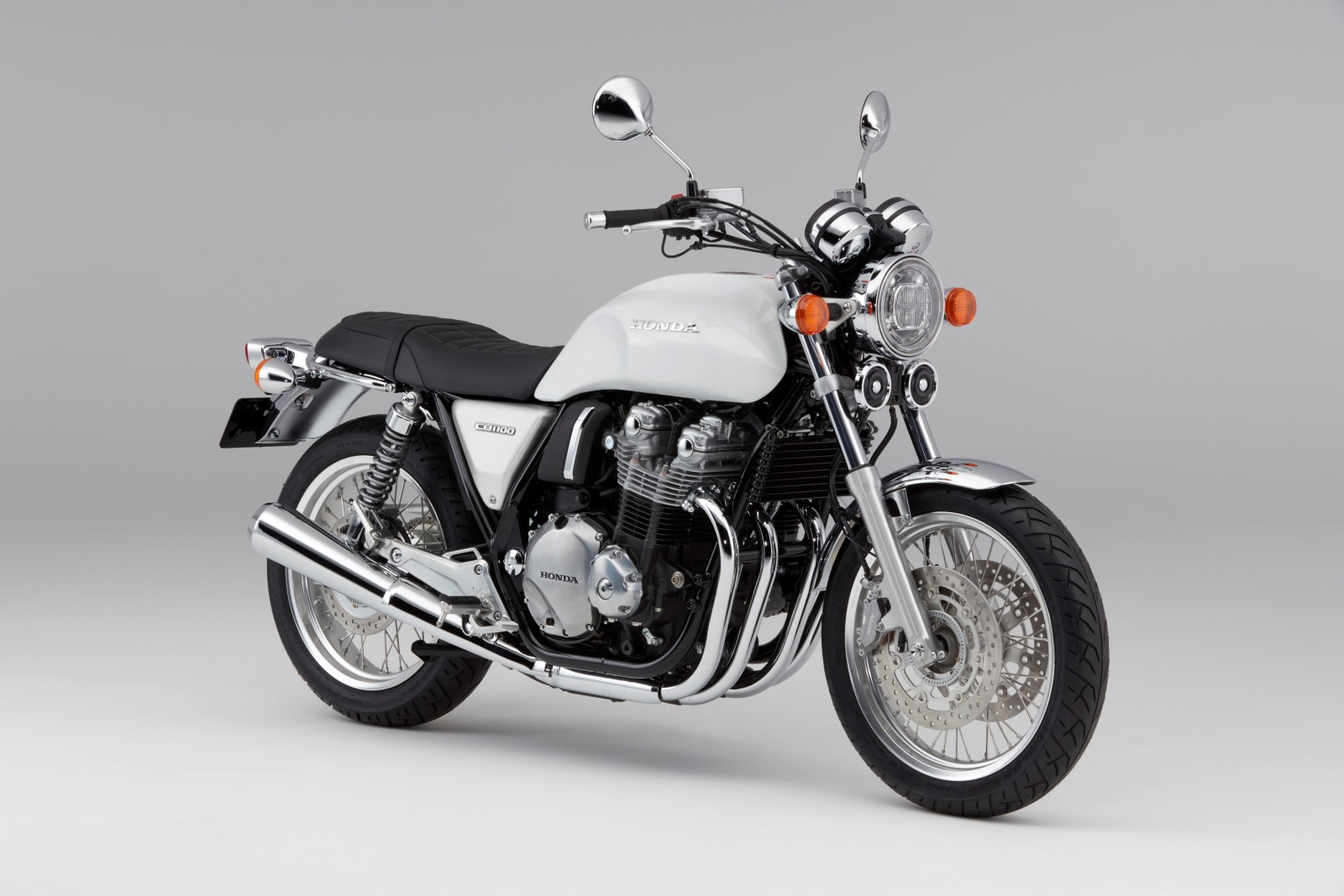

The CB1100 EX outlines the proportion and silhouette of a true 1970s superbike. Its curvaceous fuel tank – made without seam-welded lips – evokes hand-made craftsmanship, while the single round headlight and twin instrument dials denote Hondas from a bygone age.

Adding crisp-edged modernity, the front and rear lights are now LED and new 18-inch wheels run stainless steel spokes. Offering improved suspension compliance, the 41mm Showa Dual Bending Valve front fork is matched to Showa rear shocks.

The engine breathes more easily thanks to revised inlets and smaller, lighter dual mufflers. An assist slipper clutch makes for easier lever engagement and rear wheel stability on downshifts.

With its classic lines the CB1100 EX conjures memories, mixing the engine’s addictive performance and soulful sound with evocative appeal. It’s also a machine to savour and contemplate and everywhere you look; every angle and part is satisfyingly perfect.

Key Features

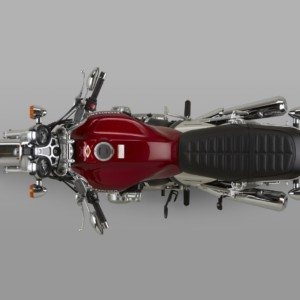

2017-Honda-CB1000-EX-2

Chassis

The CB1100 EX’s classic tubular steel double cradle frame holds the engine with four rigid and two rubber mounts. It features relaxed steering geometry, with rake and trail of 27°/114mm and wheelbase of 1490mm, delivering sure-footed stability with neutral handling characteristics. The ‘rider triangle’ is also relaxed and upright; seat height is 790mm and the handlebar shape has been revised to maintain a neutral position. Kerb weight is 255kg.

To give excellent control the CB1100 EX is equipped with a Showa Dual Bending Valve (SDBV) 41mm front fork, which uses two valves to generate both compression and rebound damping force for a linear suspension feel. A new die-cast aluminium top yoke features a buffed finish and clear coat, while the bottom yoke holds the fork legs in a higher position.

Twin Showa rear shocks offer adjustable spring preload and operate through a steel swingarm, which has a clean look thanks to an under slung rear brake hose. An aluminium chain guard replaces the previous plastic design.

The CB1100 EX features redesigned 18-inch spoke wheels, wearing 110/80 R18 and 140/70 R18 front and rear tyres. Smaller aluminium hubs lace the wheel rim with 40 longer stainless steel (rather than the 48) zinc-plated spokes. Twin 296mm floating discs up front are mated to four-piston Nissin calipers, with a 256mm disc and single-piston caliper at the rear. ABS is fitted as standard.

Together with the look of the exposed engine, the shape of the fuel tank – its curves and lines – go a long way to give a naked motorcycle its character and appeal. Honda’s engineers wanted to maintain a 186 miles plus range, but were also focused on creating a truly hand-made look. The 16.8L fuel tank they came up with does away with the seam-welded lips along both bottom edges, and pays homage both to CB history and contemporary style with a cutaway rear section that displays the cam cover to the rider. An aircraft style filler cap adds another visible touch of class.

The side panels are made of brushed aluminium with a textured ‘hairline’ finish while the seat is well padded and comfortable. Chrome seat rails add seamless lines, with no clutter, and the chrome steel rear mudguard has a more rounded cross section. Smaller die-cast aluminium hangers mount both rider and pillion footpegs, while a longer sidestand makes it easier to get the machine upright.

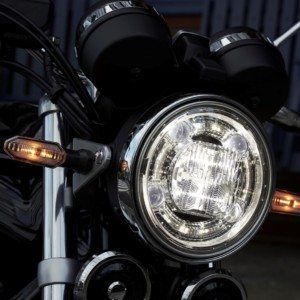

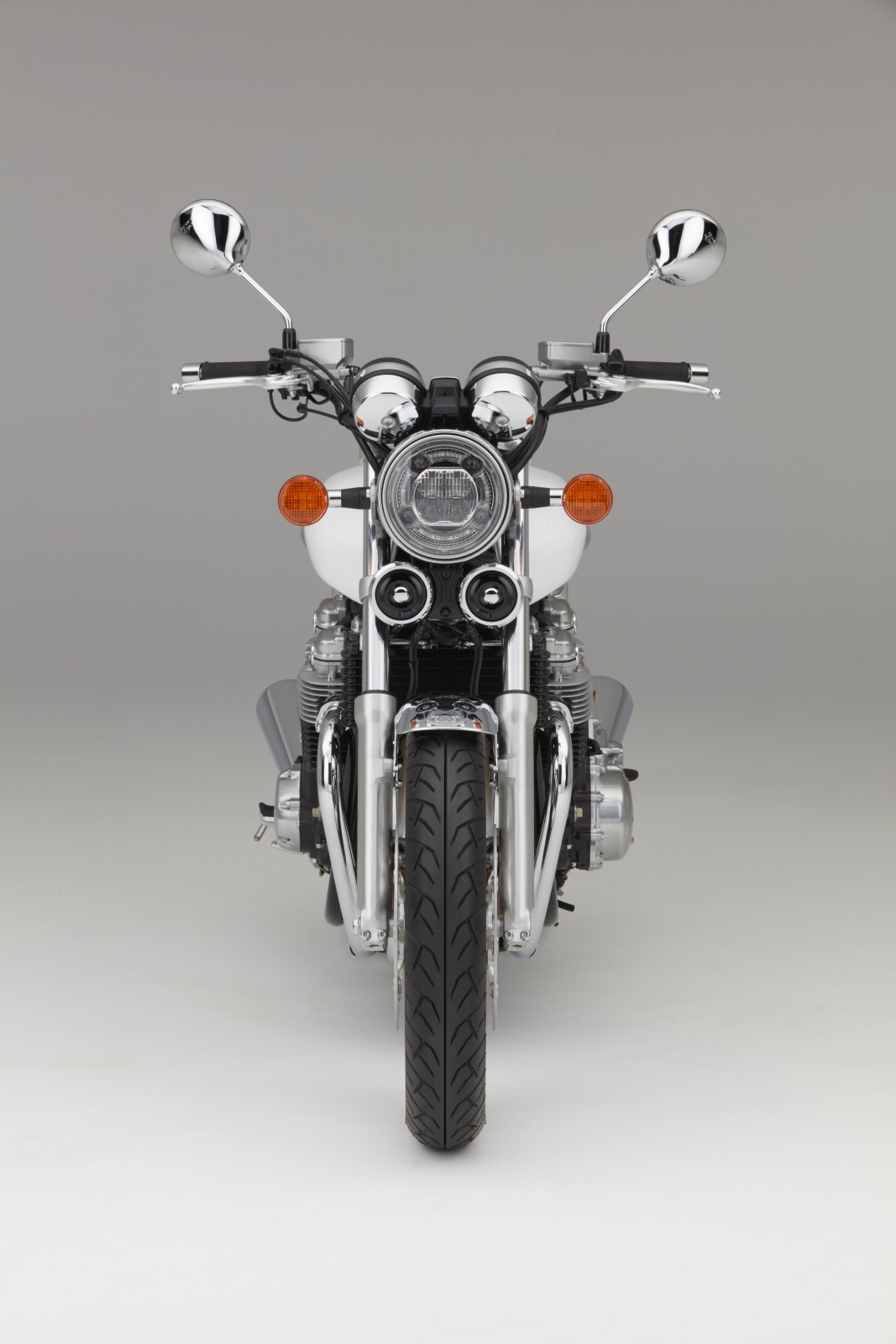

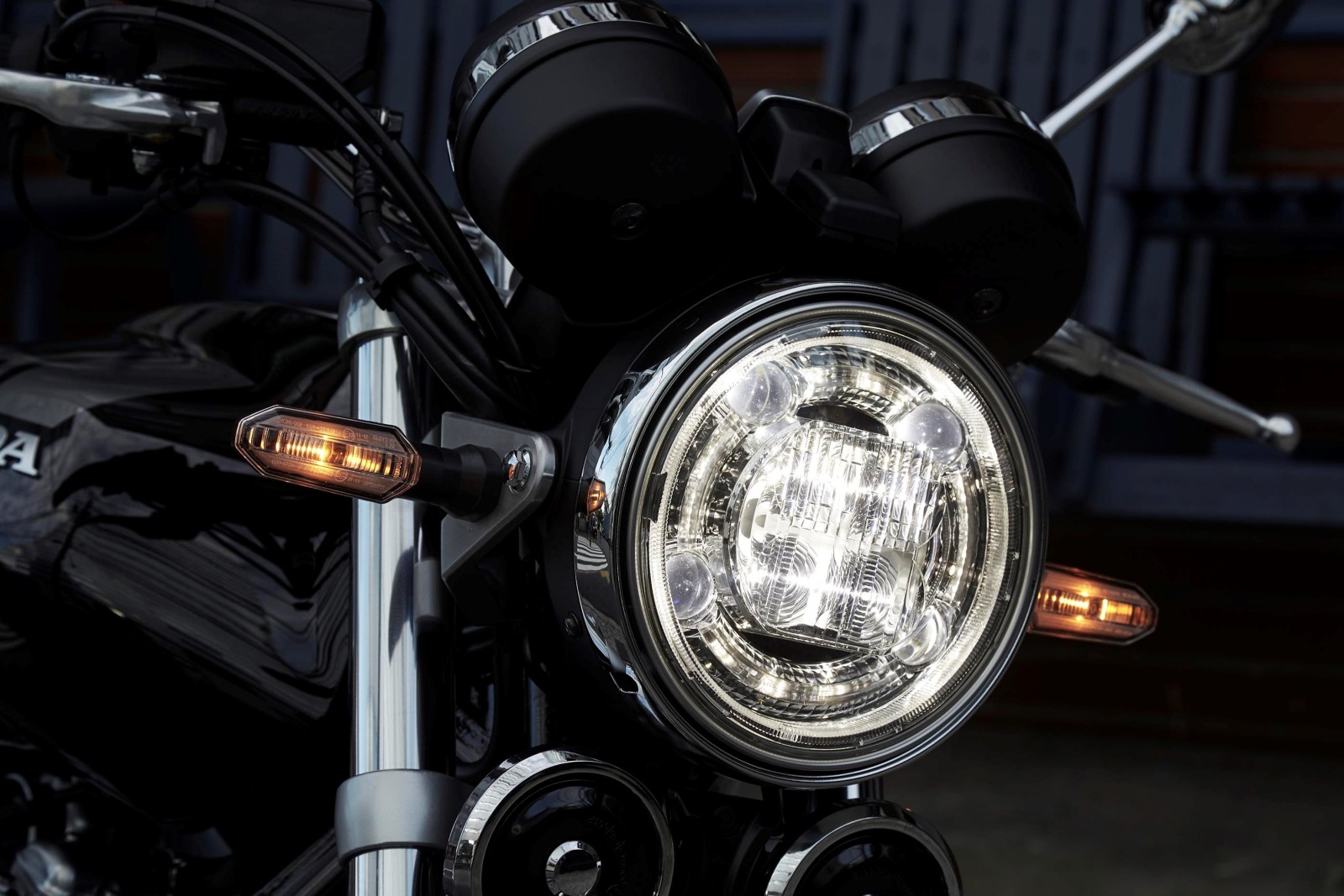

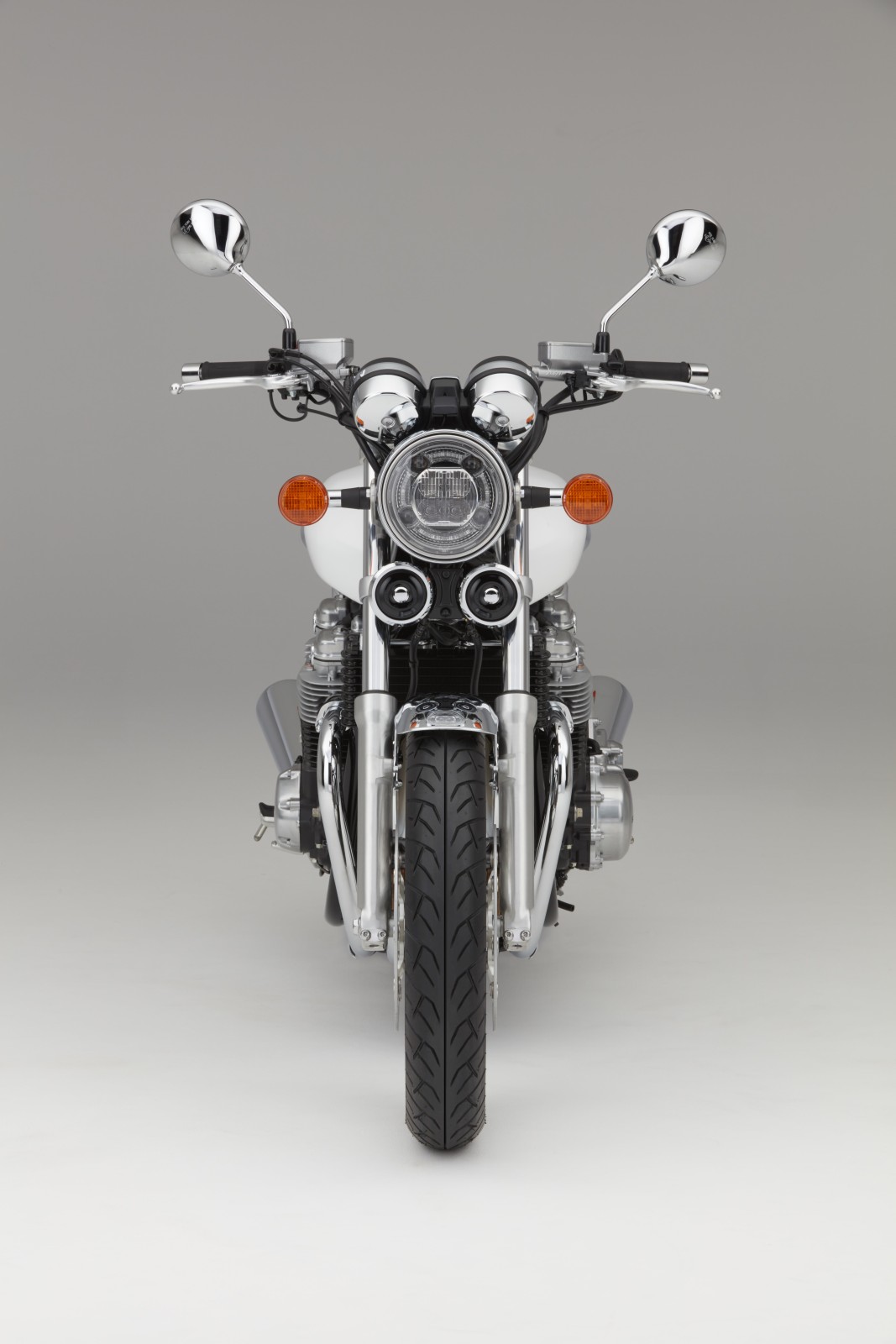

A chromed round front headlight (it’s now LED, with a spiral running light) crowns the front of the machine, underlined by twin horns. It’s held with aluminium stays and flanked by classic-style 70mm diameter indicators. The LED rear light, indicators and number plate mounting bracket has been minimalised for a streamlined look.

The circular speedo and rev counter are adorned in chrome; equipment includes a fuel gauge and clock, gear position indicator, fuel efficiency gauge and range computer. Ignition is now via a ‘wave’ style key.

Subtly blacked-out, the engine wears natural aluminium engine covers, and features a cylinder head finished in silver with a burnished aluminium cam cover and chrome end caps. The CB1100 EX will be available in Pearl Shining Yellow, Pearl Sunbeam White and Candy Prominence Red, with a super smooth finish suggestive of repeated, and fastidious, wet sanding.

2017-Honda-CB1000-EX-1

Engine

Proudly at the heart of the CB1100 EX is its silky-smooth DOHC engine. Linear, instantly accessible power and torque is what this motor’s all about, and plenty of it, anywhere in the rev range. Maximum power output of 89bhp arrives at 7,500rpm with peak torque figure of 91Nm delivered @ 5,500rpm.

Air (via 2mm fins) and oil-cooled (via a 335mm 9-tier, front-mounted oil cooler), the engine revs to 8,500rpm and features a compression ratio of 9.5:1. Bore and stroke is set at 73.5mm x 67.2mm.

Drive for the twin camshafts is via central chain, and the valve included angle is 26.5° inlet and exhaust. Inlet valve diameter is 27mm, with a 2.5mm stem; exhaust 24mm with 2.5mm stem. A single secondary balancer shaft ensures smooth running.

PGM-FI and 32mm throttle body are fed through a revised, shortened air inlet tract and new air cleaner, and work with the pair of shorter (minus 70mm in length, 7% less in diameter and 2.4kg lighter than previous design) chrome plated exhaust mufflers to boost low and mid-rpm engine reaction.

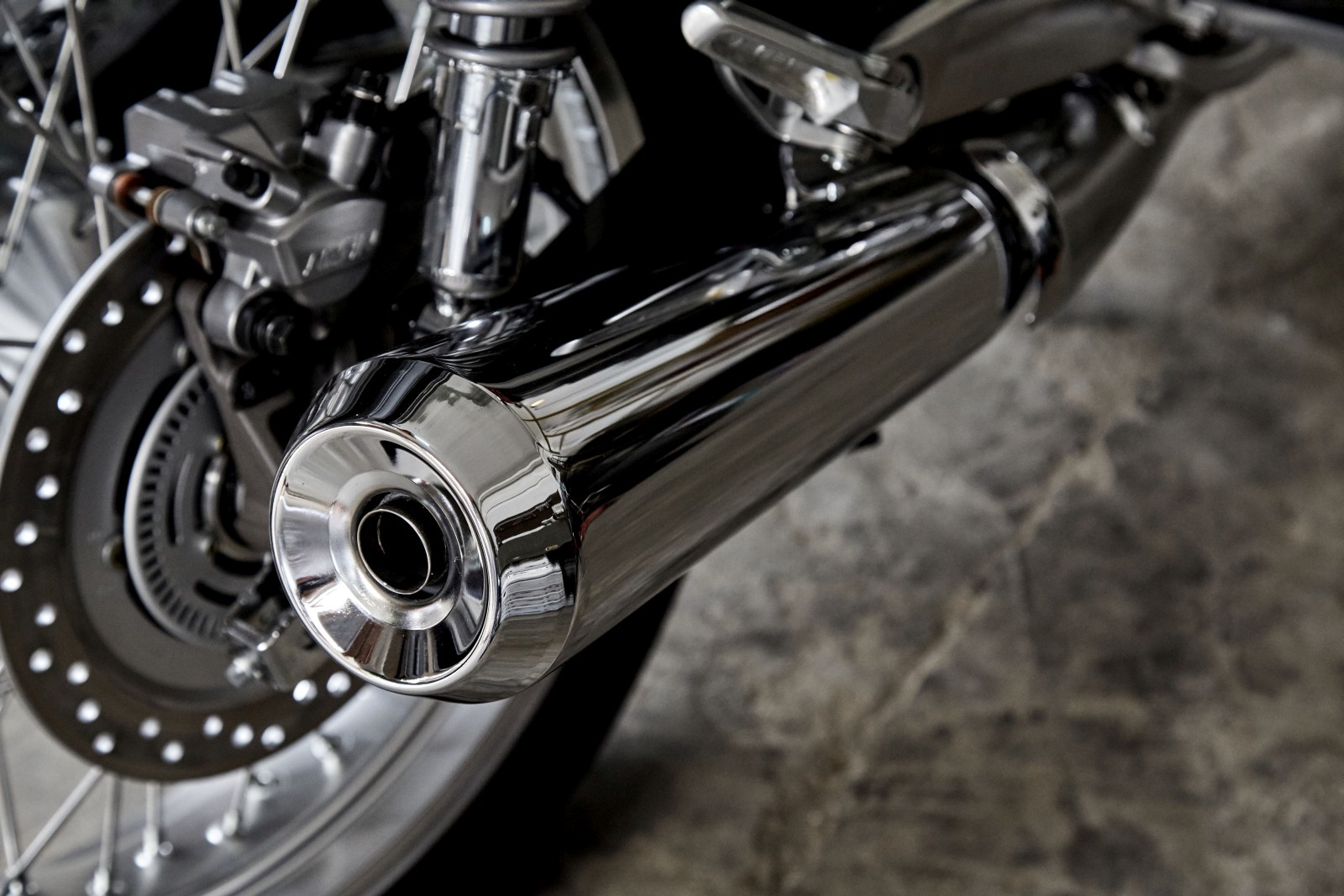

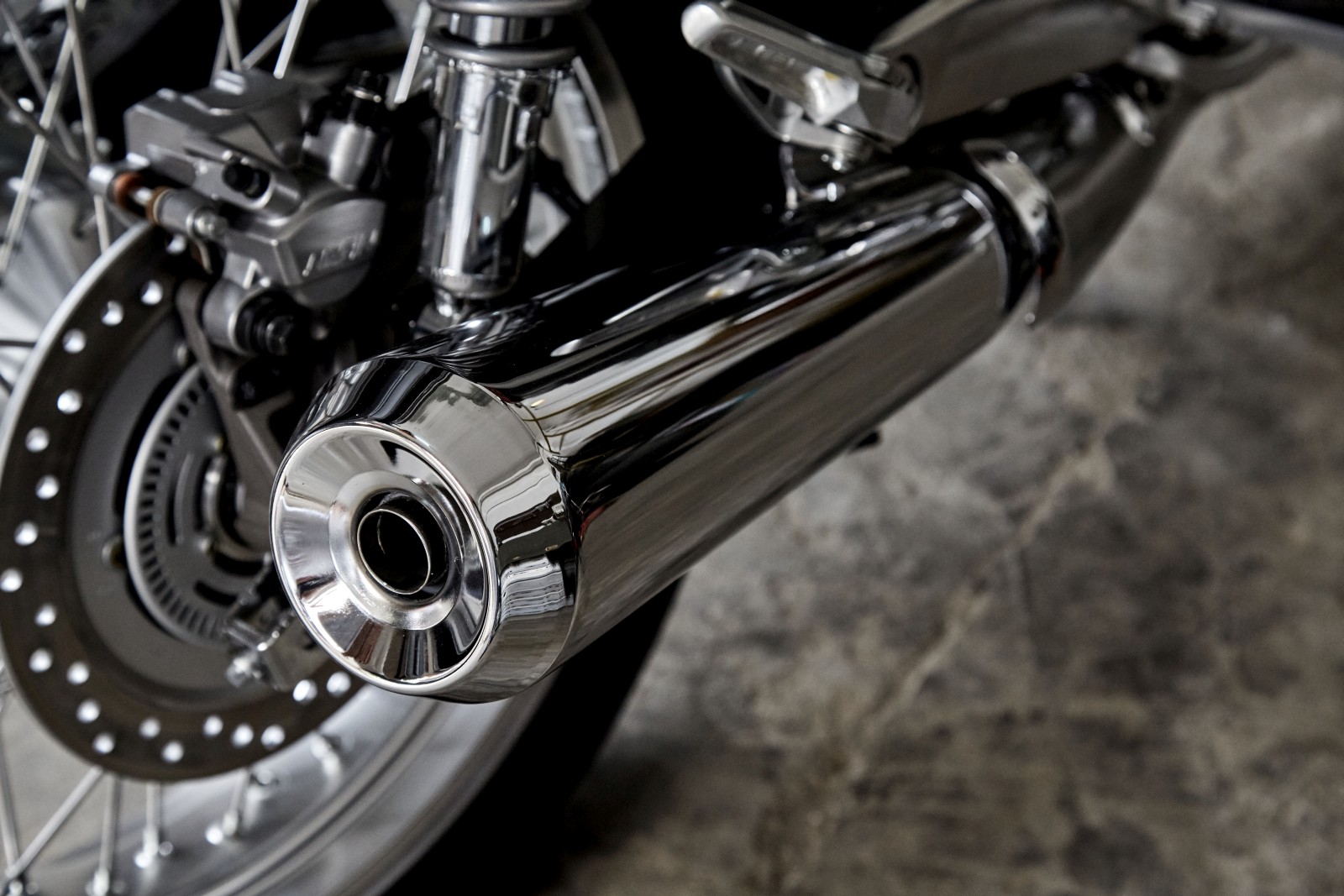

Internally split into two expansion chambers, each muffler features dual hole-punched link pipes optimised for resonance and the generation of an evocative four-cylinder engine note. Both mufflers hug the machine tighter for improved ground clearance and the downpipes are double skinned to stop heat-induced discolouration.

An assist slipper clutch is now fitted. With die-cast aluminium cam and slipper cam it saves weight, reduces lever effort by 16% and minimizes rear wheel ‘hop’ through engine braking on rapid down changes. The six-speed gearbox, ­­with carefully matched ratios for gears 1-5 gives crisp response and acceleration, while 6th is an overdrive reducing fuel consumption and lowering engine rpm at highway speeds. Final drive is by 530 chain.

The CB1100 EX engine is EURO4 compliant.

ENGINE
TypeInline four-cylinder, air and oil-cooled, DOHC
Engine Displacement (cm³)1140
Bore ´ Stroke (mm)73.5 x 67.2
Compression Ratio9.5:1
Max. Power Output89bhp/7,500rpm (95/1/EC)
Max. Torque91Nm/5,500rpm (95/1/EC)
Oil Capacity4.9l/4.4l
FUEL SYSTEM
CarburationPGM-FI electronic fuel injection
Fuel Tank Capacity16.8 litres
Fuel Consumption
ELECTRICAL SYSTEM
StarterElectric
Battery Capacity12V 11.2Ah
ACG Output12V 21.7A/5000rpm 0.336kw
DRIVETRAIN
Clutch TypeWet, multiplate clutch
Transmission Type6-speed
Final DriveChain
FRAME
TypeDouble steel cradle
CHASSIS
Dimensions (L´W´H)2,200 x 830 x 1130mm
Wheelbase1,490mm
Caster Angle27°
Trail114mm
Seat Height790mm
Ground Clearance135mm
Kerb Weight255kg
Turning radius2.7m
SUSPENSION
Type Front41mm conventional fork (SDBV) with adjustable spring preload
Type RearTwin shocks with adjustable spring preload
WHEELS
Type FrontWire spoke
Type RearWire spoke
Rim Size Front18in x 2.50MT
Rim Size Rear18in x 4.00MT
Tyres Front110/80 R18
Tyres Rear140/70 R18
BRAKES
ABS System Type2 Channel
Type FrontHydraulic dual floating 296mm disks (2-channel ABS)
Type RearHydraulic disk (2-channel ABS)
INSTRUMENTS & ELECTRICS
Instruments
Security SystemHISS
HeadlightLED
TaillightLED
