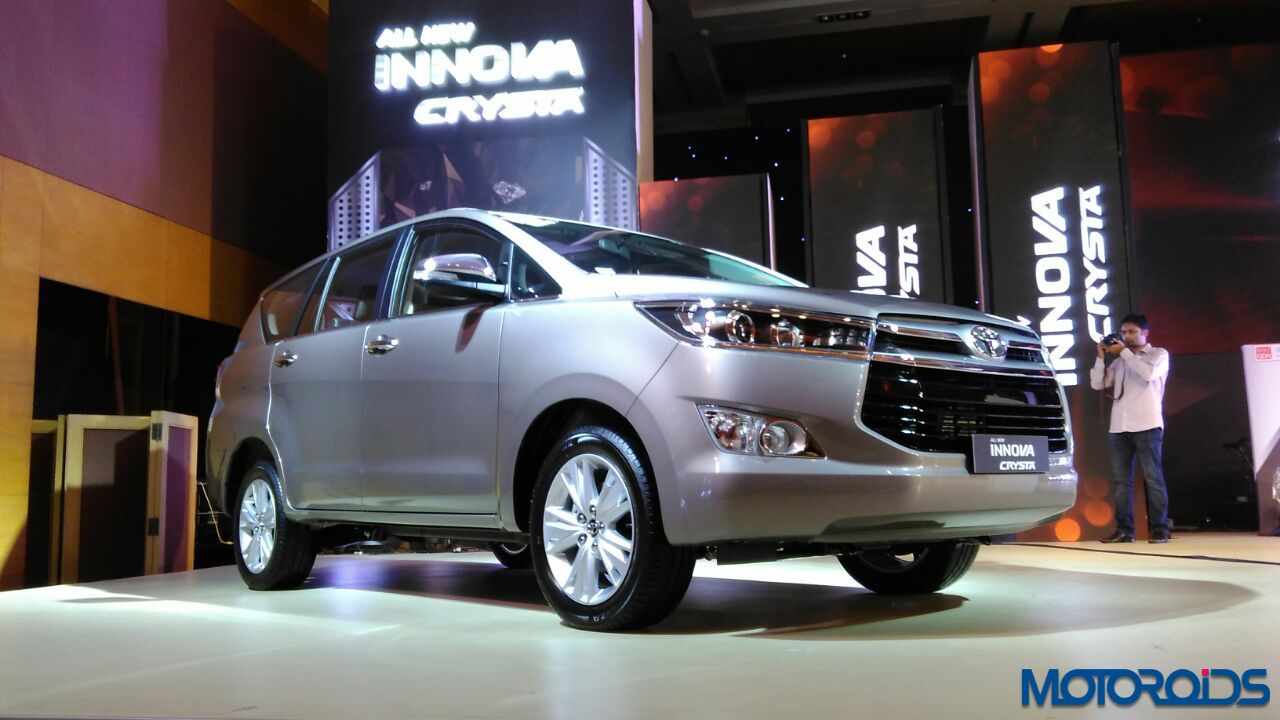

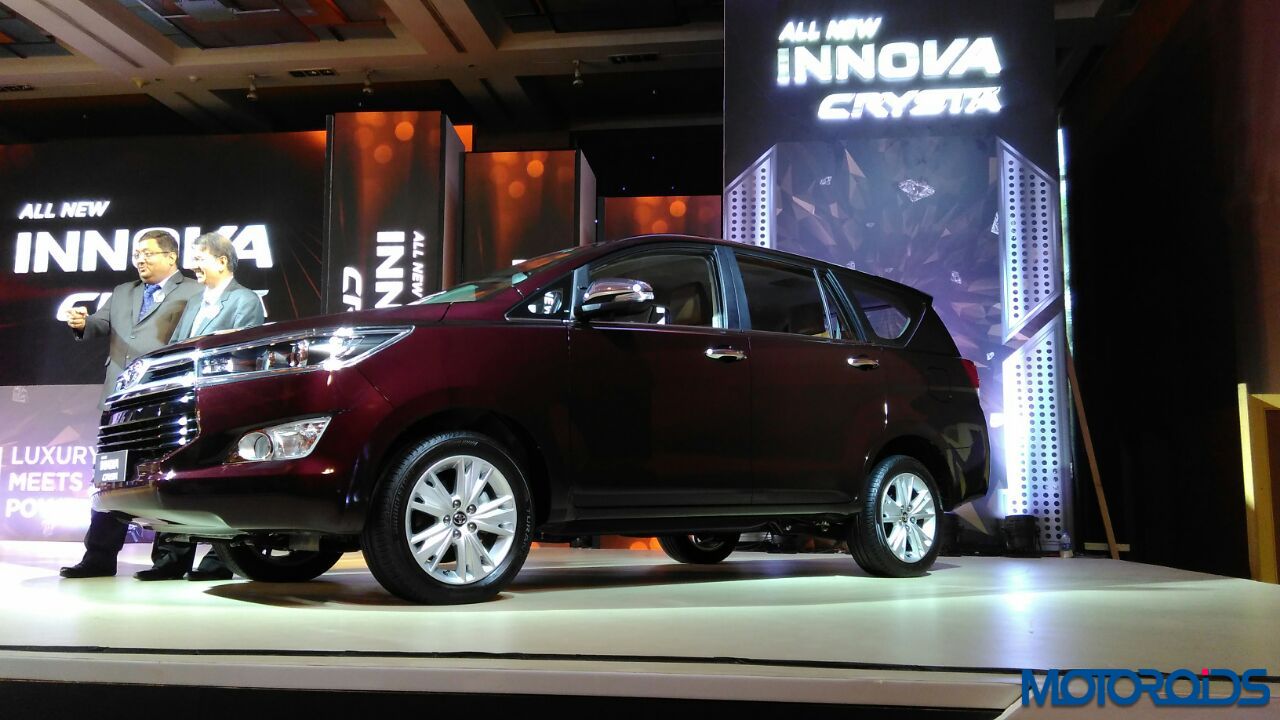

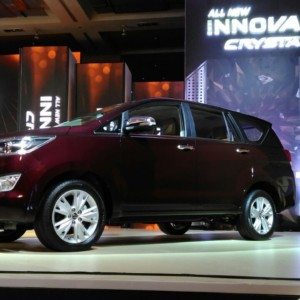

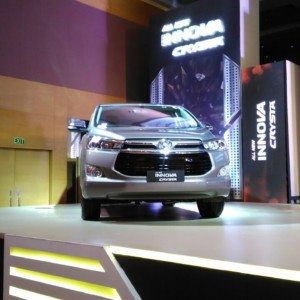

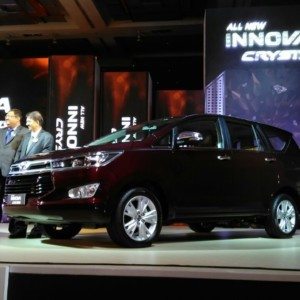

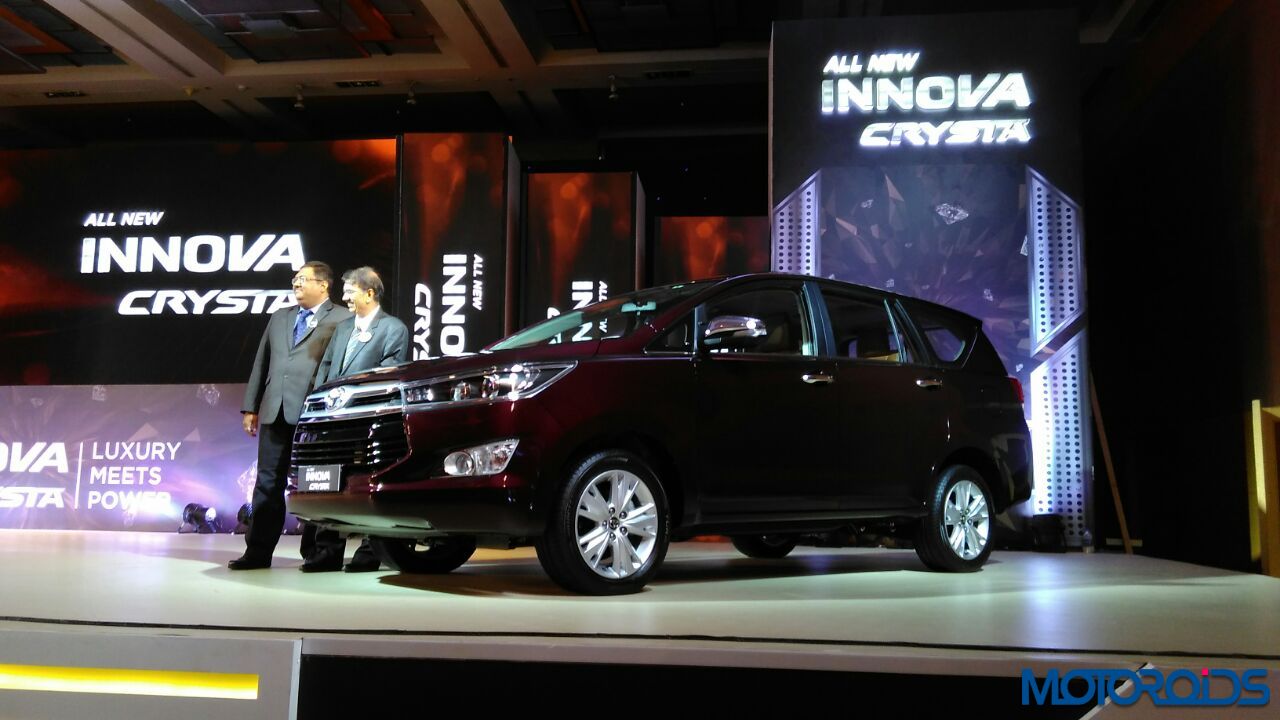

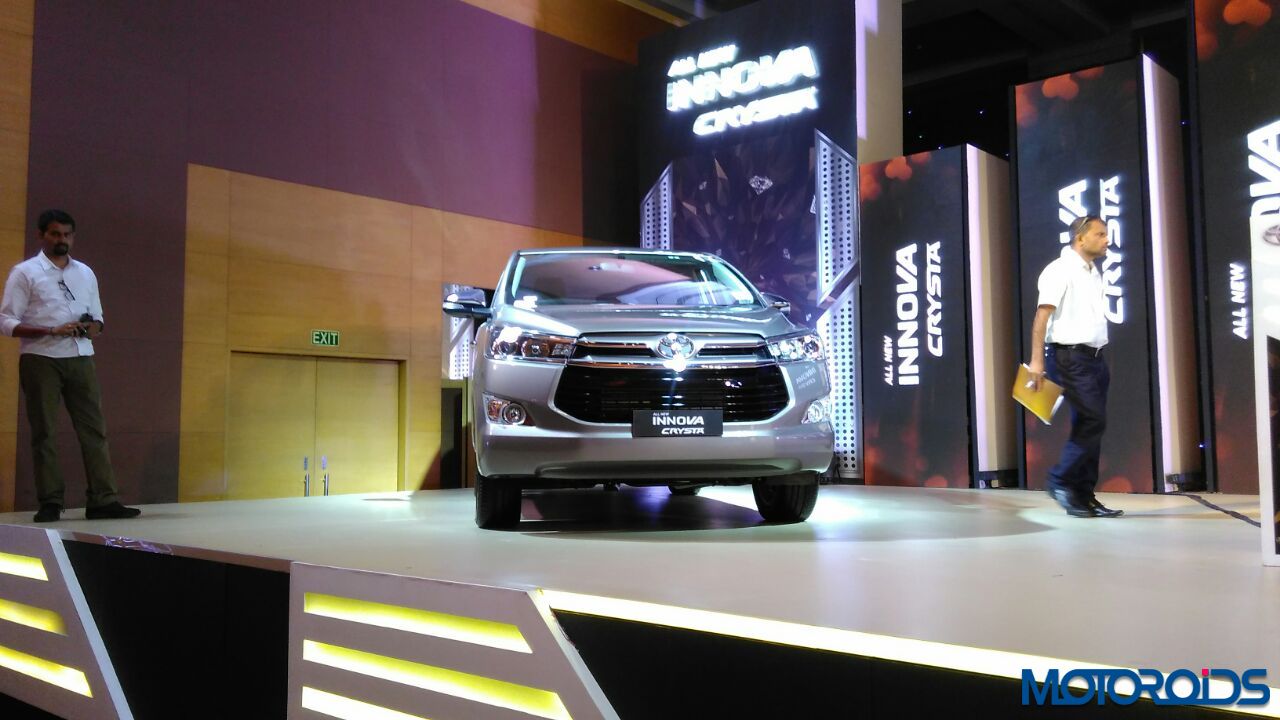

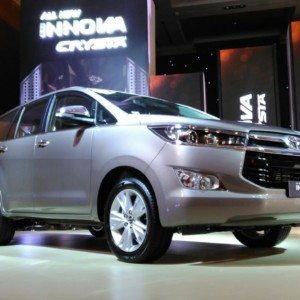

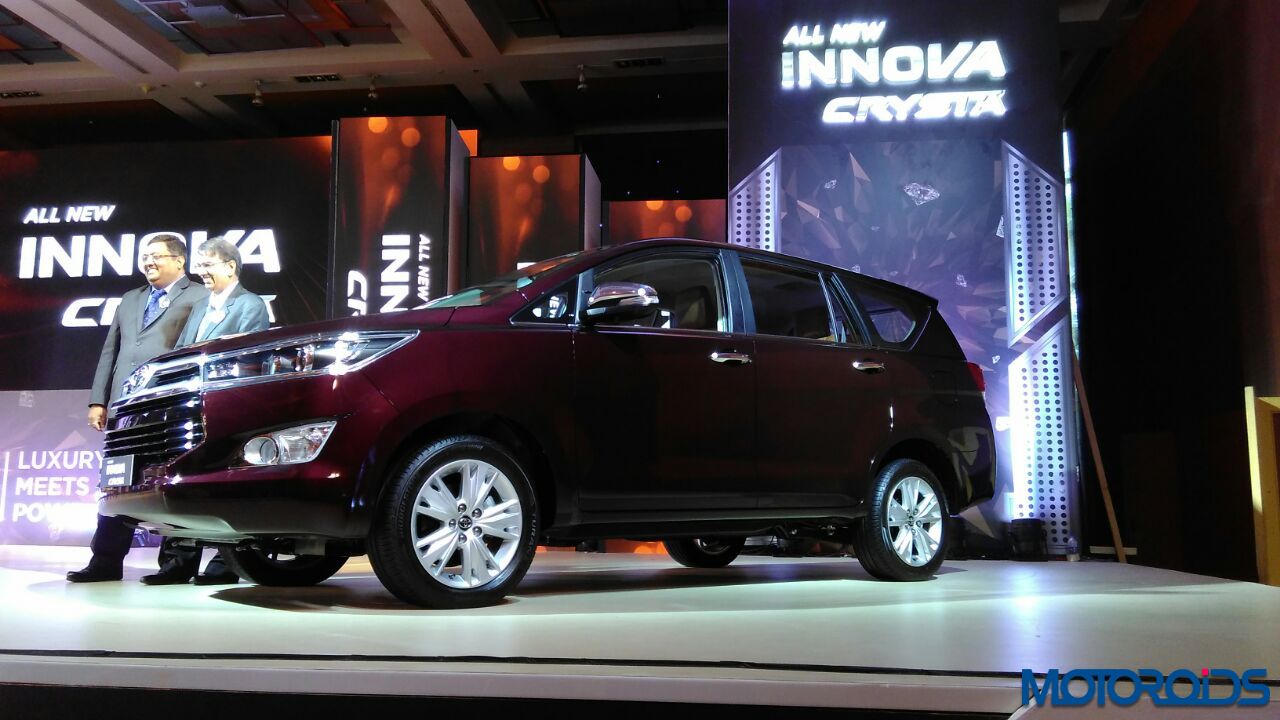

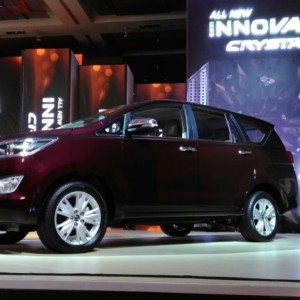

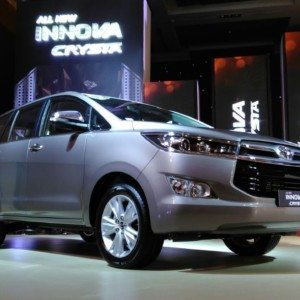

Toyota Innova Crysta officially launched, prices start at INR 13,83,677 (ex-Mumbai)

Toyota Kirloskar Motor have launched the all new Innova, christened as the Innova Crysta, in Mumbai. The MPV was unveiled at this year’s Auto Expo – The Motor Show. The Toyota Innova Crysta is already available in the market and the booking of the same have commenced as well. As announced by the company earlier, the deliveries will begin from today. The prices of the MPV start from INR 13,83,677 (Ex-showroom Mumbai). The Innova Crysta is available in two grades with an automatic transmission (Zx&Gx) and four grades with manual transmission (Zx, Vx, Gx & G).

In-depth review of the Toyota Innova Crysta (2.4 MT and 2.8 AT)

The Innova Crysta will be sold in India with two diesel engine options – a 2.8-litre unit (1GD) exclusively mated to a 6-speed automatic transmission, and a 2.4-litre (2GD) unit only available with a 5-speed manual transmission. Both four-cylinder units are from Toyota’s new GD family of turbo diesel engines. The 1GD delivers a healthy 174 PS of power at 3400 rpm and 360 Nm of torque at 1200-3400 rpm. The 2GD, on the other hand, makes 150 PS of power at 3400 rpm and 343 Nm of torque 1400-2800 rpm.

Following are the complete technical specifications of the all new Toyota Innova Crysta:

Engine Transmission Chassis

Grade	G	G	V	Z	Z
	X	X	X	X	X
	–	Automatic	–	–	Automatic
Seating Capacity	7/8 Seater	7/8 Seater	7/8 Seater	7 Seater	7 Seater
Type	BSIV: 2GD-FTV, Diesel with Intercooler, Variable Nozzle Turbocharger, 4-Inline Cylinder, DOHC 16 Valve, Common Rail	BSIV: 1GD-FTV, Diesel with Intercooler, Variable Nozzle Turbocharger, 4-Inline Cylinder, DOHC 16 Valve, Common Rail	BSIV: 2GD-FTV, Diesel with Intercooler, Variable Nozzle Turbocharger, 4-Inline Cylinder, DOHC 16 Valve, Common Rail		BSIV: 1GD-FTV, Diesel with Intercooler, Variable Nozzle Turbocharger, 4-Inline Cylinder, DOHC 16 Valve, Common Rail
Displacement	2,393 cm3 (cc)	2,755 cm3 (cc)	2,393 cm3 (cc)		2,755 cm3 (cc)
Drive Modes	Eco & Power Mode
Max. Output	110KW (150PS) @ 3400 rpm	128KW (174PS) @ 3400 rpm	110KW (150PS) @ 3400 rpm		128KW (174PS) @ 3400 rpm
Max. Torque	343Nm (35.0 kg-m) @ 1400 – 2800 rpm	360Nm (36.7 kg-m) @ 1200 – 3400 rpm	343Nm (35.0 kg-m) @ 1400 – 2800 rpm		360Nm (36.7 kg-m) @ 1200 – 3400 rpm
Transmission	5 Speed Manual	6 Speed Automatic with Sequential Shift	5 Speed Manual		6 Speed Automatic with Sequential Shift
Suspension Front / Rear	Double Wishbone with Torsion Bar / 4-Link with Coil Spring
Pitch & Bounce Control
Brakes Front / Rear	16″ Disc / Leading-Trailing Drum
Tyres	205 / 65 R16			215 / 55 R17

Dimensions

Grade	G	G	V	Z	Z
	X	X	X	X	X
	–	Automatic	–	–	Automatic
Seating Capacity	7/8 Seater	7/8 Seater	7/8 Seater	7 Seater	7 Seater
Overall Length	4,735 mm
Overall Width	1,830 mm
Overall Height	1,795 mm
Wheelbase	2,750 mm
Tread Front/Rear	1540 mm / 1540 mm			1530 mm / 1530 mm
Min. Turning Radius	5.4 m
Fuel Tank Capacity	55 litres

Weight

Grade	G		G		V		Z	Z
	X		X		X		X	X
	–		Automatic		–		–	Automatic
Seating Capacity	7/8 Seater		7/8 Seater		7/8 Seater		7 Seater	7 Seater
Max. Kerb Weight	1805 kg	1810 kg	1820 kg	1825 kg	1815 kg	1820 kg	1855 kg	1870 kg
Gross Weight	2430 kg	2460 kg	2450 kg	2480 kg	2430 kg	2460 kg	2430 kg	2450 kg

Exterior

Grade	G	G	V	Z	Z
	X	X	X	X	X
	–	Automatic	–	–	Automatic
Seating Capacity	7/8 Seater	7/8 Seater	7/8 Seater	7 Seater	7 Seater
Radiator Grille	Grey & Silver		Chrome-Finish with High Gloss Lower Grille
Headlamp	Multireflector		Automatic LED Projector, Halogen with LED Clearance Lamp
Headlamp Levelling	Manual		Automatic
Front Fog Lamp	x	x
Wheel	16″ Alloy Wheel with Full Size Alloy Spare Wheel			17″ Alloy Wheel with Full Size Alloy Spare Wheel
Outside Rear View Mirror	Body Coloured, Electric Adjust with Side Turn Indicators			Chrome, Electric Adjust & Retract, Welcome Lights with Side Turn Indicators
Door Belt Ornament	x	x	With Chrome-Finish
Antenna	Shark Fin Type
Black-Out Door Frame
Door Outside Handle	Body Colour		Chrome
Rear Spoiler	Integrated Type with LED High Mount Stop Lamp
Front Wiper	Intermittent & Mist		Intermittent with Time Adjust & Mist
Rear Window Wiper
Rear Window Defogger

Safety and Security

Grade	G	G	V	Z	Z
	X	X	X	X	X
	–	Automatic	–	–	Automatic
Seating Capacity	7/8 Seater	7/8 Seater	7/8 Seater	7 Seater	7 Seater
SRS Air Bag	Driver, Front Passenger & Driver Knee Airbags (3 Nos)			Driver, Front Passenger, Driver Knee, Front Side, Curtain Shield Airbags (7 Nos)
ABS With EBD & BA
Vehicle Stability Control	x	x	x
Hill Start Assist Control	x	x	x
Goa Body
Front Seat Belt	3 Point ELR With Pretensioner & Force Limiter, Height Adjustable
Rear Seat Belts	3 Point ELR Seatbelts For All Passengers
Child Restraint System	ISOFIX x 2 & Tether Anchor
Back Monitor	x	x
Clearance & Back Sonar
Clutch Start System		x			x
Seat Belt Warning
Door Ajar Warning			With Each Door Display
Immobilizer

Colours

Grade	G	G	V	Z	Z
	X	X	X	X	X
	–	Automatic	–	–	Automatic
Seating Capacity	7/8 Seater	7/8 Seater	7/8 Seater	7 Seater	7 Seater
Garnet Red
White Pearl Crystal Shine	x	x
Avant-Garde Bronze
Silver
Grey
Super White

Prices

Toyota Innova Crysta MT

Sl. No.	Model	Seater	Ex-Showroom Mumbai
1	2.4 G MT	7	Rs 13,83,677
2	2.4 G MT	8	Rs 13,88,177
3	2.4 GX MT	7	Rs 14,69,681
4	2.4 GX MT	8	Rs 14,74,181
5	2.4 VX MT	7	Rs 17,53,397
6	2.4 VX MT	8	Rs 17,57,897
7	2.4 ZX MT	7	Rs 19,47,930
Additional price of Rs. 9,500/- per unit for Pearl White colour.
