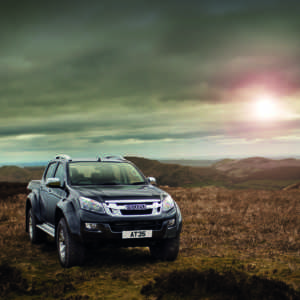

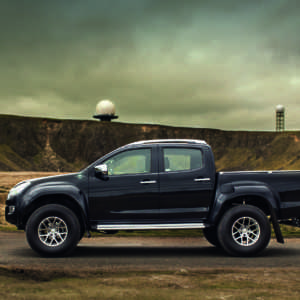

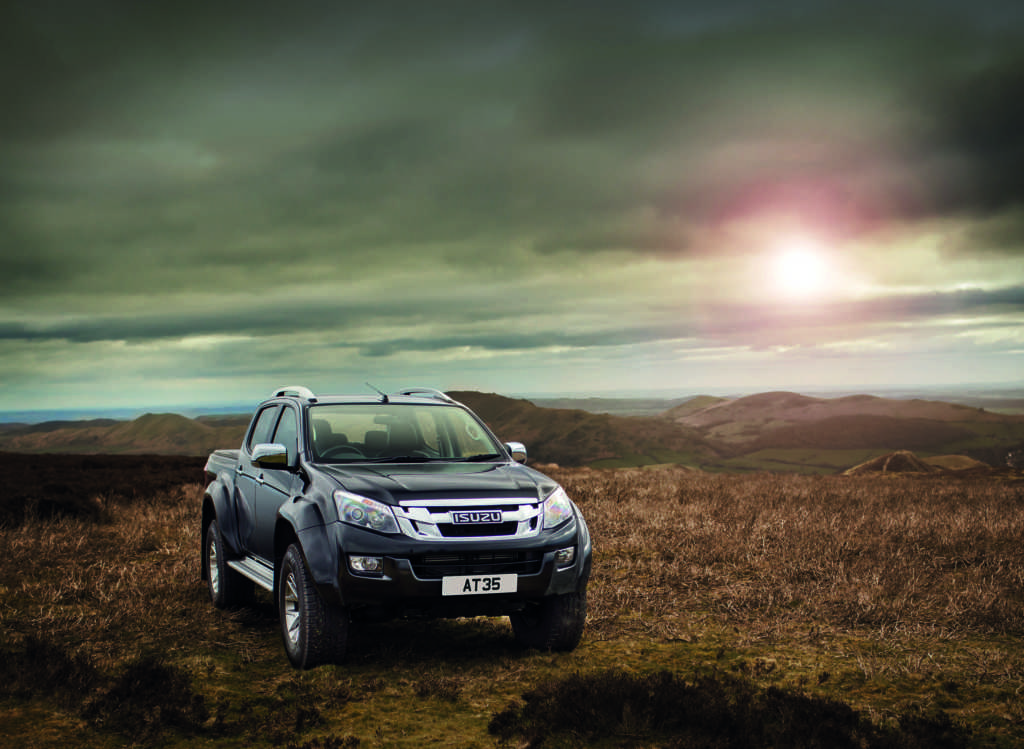

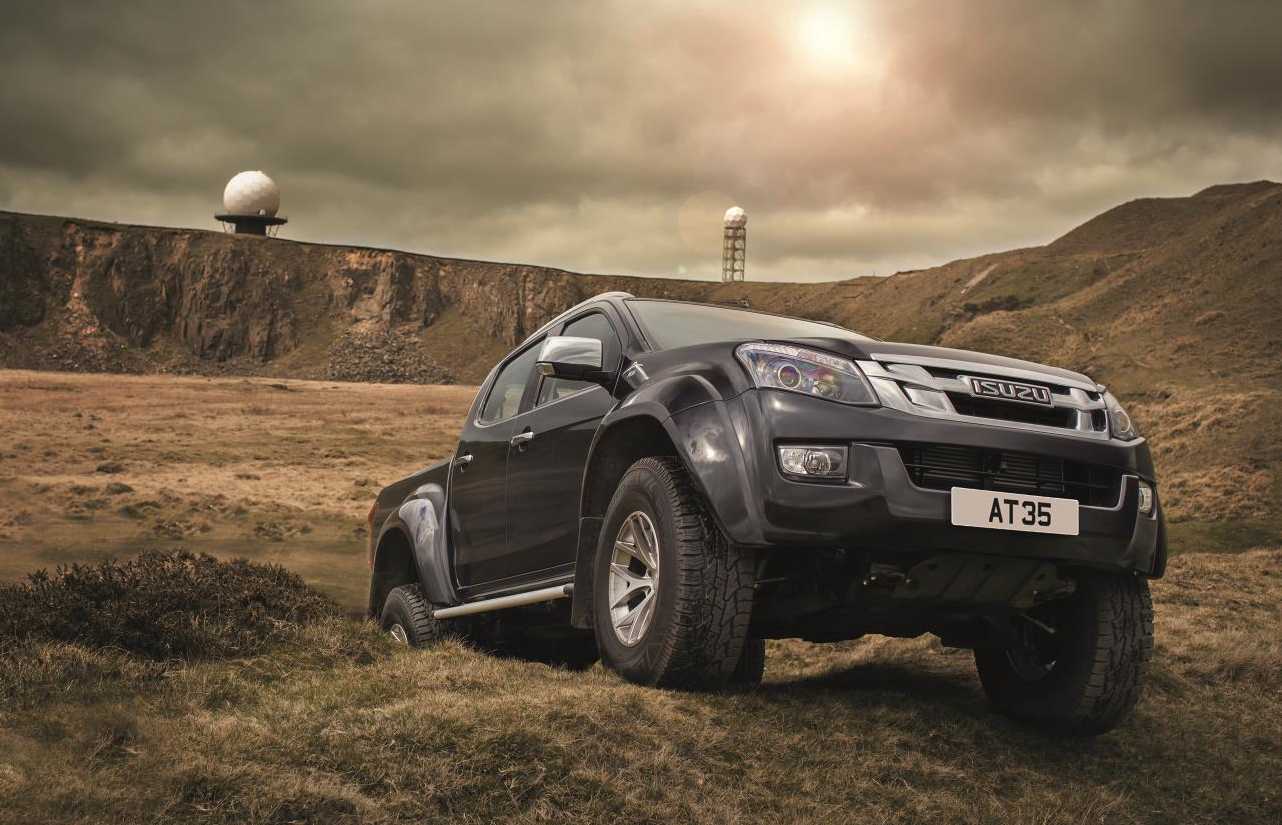

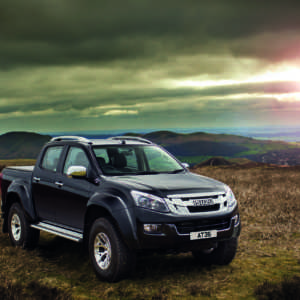

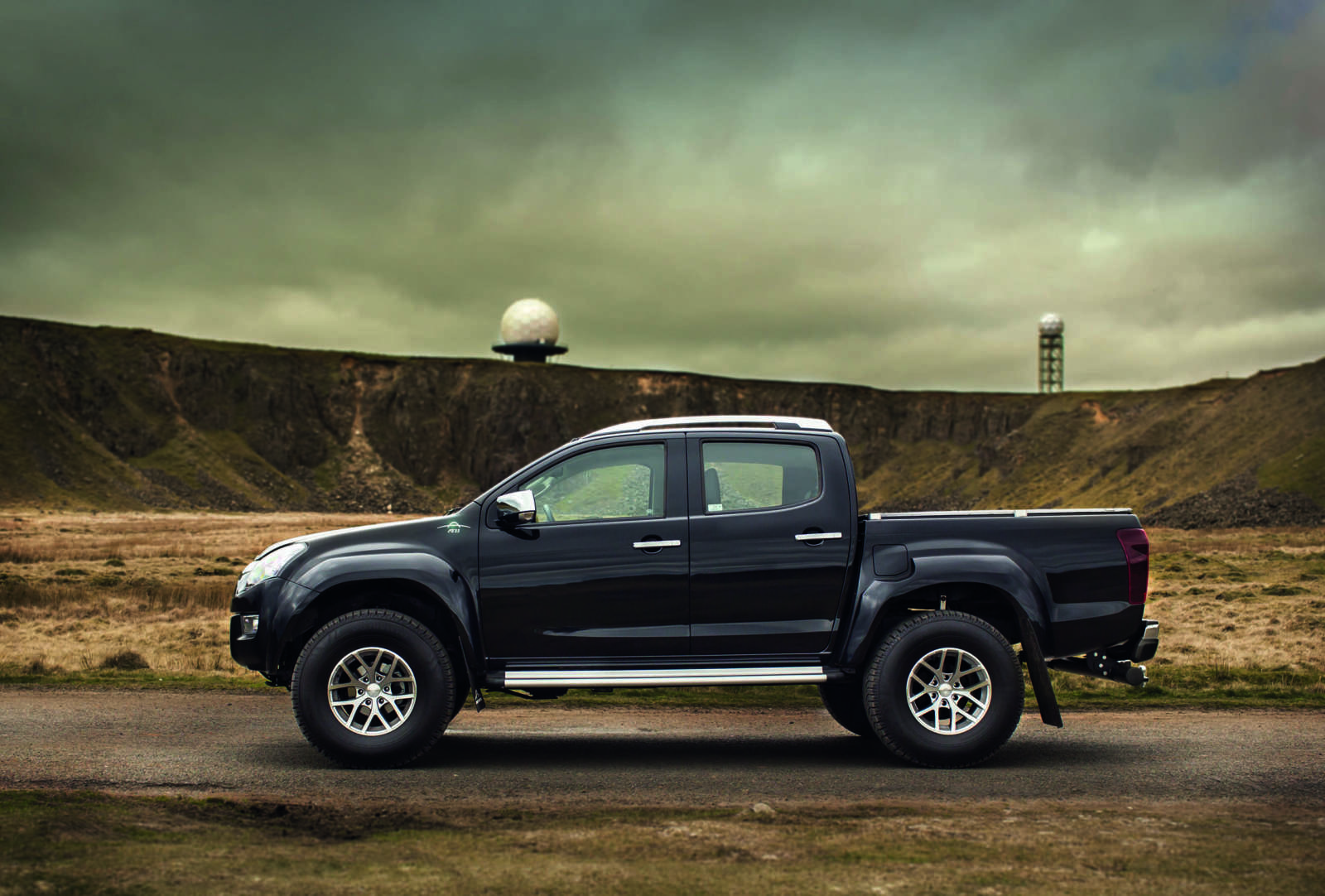

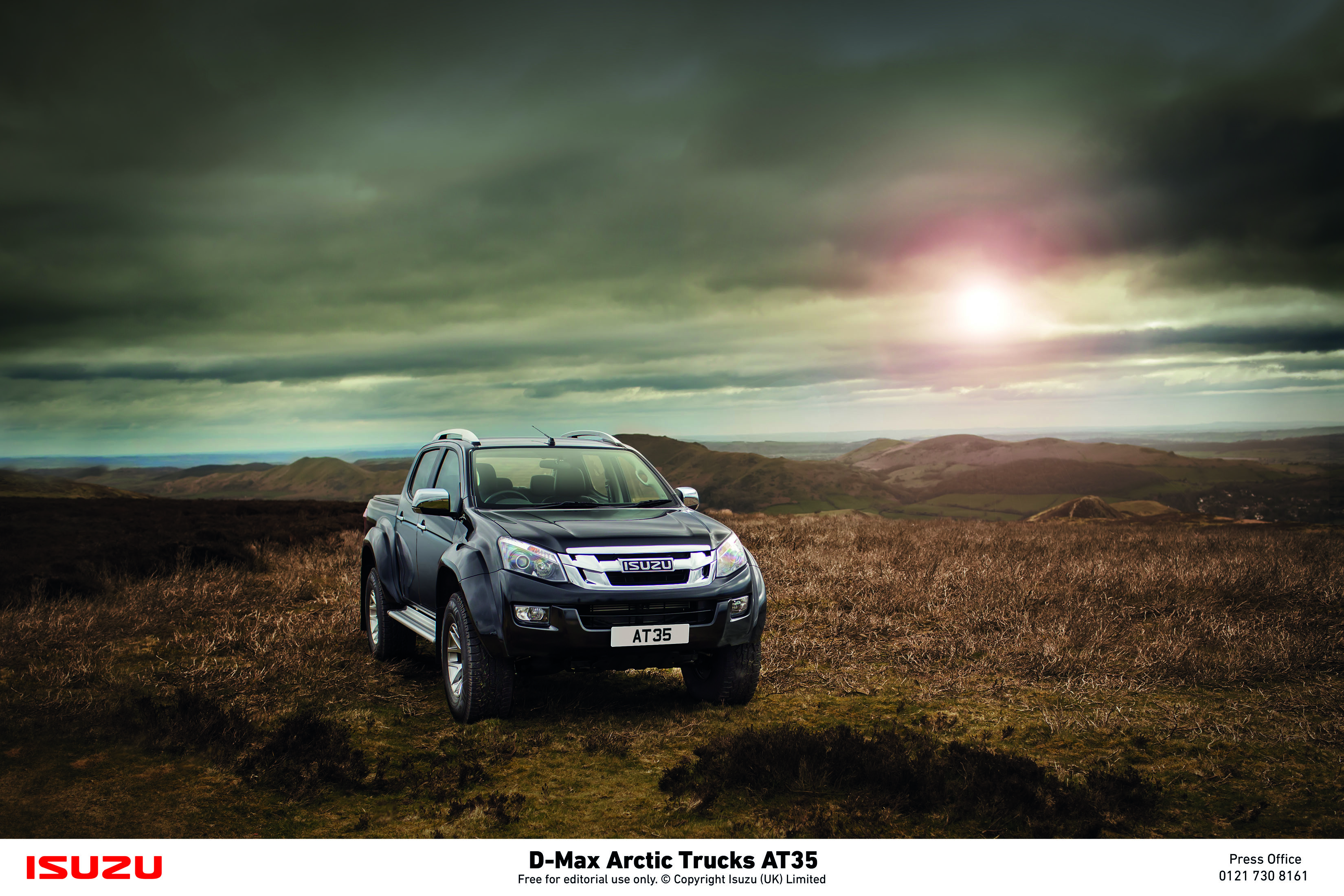

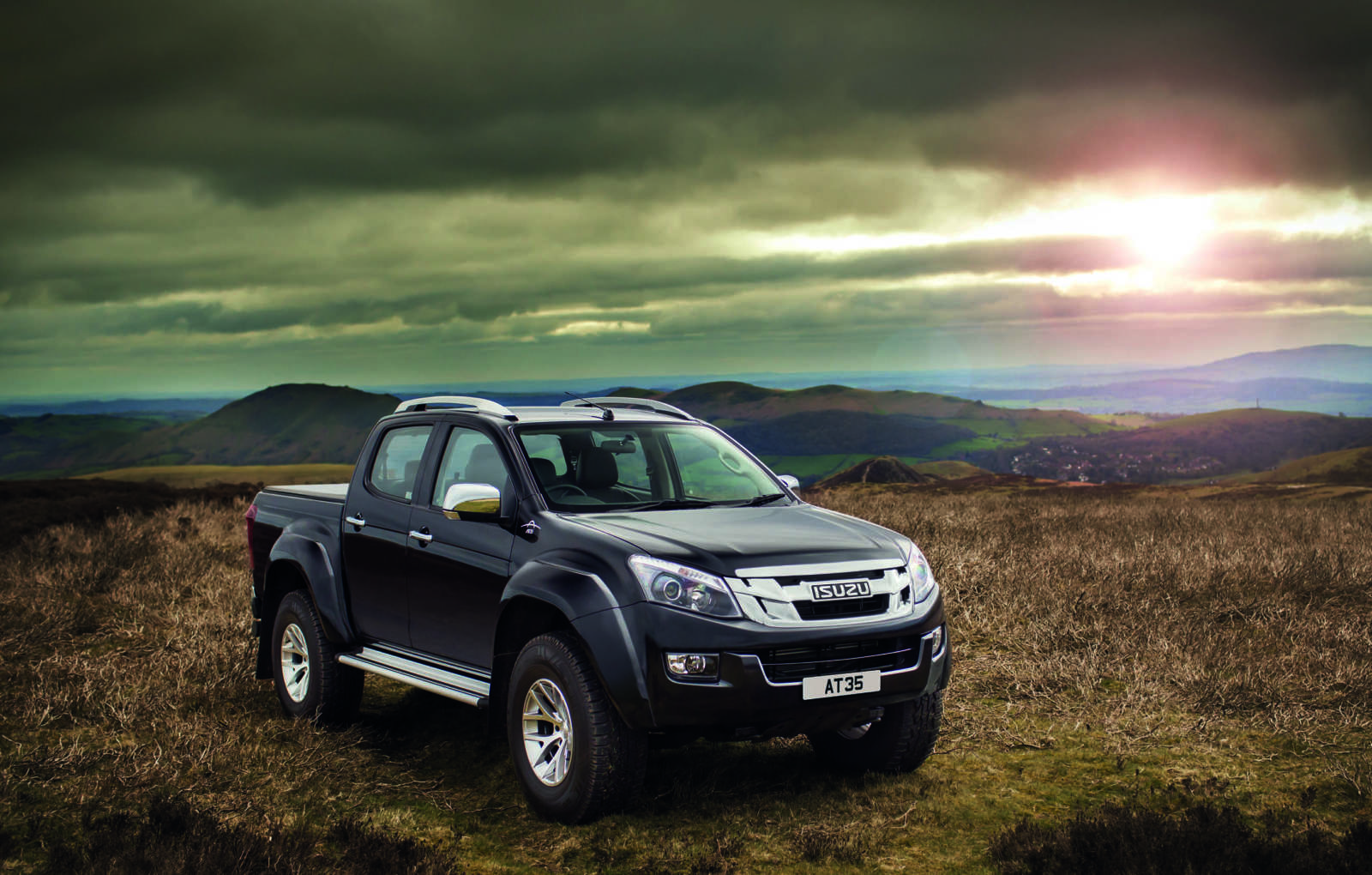

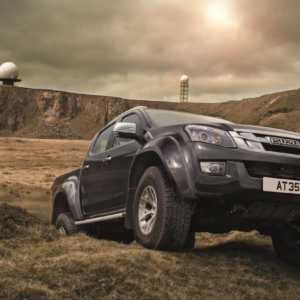

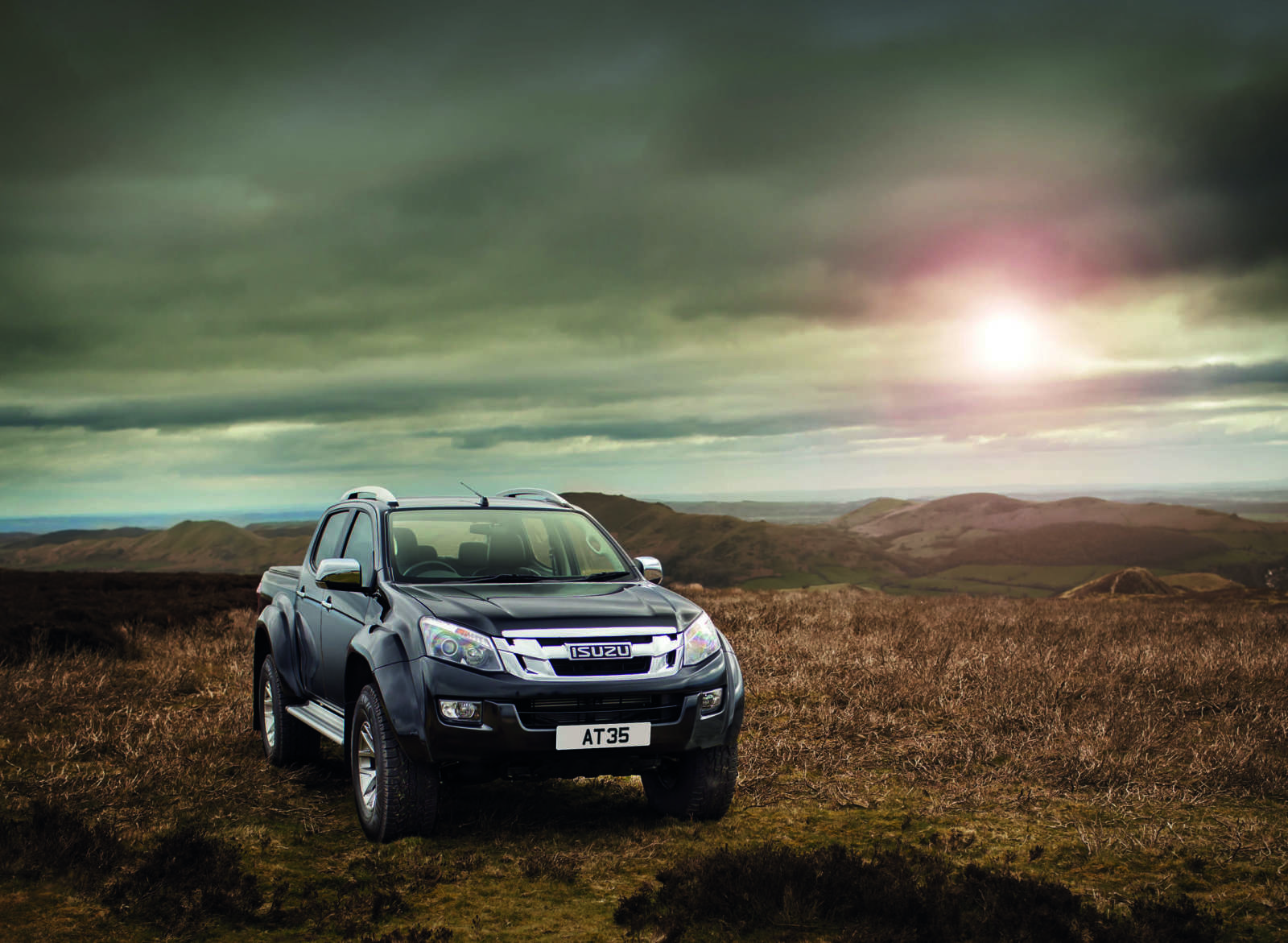

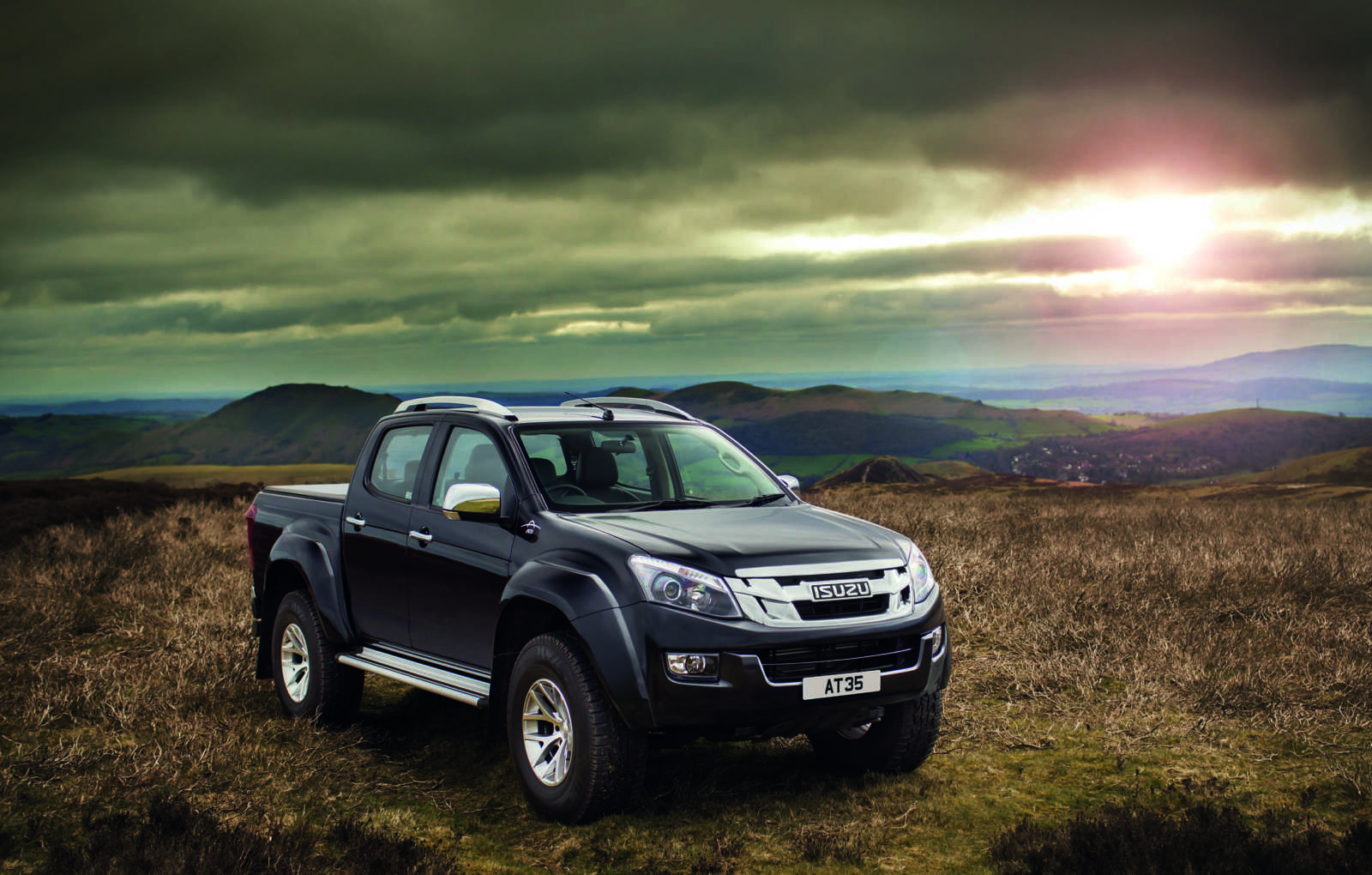

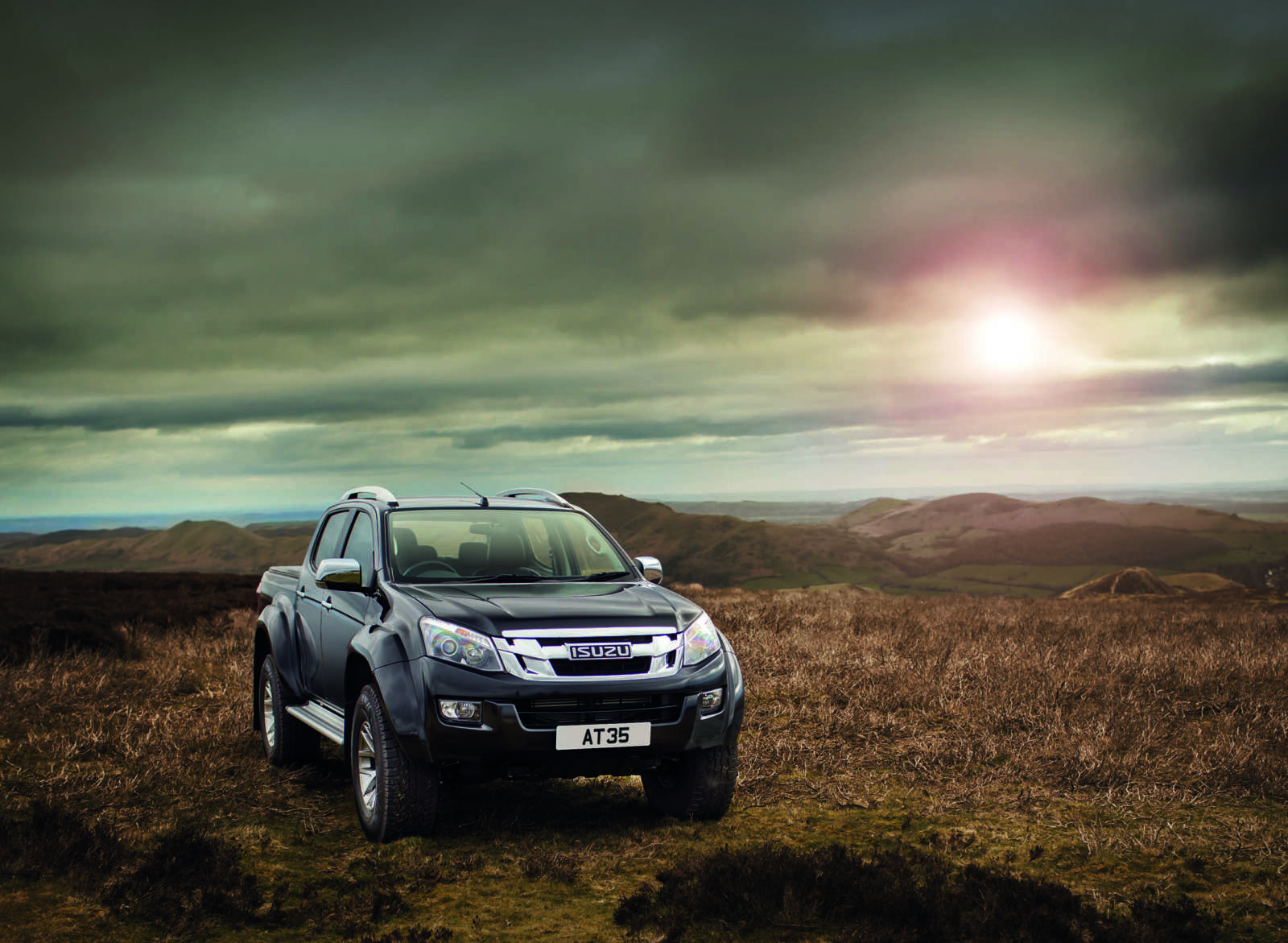

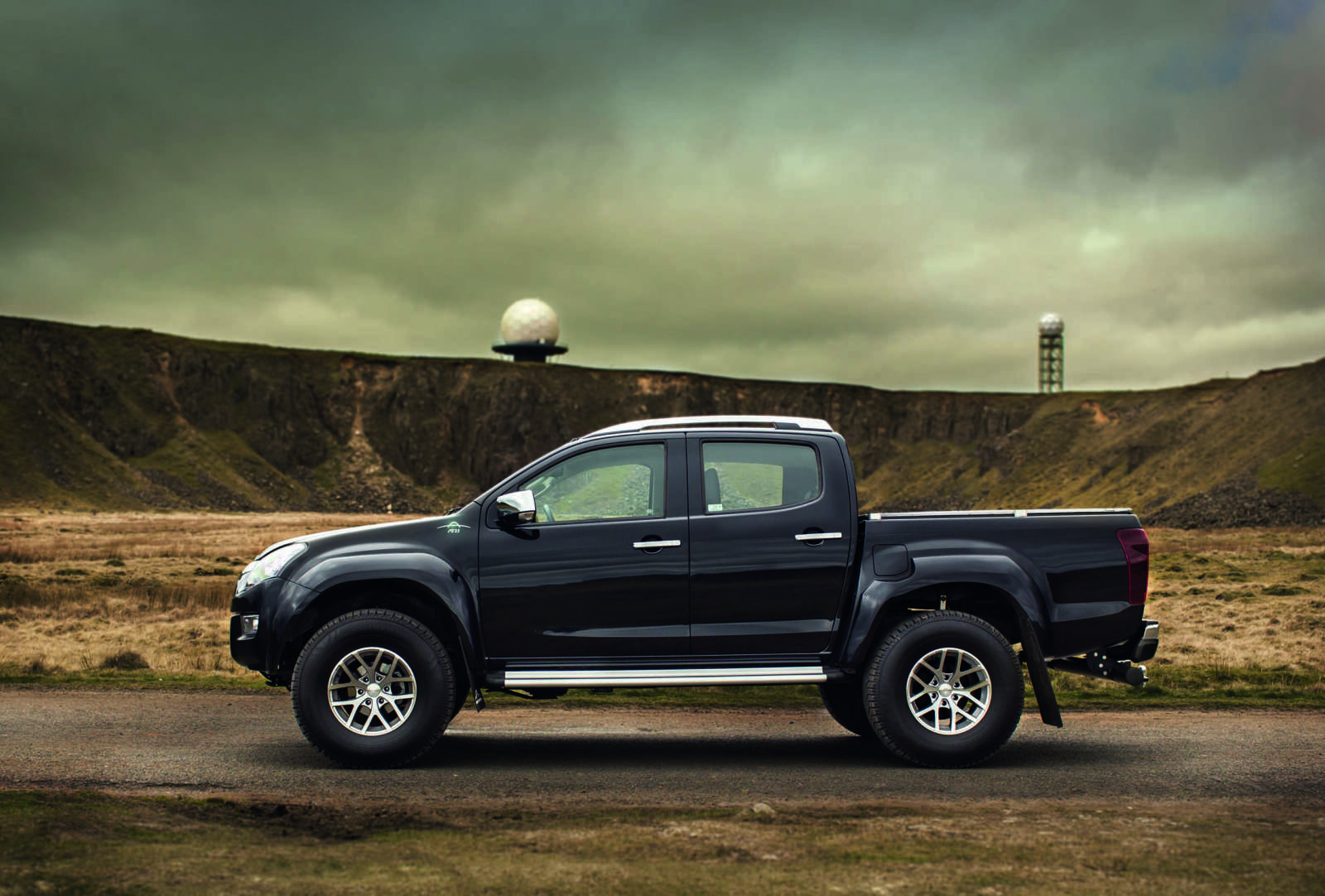

Isuzu is launching the most extreme D-Max ever. The new Isuzu D-Max Arctic Trucks AT35 is available in either double-cab or extended-cab configurations, and is priced from £30,995. Built in association with Arctic Trucks, a vehicle engineering specialist, developing and building 4×4 vehicles for over 25 years, the Isuzu D-Max Arctic Trucks AT35 will be the first Arctic Trucks pick-up in the UK that can be ordered directly from a vehicle manufacturer’s dealer network.

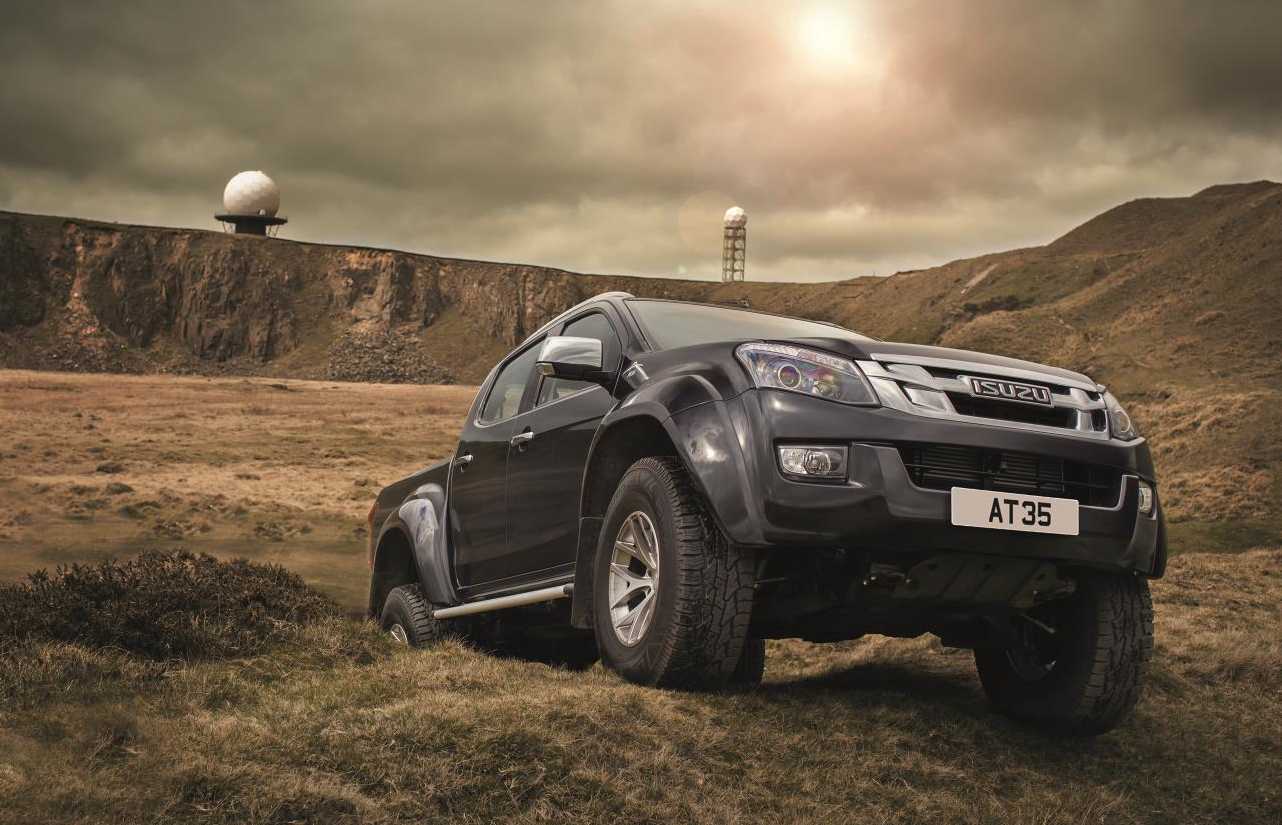

The AT35 features a ride height that is 125 mm higher than the equivalent standard 4×4 Isuzu D-Max, which comes courtesy a re-engineered suspension set-up with Fox Performance Series shocks, along with huge 35-inch off-road tyres fitted to 17”x10” wheels. The AT35 retains the one-tonne payload and 3.5-tonne towing (braked) capacities. Inside, entertainment with a six-speaker audio package with an ‘Exciter’ speaker in the roof lining, plus iPod/USB/Bluetooth connectivity. Other comfort and convenience features include heated and folding door mirrors (including side indicator repeaters) and a leather steering wheel with audio and cruise controls.
The double-cab model also includes full leather upholstery for an even more luxurious interior, as well as automatic climate control air-conditioning. Exterior standard features include projector headlamps, body-coloured front bumper, chrome door handles and chrome grille and chrome rear bumper, LED rear lights and a rear load liner. The double-cab model also adds roof bars and rear parking sensors. Optional accessories include an Arctic Trucks Truxedo that provides added security for cargo in the load bed, as well as the Arctic Trucks Sports Bar.
Furthermore, off-road extras such as a 27-LED square work light, skid plate, ARB tyre inflator with inline gauge can also be ordered. Customers opting for the double cab AT35 can also upgrade their infotainment system with the Pioneer AVIC-F860BT audio set-up, DVD and European navigational system with 6.1-inch touch screen, reversing camera and Parrot Bluetooth kit for wireless telephony and music streaming.
The AT35 is based on the same chassis of the Isuzu D-Max, which is made of high tensile strength steel with cross-member braces, along with additional cross braces that aid torsional rigidity. Under the bonnet of the D-Max Arctic Trucks AT35 is the 2.5-litre twin-turbo diesel engine that delivers 163 PS and 400 Nm torque for all models in the D-Max line-up. The engine is mated to a five-speed automatic transmission that features sequential manual shift control, while the shift-on-the-fly two- /four- / low-ratio four-wheel drive system allows drivers to switch between two-wheel drive and high-ratio four-wheel drive at speeds up to 60 mph (100 km/h).
Pricing (CVOTR)
| Isuzu D-Max Arctic Trucks AT35 Extended-cab (six-speed manual) | £30,995 |
| Isuzu D-Max Arctic Trucks AT35 Double-cab (six-speed manual) | £33,495 |
| Isuzu D-Max Arctic Trucks AT35 Double-cab (five-speed auto) | £34,495 |
Isuzu D-Max Arctic Trucks AT35 specification
Standard equipment is as follows:
Exterior
Fender Flares, front & rear 17”x10” wheels
Extended Profile AT Side Steps Fox dampers, front & rear
315/70 R17 Nokian Rotiiva AT tyres Integrated fuel filler cap
Daytime running lights Chrome front grille and rear bumper
LED rear lights Roof bars (double-cab only)
Body-colour front bumper Rear parking distance sensor (double-cab only)
Projector headlamps Receiver Hitch
Folding heated chrome door mirrors with side-indicator repeaters
Optional exterior extras – exterior styling:
Arctic Trucks sports bar (black or silver)
Arctic Trucks Truxedo Double-cab/Extended-cab
4.5-inch Vision X LED cannon
6.7-inch Vision X LED 9 diode lamp (black or chrome)
6.7-inch Vision X LED 18 diode lamp (black or chrome)
Optional exterior extras – off-road:
27 LED square work light with Arctic Trucks logo
Skid plate under radiator/engine
Skid plate under engine/gearbox
ARB inflator with gauge
Pump up emergency inflation kit
Paint finishes available:
Splash White, Titanium Silver Met, Mineral Grey Met, Tundra Green Mica, Venetian Red Mica, Nautilus Blue Mica, Cosmic Black Mica
Safety and security
ABS + ESC + TCS Door-open warning light
Front, side and curtain airbags Height-adjustable front seatbelts
Insurance approved immobiliser Remote central locking
Three-point rear seatbelts Locking wheel nuts
Interior
Driver and passenger reading lights Height-adjustable driver’s seat
Heated front seats Height adjustable steering wheel
Leather steering wheel with audio and cruise control function
Rear heating ducts Automatic climate control (double-cab only)
Front electric windows Rear electric windows
Height-adjustable front headrests Courtesy light delay function
Aluminium Scuff Plates Leather upholstery (double-cab only)
Electrically Adjustable Driver’s Seat (double-cab only)
Heated Front Seats (double-cab only)
Entertainment
In car entertainment system:
RDS radio/single CD with iPod-USB-Bluetooth
Six speakers with roof-mounted Exciter speaker
Optional extras(double-cab only):
Pioneer AVIC-F860BT fully integrated audio system
DVD and navigation system with 6.1-inch touch screen
European map coverage and traffic info
Parrot Bluetooth wireless telephony and music streaming (limited availability)
Reversing camera
Isuzu D-Max Arctic Trucks AT35 technical specification
Body and chassis
Four-door, five-seater double-cab or four-seater extended-cab pick-up, with all-steel body. Longitudinally-mounted diesel engine driving rear (or front and rear) wheels via ‘on demand’ part-time four-wheel-drive system and a five-speed automatic or six-speed manual transmission.
Engine 2.5-litre / 163 PS (120 kW) diesel
Type DOHC, in-line four
Capacity 2.5-litres, 2,499 cc
Bore and stroke 95.4 x 87.4 mm
Compression ratio 17:1
Max power 163 PS @ 3,600 rpm
Max torque 400 Nm @ 1,400-2,000 rpm
Valves 16 (four-per-cylinder)
Fuel system CRDi, common-rail, high-pressure, direct-injection two-stage turbo
Construction Cast iron cylinder block and aluminium head
Emissions class Euro Stage5
Drivetrain
Switchable rear-wheel-drive / all-wheel-drive, selectable electronically
Steering
Type Hydraulic power-assisted rack and pinion
Turning circle 12.2 metres
Wheels and tyres
Standard 17×10 alloy wheels and 315/70 R17 Nokian Rotiiva AT tyres
Transmission gear ratios
4×4 double-cab 5-speed auto
1 – 3.52; 2 – 2.042; 3 – 1.400; 4 – 1.000; 5 – 0.716; Reverse – 3.224
Final Drive – 3.727
4×4 double-cab/extended-cab 6-speed manual
1.5.232; 2 – 2.644; 3 – 1.606; 4 – 1.219; 5 – 1.000; 6 – 0.728; Reverse – 4.525;
Final Drive – 3.071
Dimensions (mm)
Exterior
| Overall length 5,295 Overall height 1,930** Front overhang 905 Ground clearance 290 |
Overall width* 2,000 Wheelbase 3,095 Rear overhang 1,295 |
| Approach angle 36.0 deg Ramp angle 32.0 deg |
Departure angle 23.0 deg |
*excluding door mirrors, **excluding roof rails
Capacities and weights
| Fuel tank | 69 litres |
| Load bay (LWH) | Double-cab: 1,485 x 1,530 x 465 mm |
| Extended-cab: 1,795 x 1,530 x 465 mm | |
| Kerb weight | Double-cab: 2,105 kg (manual) 2,110 kg (auto) |
| Towing (max) | 3,500 kg (braked trailer) 750 kg (unbraked) |
| Payload (max) | Double-cab: 1,055 kg (manual) 1,050 kg (auto) |
