MY 2014 Yamaha R125 Images & Details

2014 Yamaha R125 Technical Specifications

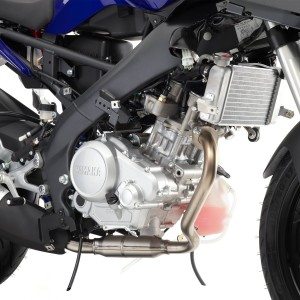

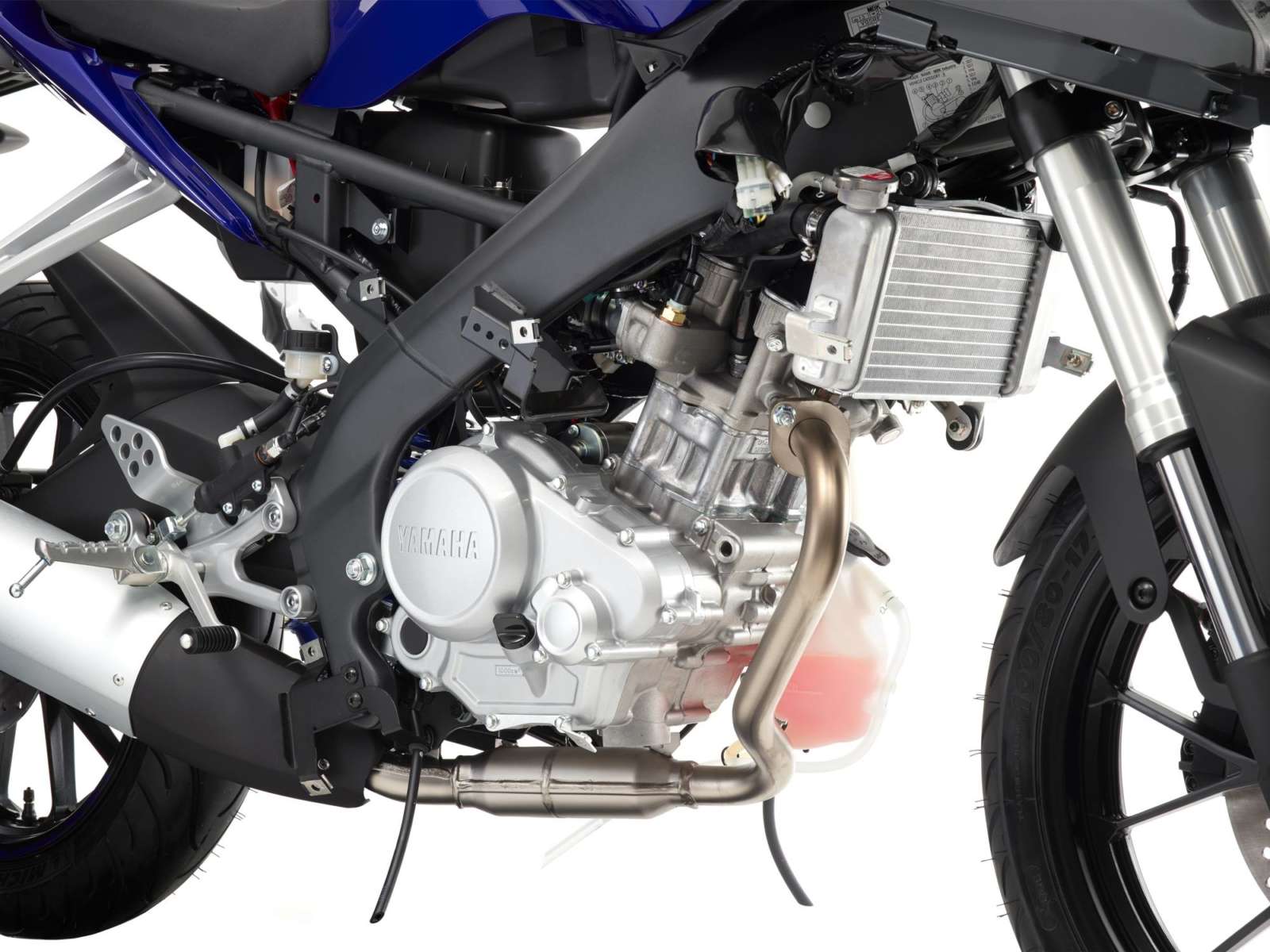

Engine type Single cylinder, liquid-cooled, 4-stroke, SOHC, 4-valves
Displacement 124.7cc
Bore x stroke 52.0 mm x 58.6 mm
Compression ratio 11.2 : 1
Maximum power 11.0 kW (15.0PS) @ 9,000 rpm
Maximum Torque 12.4 Nm (1.25 kg-m) @ 8,000 rpm
Lubrication system Wet sump
Carburettor Electronic Fuel Injection
Clutch Type Wet, multiple-disc coil spring
Ignition system TCI (digital)
Starter system Electric
Transmission system Constant Mesh, 6-speed
Final transmission Chain

Chassis
Frame Steel Deltabox

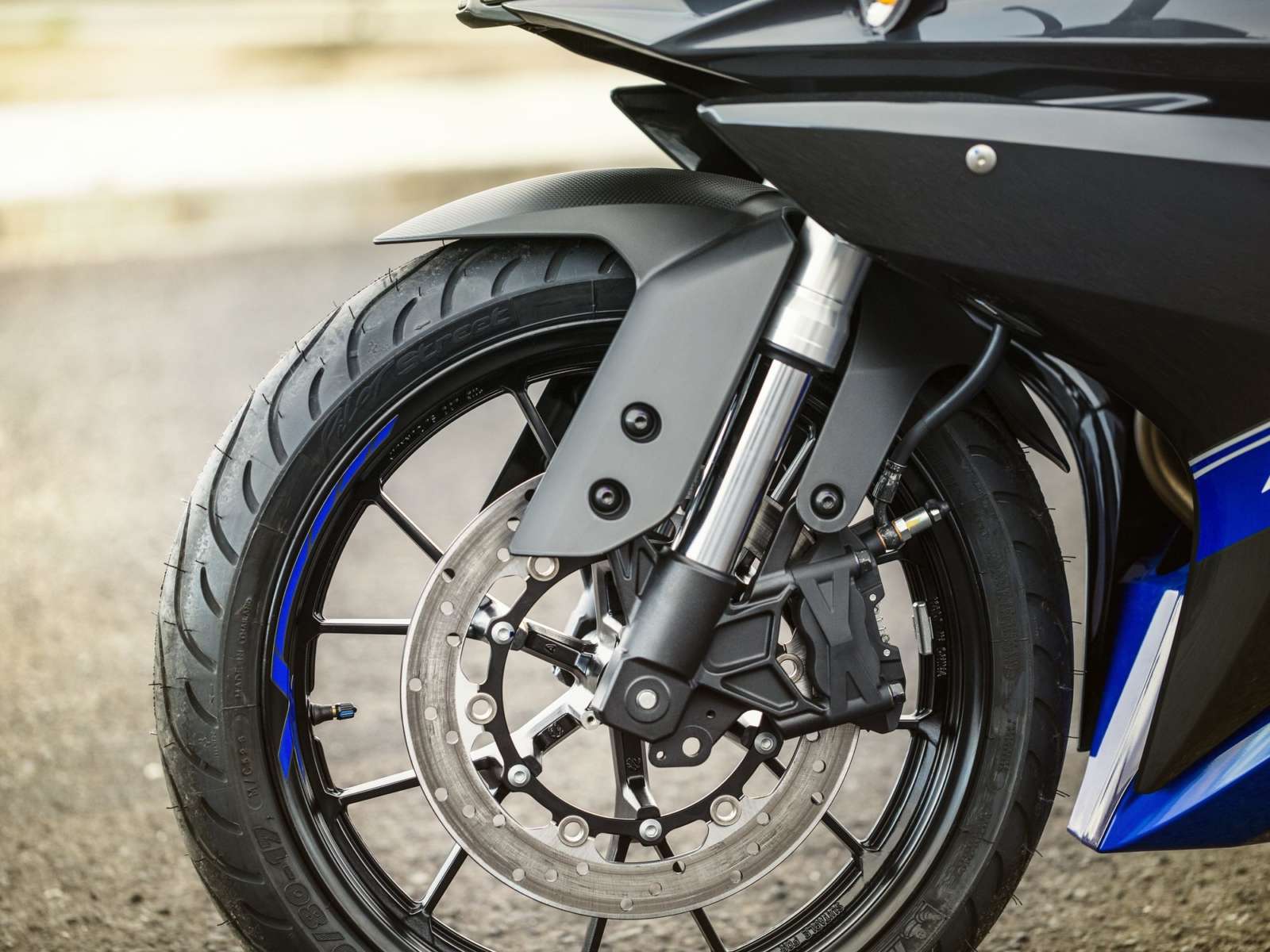

Front suspension system Upside-down telescopic fork, Ø 41 mm
Front travel 130 mm
Caster Angle 25º
Trail 89 mm
Rear suspension system Linked monoshock with spring preload adjustment
Rear Travel 114 mm

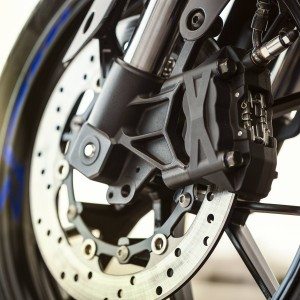

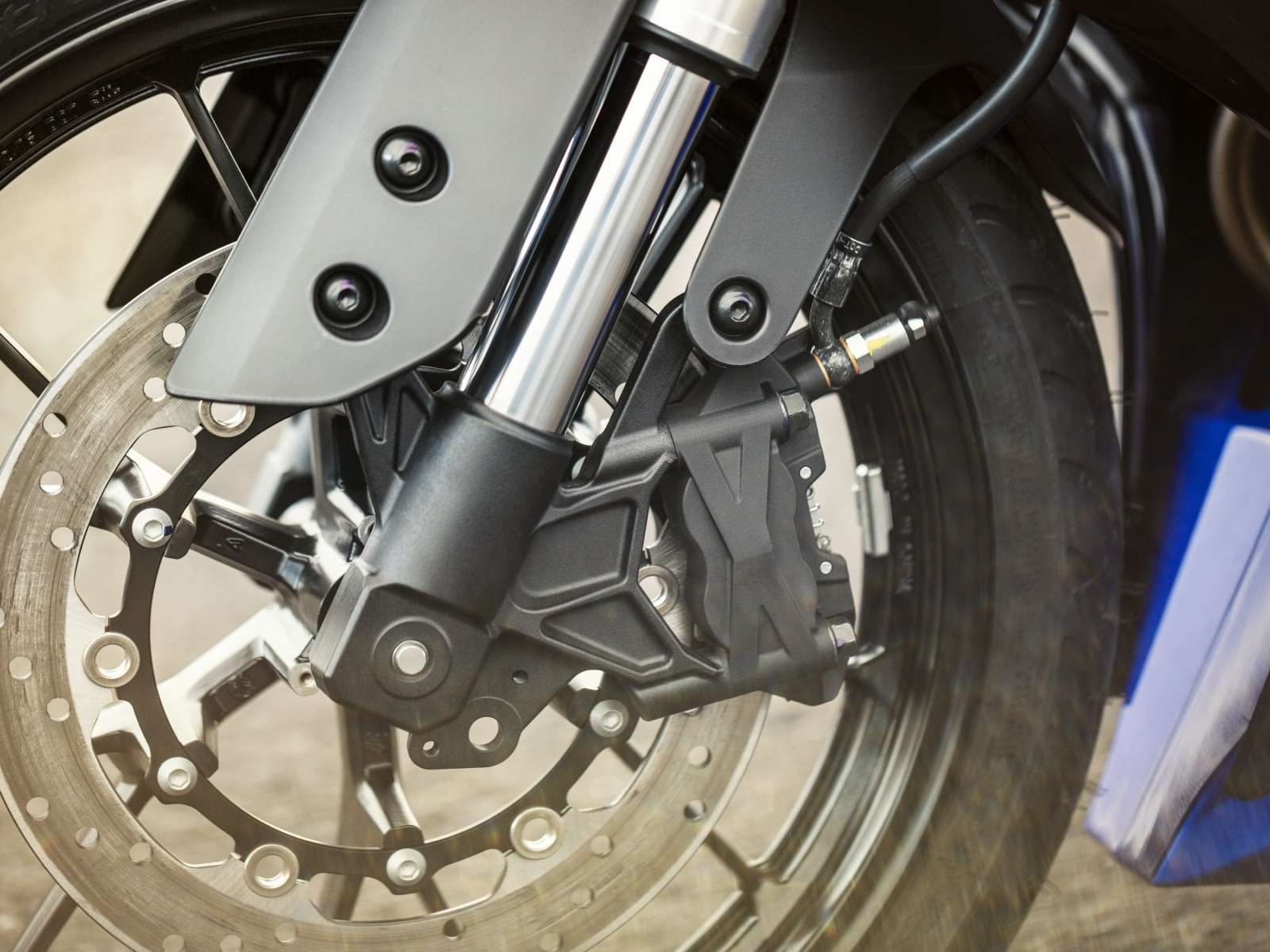

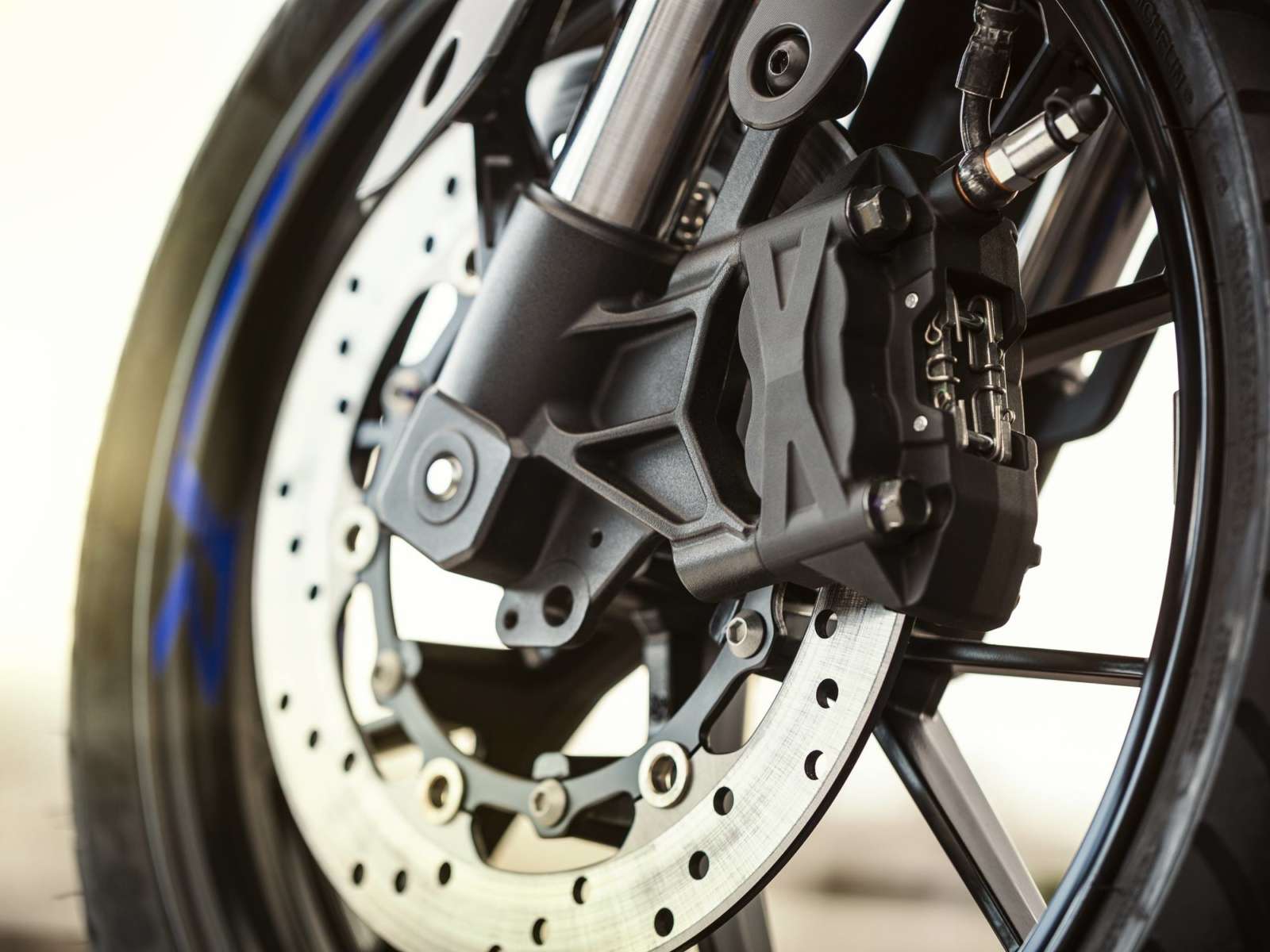

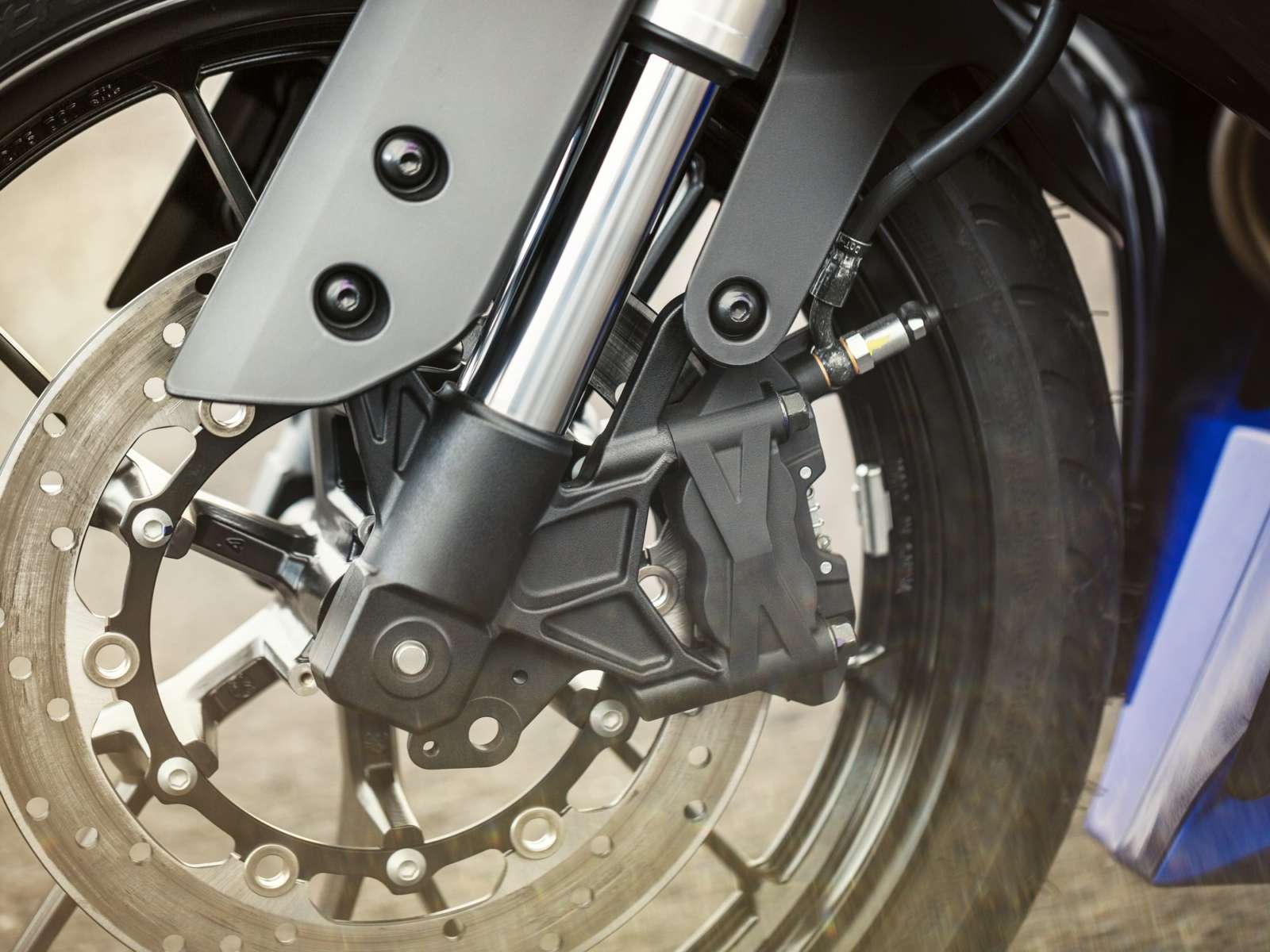

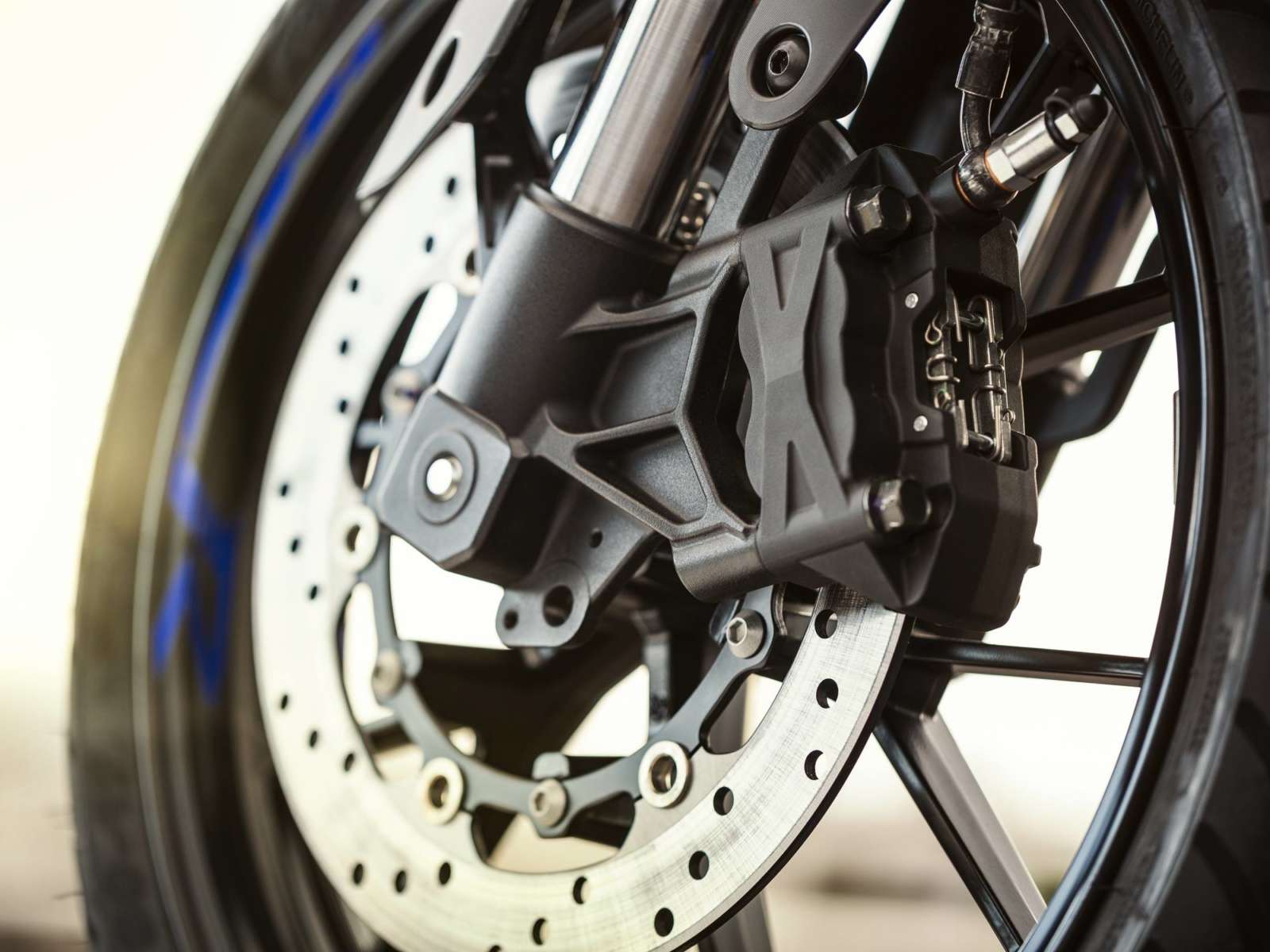

Front brake Hydraulic single disc, Ø 292 mm

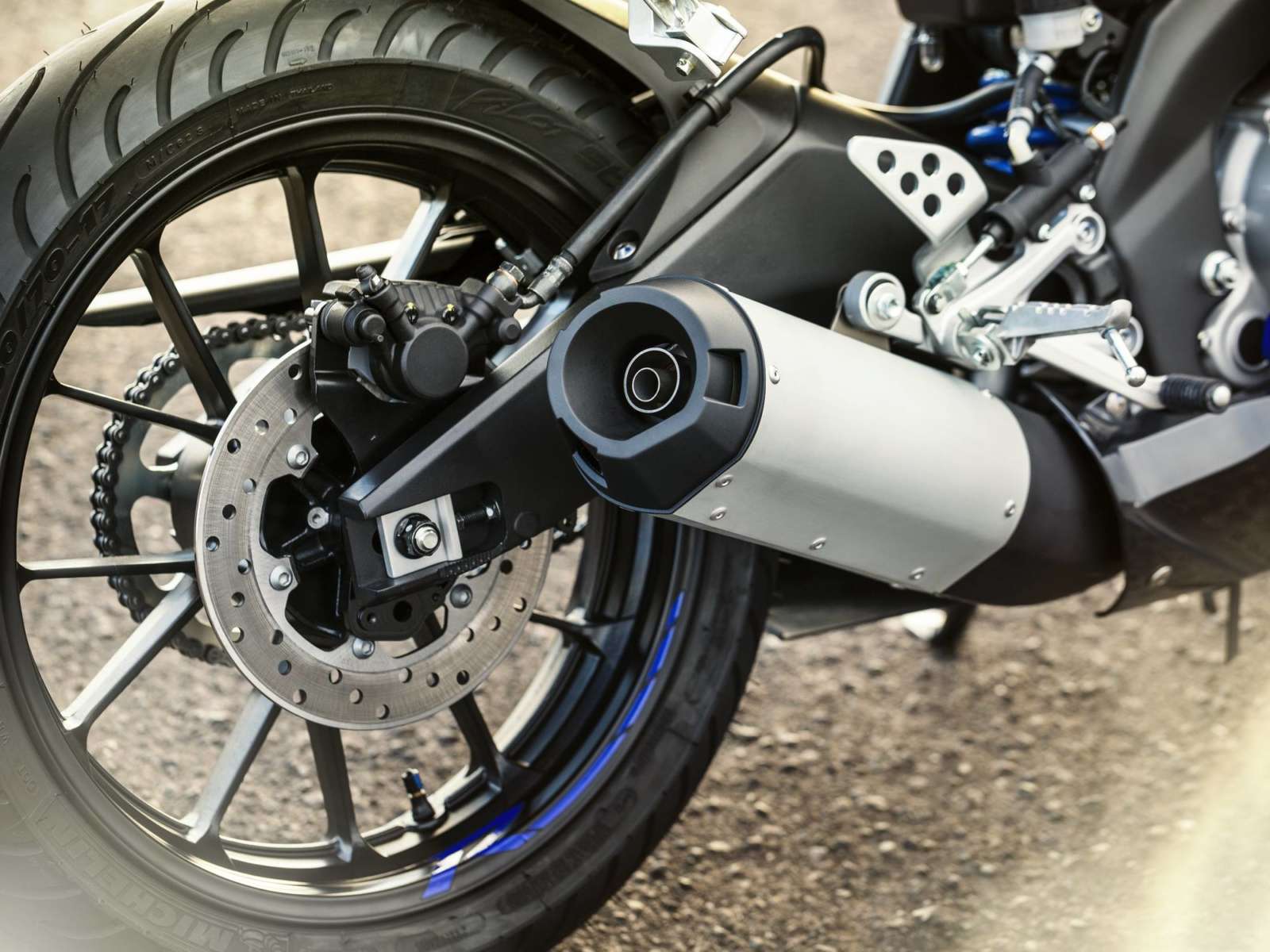

Rear brake Hydraulic single disc, Ø 230 mm
Front tyre 100/80-17 M/C
Rear tyre 130/70-17 M/C

Dimensions
Overall length 1,955 mm
Overall width 680 mm
Overall height 1,065 mm
Seat height 825 mm
Wheel base 1,355 mm
Minimum ground clearance 155 mm
Wet weight 140 kg
Fuel tank capacity 11.5 litres
Oil tank capacity 1.15 litres

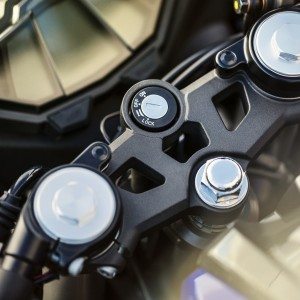

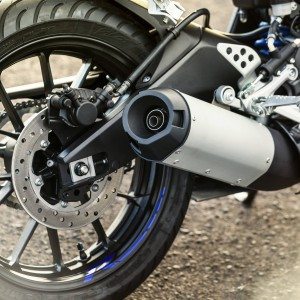

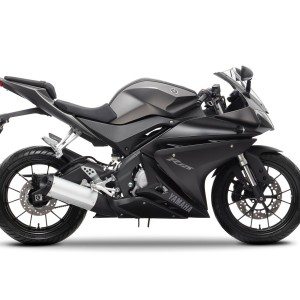

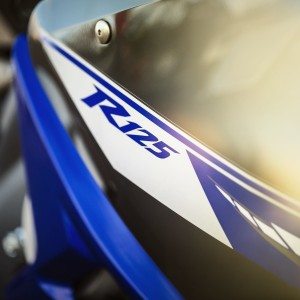

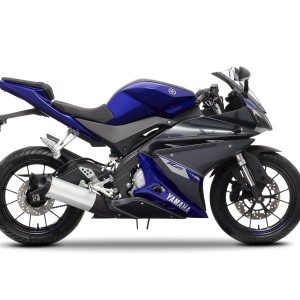

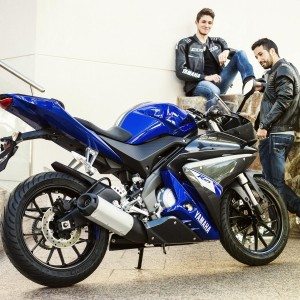

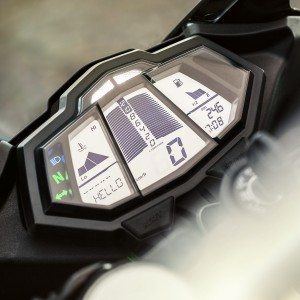

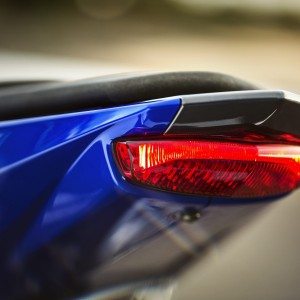

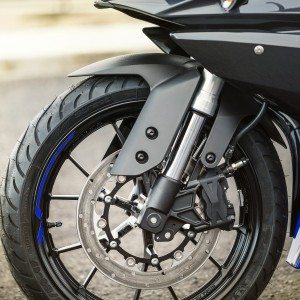

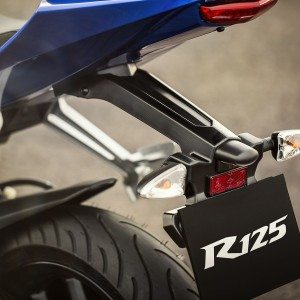

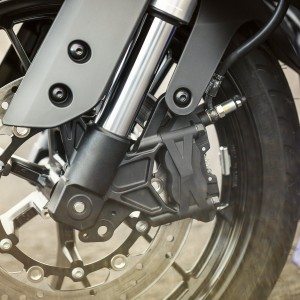

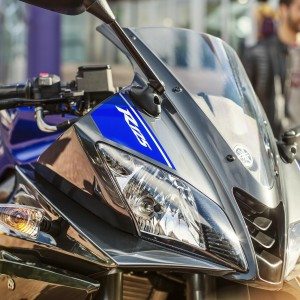

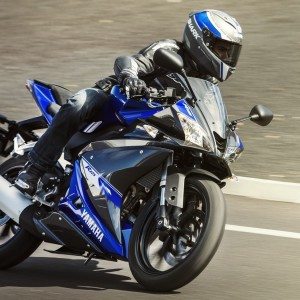

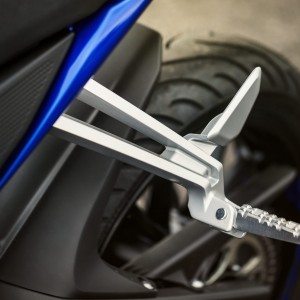

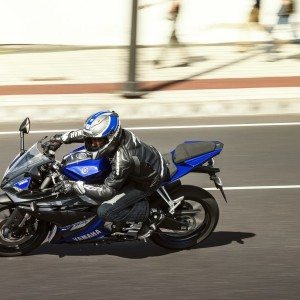

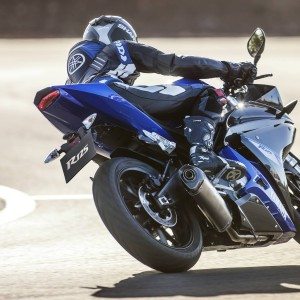

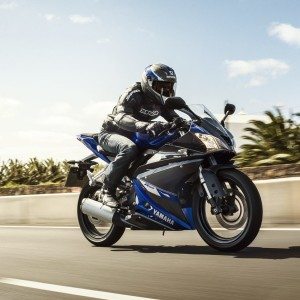

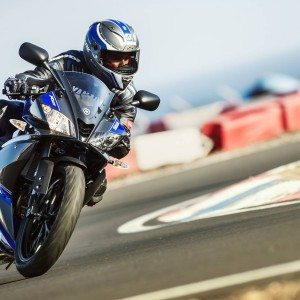

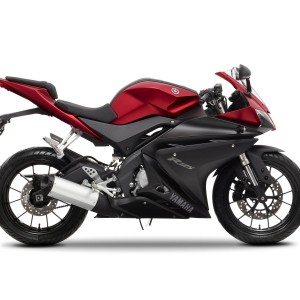

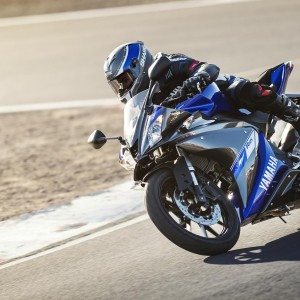

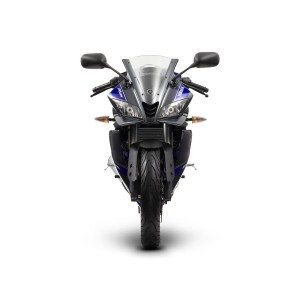

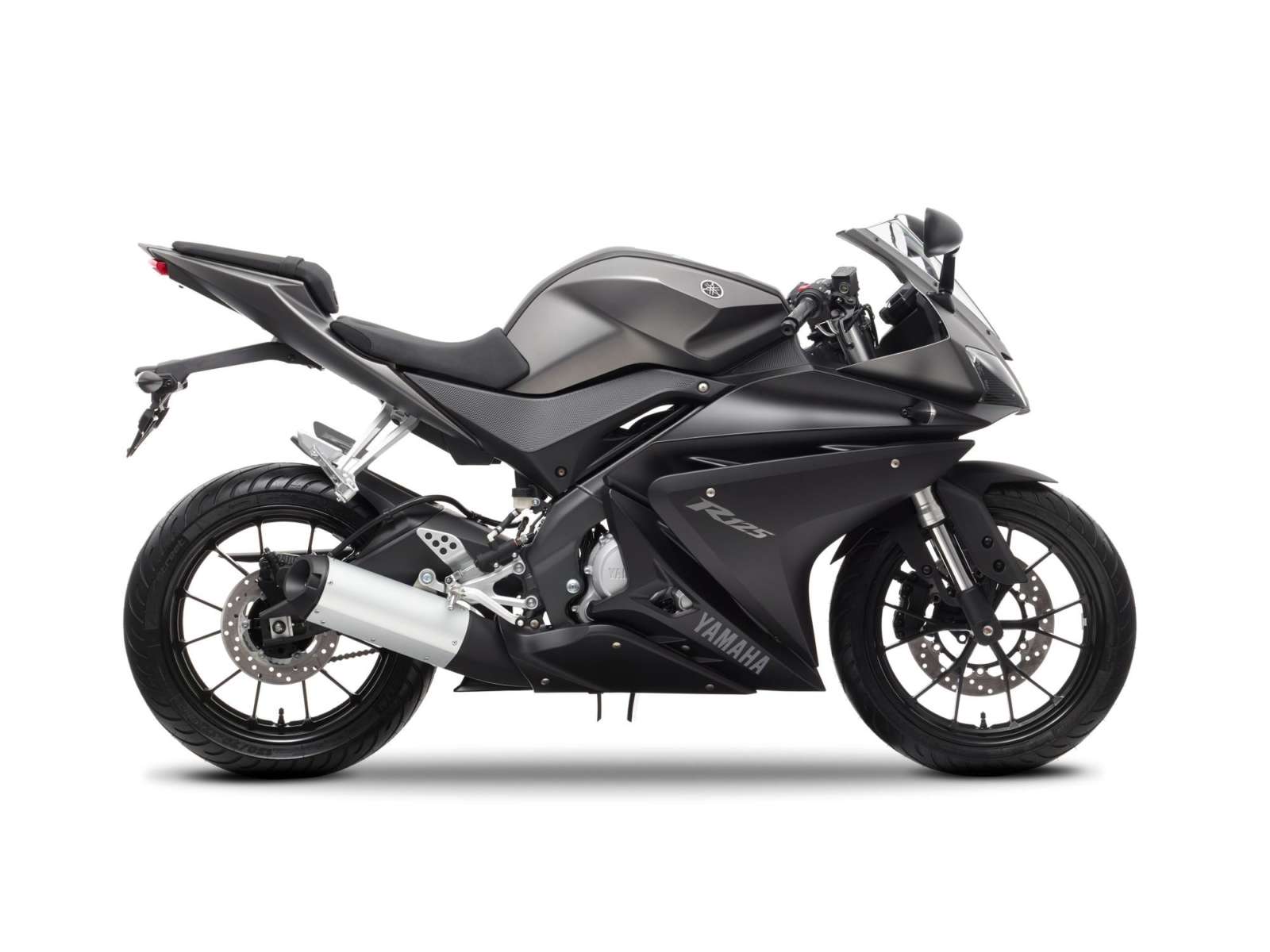

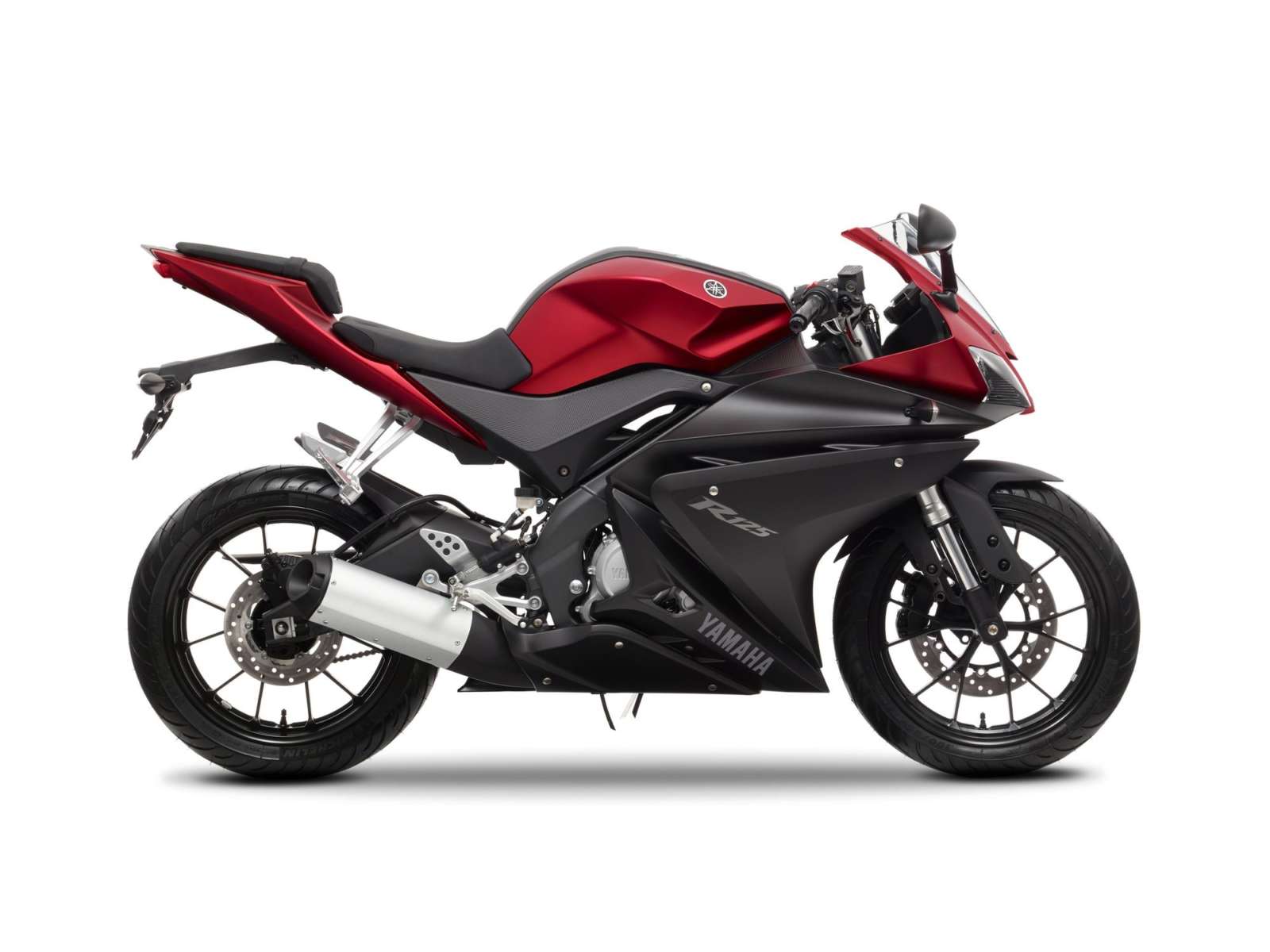

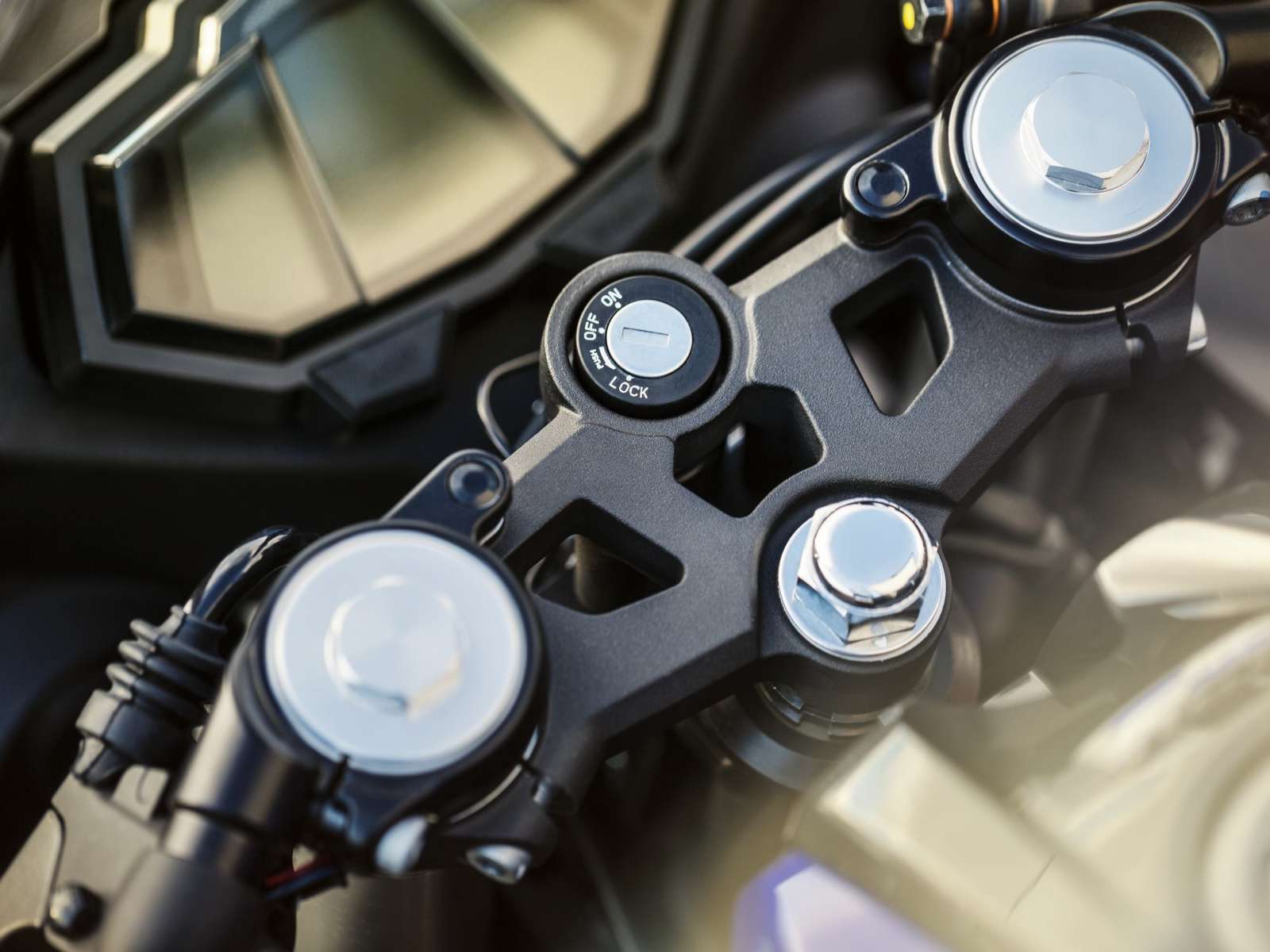

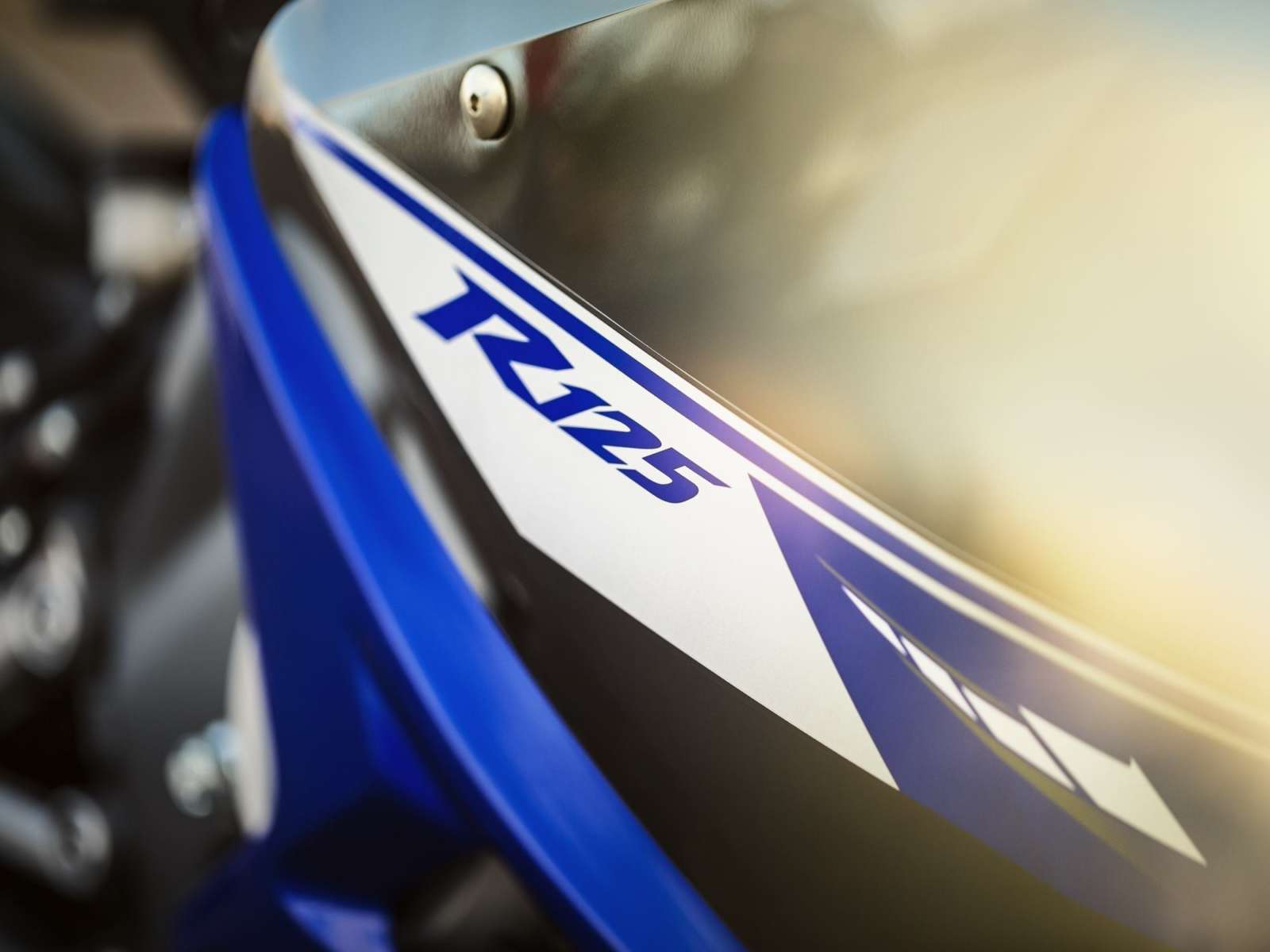

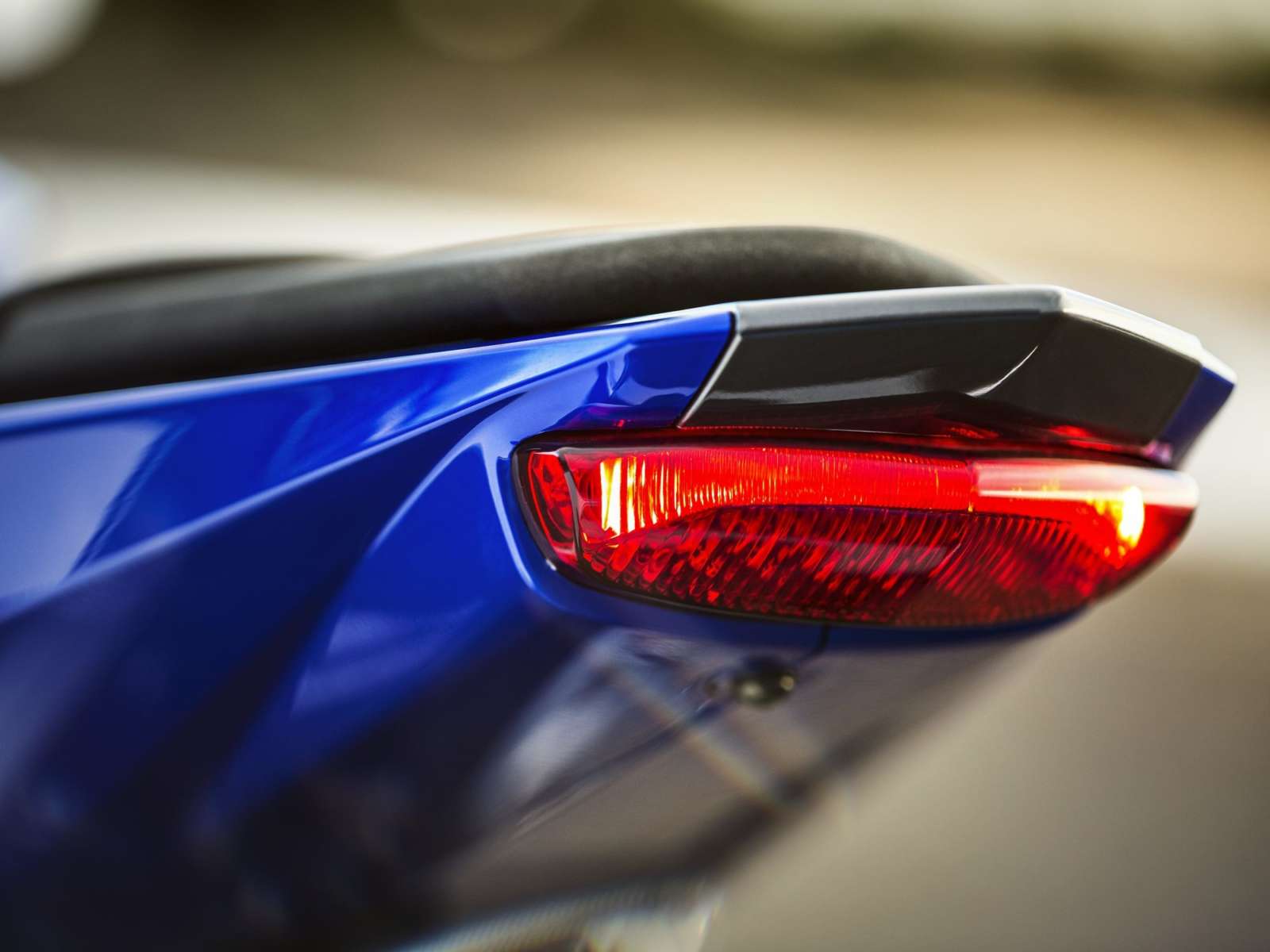

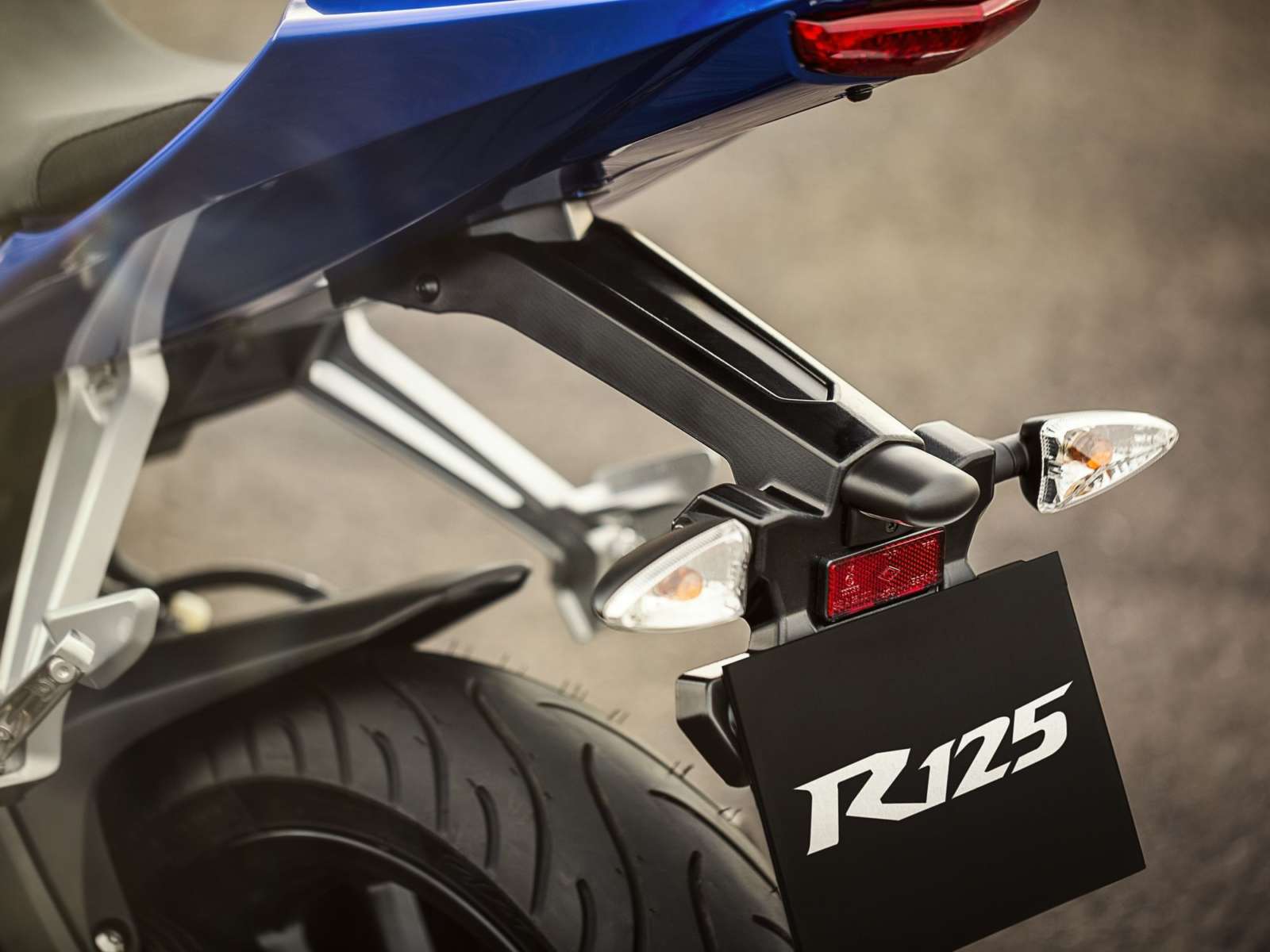

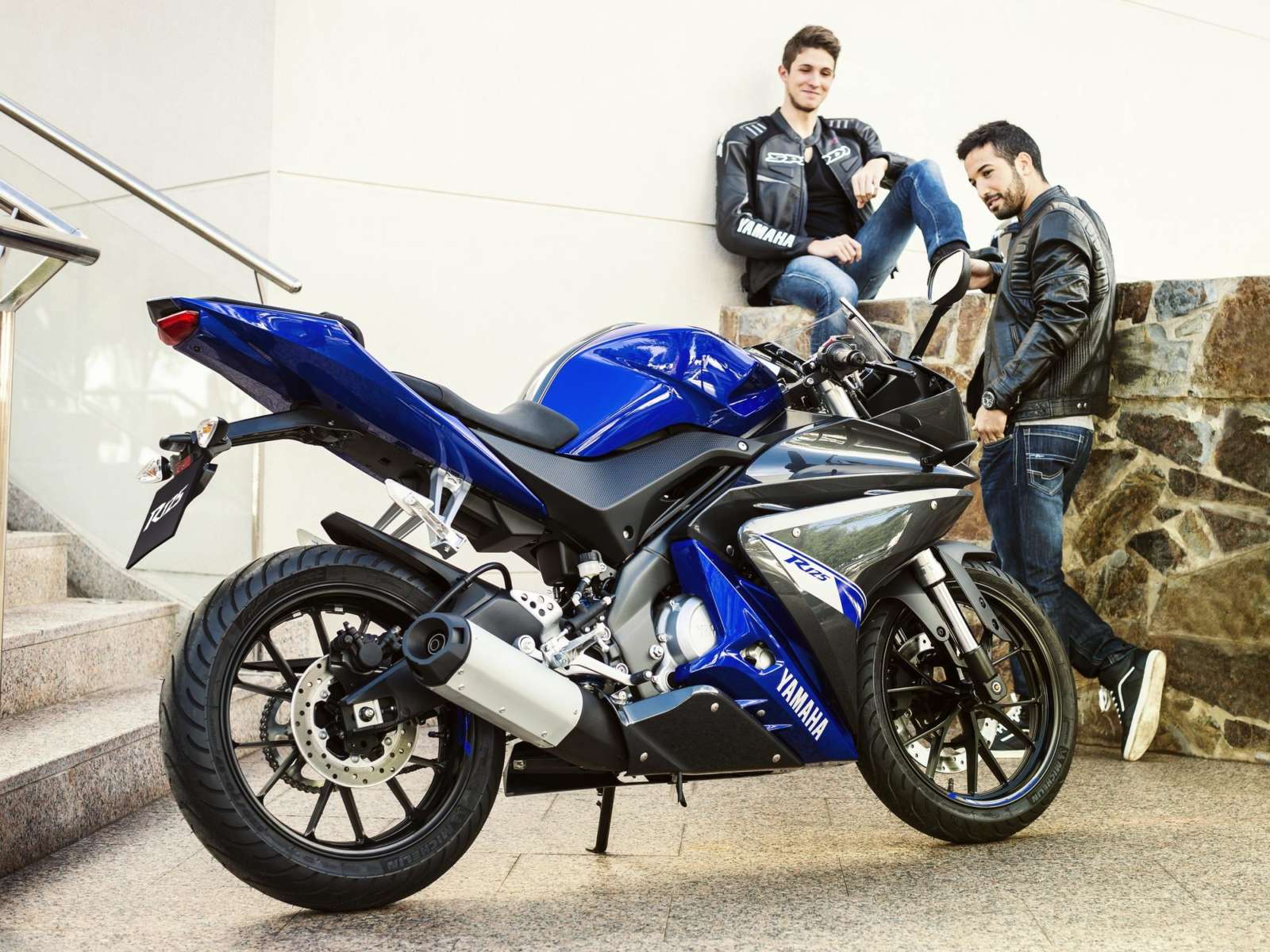

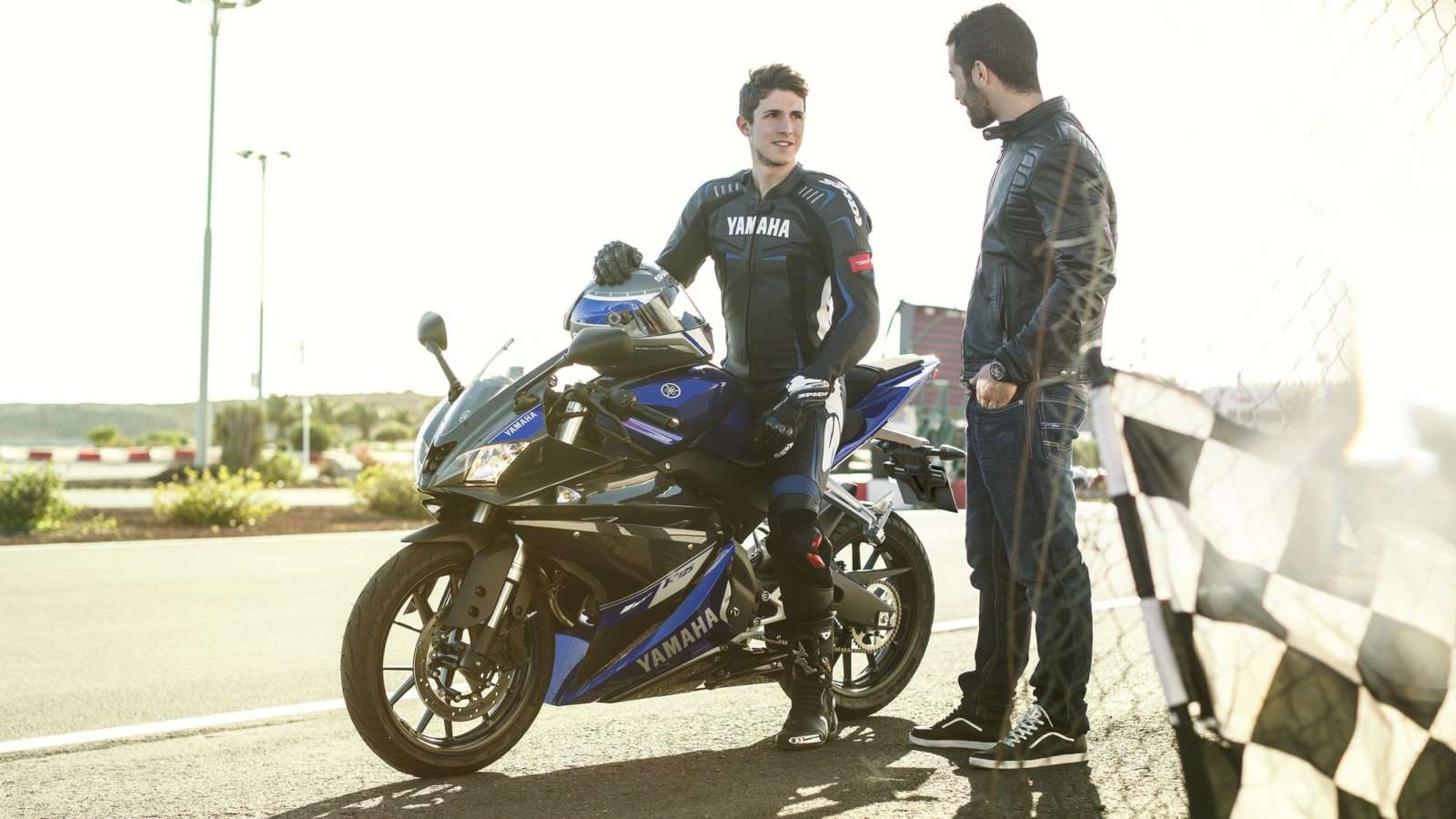

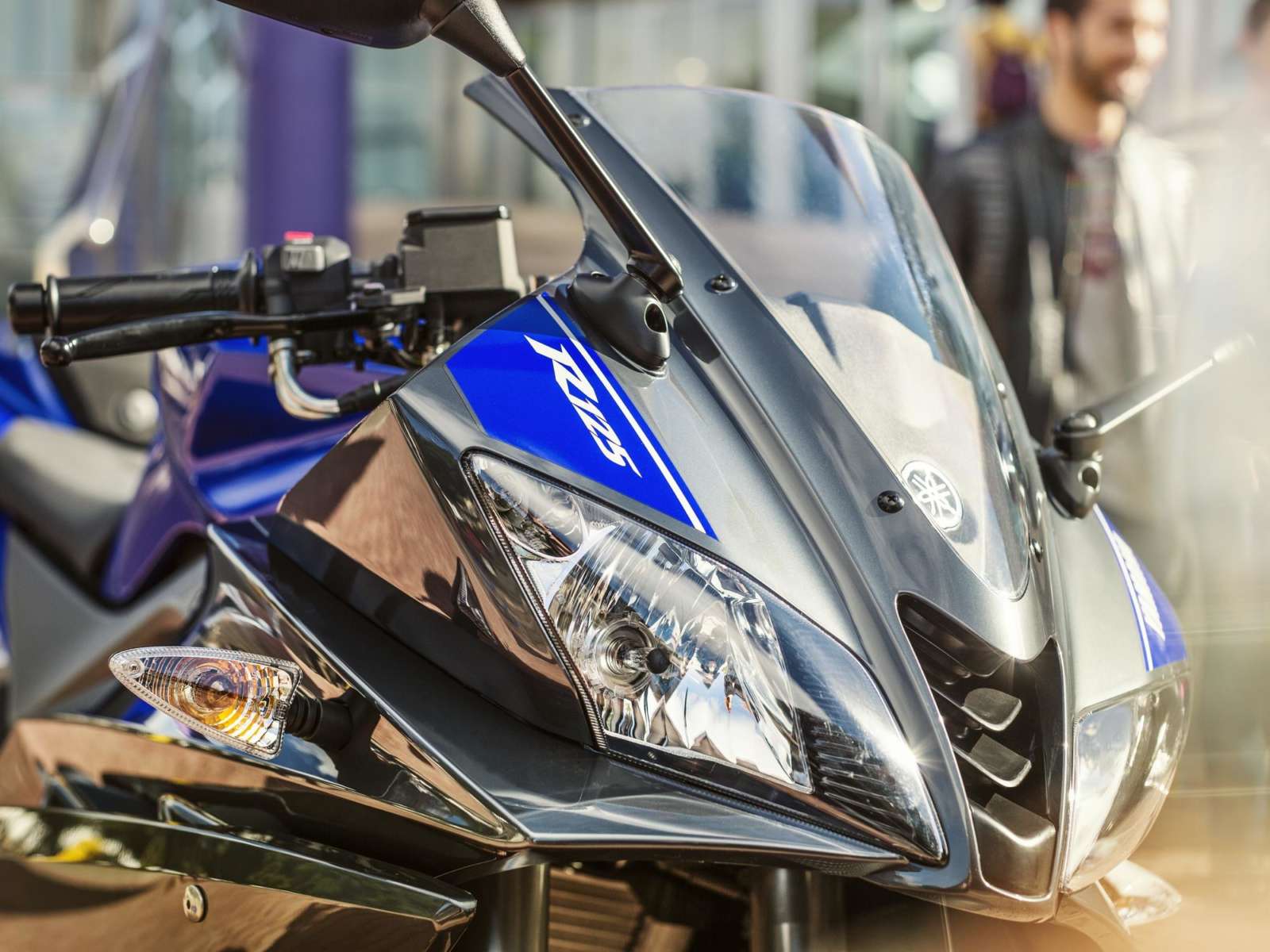

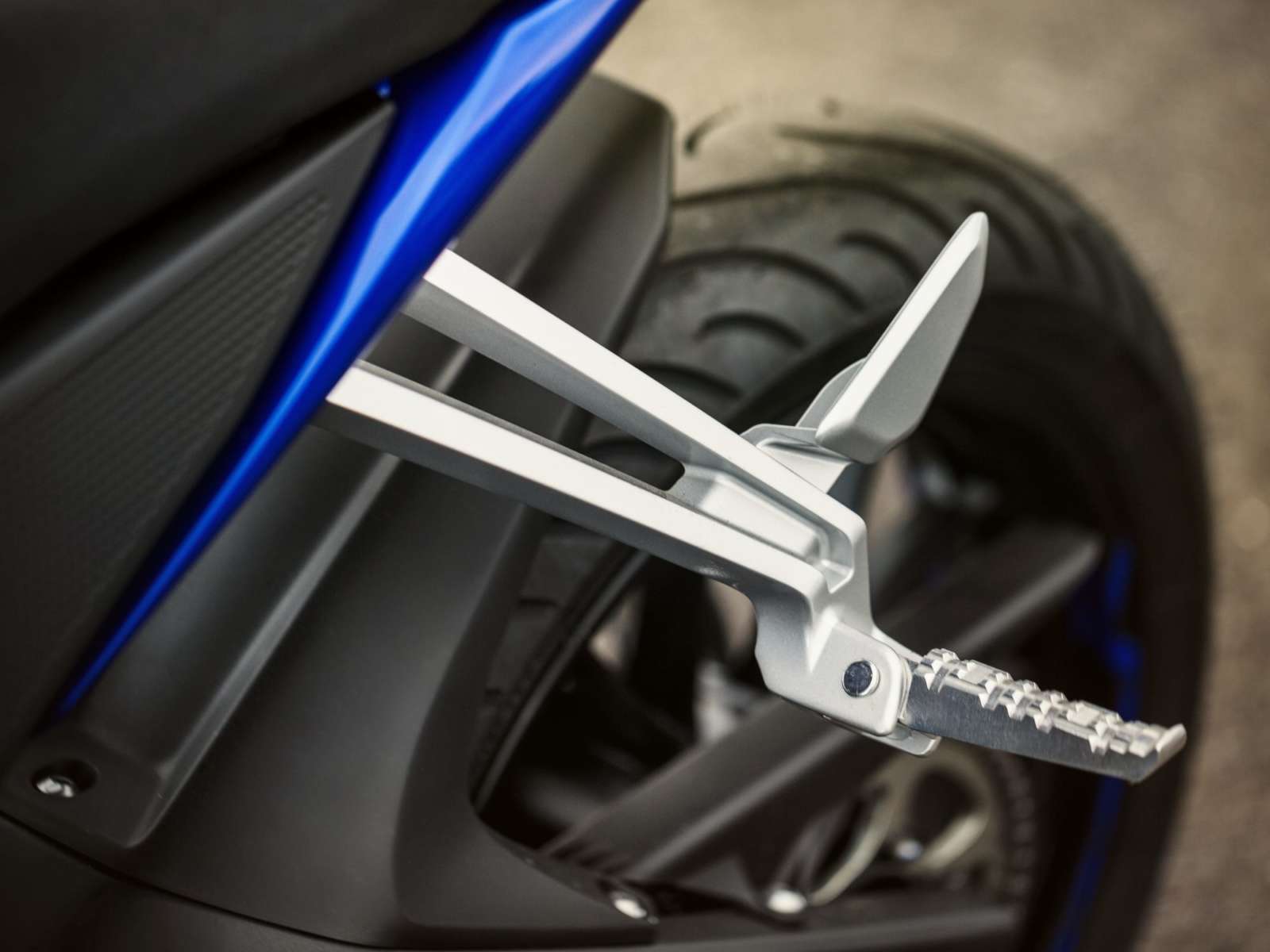

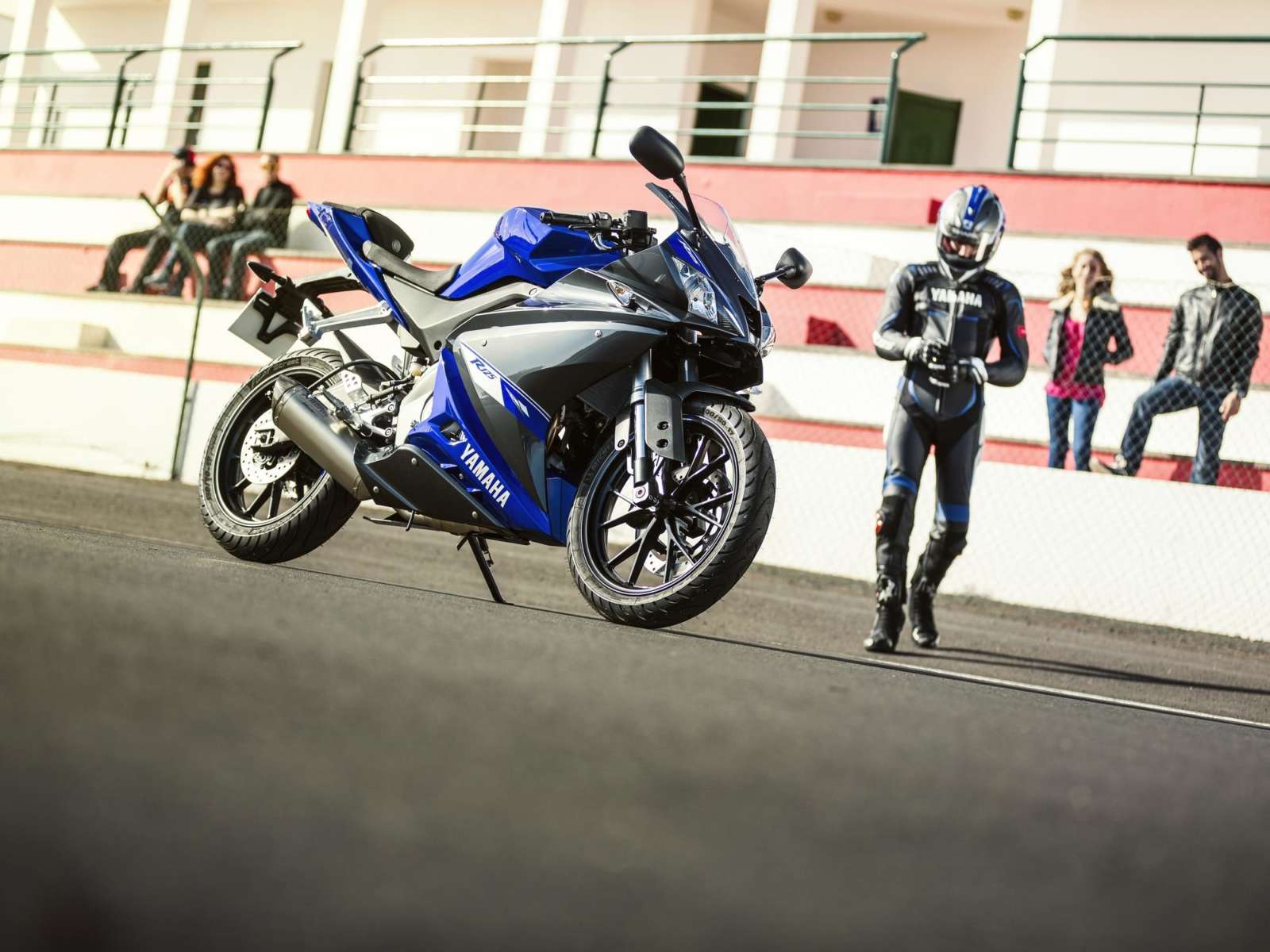

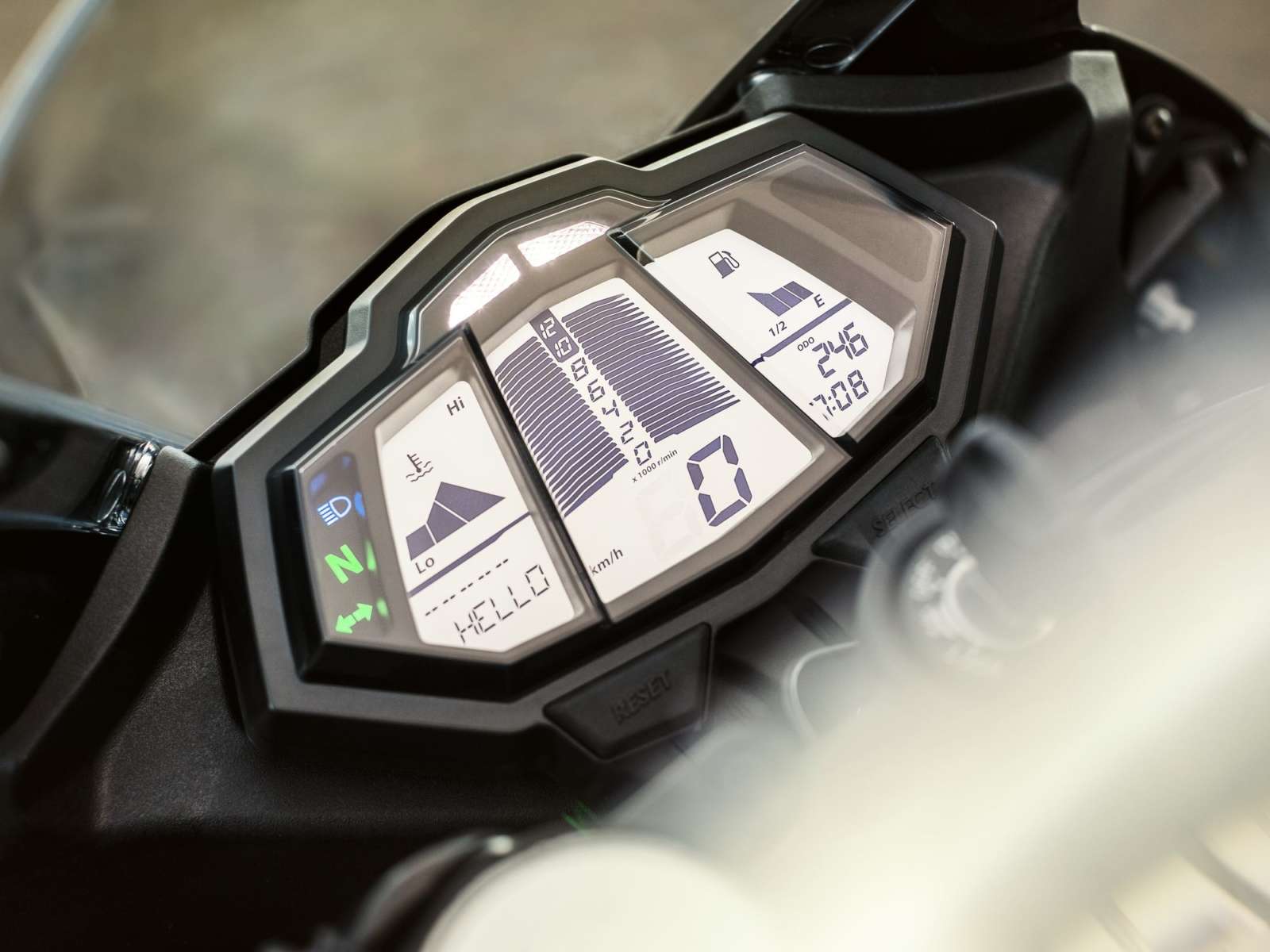

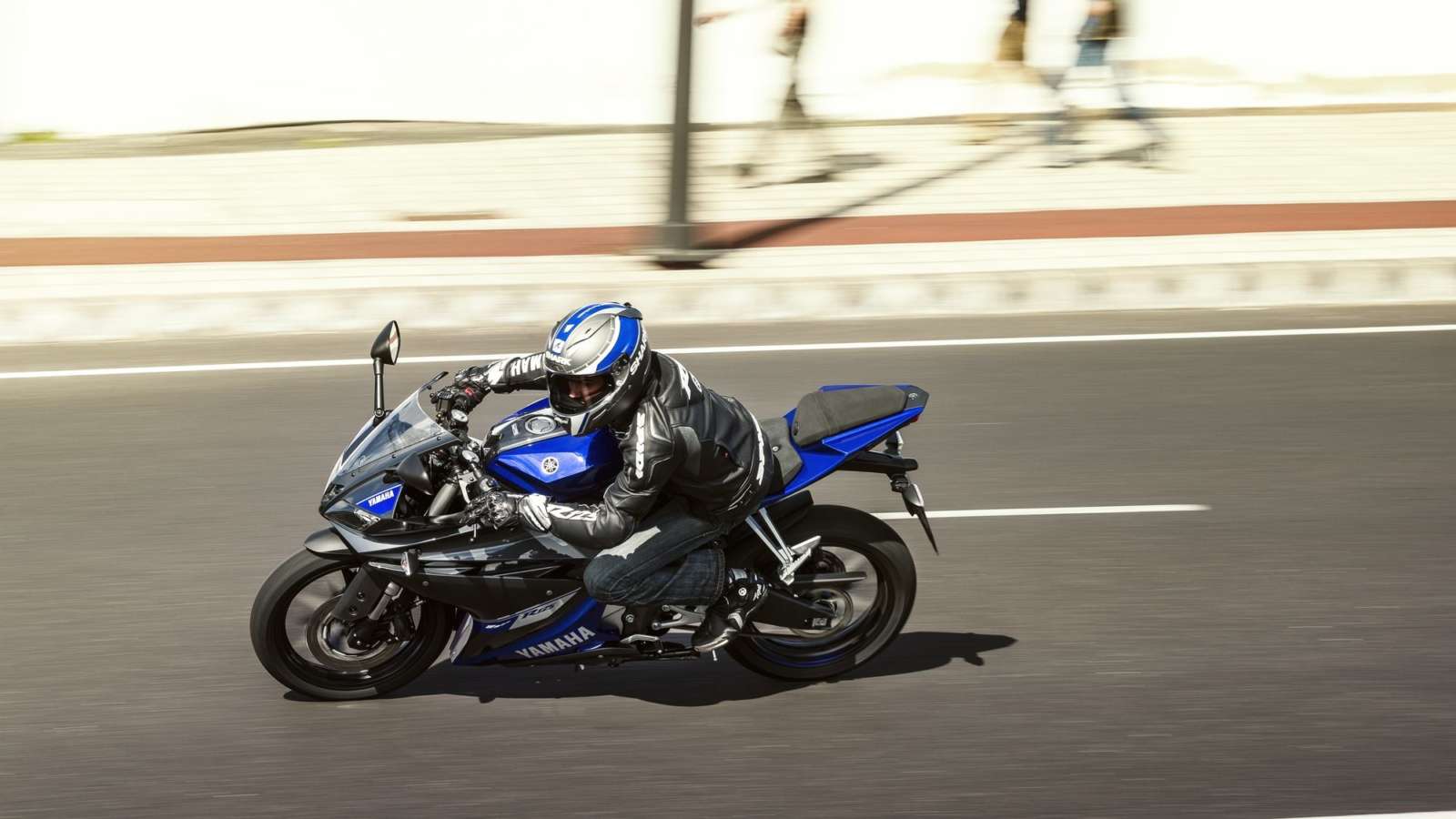

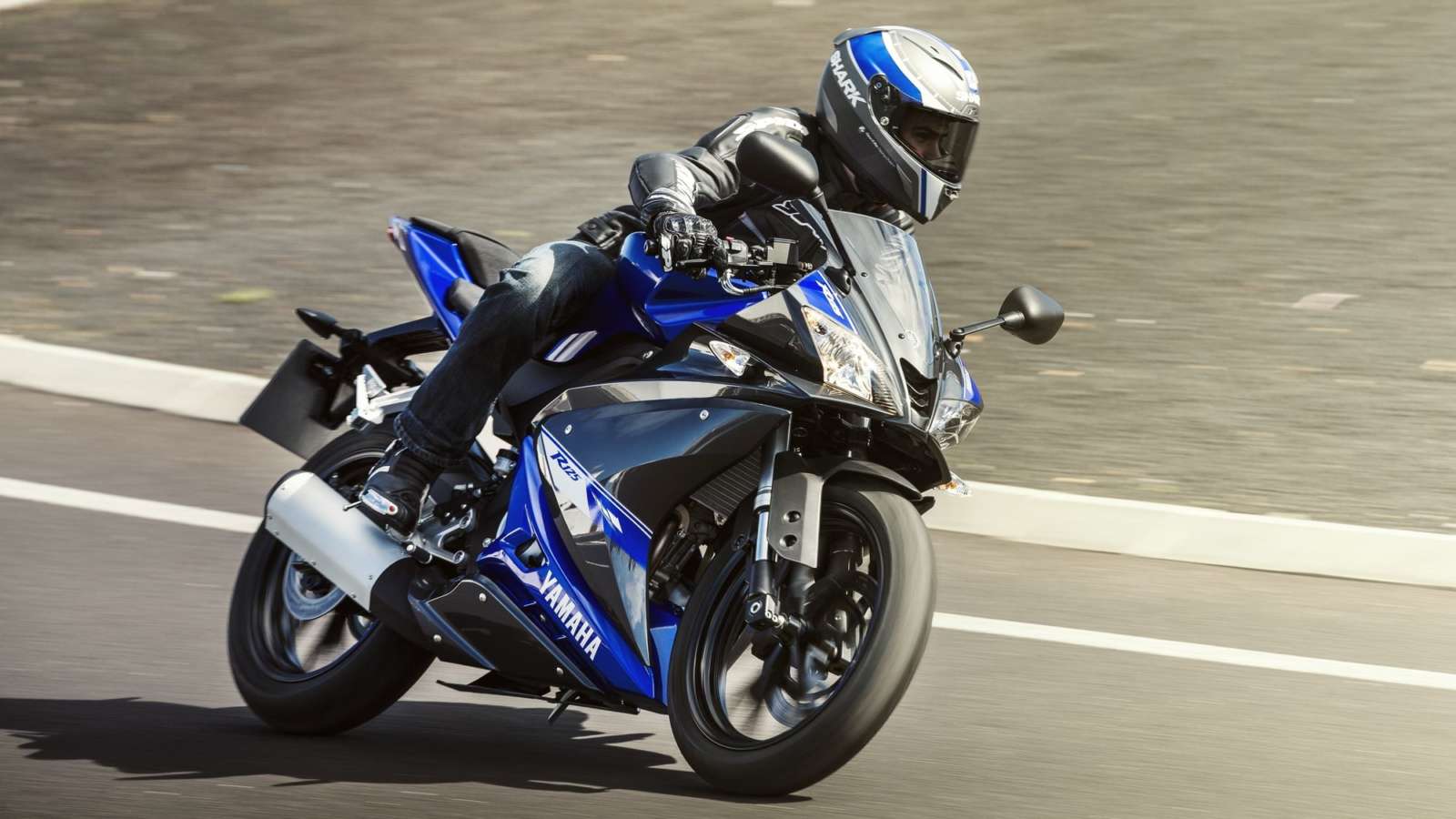

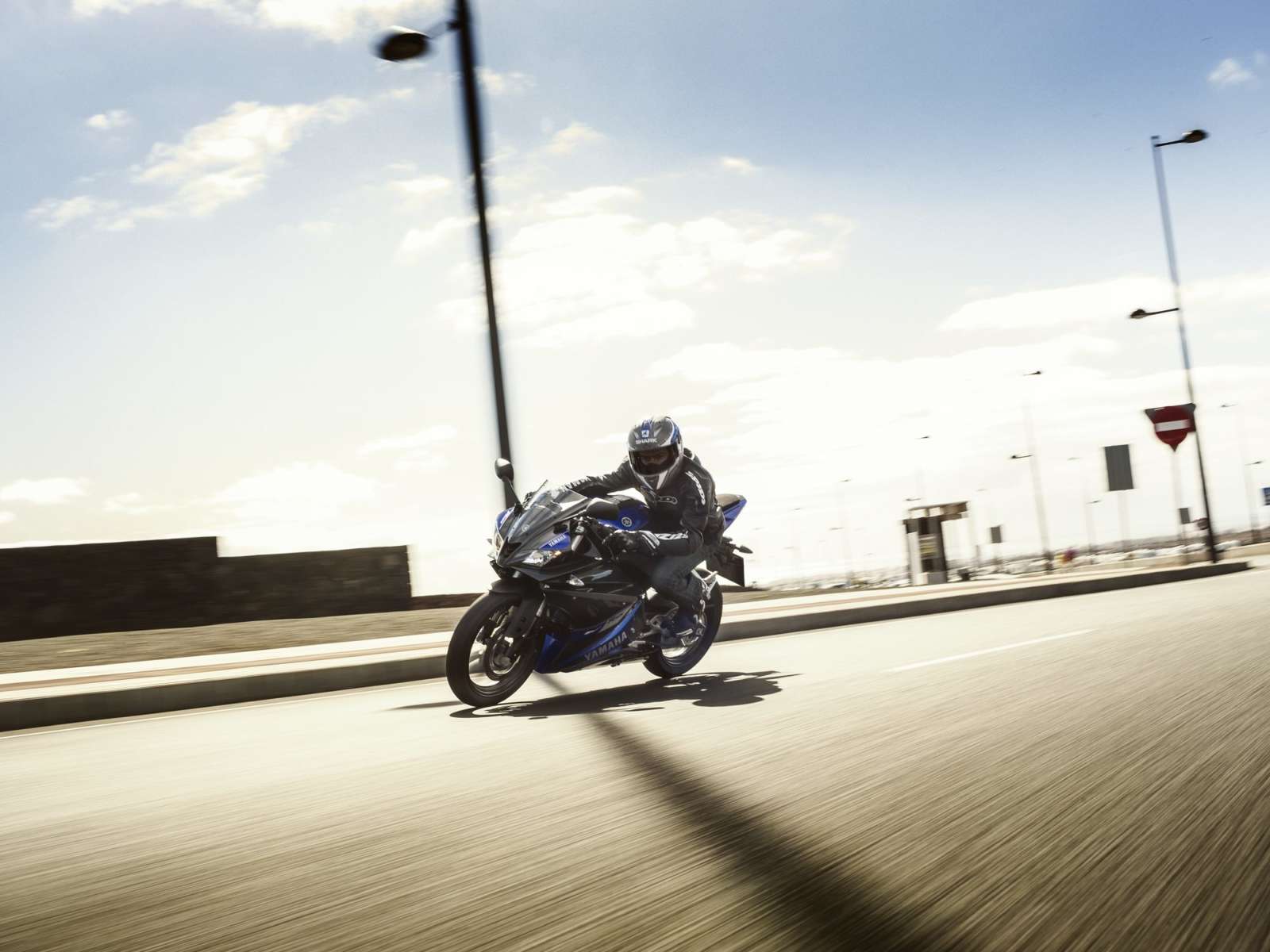

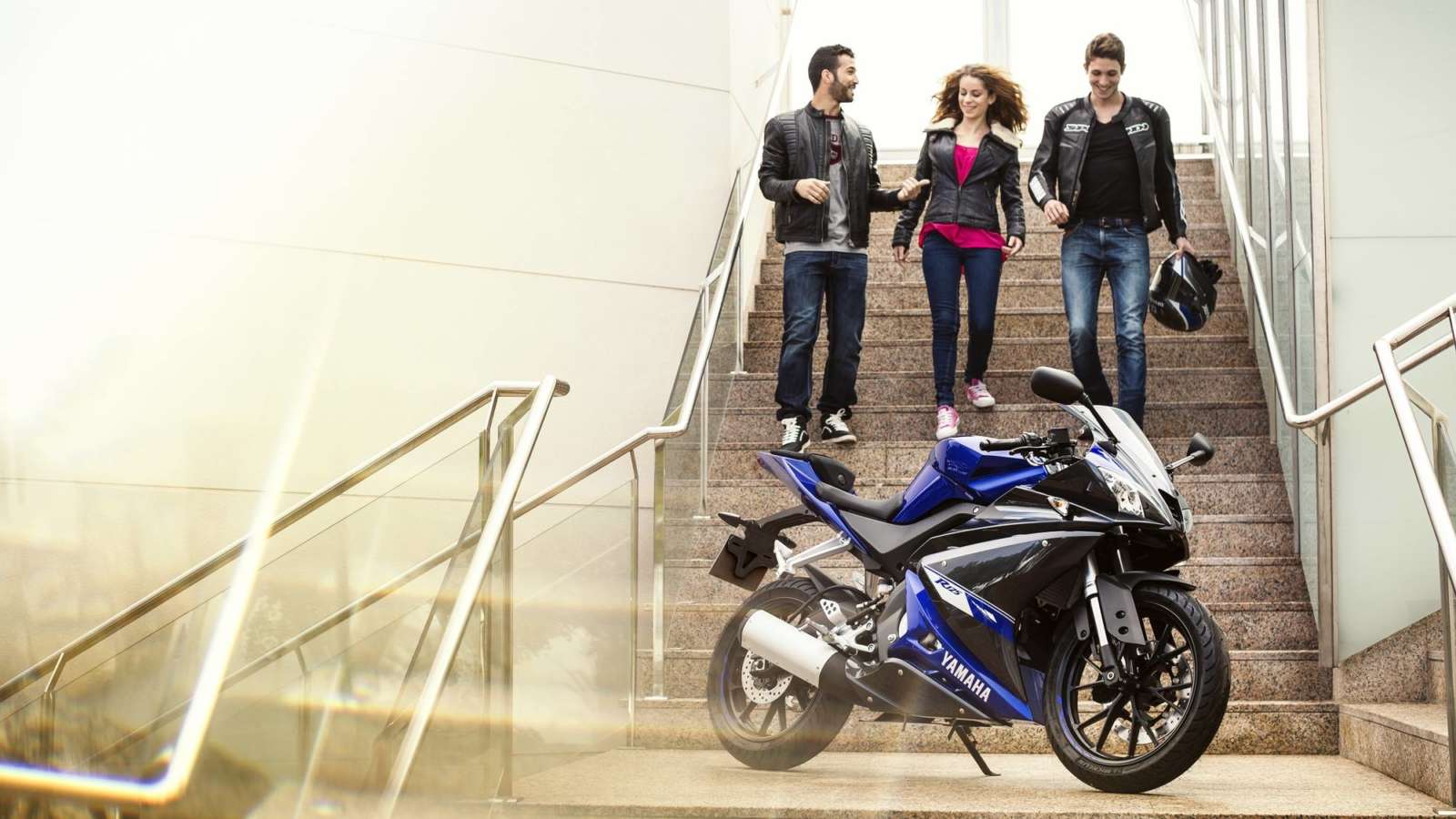

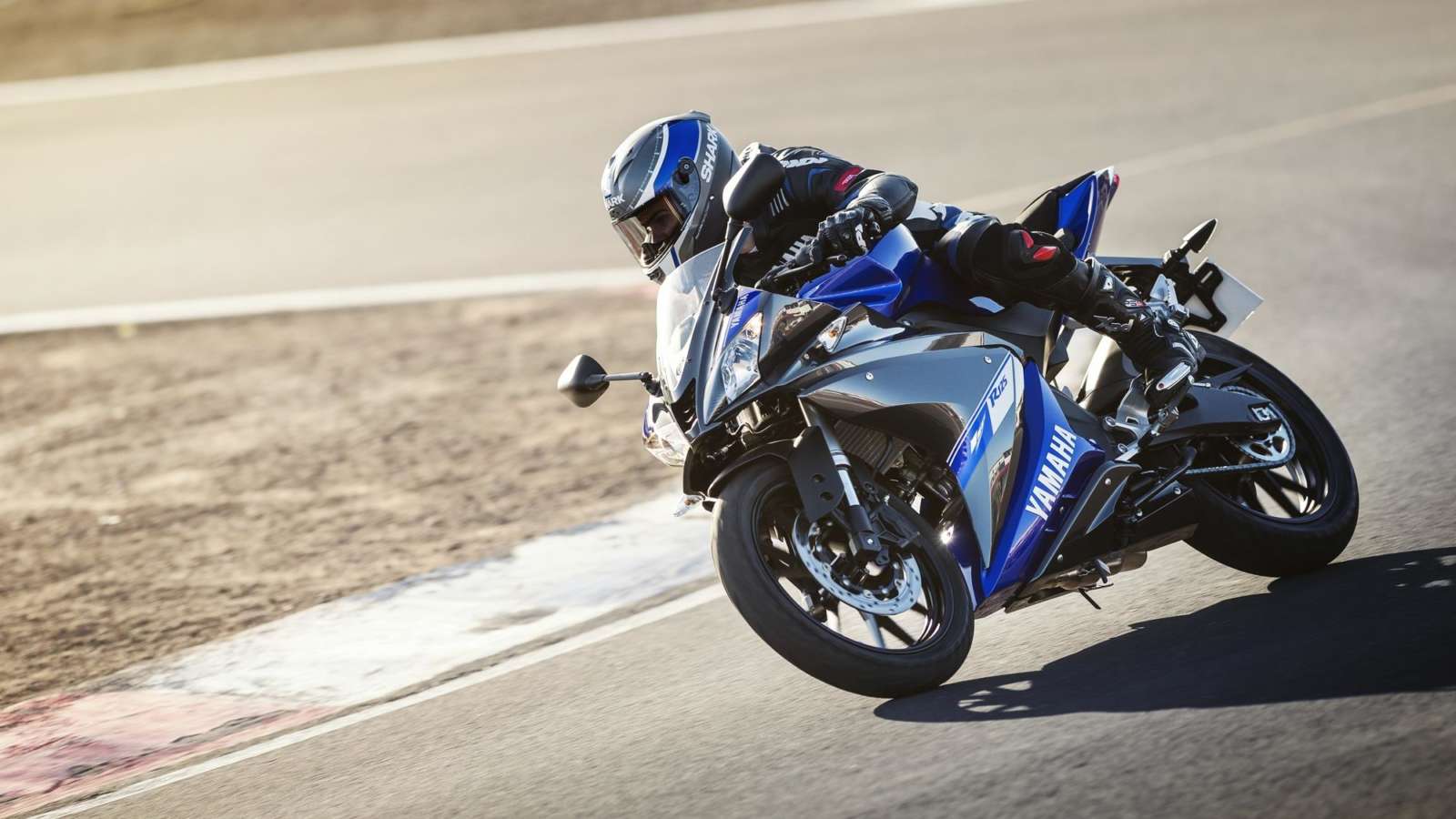

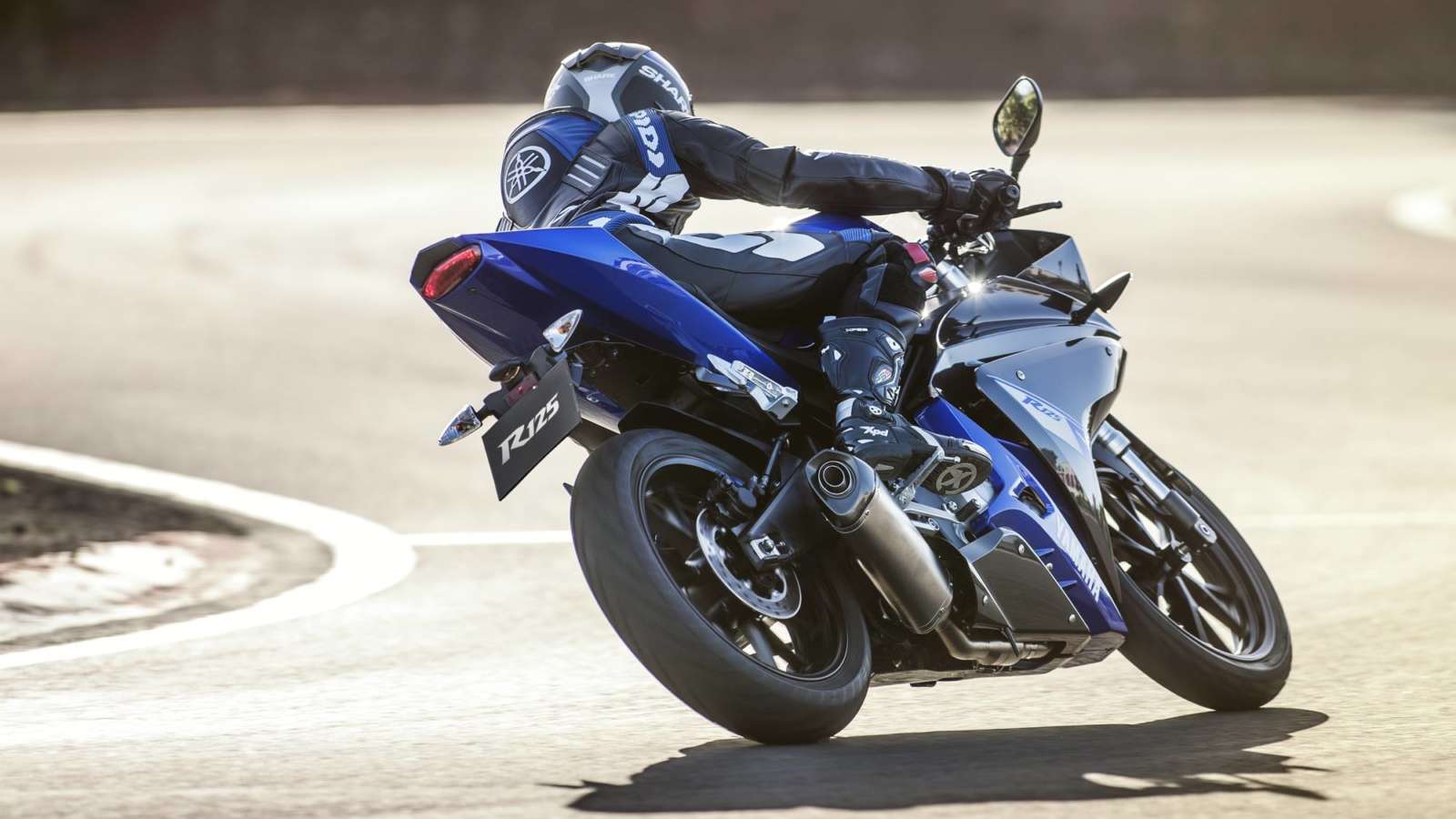

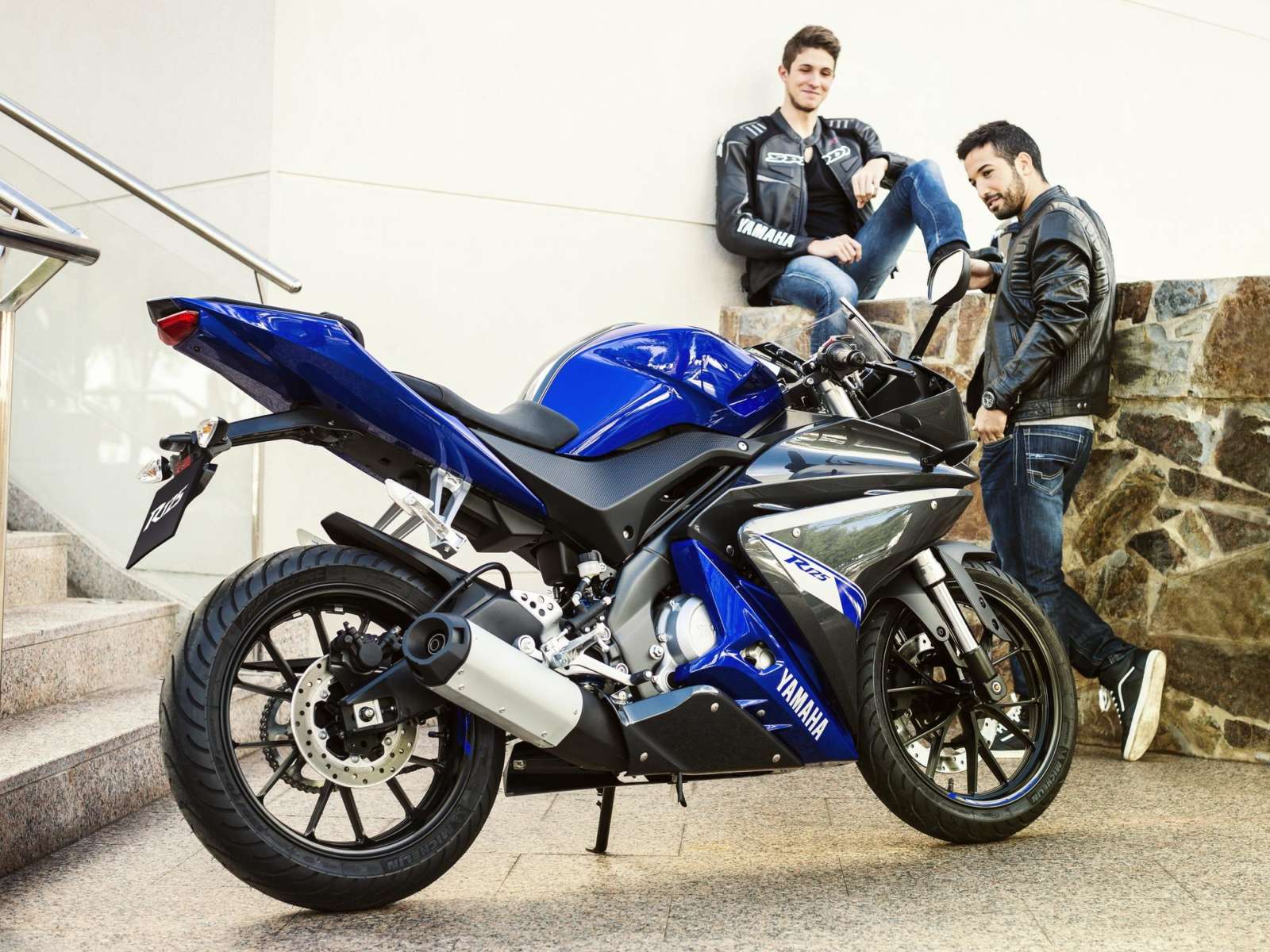

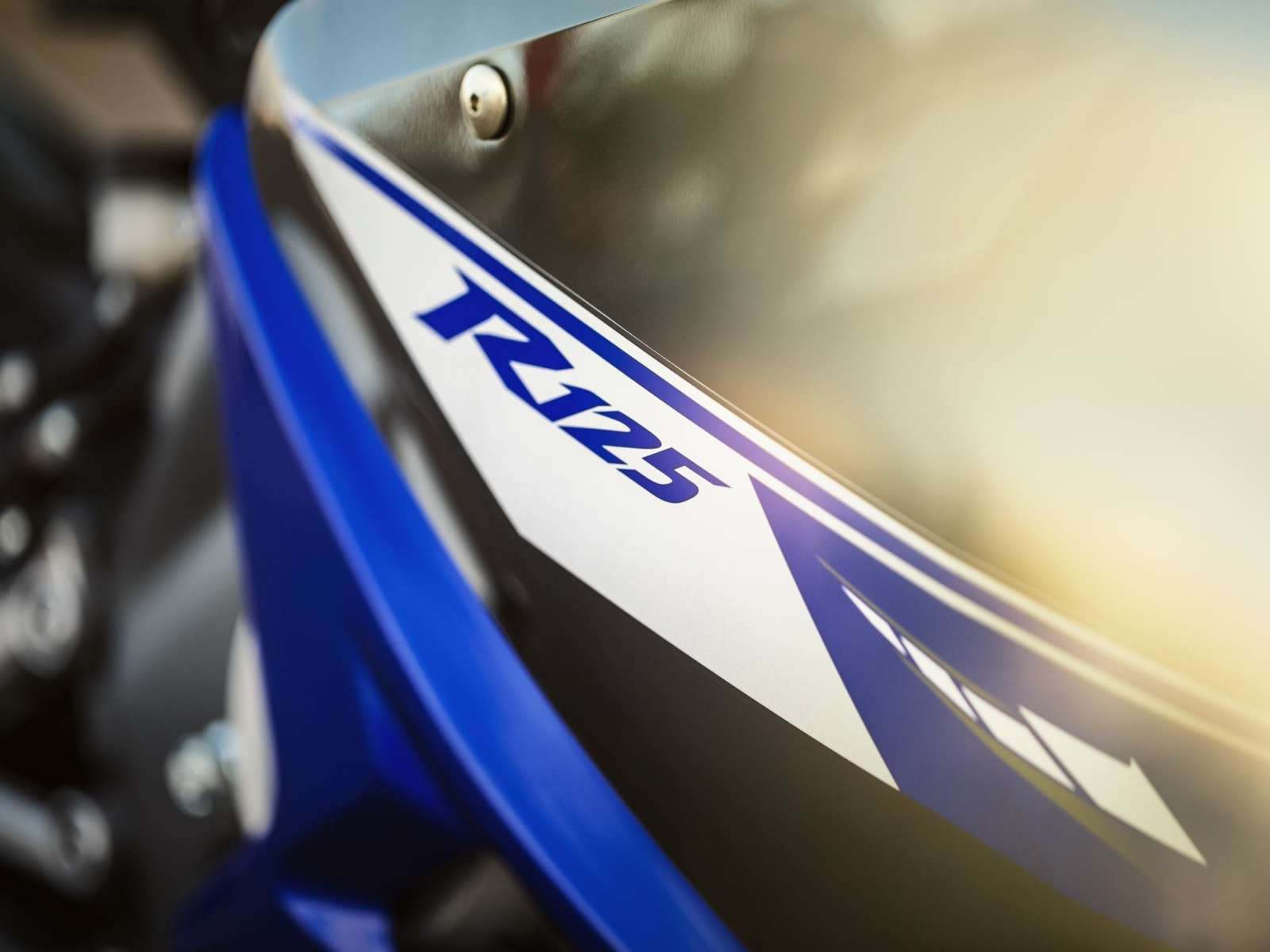

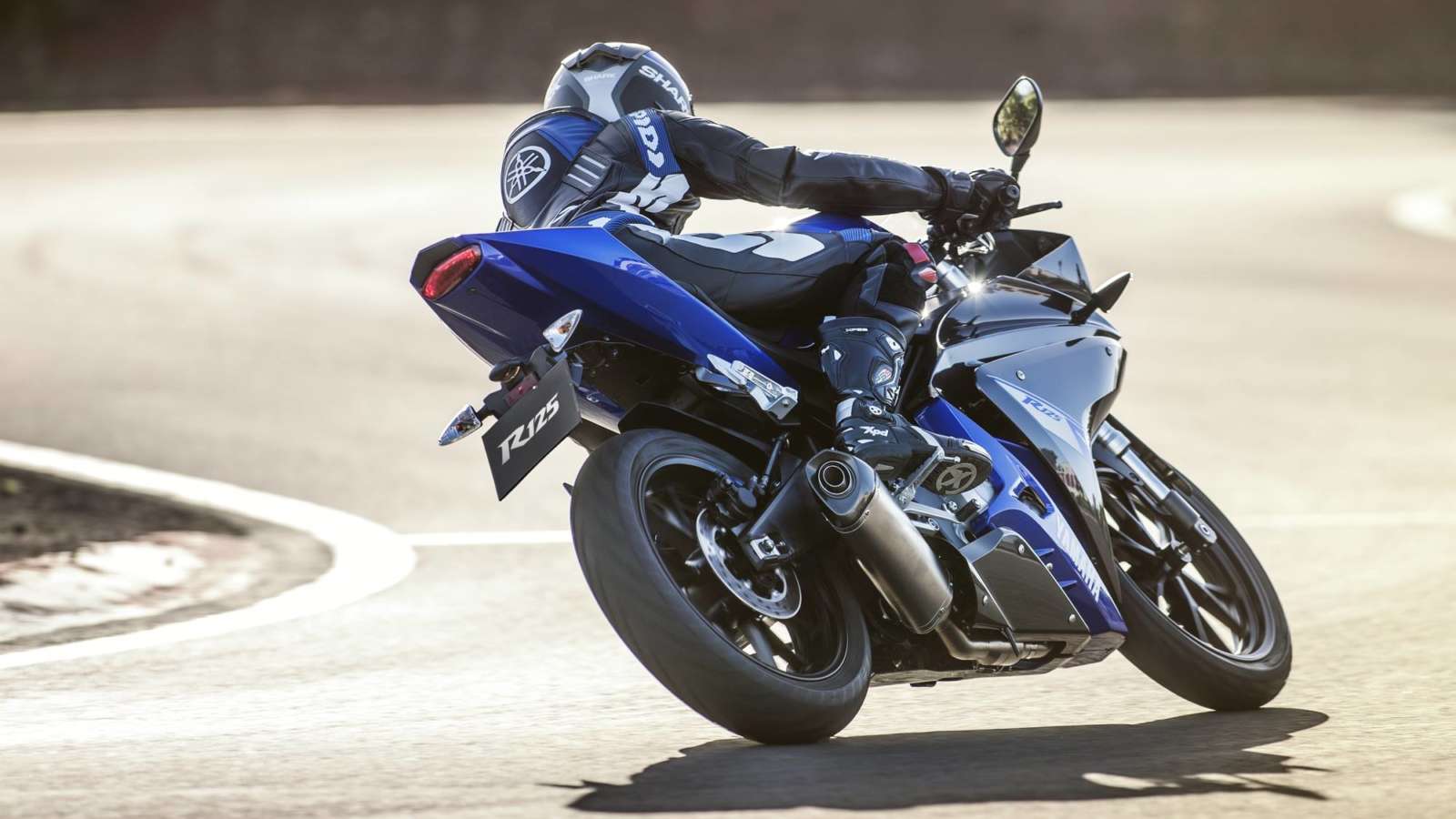

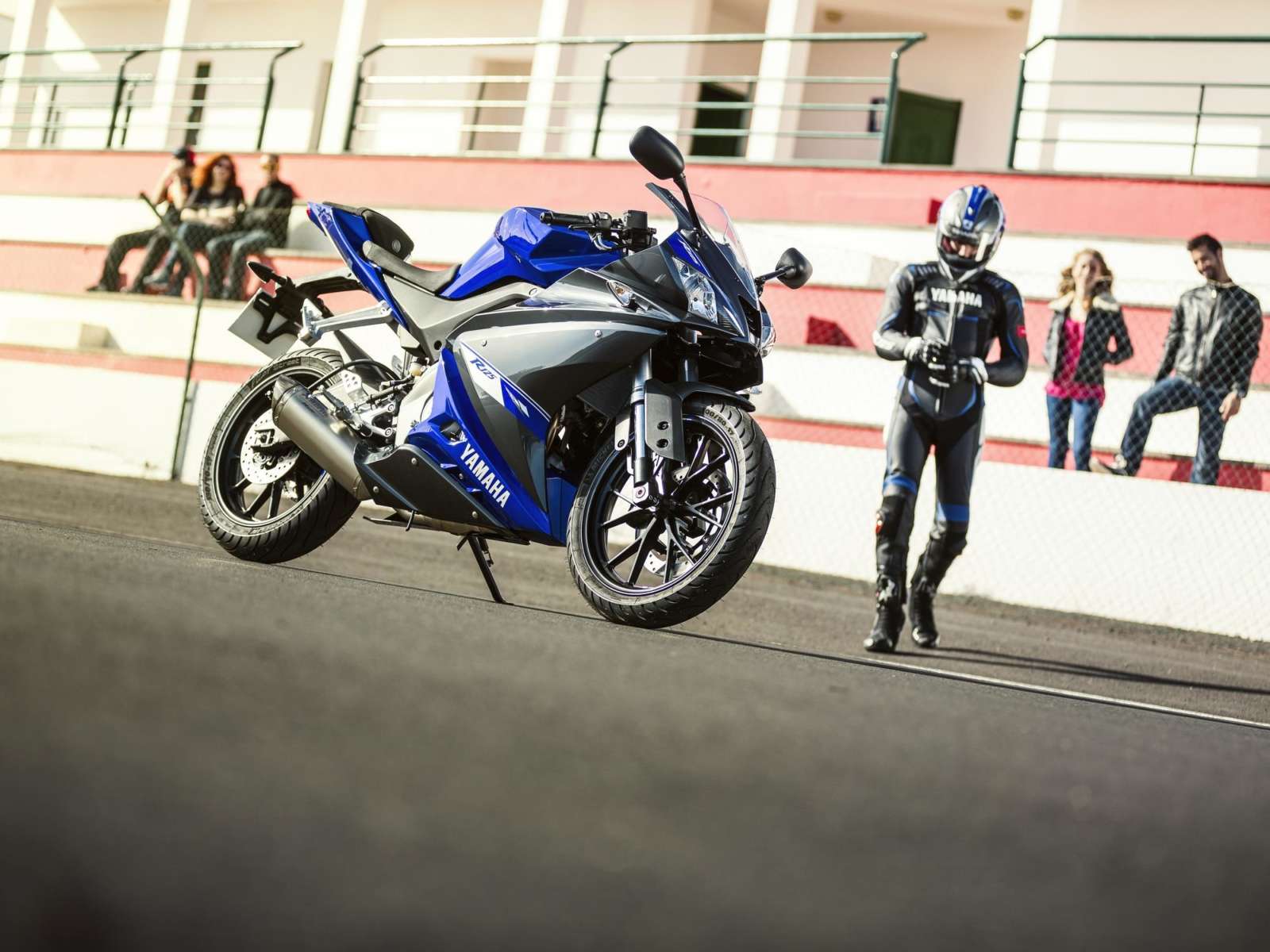

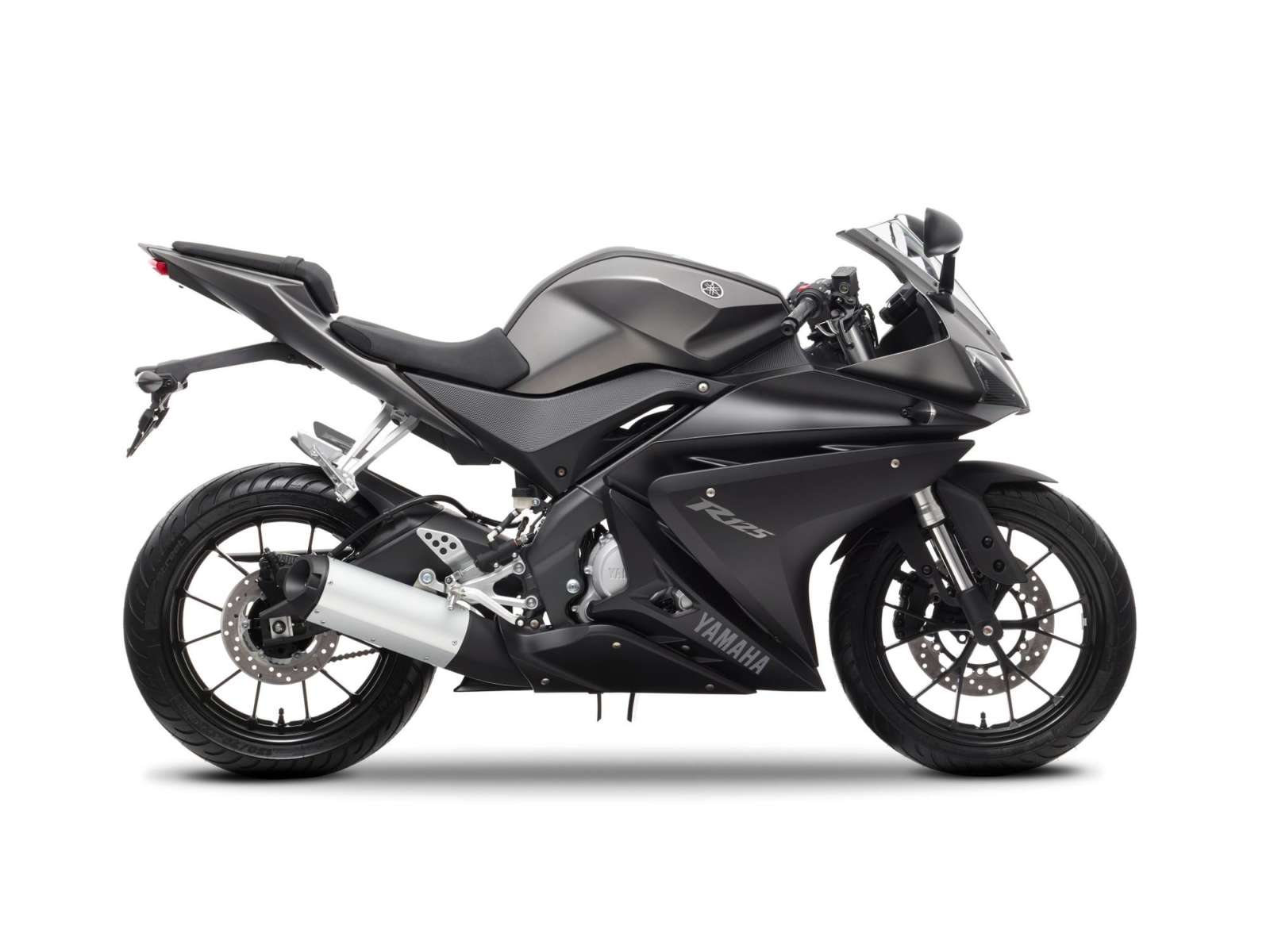

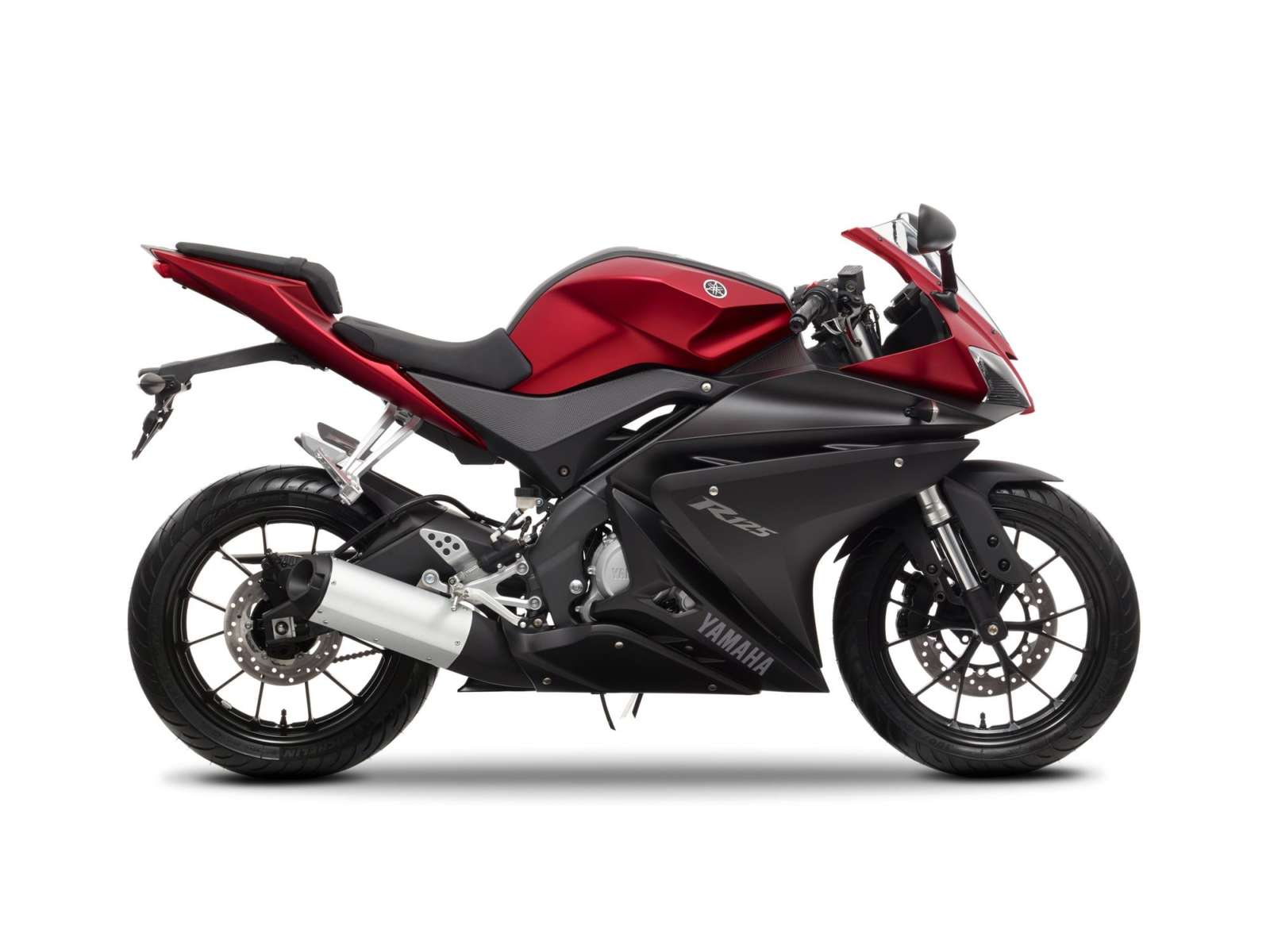

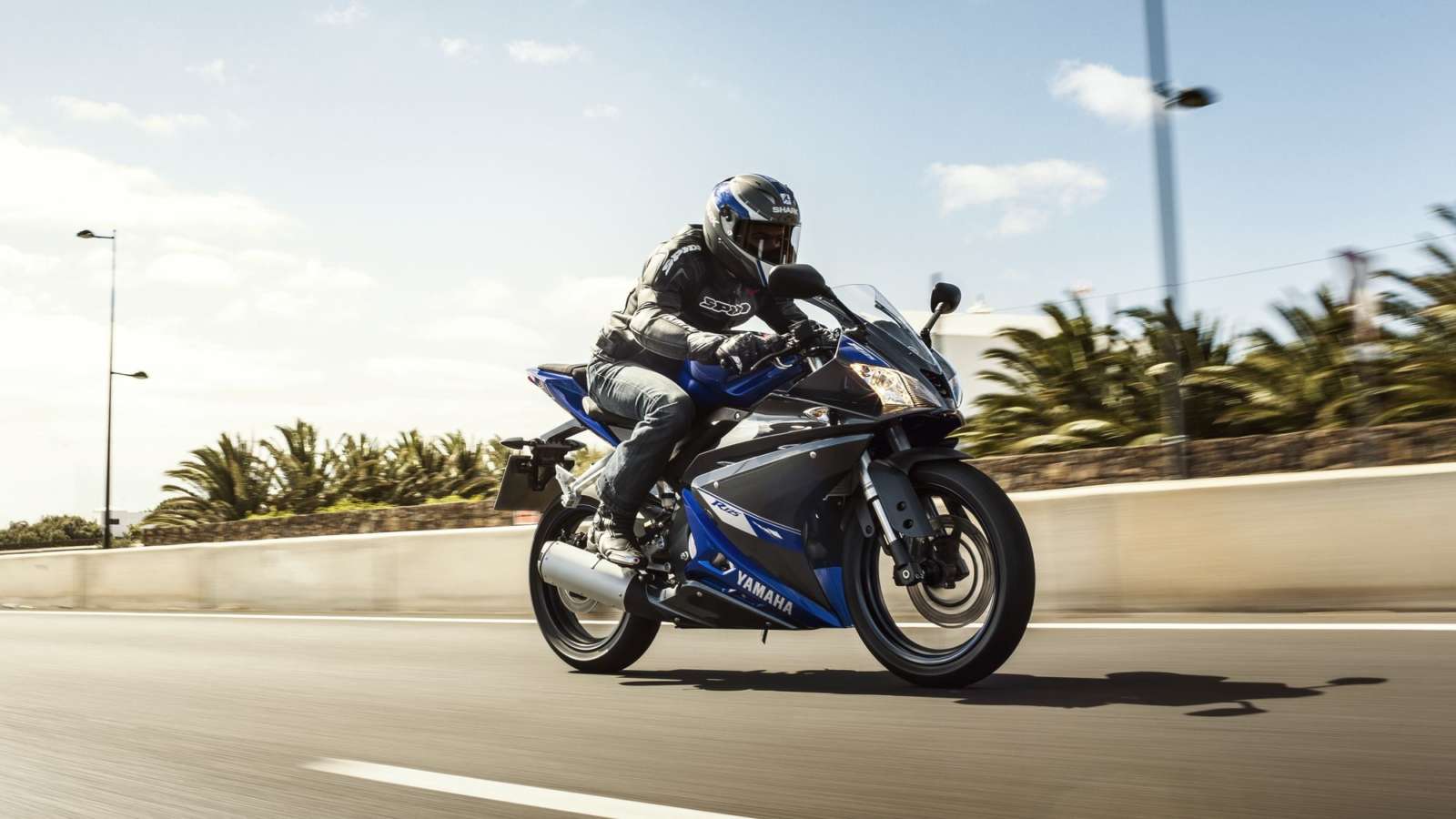

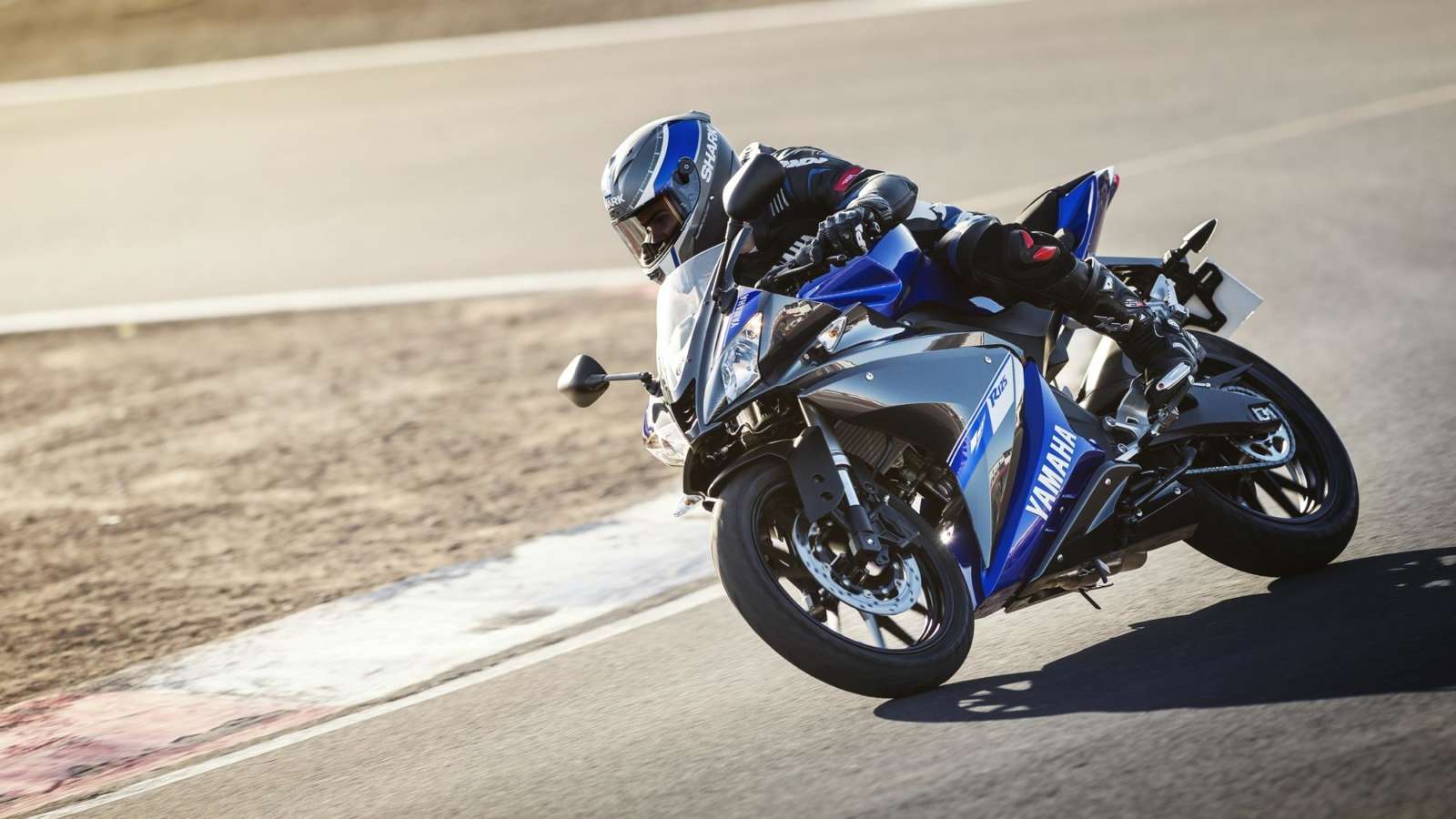

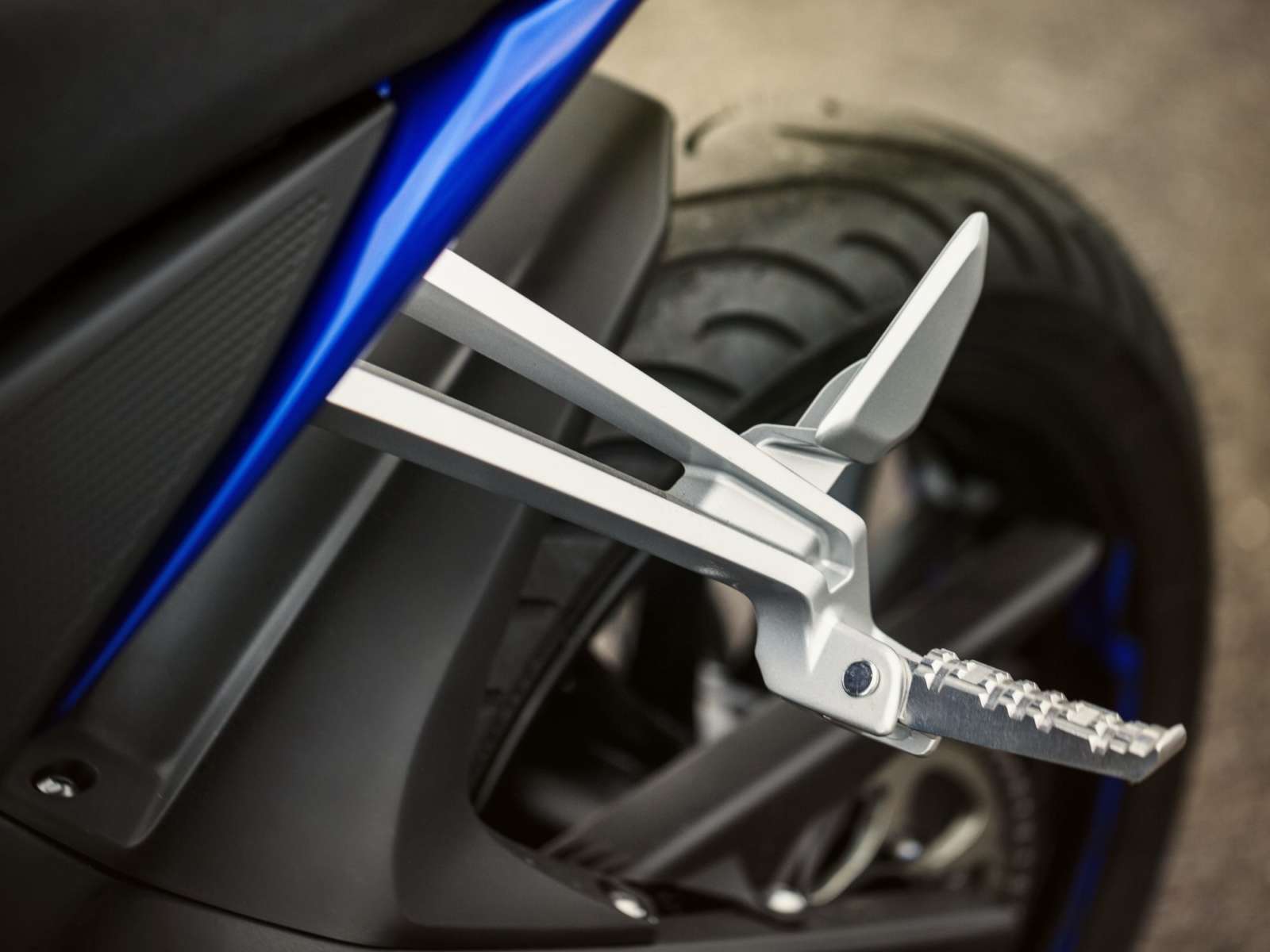

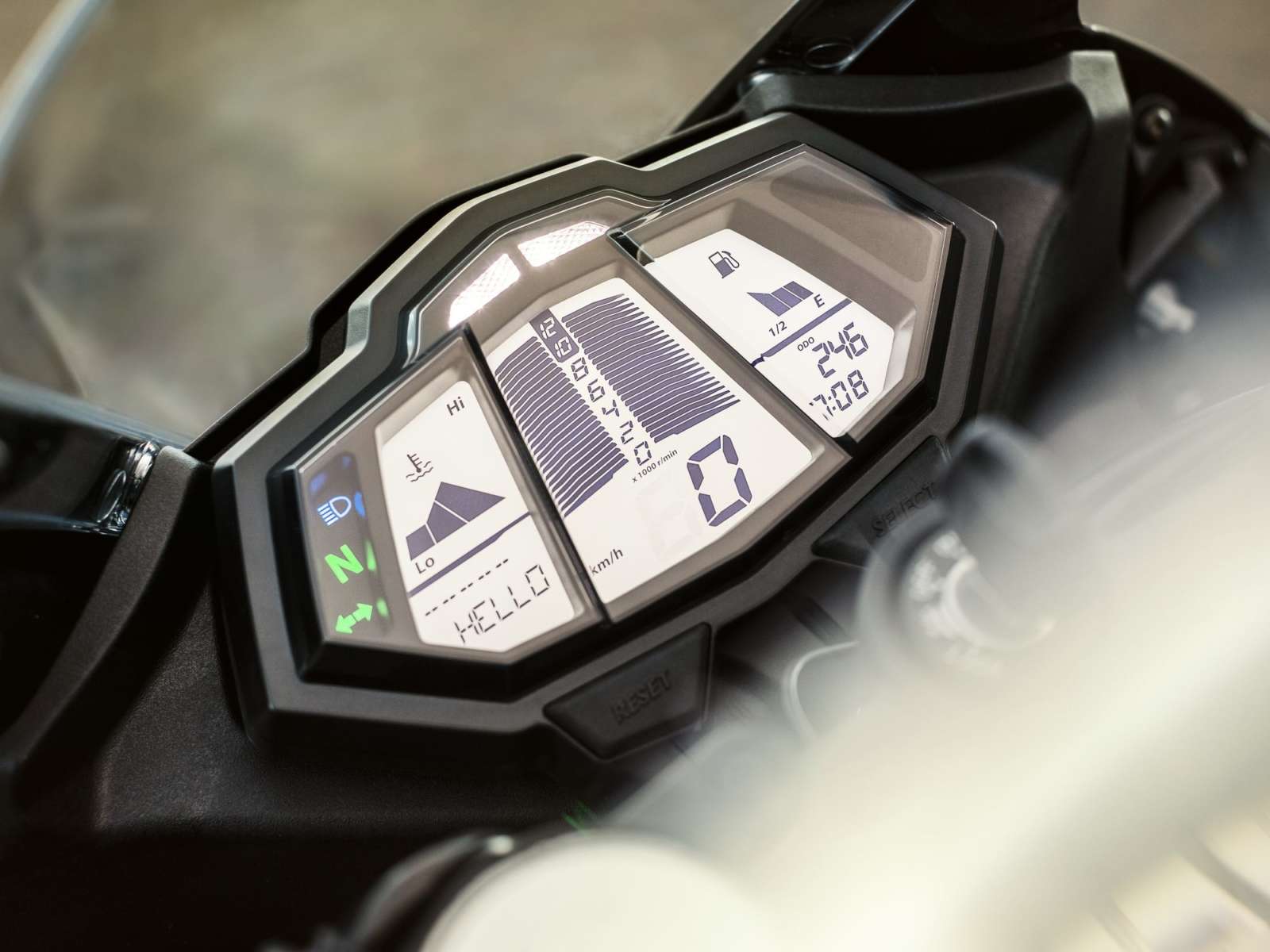

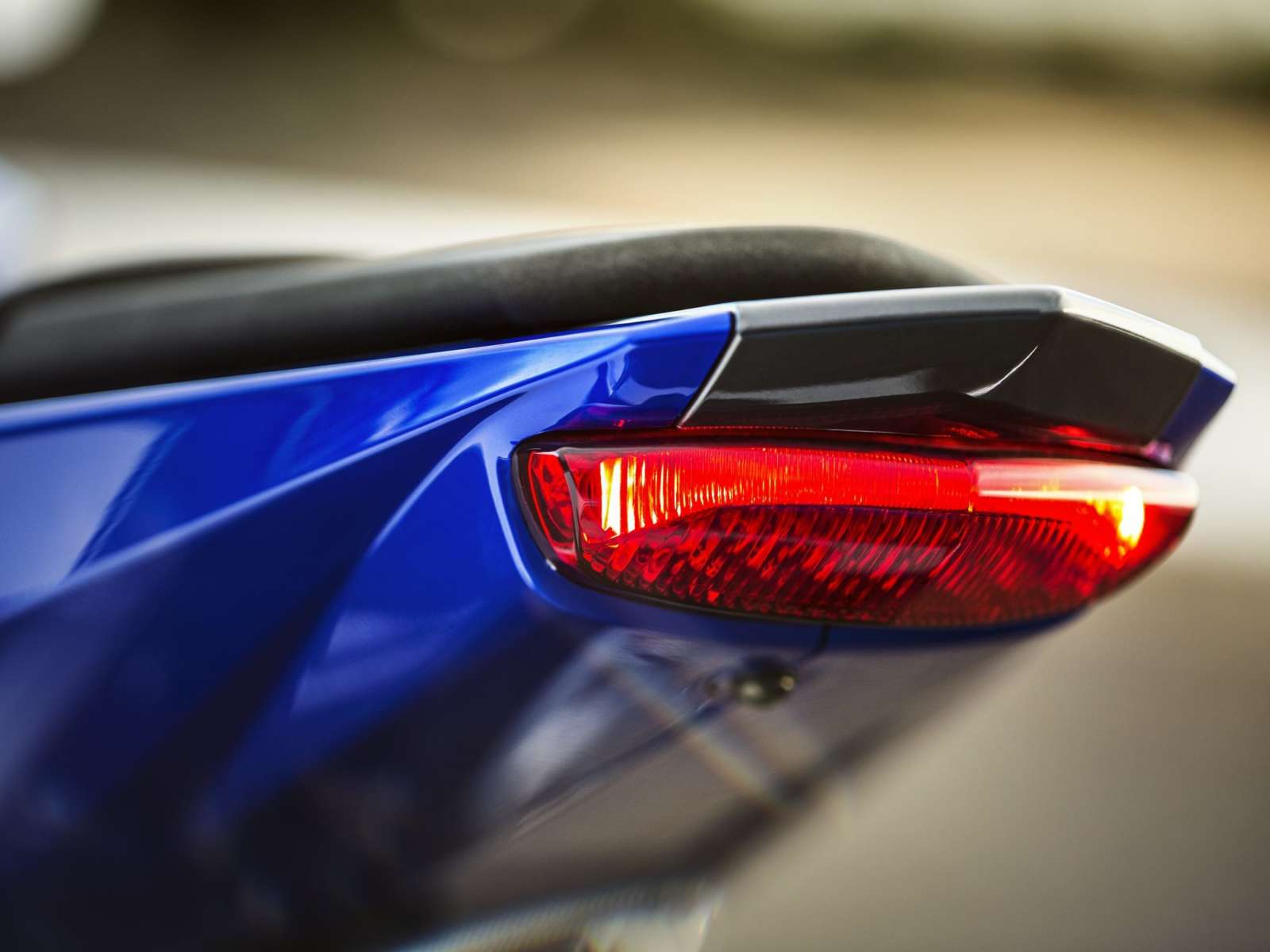

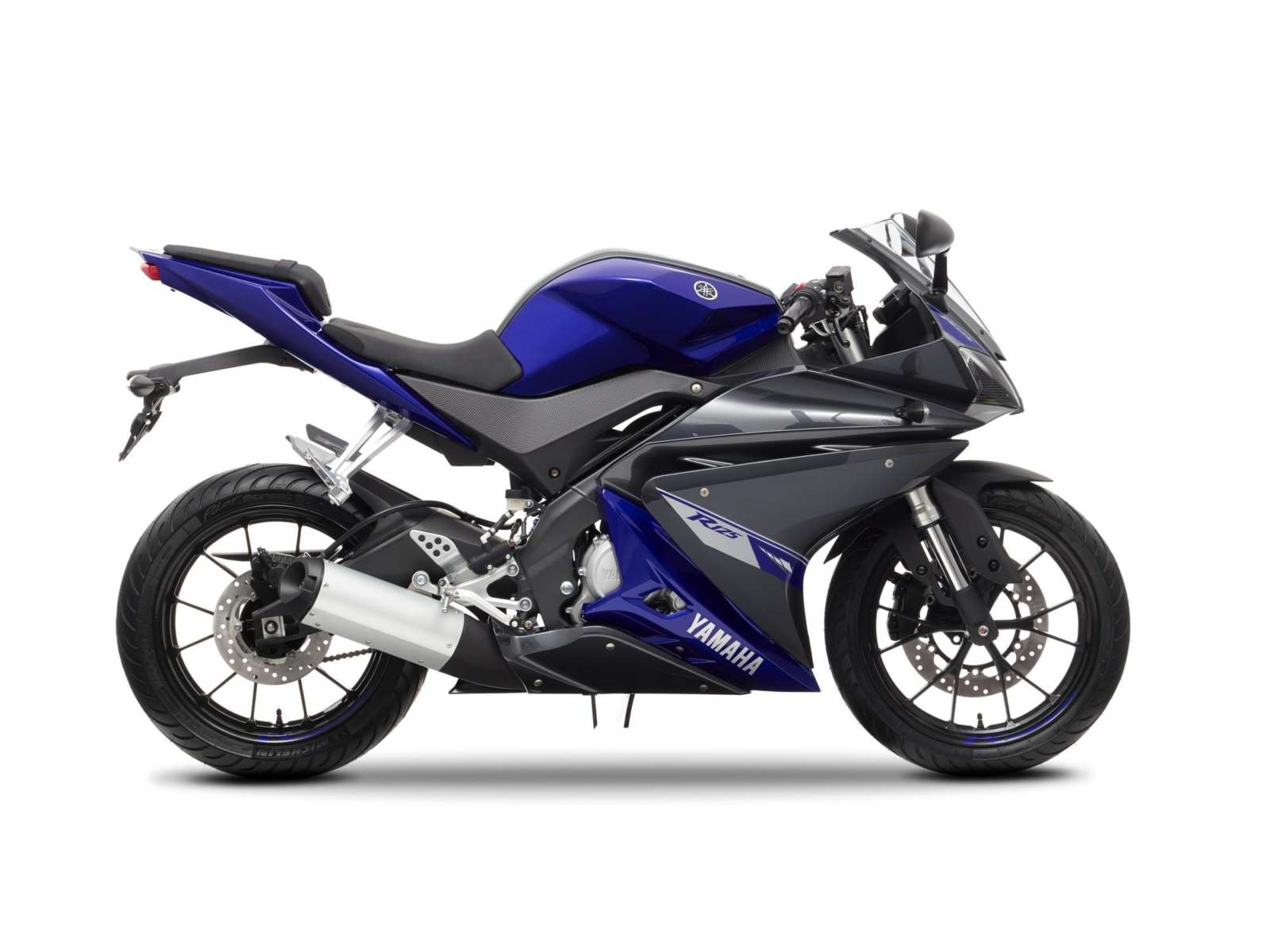

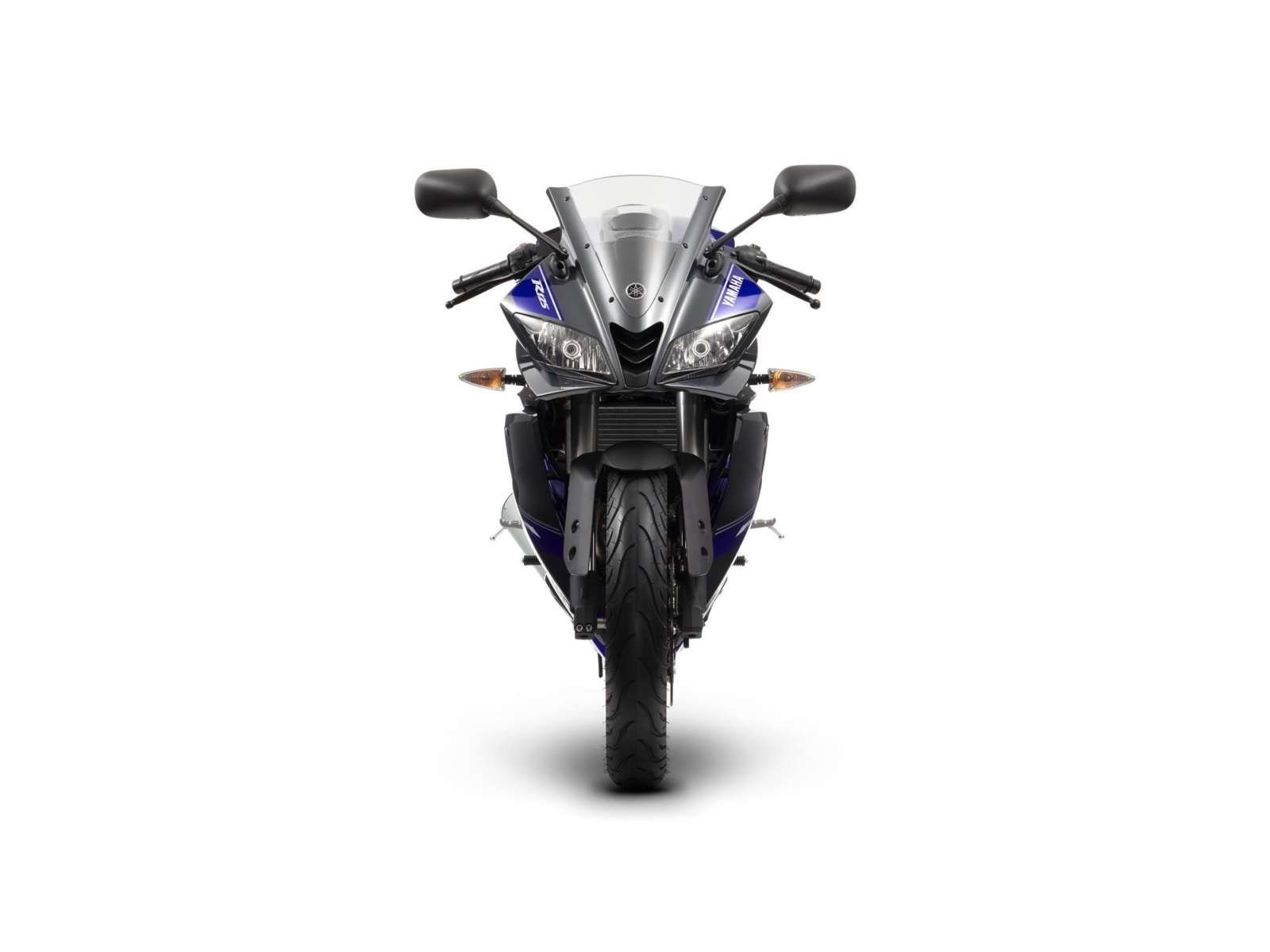

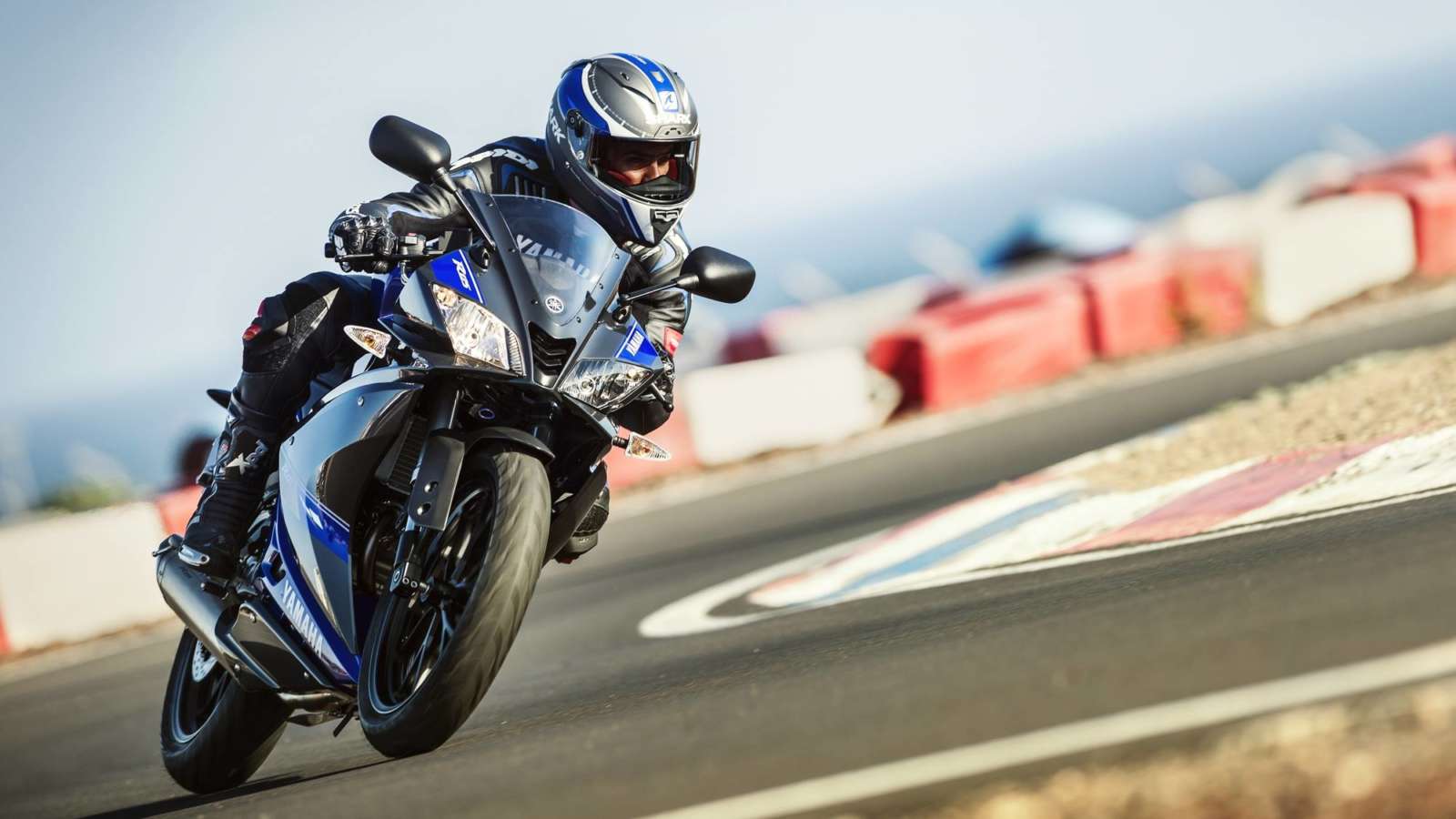

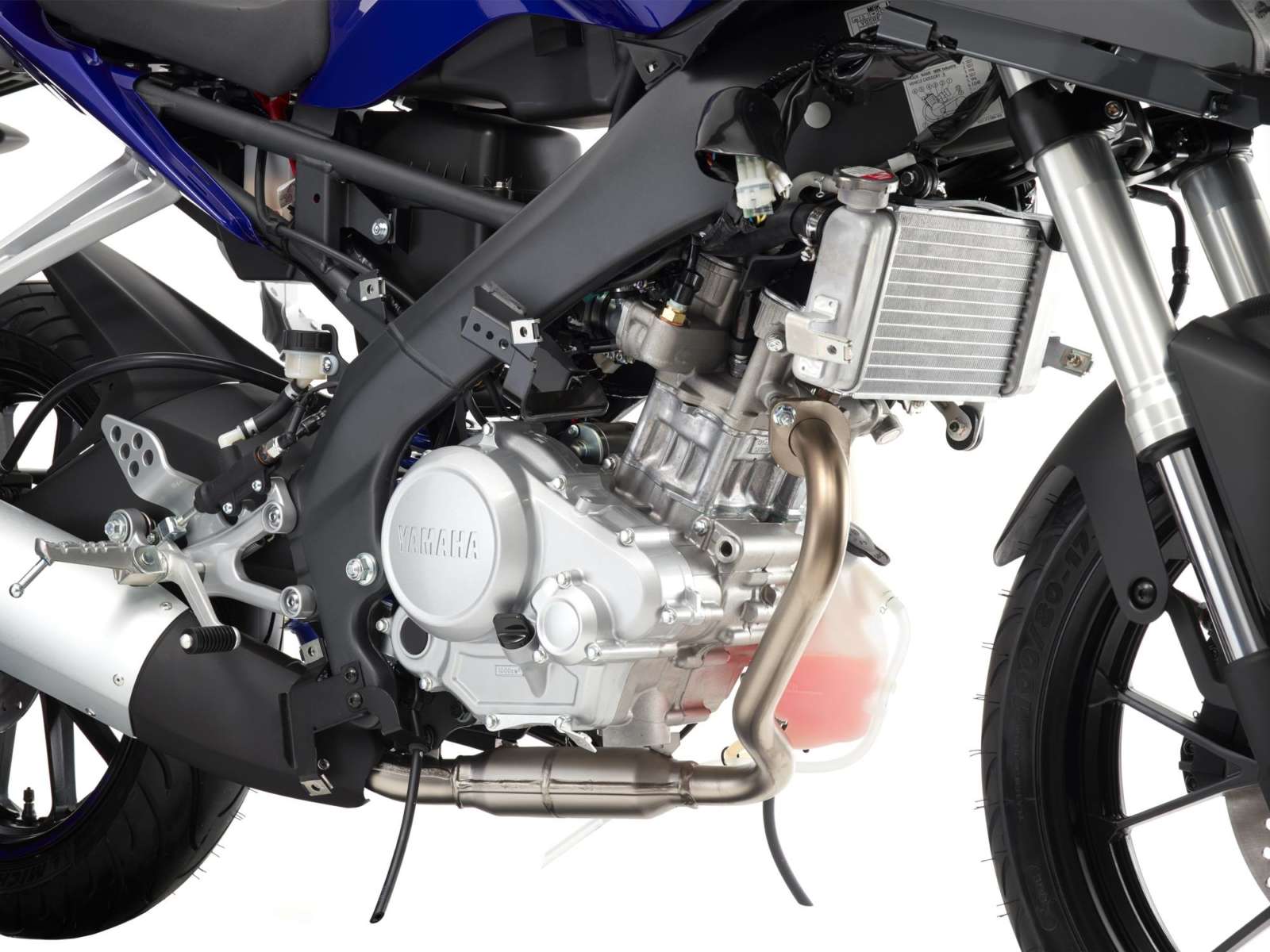

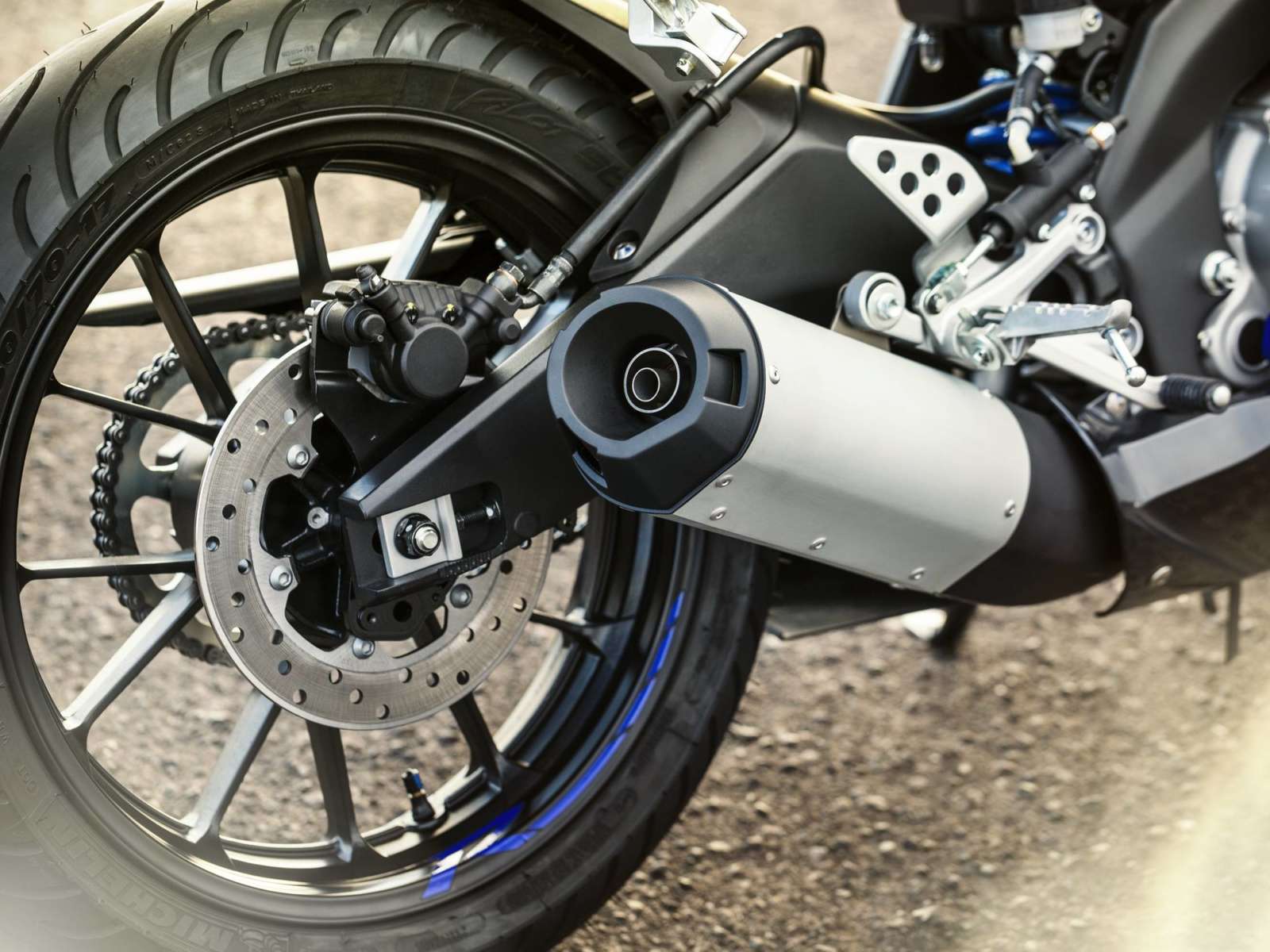

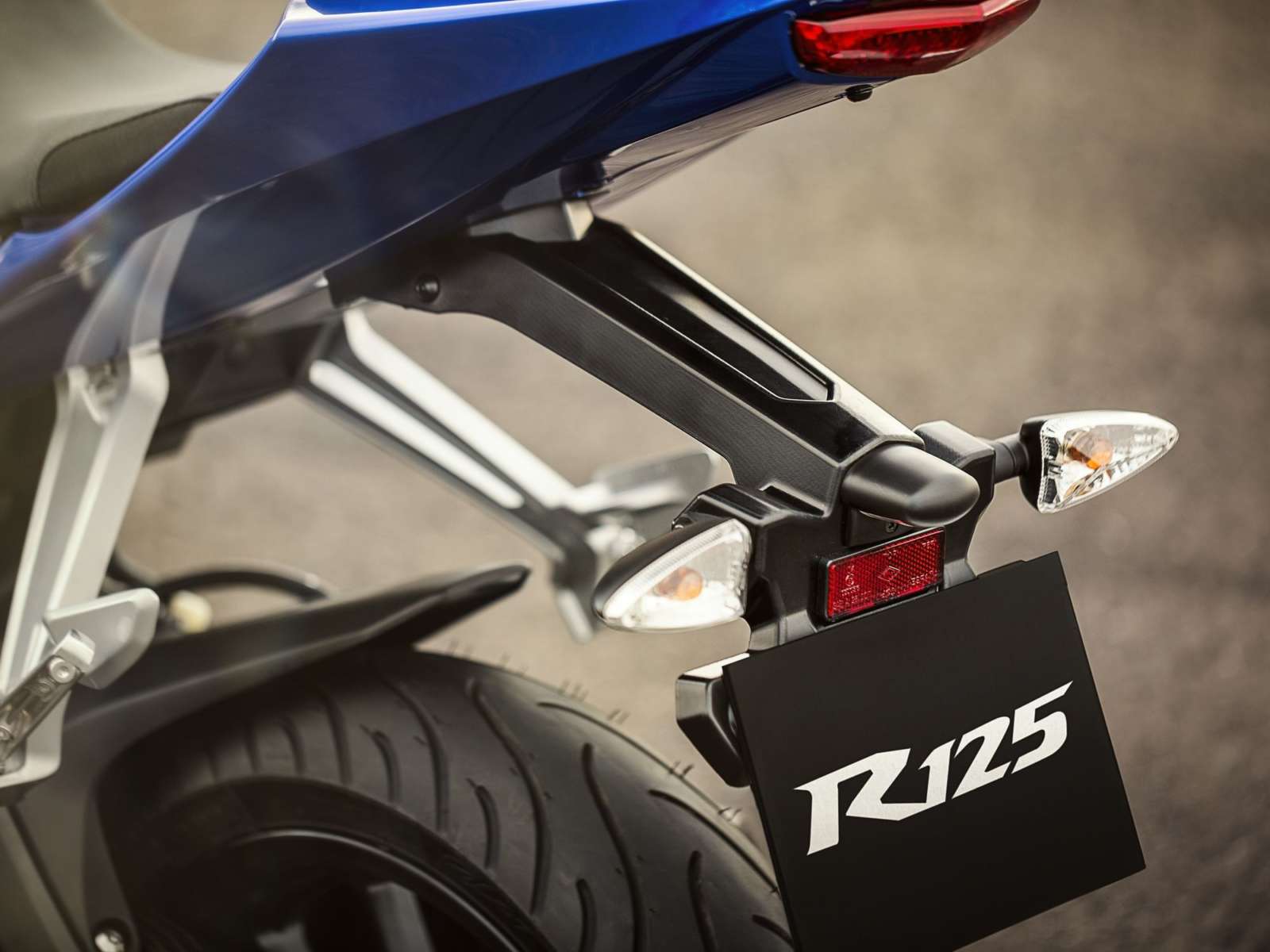

2014 Yamaha R125 Images
